Overview

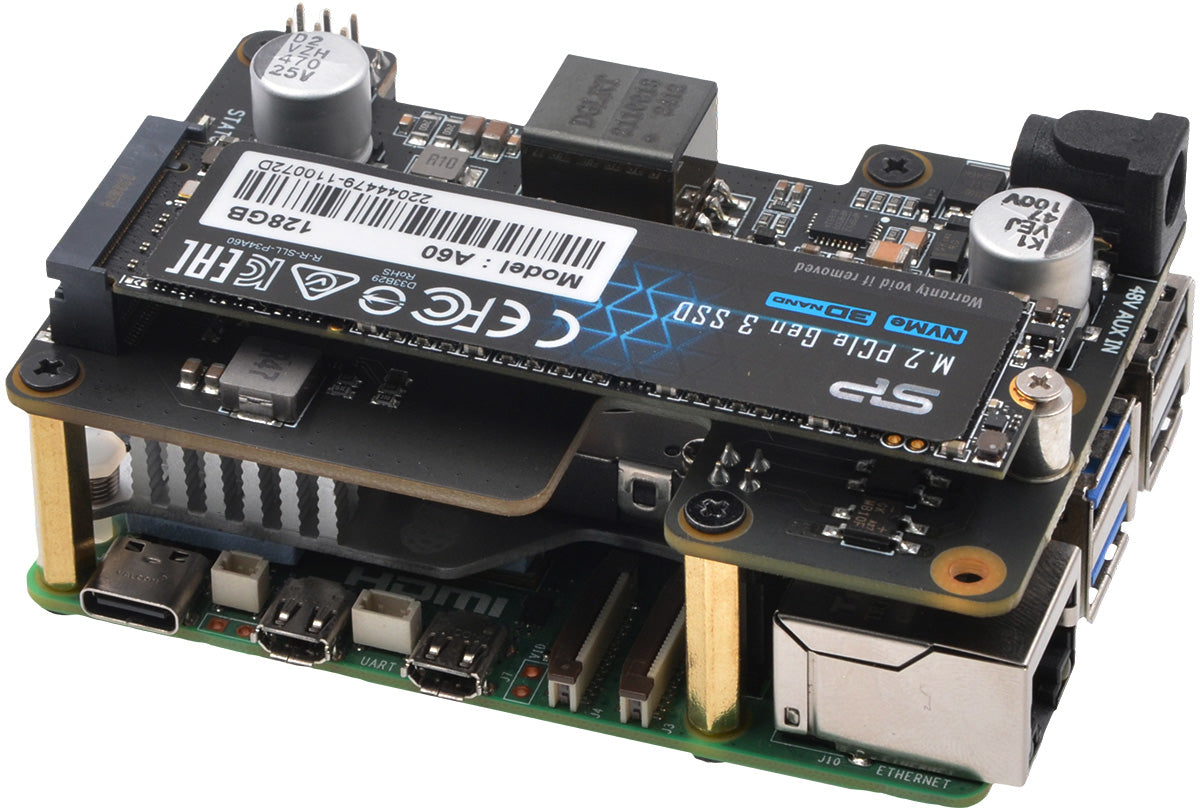

The X1012 NVMe+POE shield is specifically designed to offer a reliable power source and enhance storage capabilities for the Raspberry Pi 5.

POE (Power Over Ethernet) refers to the ability to provide DC power for IP-based network devices while transmitting data signals at the same time without affecting the standard Ethernet cabling infrastructure.

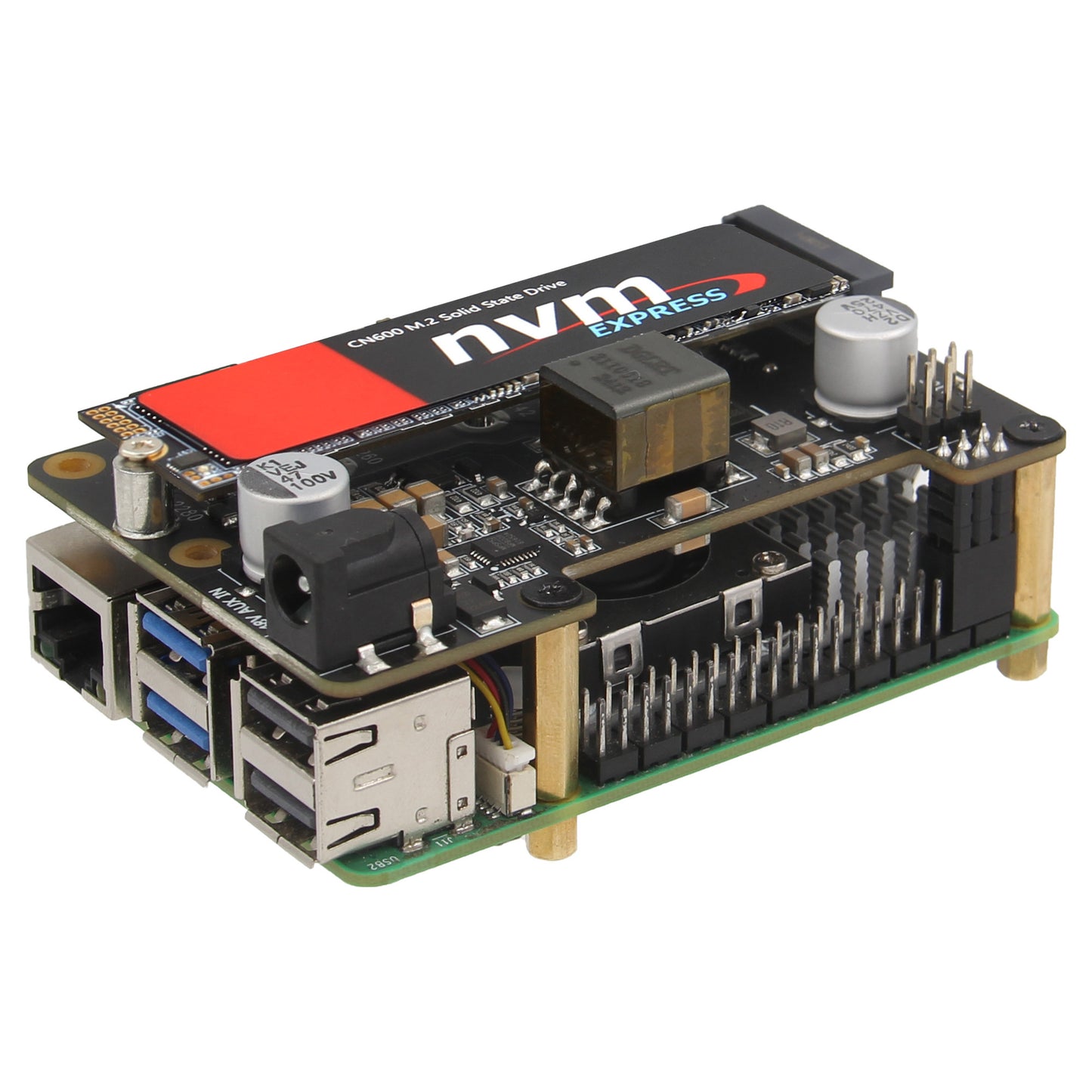

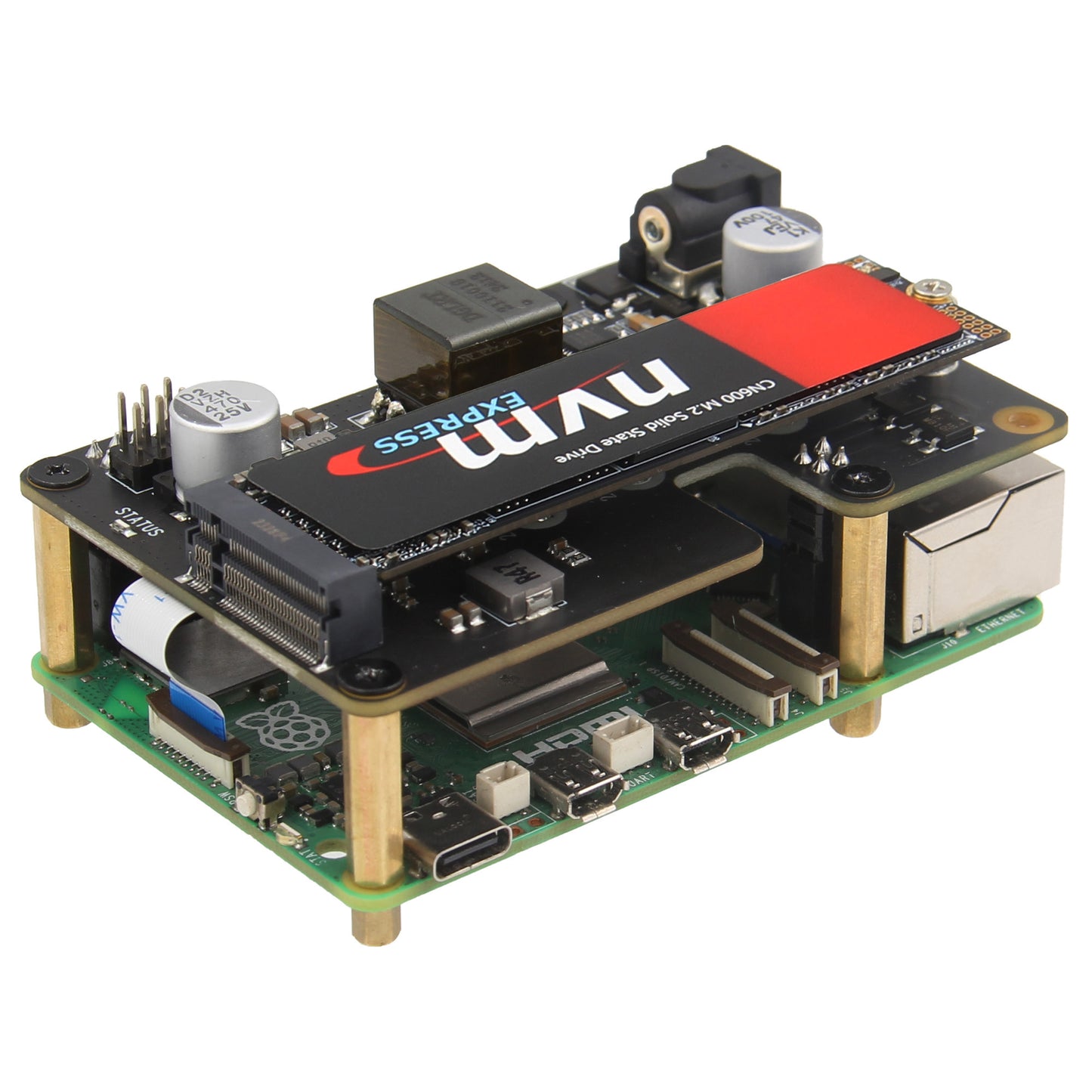

With its sleek and compact design, this shield allows for easy attachment of various M.2 SSD lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5. It supports booting the operating system from your SSD, leading to quicker application launches, web serving, and file copying.



User Manual: https://wiki.geekworm.com/X1012

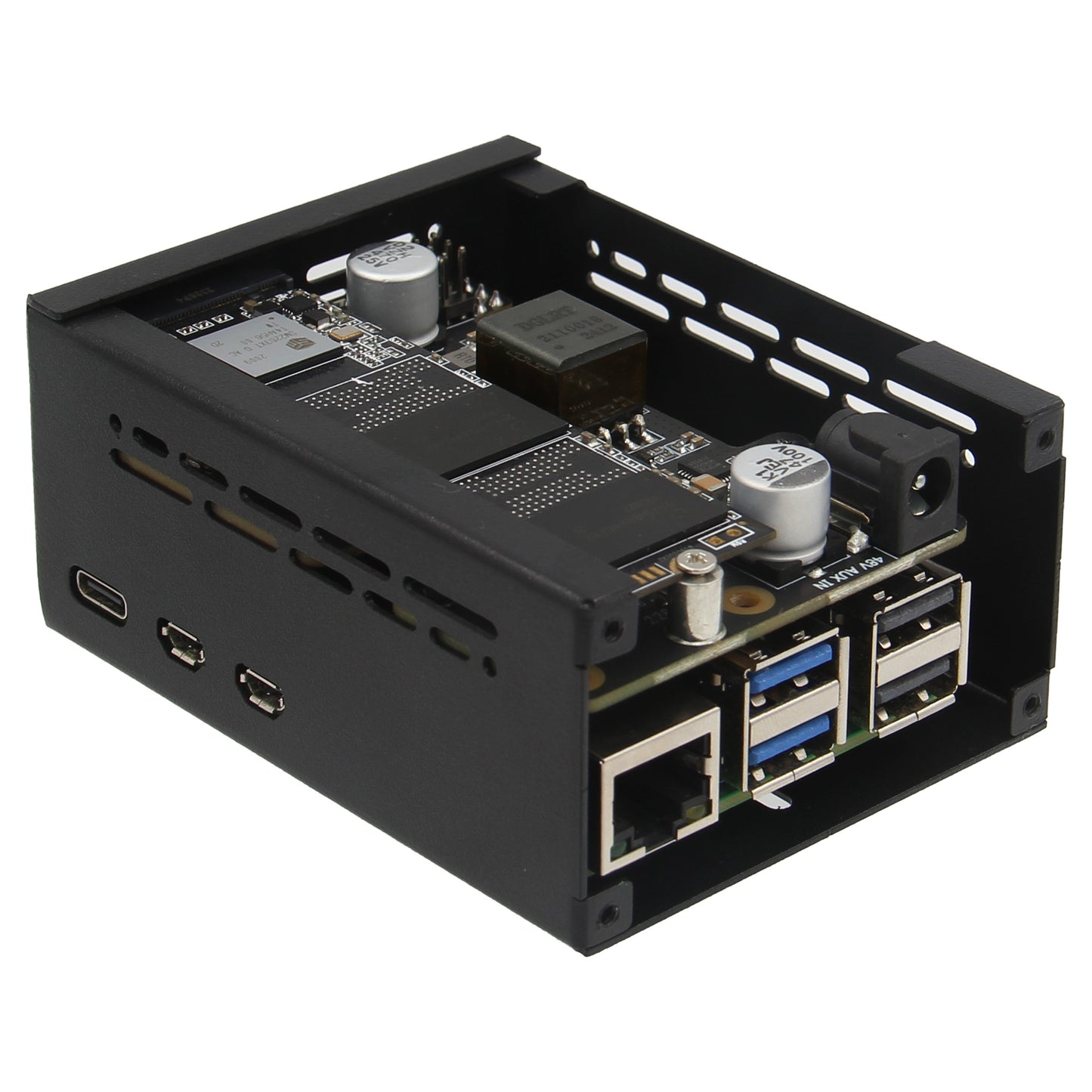

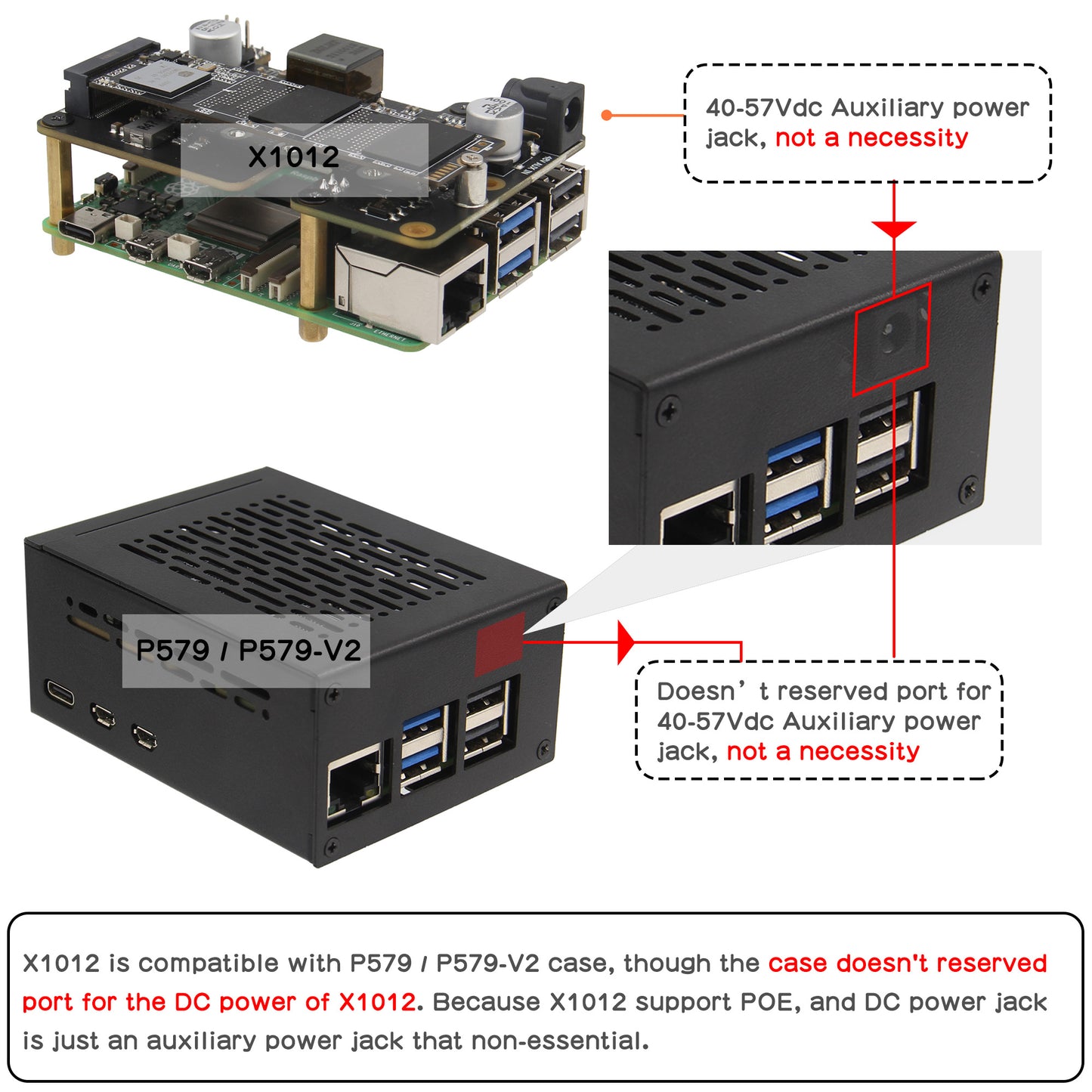

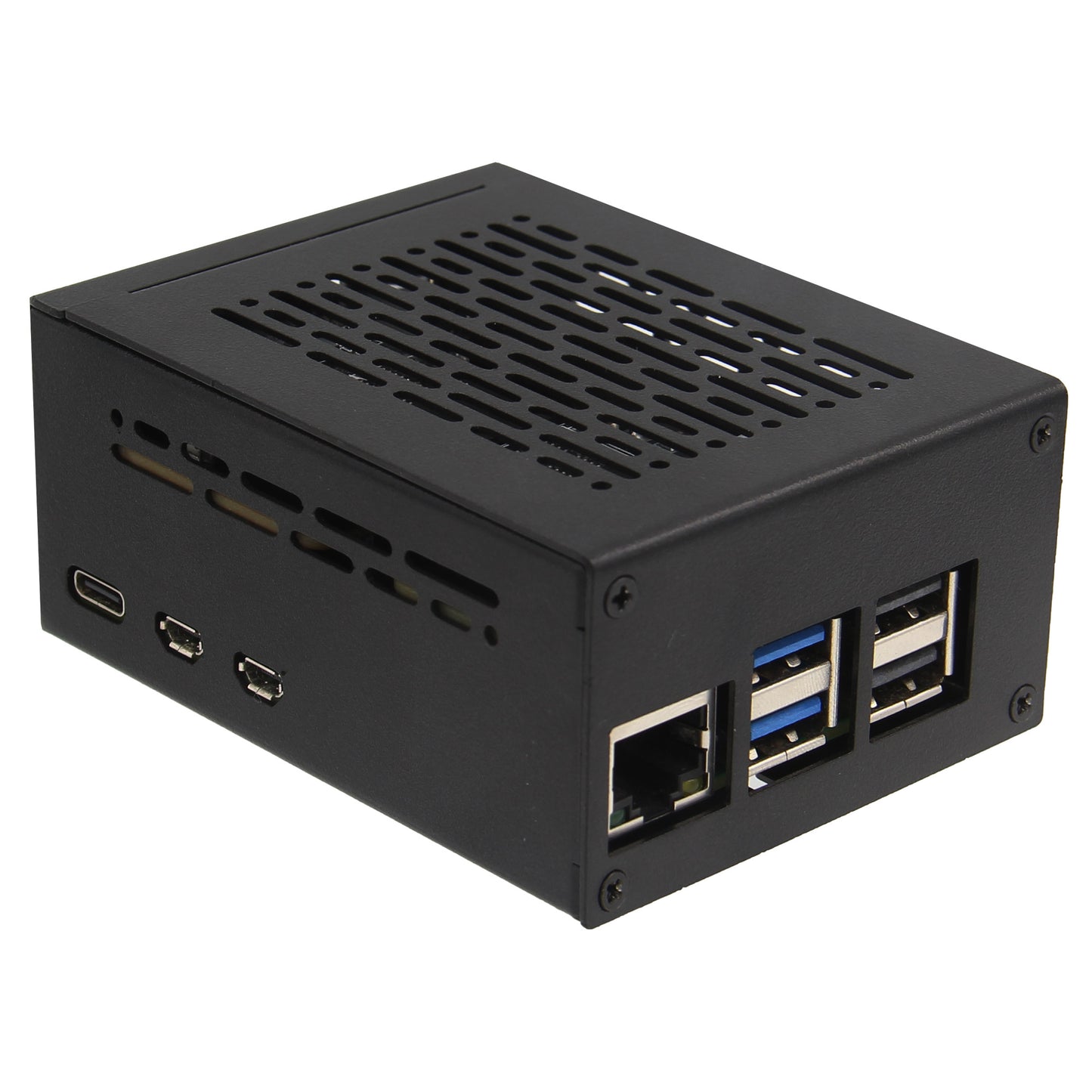

Matching Case: You can use the P579-V2, but the P579-V2 doesn't have a jack reserved for DC power for the X1012, but the POE power supply is sufficient, and the DC power supply is just a power supply aid, not a necessity.

Features:

For use with

Raspberry Pi 5
Key Features

POE

  • PoE Supported – Power over Ethernet for simplified installation
  • Fully isolated switched-mode power supply
  • Compatible with 802.3af/at Specifications
  • Supports 48V Auxiliary Adapter Supply
  • Input voltage: 37–57V DC, Class 4 device
  • Output power: 5VDC / 5A

NVMe

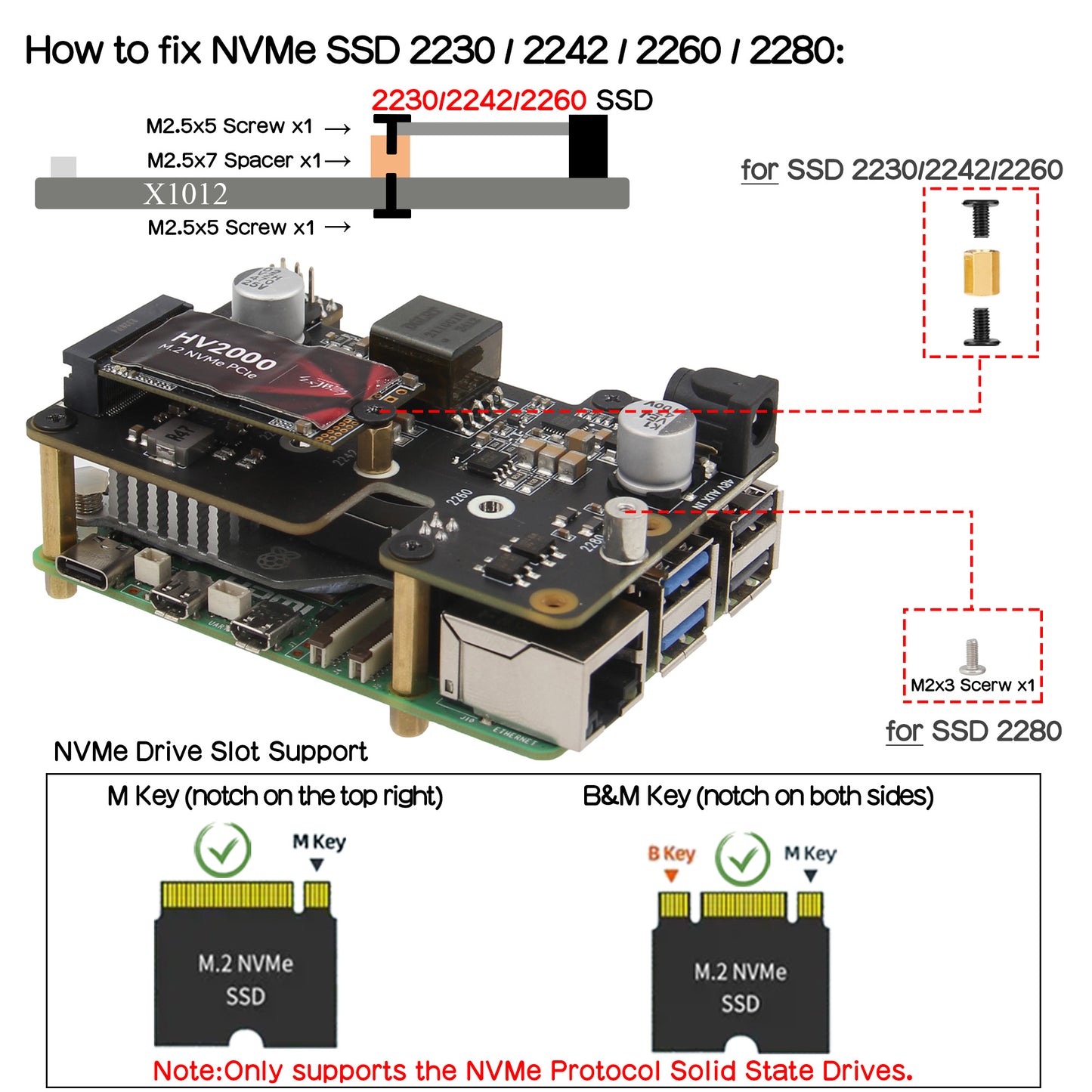

  • Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
  • Supports operating system booting from your SSD
  • Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps
  • Does not compromise cooling performance and is fully compatible with the official active cooler
  • Features a blue LED indicator that displays power and drive status
  • Equipped with an integrated high-efficiency DC/DC step-down converter, providing up to 5A of power for your SSD
Technical Specification

Power supply: 35-57VDC powering over Ethernet or 40-57Vdc via Auxiliary power jack

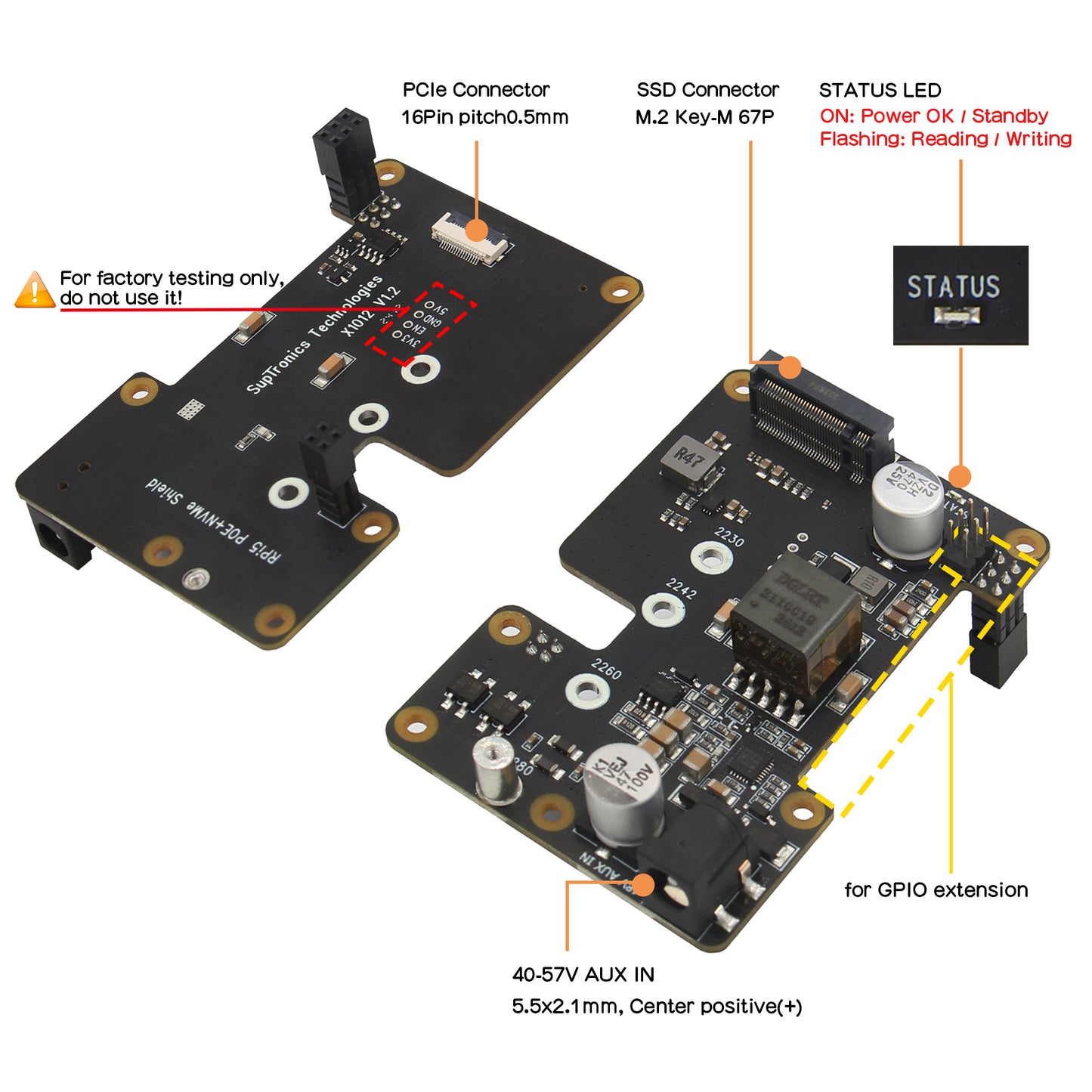

Ports & Connectors:

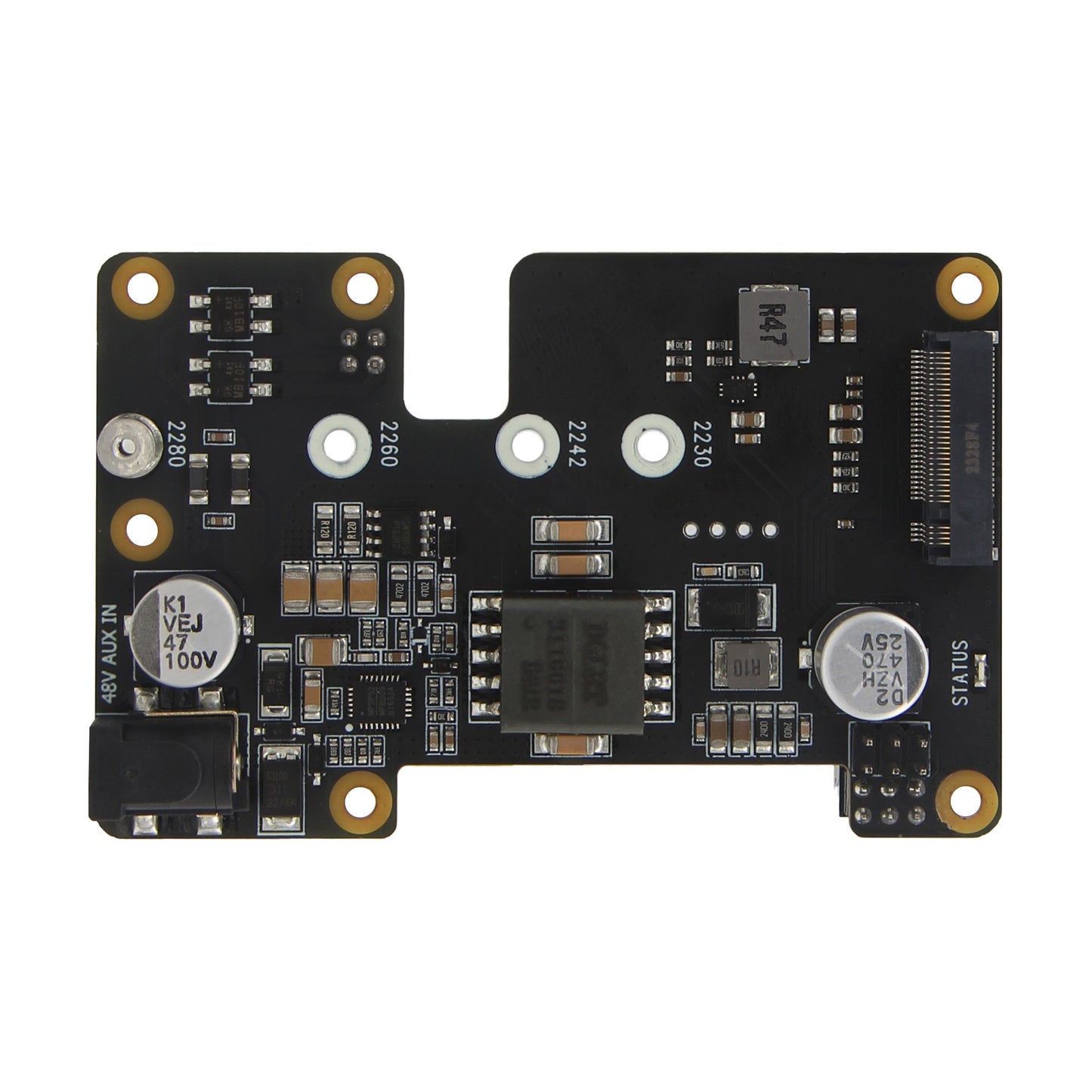

  • PCIe connector - 16-pin pitch0.5mm
  • SSD connector - M.2 KEY-M 67P
  • AUX power jack - 5.5x2.1mm, Center positive(+)

PCIe cable length: 30mm

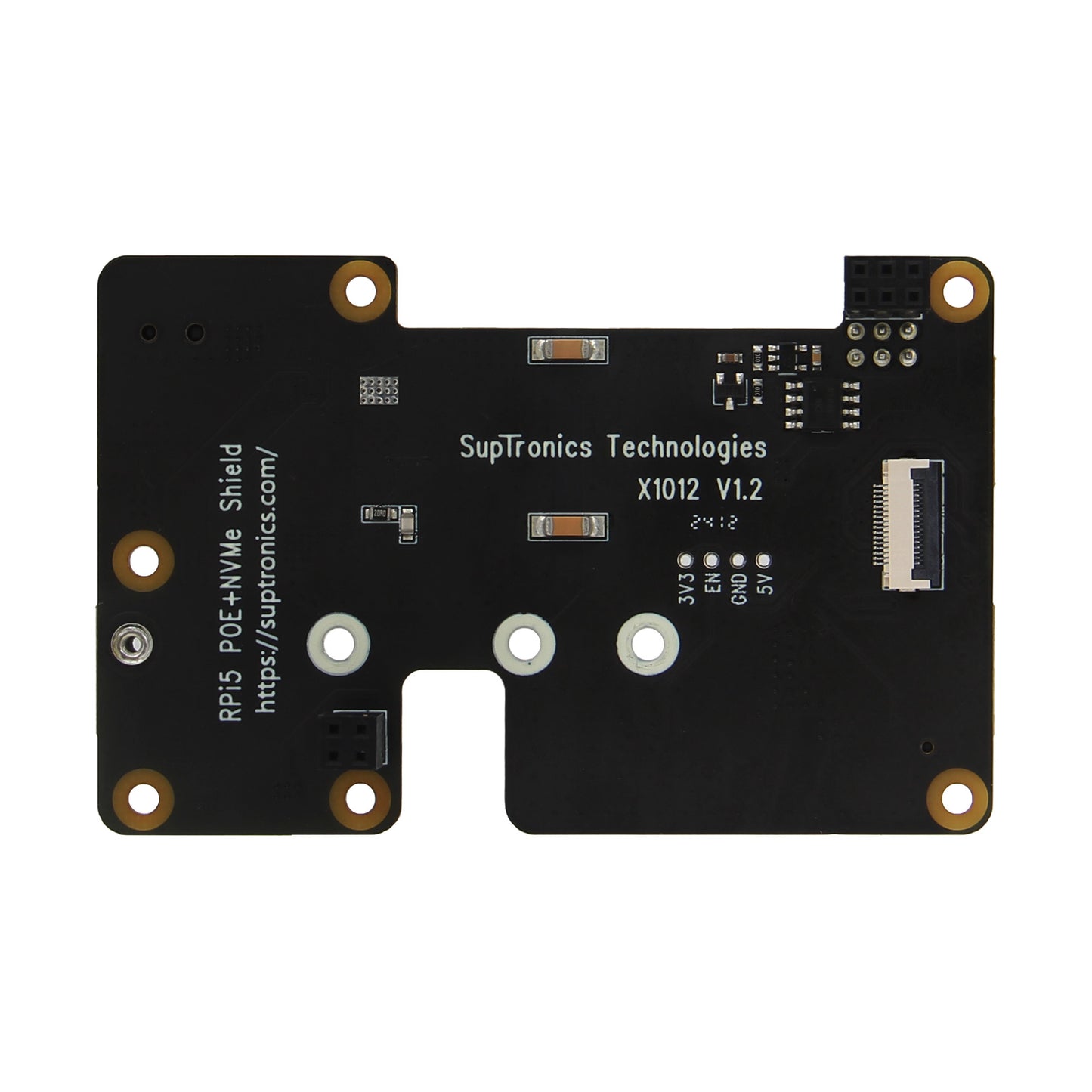

PCB Size: 87mm x 56mm

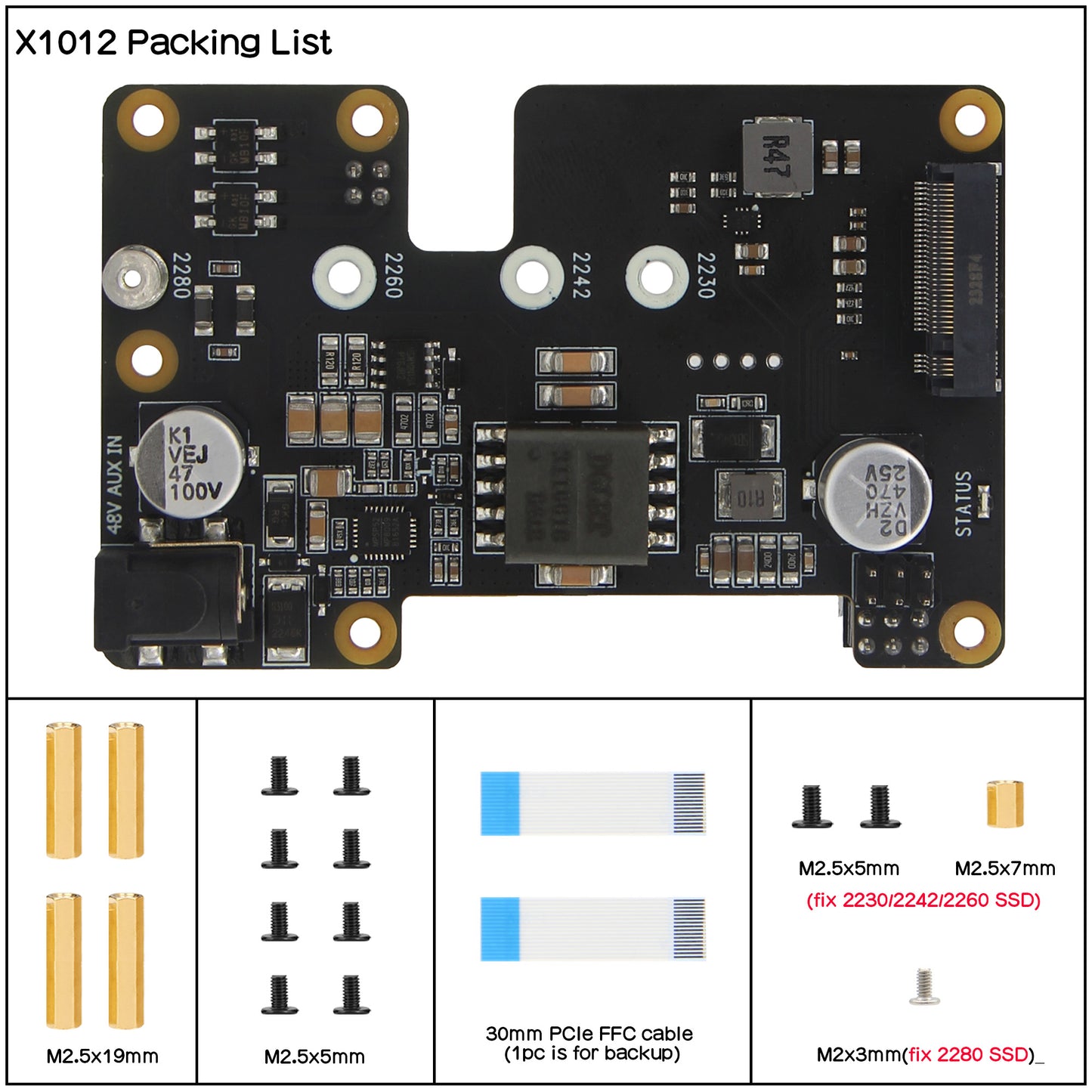

Packing List

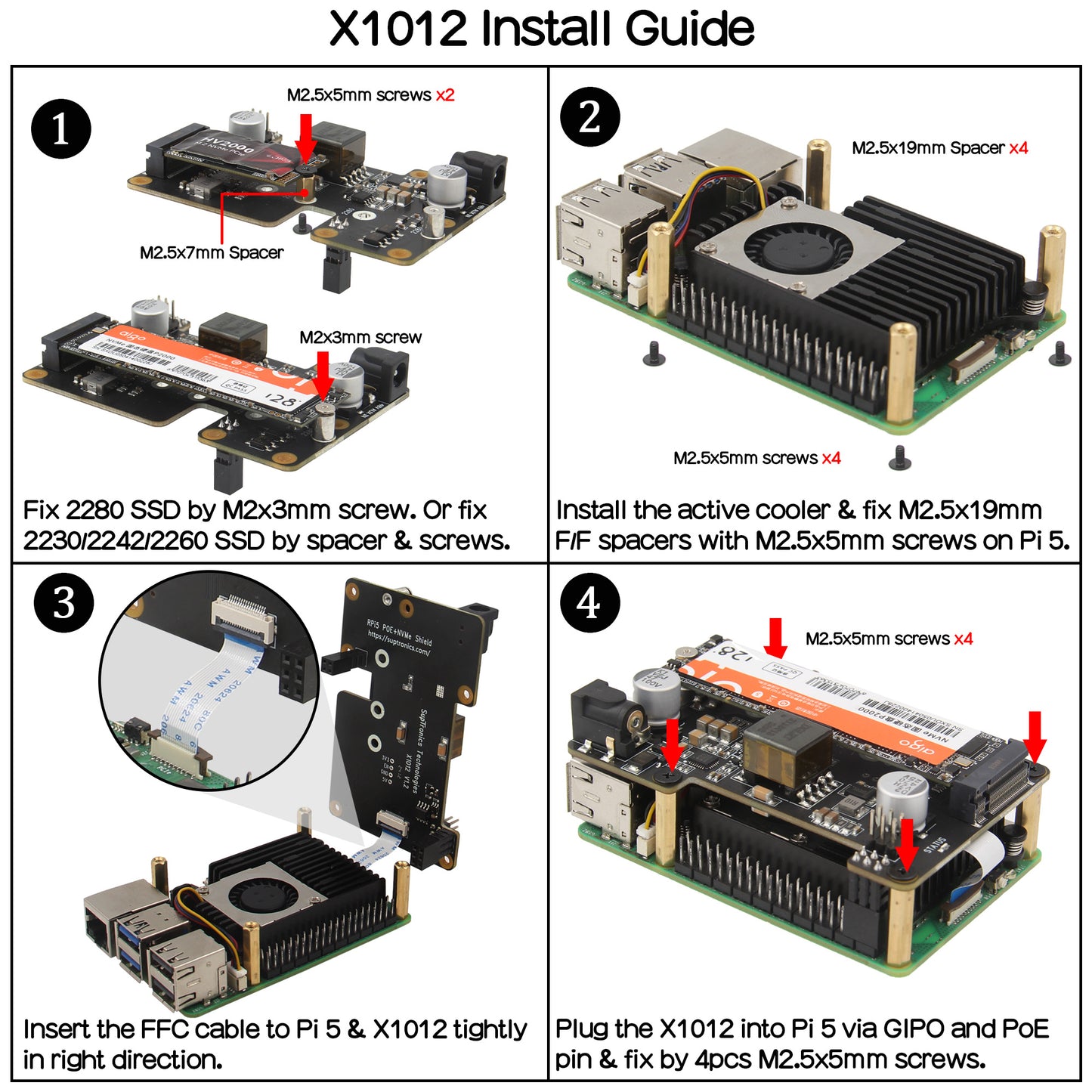

  • 1 x X1012 V1.2 NVMe with POE shield
  • 2 x PCIe FFC (30mm length, Provides a backup)
  • 10 x M2.5*5mm screws
  • 4 x M2.5*19mm F/F Spacer
  • 1 x M2.5* 7mm F/F Spacer (And two M2.5*5mm screws to fix the 2230/2242/2260 SSDs)
  • 1 x CM2x3mm screw (sliver color, to fix 2280 SSD only)

Refer to: https://wiki.geekworm.com/X1012

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.
  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
