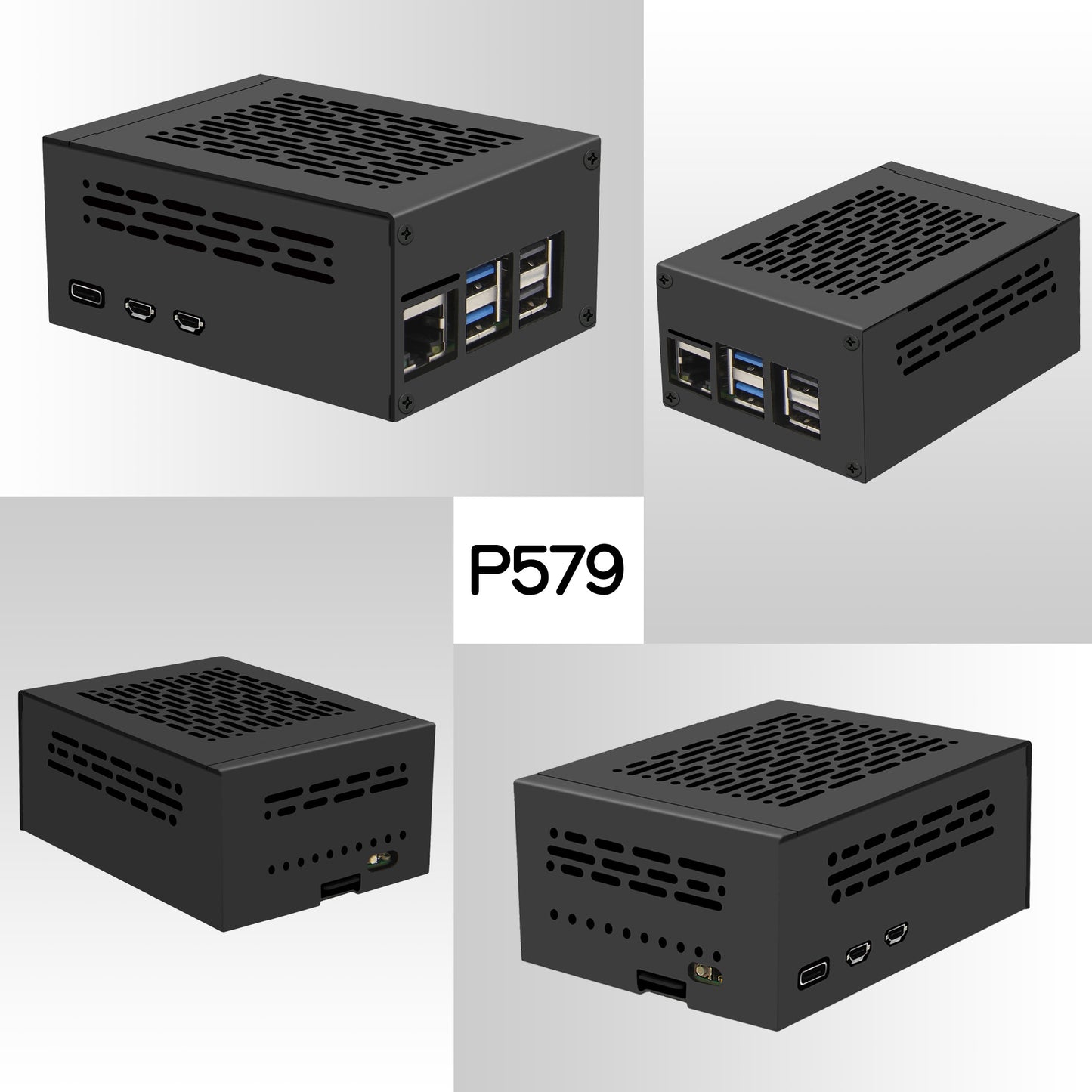

Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200
Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200

    Geekworm P579 Raspberry Pi 5 PCIe Metal case Compatible with X1001/X1000/X1003/X1004/X1015/M300/M400/Q200

    $14.00 $16.00

      Overview

      The biggest reason for its creation is to support the top PCIE to M2 NVME shield. Apart from this, even if you don’t have a PCIE to M2 NVME board now, it is also compatible with Raspberry Pi 5 and raspberry pi 5 official cooler, but a PCIE to M2 NVME shields like X1000, X1001 or X1002 or X1003  or X1004 or X1015 is recommended.

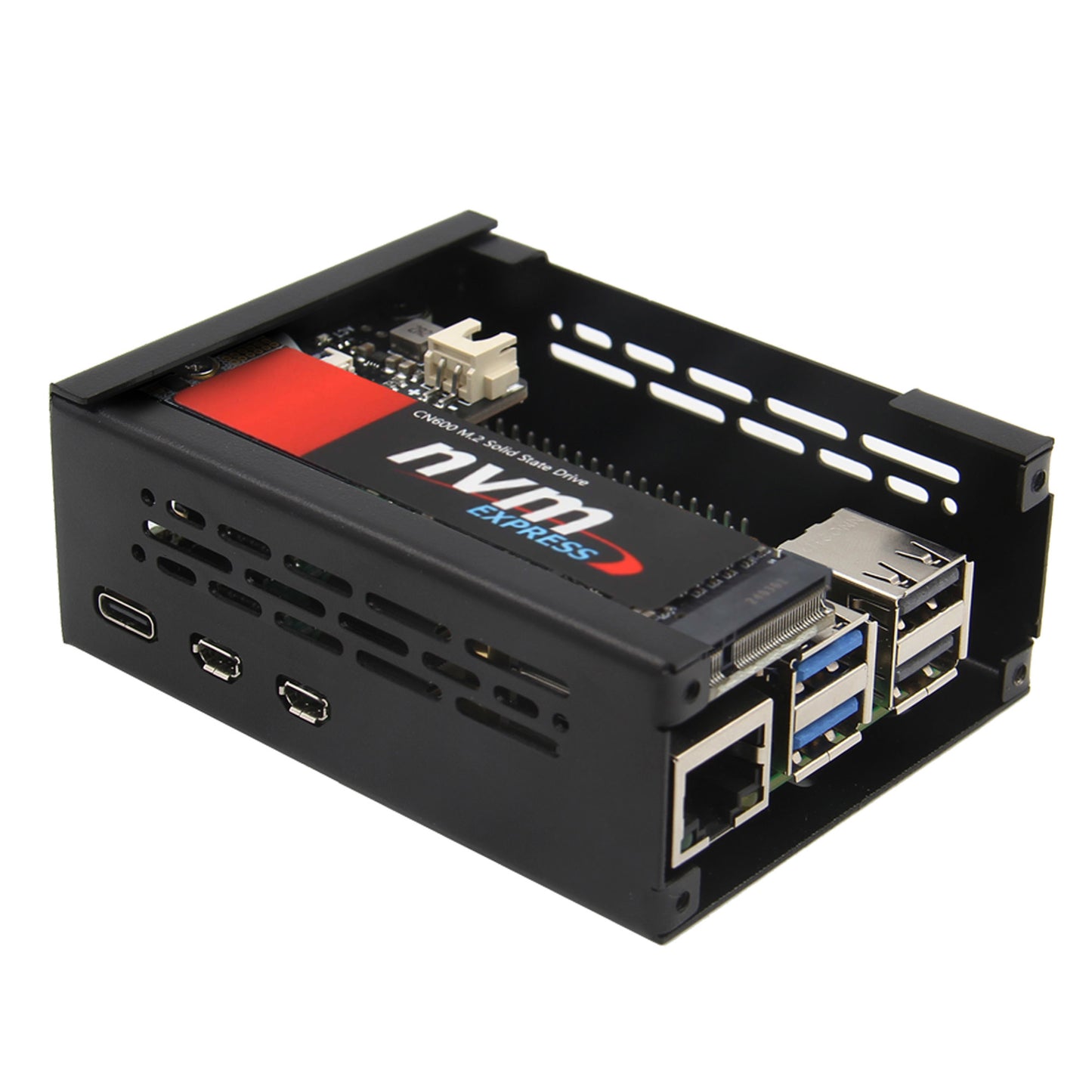

      The P579 is not only suitable for Geekworm PCIe to NVME series boards, but also compatible with third-party PCIe to NVME boards. The unique cut-out design on the front of the case also meets the LED display requirements of most third-party PCIe to NVME boards, and the only thing you need to pay attention to is the height of the copper spcer used by third-party PCIe to NVME boards, which is no more than 17mm in height.

      But please note: since X1002 is a bottom PCIE to M2 NVME shield, so P579 case is not compatible with it, but you can look forward to our P580 case, which is specially designed for X1002.

      The difference between P579-V2 and P579:
      The P579-V2 is just 5mm taller than the P579, there will be more space between the top cover and the NVME board which is helpful for some specific thicker NVME SSDs for mounting an SSD cooler, and the P579-V2 is also compatible with the X1004 shield but the P579 is not.

      Note: P579 is no longer in production, all shipments are P579-V2.

      User Manual: https://wiki.geekworm.com/P579

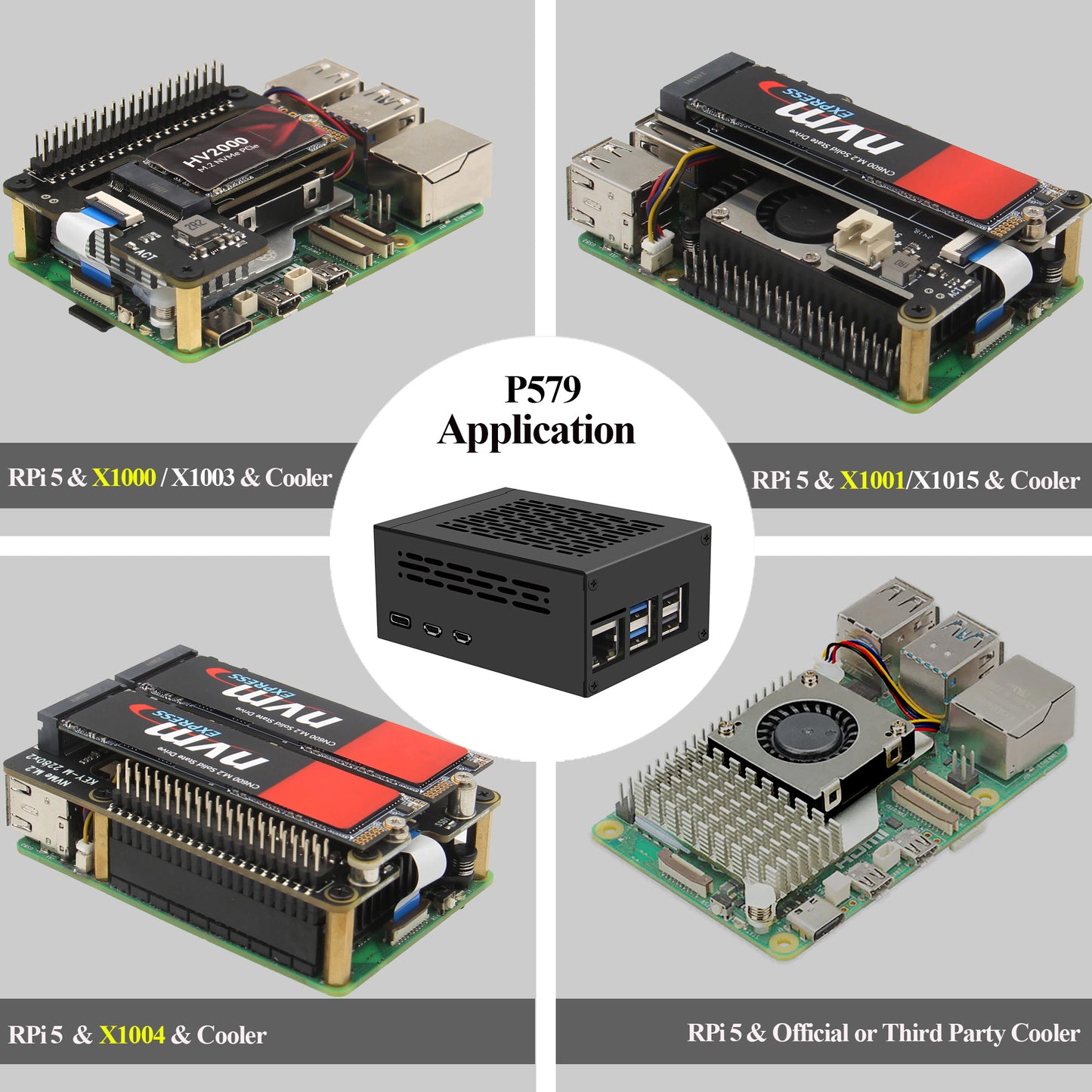

      Geekworm PCIe to M.2 NVME Shield Sets:

      Model Compatible with Matching Case Matching Cooler Supported SSD lengths Mounting Position
      X1000 Raspberry Pi 5 P579 Geekworm Cooler / Official Cooler / Argon THRML Cooler 2230/2242 Top
      X1001 Raspberry Pi 5 P579 Geekworm Cooler / Official Cooler / Argon THRML Cooler 2230/2242/2260/2280 Top
      X1002 Raspberry Pi 5 P580 Geekworm Cooler / Official Cooler / Argon THRML Cooler 2230/2242/2260/2280 Bottom
      X1003 Raspberry Pi 5 P579 / P425 / Pi 5 Official Case Geekworm Cooler (H501) / Official Active Cooler 2230/2242 Top
      X1004 Raspberry Pi 5 P579-V2 Geekworm Cooler / Official Cooler / Argon THRML Cooler Dual 2280 NVME Top
      M300 Raspberry Pi 5 P579 Geekworm Cooler / Official Cooler / Argon THRML Cooler 2230/2242 Top
      M400 Raspberry Pi 5 P579 Geekworm Cooler / Official Cooler / Argon THRML Cooler 2230/2242/2260/2280 Top


      Features:

      • Model: P579, P579-V2
      • Compatible with Raspberry Pi 5
      • Compatible with Raspberry Pi 5 official active cooler
      • Compatible with X1000/X1001/X1003/M300/M400
      • Easy to install, excellent heat dissipation

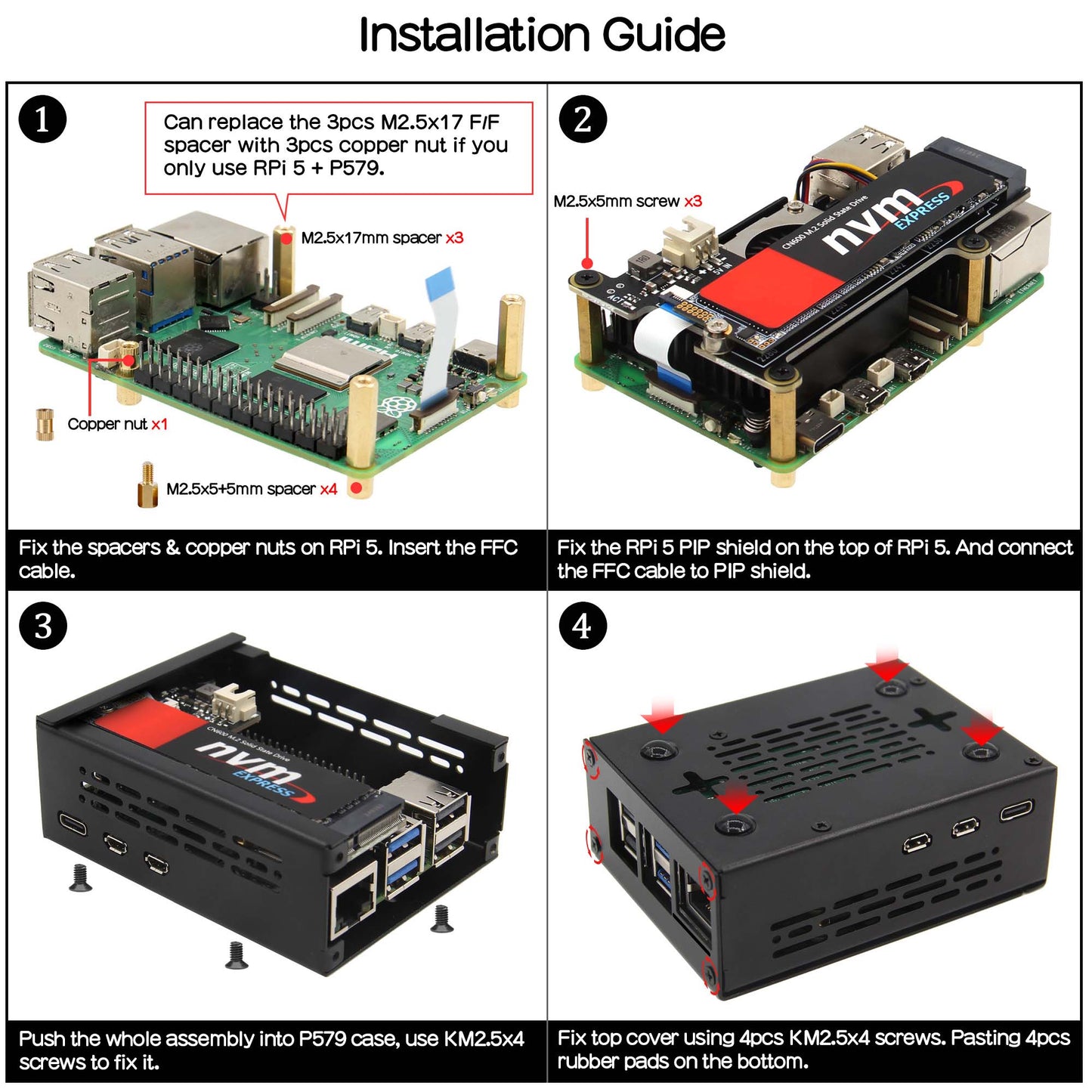

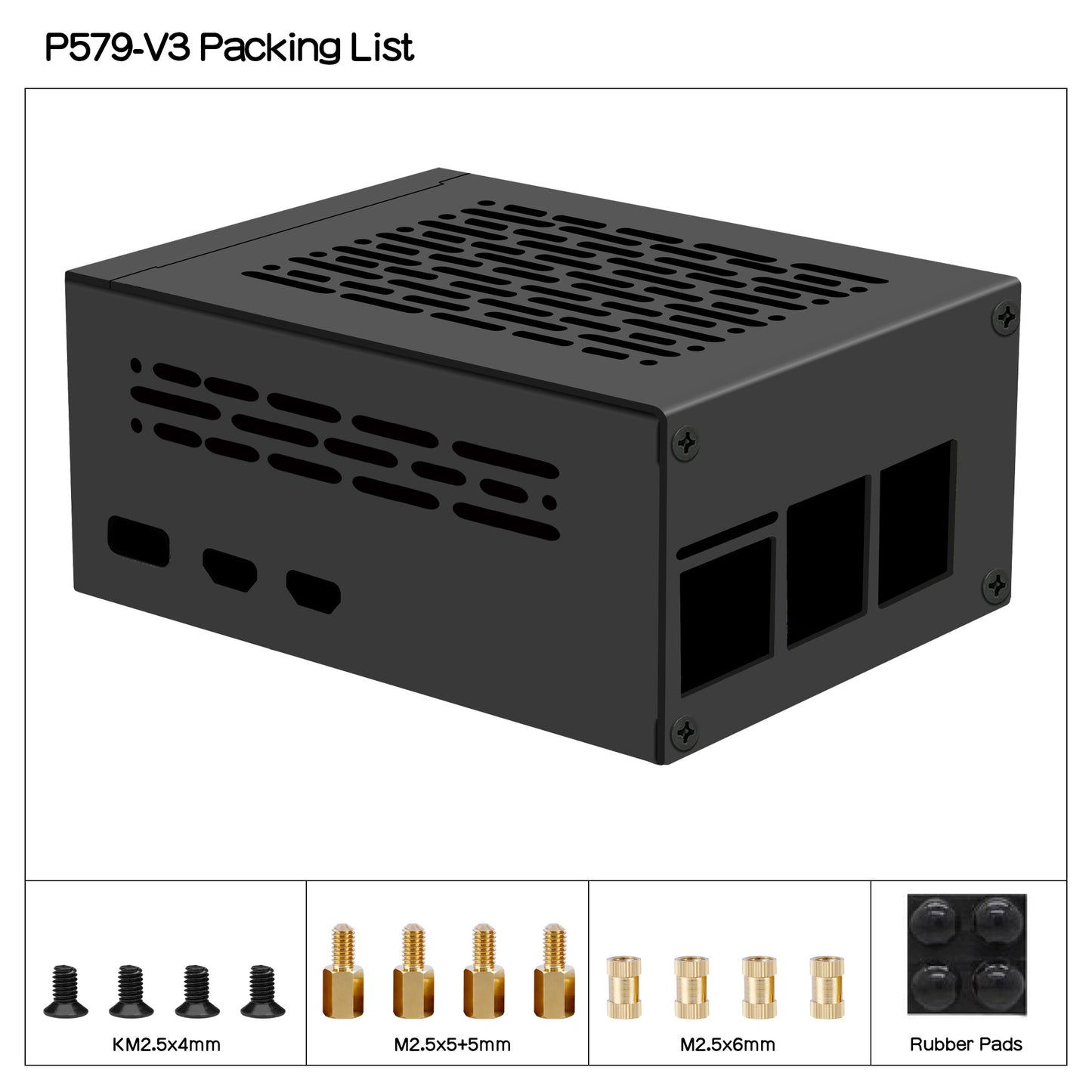

      Packing List

      • 1x Metal case P579
      • 4x M2.5x5+5mm spacers
      • 4x M2.5x6Ø4mm copper nuts
      • 4x KM2.5x4mm screws
      • 1x 4pcs rubber pads
