Geekworm X1011 PCIe to Four M.2 NVMe SSD Board for Raspberry Pi 5

Regular price
$50.00
Regular price
$52.00
Sale price
$50.00
-4%
Only 16 items in stock! Out of stock!
  • Description
  • Manual
  • PIPs
  • Shipping Policy
  • Reviews

Note:

  1. This is just a four NVMe SSD NAS solution. Support NVMe boot with the firmware EEPROM 2024/05/17 version and later versions.
  2. DO NOT SUPPORT RAID!!!
  3. Don't power the X1011 via DC powe jack and the Raspberry Pi5 via USB-C at the same time.
  4. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
  5. Older NVMe drives with less efficient flash media may not perform as well as newer drives
  6. New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.
  7. The Raspberry Pi 5 board, SSD, active cooler or power adapter is not included in the packing list.

Overview

The X1011 four M.2 NVMe SSD shield, designed to provide a mass-capacity storage and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of four full-size M.2 2280 SSDs to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

The X1011 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favorite HATs while also utilizing this expansion board. Moreover, the X1011 offers versatile power options – it can draw power from the Raspberry Pi5 through pogo pins using a USB-C power supply, or alternatively, power the Raspberry Pi5 from the X1011 using a DC power adapter via the onboard DC power jack, streamlining the power supply process to a single source.

The X1011 is an ideal storage solution for creating a home media center or building a network-attached storage (NAS) system. It allows you to store and stream your own videos, music, and digital photos within your home or even remotely across the world.

User Manual: https://wiki.geekworm.com/X1011

Features

  • Compatible with Raspberry Pi 5B only
  • Support FOUR M.2 NVMe SSDs
  • Support M.2 NVMe SSD with 2280/2260/2242/2230 length

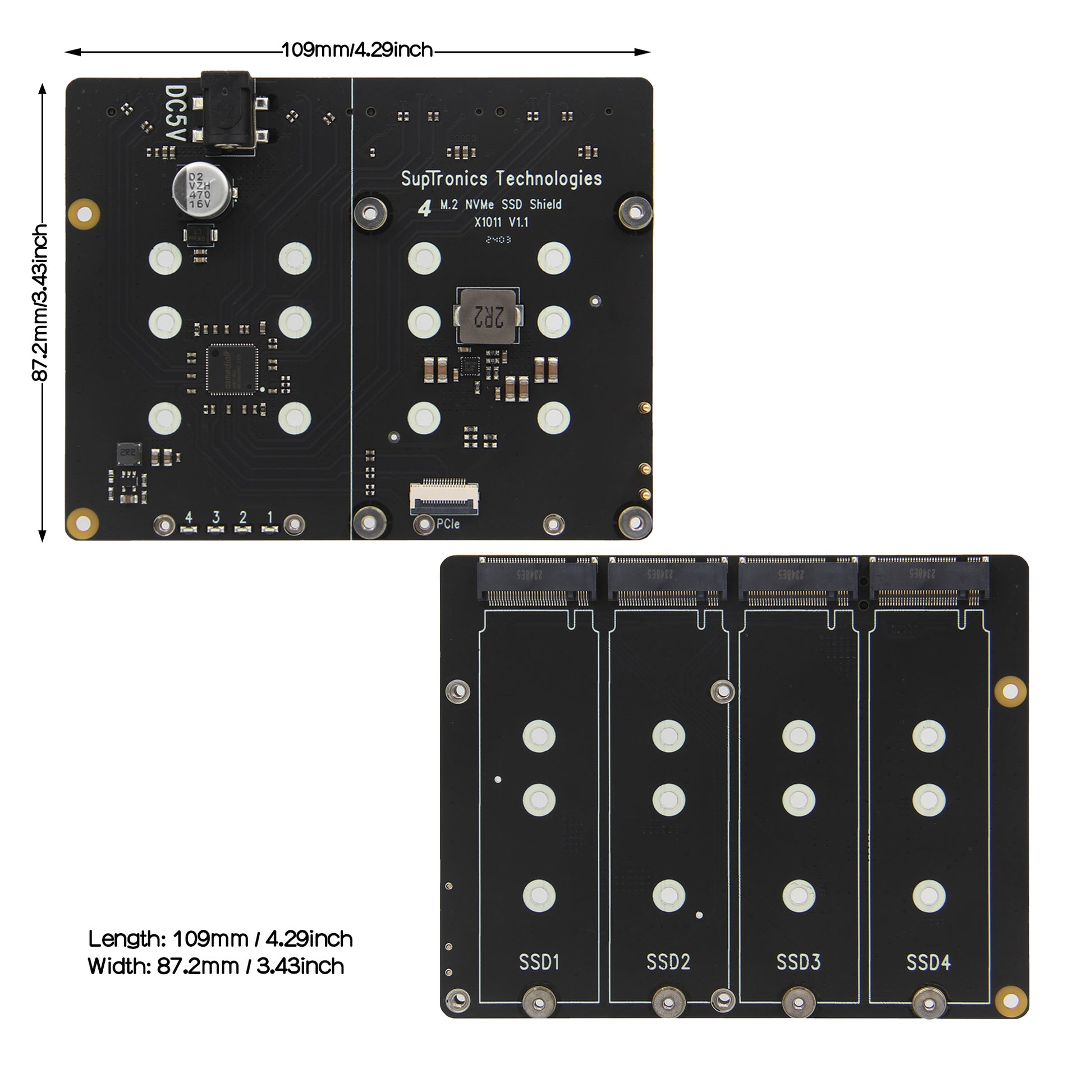

  • PCB Size: 109mm x 87.2mm
  • Provides speedy data transfer with PCIe 2.0 5Gbps
  • Powering via both pogo pins & FFC or DC power jack, ensuring sufficient power supply without any worries
  • LED indicators in blue display power and drive status
  • Features an integrated high-performance PCIe packet switch
  • Equipped with high-efficiency DC/DC step-down converter, delivering a maximum of 10A to power your SSDs
  • Designed to be attached on bottom, allows using your favorite HATs alongside it
  • Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.
  • Compatible with the official Raspberry Pi 5 active cooler or Argon THRML 30mm Active Cooler or third party cooler without affecting cooling performance

Power supply:

  • 5Vdc +/-5% ≥5A power via FFC & pogo pins
  • 5Vdc +/-5% ≥5A power via DC power jack

Ports & Connectors:

  • DC power jack: 5.5x2.1mm, polarity: center positive (+)
  • PCIe connector x1 - 16-pin pitch0.5mm
  • SSD connectors x4 - M.2 KEY-M 67P

Packing List

  • 1x X1011 V1.1 M.2 NVMe 4 SSD shield
  • 1x PCIe FFC 37mm
  • 1x Screw pack

Refer to: https://wiki.geekworm.com/X1011

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.
  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
Model Features Mounting Position SSD Size Matching Case Matching Cooler Support Hailo-8 AI Accelerator
X1000
  • PCIe to NVMe M.2 SSD shield
  • Supports M.2 2230/2242 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
X1001
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1002
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Attaches to the RPi5 bottom
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
Not tested
X1003
  • PCIe to NVMe M.2 SSD shield
  • Install inside Raspberry Pi case
  • Compatible with RPi active cooler
  • Supports M.2 2230/2242 SSD
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
X1004
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
  • Support HAT standby power state
Top
  • 2280
Yes
X1015
  • PCIe to NVMe M.2 SSD shield
  • Same features as official M.2 HAT+
  • Same schematic & key component
  • Supports full-size M.2 2280 SSD
  • Supports up to 4TB NVMe SSD
  • Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1005
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
  • Attaches to the RPi5 bottom
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1011
  • PCIe to NVMe 1-4 M.2 SSD shield
  • Supports 4 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 4TB NVMe SSD
  • High-performance packet switch
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
No Support
M901
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
Q100
  • PCIe to NVMe M.2 SSD shield
  • with 1.3 inch TFT to display
  • Supports M.2 2242 SSD
  • Supports super-fast boot
Top
  • 2242
Not tested
Q200
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
Top
  • 2280
Not tested
M300
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
M400
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2280
Not tested

We send orders to worldwide with tracking number.

For detail refer to Shipping Policy
