Geekworm X1015 PCIe to M.2 Key-M NVMe SSD PIP TOP for Raspberry Pi 5

Regular price
$15.00
Regular price
Sale price
$15.00
Only 50 items in stock! Out of stock!
  • Description
  • Manual
  • PIPs
  • Shipping Policy
  • Reviews

Overview

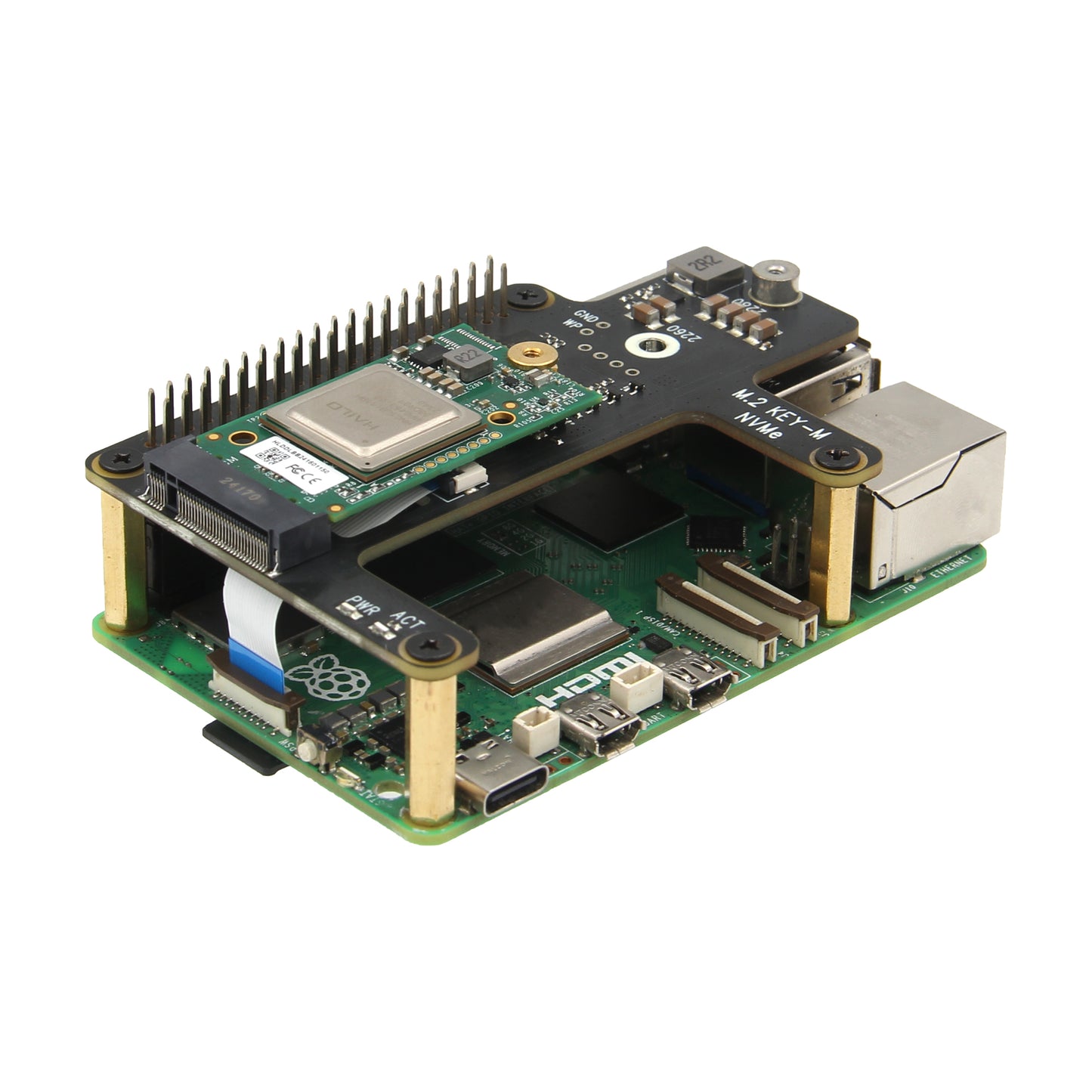

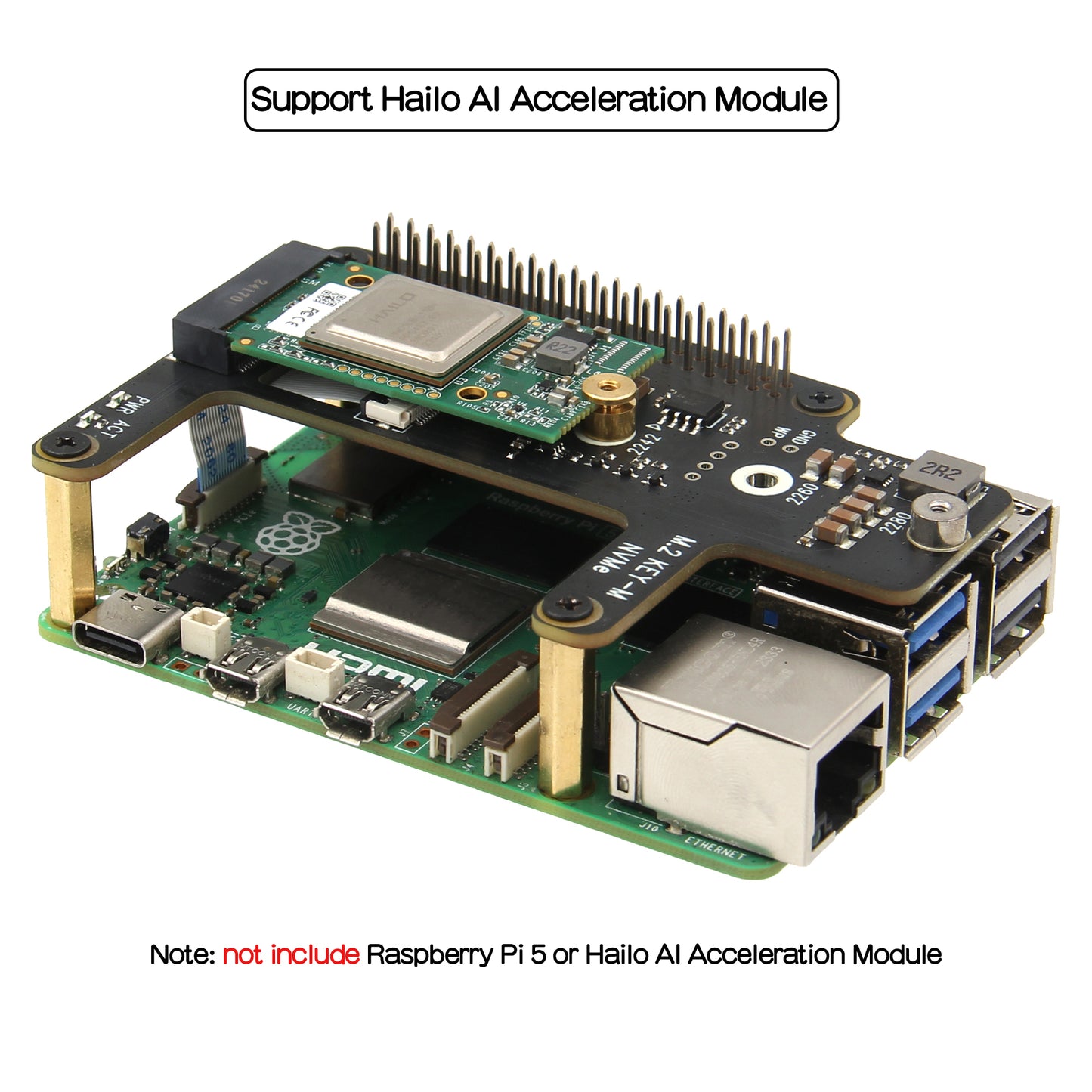

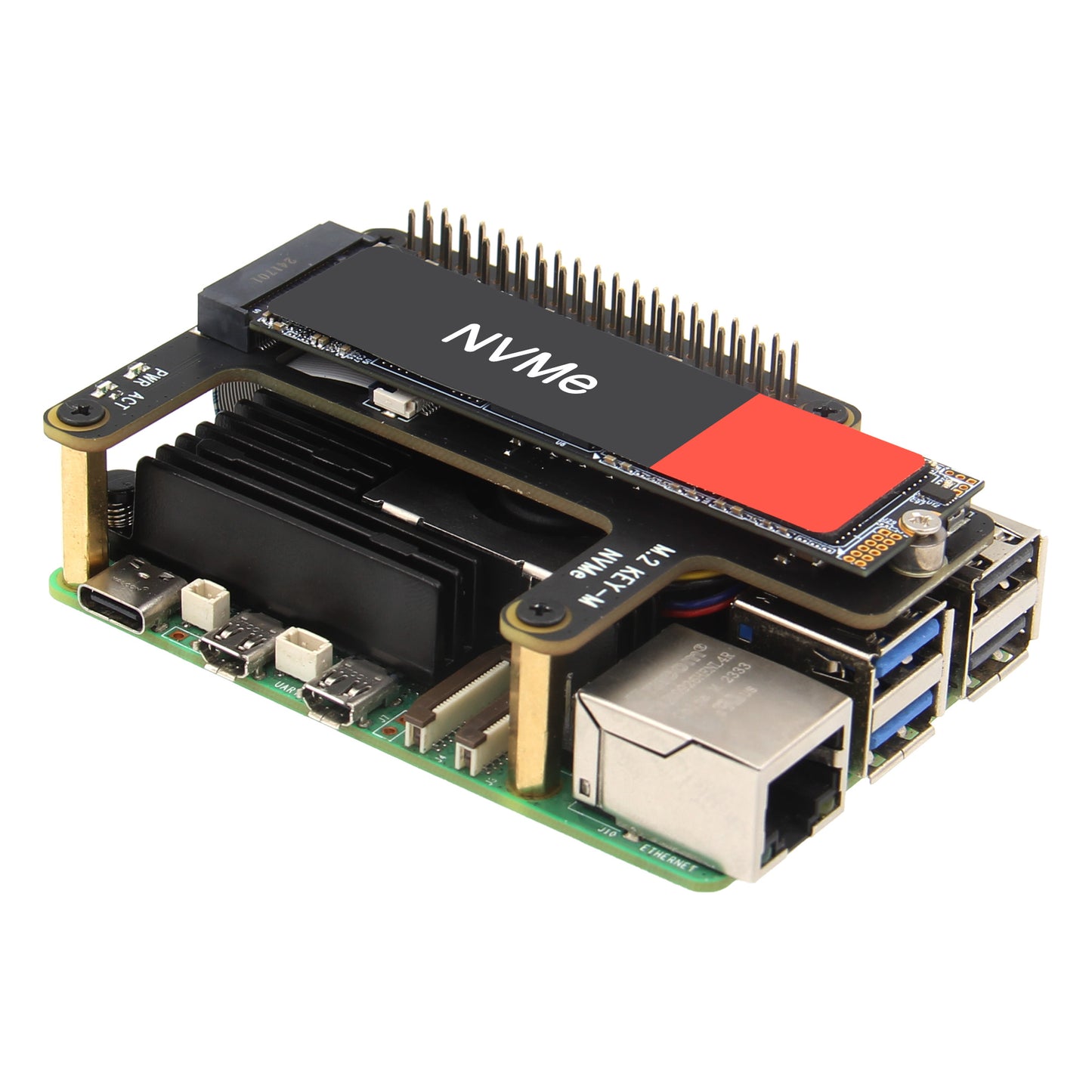

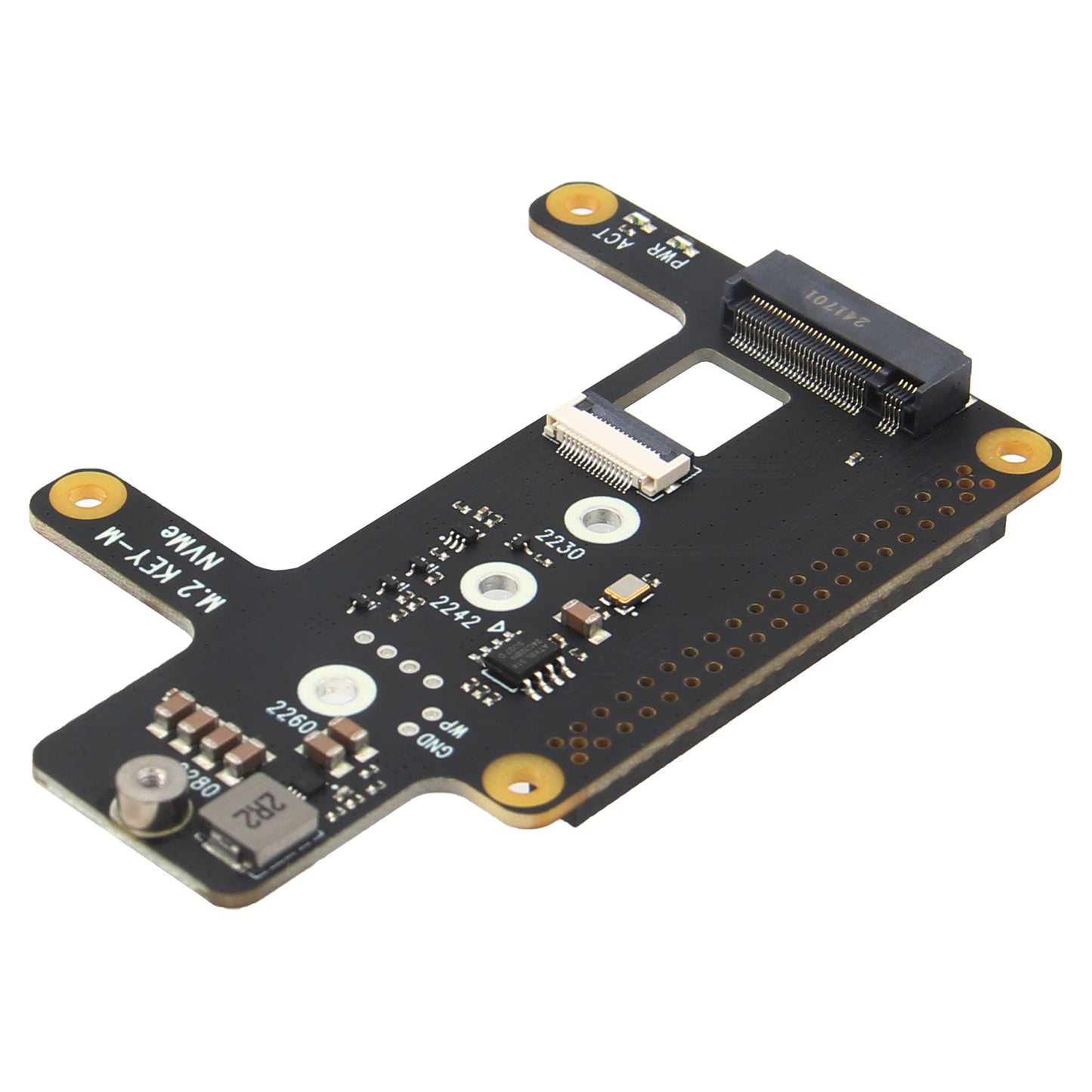

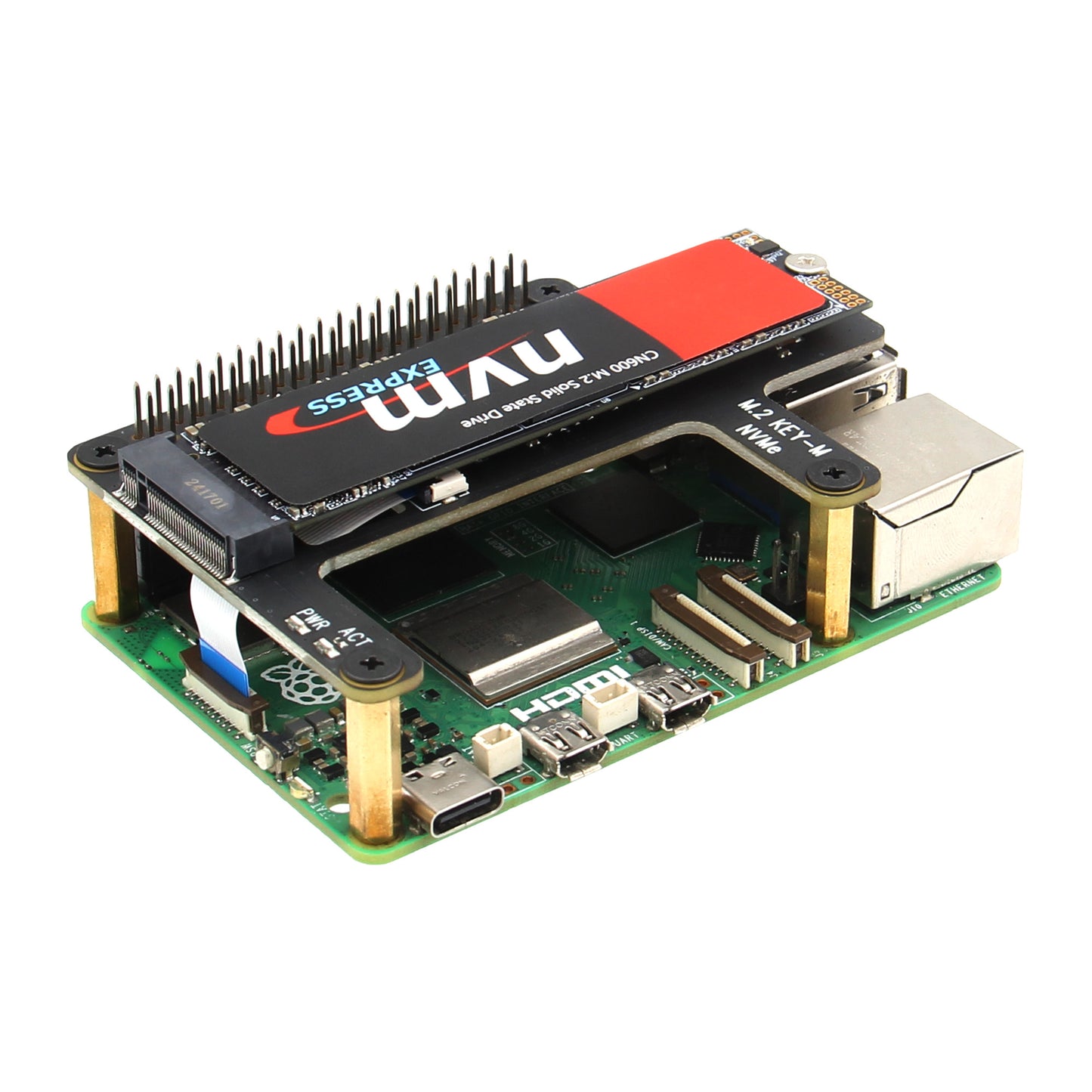

The X1015 is a PCIe extension board designed for the Raspberry Pi 5. It adheres to the official Raspberry Pi reference schematic and has the same features as the official M.2 HAT+, so x1015 supports also Hailo AI acceleration module built around the Hailo-8L chip from Raspberry Pi AI Kit, guaranteeing ease of use and long-term support through updates to the Raspberry Pi OS. With its sleek and compact design, this shield allows for easy attachment of various M.2 SSD lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5.

Equipped with a PCIe 2.0/3.0 interface, the X1015 offers lightning-fast data transfer speeds of up to 8Gbps, enabling you to transfer large amounts of data within seconds. Its compatibility with the Raspberry Pi official passive cooler ensures optimal heat dissipation without compromising performance. The inclusion of mounting holes and standoffs provides added protection for your solid-disk drives while effectively dissipating heat.

With the X1015, you no longer need to guess the reading or writing status of your SSD, as it features a built-in LED light that indicates the current activity. This makes it easier for you to monitor your SSD's performance.

User Manual: https://wiki.geekworm.com/X1015

Matching Case:

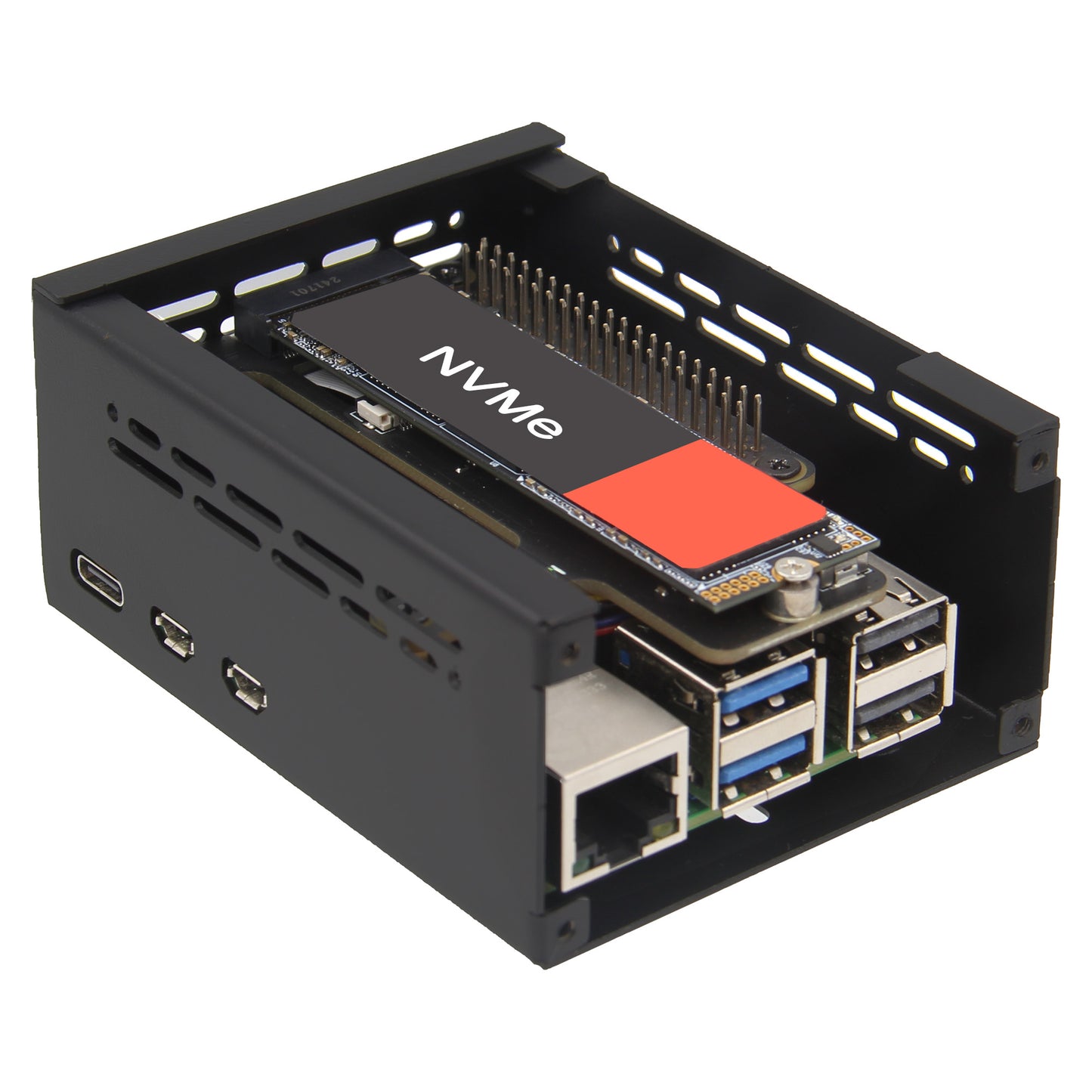

The matching case is P579

Features:

For use with

Raspberry Pi 5 Model B

Key Features
  • Optimal storage solution designed specifically for Raspberry Pi 5 - M.2 NVMe SSD Shield
  • Adheres to the official Raspberry Pi reference schematic
  • Utilized the same key components as the Raspberry Pi official M.2 HAT+
  • Has the same features as the Raspberry Pi official M.2 HAT+
Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
Supports devices that use the M.2 M key edge connector
Supports devices with the 2230 or 2242 form factor
Capable of supplying up to 3A to connected M.2 devices
Includes power and activity LEDs
  • Supports high-capacity M.2 NVMe solid-state drives up to 4TB

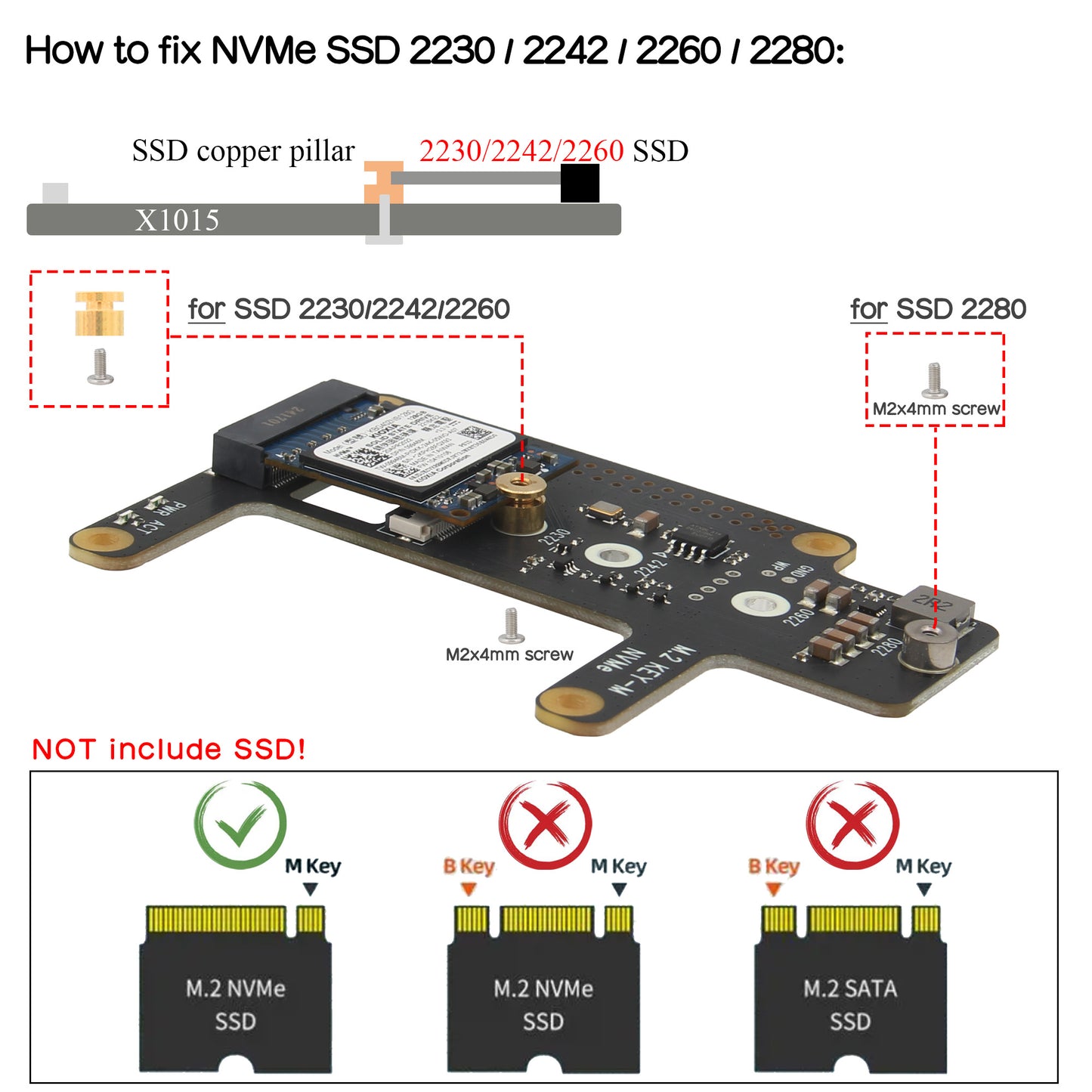

  • Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
  • Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps

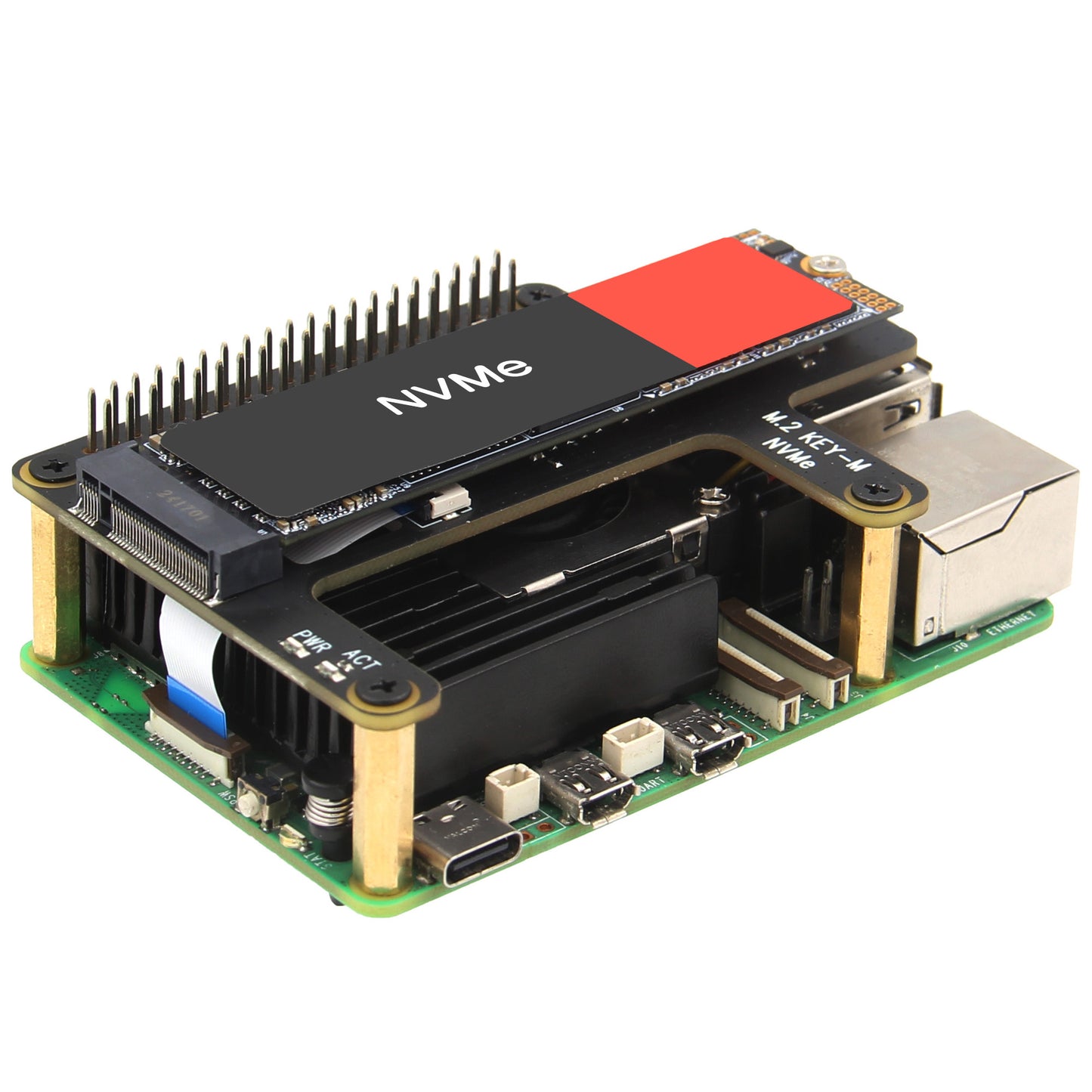

  • Does not compromise cooling performance and is fully compatible with the official active cooler
  • Powering via both GPIO pin header and FFC, ensuring sufficient power supply without any worries
  • Stackable design allows for attachment on bottom of other HATs
Technical Specification

Power supply: 5Vdc +/-5% power via GPIO pin header and FFC, converted to 3.3V max 3A to power the SSD

Ports & Connectors:

  • PCIe connector - 16-pin pitch0.5mm
  • SSD connector - M.2 KEY-M 67P

PCIe cable length:40mm

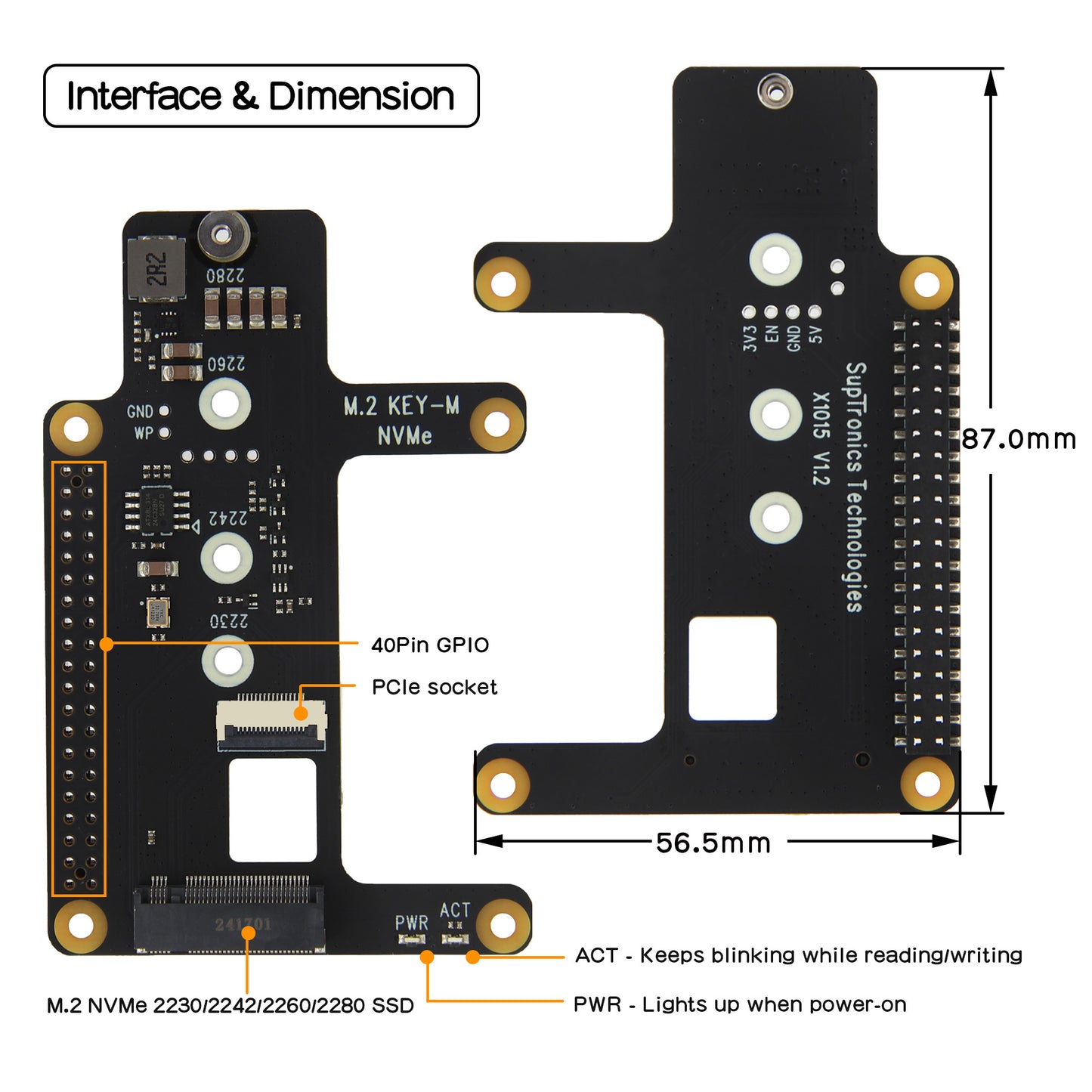

PCB Size: 87mm x 56.5mm

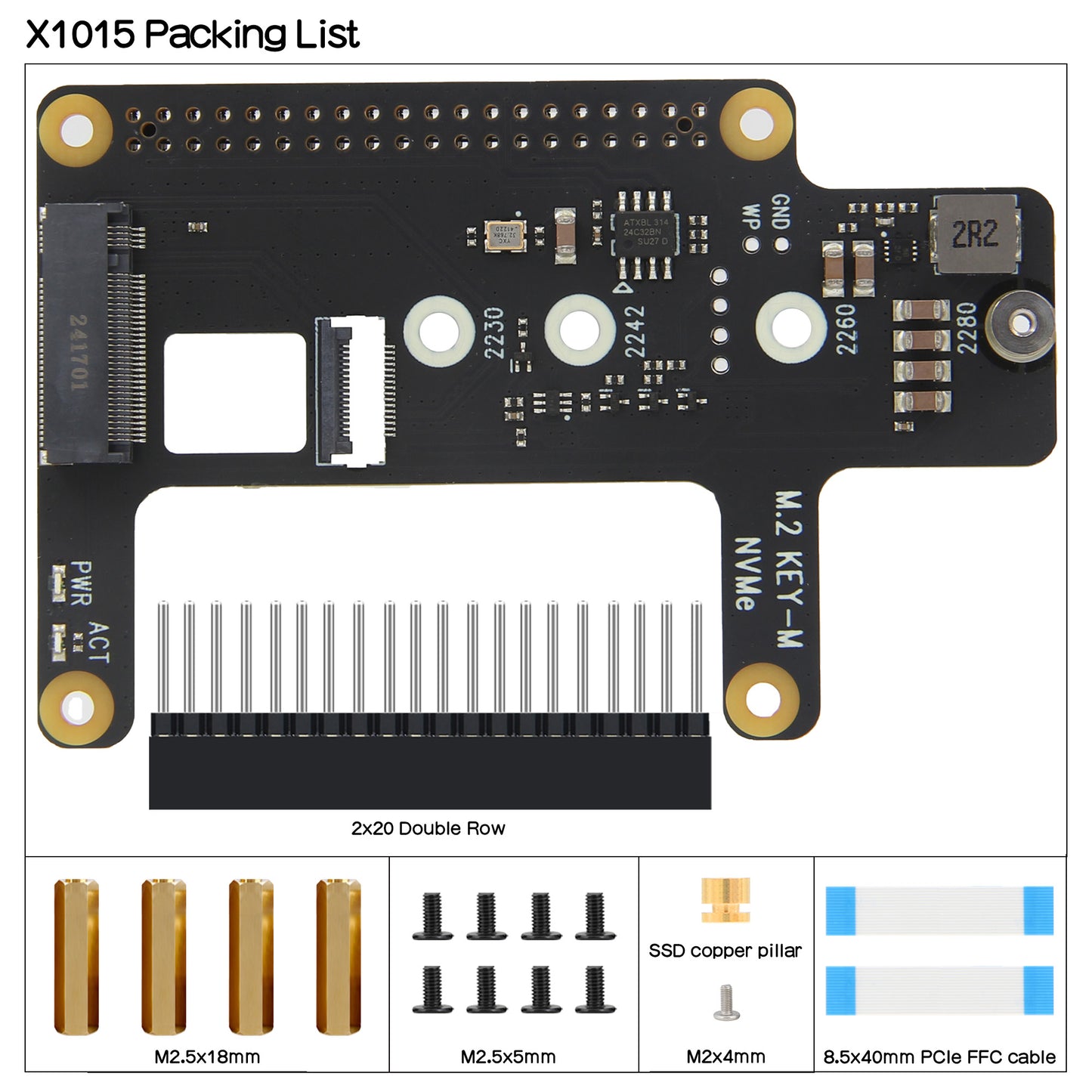

Packing Lis

  • X1015 V1.2 NVMe shield x 1
  • Screw pack x 1





Refer to: https://wiki.geekworm.com/X1015

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.
  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
Model Features Mounting Position SSD Size Matching Case Matching Cooler Support Hailo-8 AI Accelerator
