Raspberry Pi 5 Active Cooler Series

Note: The Raspberry Pi 5 board is not included in the packing list.

Overview

H500 is the official Raspberry Pi 5 active cooler which is designed by Raspberry Pi Foundation.  Only Geekworm named its model H500.

The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.

Features

• Single-piece anodised aluminium heatsink
• Heatsink-mounted, temperature-controlled blower fan attached by three screws
• Spring-loaded push pins for mounting onto Raspberry Pi 5
• Pre-applied thermal pads for heat transfer

Specifications

• Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
• Fan speed control: Pulse width modulation control with tachometer
• Maximum airflow: 1.09 CFM
• Maximum fan speed: 8000 RPM +/- 15%
• Product material: Anodised aluminium

Geekworm Cooler(H505)

Beyond the Official Active Cooler, user manual refer to https://wiki.geekworm.com/H505

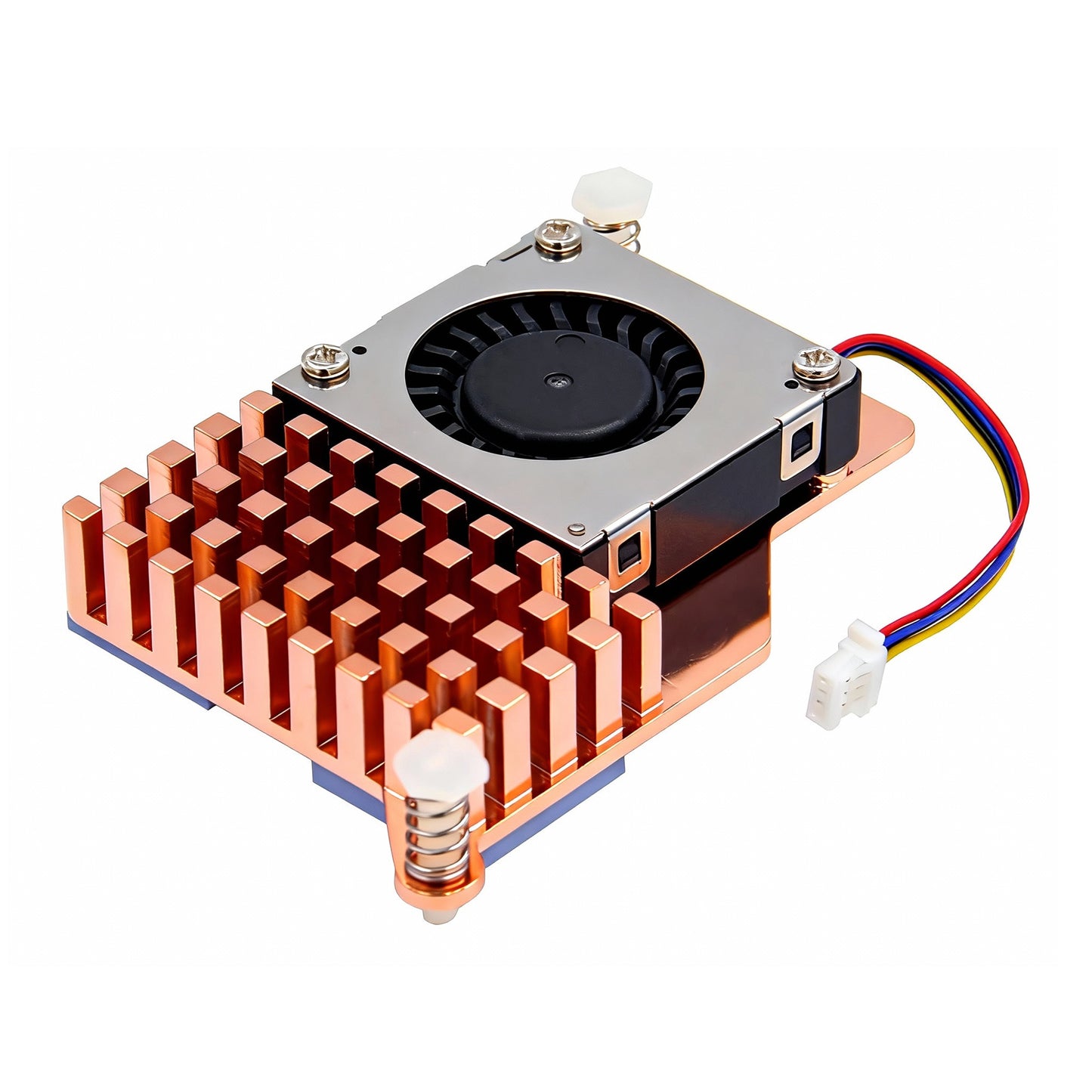

Geekworm Cooler(H510)

A new heavy-duty brass heatsink has been released, with heat dissipation capabilities far exceeding other heatsinks, including the official H500 kit. Copper has twice the thermal conductivity of aluminum, so there's no doubt that the H510 cooler will have better heat dissipation capabilities than aluminum heatsinks with the same heat dissipation area.
