Geekworm X1011 PCIe to Four M.2 NVMe SSD Board for Raspberry Pi 5

Regular price
$51.00
Regular price
Sale price
$51.00
Only 31 items in stock! Out of stock!
  • Description
  • Manual
  • PIPs
  • Shipping Policy
  • Product Reviews

Note:

  1. This is just a four NVMe SSD NAS solution. Support NVMe boot with the firmware EEPROM 2024/05/17 version and later versions.
  2. Don't power the X1011 via DC powe jack and the Raspberry Pi5 via USB-C at the same time.
  3. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
  4. Older NVMe drives with less efficient flash media may not perform as well as newer drives
  5. New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.
  6. The Raspberry Pi 5 board, SSD, active cooler or power adapter is not included in the packing list.

Overview

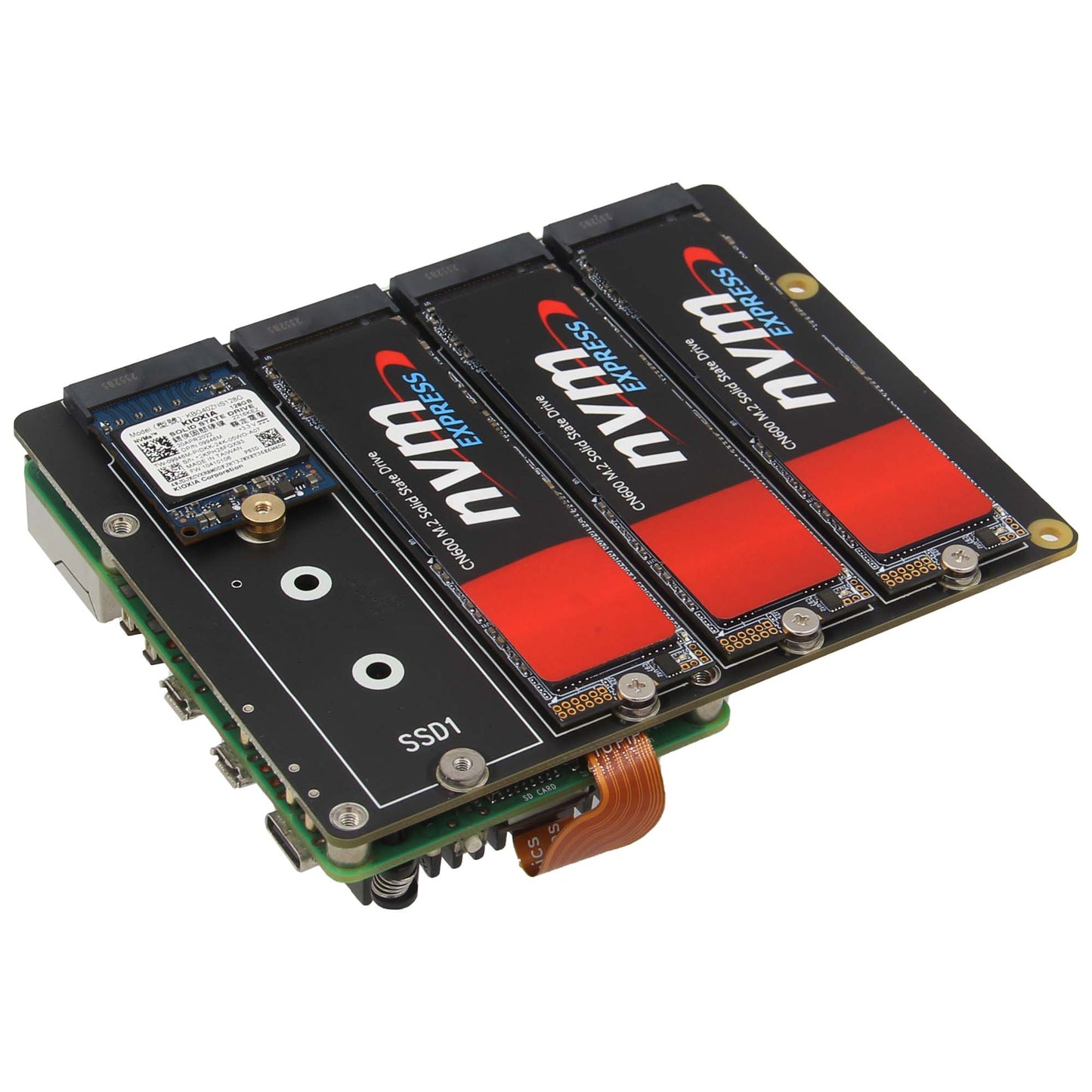

The X1011 four M.2 NVMe SSD shield, designed to provide a mass-capacity storage and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of four full-size M.2 2280 SSDs to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

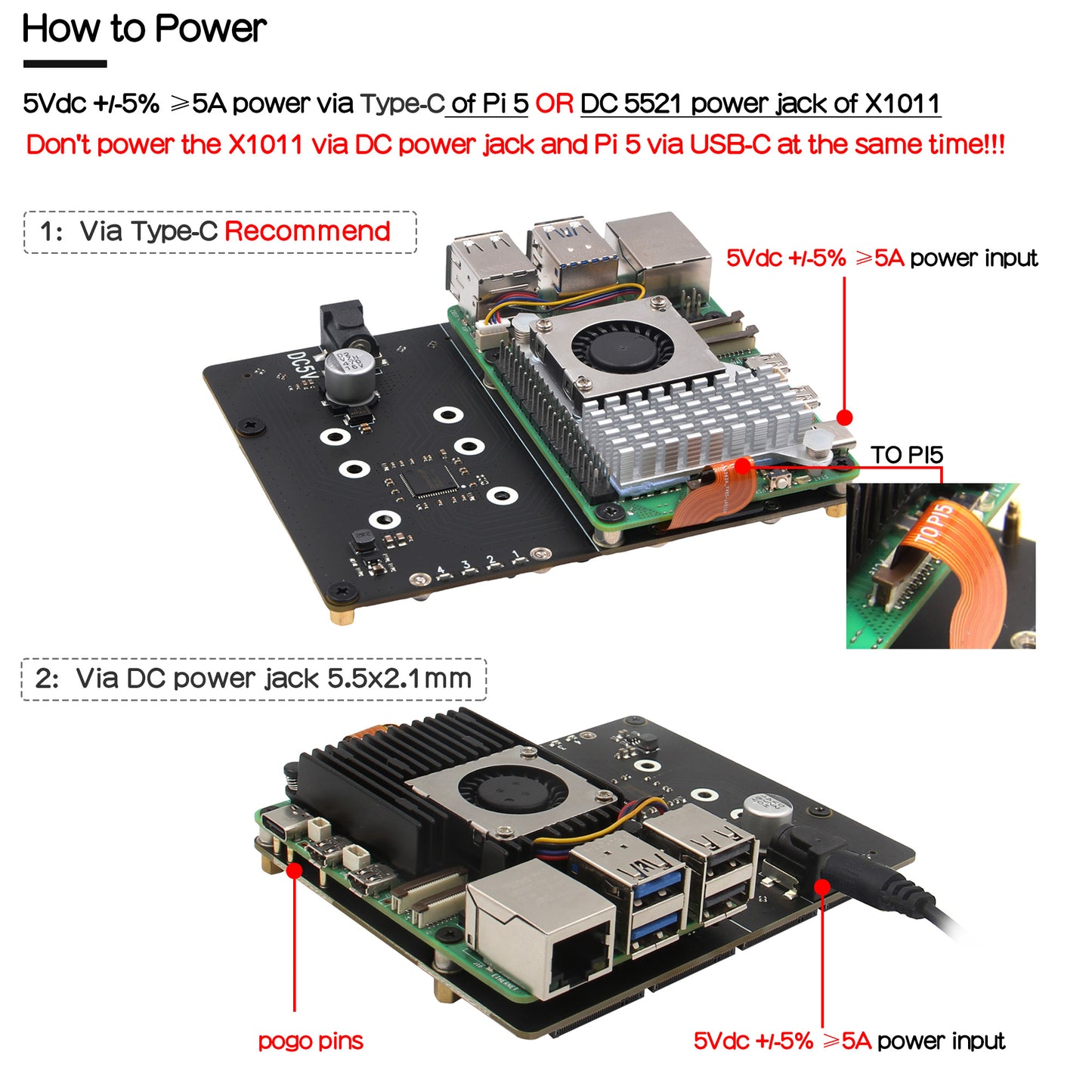

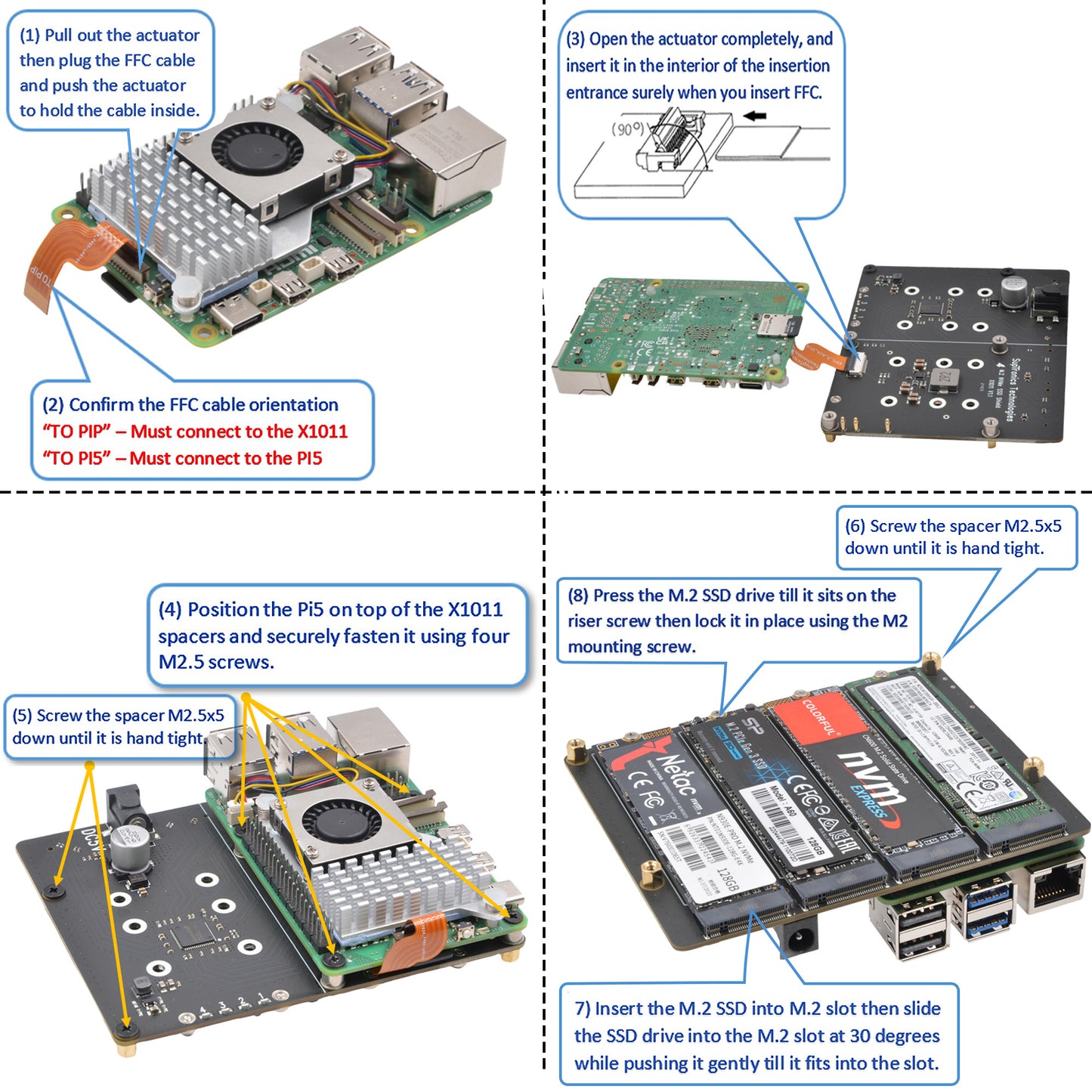

The X1011 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favorite HATs while also utilizing this expansion board. Moreover, the X1011 offers versatile power options – it can draw power from the Raspberry Pi5 through pogo pins using a USB-C power supply, or alternatively, power the Raspberry Pi5 from the X1011 using a DC power adapter via the onboard DC power jack, streamlining the power supply process to a single source.

The X1011 is an ideal storage solution for creating a home media center or building a network-attached storage (NAS) system. It allows you to store and stream your own videos, music, and digital photos within your home or even remotely across the world.

User Manual: https://wiki.geekworm.com/X1011

Features

  • Compatible with Raspberry Pi 5B only

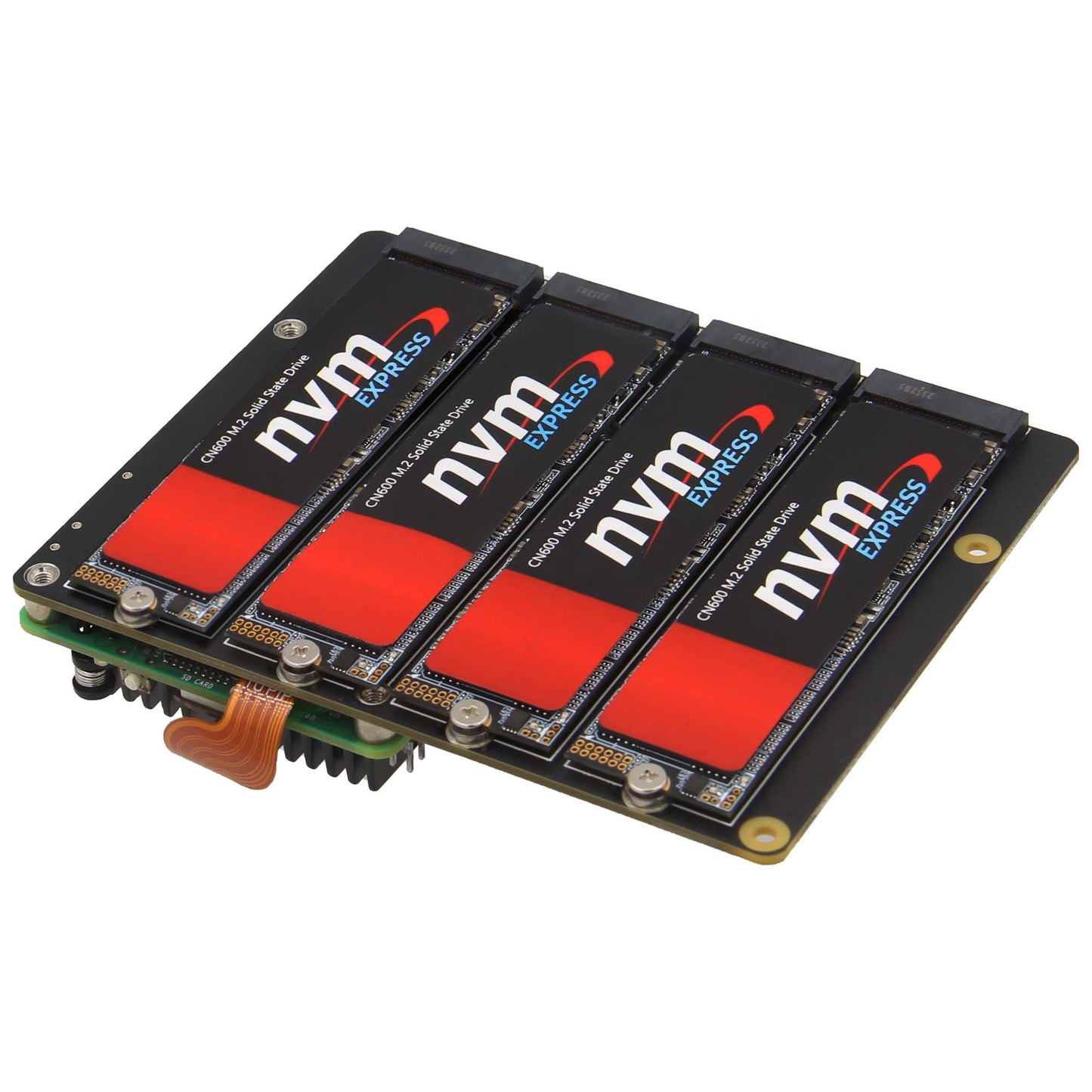

  • Support FOUR M.2 NVMe SSDs

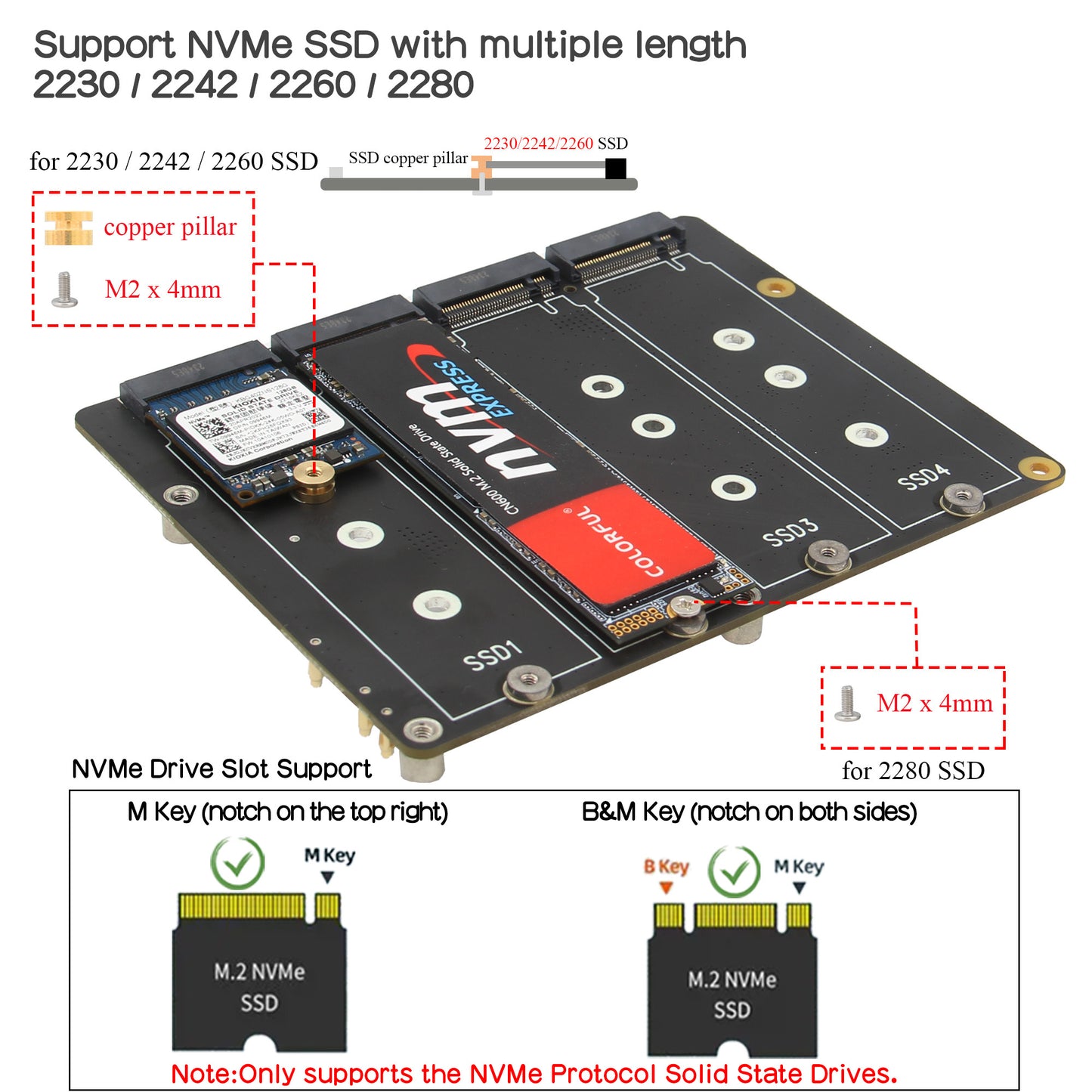

  • Support M.2 NVMe SSD with 2280/2260/2242/2230 length

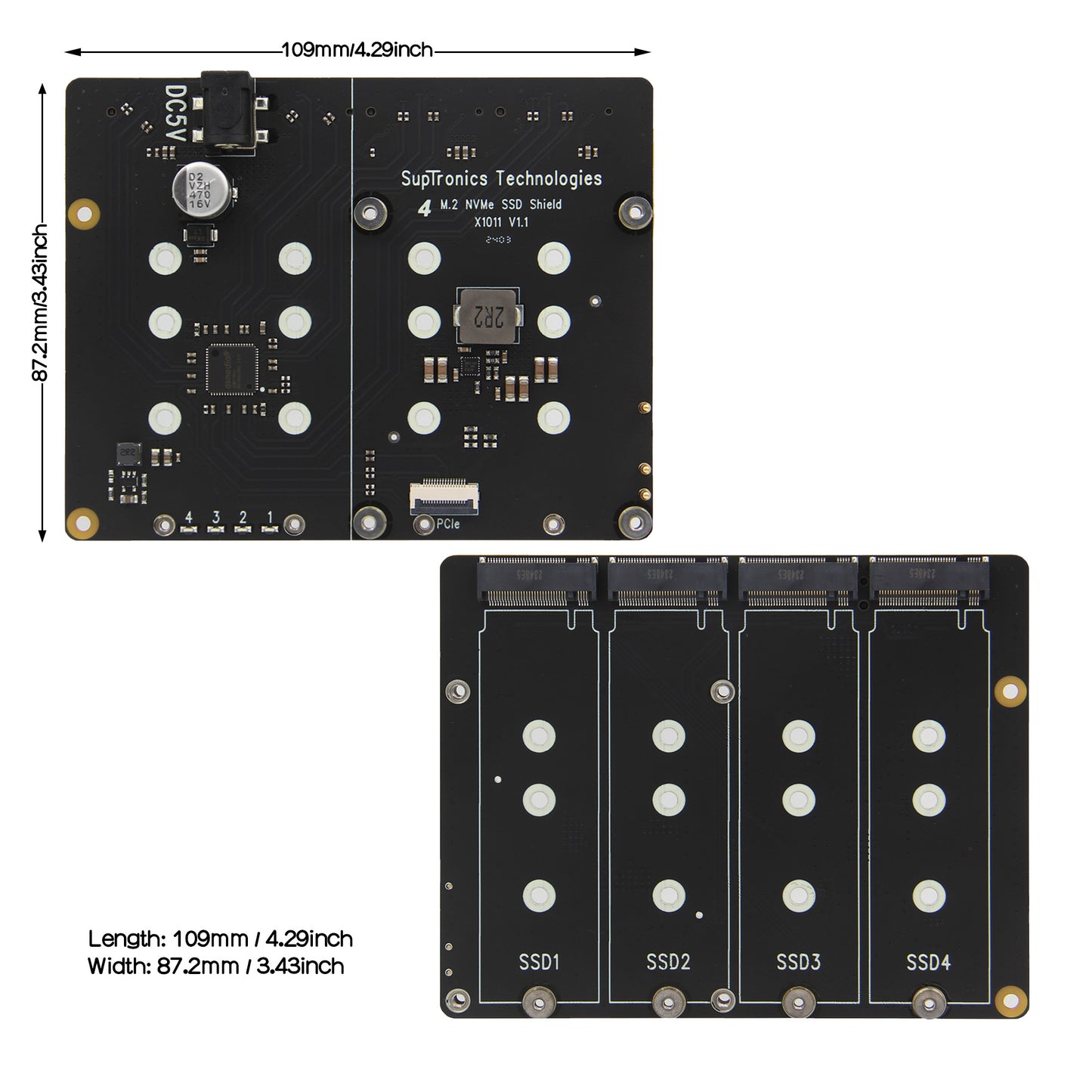

  • PCB Size: 109mm x 87.2mm
  • Provides speedy data transfer with PCIe 2.0 5Gbps
  • Powering via both pogo pins & FFC or DC power jack, ensuring sufficient power supply without any worries
  • LED indicators in blue display power and drive status
  • Features an integrated high-performance PCIe packet switch
  • Equipped with high-efficiency DC/DC step-down converter, delivering a maximum of 10A to power your SSDs

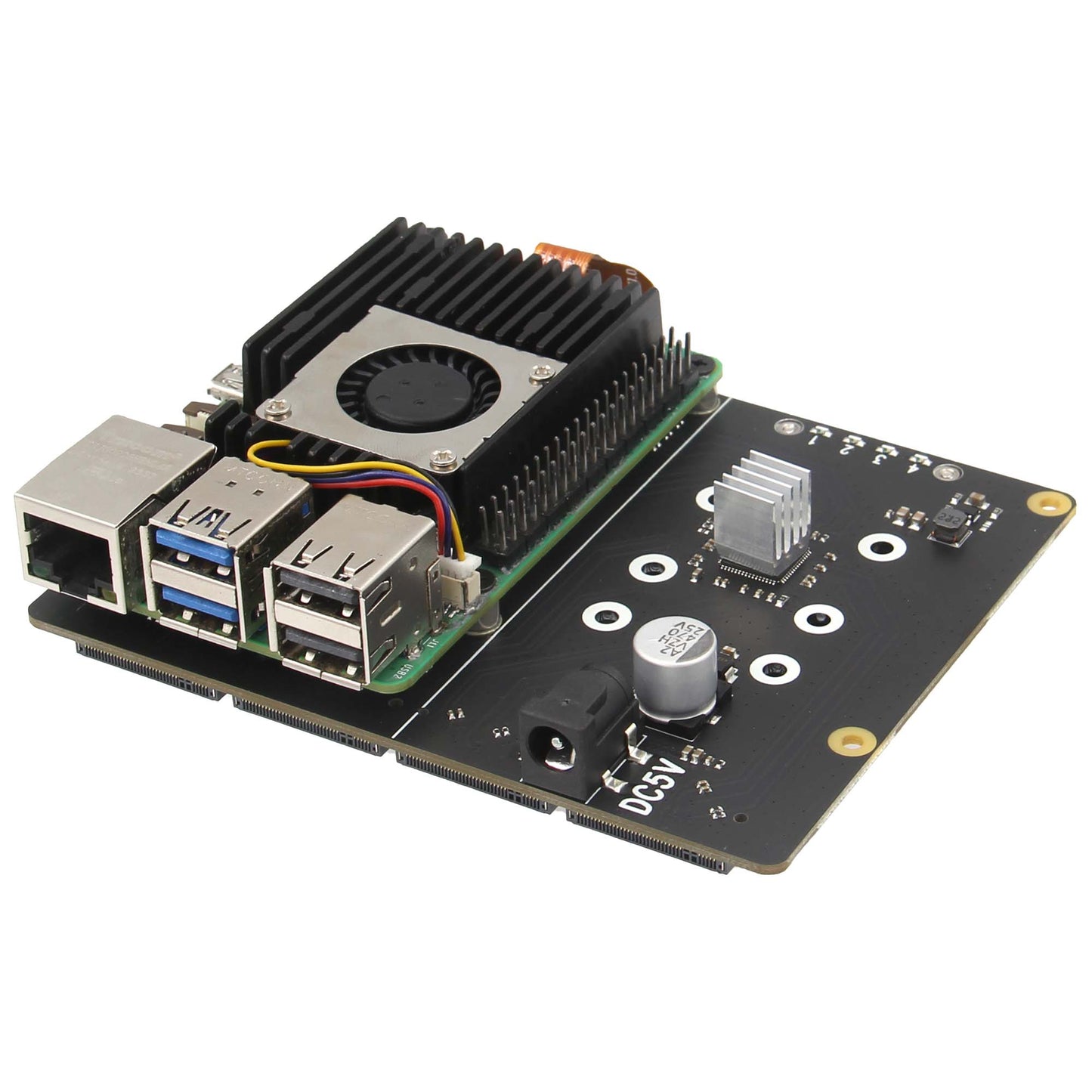

  • Designed to be attached on bottom, allows using your favorite HATs alongside it
  • Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.
  • Compatible with the official Raspberry Pi 5 active cooler or Argon THRML 30mm Active Cooler or third party cooler without affecting cooling performance

Power supply:

  • 5Vdc +/-5% ≥5A power via FFC & pogo pins
  • 5Vdc +/-5% ≥5A power via DC power jack

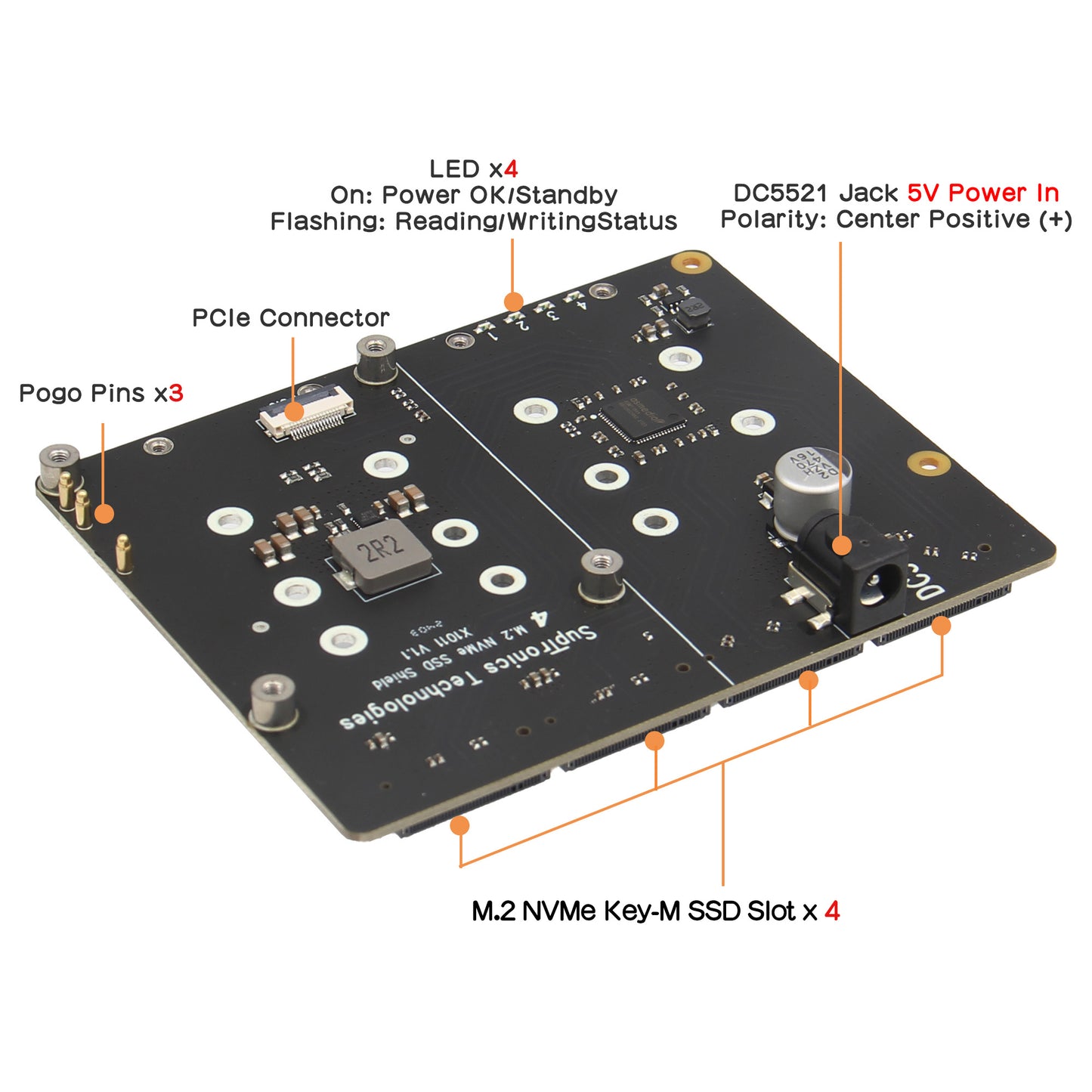

Ports & Connectors:

  • DC power jack: 5.5x2.1mm, polarity: center positive (+)
  • PCIe connector x1 - 16-pin pitch0.5mm
  • SSD connectors x4 - M.2 KEY-M 67P

Packing List

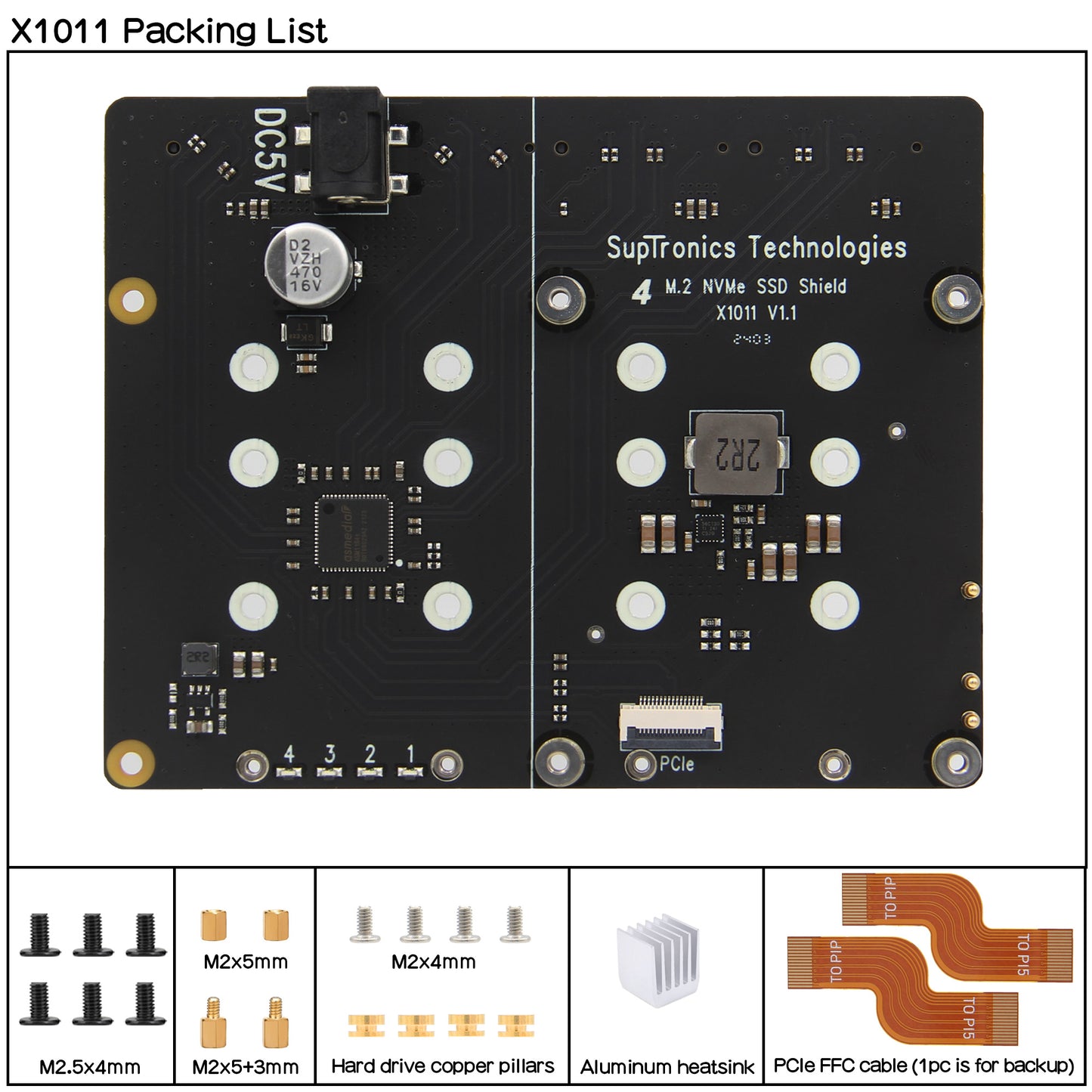

  • 1x X1011 V1.1 M.2 NVMe 4 SSD shield
  • 1x PCIe FFC 37mm
  • 1x Screw pack

Refer to: https://wiki.geekworm.com/X1011

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.
  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
Model Compatible with Position NVMe M2 SSD Length Support Matching Case Matching Cooler Support NVMe Boot Support PCIe 3.0 Support Hailo-8 AI Accelerator
X1000 Raspberry Pi 5 Top 2230/2242 P579 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Not tested
X1001 Raspberry Pi 5 Top 2230/2242/2260/2280 P579 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Yes
X1002 Raspberry Pi 5 Bottom 2230/2242/2260/2280 P580 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Not tested
X1003 Raspberry Pi 5 Top 2230/2242 P579 / P425 Official Cooler / H501 Only Yes - Not tested
X1004 Raspberry Pi 5 Top Dual ssd: 2280 P579-V2 Official Cooler / Argon THRML Cooler / H505/H501 Yes (Requires EEPROM 2024/05/17 version and above) NO Yes
X1015 Raspberry Pi 5 Top 2230/2242/2260/2280 P579 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Yes
X1005 Raspberry Pi 5 Bottom Dual ssd: 2230/2242/2260/2280 No matching case yet Official Cooler / Argon THRML Cooler / H505/H501 Yes (Requires EEPROM 2024/05/17 version and above) NO Yes
X1011 Raspberry Pi 5 Bottom 4 ssds: 2230/2242/2260/2280 X1011-C1 Official Cooler / Argon THRML Cooler / H505/H501 Yes (eeprom 2024/05/17 and later VER) NO NO
M901 Raspberry Pi 5 Top 2230/2242/2260/2280 P579 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Yes
Q100 Raspberry Pi 5 Top 2242 P579 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Not tested
Q200 Raspberry Pi 5 Top Dual ssd: 2280 P579 Official Cooler / Argon THRML Cooler / H505/H501 NO - Not tested
M300 Raspberry Pi 5 Top 2230/2242 P579 Official Cooler / Argon THRML Cooler / H505/H501 Yes - Not tested
M400 Raspberry Pi 5 Top 2230/2242/2280 P579 Official Cooler/ Argon THRML Cooler / H505/H501 Yes - Not tested
