SN65HVD230 CAN Bus Transceiver Module, 3.3V, ESD protection

$8.90
$8.90
Only 30 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Overview

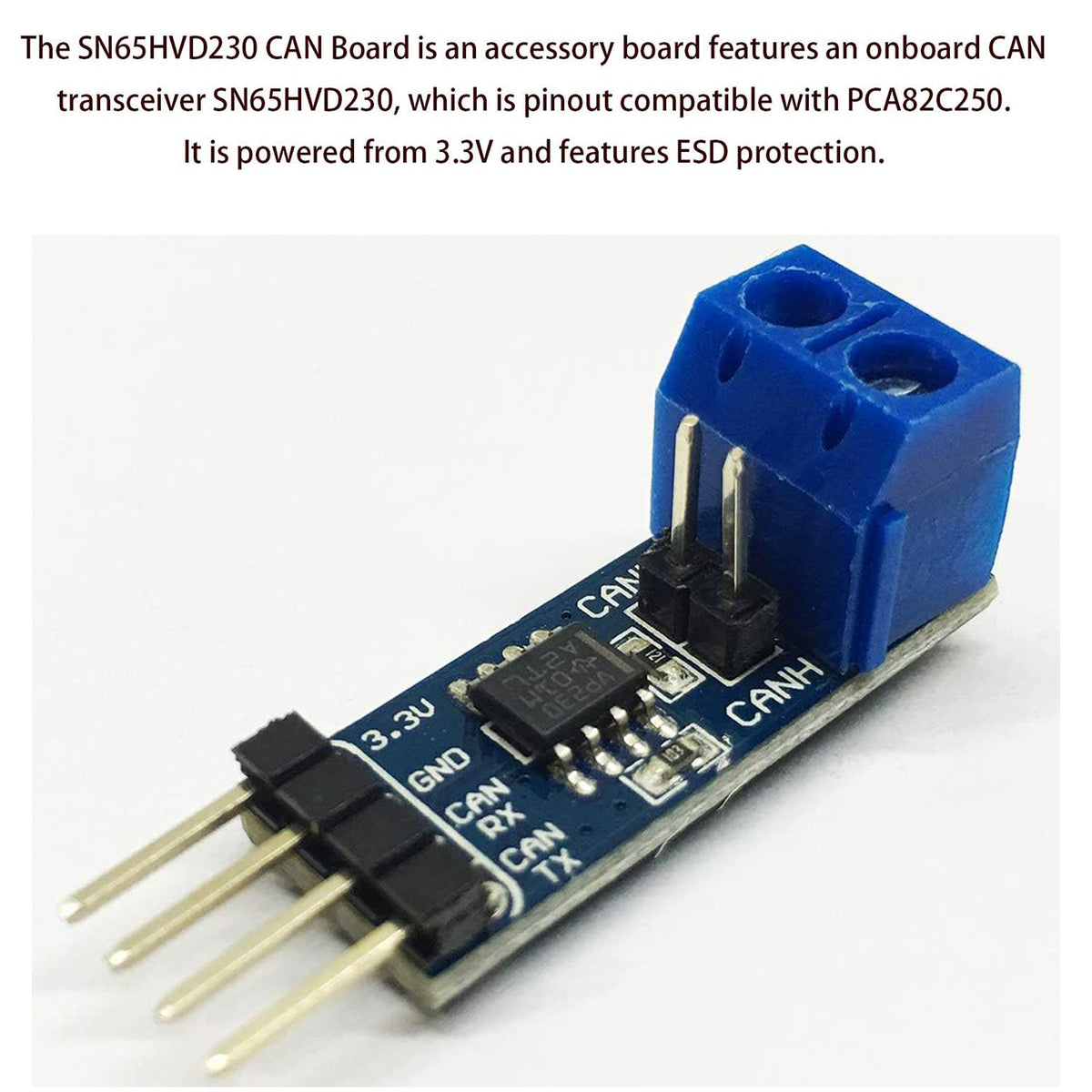

The SN65HVD230 CAN Transceiver Board is a high-performance expansion module powered by the SN65HVD230 CAN transceiver logic chip. Pin-compatible with the PCA82C250, this module acts as a seamless interface between your microcontroller and a CAN (Controller Area Network) bus system.

Operating efficiently on a 3.3V power supply and featuring robust ESD protection, it provides high-capacity, reliable differential signal transmission and reception. Whether you are building industrial automation systems, automotive diagnostic tools, or robotics projects, the SN65HVD230 CAN module is the ideal choice for robust serial communication.

Key Features

🚀 High Performance & Broad Compatibility

  • SN65HVD230 Onboard: Powered by the reliable SN65HVD230 transceiver chip, designed for high-efficiency CAN bus communication.
  • PCA82C250 Compatible: Pinout is fully compatible with standard PCA82C250 footprints for flexible design integration.
  • 3.3V Operation: Designed specifically to integrate smoothly with modern 3.3V microcontrollers (MCUs) such as STM32, ESP32, and Raspberry Pi Pico.

🛡️ Built-in Circuit Protection

  • ESD Protection: Features integrated ESD protection to safeguard the chip against static interference and voltage spikes in harsh environments.
  • Stable Differential Signals: Provides reliable data transmission over long distances with high noise immunity.

Important Operating & Safety Notes

⚠️ IMPORTANT USAGE WARNINGS:

  • No Short Circuit: Do NOT short-circuit the CANL and CANH lines, as this may cause permanent damage to the transceiver chip.
  • 3.3V Logic Limit: The TXD pin supports 3.3V logic levels ONLY. Do not drive TXD directly with 5.5V signals, or the chip will be damaged.

Technical Specifications

Feature Specification
Onboard Chip SN65HVD230
Pin Compatibility PCA82C250
Operating Voltage 3.3V DC
Logic Level 3.3V Logic (TXD max 3.3V)
Protection Integrated ESD Protection

Packing List

  • 1 x SN65HVD230 CAN Module

Refer to: https://wiki.geekworm.com/SN65HVD230_CAN_Board
