USB Driver-free Sound Card + Speaker Kit for Raspberry Pi / Jetson Nano / RDK X3

$15.90
$15.90
Only 30 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Overview

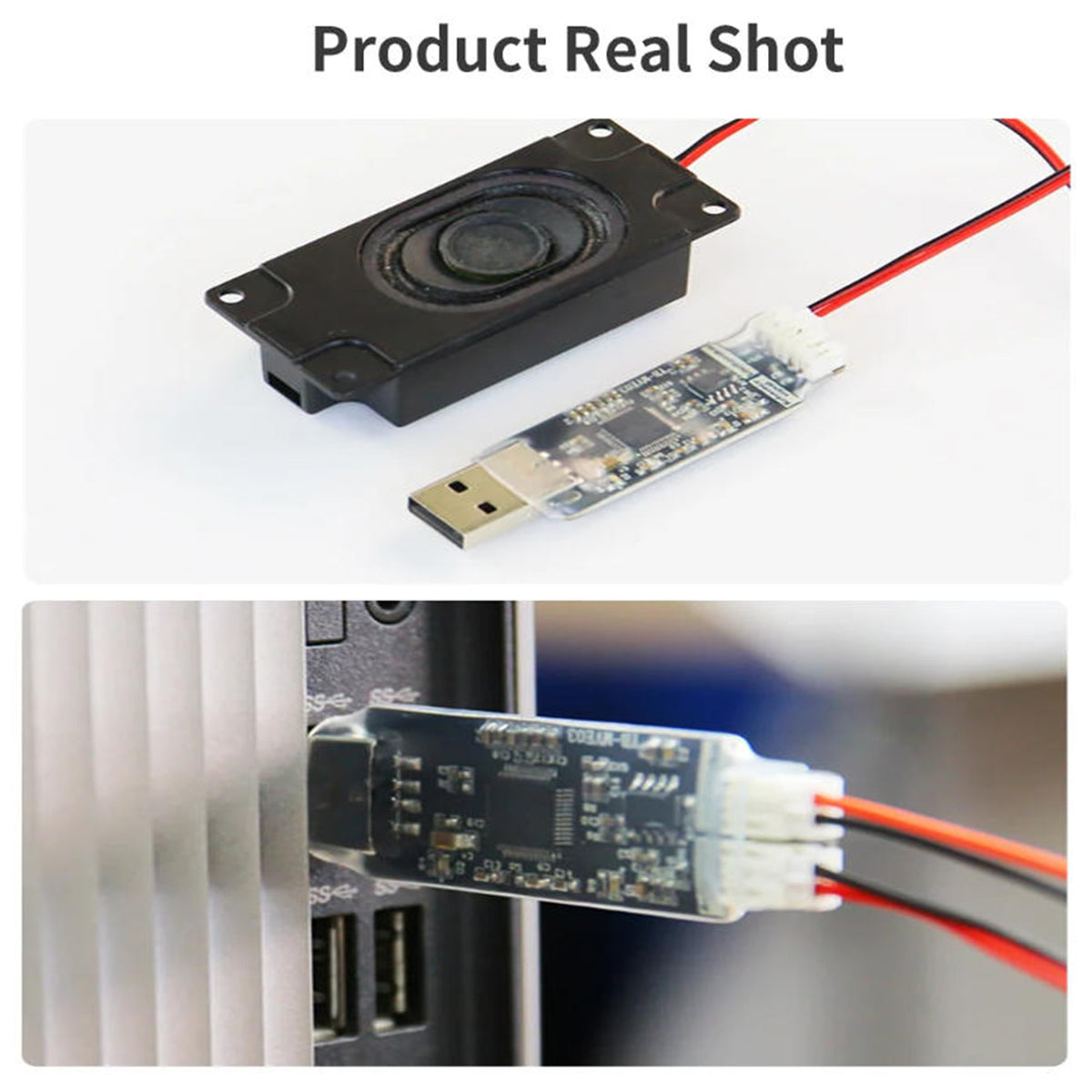

This is a plug-and-play USB audio output kit designed specifically for embedded development boards and robotics projects. It connects directly to your device via a USB 2.0 interface with no driver installation required. The kit includes a matching 4Ω 3W speaker, making it ideal and ready for immediate use in applications such as voice announcements, interactive audio alerts, and embedded media systems.

Equipped with a dedicated onboard Audio Reference Interface, it supports integration with external Acoustic Echo Cancellation (AEC) systems for advanced developer setups. Compact, lightweight, and versatile, this mono USB sound card kit seamlessly adds reliable audio output capabilities to your custom hardware deployments.

Key Features

🎵 Driverless & Plug-and-Play Output

  • Instant Setup: USB 2.0 interface requires no manual driver installation across major operating systems.

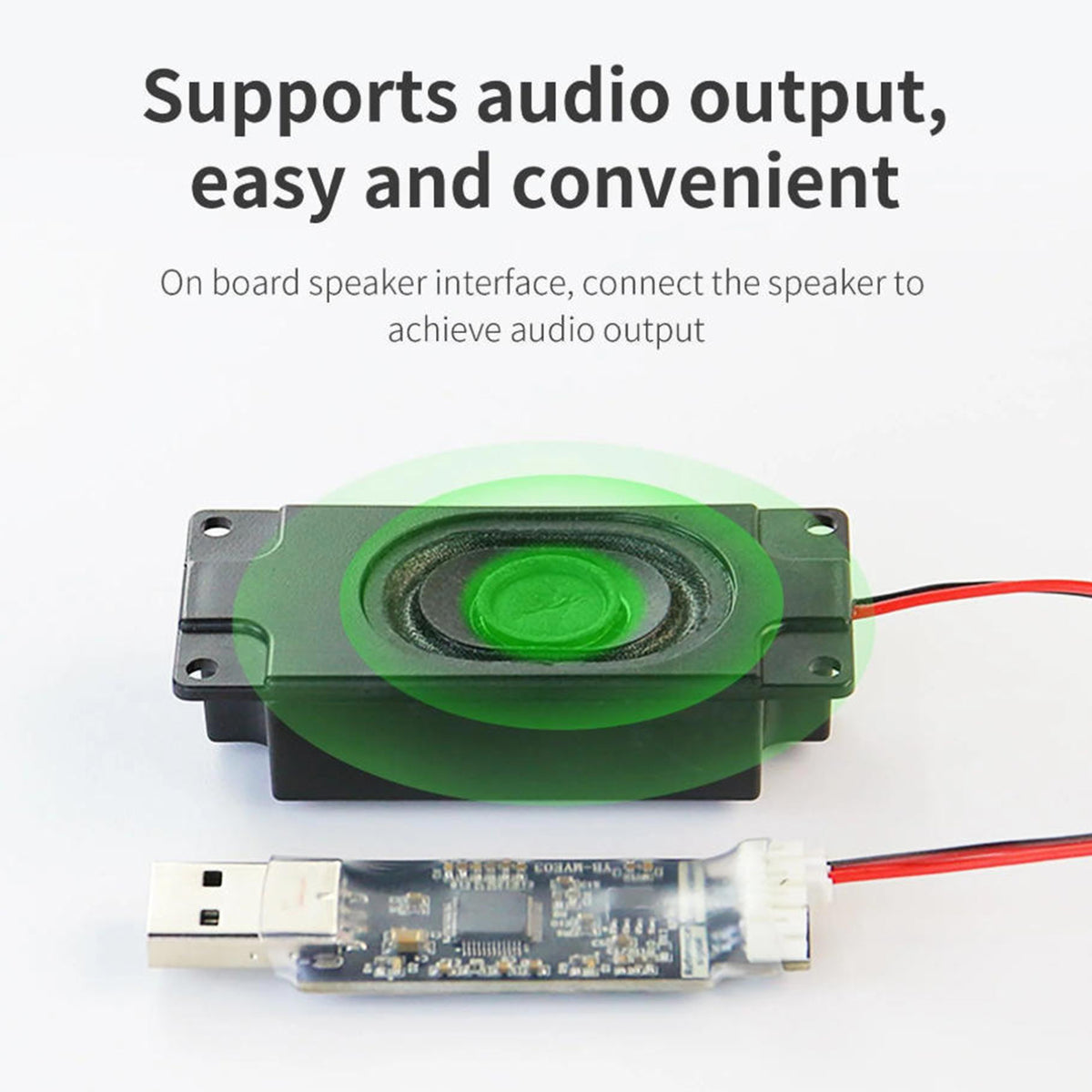

  • Bundled Speaker: Includes a matching 4Ω 3W mono speaker with a PH2.0-2P connector for quick hardware deployment.

🛠️ Broad Platform Compatibility

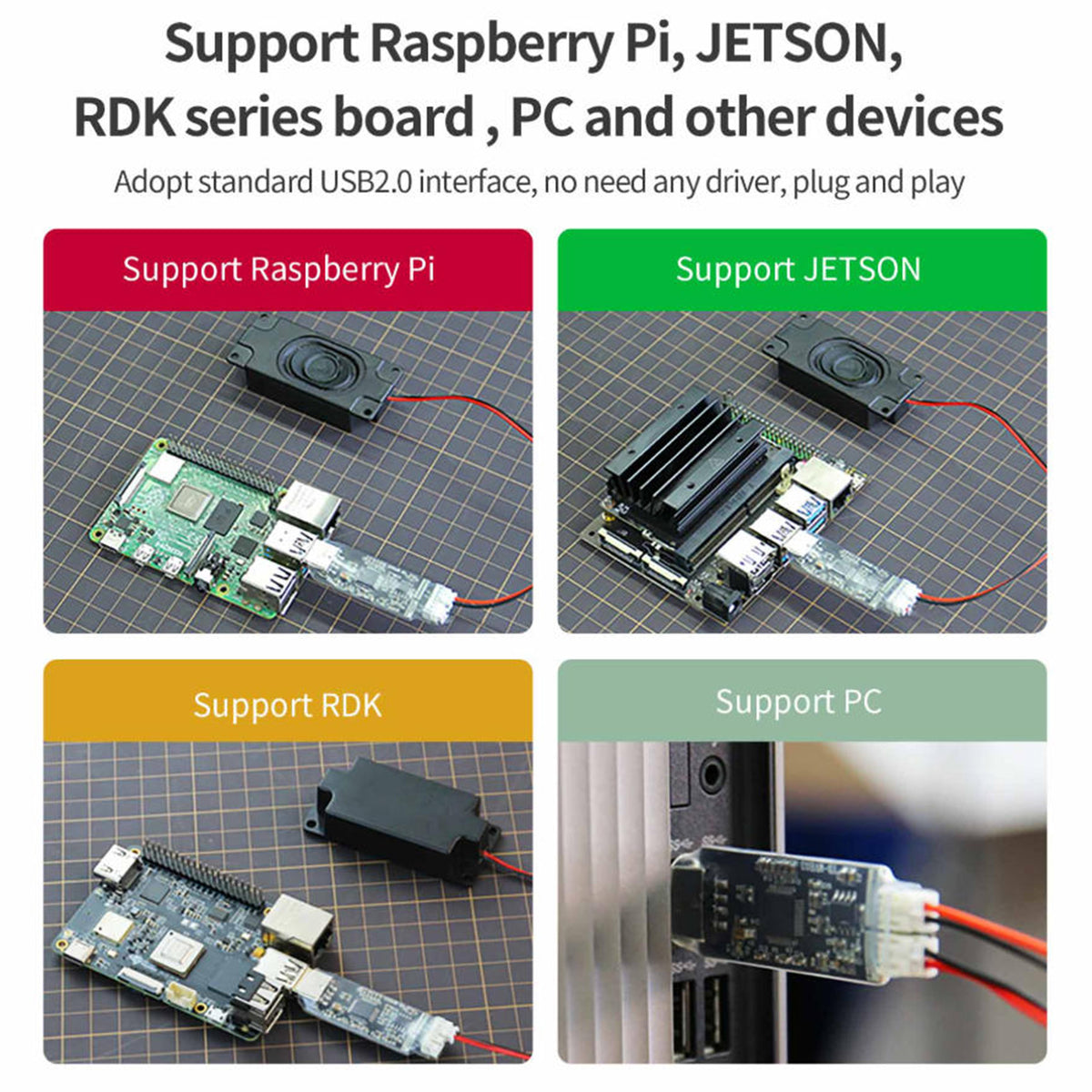

  • Embedded Systems Support: Fully compatible with Raspberry Pi series, NVIDIA Jetson series, and RDK X3 development boards.
  • Multi-OS Operating Support: Works seamlessly with Windows (7/8/10), macOS, and Linux systems featuring a standard USB Host interface.

🎙️ Advanced Hardware Interfaces

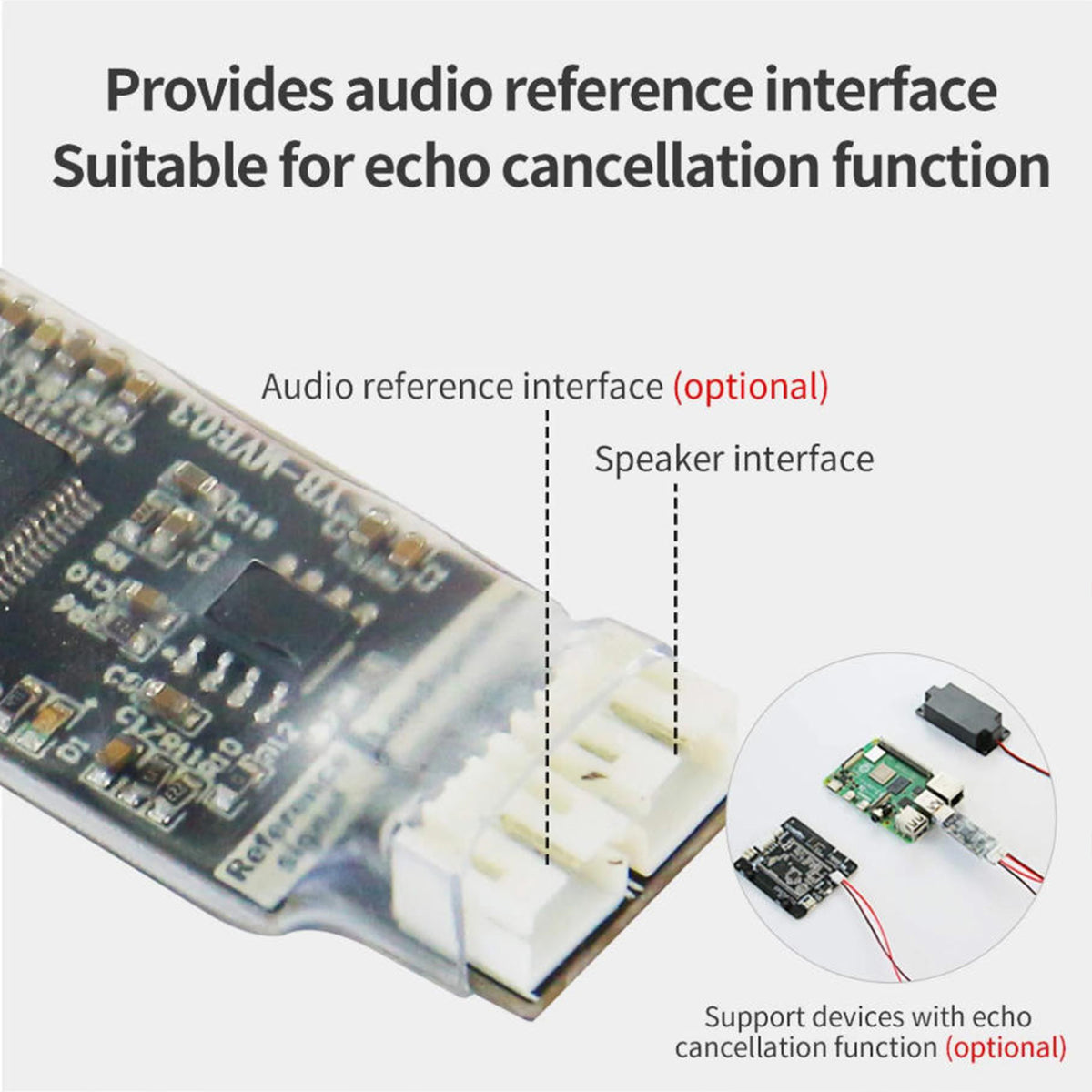

  • AEC Reference Signal: Features a dedicated audio reference output connector (PH2.0-2P) for optional Acoustic Echo Cancellation (AEC) hardware integration.
  • Compact Form Factor: Small footprint designed for convenient integration into robotics, custom enclosures, and DIY projects.

Important Usage Notes & Safety Guide

⚠️ IMPORTANT PRODUCT NOTICES:

  • Audio Output Only: Supports audio output/playback only. It does NOT support microphone input or voice recording.
  • Mono Channel: This product is a monaural (mono) audio solution and includes one speaker.
  • Power Notice: Powered strictly via the USB 2.0 interface. Do NOT apply external voltage to the speaker pins.
  • Host Interface Required: Compatible ONLY with devices featuring a standard USB Host interface. Devices with USB Device/Slave interfaces only are not supported.
  • Audio Reference Port: The onboard "Audio Reference Interface" is intended solely for optional use with external Acoustic Echo Cancellation (AEC) systems and is not required for standard playback.
  • Demonstration Hardware: Development boards shown in images are for setup demonstration only and are NOT included.

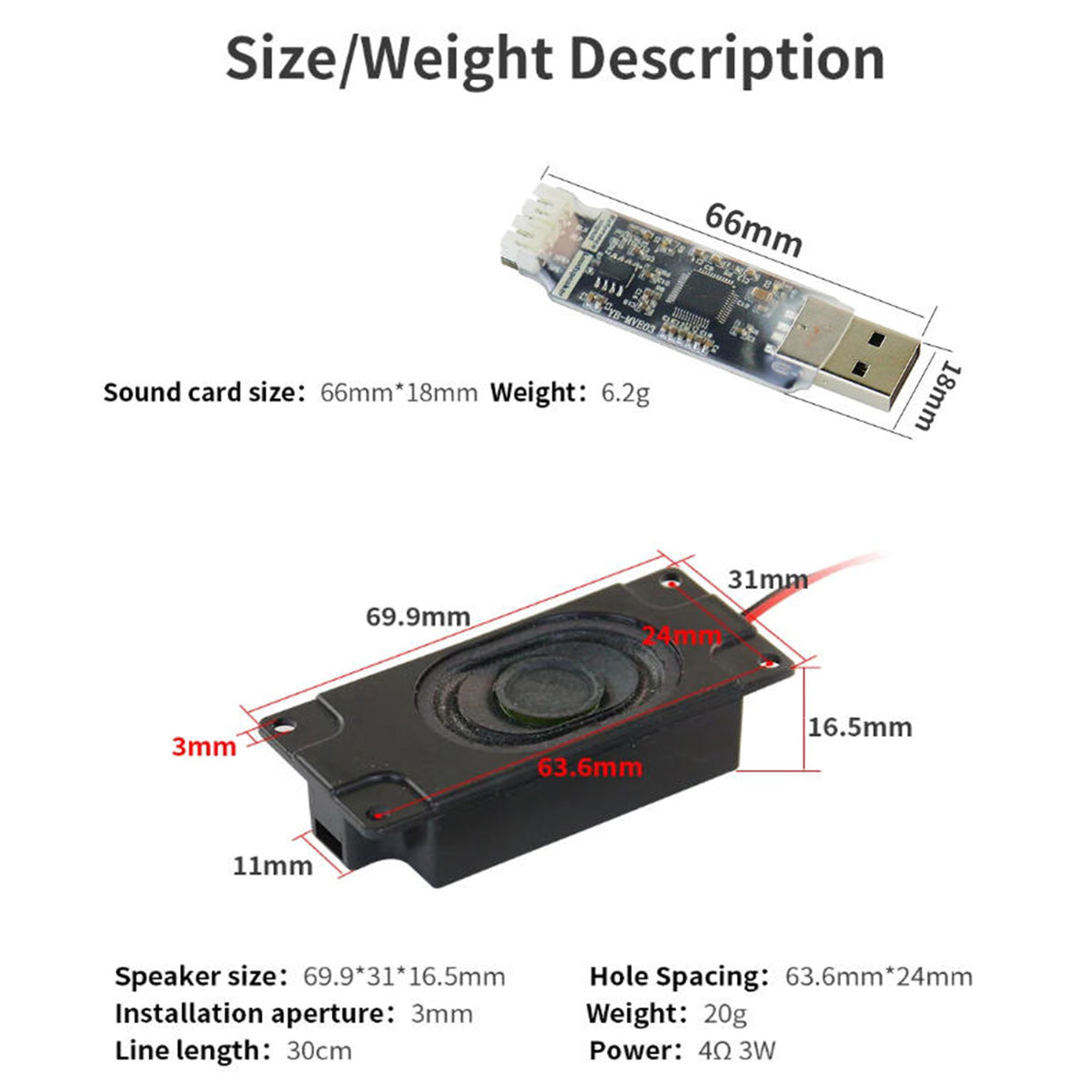

Technical Specifications

Feature Specification
Sound Card Dimensions 66mm × 18mm
Sound Card Weight 6.2g
Speaker Dimensions 69.9mm × 31mm × 16.5mm
Speaker Weight / Rating 20g / 4Ω, 3W (Mono)
Mounting Hole Specs Spacing: 63.6mm × 24mm | Diameter: 3mm
Connectors & Cables USB 2.0 Type-A, PH2.0-2P speaker port, PH2.0-2P audio reference port (Cable length: 30cm)
Supported OS Windows 7/8/10, macOS, Linux
Compatible Hardware Raspberry Pi series, NVIDIA Jetson series, RDK X3, PC / Notebook

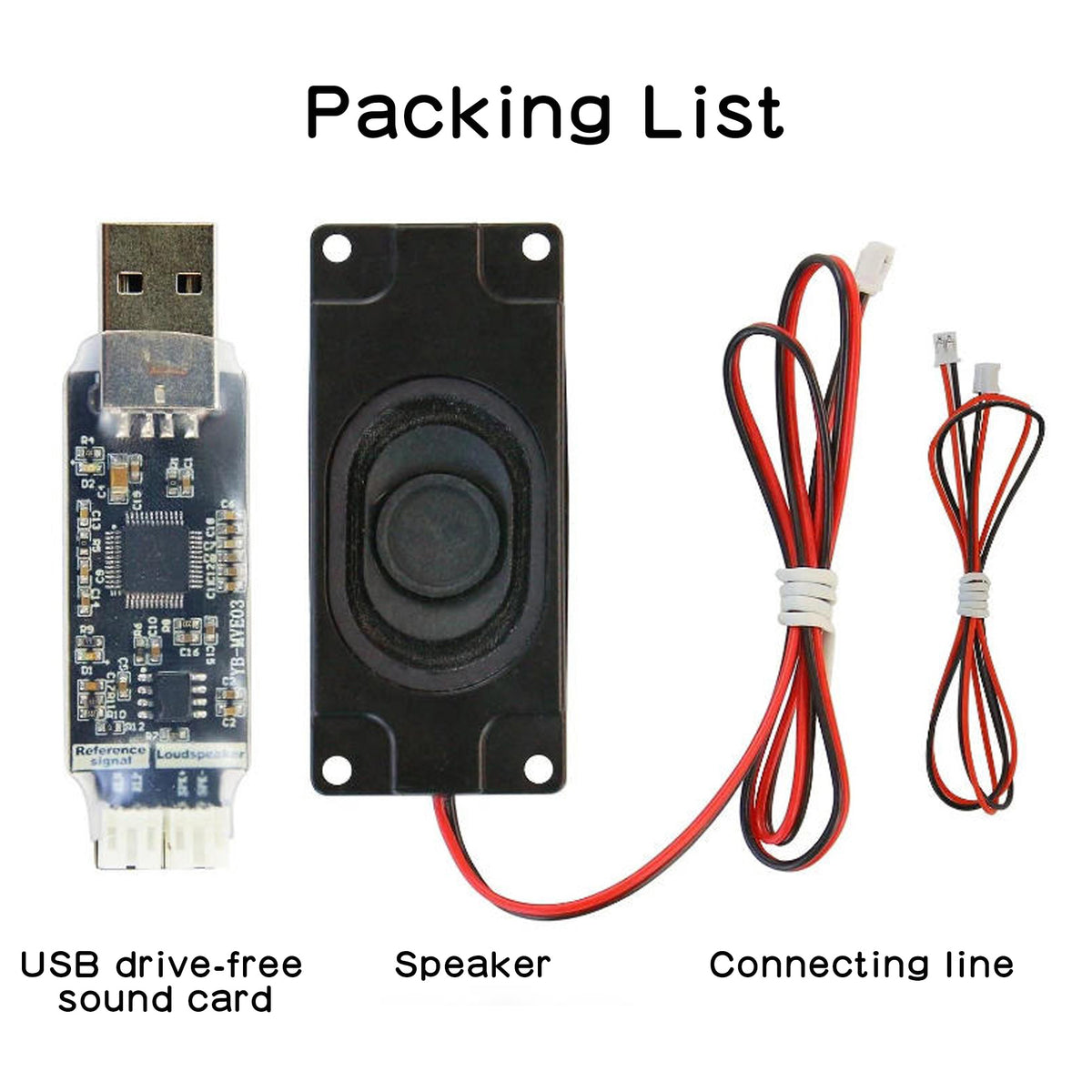

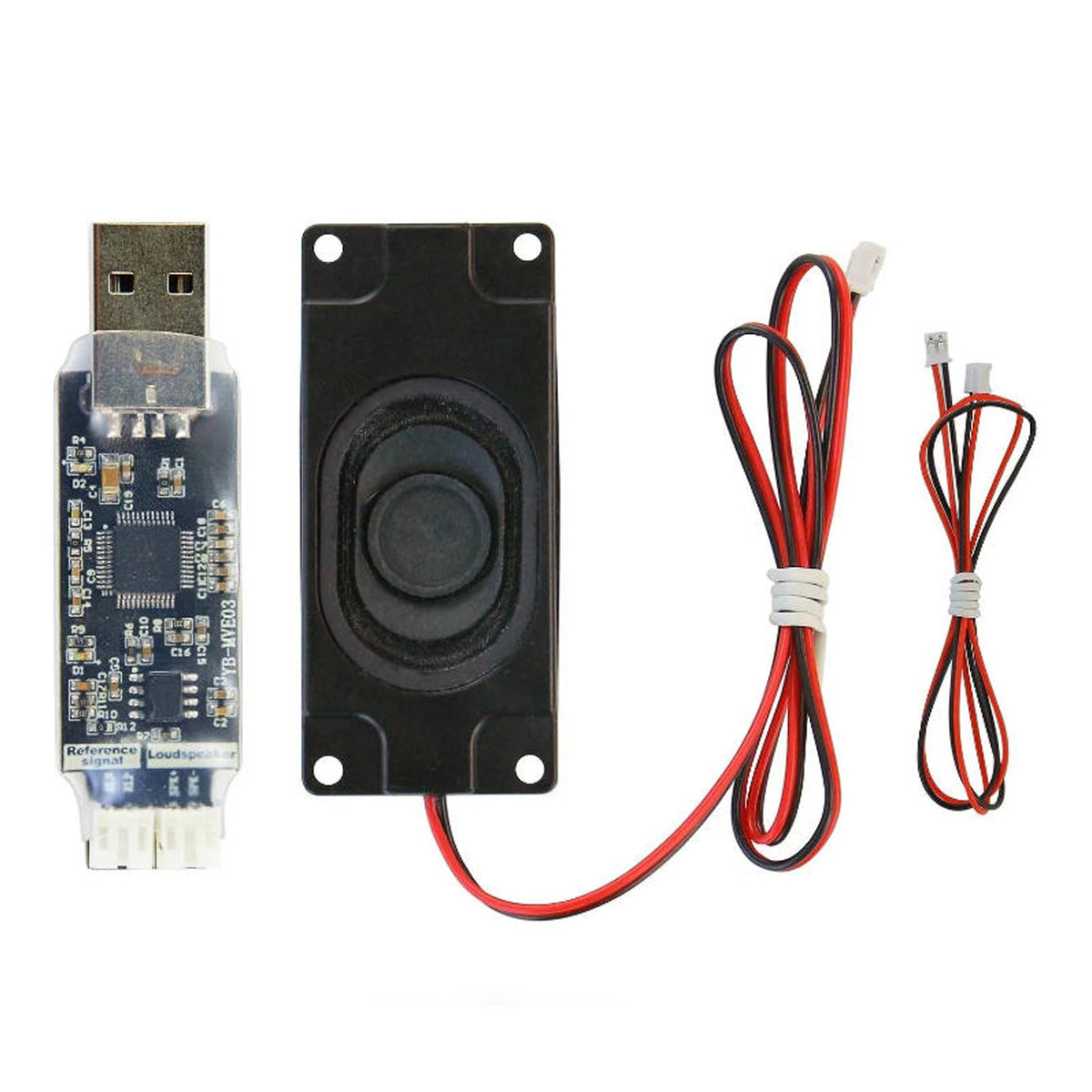

Packing List

  • 1 x USB Driverless Sound Card
  • 1 x 4Ω 3W Speaker
  • 2 x PH2.0-2P Connecting Cables
  • Note: Development boards shown in product photos are for demonstration purposes only and are not included.

Refer to: https://wiki.geekworm.com/YB-MVEO3

Please email to us at info@geekworm.com if you have other questions.
