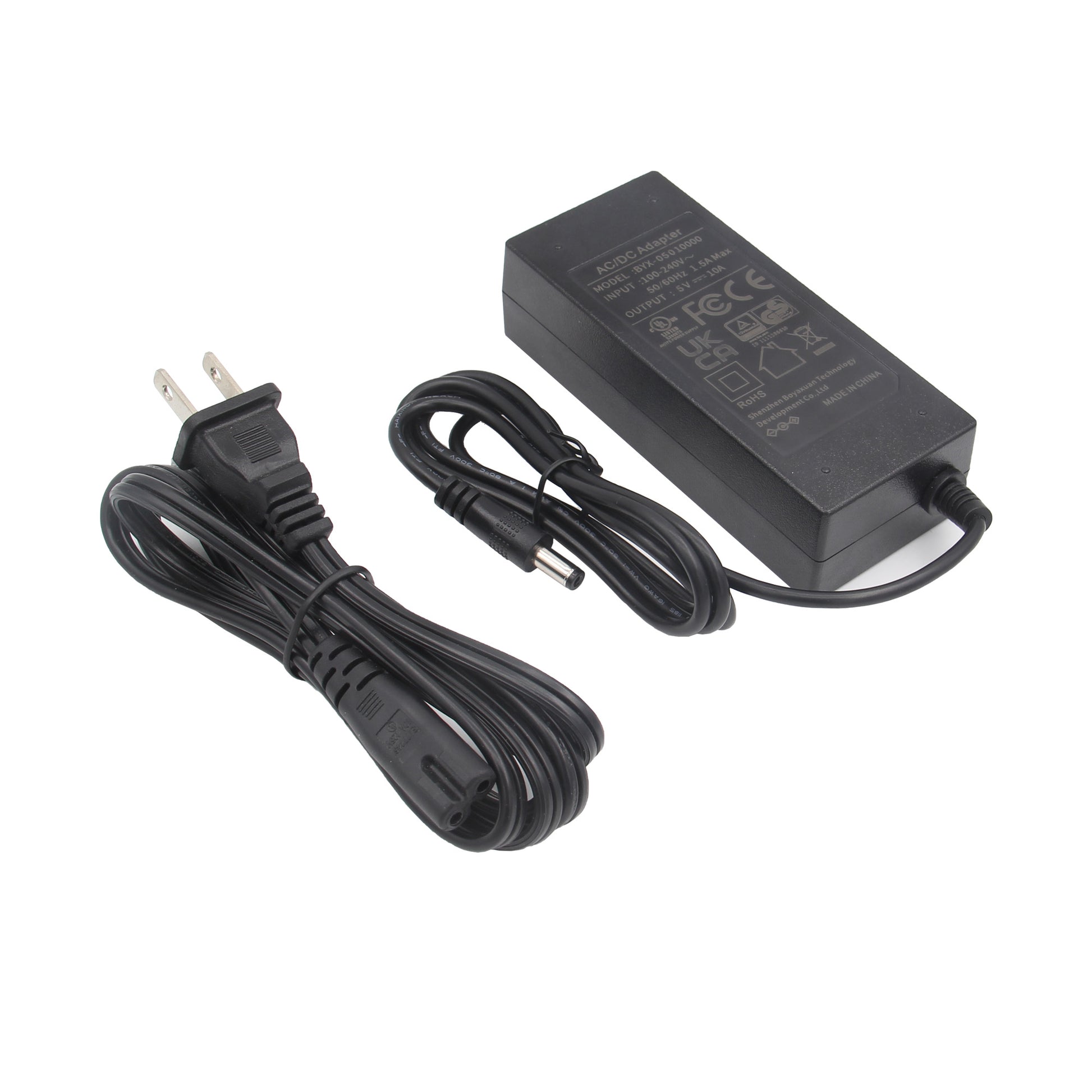

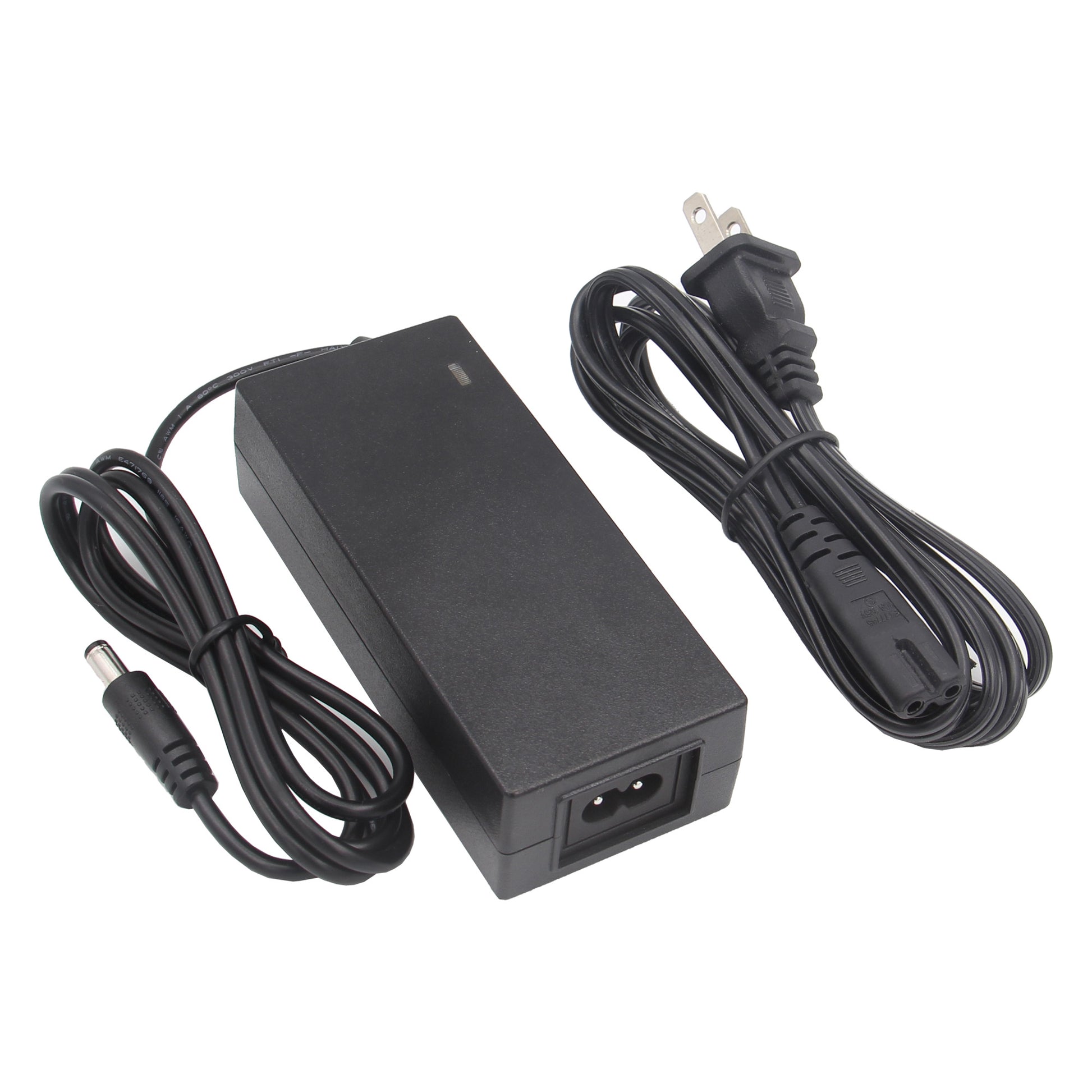

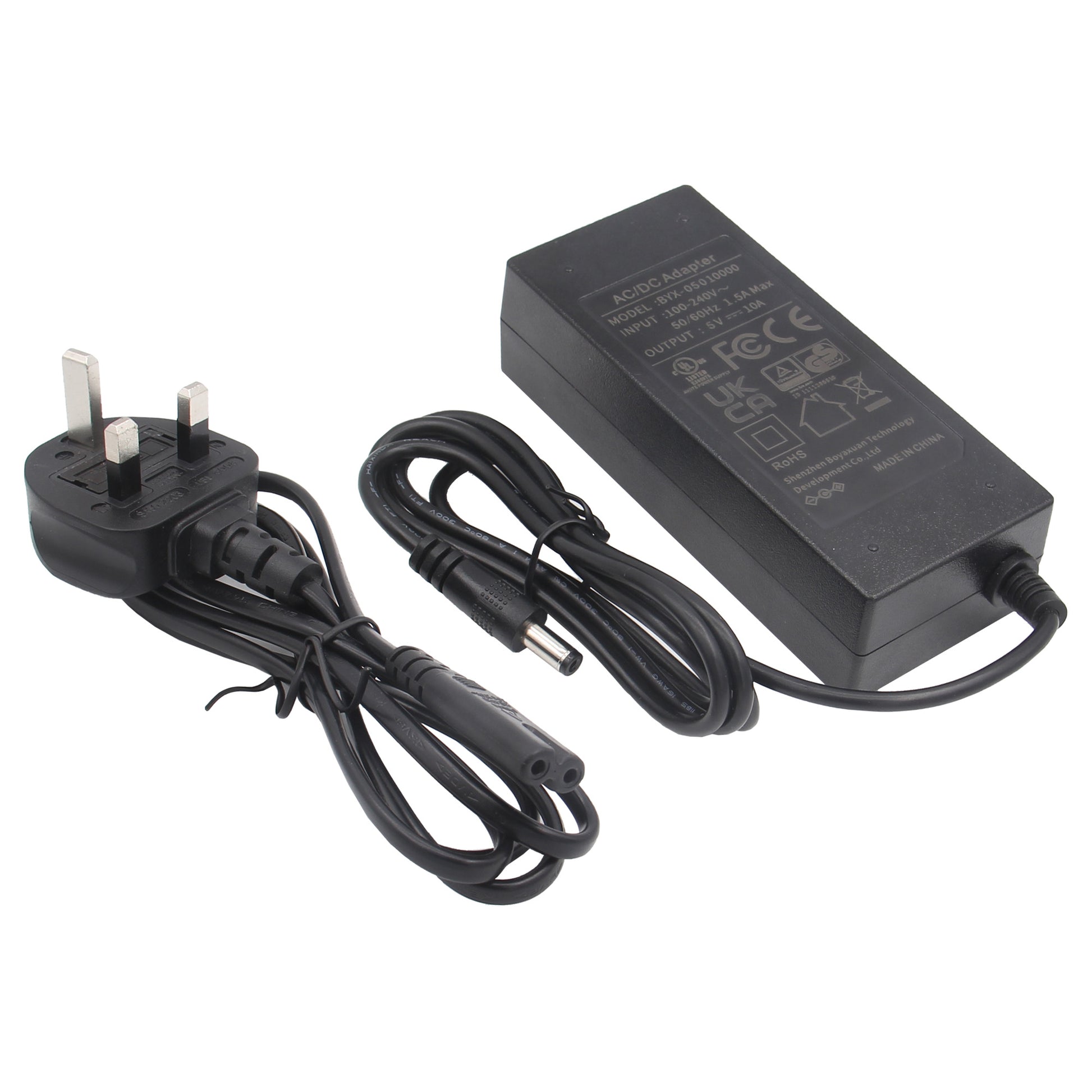

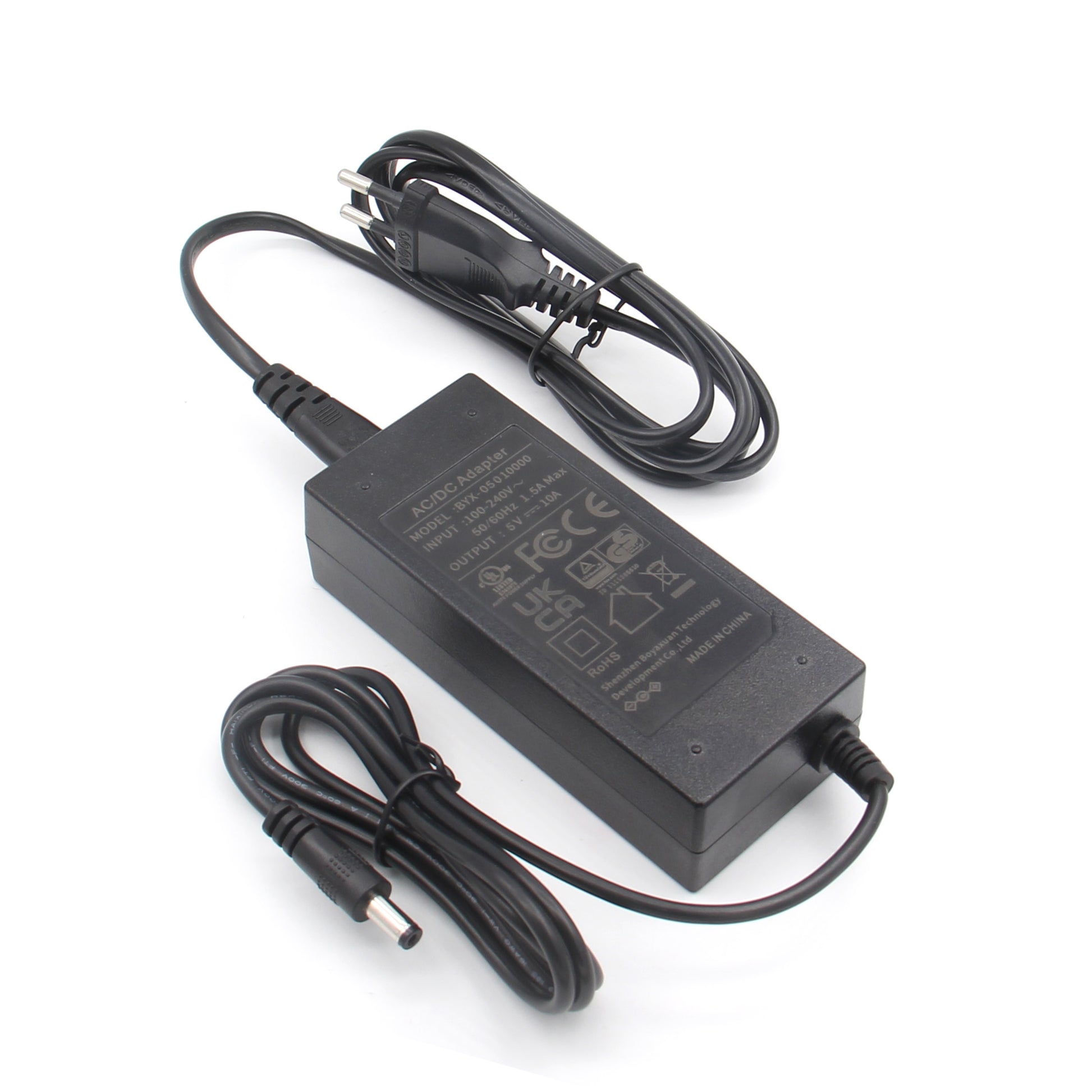

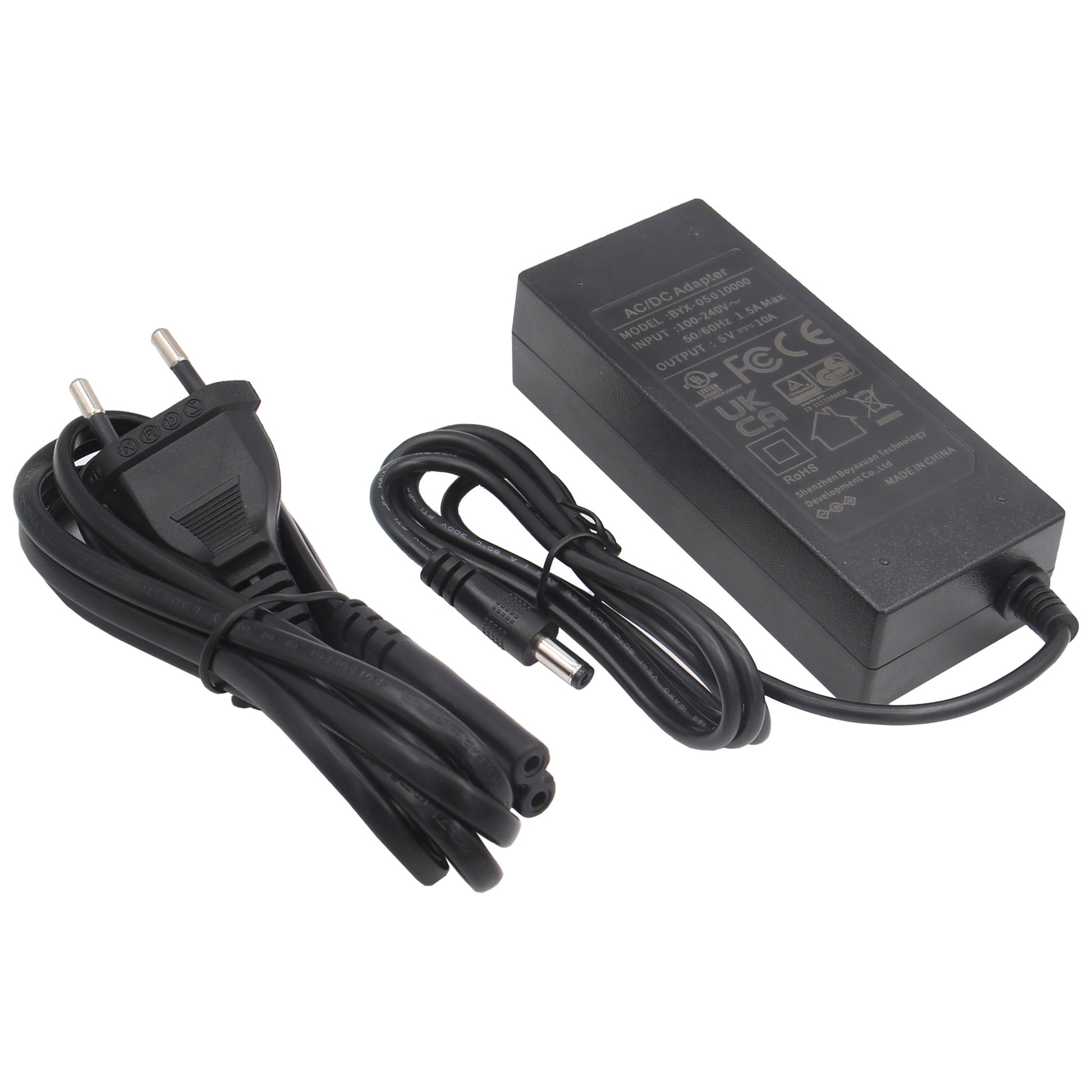

Geekworm DC5521 5V 10A Power Adapter for X1011 etc

Notes

• Please ensure your device requires 5V DC5521 jack NOT DC5525 input before use.
• The total current of connected devices should not exceed 9A.

Overview

This 5V 10A DC5521 power adapter provides a stable and reliable power supply for high-current electronic devices. It features a DC5521 (5.5mm × 2.1mm) barrel connector, making it suitable for a wide range of development boards, embedded systems, and accessories.

It is recommended for powering the X1011 expansion board, delivering sufficient current to ensure stable operation of connected devices and peripherals.

Features

• Input: 100-240V 50 / 60Hz 1.5A Max.

• Output: 5V Max.10A

• Cable length: 100mm

• Connection: DC55*21(5.5mm × 2.1mm)(5.5mm outer diameter, 2.1mm inner diameter)

• Polarity: Center positive (+), outer negative (-)
• Power Brick Net Weight: 250g
• Built-in Protection: Over-voltage, over-current, overload, and short-circuit protection
• Compatible with X1011, X852 V2.0, X728

Compliance & Certifications:

• Europe: CE (EMC & LVD), GS Certified
• United Kingdom: UKCA (EMC & LVD)
• North America: UL Listed/Recognized (for power < 75W)

Packing List

• 1 x DC5521 5V 10A Power Adapter
