Geekworm X1005 PCIe to M.2 NVMe SSD PIP Bottom for Raspberry Pi 5

Regular price
$35.00
Regular price
$37.00
Sale price
$35.00
-5%
Only 45 items in stock! Out of stock!
  • Description
  • Manual
  • PIPs
  • Shipping Policy
  • Reviews

Note:

DON'T include Raspberry Pi 5 and NVME SSD .

NOTE:

X1005 also supports hailo-8 ai accelerator and can also support booting from another SSD.
PS: Hailo-8 ai and ssd share the bandwidth of PCIe 2.0. Due to the limitation of ASMedia ASM1182e PCIe switch, X1005  DO NOT  support PCIe 3.0.

[Overview]

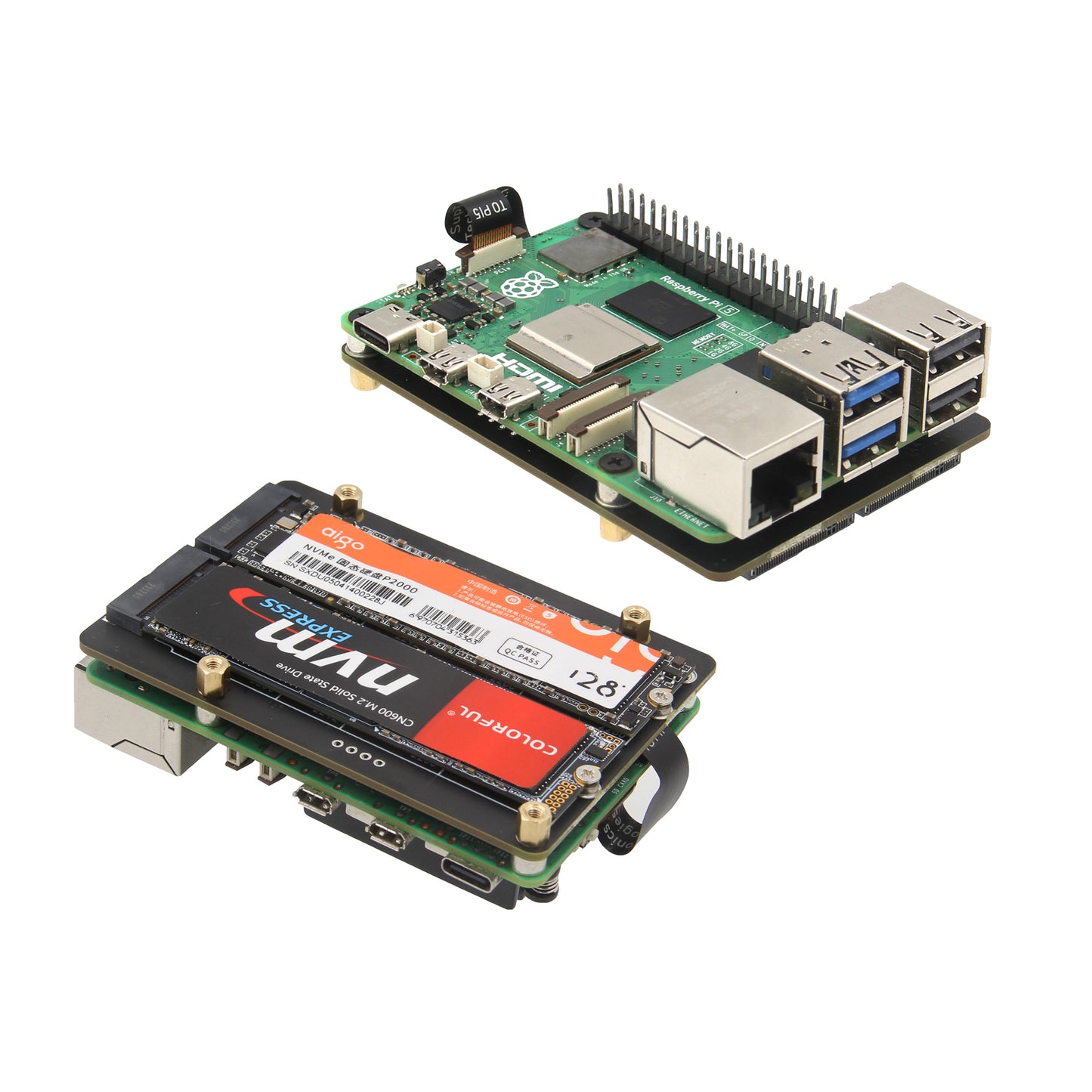

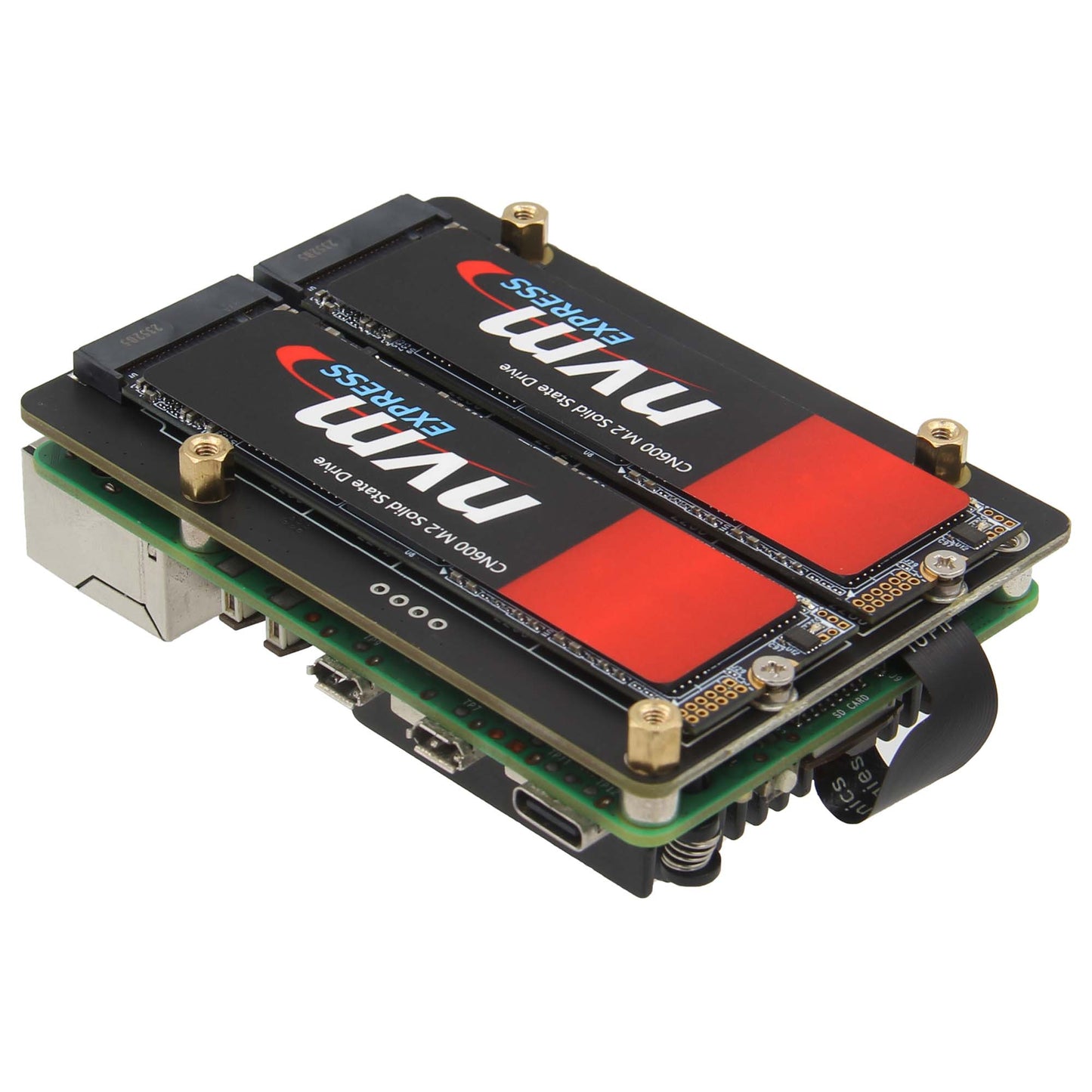

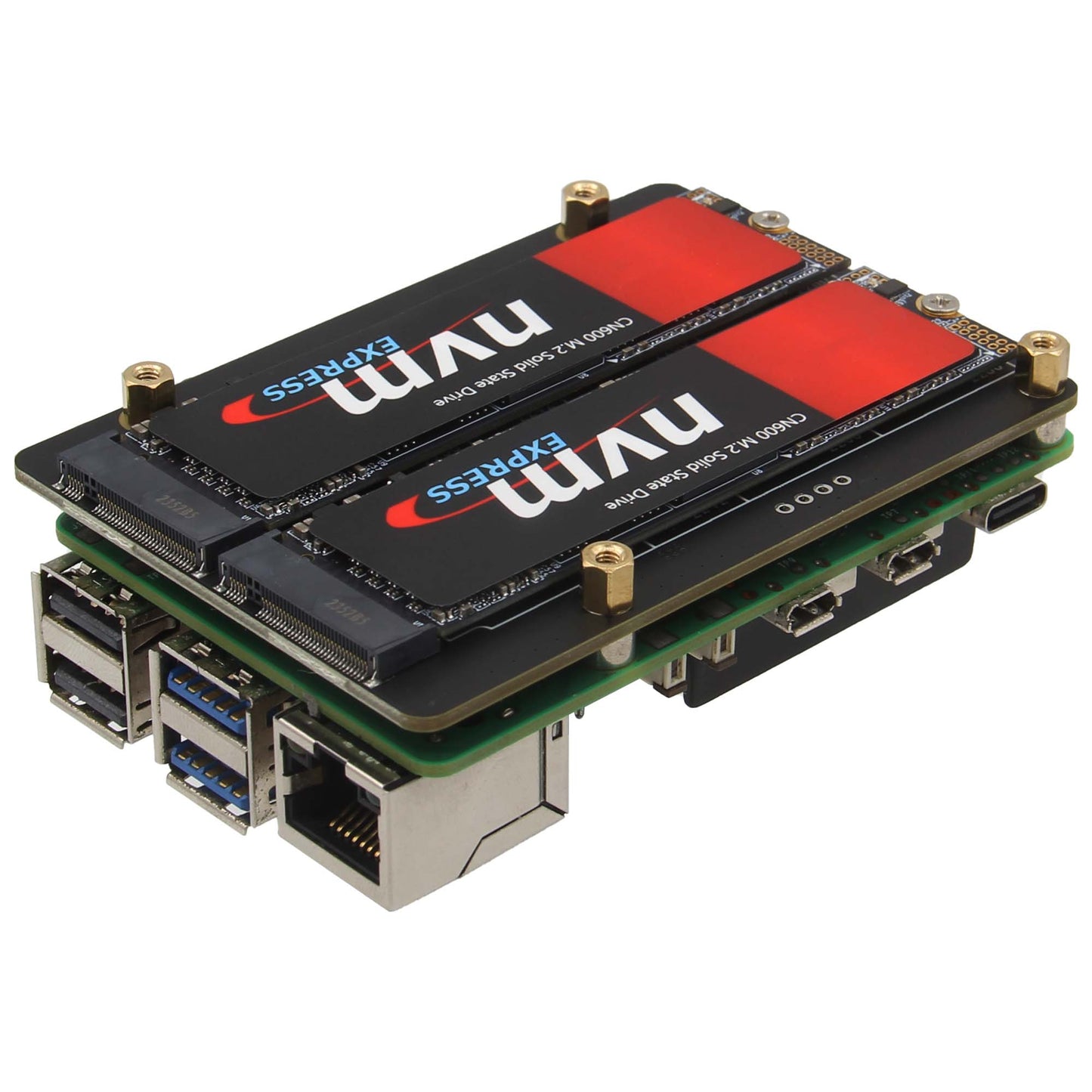

X1005 NVMe dual SSD shiel is designed to provide a seamless and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of two M.2 SSDs with multiple lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

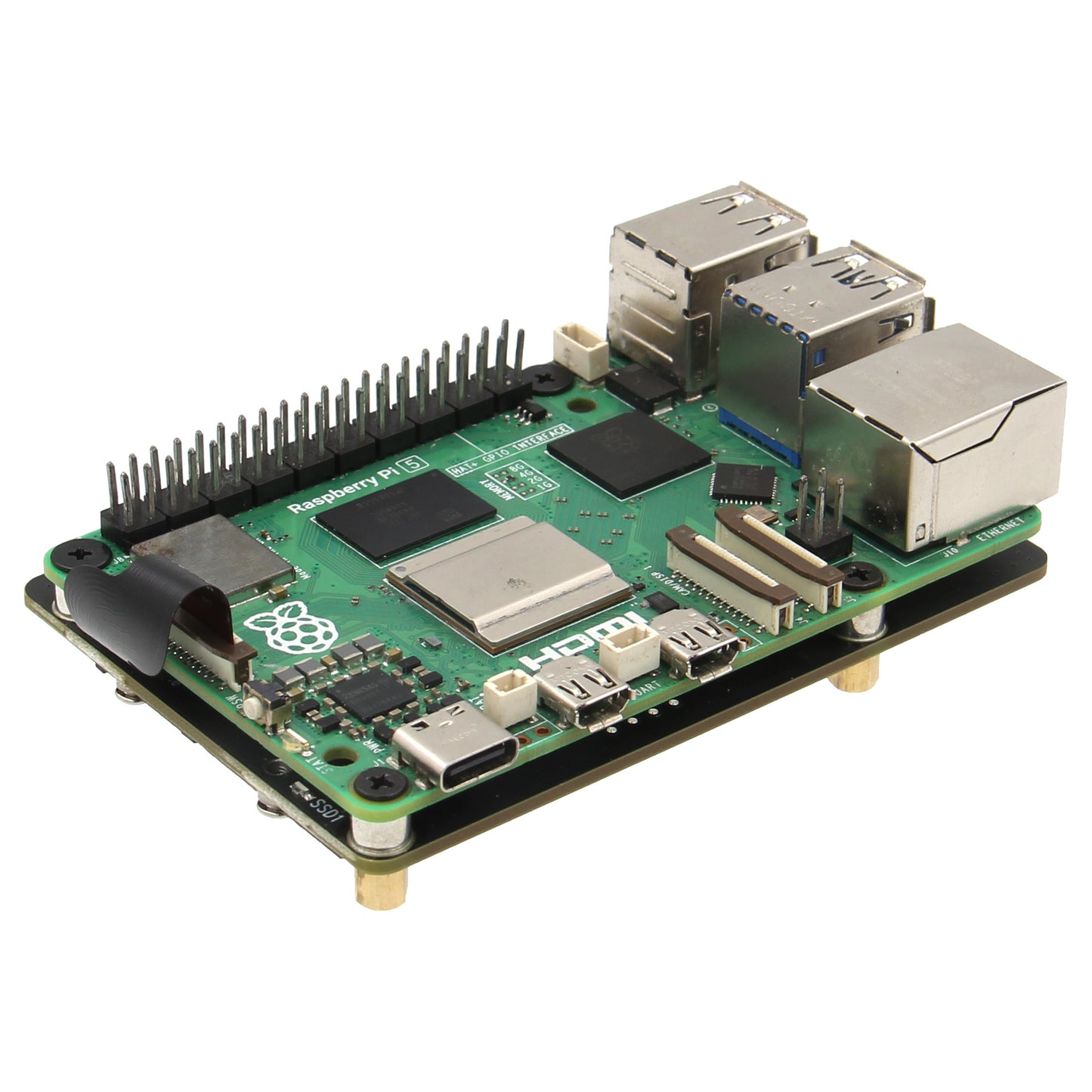

The X1005 is installed on the rear side of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favorite HATs while also utilizing the NVMe shield. Additionally, it seamlessly integrates with the Raspberry Pi official passive cooler without compromising heat dissipation. The inclusion of mounting holes and standoffs provides added protection for your solid-disk drives while effectively dissipating heat. The built-in LED light indicates the current reading or writing status, eliminating any guesswork.

The X1005 is an ideal storage solution for creating a home media center or building a network-attached storage (NAS) system. It allows you to store and stream your own videos, music, and digital photos within your home or even remotely across the world.

[User Manual]

https://wiki.geekworm.com/X1005

[Matching Case]

Refer to P580-V2. (The current P580 does not support X1005)

[Features]

  • Supports NVMe boot.
  • Support Hailo-8 AI Accelerator, but only PCIe Gen2.0 speed
  • Ideal PCIe storage solution for Raspberry Pi 5 - Dual M.2 NVMe SSD Shield
  • Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives

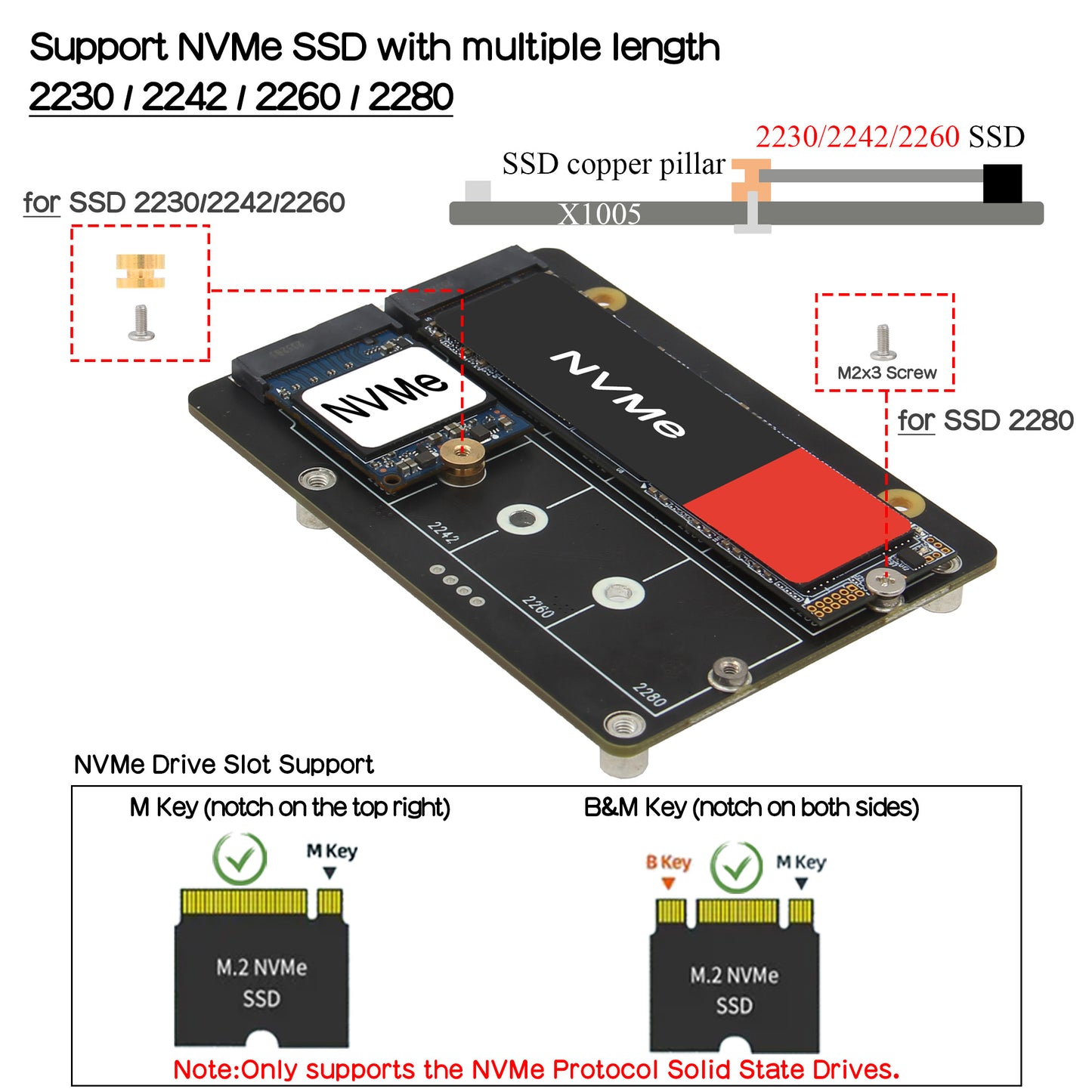

  • Accommodates two various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
  • Supports PCIe 2.0 5Gbps for speedy data transfer and super-fast boot
  • Fully compatible with the Raspberry Pi official active cooler

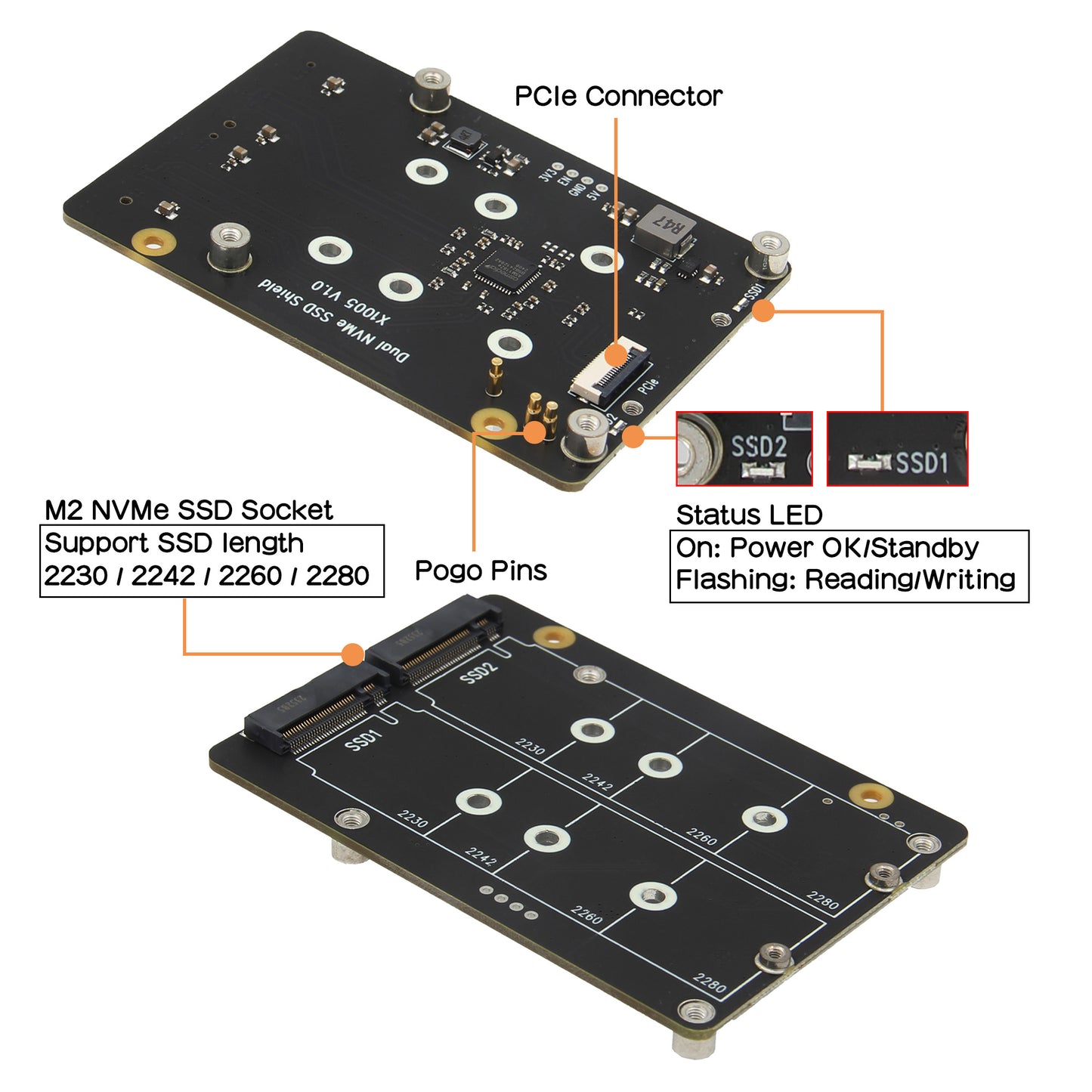

  • LED indicators in blue display power and drive status
  • Features an integrated high-performance PCIe packet switch
  • Equipped with two high-efficiency DC/DC step-down converters, delivering a maximum of 6A to power your SSDs
  • Designed to be attached on bottom, allows using your favorite HATs alongside it

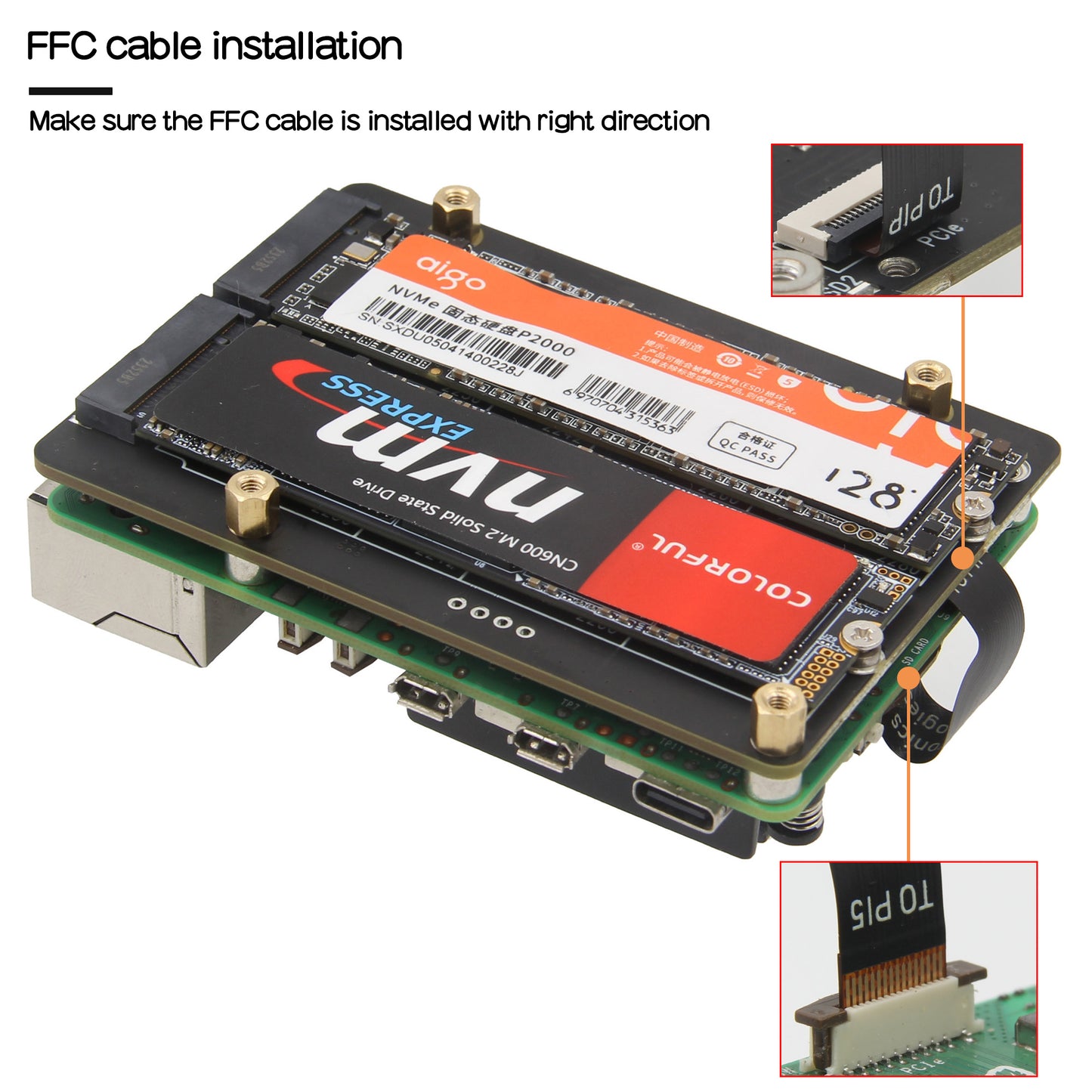

  • Powering via both pogo pins and FFC, ensuring sufficient power supply without any worries

[Technical Specification]

  • Power supply: 5Vdc +/-5% power via pogo pins & FFC, converted to 3.3V max 6A to power the SSDs
  • [Ports & Connectors]
  • PCIe connector - 16-pin pitch0.5mm
  • SSD connector - M.2 KEY-M 67P
  • PCIe cable length 37mm x2
  • PCB Size: 86.5mm x 60mm​

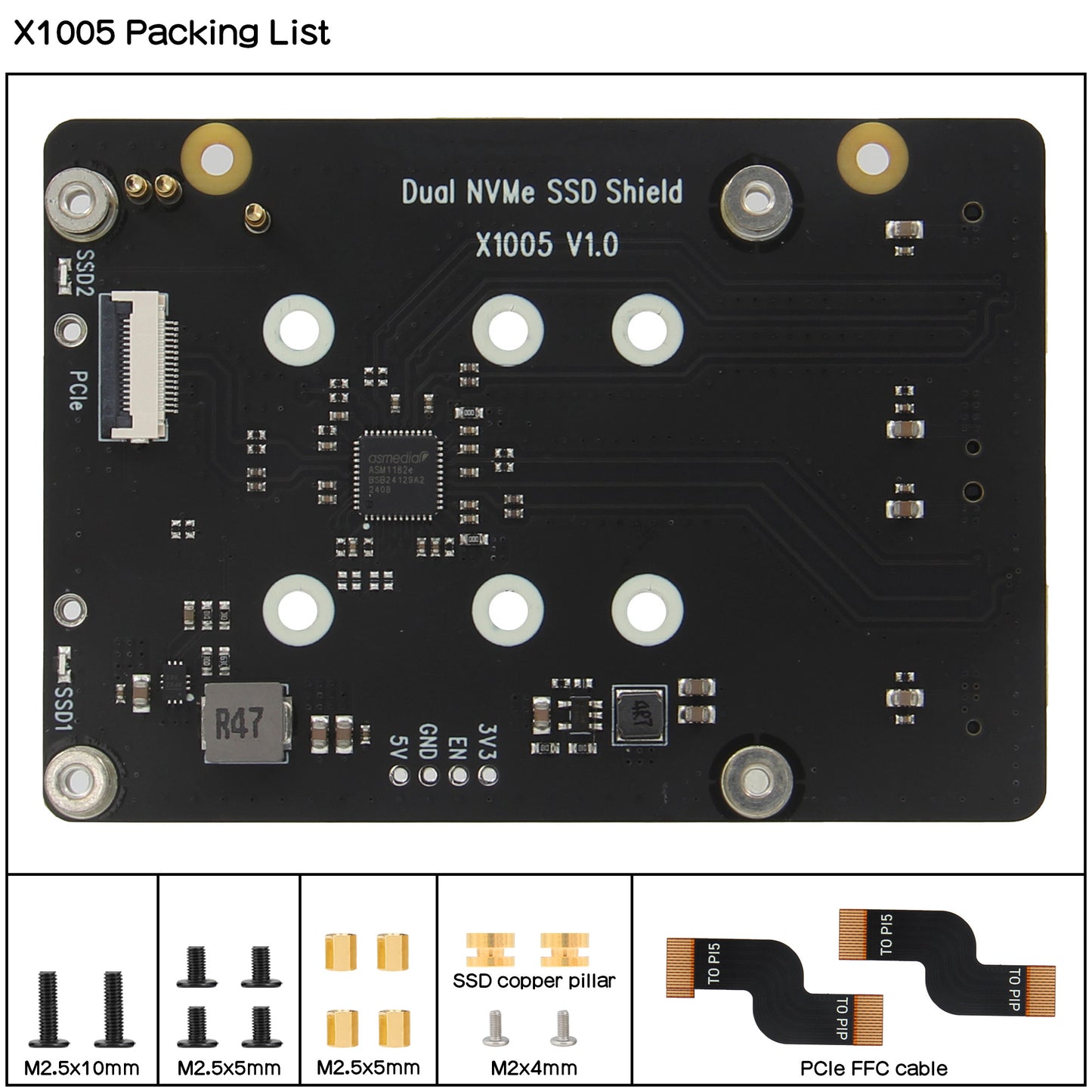

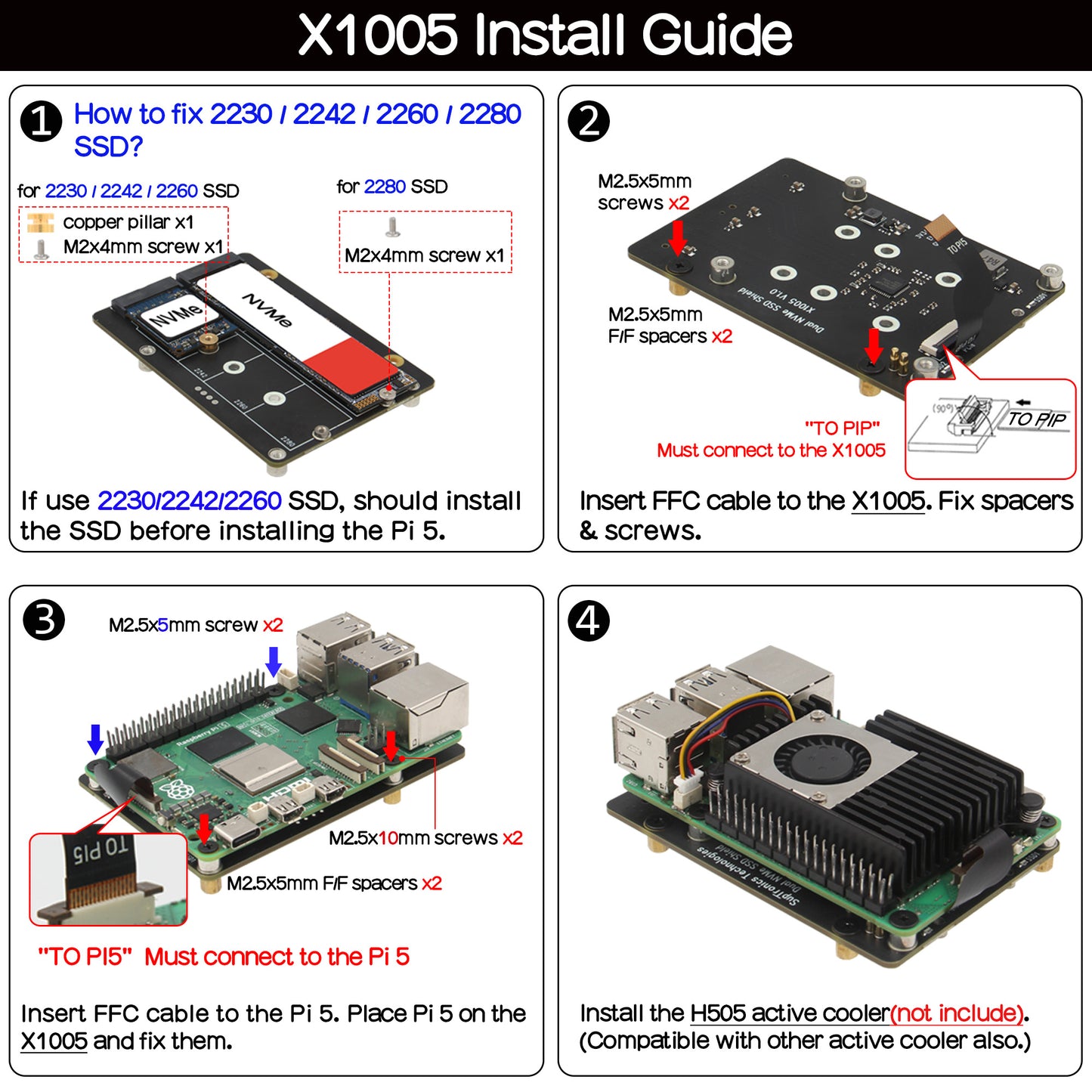

[Packing List]

  • X1005 V1.0 NVMe shield x1
  • PCIe FFC 37mm x 2 (1pc is for backup)
  • M2.5*10mm Screw x 2
  • M2.5*5mm Screw x 4
  • M2.5*5mm Spacer x 4
  • SSD Copper Pillar x 2 (to fix 2230 / 2242 / 2260 length SSD)
  • M2*4 Screw x 2 (to fix NVME SSD)



Refer to: https://wiki.geekworm.com/X1005

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.
  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
Model Features Mounting Position SSD Size Matching Case Matching Cooler Support Hailo-8 AI Accelerator
X1000
  • PCIe to NVMe M.2 SSD shield
  • Supports M.2 2230/2242 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
X1001
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1002
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Attaches to the RPi5 bottom
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
Not tested
X1003
  • PCIe to NVMe M.2 SSD shield
  • Install inside Raspberry Pi case
  • Compatible with RPi active cooler
  • Supports M.2 2230/2242 SSD
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
X1004
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
  • Support HAT standby power state
Top
  • 2280
Yes
X1015
  • PCIe to NVMe M.2 SSD shield
  • Same features as official M.2 HAT+
  • Same schematic & key component
  • Supports full-size M.2 2280 SSD
  • Supports up to 4TB NVMe SSD
  • Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1005
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
  • Attaches to the RPi5 bottom
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1011
  • PCIe to NVMe 1-4 M.2 SSD shield
  • Supports 4 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 4TB NVMe SSD
  • High-performance packet switch
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
No Support
M901
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
Q100
  • PCIe to NVMe M.2 SSD shield
  • with 1.3 inch TFT to display
  • Supports M.2 2242 SSD
  • Supports super-fast boot
Top
  • 2242
Not tested
Q200
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
Top
  • 2280
Not tested
M300
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
M400
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2280
Not tested
