ESP32-S3-DEV-KIT-N16R8-M Wi-Fi & BLE Development Board | 240MHz Dual Core, 16MB Flash, 8MB PSRAM, Pre-soldered Headers, Type-C

Overview

The ESP32-S3-DEV-KIT-N16R8-M is a compact, high-performance microcontroller development board built on the Espressif ESP32-S3-WROOM-1-N16R8 module. Powered by an Xtensa 32-bit LX7 dual-core processor running at up to 240 MHz, it comes equipped with 16 MB Flash and 8 MB PSRAM—making it the ideal solution for AIoT applications, complex custom firmware, OTA updates, and high-speed data buffering.

This is the -M variant featuring pre-soldered dual 2×20-pin male headers, allowing you to build and prototype right out of the box with zero soldering required. With onboard CH343 and CH334 chips, the board supports both native USB and USB-to-UART development via a single reversible USB Type-C port, enumerating as two independent serial ports on your host machine.

Designed with a pinout fully compatible with the official Espressif ESP32-S3-DevKitC-1 layout, it offers seamless integration with a vast ecosystem of expansion boards, sensors, and community tutorials across ESP-IDF, Arduino, MicroPython, and PlatformIO.

Key Features

⚡ Powerful Processor & Ample Memory

• Dual-Core Performance: ESP32-S3-WROOM-1-N16R8 module with Xtensa 32-bit LX7 dual-core processor operating up to 240 MHz.
• On-Chip Memory: 512 KB SRAM (TCM) and 384 KB ROM.
• 16 MB Quad SPI Flash: Massive capacity for firmware, file systems, and media storage (supports DIO/QIO modes).
• 8 MB PSRAM: High-speed RAM dedicated to AI tensors, data buffering, and memory-heavy operations.

📶 Dual-Mode Wireless Connectivity

• 2.4 GHz Wi-Fi: Supports 802.11 b/g/n protocols with up to 40 MHz bandwidth.
• Bluetooth 5 (LE) & Mesh: Long-range Bluetooth Low Energy paired with Mesh networking capability for reliable RF performance.

🔌 Dual Serial Ports & Seamless USB

• Reversible Type-C Connector: Single USB Type-C port used for power, programming, and real-time debugging.

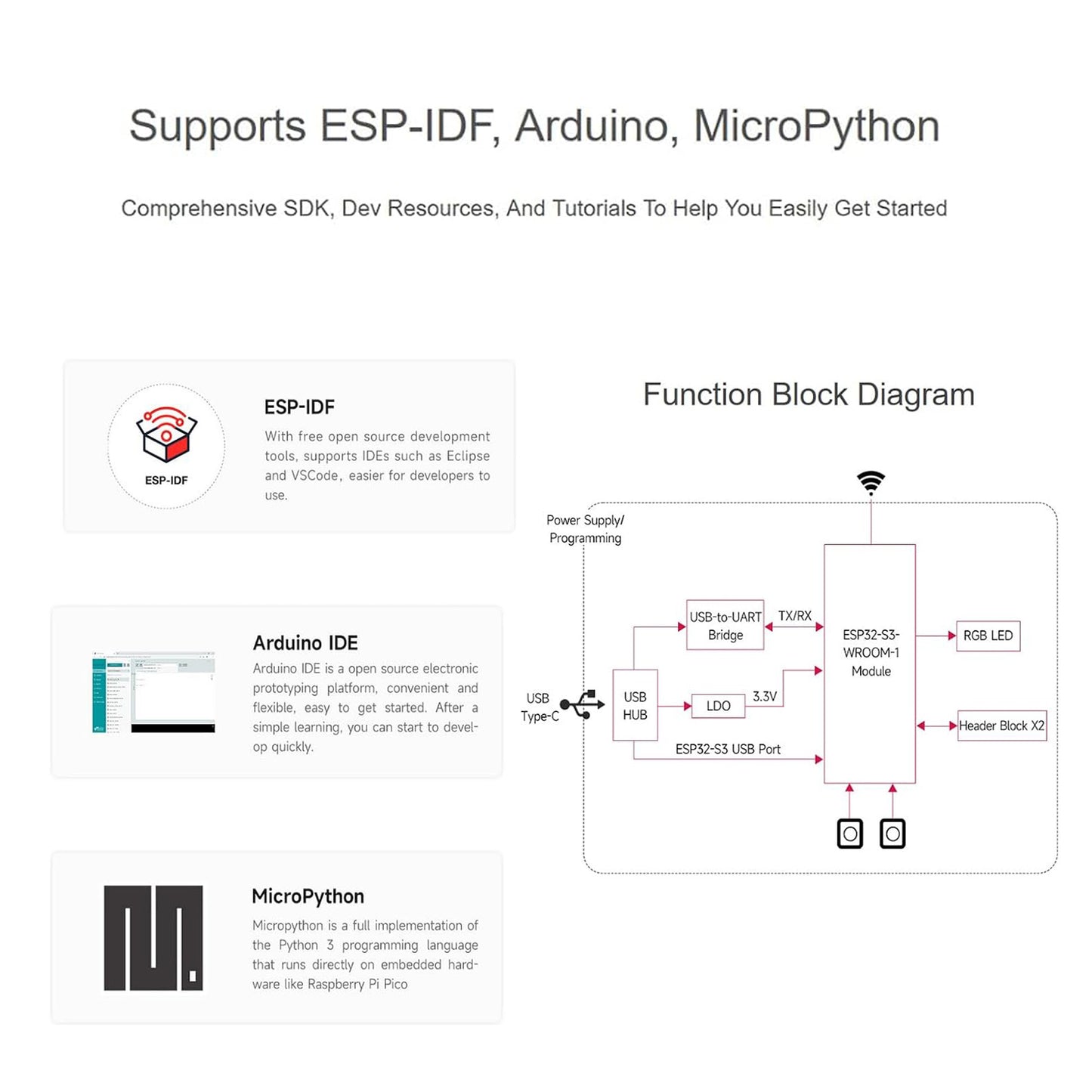

• Onboard USB Hub & UART: Equipped with CH343 (USB to UART) and CH334 (USB 2.0 HUB) chips.
• Dual Serial Enumeration: Simultaneously exposes ESP32-S3 native USB and CH343 UART for effortless serial monitoring and debugging.

🛠️ Ready-to-Use & Ecosystem Compatible

• Factory Pre-Soldered Headers: Includes two 20-pin 2.54mm male headers ready for immediate breadboard plug-and-play.
• DevKitC-1 Pin Compatibility: Matches the official ESP32-S3-DevKitC-1 pinout for total hardware/software ecosystem compatibility.
• Rich Peripherals & Control: Access up to 45 GPIOs (Note: GPIO 35/36/37 are NC on WROOM-1 module), 4x SPI, 3x UART, 2x I2C, 2x I2S, 14x Touch, RMT, LED PWM, USB-OTG, TWAI, 2x 12-bit ADC, LCD interface, and DVP camera interface.
• Onboard Controls: Includes power LED, user RGB LED, Boot button, and reset button.
• Carrier Board Integration: Castellated holes / half-hole module design allows direct soldering onto custom baseboards.
• Multi-Platform Support: Fully supported by ESP-IDF, Arduino IDE, MicroPython, and PlatformIO.

Technical Specifications

Packing List

• 1 x ESP32-S3-DEV-KIT-N16R8-M Development Board (with pre-soldered pin headers)
