Geekworm XNAS1 4-bay 3.5" SATA HDD NAS Expansion Board Case Kit for Raspberry Pi Compute Module 5 (CM5)

$99.00
$99.00
Only 20 items in stock! Out of stock!
  • Description
  • Manual
  • CM5 IO Carrier Boards
  • Shipping Policy
  • Reviews

Overview

The Geekworm XNAS1 is an industrial-style 4-bay Network Attached Storage (NAS) solution engineered exclusively for the Raspberry Pi Compute Module 5 (CM5). It converts your CM5 into a high-capacity, self-hosted storage system using four 3.5-inch SATA hard drives, capable of supporting up to 88TB of total storage (up to 22TB per drive).

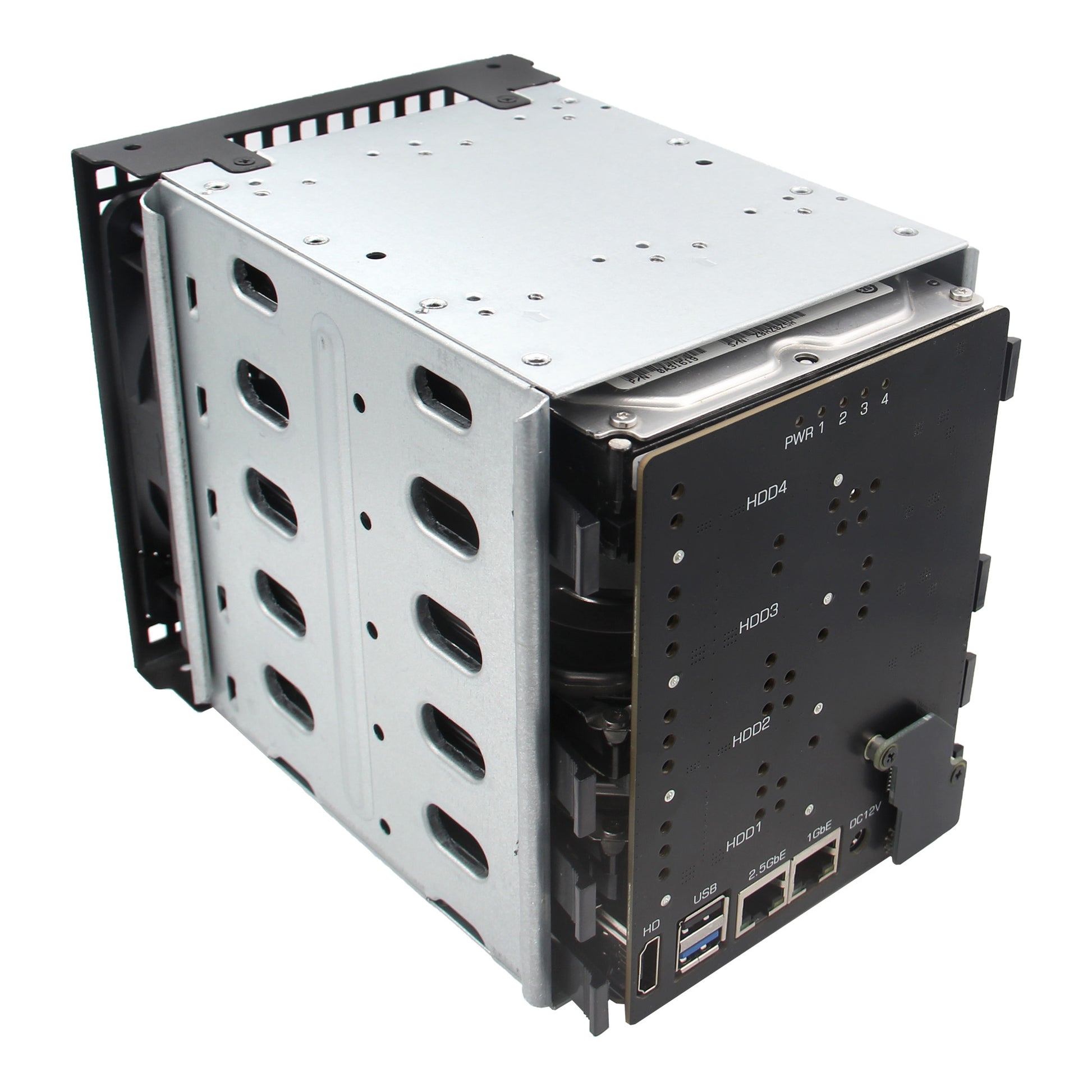

Equipped with dual Ethernet ports (1GbE + 2.5GbE) and an integrated PCIe Gen3x1 to 4× SATA 6Gb/s bridge, the XNAS1 provides fast local networking and storage connectivity. Built with a stainless steel hard drive cage, vibration-dampening mounts, and a 120mm PWM cooling fan, it ensures active cooling and physical drive stability for 24/7 continuous operation.

It is fully compatible with openmediavault (OMV) and other Linux-based NAS operating systems, making it the ideal choice for local media hosting, private cloud backups, and high-speed file sharing.

Notice: The XNAS1 is designed for data storage purposes and does not currently support booting the OS directly from SATA HDDs/SSDs under the existing firmware. The system must boot via MicroSD card (CM5 Lite) or onboard eMMC.

Key Features

🚀 High-Speed Storage & Mass Capacity

  • 4-Bay 3.5" SATA Storage: Accommodates up to four 3.5-inch SATA hard drives simultaneously.
  • Massive Storage Capacity: Supports up to 88TB of total storage (up to 22TB per drive).
  • PCIe to SATA Bridge: Features an integrated PCIe Gen3x1 to 4× SATA 6Gb/s bridge with software-based RAID support.

🌐 Advanced Networking & Connectivity

  • Dual Ethernet Ports: Equipped with 1x 1GbE and 1x 2.5GbE RJ45 ports for high-speed local networking and seamless NAS streaming.
  • Diverse I/O Options: Includes 1x HDMI 2.0, 1x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x 36-pin PCIe x1 slot, and a 6-pin GPIO header.
  • CM5 Versatility: Features an onboard MicroSD card slot for CM5 Lite variants, a USB-C port for eMMC OS flashing, and an RTC CR2032 battery socket.

❄️ Industrial Build & Thermal Management

  • Durable Hard Drive Cage: Constructed with a robust stainless steel hard drive cage and vibration-dampening mounts.
  • Active Cooling System: Equipped with a 120mm PWM-controlled cooling fan delivering up to 63.7 CFM airflow for consistent drive cooling.
  • Easy Drive Mounting: Comes with plastic guide rails for effortless installation and maintenance of 3.5" drives.

🛠️ System Compatibility

  • Wide OS Support: Fully compatible with openmediavault (OMV) and Linux distributions supported by Raspberry Pi CM5.
  • Full CM5 Support: Compatible with all Raspberry Pi Compute Module 5 variants (eMMC and Lite).

Power Requirements & Safety Guide

⚠️ IMPORTANT POWER SAFETY WARNINGS:

  • Dedicated Power Supply Required: Requires a high-quality 12V DC power adapter (5.5x2.1mm jack).
  • Voltage Limit: Strict 12Vdc ± 5% input. Using incorrect voltages or underpowered adapters will cause drive instability or permanent hardware damage!
  • No Direct SATA Boot: Operating system booting directly from SATA hard drives is not supported. Ensure the OS is installed on the CM5 eMMC or a MicroSD card.
Parameter Requirement
Power Input Voltage 12Vdc ± 5%
Power Connector DC Jack (5.5x2.1mm)
Recommended Power Adapter 12V 10A DC Power Supply

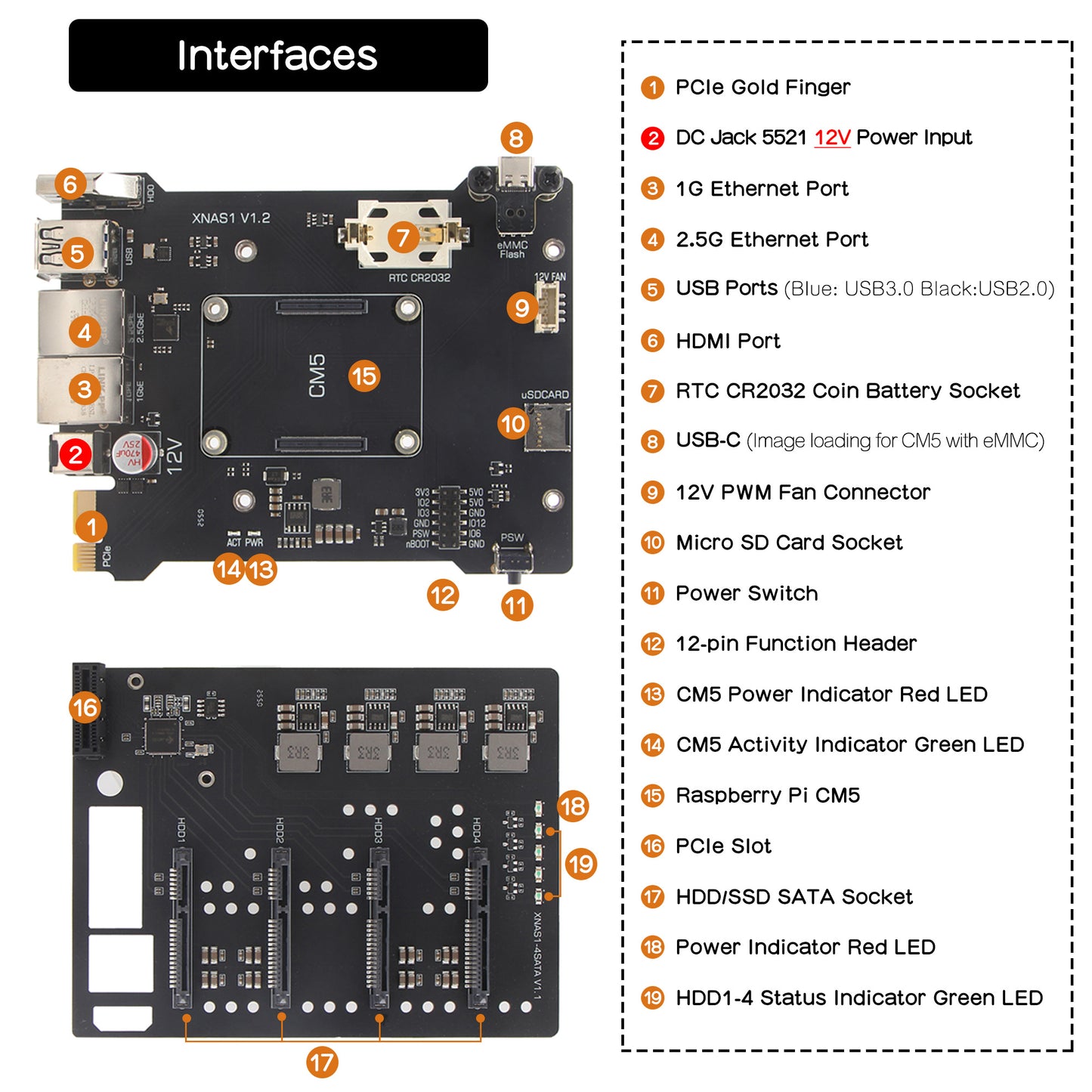

Technical Specifications

Feature Specification
Product Model XNAS1
Compatibility Raspberry Pi Compute Module 5 (CM5 / CM5 Lite)
Storage Capacity Up to 4 × 3.5" SATA HDDs (Max 22TB per drive / 88TB total)
Interface Bridge PCIe Gen3x1 to 4× SATA 6Gb/s Bridge
Networking 1 × 2.5GbE RJ45 + 1 × 1GbE RJ45 Port
USB Ports 1 × USB 3.0 Type-A, 1 × USB 2.0 Type-A, 1 × USB-C (for eMMC OS imaging)
Video Output 1 × Full-size HDMI 2.0
Expansion & Headers 1 × 36-pin PCIe x1 slot, 1 × 6-pin GPIO header
Storage Card Slot 1 × MicroSD card slot (for CM5 Lite)
Cooling 120mm PWM Fan (Up to 63.7 CFM, PH2.0 4-pin header)
Power Input 12V DC ±5% / 10A via DC Power Jack (5.5x2.1mm)
Other Features RTC CR2032 battery socket, Onboard power button
Form Factor / Dimensions 85mm x 87mm (Carrier Board)

Installation & Assembly Guide

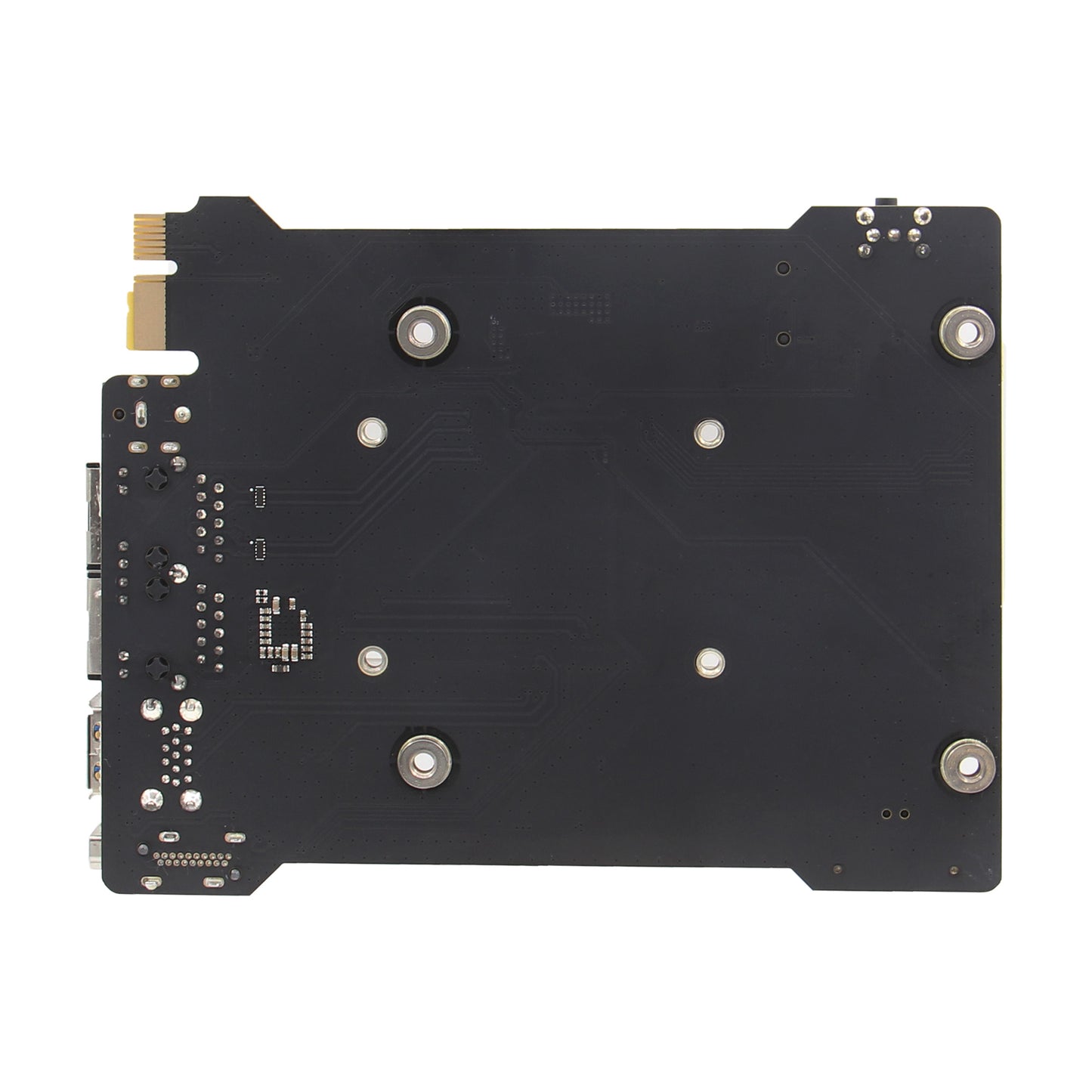

  1. Mount the Raspberry Pi Compute Module 5 onto the XNAS1 carrier board using the included PCIe FFC cables and standard mounting connectors.

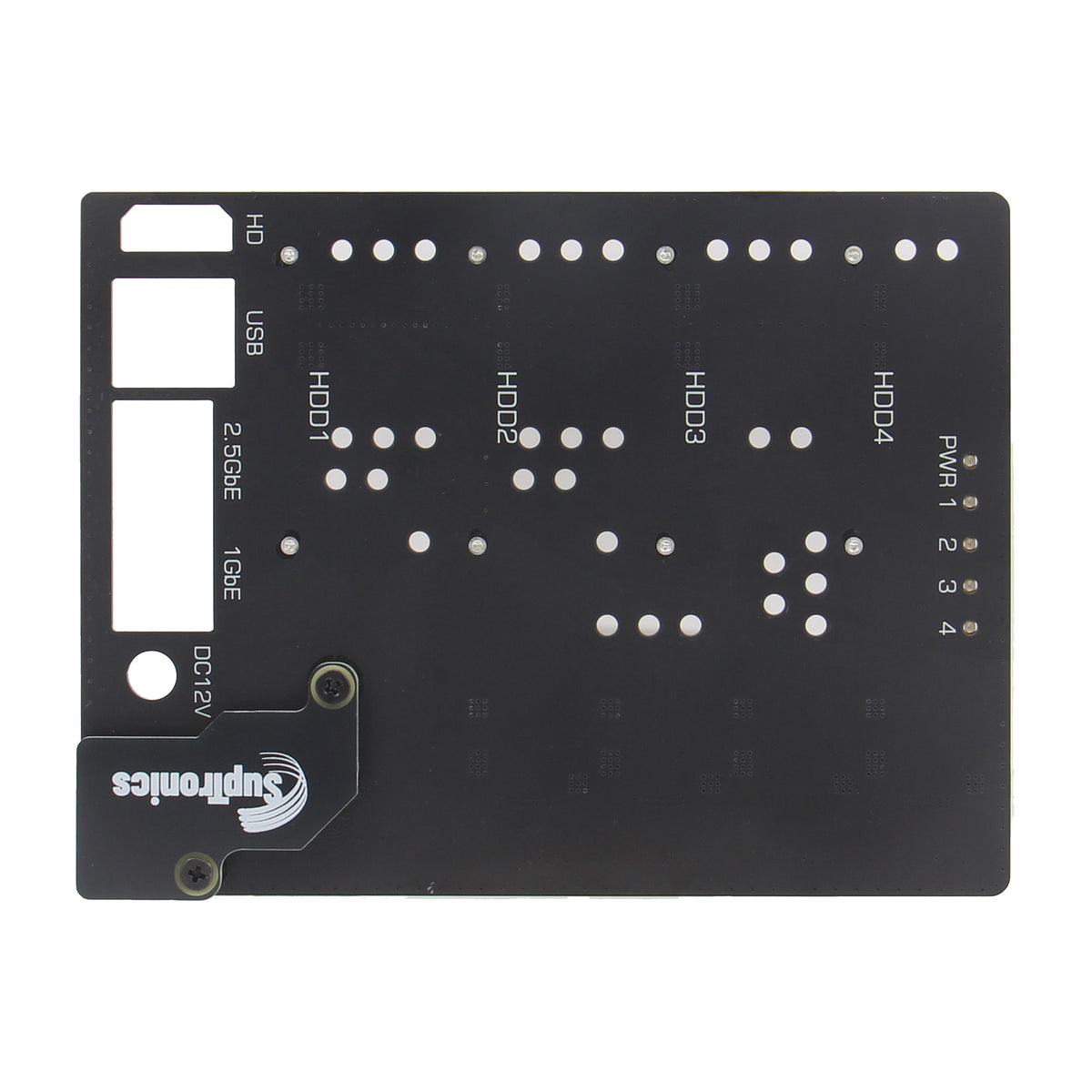

  2. Secure the XNAS1 carrier board and the XNAS1-4SATA HDD interface board onto the mounting bracket.

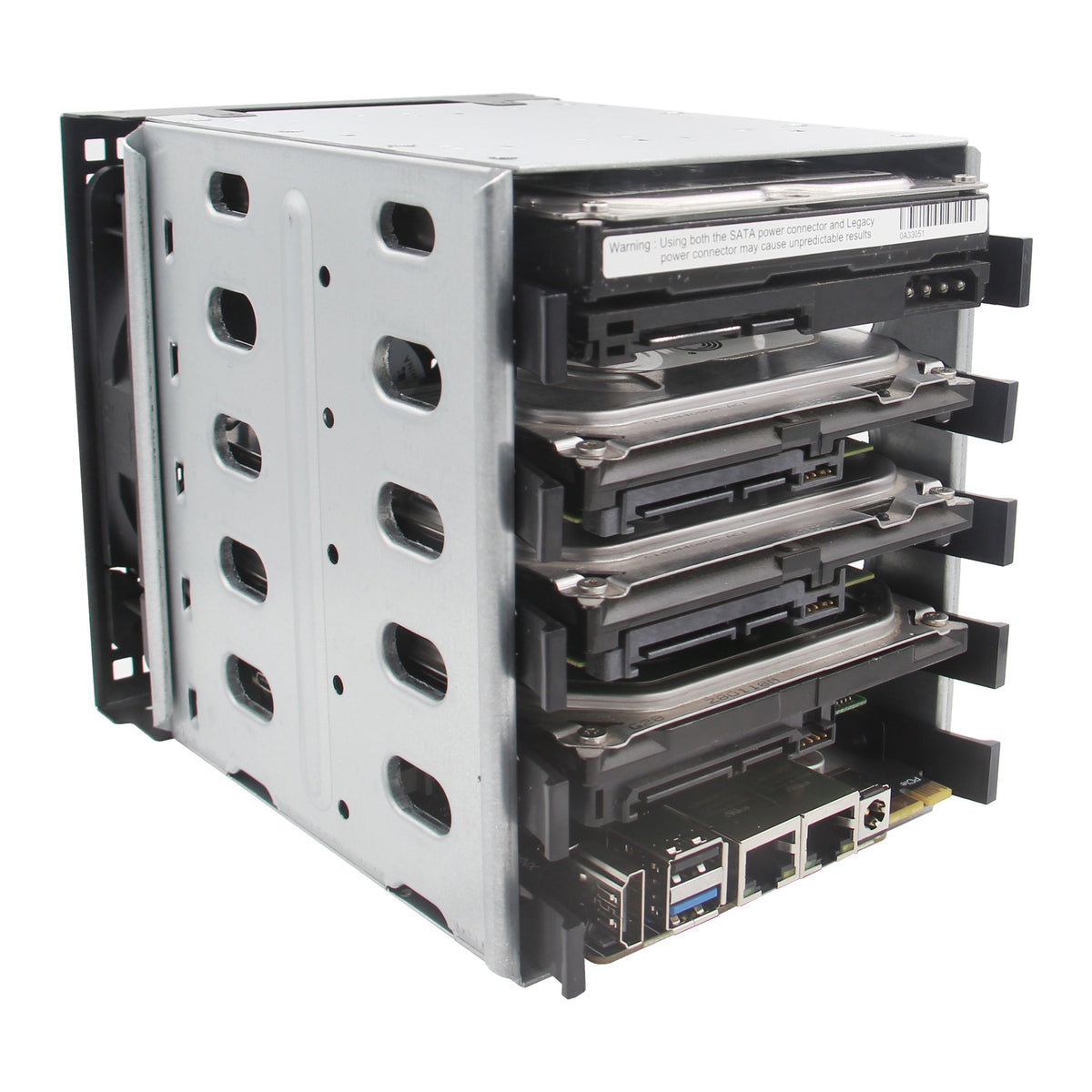

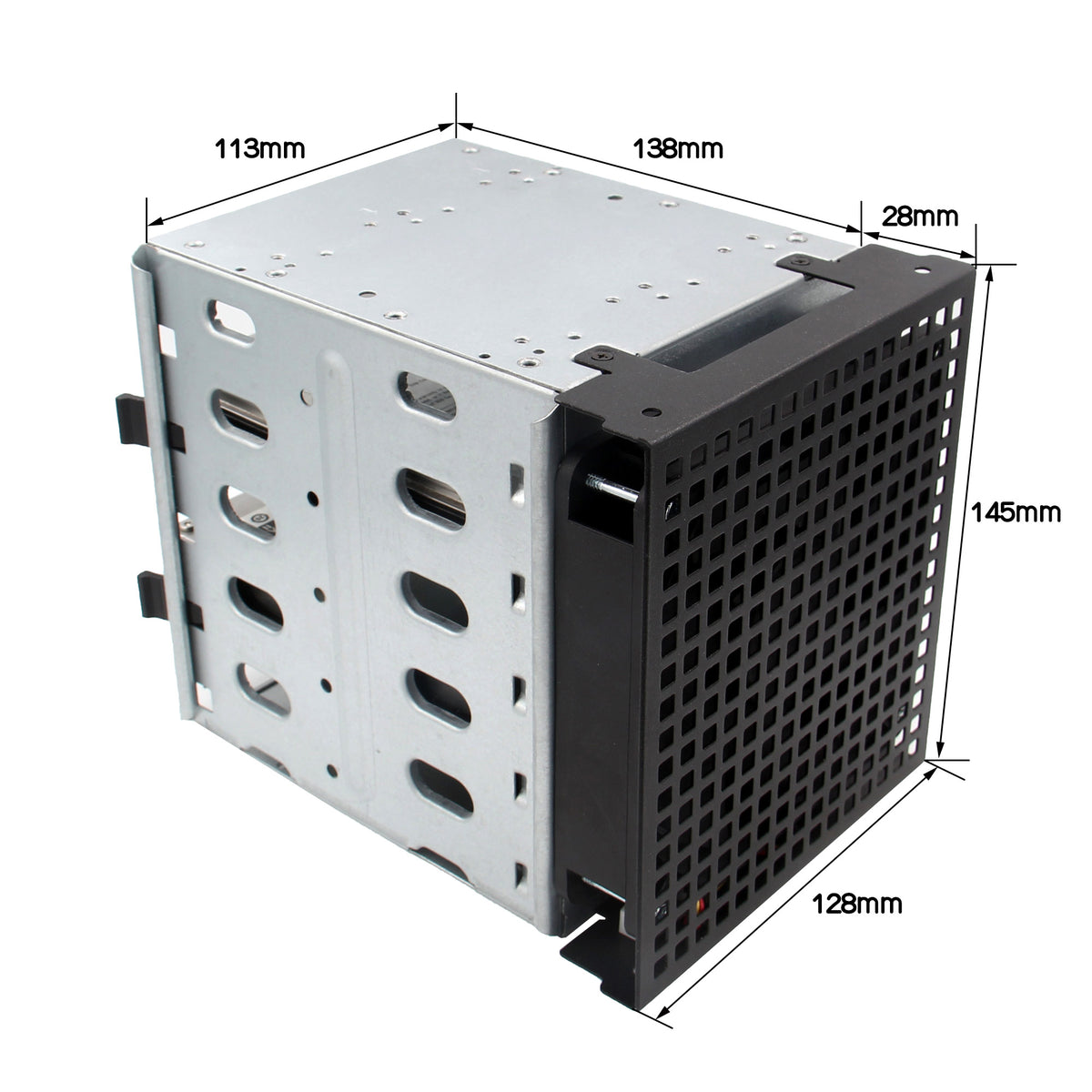

  3. Install the 3.5-inch SATA hard drives into the stainless steel drive cage using the included plastic guide rails.

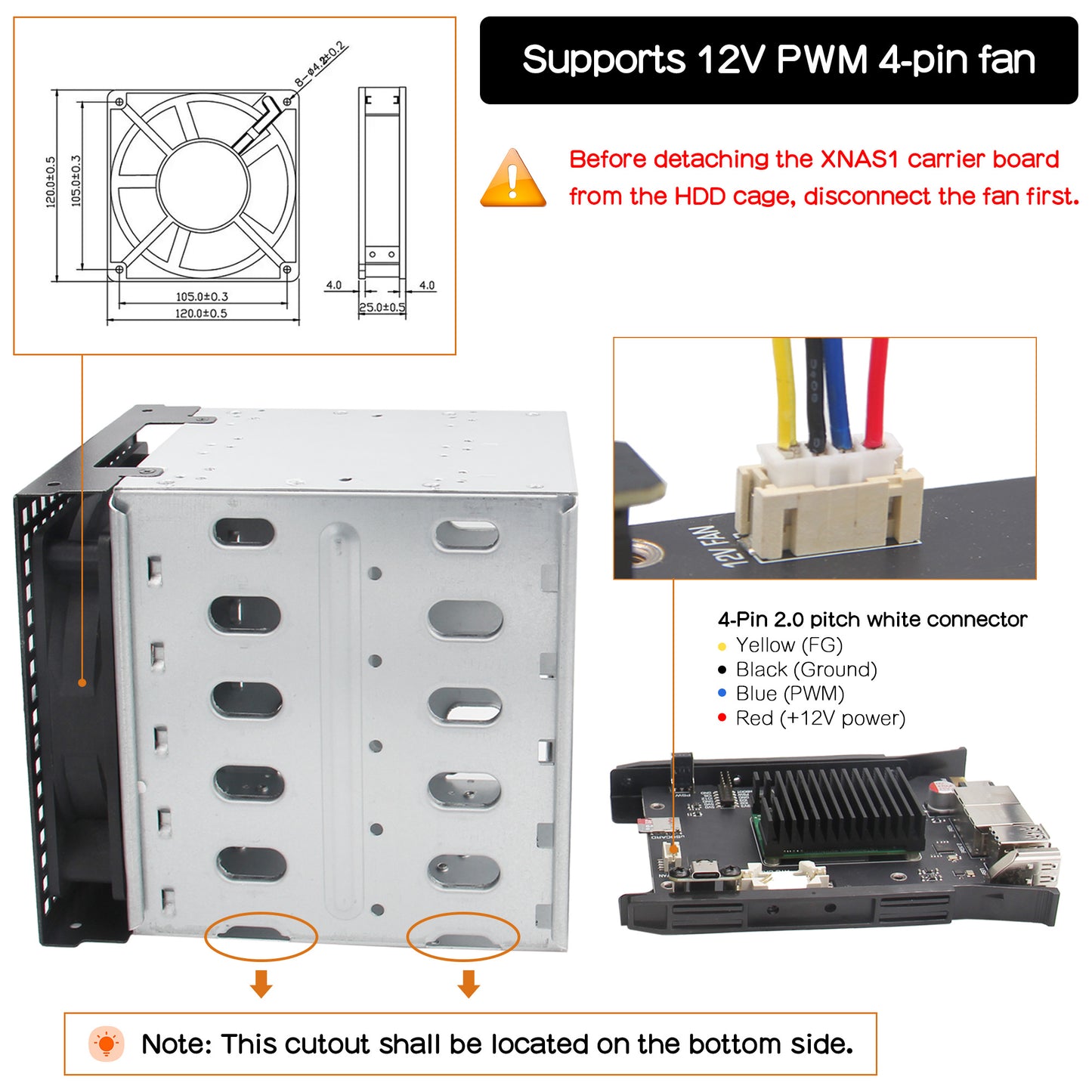

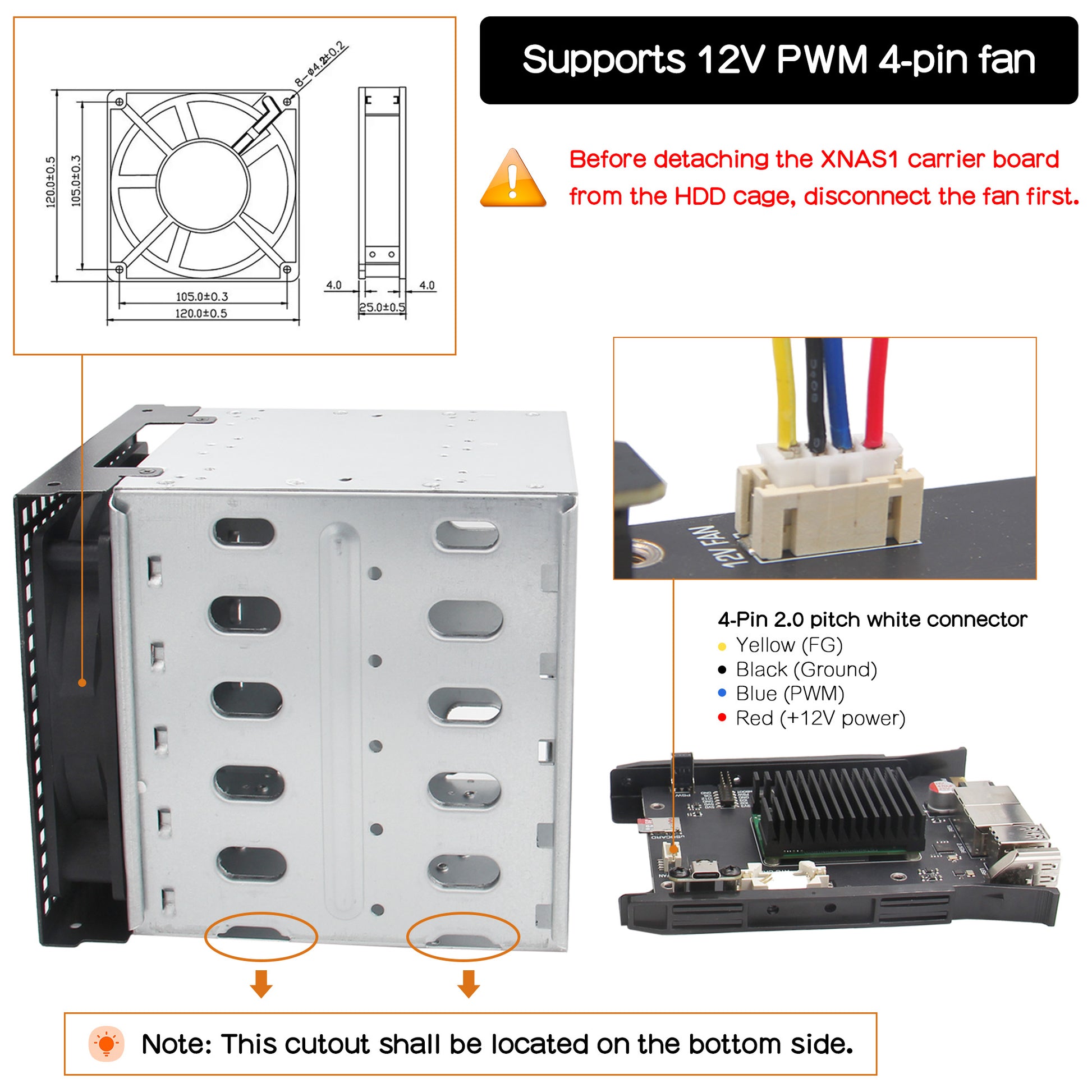

  4. Connect the 120mm PWM fan to the PH2.0 4-pin header on the board.
  5. Insert an OS-flashed MicroSD card (for CM5 Lite) or flash the OS to the CM5 eMMC via the USB-C port.
  6. Connect your Ethernet cable(s) and attach a 12V 10A DC power adapter to the 5.5x2.1mm DC power jack to power on the system.

Packing List

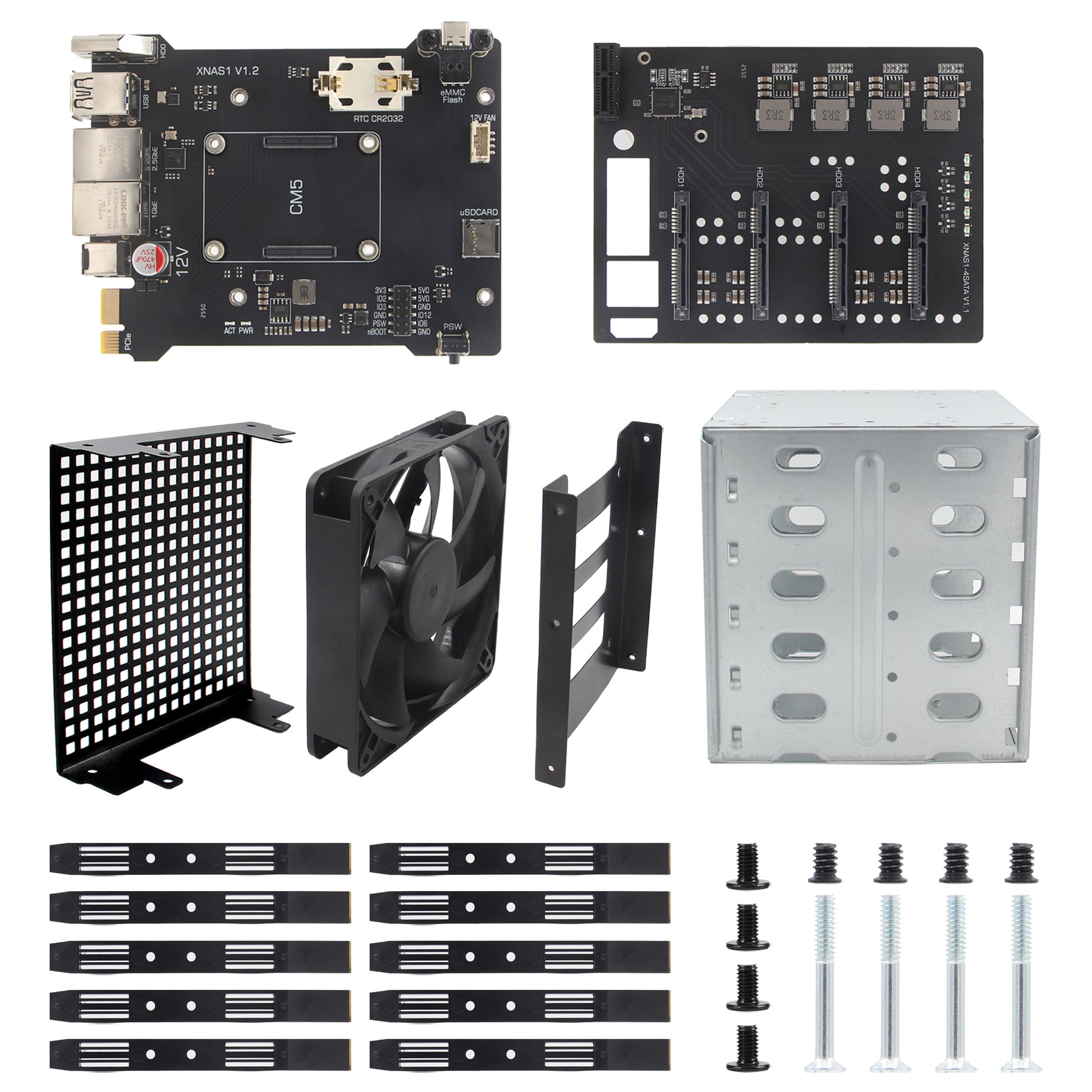

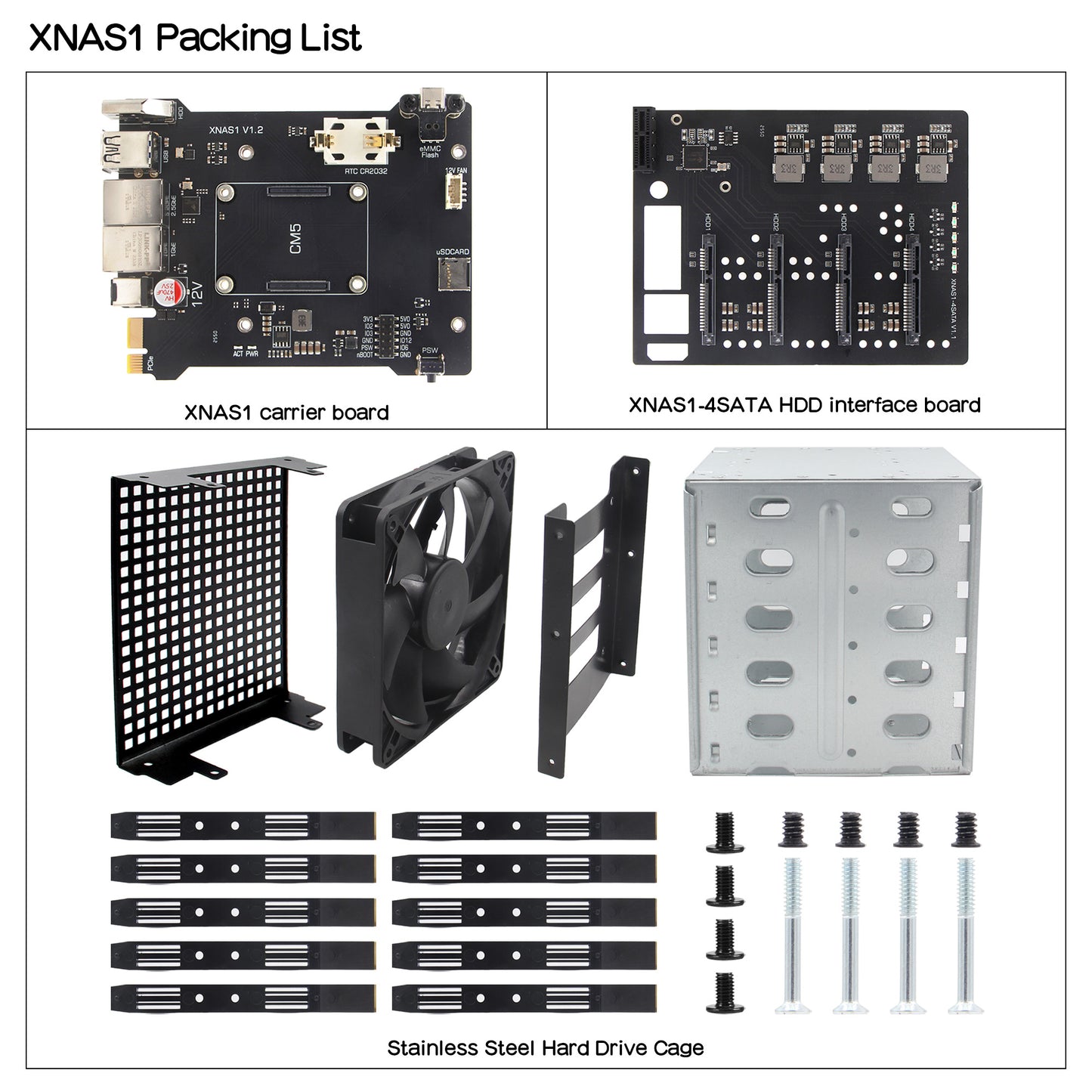

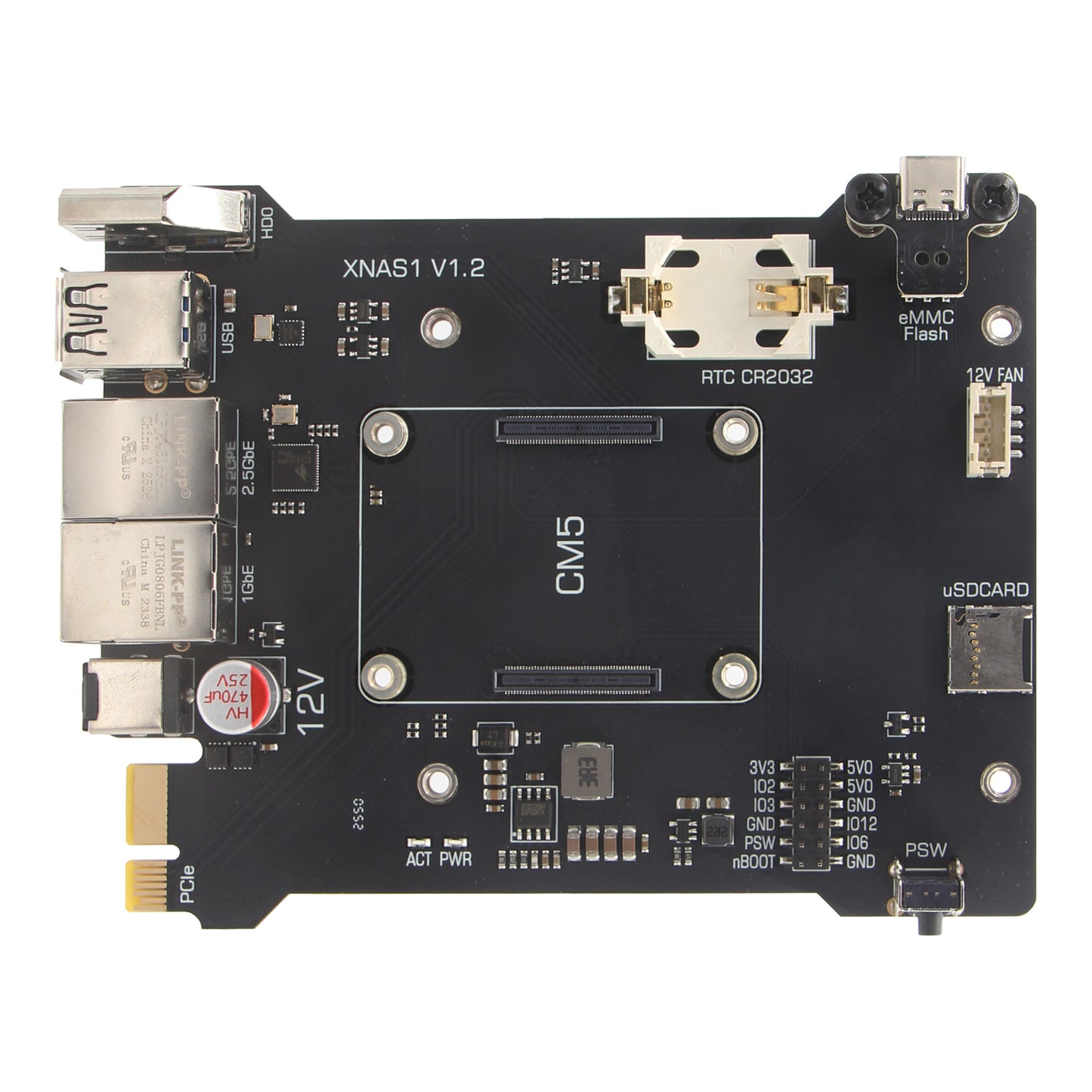

  • 1 x XNAS1 Carrier Board

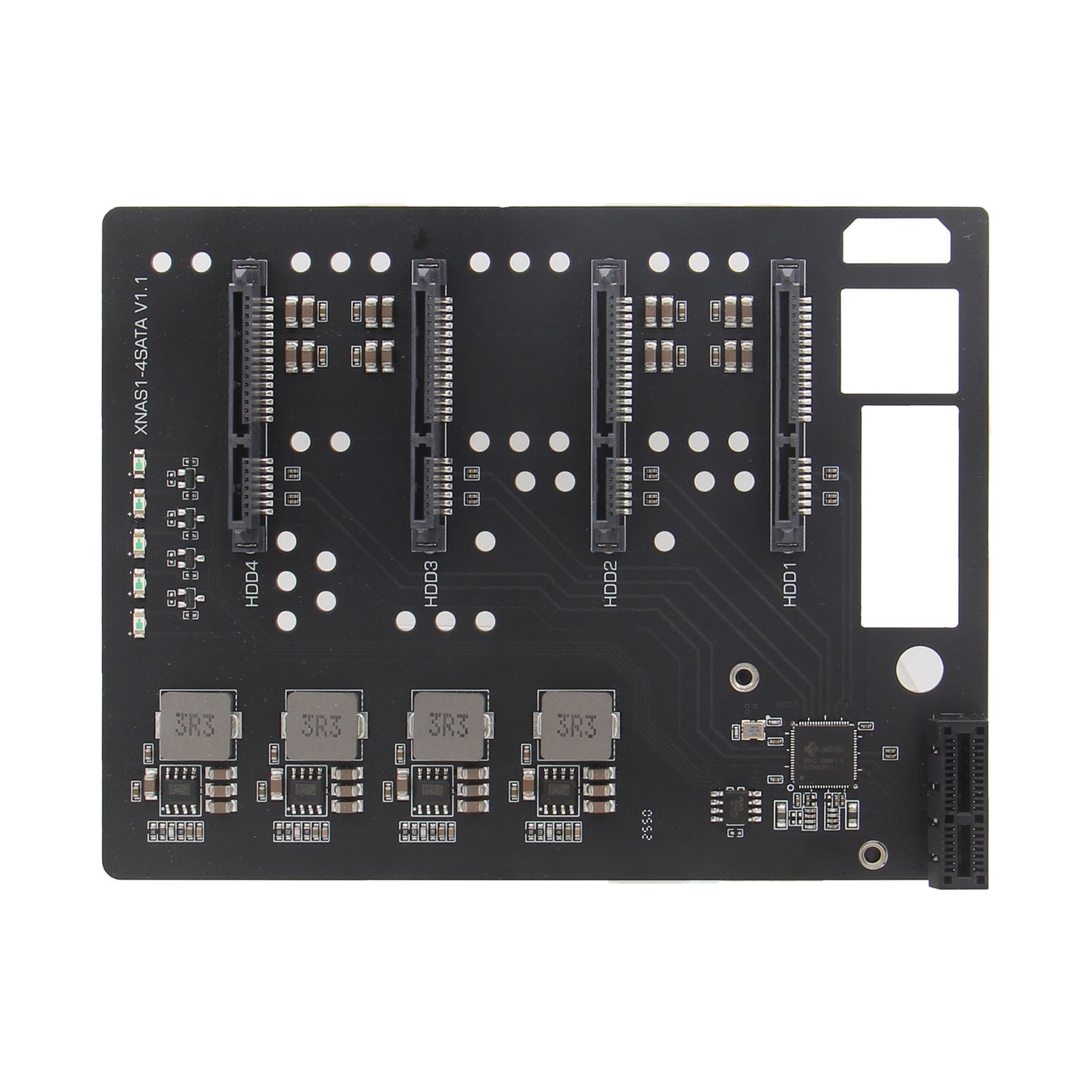

  • 1 x XNAS1-4SATA HDD Interface Board
  • 1 x Stainless Steel Hard Drive Cage
  • 10 x HDD Mounting Plastic Guide Rails
  • 1 x XNAS1 Mounting Bracket
  • 8 x M2.5x5mm Screws
  • 2 x PCIe FFC Cables (30mm)
  • Note: Raspberry Pi Compute Module 5, 3.5-inch SATA hard drives, CR2032 RTC battery, and 12V 10A power supply adapter are not included.

Refer to: https://wiki.geekworm.com/XNAS1

Please email to us at info@geekworm.com if you have other questions.

The Geekworm CM5 IO Carrier Board is an innovative solution designed to enhance the functionality of the Raspberry Pi CM5 module. This carrier board provides a robust platform for developers and enthusiasts to build and prototype various applications, leveraging the power of the Raspberry Pi ecosystem.

One of the key features of the CM5 IO Carrier Board is its extensive I/O capabilities. It includes multiple GPIO pins, USB ports, and interfaces for connecting various peripherals. This allows users to easily integrate sensors, displays, and other devices into their projects. The board is designed to support a wide range of applications, from home automation systems to robotics and IoT devices.

In terms of connectivity, the CM5 IO Carrier Board offers options such as Ethernet and Wi-Fi, enabling seamless communication with other devices and networks. This is particularly important for applications that require real-time data transmission or remote monitoring capabilities. The board's design also ensures compatibility with various Raspberry Pi models, making it a versatile choice for developers.

Heat management is another critical aspect of the CM5 IO Carrier Board. Given that the Raspberry Pi can generate significant heat during operation, some model are equipped with provisions for heat dissipation. This is essential for maintaining optimal performance and longevity of the components. Users can utilize high-quality aluminum alloy heatsinks, such as those offered by Geekworm, to further enhance thermal management.

Moreover, the CM5 IO Carrier Board is built with durability in mind. It features a robust construction that can withstand the rigors of prototyping and development. This ensures that users can rely on the board for extended periods without concerns about wear and tear.

For developers looking to customize their projects, the CM5 IO Carrier Board provides ample opportunities for expansion. The board's design allows for easy integration of additional modules and components, enabling users to tailor their setups to meet specific requirements. This flexibility is a significant advantage for those working on innovative solutions in various fields.

In conclusion, the Geekworm CM5 IO Carrier Board is a powerful tool for anyone looking to harness the capabilities of the Raspberry Pi CM5 module. With its extensive I/O options, connectivity features, and robust design, it serves as an excellent foundation for a wide range of projects. Whether you are a hobbyist or a professional developer, this carrier board can significantly enhance your development experience.

Features X1500 X1501 X1502 X1507
Compatible with Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5
Ethernet Port 1GbE Ethernet Port x 1 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1
USB-C Power In Port ✔ ✔ ✔ ✔
USB-A Ports 2 x USB2.0 Type-A,
2 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 2 x USB2.0 Type-A,
2 x USB3.0 Type-A
HDMI 2.0 Ports 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0
M.2 NVMe Key-M Slot Dual
2230/2242/2260/2280		 Dual
2230/2242/2260/2280		 Four
2230/2242/2260/2280		 Dual
2230/2242
Dual MIPI DSI/CSI-2 Connectors ✔ ✔ ✔ ✔
MicroSD Card Slot ✔ ✔ ✔ ✔
Power Button ✔ ✔ ✔ ✔
RTC Battery Socket ✔ Require CR1220 ✔ Require CR1220 ✔ Require CR2032 ✔ with a RTC Battery Connector, Require CR1220 and battery holder
4Pin PWM Fan Port ✔ ✔ ✔ ✔
Support Hailo-8 AI Accelerator ✔ ✔ ❌ ✔
PoE header ✔ ✔ ❌ ✔
40pin GPIO header ✔ ✔ ✔ ✔
12pin Configurable header J2 ✔ ✔ ✔ ✔
Jumper setting for CAM/DISP1 J6 ✔ ✔ ✔ ✔
PoE HAT support Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT
Matching Case X1500-C1 / X15-C1 X1500-C1 / X15-C1 X1502-C1 X1507-C1 coming soon
Matching Cooler C519 C519 C519 Equipped with a passive cooler
