Overview

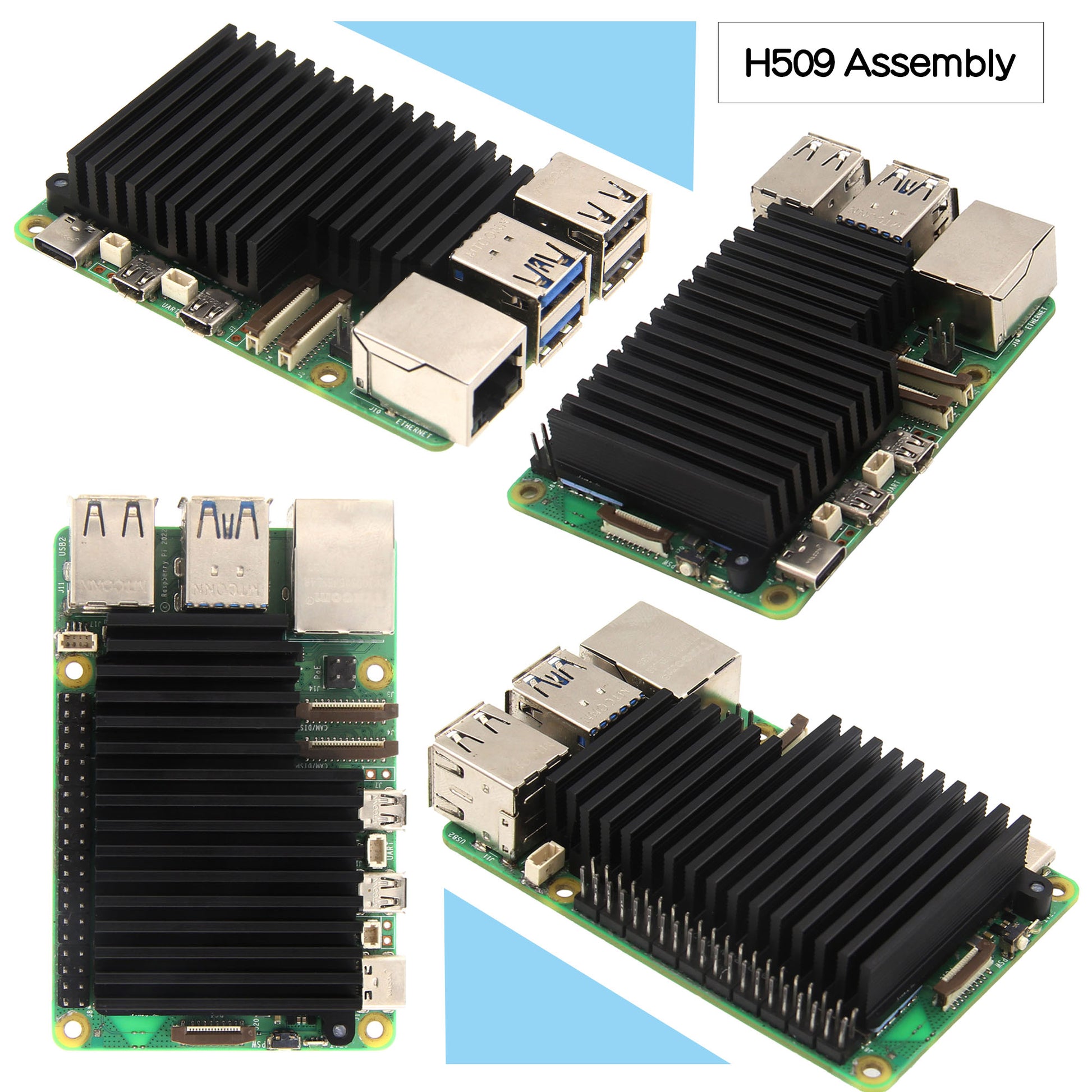

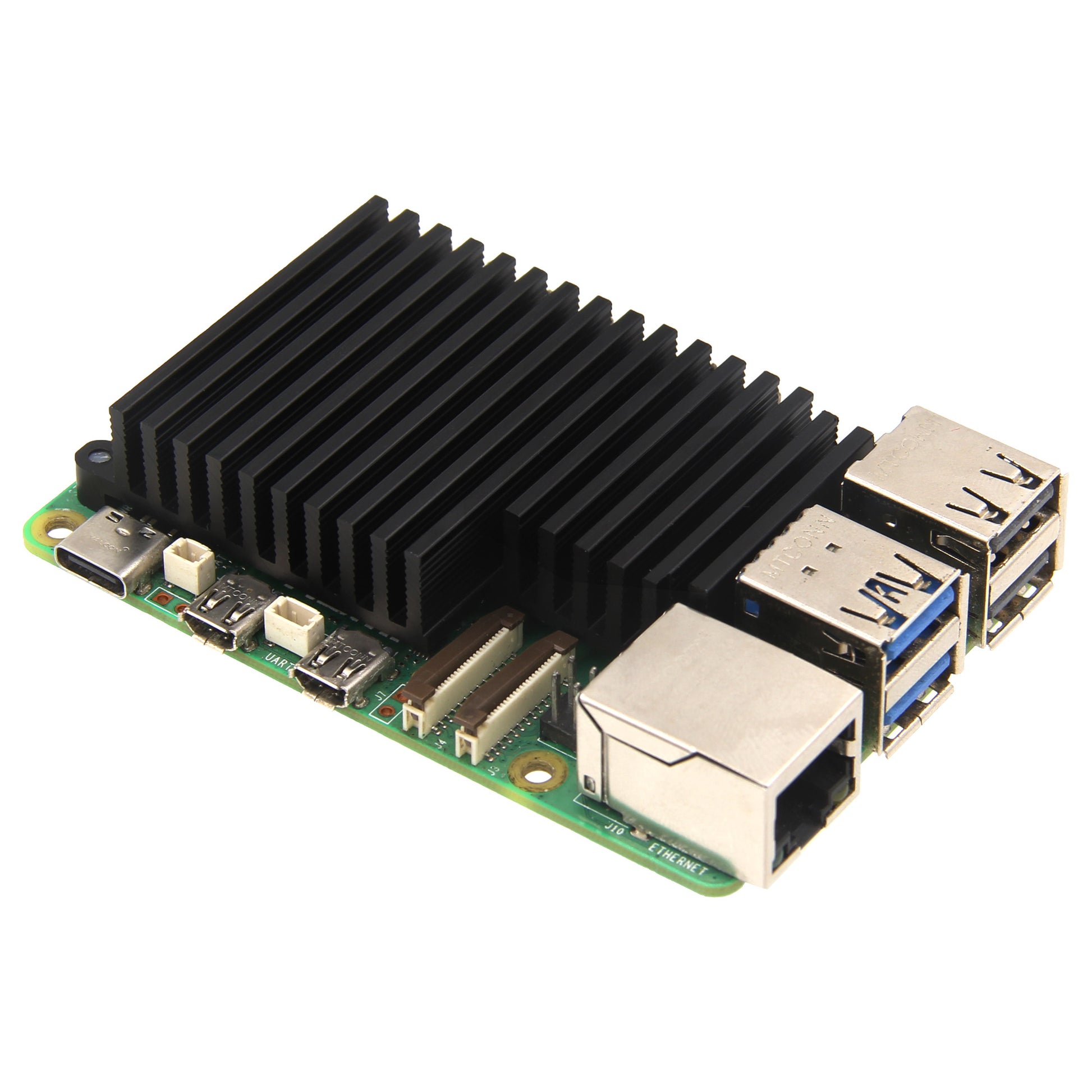

As a product expert, the Raspberry Pi 5 aluminum alloy Passive Cooler (H509) offers efficient and noiseless cooling. Its wave-shaped fins increase cooling area while its 6W thermal pad ensures optimal heat transfer. The easy installation and compatibility with stress tests make it a reliable addition to your Raspberry Pi 5 setup.

Features:

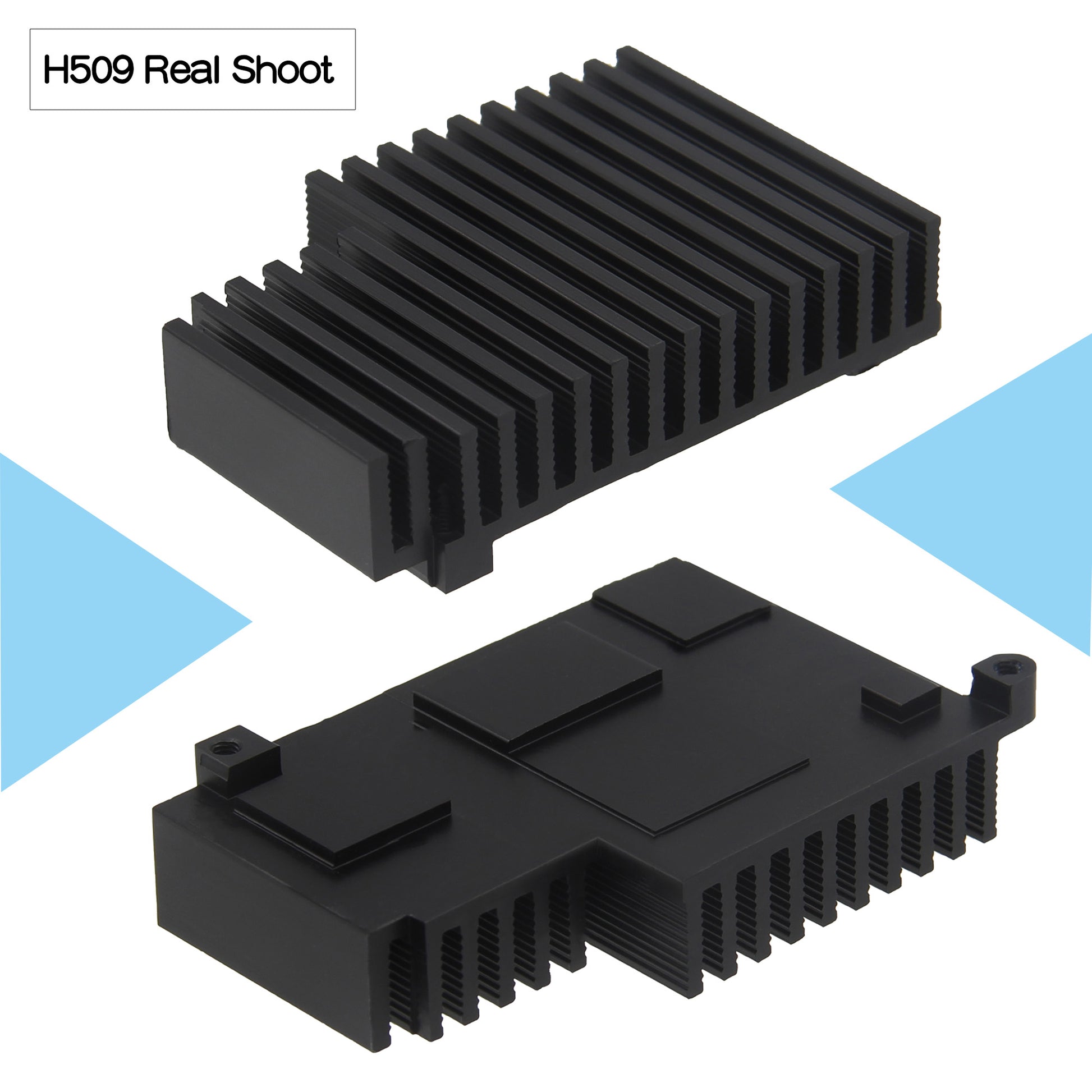

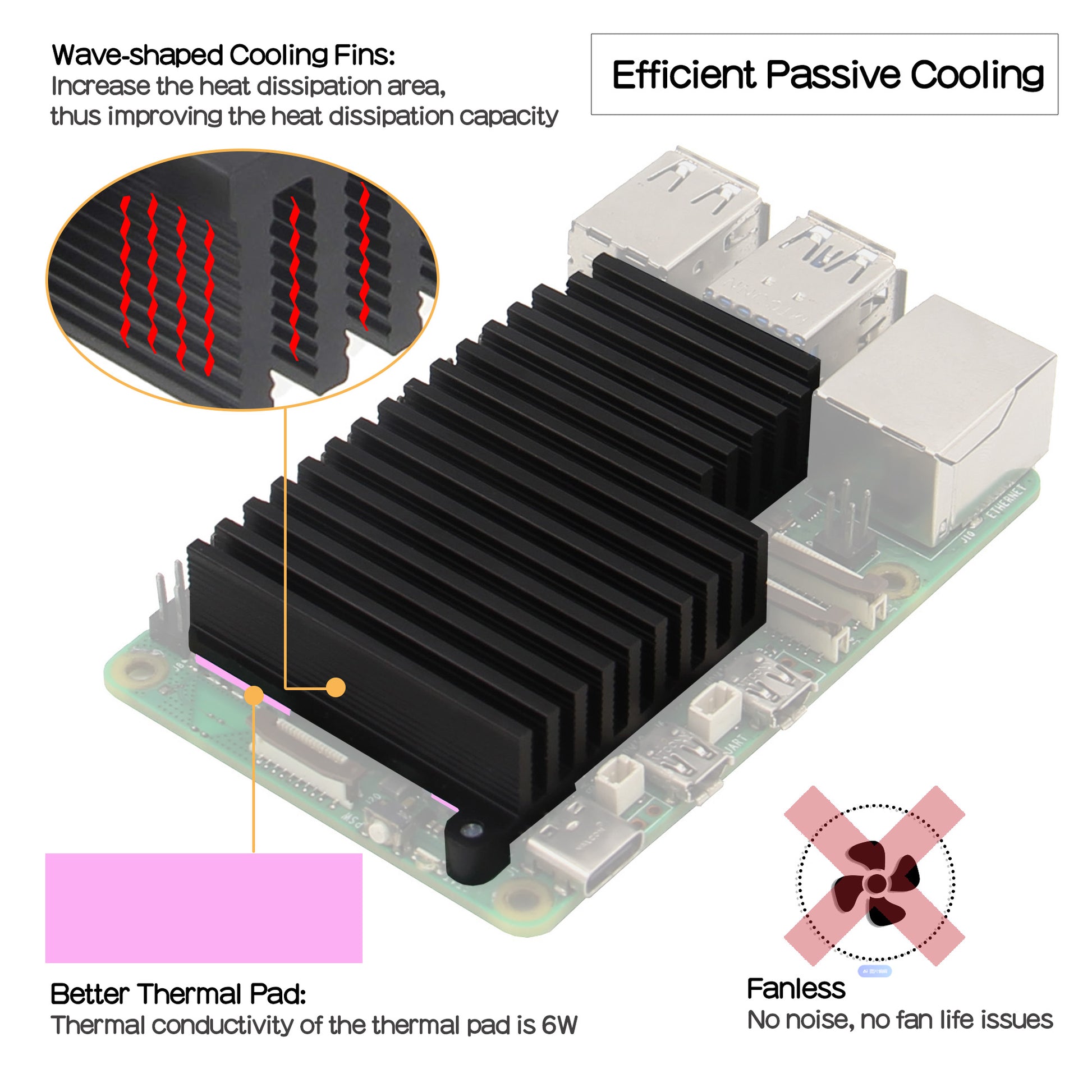

Wave-shaped heat sink fins: Increase the heat dissipation area, thereby improving the heat dissipation capacity.
No noise: No need to install a fan, completely 0 noise;

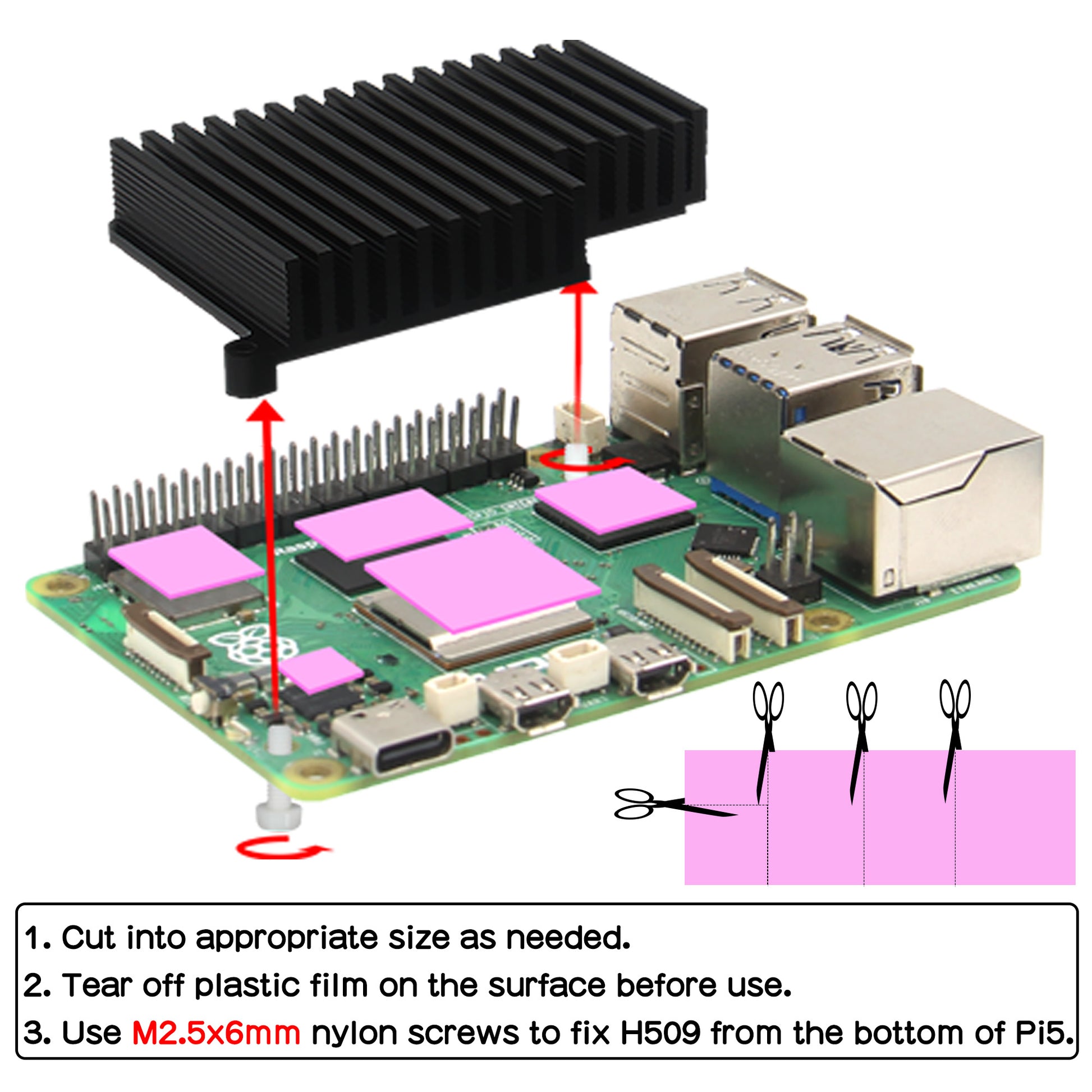

Simple installation: Use M2.5*6 nylon screws to fix from the bottom, easy to install and remove.
Good heat dissipation: The stress test can meet the full-load stress test of the Raspberry Pi 5 3-core (room temperature 22 degrees, test time 20 minutes), which is a supplement to the active radiator and can meet most usage scenarios.
Model: H509
Not support X1000/X1003/X1300-A2

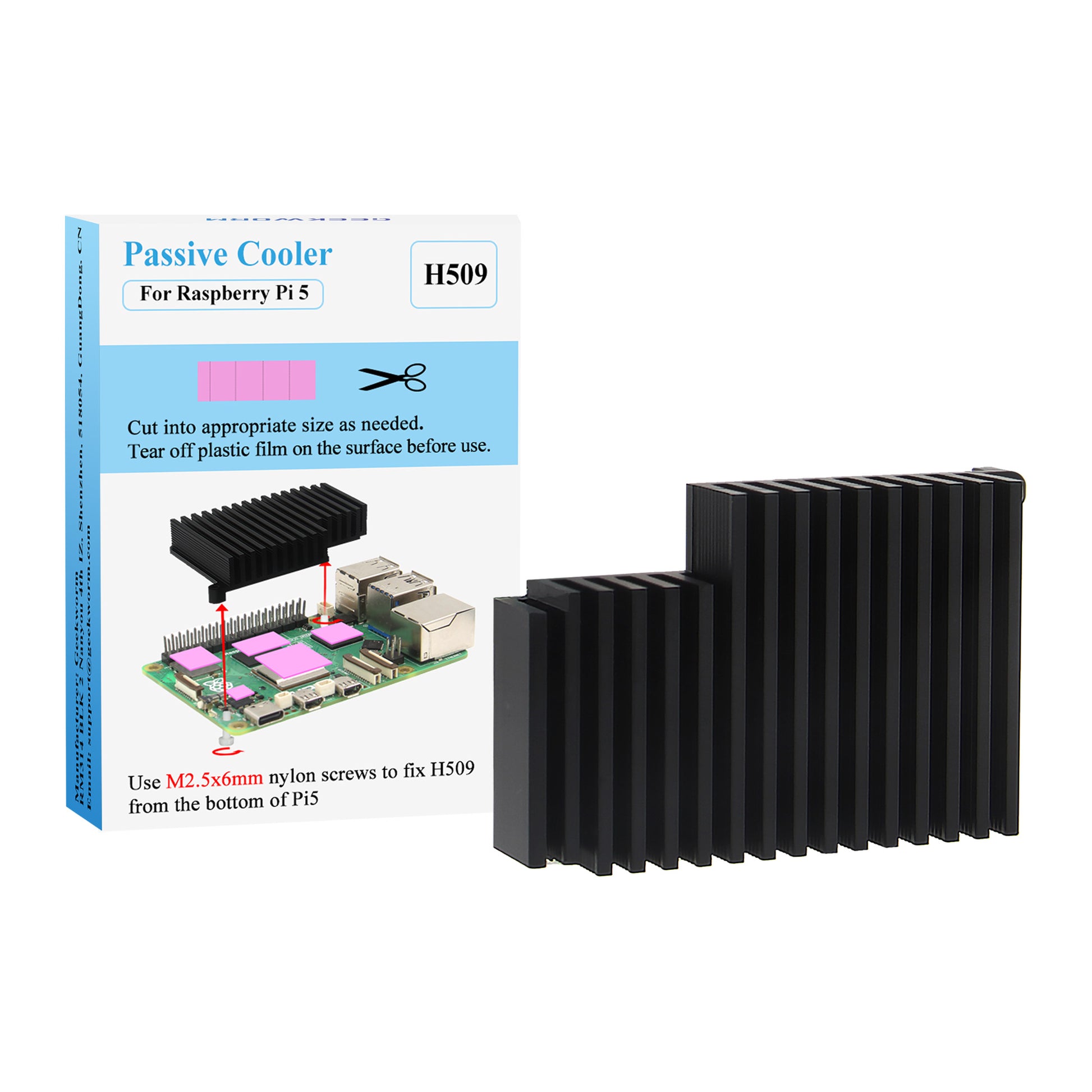

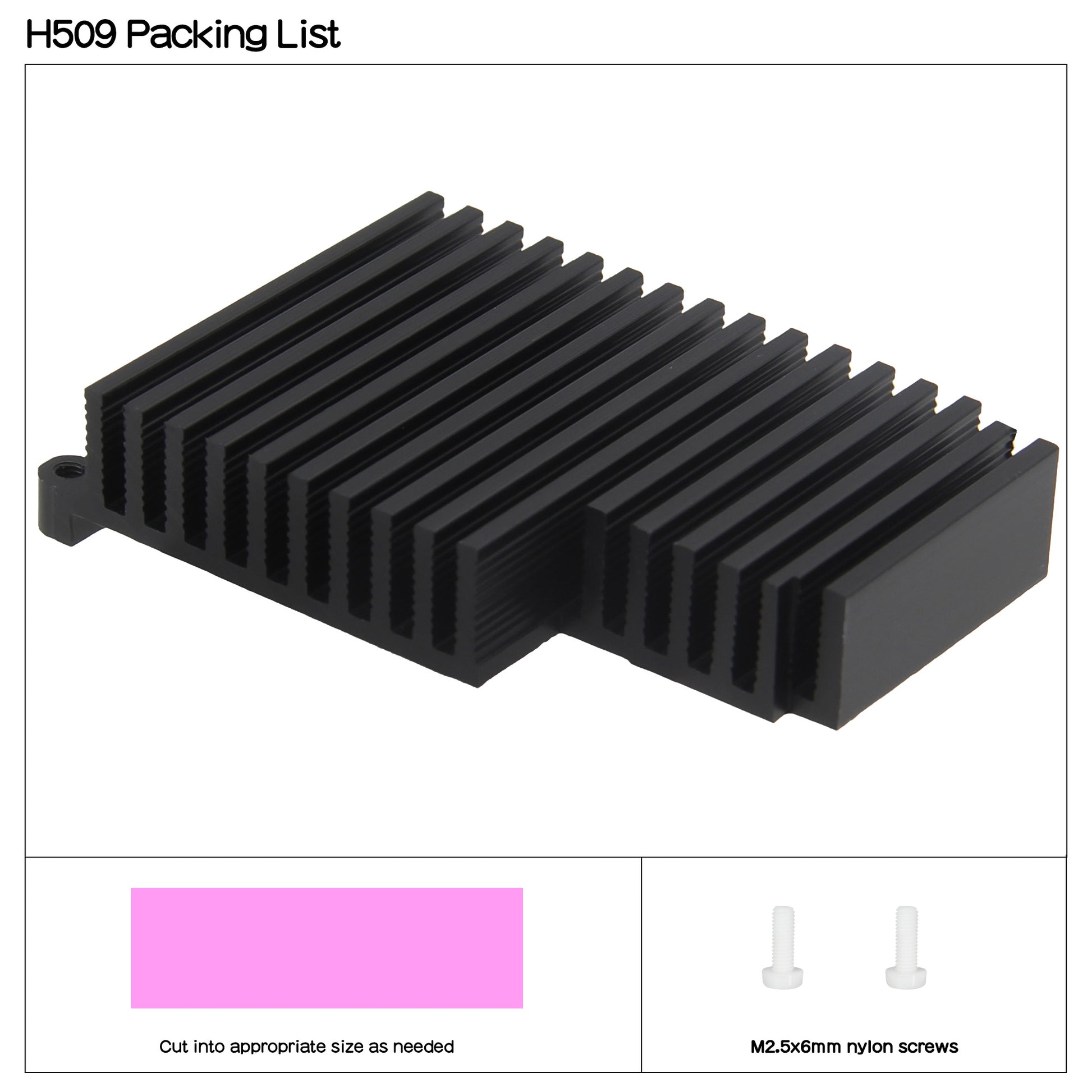

Packing List:

1 x Passive Cooler H509

Refer to: https://wiki.geekworm.com/H509

Please email to us at info@geekworm.com if you have other questions.

Raspberry Pi 5 Cooling Solutions: Choosing the Right Match
The Raspberry Pi 5 delivers a significant leap in performance, but with that power comes increased heat. To prevent thermal throttling and ensure your board maintains peak clock speeds during intensive tasks, a reliable cooling solution is no longer optional—it's essential.

The market offers a diverse range of options tailored to different use cases, from the Official Active Cooler to premium third-party designs. When choosing, it is important to consider:

Material: Lightweight Aluminum Alloy for standard use or high-density Brass for superior heat soaking.

Cooling Type: Active (with PWM blower fans) for high-load stability or Passive (finned heatsinks) for silent operation.

Form Factor: Varying heights and weights to fit within specific enclosures or HAT configurations.

The following table compares the physical specifications, materials, and fan configurations of the most popular cooling solutions to help you find the perfect fit for your project.

Geekworm Cooler

Picture	Model	Compatible With	Material	Thickness(mm)	Net Weight(gram)	Support Fan	Application Limitations
	H500	Raspberry Pi 5	Aluminum Alloy	9.2mm(Max 10mm)	24g	with 4-pin 3007 blower fan
	H505	Raspberry Pi 5	Aluminum Alloy	11.6mm	39g	with 4-pin 3007 blower fan	not support X1207/X1208/X1209
	H510	Raspberry Pi 5	Brass	9.5mm(Max 11mm)	55g	with 4-pin 3007 blower fan

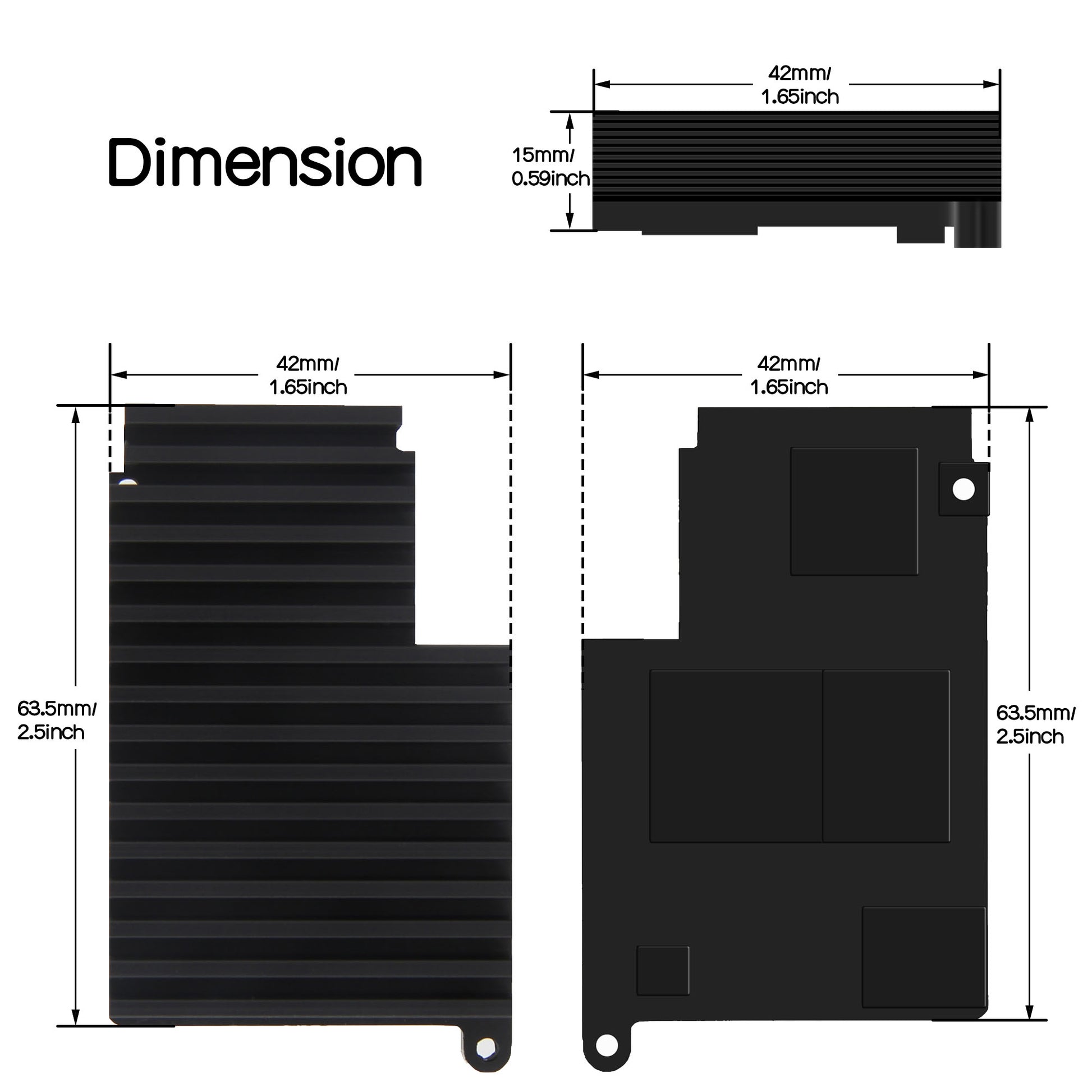

	H509	Raspberry Pi 5	Aluminum Alloy	15mm	44g	passsive cooling, not support fan	not support X1207/X1208/X1209
	Argon THRML 30-AC	Raspberry Pi 5	Aluminum Alloy	9.6mm	29g	with 4-pin 3007 blower fan
	H501	Raspberry Pi 5	Aluminum Alloy	9.5mm	21g	with 4-pin 3007 blower fan
	H502	Raspberry Pi 5	Brass	4mm (Max 7mm)	63g	support 30x30mm fan installation
