Note: the Raspberry Pi 5 is not included in the packing list.

Overview

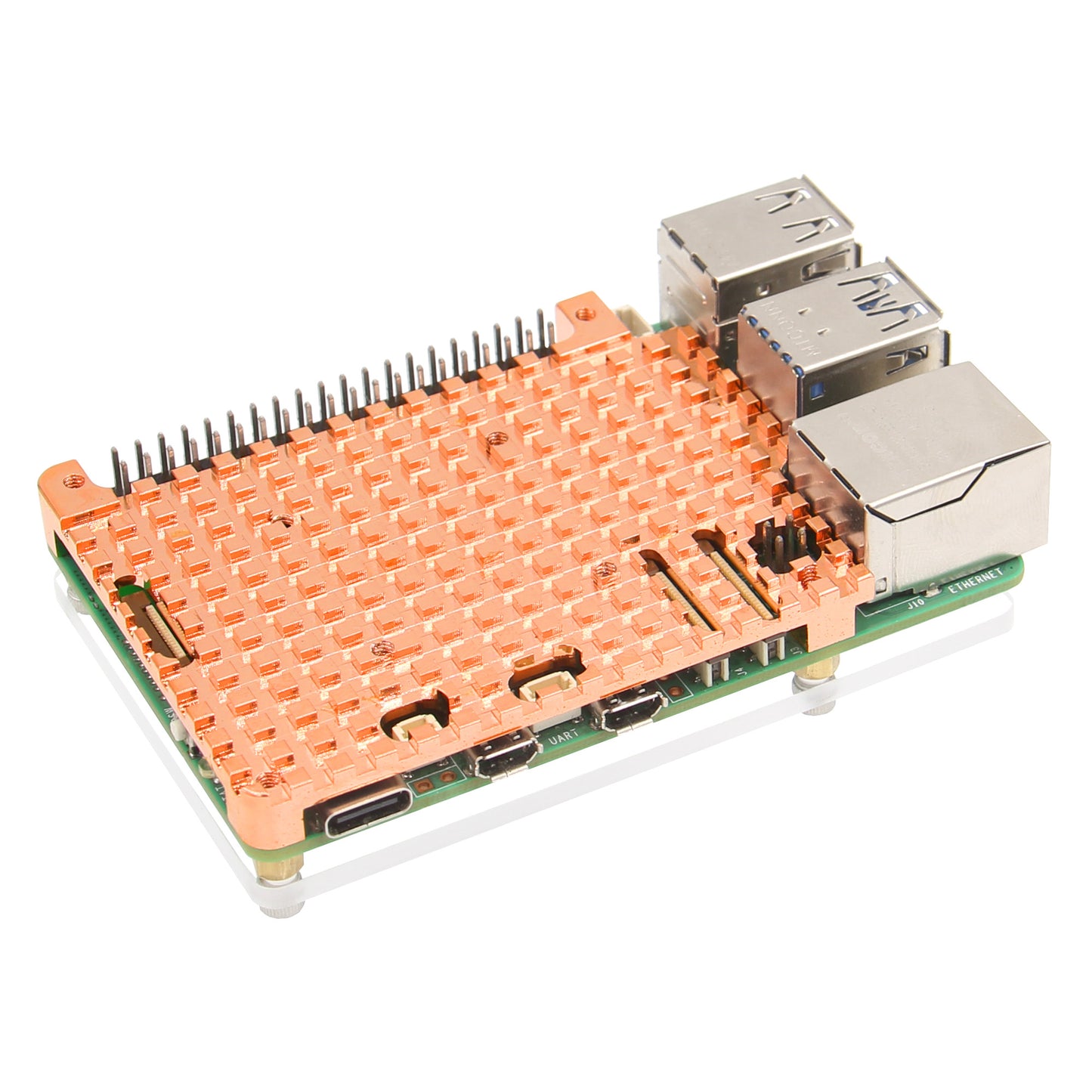

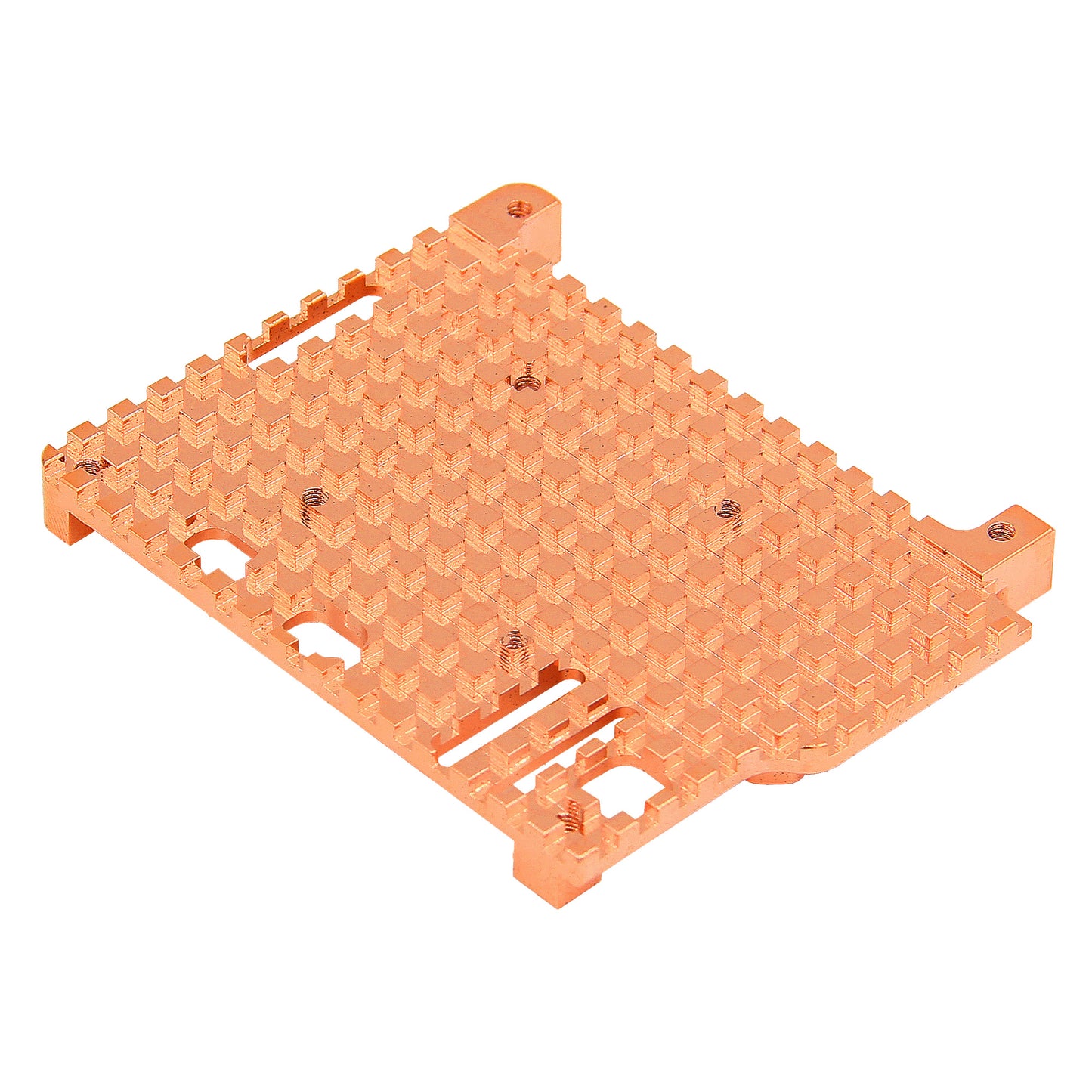

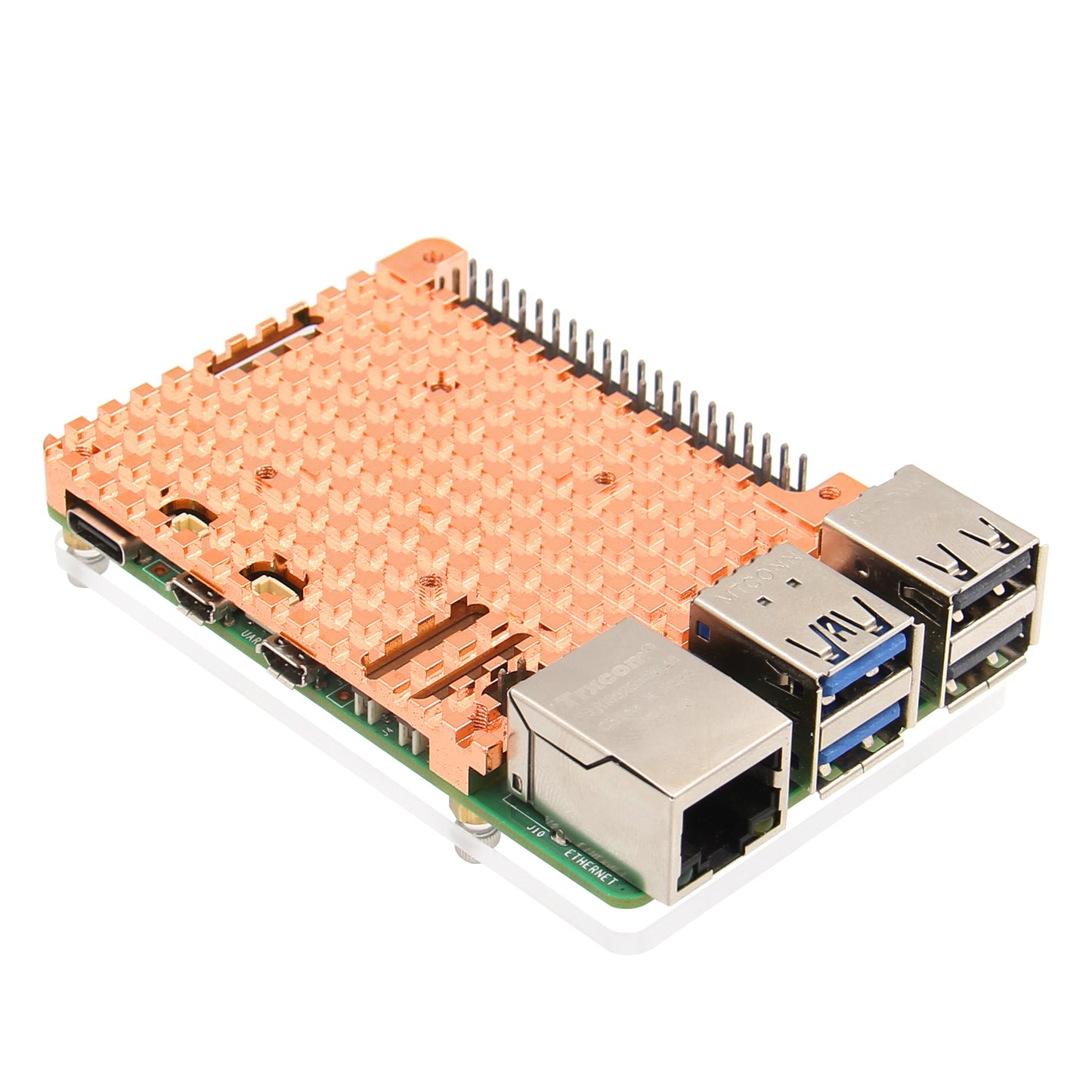

H502 is an ultra-thin one-piece pure copper heatsink specially designed for Raspberry Pi 5 Model B. CNC-processed pure copper heatsink with precise cutouts, designed to seamlessly fit the Raspberry Pi 5B motherboard.

Through-hole screw holes allow expansion boards installed on top of the H502 heatsink or on the bottom of the H502 heatsink. H502 also supports 30x30mm cooling fan installation for better heat dissipation.

User Manual: https://wiki.geekworm.com/H502

Features

Model: H502

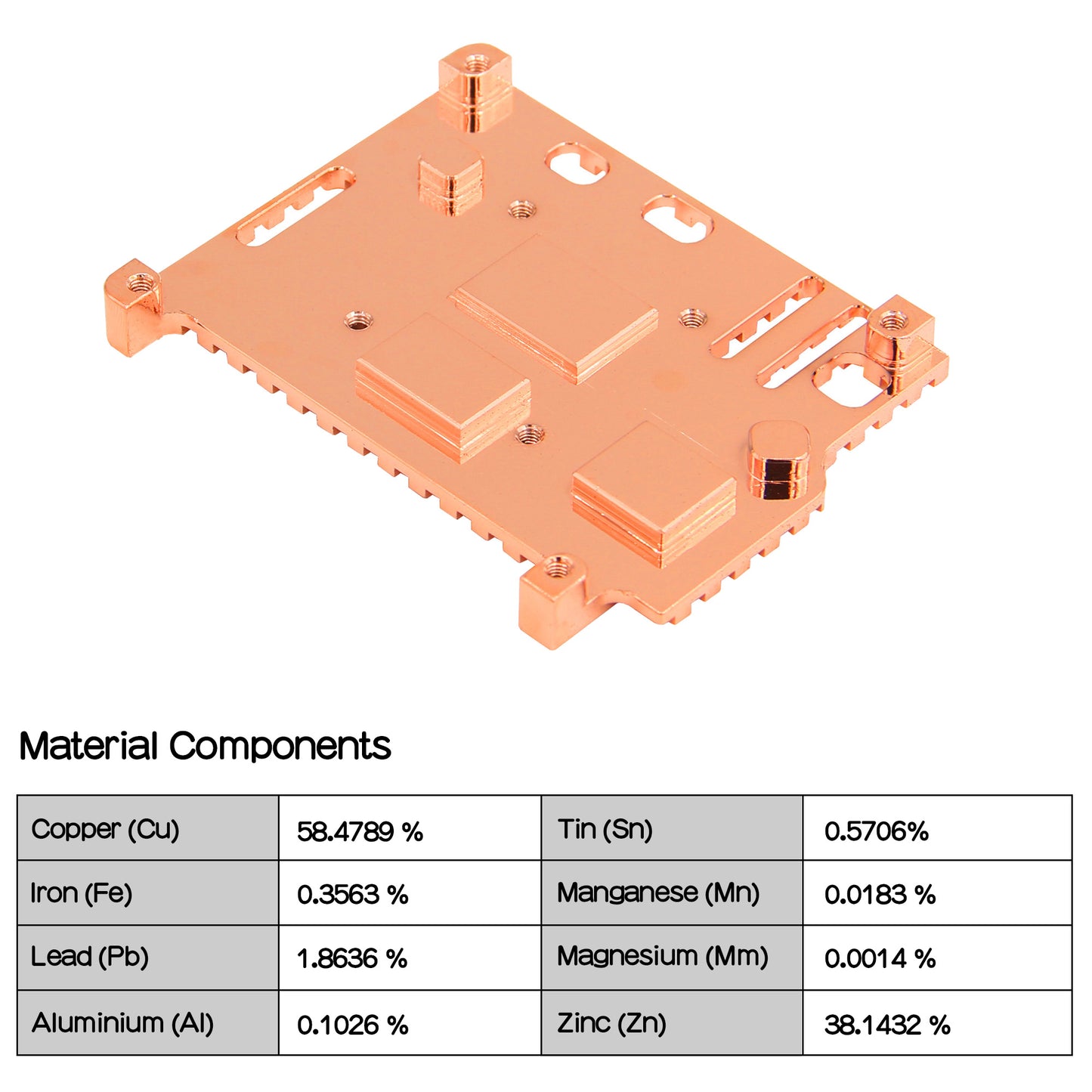

Material: pure copper

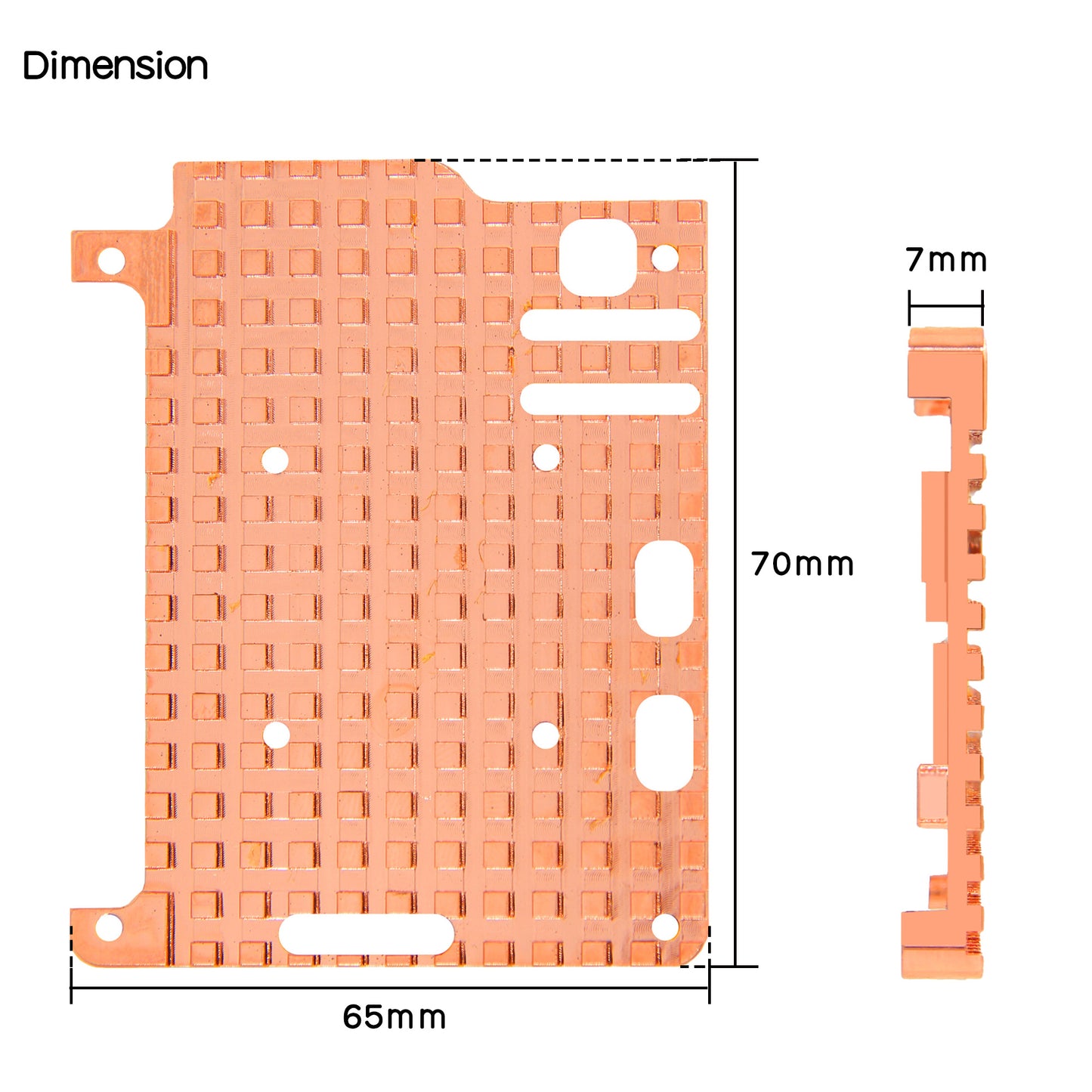

Heartsink Thickness: 4mm / 0.16inch
Heatsink Net Weight: 63g / 0.14lb
Through-hole screw holes allow expansion boards installed on the top of heatsink or on the bottom of raspberry pi
Supports 30x30mm fan installation for active cooling

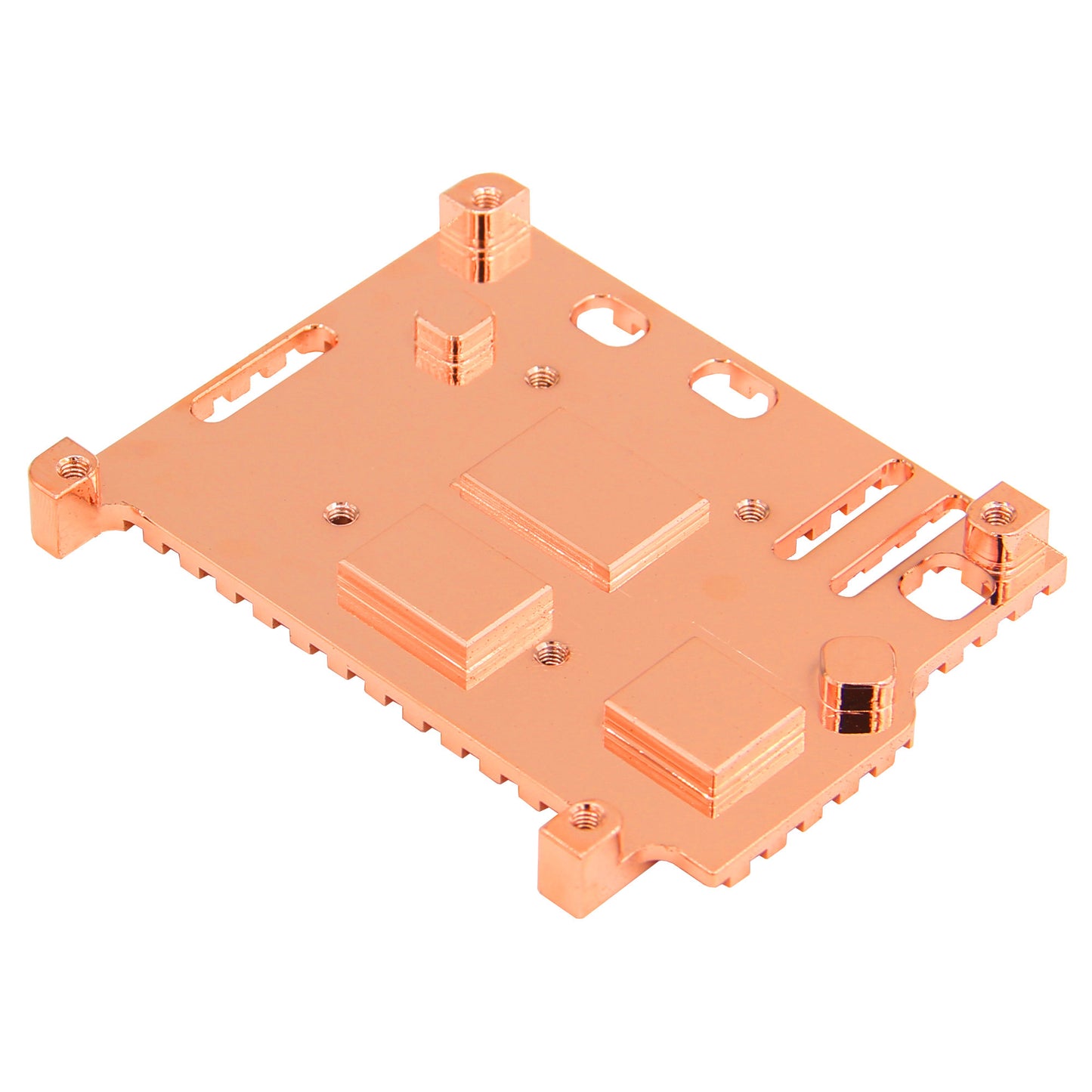

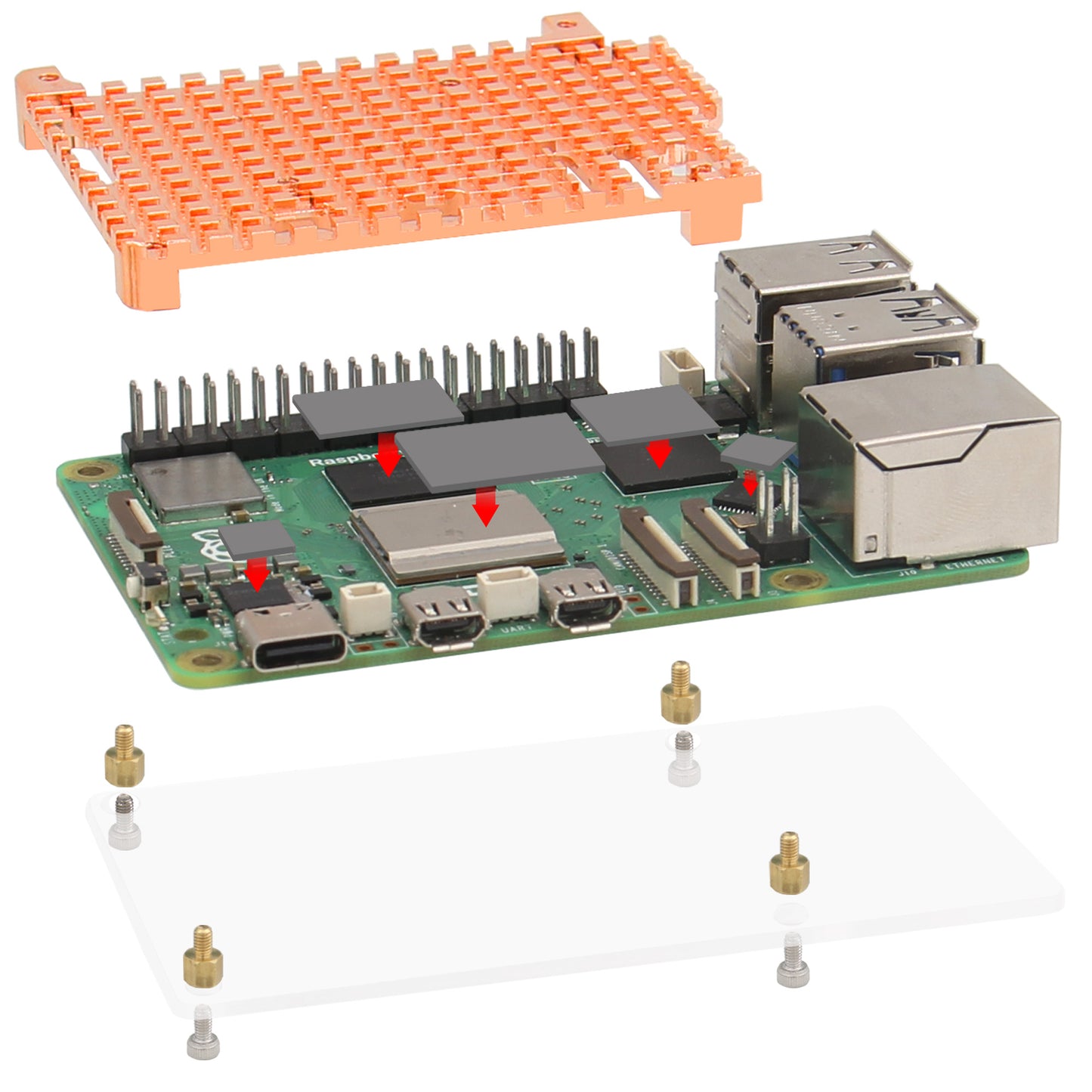

Comes with thermal pads for both CPU,RAM,USB chip and network module of Raspberry Pi 5

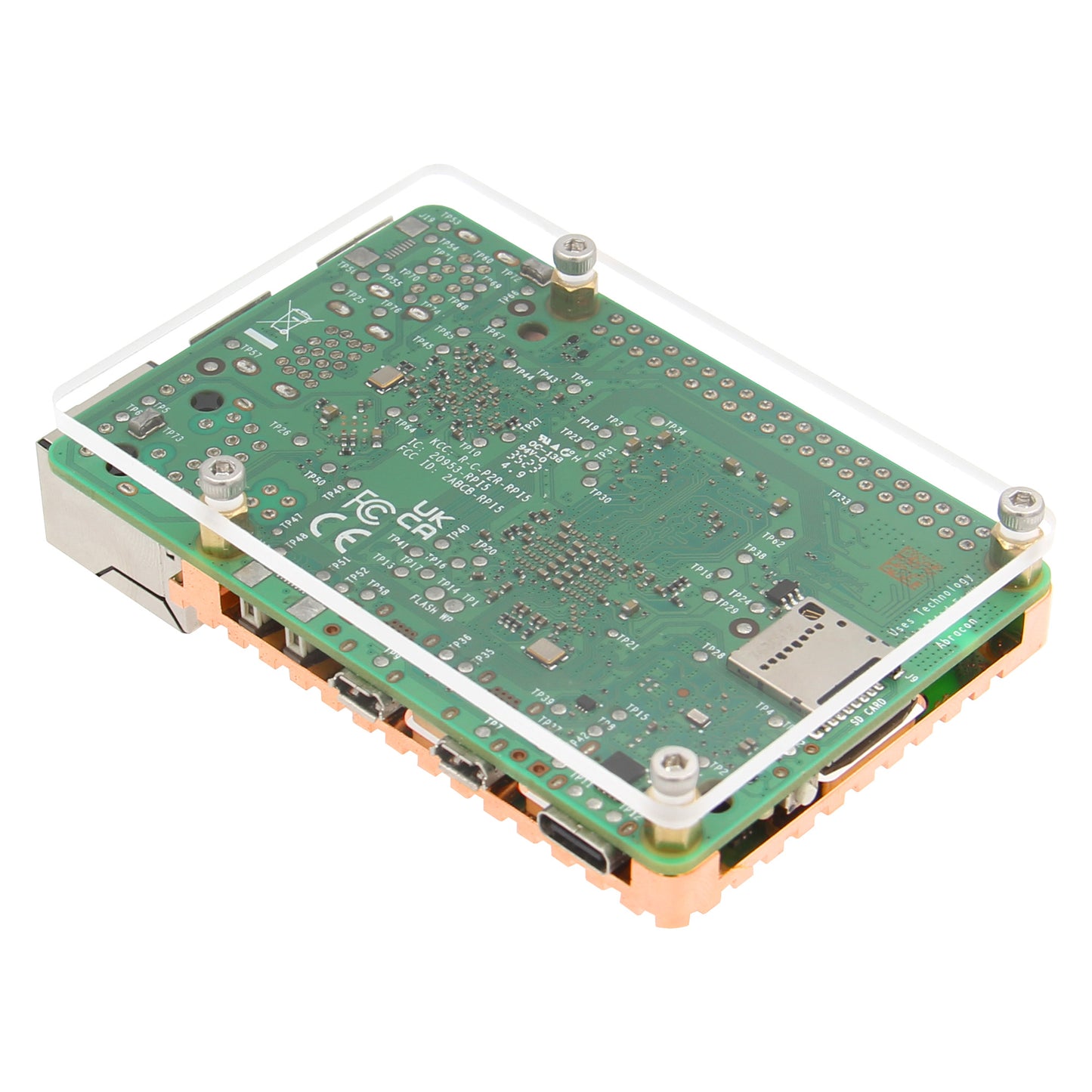

Includes an acrylic plate for installing under the Raspberry Pi 5 to provide protection

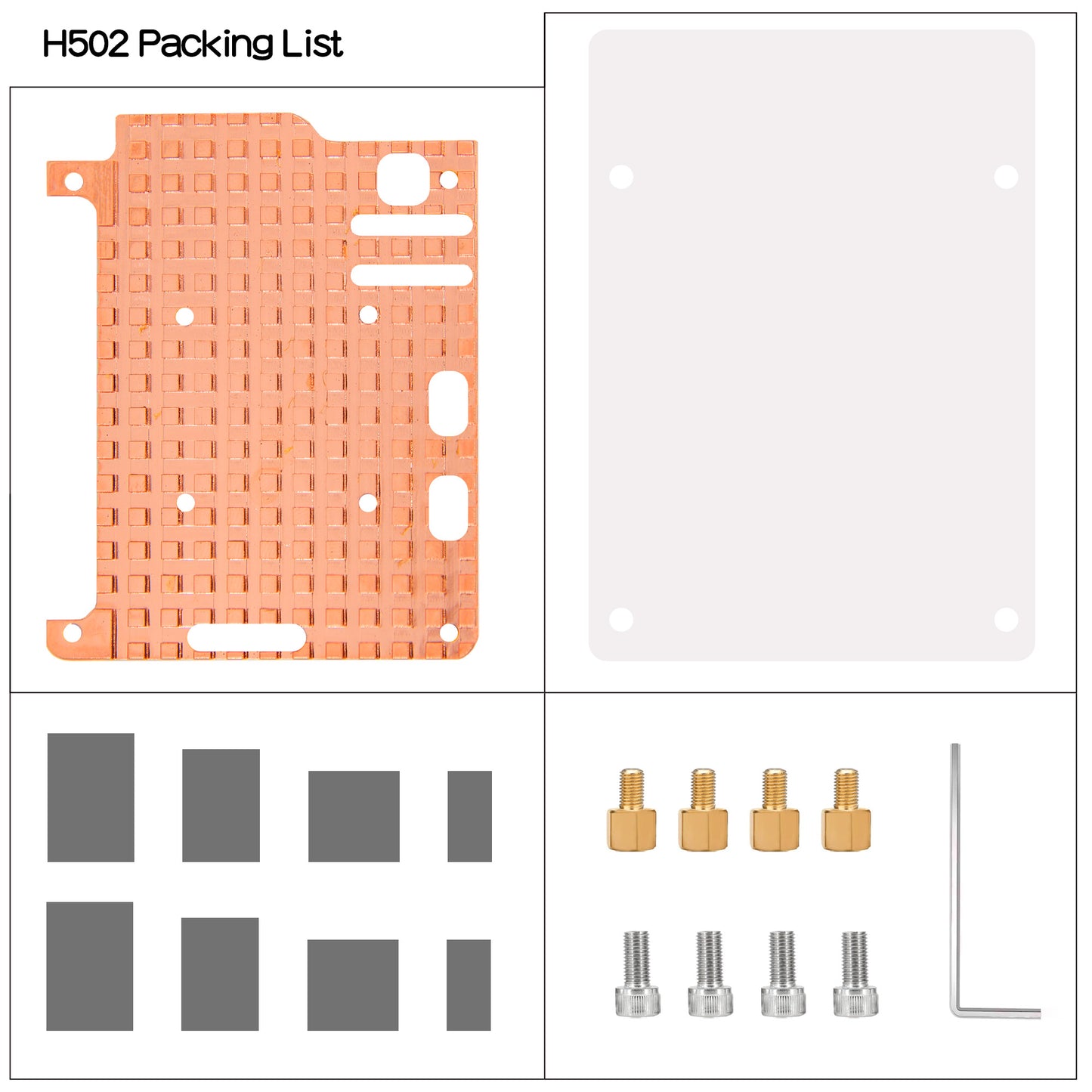

Packing List

1 x 4mm thickness copper heatsink
1 x Acrylic Plate
1x Screws Pack Accessories

Refer to: https://wiki.geekworm.com/H502

Please email to us at info@geekworm.com if you have other questions.

Raspberry Pi 5 Cooling Solutions: Choosing the Right Match
The Raspberry Pi 5 delivers a significant leap in performance, but with that power comes increased heat. To prevent thermal throttling and ensure your board maintains peak clock speeds during intensive tasks, a reliable cooling solution is no longer optional—it's essential.

The market offers a diverse range of options tailored to different use cases, from the Official Active Cooler to premium third-party designs. When choosing, it is important to consider:

Material: Lightweight Aluminum Alloy for standard use or high-density Brass for superior heat soaking.

Cooling Type: Active (with PWM blower fans) for high-load stability or Passive (finned heatsinks) for silent operation.

Form Factor: Varying heights and weights to fit within specific enclosures or HAT configurations.

The following table compares the physical specifications, materials, and fan configurations of the most popular cooling solutions to help you find the perfect fit for your project.

Geekworm Cooler

Picture	Model	Compatible With	Material	Thickness(mm)	Net Weight(gram)	Support Fan	Application Limitations
	H500	Raspberry Pi 5	Aluminum Alloy	9.2mm(Max 10mm)	24g	with 4-pin 3007 blower fan
	H505	Raspberry Pi 5	Aluminum Alloy	11.6mm	39g	with 4-pin 3007 blower fan	not support X1207/X1208/X1209
	H510	Raspberry Pi 5	Brass	9.5mm(Max 11mm)	55g	with 4-pin 3007 blower fan
	H509	Raspberry Pi 5	Aluminum Alloy	15mm	44g	passsive cooling, not support fan	not support X1207/X1208/X1209
	Argon THRML 30-AC	Raspberry Pi 5	Aluminum Alloy	9.6mm	29g	with 4-pin 3007 blower fan
	H501	Raspberry Pi 5	Aluminum Alloy	9.5mm	21g	with 4-pin 3007 blower fan
	H502	Raspberry Pi 5	Brass	4mm (Max 7mm)	63g	support 30x30mm fan installation
