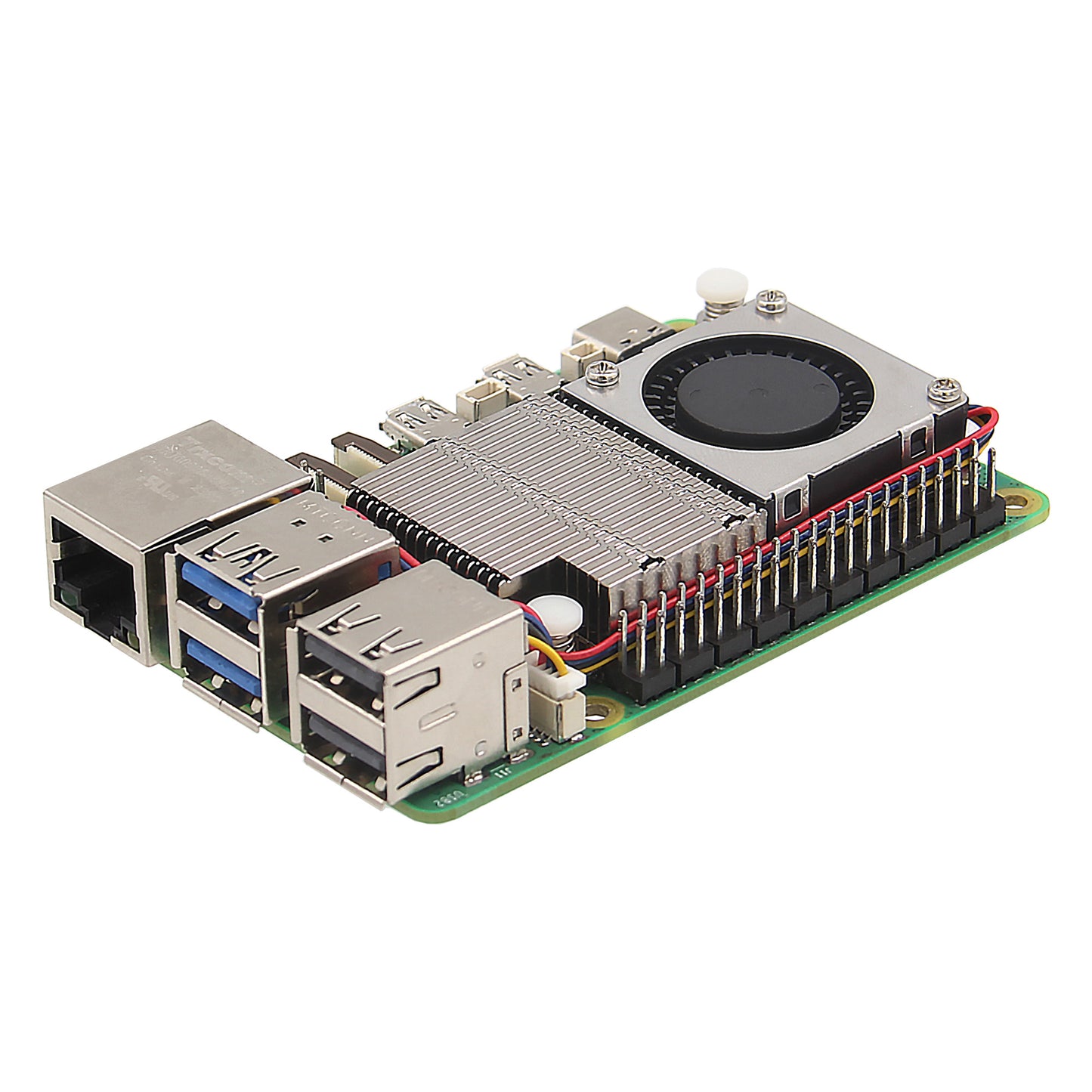

Argon THRML 30mm Active Cooler for Raspberry Pi 5

Regular price: $9.00
Regular price: ~~$10.00~~
Sale price: $9.00
Unit price: per

Only 76 items in stock! Out of stock!

Product variants

Quantity

Description
Manual
RPi 5 Cooler
Shipping Policy
Reviews

Overview
Argon THRML Active Cooler fits on top of the Raspberry Pi 5 to keep it cool while keeping the small form factor
Maximize heat dissipation away from the Raspberry Pi 5 with the large aluminum heatsink
Tunnel Type Radiator heatsink design to maximize synergy with the active cooling from the 30mm PWM blower fan
Integrated 30mm PWM blower fan helps cool down the Raspberry Pi 5 faster
Quick snap on and push pins for easy mounting on Raspberry Pi 5

Specification

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 1.09 CFM
Maximum fan speed: 8000 RPM +/- 15%
Product material: Aluminum

Please email to us at info@geekworm.com if you have some questions.

Raspberry Pi 5 Cooling Solutions: Choosing the Right Match
The Raspberry Pi 5 delivers a significant leap in performance, but with that power comes increased heat. To prevent thermal throttling and ensure your board maintains peak clock speeds during intensive tasks, a reliable cooling solution is no longer optional—it's essential.

The market offers a diverse range of options tailored to different use cases, from the Official Active Cooler to premium third-party designs. When choosing, it is important to consider:

Material: Lightweight Aluminum Alloy for standard use or high-density Brass for superior heat soaking.

Cooling Type: Active (with PWM blower fans) for high-load stability or Passive (finned heatsinks) for silent operation.

Form Factor: Varying heights and weights to fit within specific enclosures or HAT configurations.

The following table compares the physical specifications, materials, and fan configurations of the most popular cooling solutions to help you find the perfect fit for your project.

Geekworm Cooler

Picture	Model	Compatible With	Material	Thickness(mm)	Net Weight(gram)	Support Fan	Application Limitations
	H500	Raspberry Pi 5	Aluminum Alloy	9.2mm(Max 10mm)	24g	with 4-pin 3007 blower fan
	H505	Raspberry Pi 5	Aluminum Alloy	11.6mm	39g	with 4-pin 3007 blower fan	not support X1207/X1208/X1209
	H510	Raspberry Pi 5	Brass	9.5mm(Max 11mm)	55g	with 4-pin 3007 blower fan
	H509	Raspberry Pi 5	Aluminum Alloy	15mm	44g	passsive cooling, not support fan	not support X1207/X1208/X1209
	Argon THRML 30-AC	Raspberry Pi 5	Aluminum Alloy	9.6mm	29g	with 4-pin 3007 blower fan
	H501	Raspberry Pi 5	Aluminum Alloy	9.5mm	21g	with 4-pin 3007 blower fan
	H502	Raspberry Pi 5	Brass	4mm (Max 7mm)	63g	support 30x30mm fan installation
