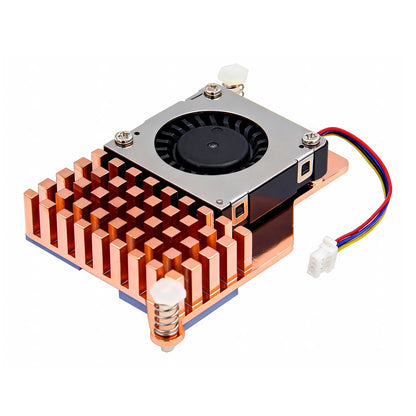

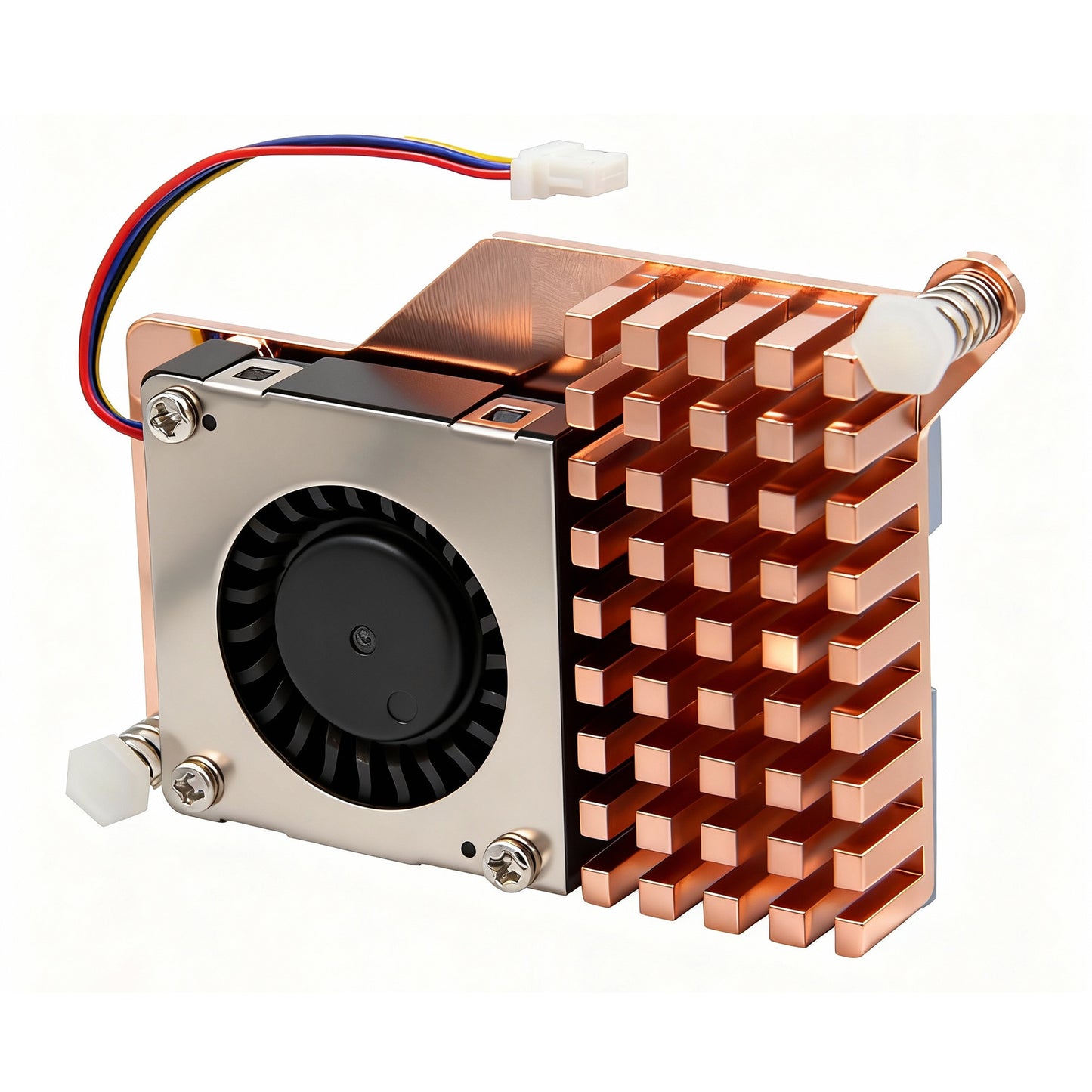

Raspberry Pi 5 Active Cooler (H510), Heavy-Duty Brass Heatsink

Note: The Raspberry Pi 5 board is not included in the packing list.

Overview

Elevate Your Raspberry Pi 5 Performance The Raspberry Pi 5 is a powerhouse, but with great power comes significant heat. The H510 Brass Heatsink Active Cooler is engineered for makers, developers, and overclockers who demand stability without compromise.

Why Brass? Brass offers a unique advantage in thermal management. Its higher density allows it to absorb heat spikes more effectively than aluminum, providing a "thermal buffer" that prevents sudden throttling. When paired with our high-RPM radial blower, it creates a cooling solution that outperforms the competition.

Ready Out of the Box We know your time is valuable. That’s why we’ve already applied the thermal pads to the precise contact points for the CPU, PMIC, and wireless module. Just align the push pins, click them into place, and connect the 4-pin JST header.

Features

• 【Elite Brass Construction】 Unlike standard aluminum coolers, the H510 uses high-density brass for superior thermal mass and conductivity, keeping your Raspberry Pi 5 cooler for longer during peak loads.
• 【Substantial Thermal Mass】 Built for high-performance demands, this heavy-duty 54g(1.90 oz) brass cooler offers the thermal density required to absorb intense heat spikes, ensuring your Raspberry Pi 5 maintains peak performance without throttling.
• 【Low-Profile Design】 With a precision thickness of only 9.5mm(0.37 inch), it offers a compact footprint that maximizes cooling surface area without being overly bulky, maintaining a sleek profile for your Pi 5 setup.
• 【Hybrid Cooling System】 Combines a massive passive brass radiator with a temperature-controlled active PWM blower fan for the ultimate cooling performance.
• 【Seamless Compatibility】 Designed specifically for the Raspberry Pi 5. It acts as a perfect alternative to the official active cooler with even better thermal dissipation.
• 【Plug and Play Installation】 Comes with pre-applied high-quality thermal pads and spring-loaded push pins. No messy glue or complex setup required—mount it in seconds.
• 【Intelligent Temperature Control】 The PWM fan adjusts its speed automatically based on CPU temperature, ensuring silent operation during idle and maximum airflow when overclocking.

Specifications

• Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
• Fan speed control: Pulse width modulation control with tachometer
• Maximum airflow: 1.09 CFM
• Maximum fan speed: 8000 RPM +/- 15%
• Product material: Anodised aluminium

Packing List

• 1x H510 Active Cooler for Raspberry Pi 5
