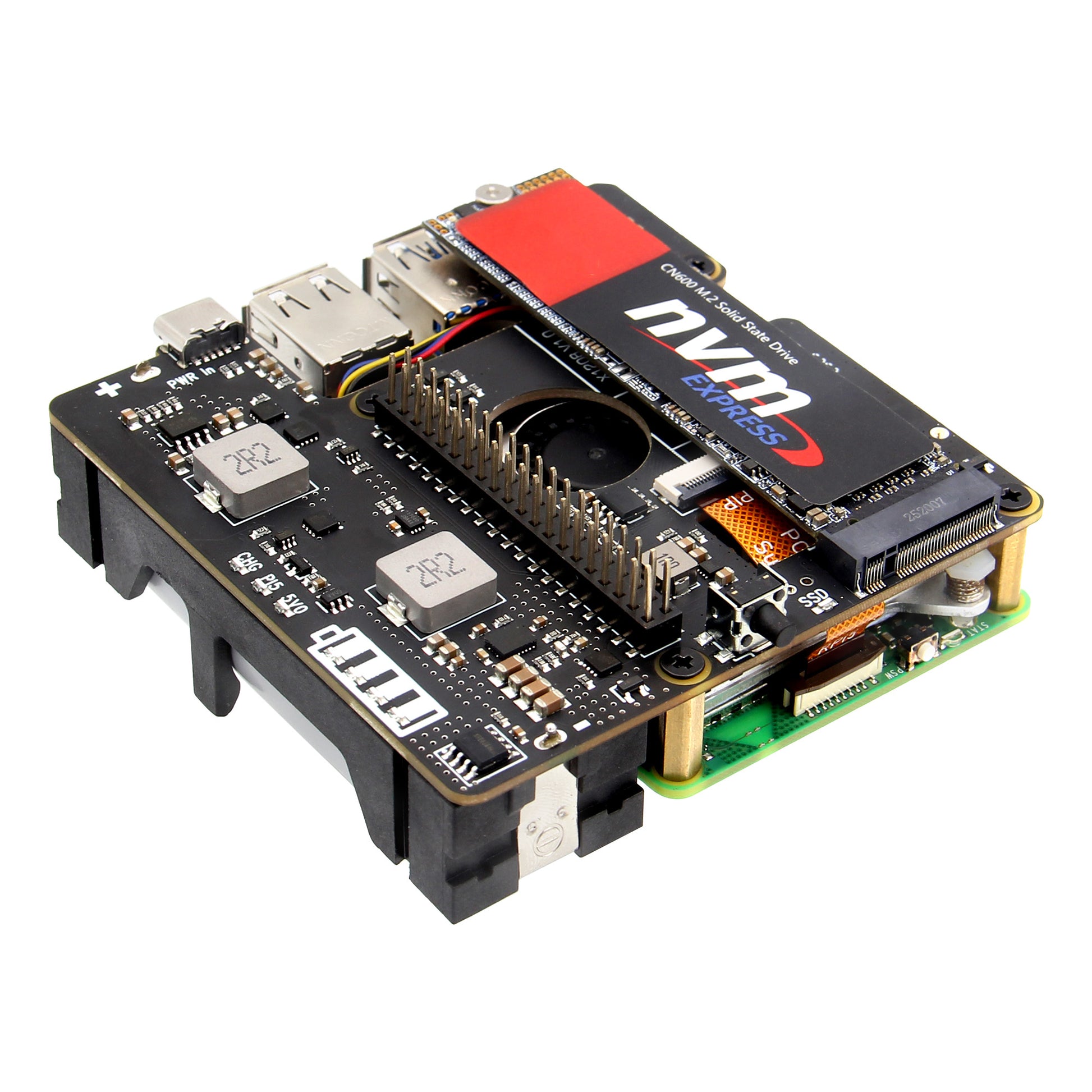

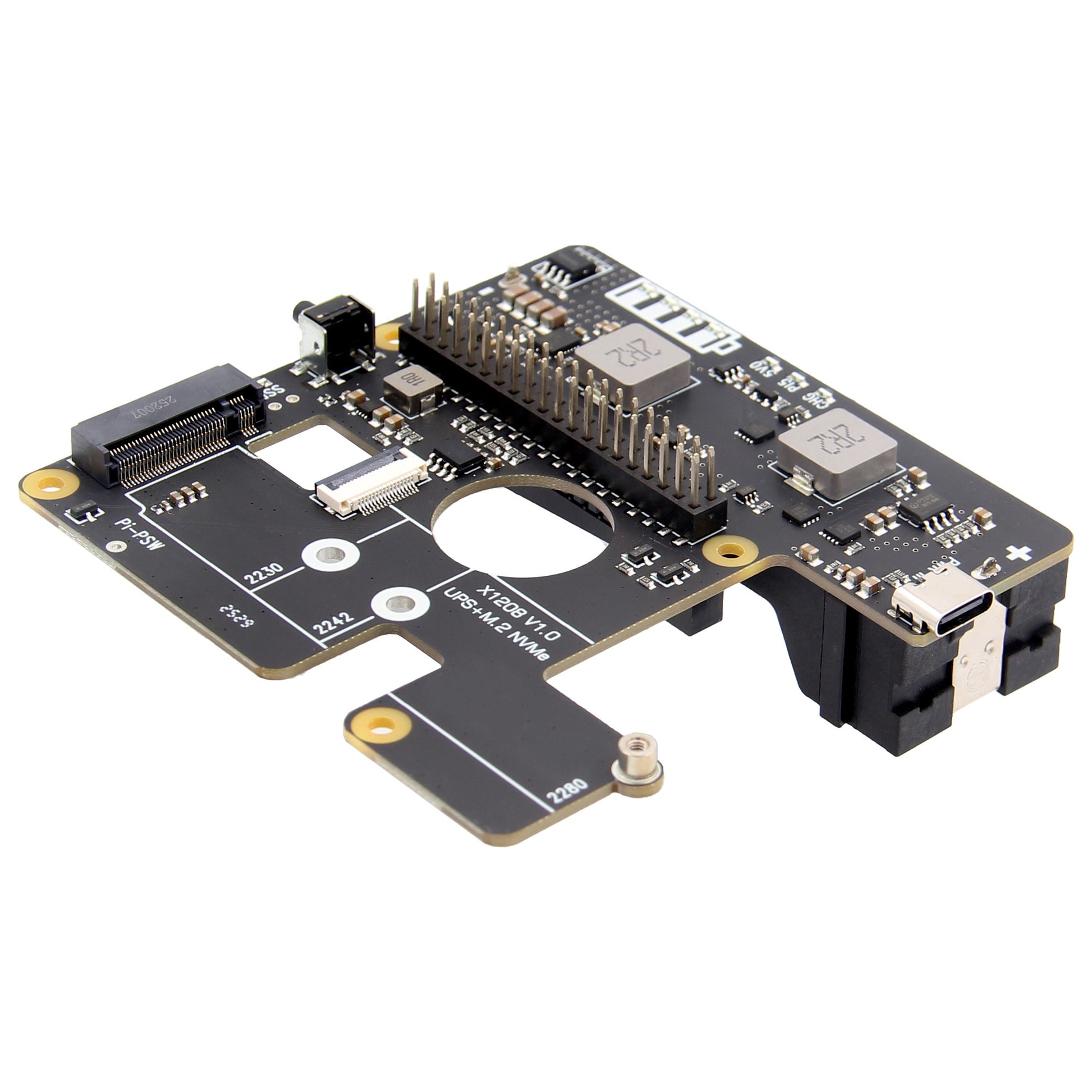

Geekworm X1208 1-Cell 21700 5.1V 5A UPS HAT with Single M.2 2230/2242/2280 NVMe SSD Support for Raspberry Pi 5 Series

$45.00
$45.00
Only 10 items in stock! Out of stock!
  • Description
  • Manual
  • RPi5 UPS Hats
  • Shipping Policy
  • Reviews

Note:

  1. The Raspberry Pi 5, battery, and power adapter are not included in the packing list.
  2. DON'T apply power to your Raspberry Pi 5 via the Type-C USB socket.

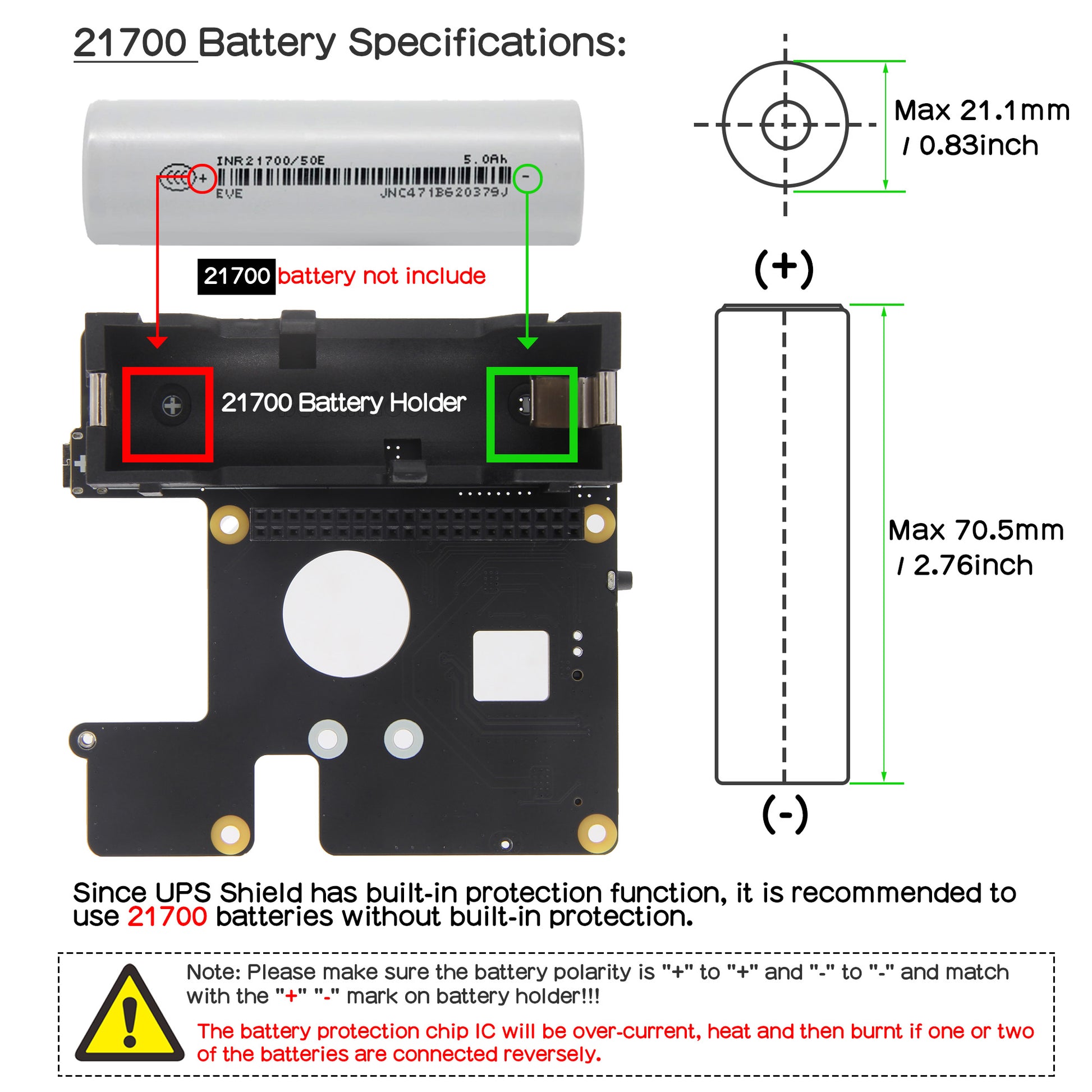

  3. Compatible with unprotected 21700 battery only (Max. length: 70.3 mm).
  4. The H505, H509 cooler does not support X1207/X1208/X1209 due to the height limitation.

Overview

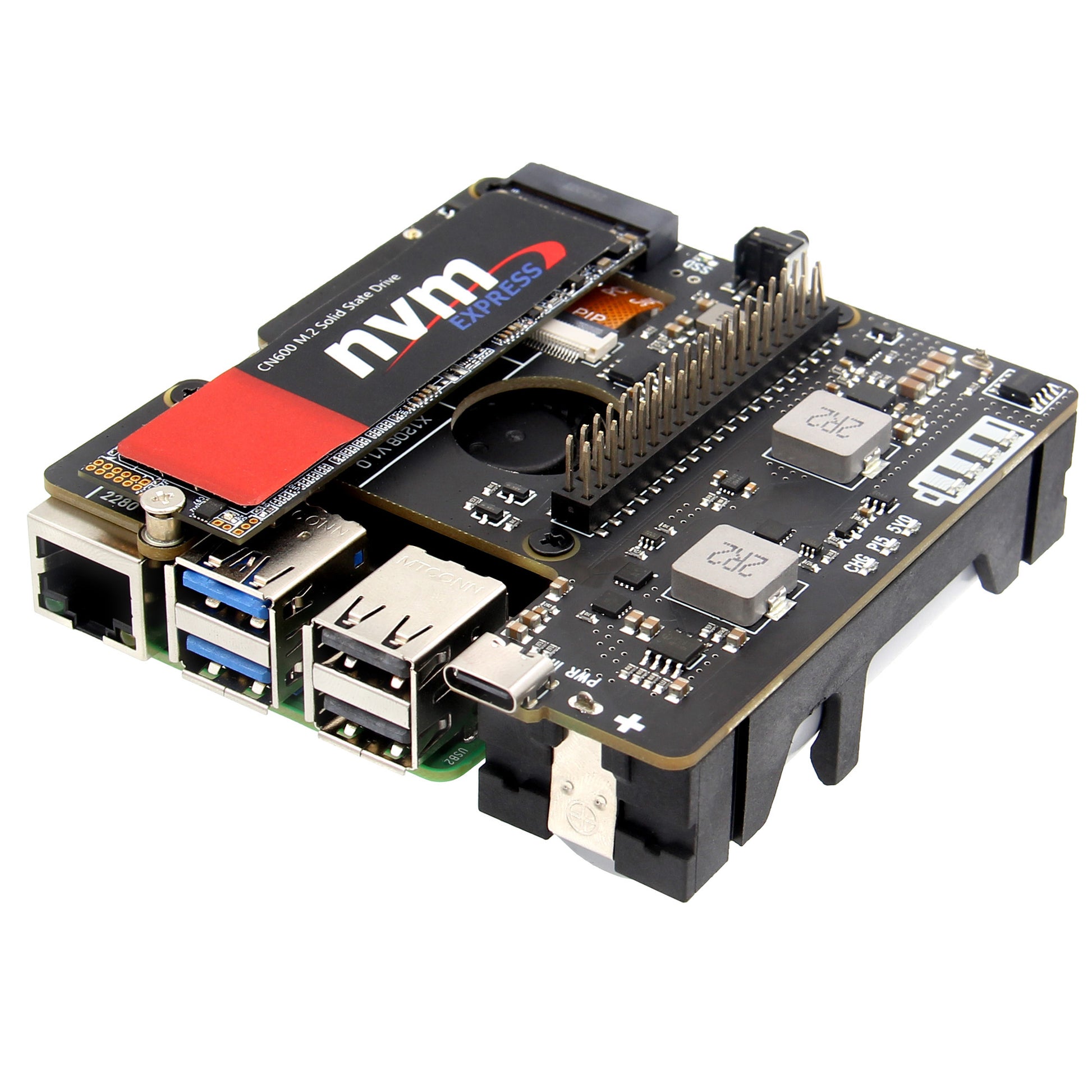

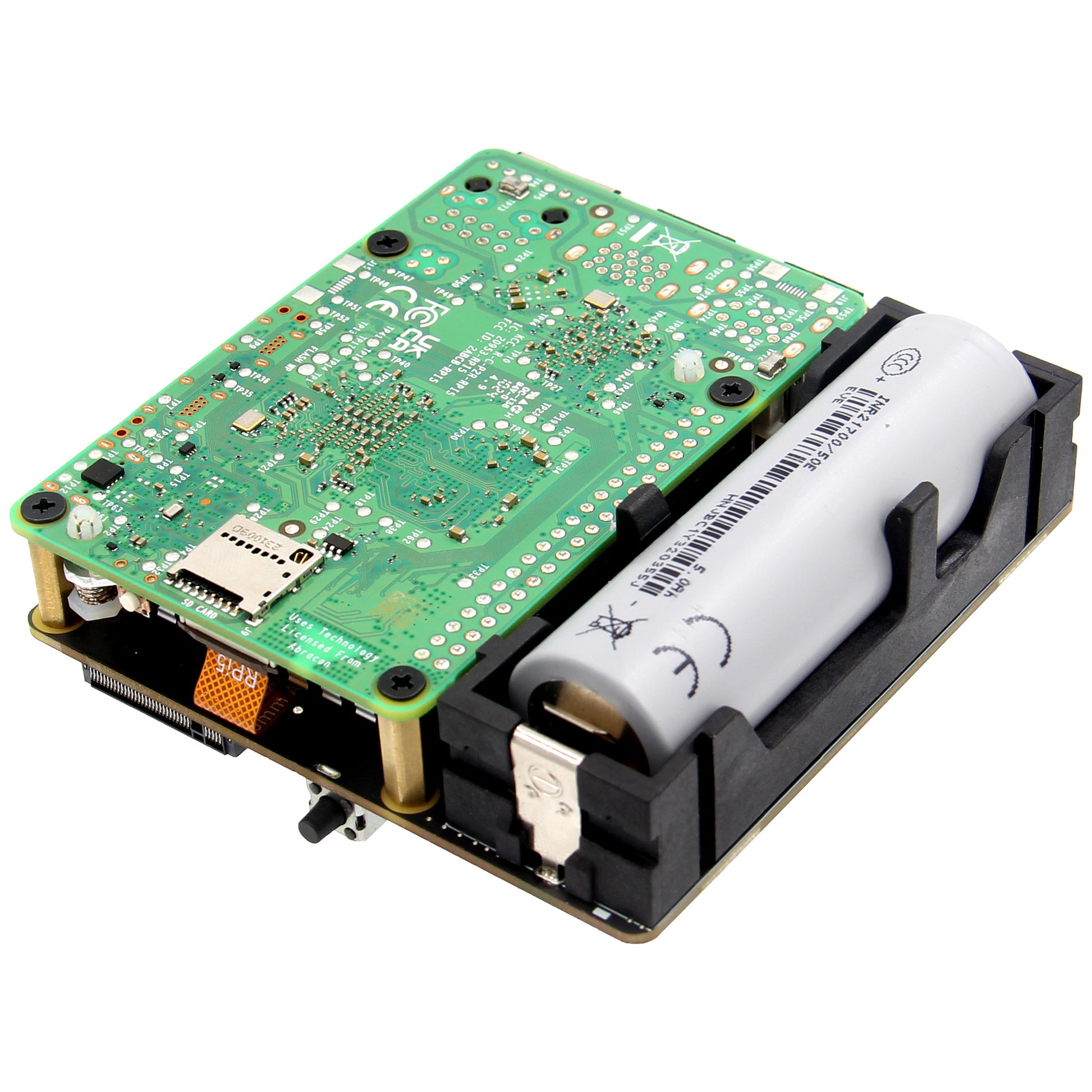

The Geekworm X1208 UPS+POE Shield provides the Raspberry Pi 5 with stable power and enhanced storage. It integrates a M.2 2280 NVMe SSD slot for fast data access and reliable backup, even during power loss.

With its 5.1V/5A output, the X1208 ensures uninterrupted performance for power-hungry projects and peripherals. The smart power management system supports auto power-on, safe shutdown, and AC power loss detection, while automatically cutting power after shutdown to extend battery life.

This all-in-one UPS and storage expansion board offers reliable backup power, data protection, and continuous operation — perfect for advanced Raspberry Pi 5 applications.

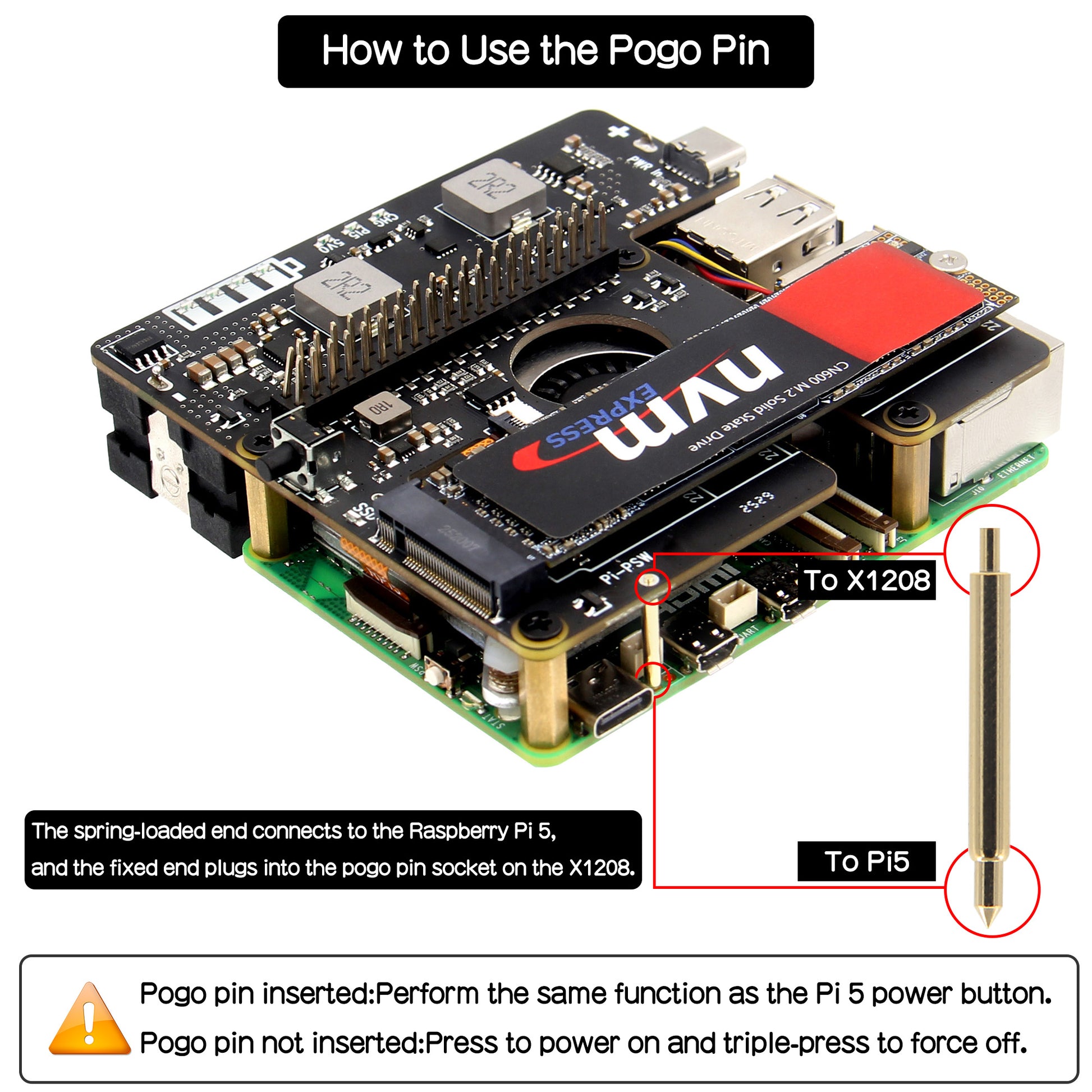

Function of the Pogo Pin

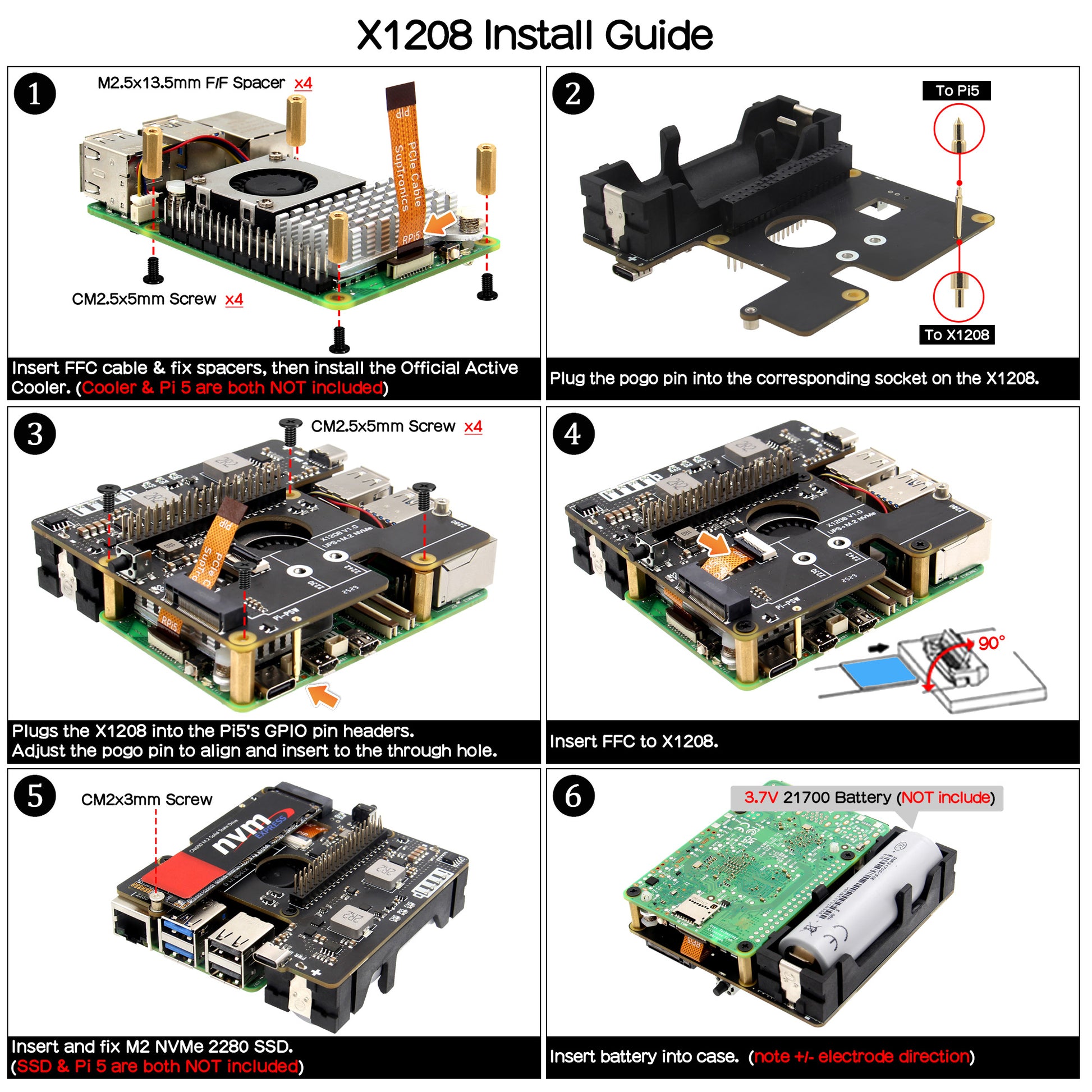

The pogo pin must be installed to enable the same power button function as on the Raspberry Pi 5. Without the pogo pin, the X1208 power button can still be used to power on the system and force a shutdown by pressing it three times.

Features

For use with

Raspberry Pi 5 2GB/4GB/8GB/16GB
Key Features

UPS Output

  • Built for continuous, long-lasting operation -providing unwavering power for always-on Raspberry Pi 5 systems
  • Supports a maximum current output of 5.1V 5000mA, suitable for most Raspberry Pi 5 applications
  • Integrated Advanced Power MOSFET with an equivalent of 7mΩ RDS(ON) to minimize power loss
  • Power the Raspberry Pi 5 directly through the 40-pin header, eliminating the need for cables and soldering

Battery Charging

  • Supports battery charging with a capacity of 1500mA
  • Battery charging control can be managed via GPIO
  • Provides protection against battery overcurrent and overvoltage
  • Built-in protection against reverse connection of battery cells
  • Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over I2C
  • On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

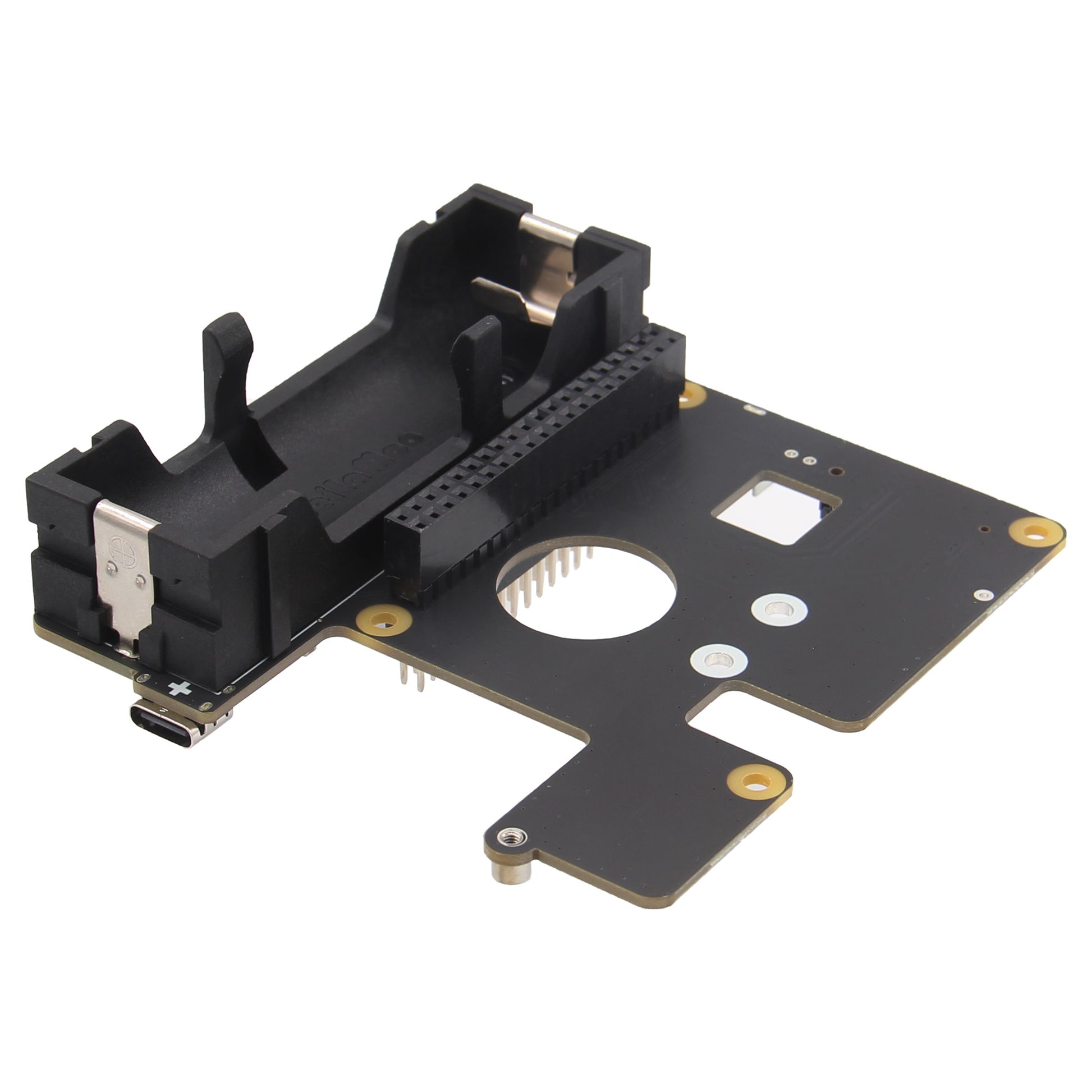

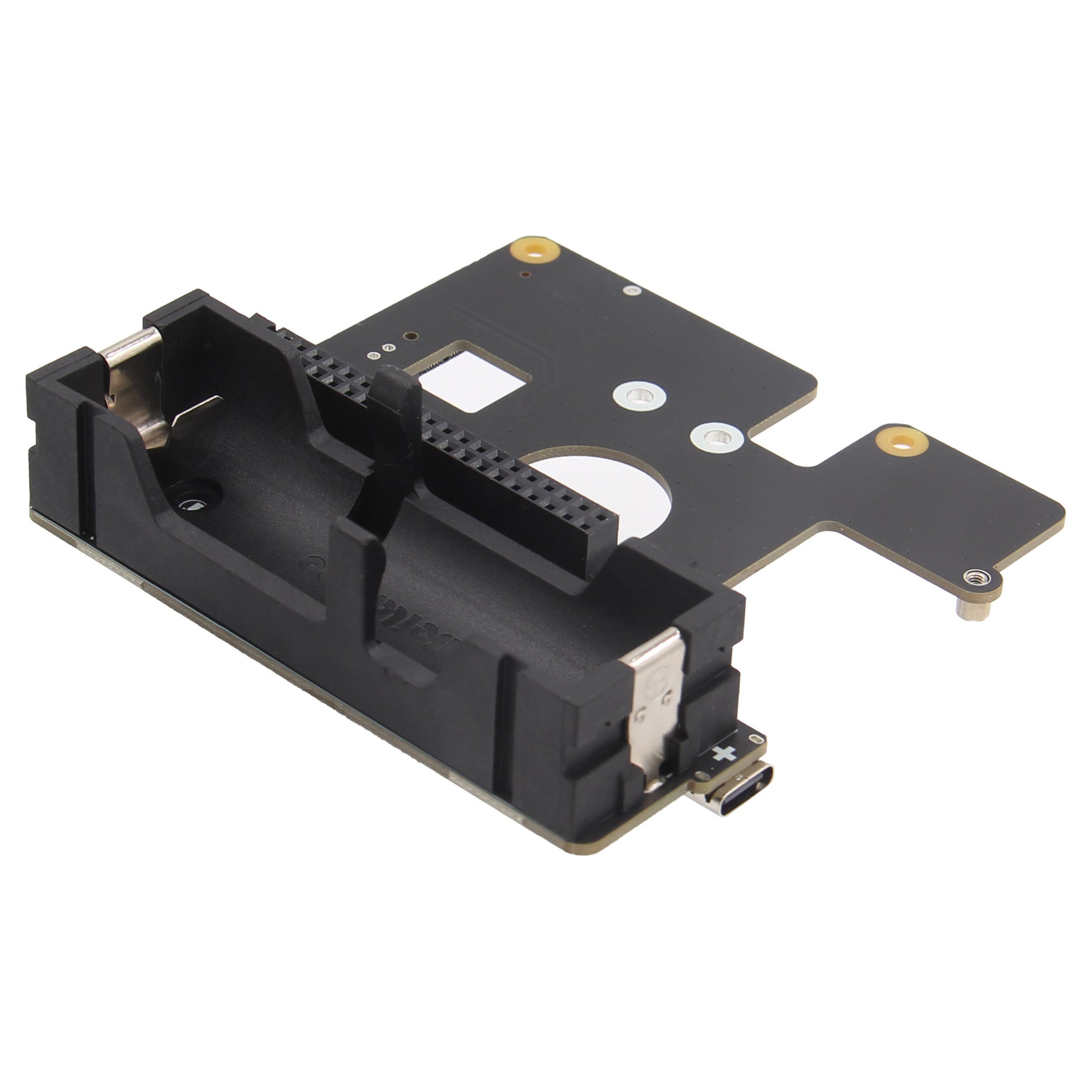

  • Features a single 21700 battery holder, supporting a battery of up to 5000mAh(Compatible only with unprotected 21700 battery up to 70.3 mm in length.)

Power Input

  • Powered through the USB-C socket of X1208, eliminating the need to change your power adapter

Enhanced Power Management

  • Seamless power switching between backup power and the power adapter
  • On-board push button performs the same actions as the Pi5's power button(the pogo pin must be installed)
  • Automatically cuts off power when the Pi 5 is shut down
  • On-board LED indicates power status and Pi 5 detection
  • AC power loss and power adapter failure detection via GPIO
  • Auto power-on when power is applied or restored
  • Automatic safe shutdown when battery voltage is low (programmable)
  • Ultra-low standby power consumption to maximize battery life
  • Advanced system power-path management to minimize frequent charging and discharging of batteries

M.2 M key NVMe socket

  • Supports high-capacity M.2 NVMe solid-state drives up to 4TB，compatible with 2280, 2242, and 2230 form factors
  • Supports operating system booting from your SSD
  • Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps
  • Does not compromise cooling performance and is fully compatible with the official active cooler(not support H505/H509 cooler)
  • Features a blue LED indicator that displays power and drive status
  • High-efficiency converter delivers 3.5A to your SSD

Compatible Accessories

  • X1100 USB3 to SATA 2.5 HDD/SSD shield for Pi 5
  • Other add-on boards that do not use the PCIe interface are attached to the bottom of the Raspberry Pi 5.
Specifications

Power input: 5Vdc 5A via USB-C (Input current below 5A may cause improper operation.)

UPS output: 5.1V ±5% Max 5A

Battery charging current: 1.5A

Terminal Battery Voltage: 4.23V

Battery Recharge Threshold: 4.1V

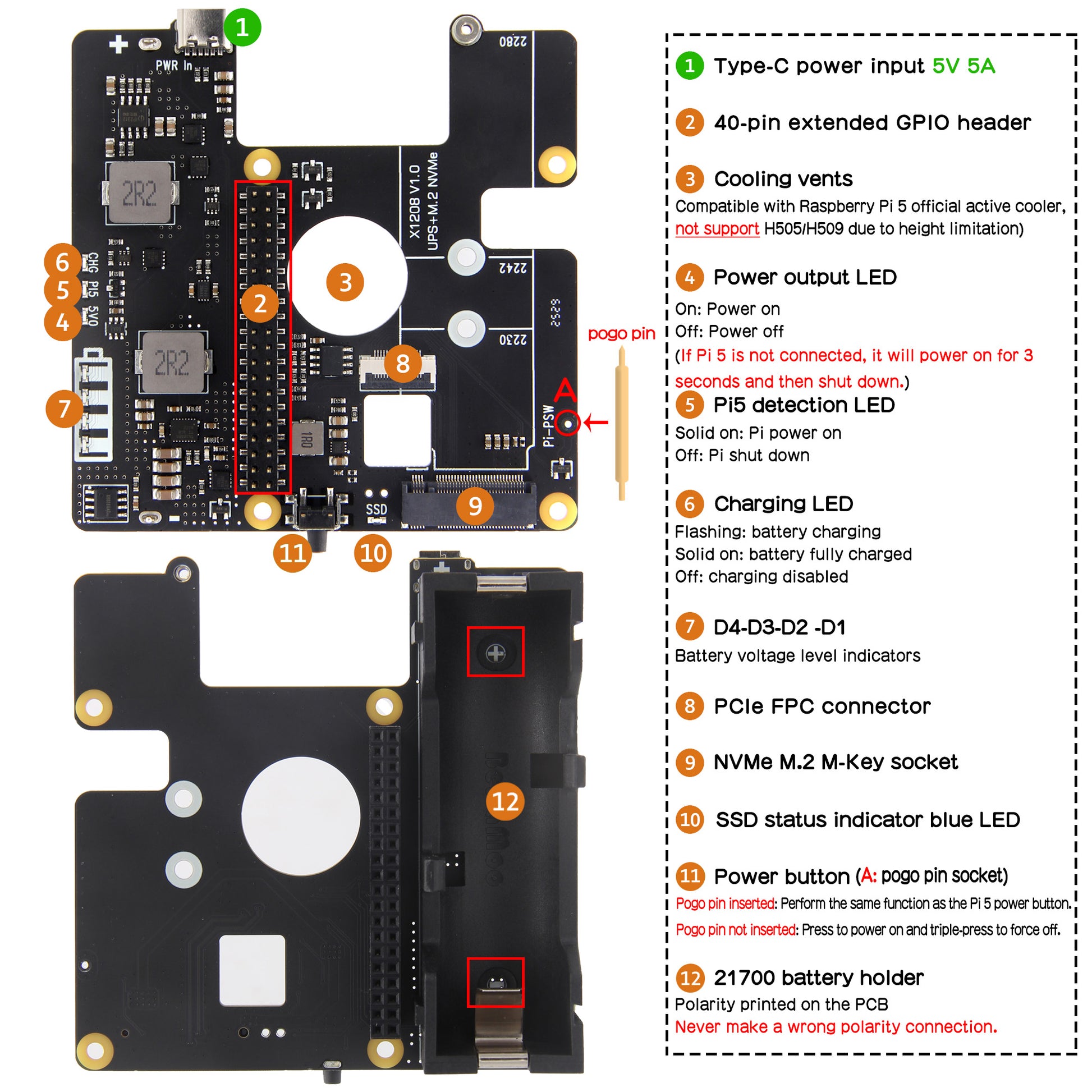

Ports & Connectors:

  • USB-C power in connector x1
  • 1-cell 21700 battery connector x1
  • SSD socket - M.2 KEY-M 67P x1
  • 40-pin extended GPIO header x1

PCB Size: 86.5mm x 84.5mm
Important Notes
  • Do not apply power to your Raspberry Pi 5 via the Type-C USB socket.
  • Compatible with unprotected 21700 battery only (Max. battery length: 70.3 mm).

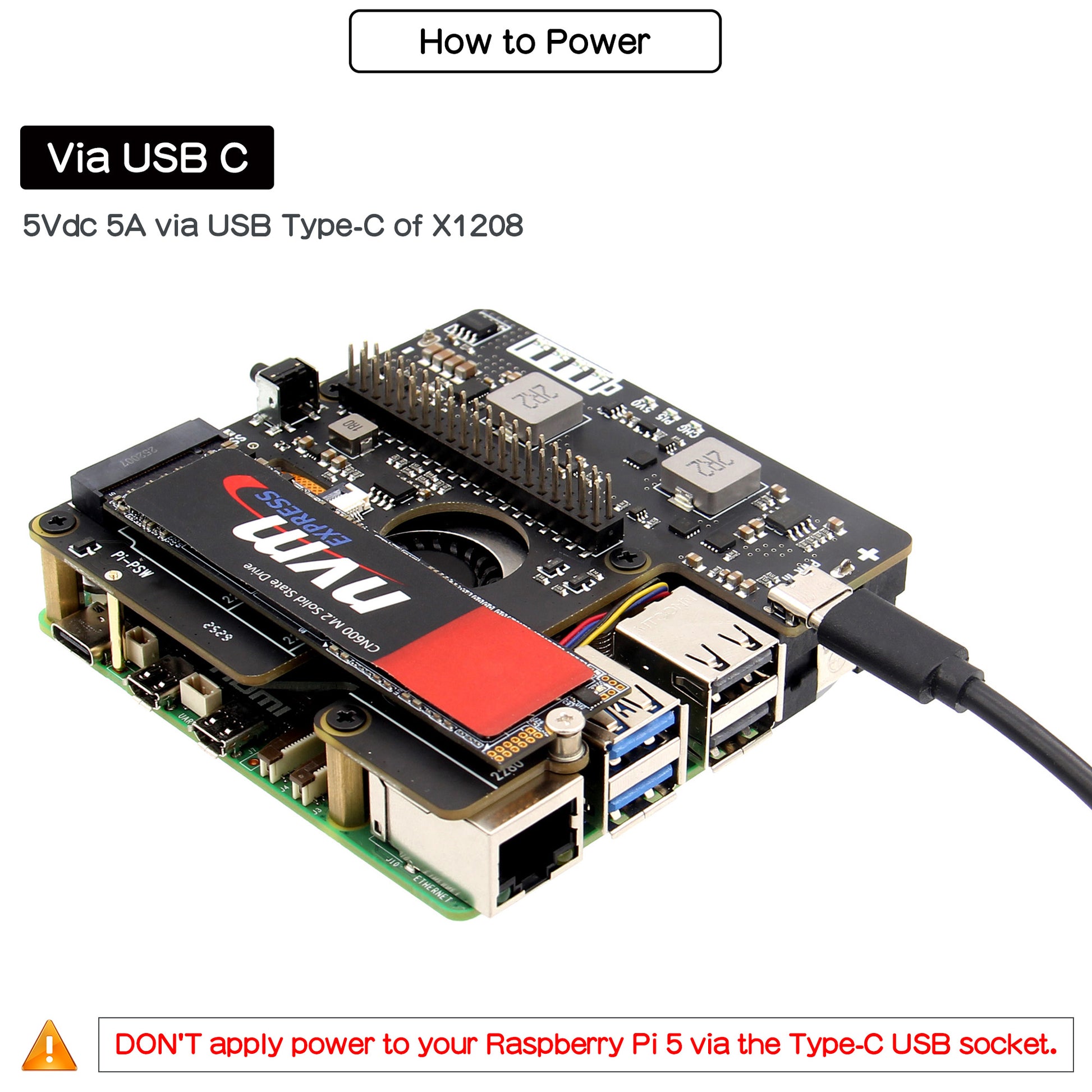

How to Power

  • 5Vdc 5A via USB-C port of X1208 (Input current below 5A may cause improper operation.)

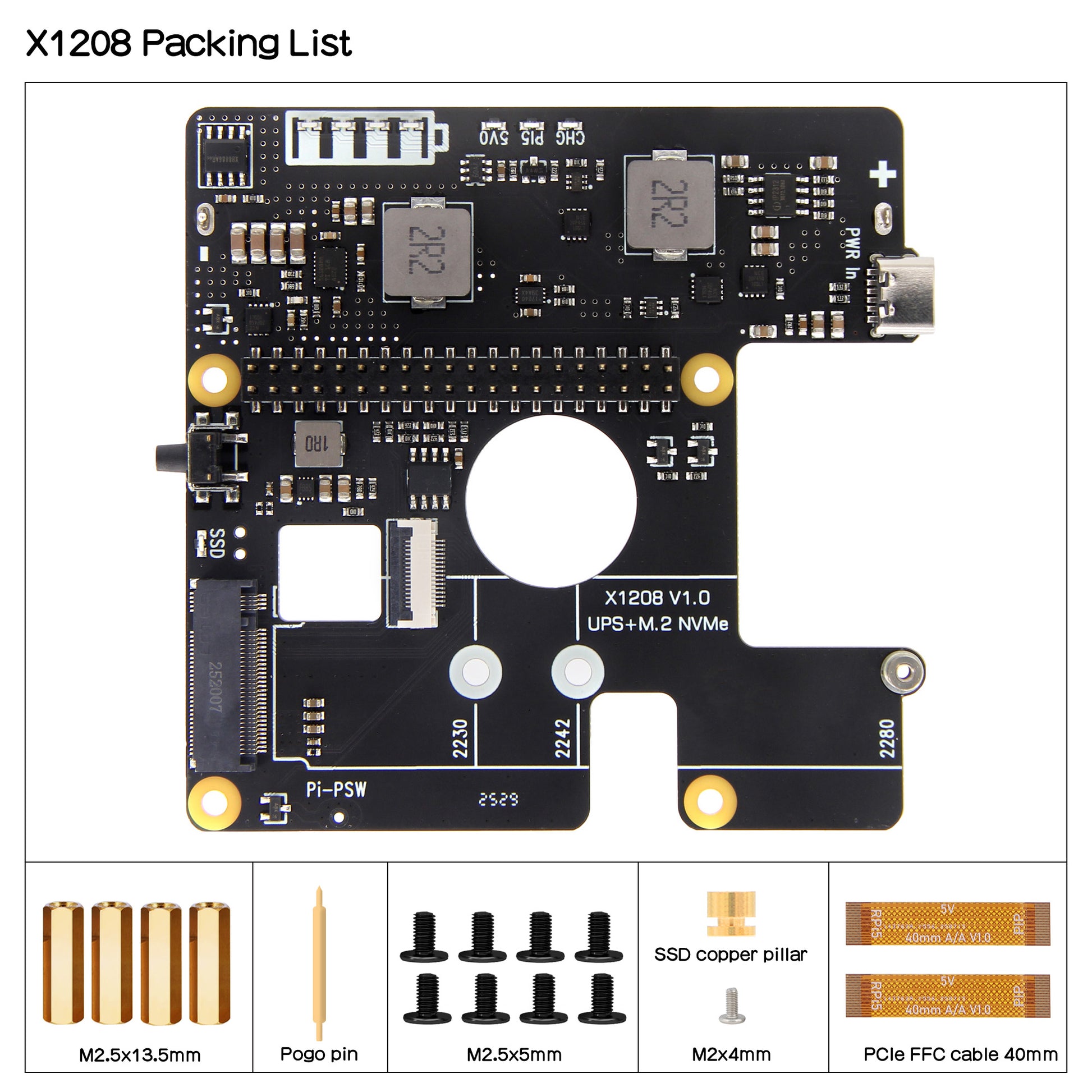

Packing List

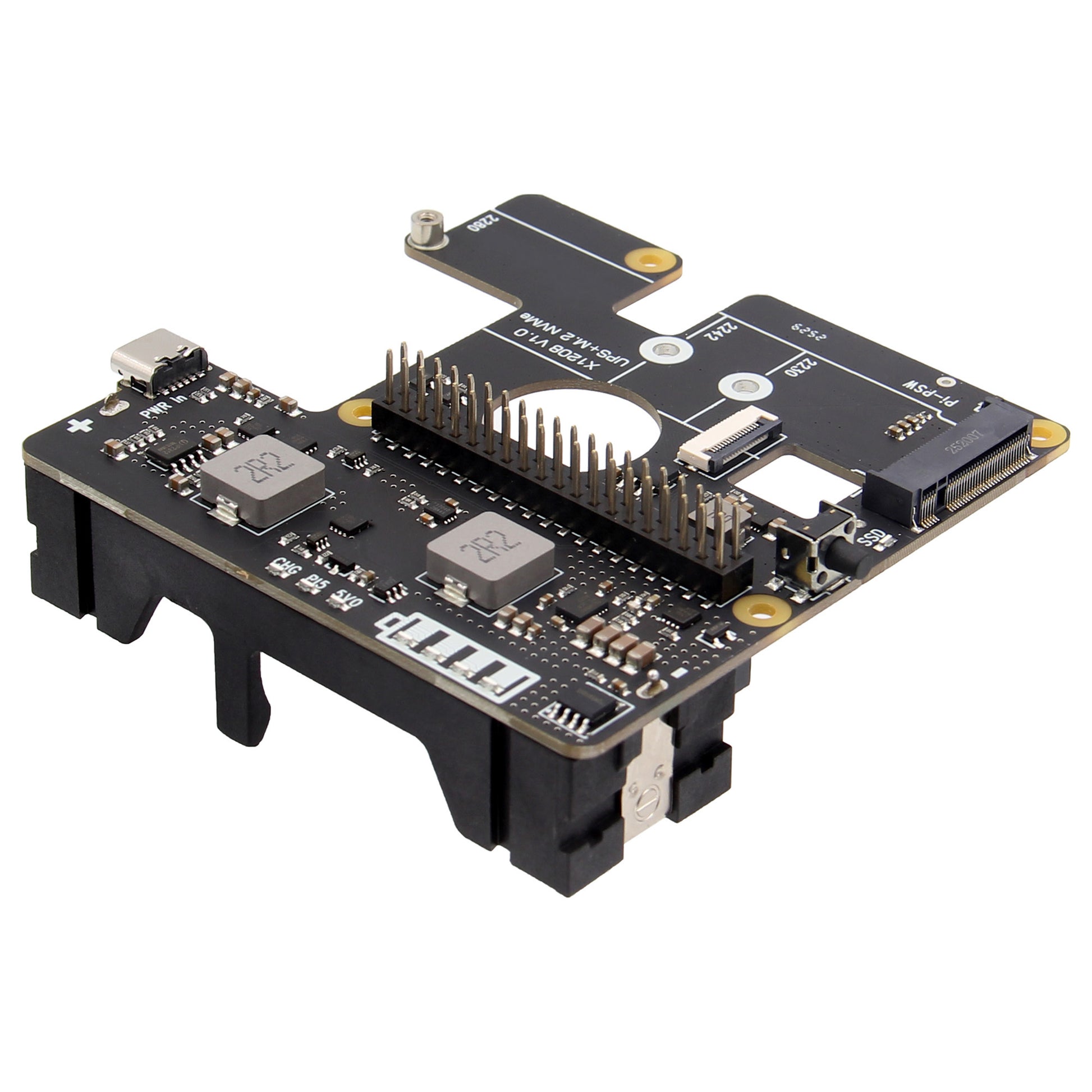

  • 1x X1208 V1.0 UPS+NVMe board
  • 2x  40mm length PCIe FFC cable(one as backup)
  • 4x M2.5x13.5mm F/F Spacers
  • 8x M2.5x5mm Screws
  • 1x Pogo pin(For connecting to the Pi 5 PSW through hole)
  • 1x SSD Copper Pillar
  • 1x M2x4mm Screw

Refer to: https://wiki.geekworm.com/x1208

Please email to us at info@geekworm.com if you have other questions.

This series of UPS (uninterruptible power supply) expansion boards provided by Geekworm for Raspberry Pi 5 demonstrates high flexibility and customization, which is very suitable for various project needs, especially those application scenarios that require stable power supply and battery backup. Here is a detailed analysis of each expansion board and its advantages:

X1200

  • Features: Onboard 2 18650 battery holders, compact design, suitable for projects with limited space.
  • Advantages: It can provide stable 5V@5A current output to meet the power supply needs of most Raspberry Pi and its peripherals.
  • Application scenarios: Suitable for small projects that require a certain battery backup but have limited space, such as portable monitoring equipment, small robots, etc.

X1201

  • Features: It also has 2 18650 battery boxes on board, but it is designed to be placed side by side with the motherboard to achieve the thinnest effect.
  • Advantages: While maintaining strong power supply capacity, it optimizes space occupancy, especially suitable for scenarios with strict thickness requirements.
  • Application scenarios: The ultra-thin design makes it suitable for scenarios with strict volume requirements such as wall-mounted devices and embedded systems.

X1202

  • Features: Onboard 4 18650 battery holders, providing higher battery capacity.
  • Advantages: Longer battery life, suitable for applications that require long-term operation and cannot frequently replace batteries.
  • Application scenarios: Suitable for field monitoring stations, remote data loggers and other equipment that require long-term unattended operation.

X1203

  • Features: No battery holder, but reserved XH2.54 battery interface, highly flexible.
  • Advantages: Users can choose the appropriate battery type and capacity according to actual needs, greatly improving the flexibility of DIY.
  • Application scenarios: Suitable for advanced DIY projects that have specific requirements for batteries or want to use non-standard battery configurations.

X1205

  • Features: Onboard 2 21700 battery holders, compact design, suitable for projects with limited space.
  • Advantages: It can provide stable 5V@6A current output to meet the power supply needs of most Raspberry Pi and its peripherals.
  • Application scenarios: Suitable for small projects that require a certain battery backup but have limited space, such as portable monitoring equipment, small robots, etc.
  • Added AUTO POWER ON jumper settings for more flexible use.

X1206

  • Features: Onboard 4 21700 battery holders, providing higher battery capacity.
  • Advantages: Longer battery life, can provide stable 5V@6A current output , suitable for applications that require long-term operation and cannot frequently replace batteries.
  • Application scenarios: Suitable for field monitoring stations, remote data loggers and other equipment that require long-term unattended operation.
  • Added AUTO POWER ON and ALWAYS POWER ON jumper settings for more flexible use.

Common advantages

  • Intelligent monitoring: All expansion boards can intelligently monitor the power status of the Raspberry Pi 5 and automatically cut off the power when shutting down, which helps to extend the battery life.
  • Sufficient power supply capacity: They can provide stable and reliable Vdc 5V@5A power supply capacity.
  • Programming interface: Supports software programming, reads UPS status (such as battery capacity, voltage), and realizes advanced functions such as low voltage automatic shutdown and external power supply shedding alarm.
  • Easy installation: The pogo pins are used to connect to the motherboard, which simplifies the installation process. It also comes with an onboard switch and a reserved external switch PIN for easy user control.

Summary

This series of UPS expansion boards from Geekworm provides a wealth of choices for Raspberry Pi 5 users, whether they are pursuing space efficiency, battery life or DIY flexibility, they can find a solution that suits them. Through intelligent monitoring and programming interfaces, these expansion boards also give projects a higher level of intelligence and automation.

Model Battery Holders Battery Capacity Matching Case How to Charge Key Advantages Application Scenarios
X1200
  • 2 cells 18650 Battery
 Moderate X1200-C1
  • 5Vdc 5A via USB Type-C of UPS
  • Compact design
  • Stable power supply
  • Small-scale projects
  • Portable devices
X1201
  • 2 cells 18650 Battery
 Moderate X1201-C1
  • 5Vdc 5A via USB Type-C of UPS
  • 5Vdc ≥3A via XH2.54 connecotr of X1201
  • Ultra-thin design
  • Space-saving
  • Wall-mounted devices
  • Embedded systems
X1202
  • 4 cells 18650 Battery
 High X1202-C1
  • 5Vdc 5A via USB Type-C of UPS;
  • 6-18Vdc, ≥3A via DC 5521 power jack of UPS
  • 6-18Vdc, ≥3A via XH2.54 connecotr of UPS
  • Longer runtime
  • High battery capacity
  • Remote monitoring
  • long-term data loggers
X1203
  • Without battery holder
  • With two XH2.54 battery connectors
 User-defined N/A
  • 5Vdc 5A via USB Type-C of UPS;
  • 6-18Vdc, ≥3A via DC 5521 power jack of UPS
  • Flexible battery configuration
  • DIY versatility
  • Advanced DIY projects with specific battery requirements
X1205
  • 2 cells 21700 Battery
 Moderate X1205-C1
  • 5Vdc 5A via USB Type-C of UPS;
  • 9-18Vdc, ≥3A via DC 5521 power jack of UPS
  • 9-18Vdc, ≥3A via XH2.54 connecotr of UPS
  • Compact design
  • Stable power supply
  • Small-scale projects
  • Portable devices
X1206
  • 4 cells 21700 Battery
 High X1206-C1
  • 5Vdc 5A via USB Type-C of UPS;
  • 5-6Vdc, ≥3A via DC 5521 power jack of UPS
  • 5-6Vdc, ≥3A via XH2.54 connecotr of UPS
  • Longer runtime
  • High battery capacity
  • Remote monitoring
  • long-term data loggers

Note:

  • Note that you can use only one battery and it will work.
  • The exact battery capacity depends on the 18650 lithium battery you use and the quantity.We recommend that you use lithium batteries from big brands such as Samsung or Panasonic.
