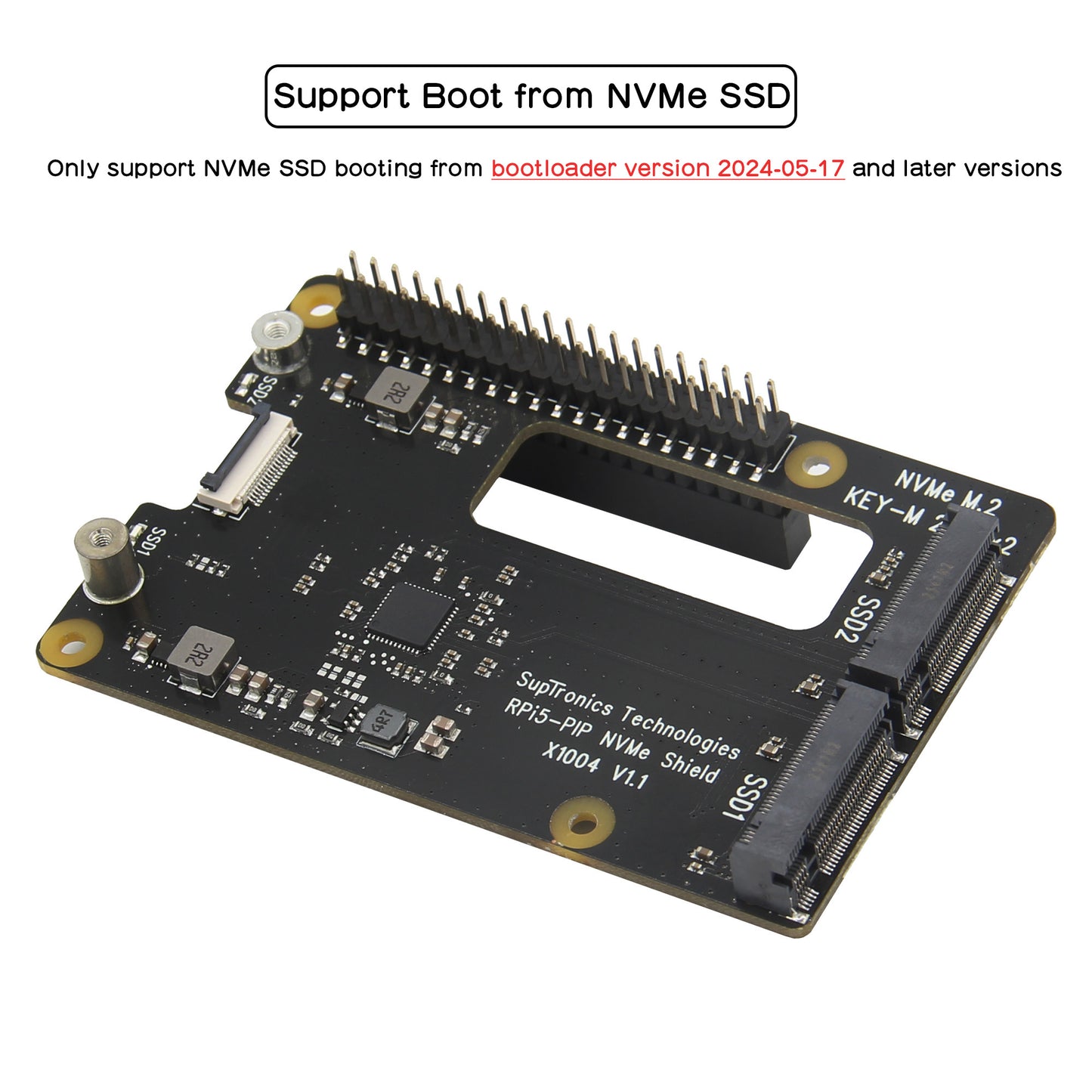

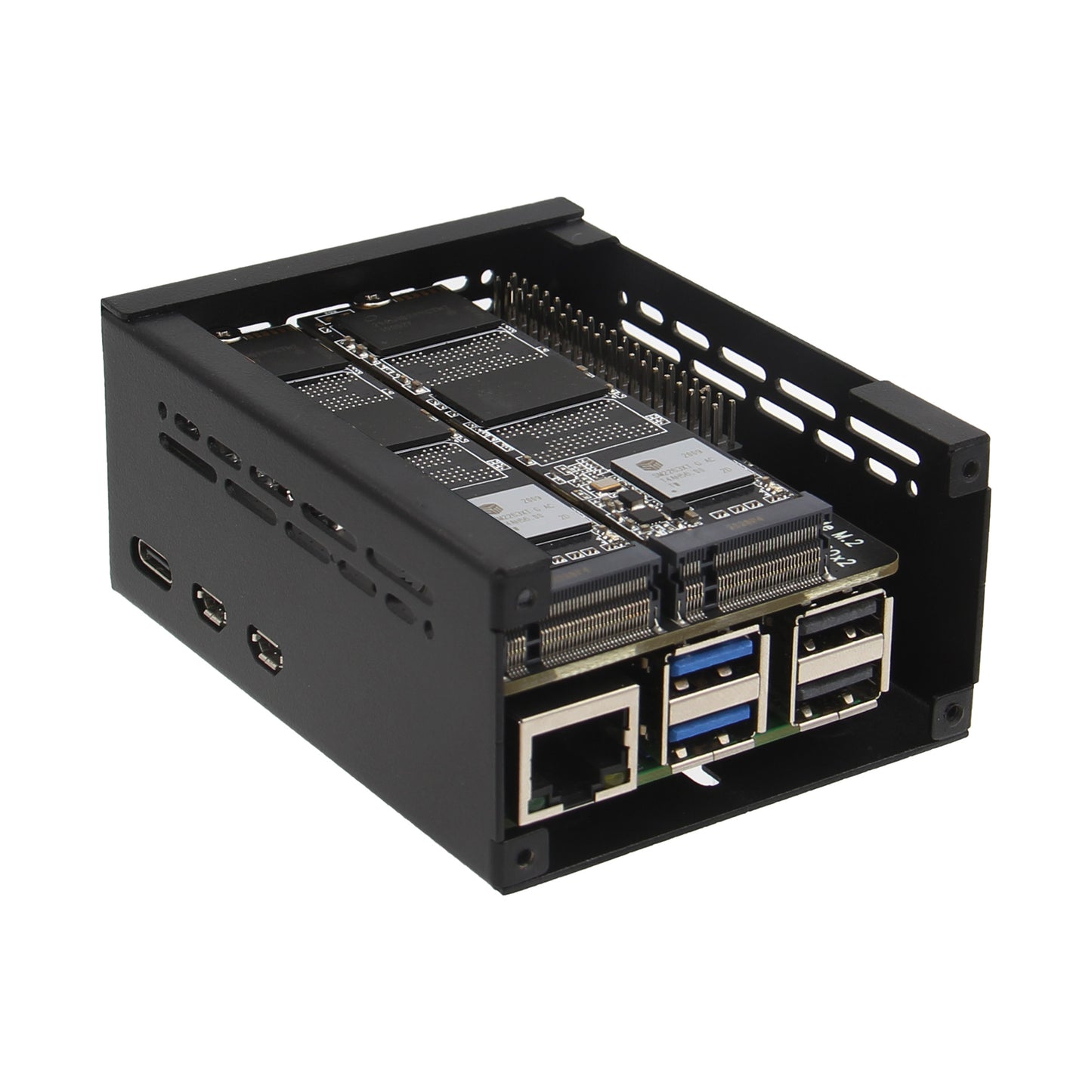

Geekworm X1004 PCIe to Dual 2280 NVMe SSD shield for Raspberry Pi 5

Regular price
$35.00
Regular price
$37.00
Sale price
$35.00
-5%
Only 62 items in stock! Out of stock!
  • Description
  • Manual
  • PIPs
  • Shipping Policy
  • Reviews

Overview

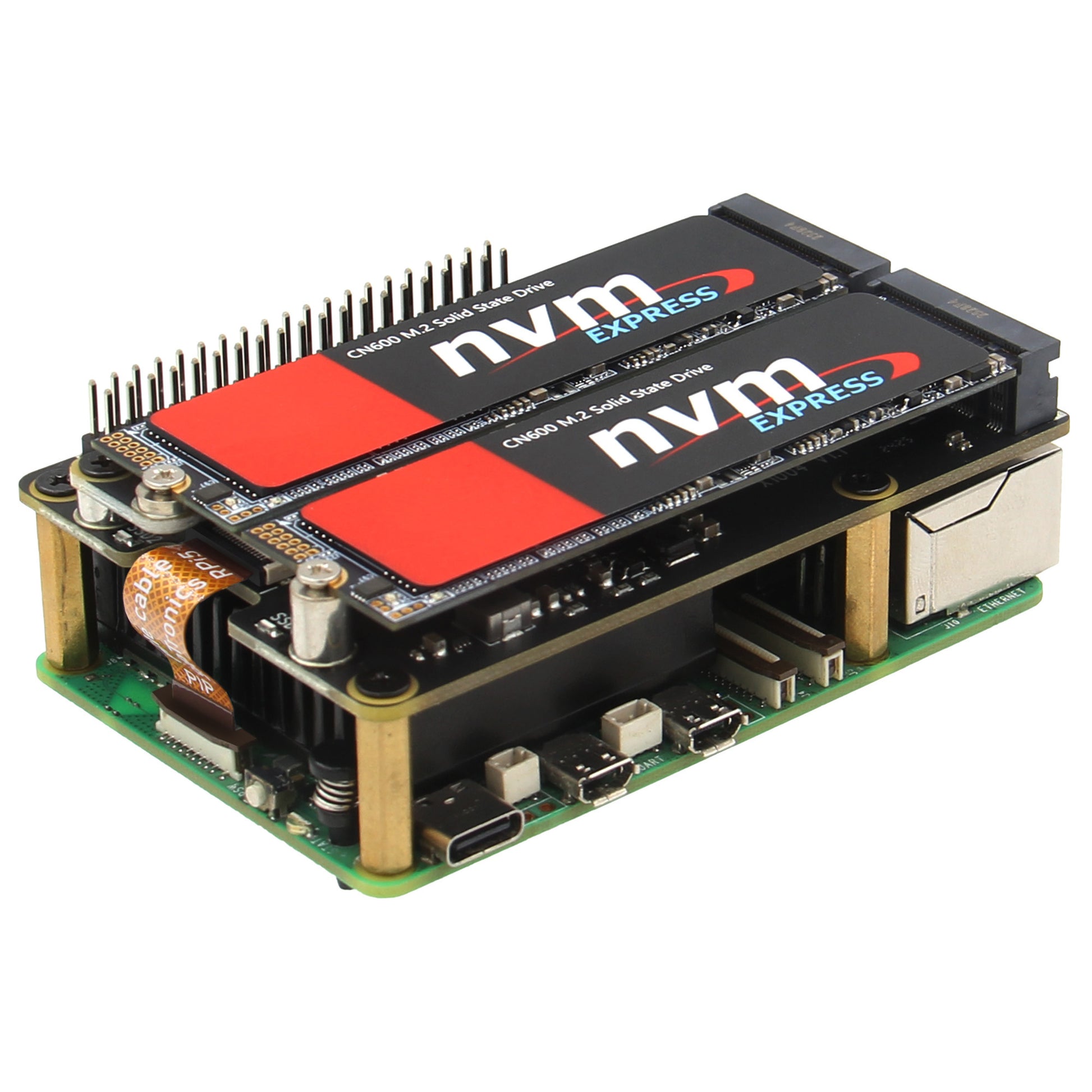

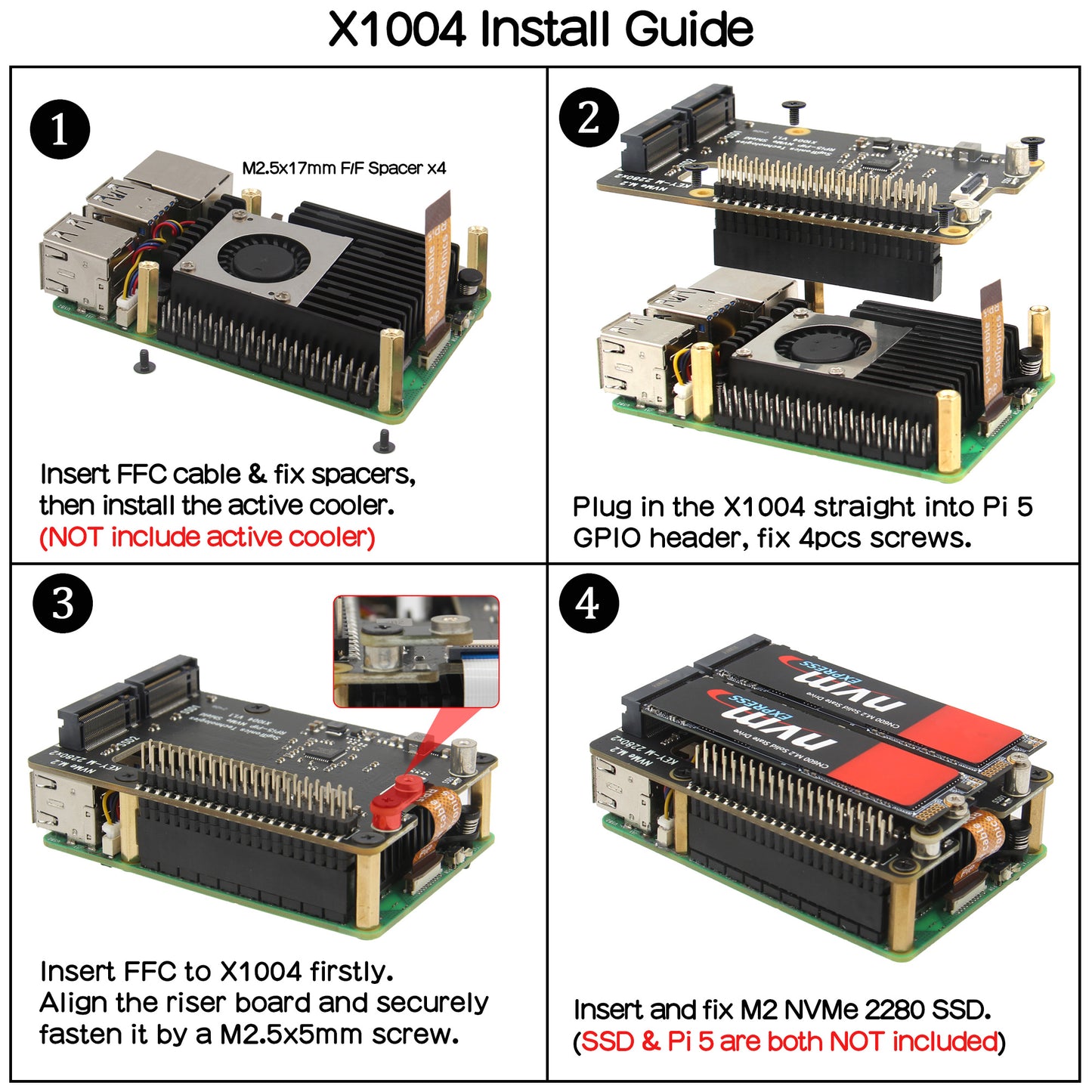

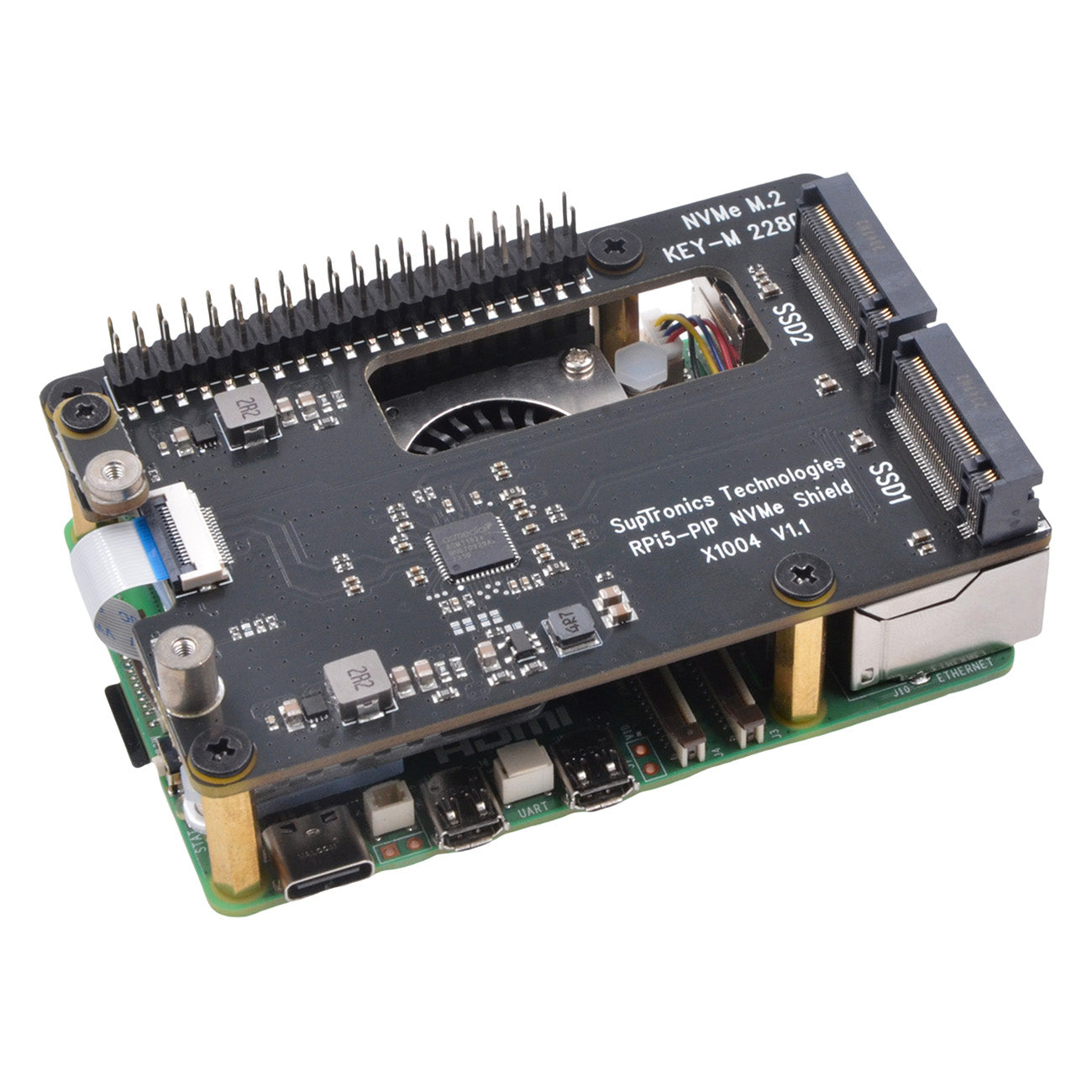

The X1004 is specifically designed to be placed on top of the Raspberry Pi 5, similar to a traditional HAT, and it provides a 40-pin header for easy access to the GPIO. With this NVMe shield, you can still use your favorite HATs alongside it. Additionally, it is fully compatible with the Raspberry Pi's official passive cooler, ensuring efficient heat dissipation. The inclusion of mounting holes and standoffs not only protects the solid-disk drives but also effectively dissipates heat for reliable performance. The built-in LED light indicates the status of reading or writing, eliminating any guesswork.

NOTE:

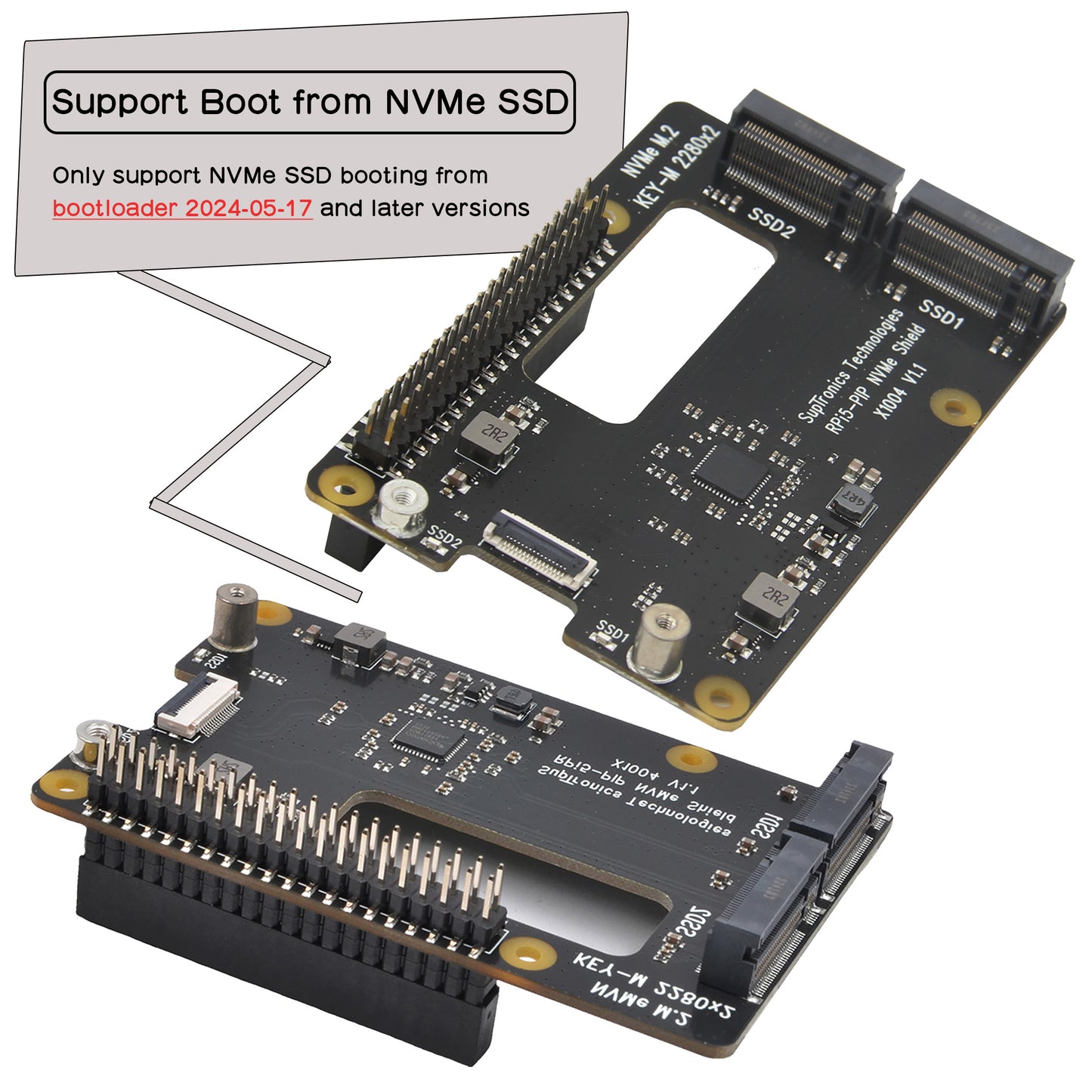

X1004 also supports hailo-8 ai accelerator and can also support booting from another SSD.
PS: Hailo-8 ai and ssd share the bandwidth of PCIe 2.0. Due to the limitation of ASMedia ASM1182e PCIe switch, X1004  DO NOT  support PCIe 3.0.

Important Notes

  • Compatible with M.2 NVMe SSDs only
  • Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
  • Older NVMe drives with less efficient flash media may not perform as well as newer drives
  • New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

User Manual: https://wiki.geekworm.com/X1004

Features

  • Compatible with Raspberry Pi 5 Only
  • Model: X1004
  • The perfect storage solution for your Raspberry Pi 5 - introducing the M.2 NVMe dual SSD Shield
  • Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives

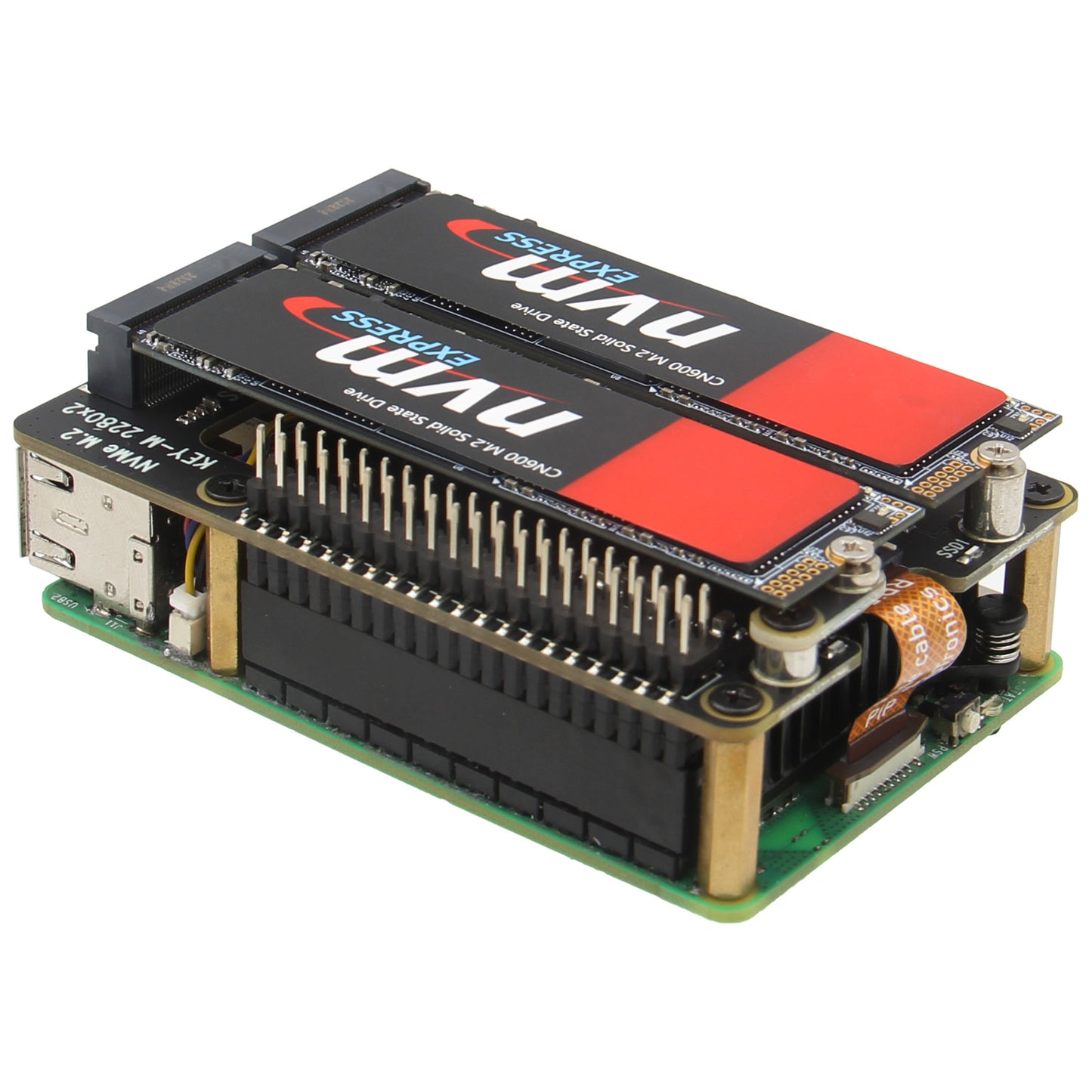

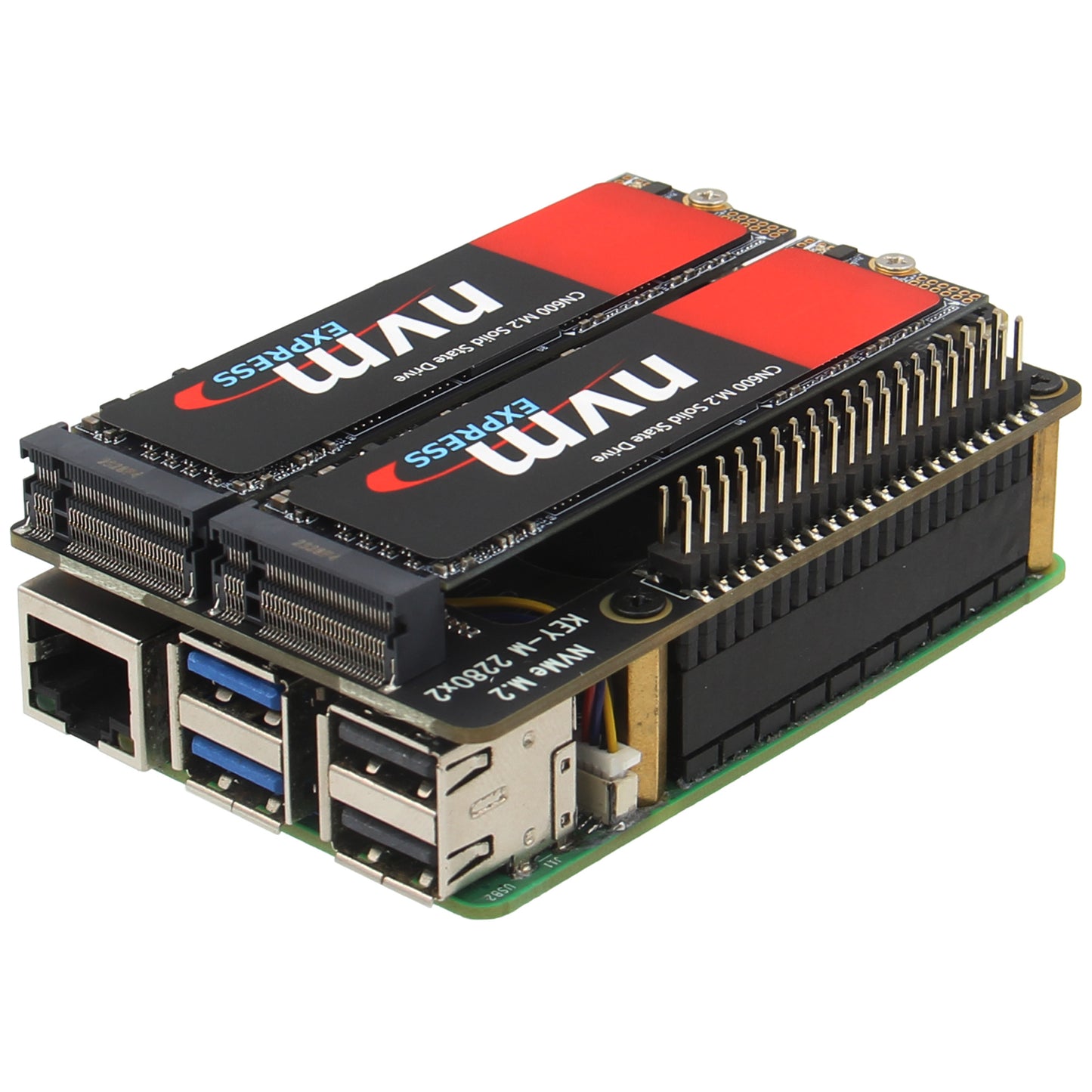

  • Accommodates two full-size 2280 NVMe SSDs
  • Provides speedy data transfer with PCIe 2.0 5Gbps
  • Fully compatible with the Raspberry Pi official active cooler

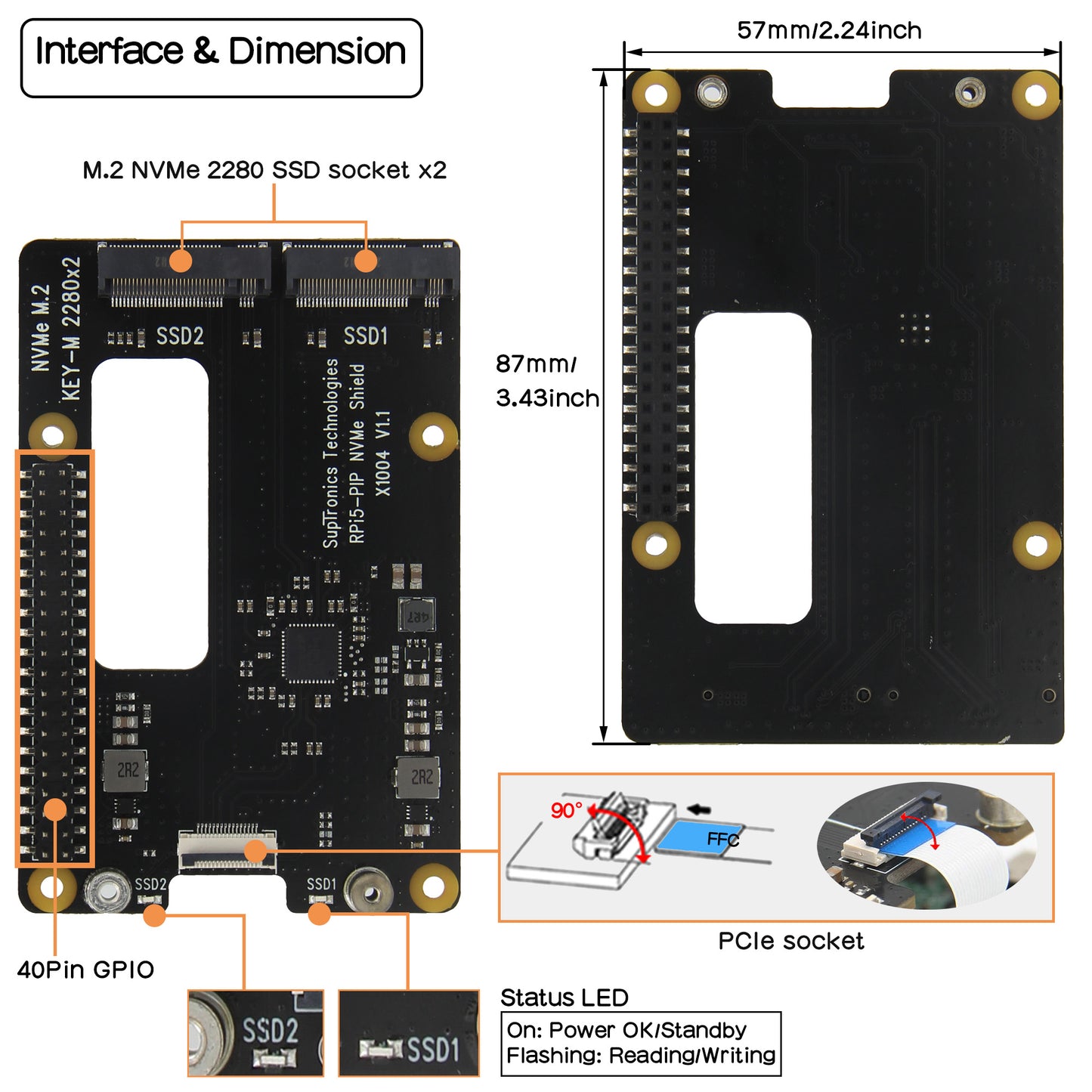

  • LED indicators in blue display power and drive status
  • Features an integrated high-performance PCIe packet switch
  • Equipped with two high-efficiency DC/DC step-down converters, delivering a maximum of 3.5A+3.5A to power your SSDs
  • Designed to be attached on top, allowing stacking with other HATs
  • Powered via the 40-pin GPIO header & PCIe FFC
  • Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.
  • Since X1004 is using ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to turn on PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch. speed is still PCIe Gen 2.0 speed.

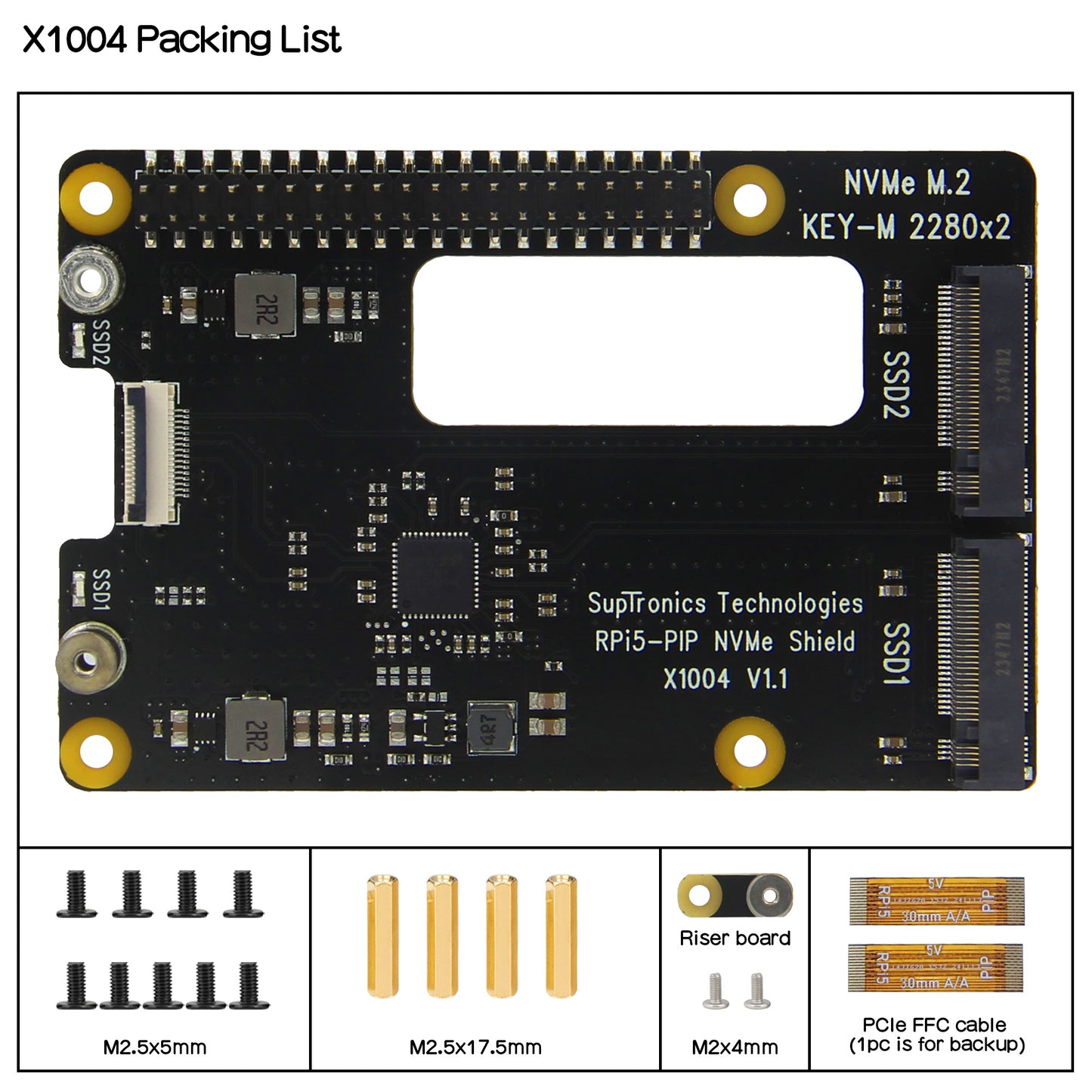

Packing List:

  • 1 x X1004 v1.1 Shield
  • 1 x Scews Pack

Refer to: https://wiki.geekworm.com/X1004

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.

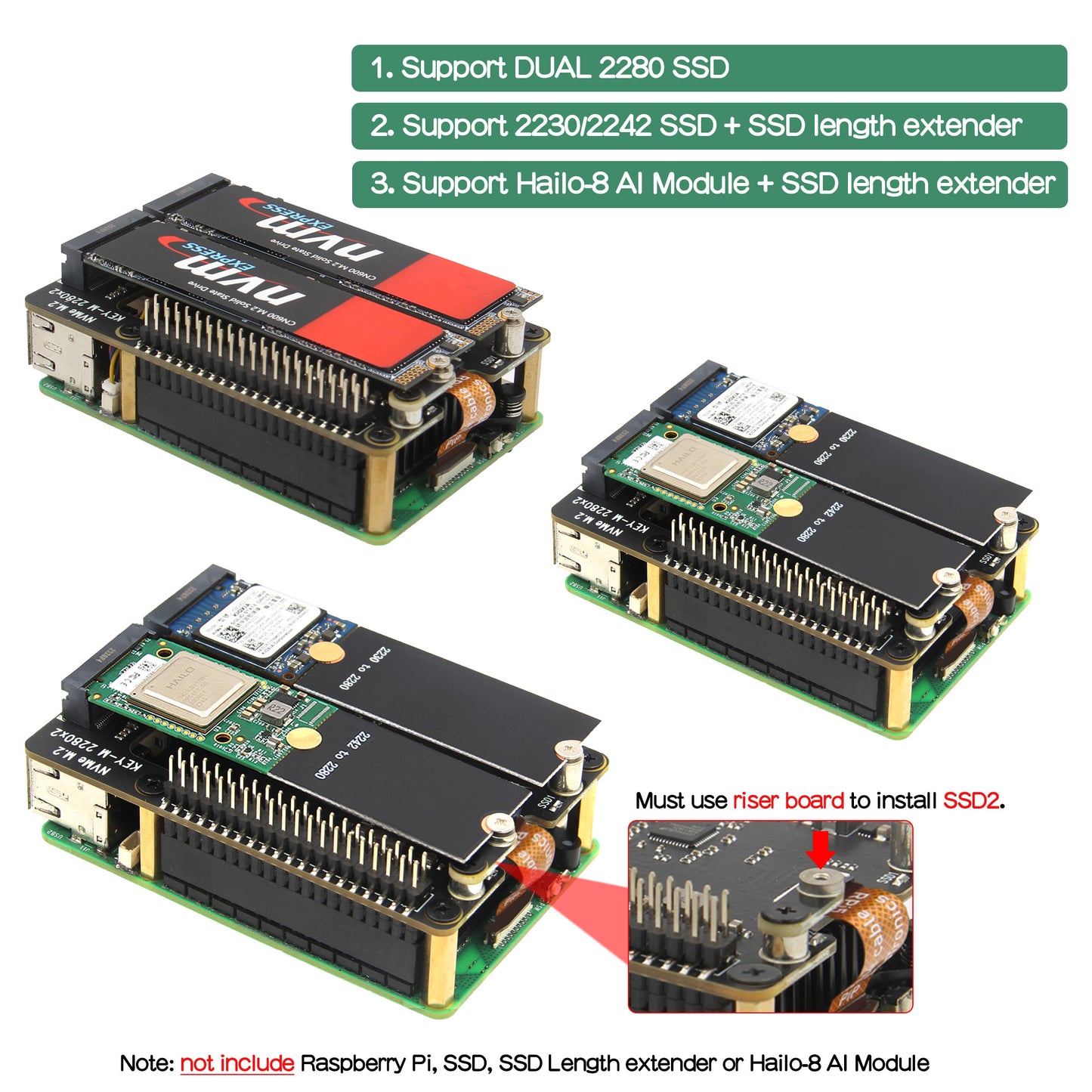

  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
Model Features Mounting Position SSD Size Matching Case Matching Cooler Support Hailo-8 AI Accelerator
X1000
  • PCIe to NVMe M.2 SSD shield
  • Supports M.2 2230/2242 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
X1001
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1002
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Attaches to the RPi5 bottom
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
Not tested
X1003
  • PCIe to NVMe M.2 SSD shield
  • Install inside Raspberry Pi case
  • Compatible with RPi active cooler
  • Supports M.2 2230/2242 SSD
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
X1004
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
  • Support HAT standby power state
Top
  • 2280
Yes
X1015
  • PCIe to NVMe M.2 SSD shield
  • Same features as official M.2 HAT+
  • Same schematic & key component
  • Supports full-size M.2 2280 SSD
  • Supports up to 4TB NVMe SSD
  • Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1005
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
  • Attaches to the RPi5 bottom
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
Yes
X1011
  • PCIe to NVMe 1-4 M.2 SSD shield
  • Supports 4 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 4TB NVMe SSD
  • High-performance packet switch
Bottom
  • 2230
  • 2242
  • 2260
  • 2280
No Support
M901
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2260
  • 2280
Yes
Q100
  • PCIe to NVMe M.2 SSD shield
  • with 1.3 inch TFT to display
  • Supports M.2 2242 SSD
  • Supports super-fast boot
Top
  • 2242
Not tested
Q200
  • PCIe to NVMe dual M.2 SSD shield
  • Supports 2 full-size M.2 2280 SSD
  • Supports PCIe 2.0 up to 5Gbps
  • High-performance packet switch
Top
  • 2280
Not tested
M300
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
Not tested
M400
  • PCIe to NVMe M.2 SSD shield
  • Supports full-size M.2 2280 SSD
  • Supports PCIe 2.0 & PCIe 3.0
  • Transfer speeds up to 5~8Gbps
  • Supports super-fast boot
Top
  • 2230
  • 2242
  • 2280
Not tested
