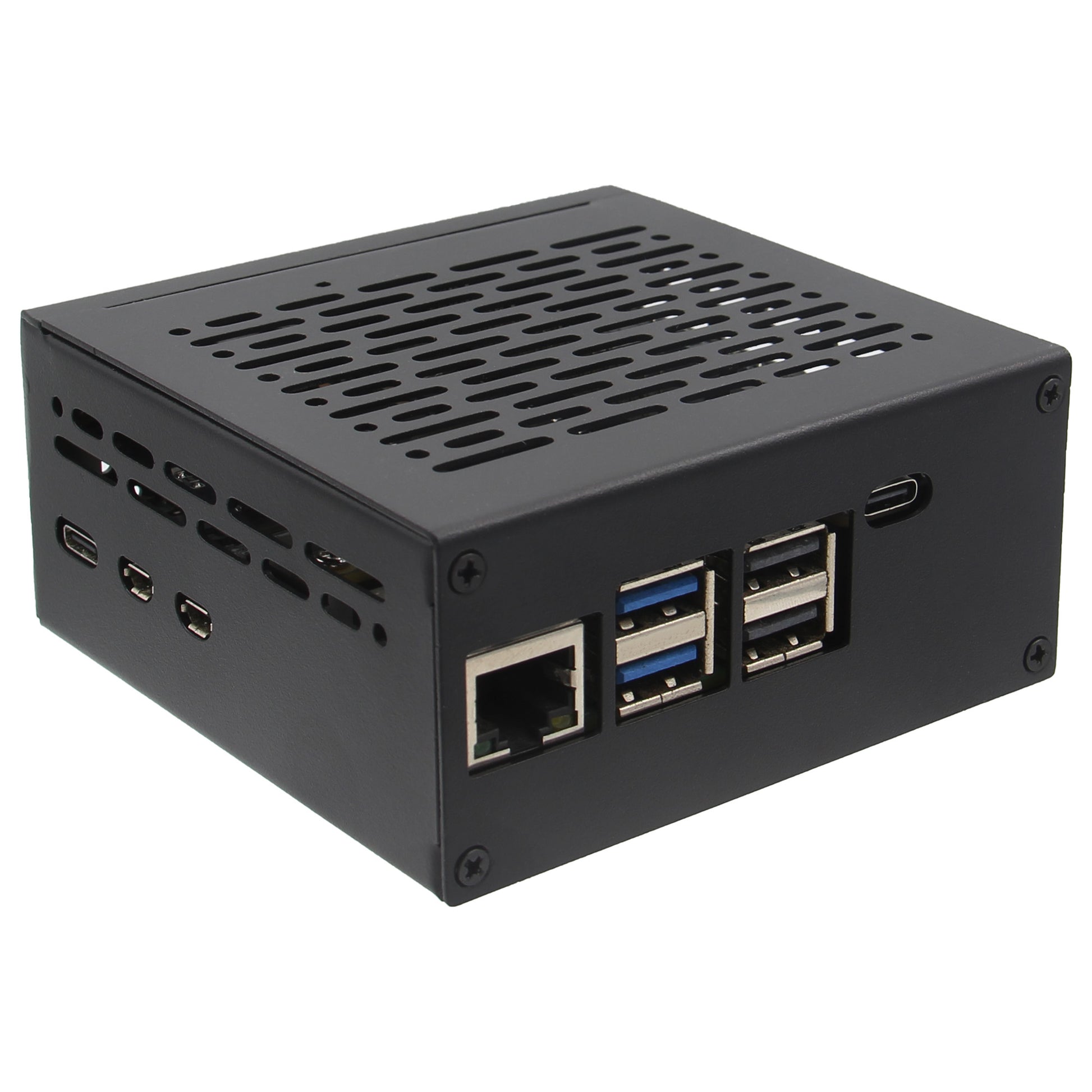

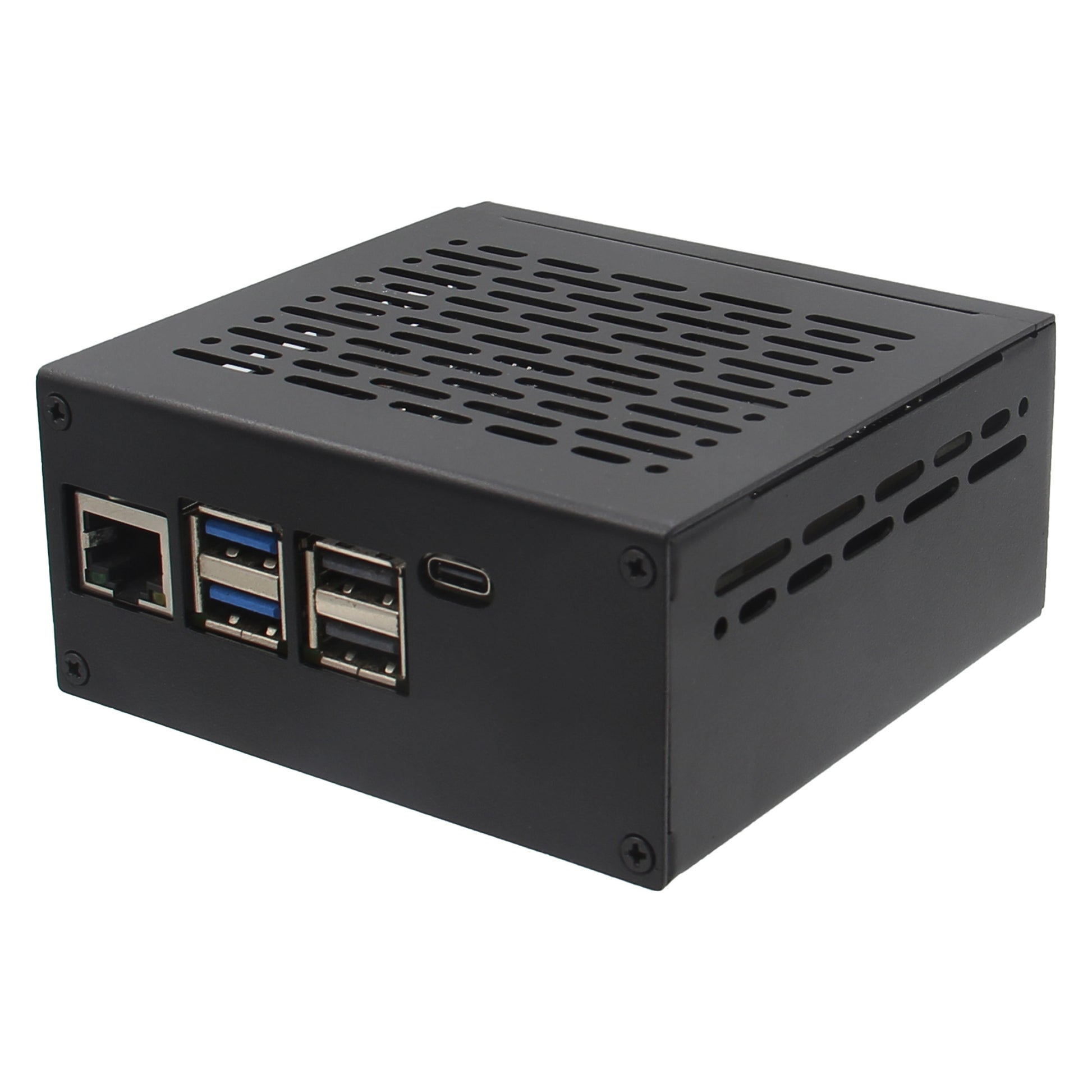

Geekworm X1207-C1 Metal Case for Raspberry Pi 5 and X1207/ X1208 UPS Shield

Note:

1. The Raspberry Pi 5, X1207/X1208, battery, TF Card or Power Adapter is not included in the packing list.
2. Not support H505/H509 due to height limitation.

Overview

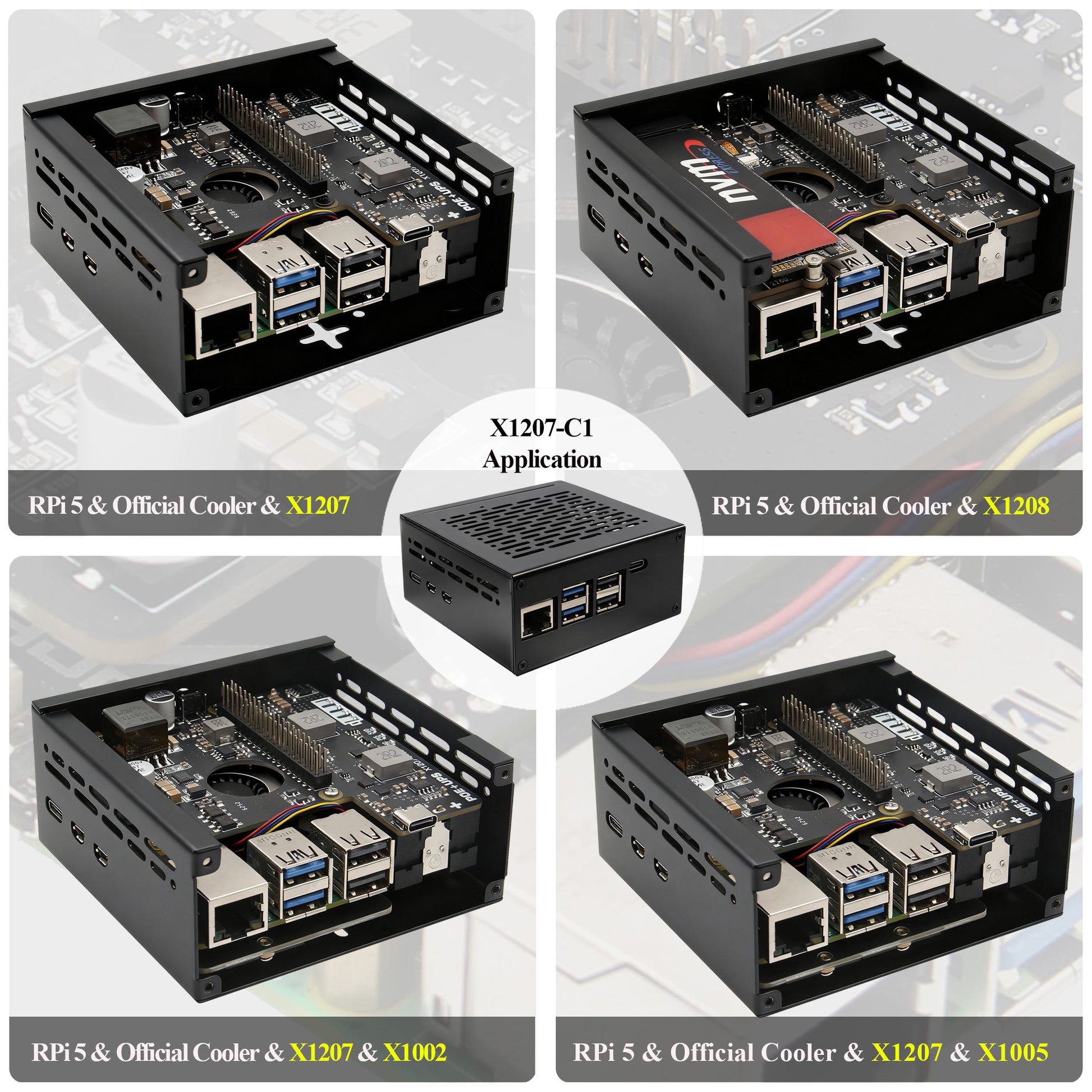

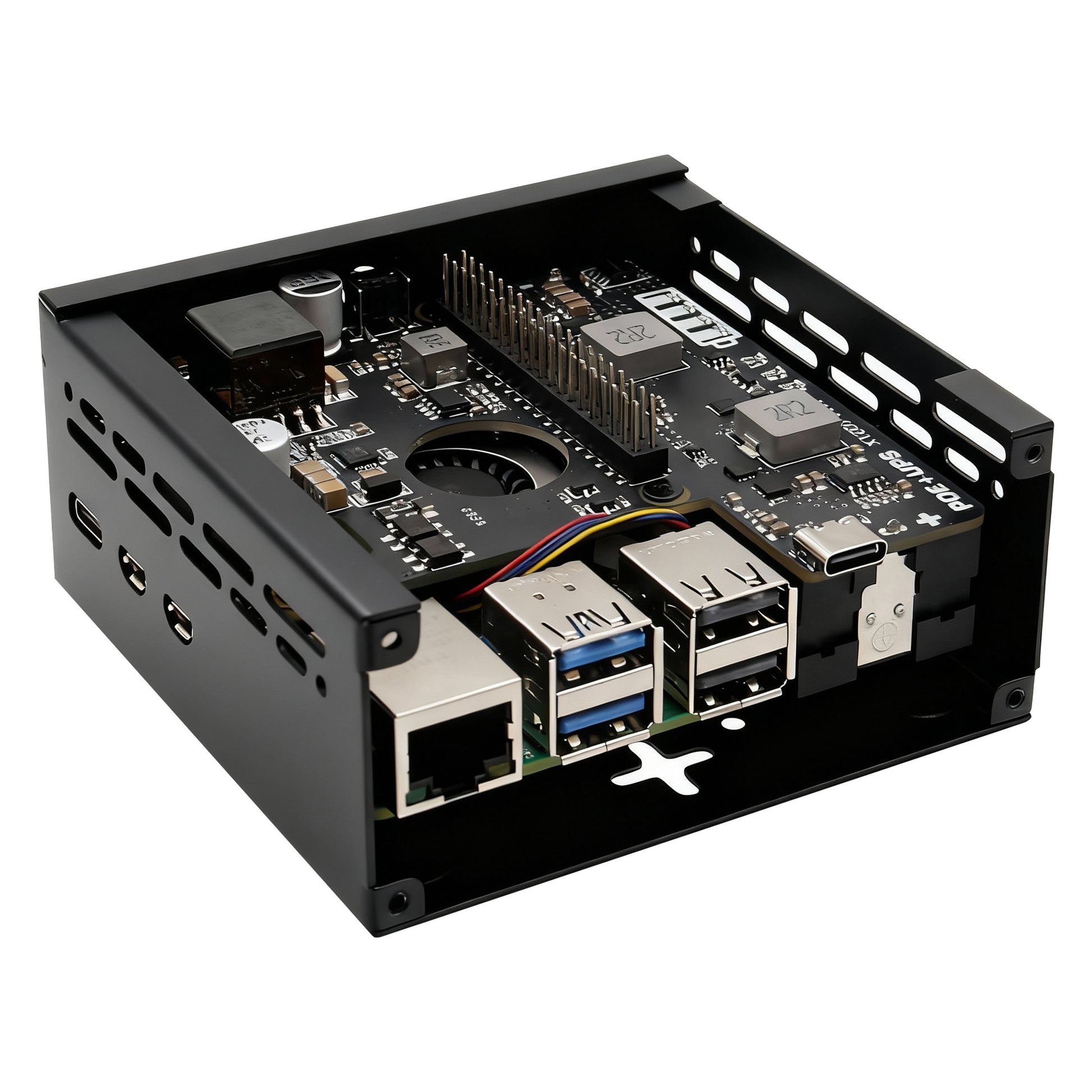

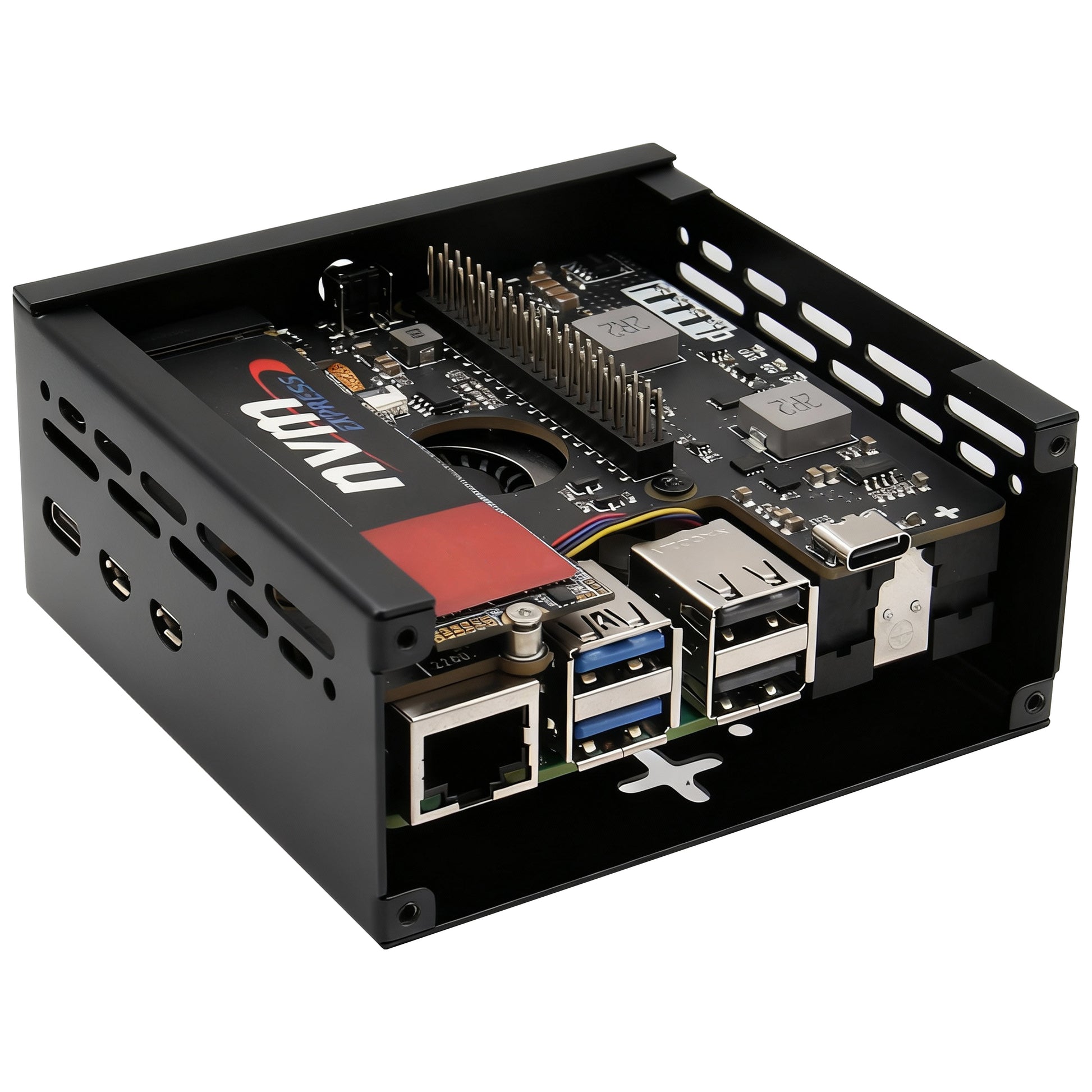

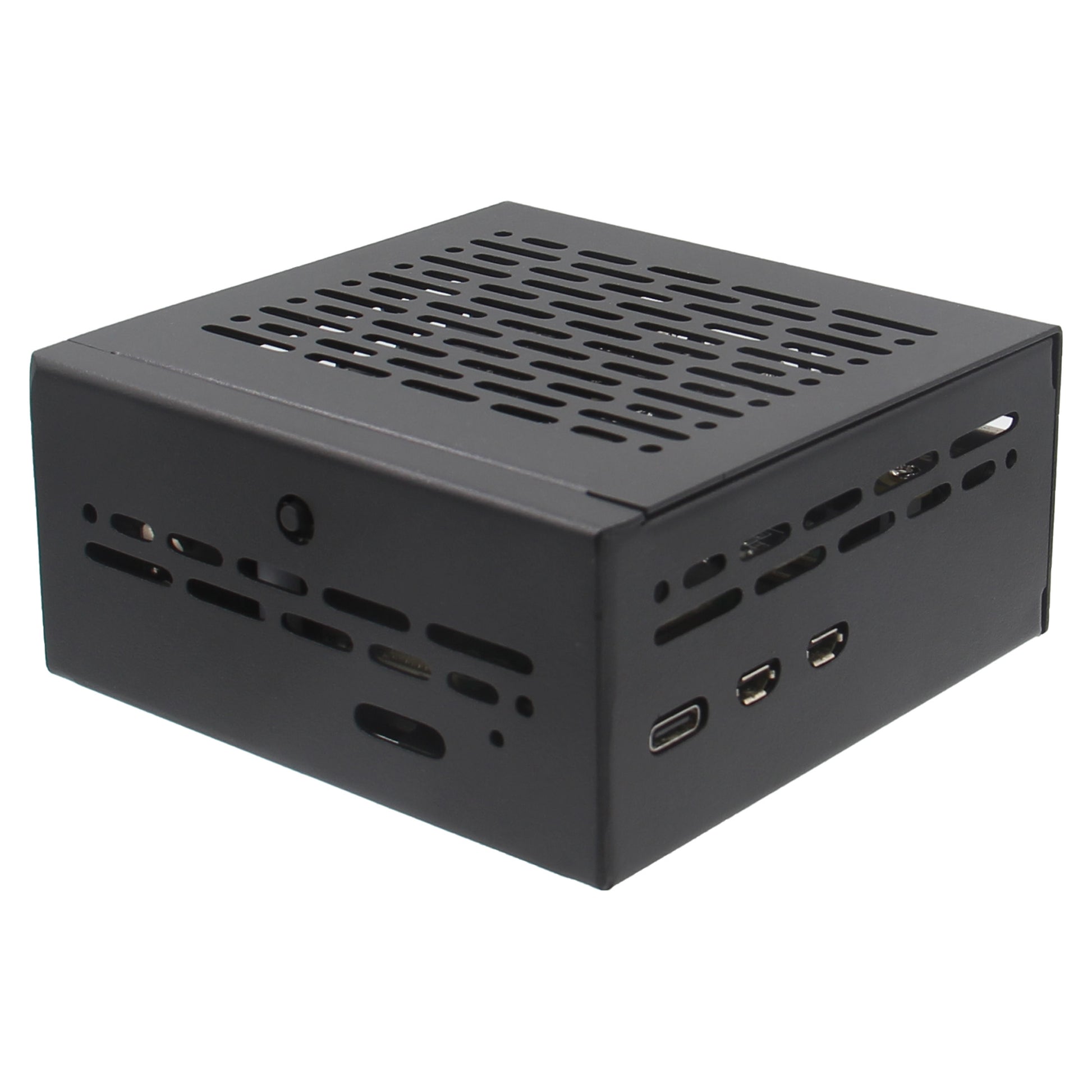

This X1207-C1 case is specifically designed for the Raspberry Pi 5 and X1207/X1208, It supports installations of Raspberry Pi 5 + X1207 or Raspberry Pi 5 + X1208.

It also supports installing the X1002/X1005 expansion boards on the bottom of the Raspberry Pi 5 when use with X1207. However, when installing the X1005, the battery holder of the X1207may interfere with the X1005, so some modifications to the battery holder will be required. If you use with the X1002/X1005, the installation steps will be complicated!

The X1208 does not support X1002/X1005 installation!!!

Since the X1207/X1208 does not support the H505/H509 due to height limitations, the X1207-C1 also does not support the H505/H509 coolers.

Features

• Model: X1207-C1

• Compatible with Raspberry Pi 5 and X1207/X1208 UPS Shield

• Not support H505/H509 cooler (Reconmend use official Raspberry Pi active cooler)

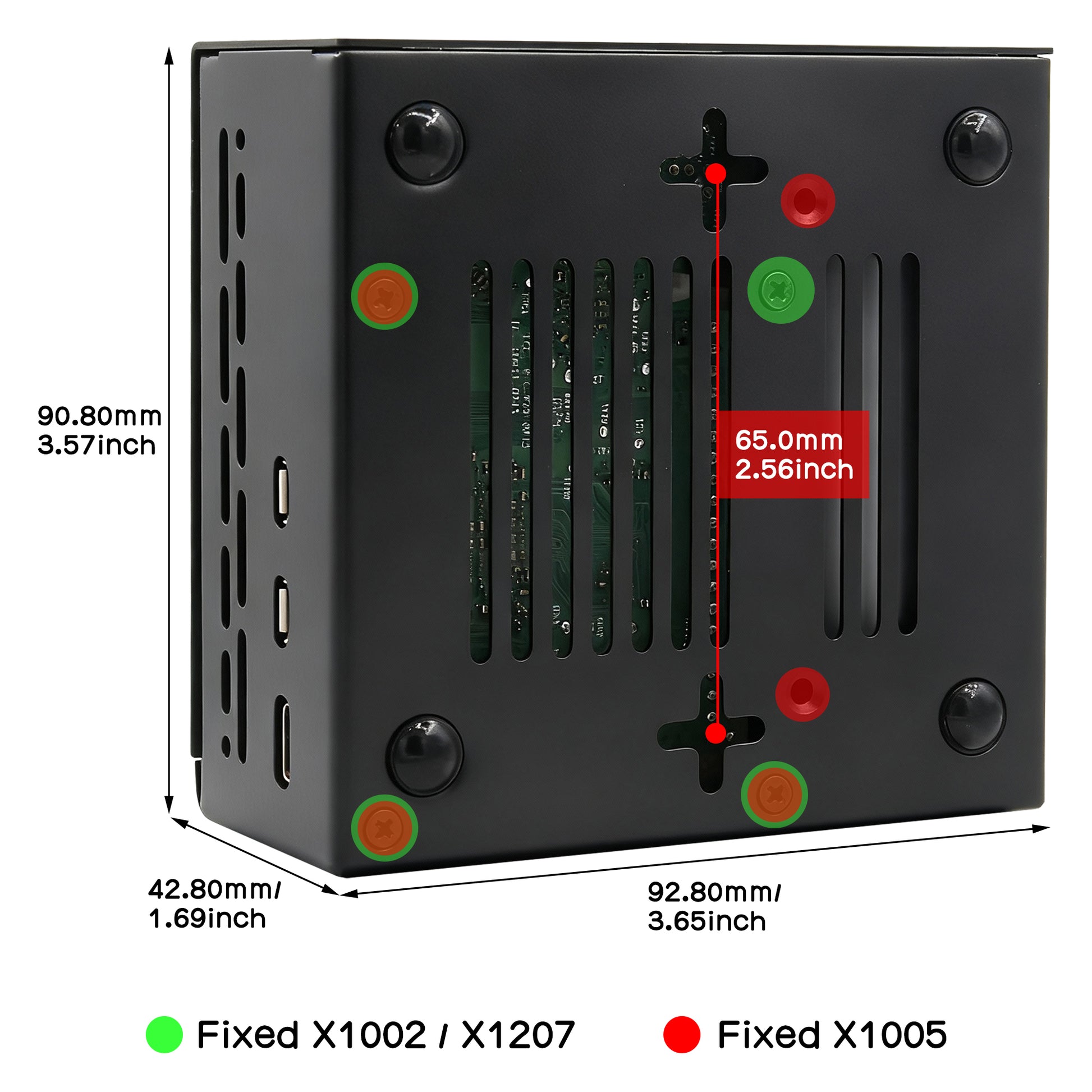

• Case Dimensions: 92.8 x 90.8 x 42.8 mm

• Net Weight: 170 g

• Durable Build: Made from high-quality metal for long-lasting protection

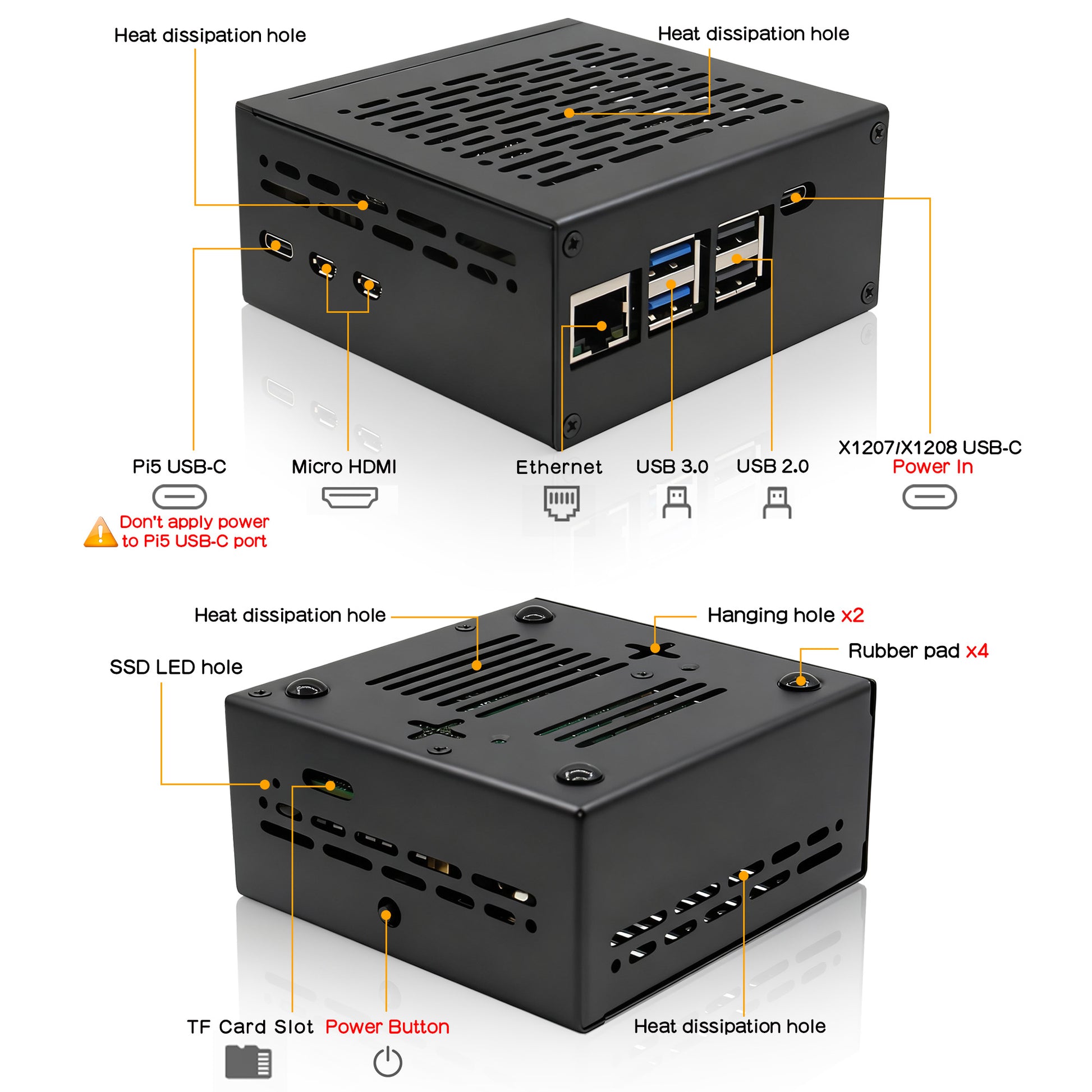

• Precise Accessibility: All ports and interfaces are accurately cut out for effortless access

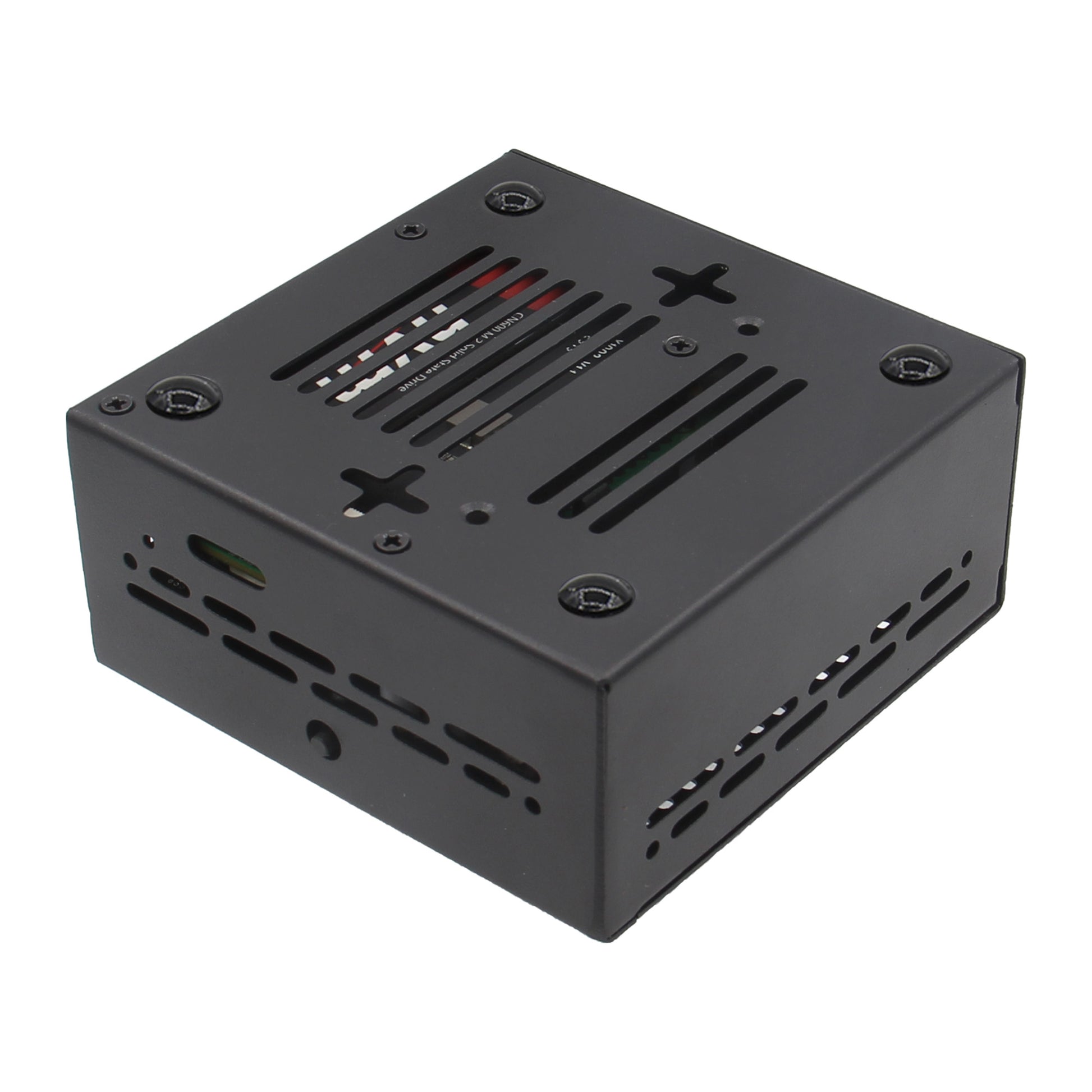

• Wall-Mountable: Easy wall-mount installation to save space and enhance usability

• Wifi Signal Impact: Metal enclosures naturally cause signal attenuation and may reduce overall wifi performance

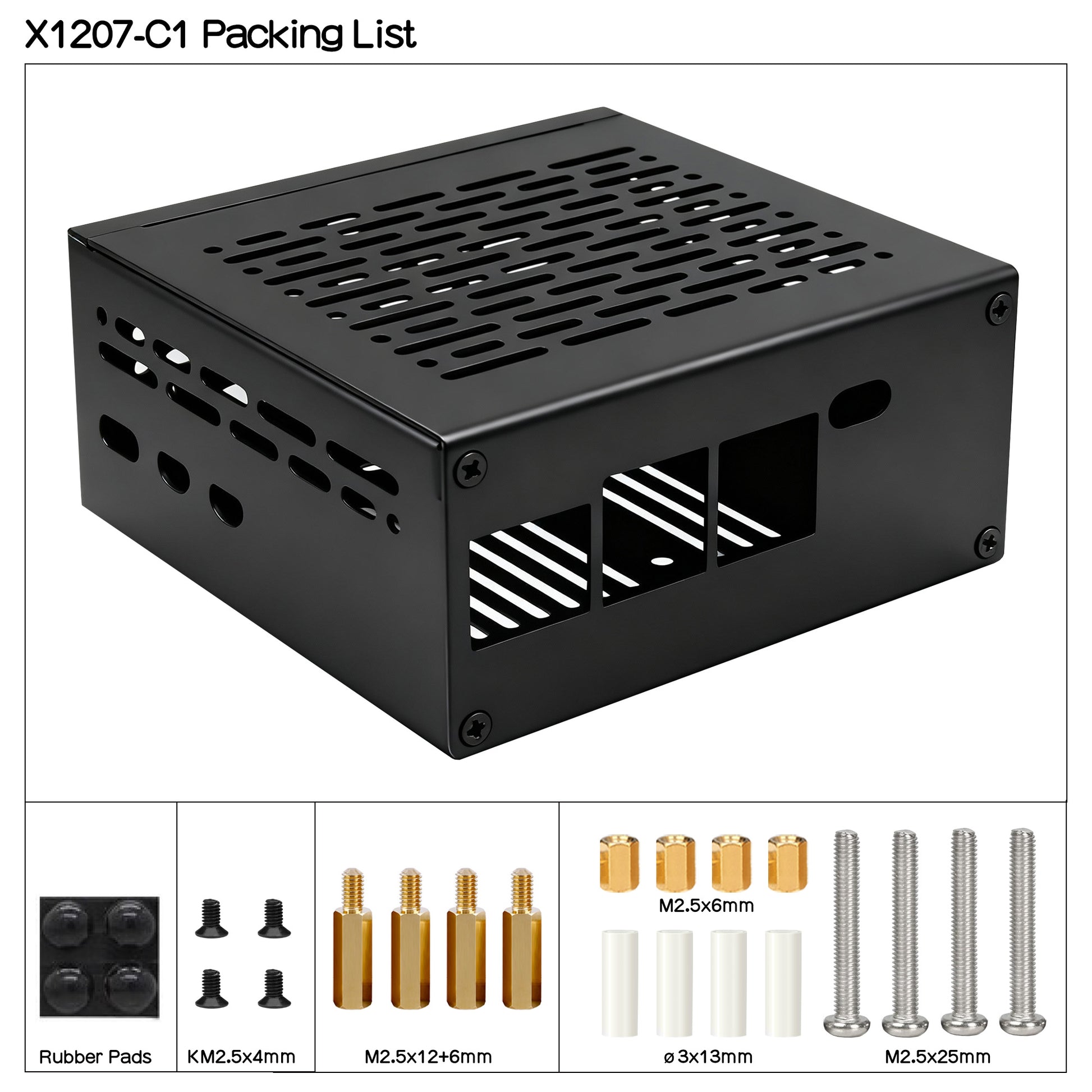

Packing List:

• 1 x X1207-C1 Metal Case
• 1 x Screw pack
