Geekworm X-FAN40 PWM Controlled Fan HAT for Raspberry Pi 5 and X1004/X1001-Max

Regular price: $15.00
Regular price
Sale price: $15.00
Unit price: per

Only 30 items in stock! Out of stock!

Product variants

Quantity

Description
Manual
RPi 5 Cooler
Shipping Policy
Reviews

Note: The Raspberry Pi 5 board, X1001-Max, X1004, or cooler is not included in the packing list.

Overview

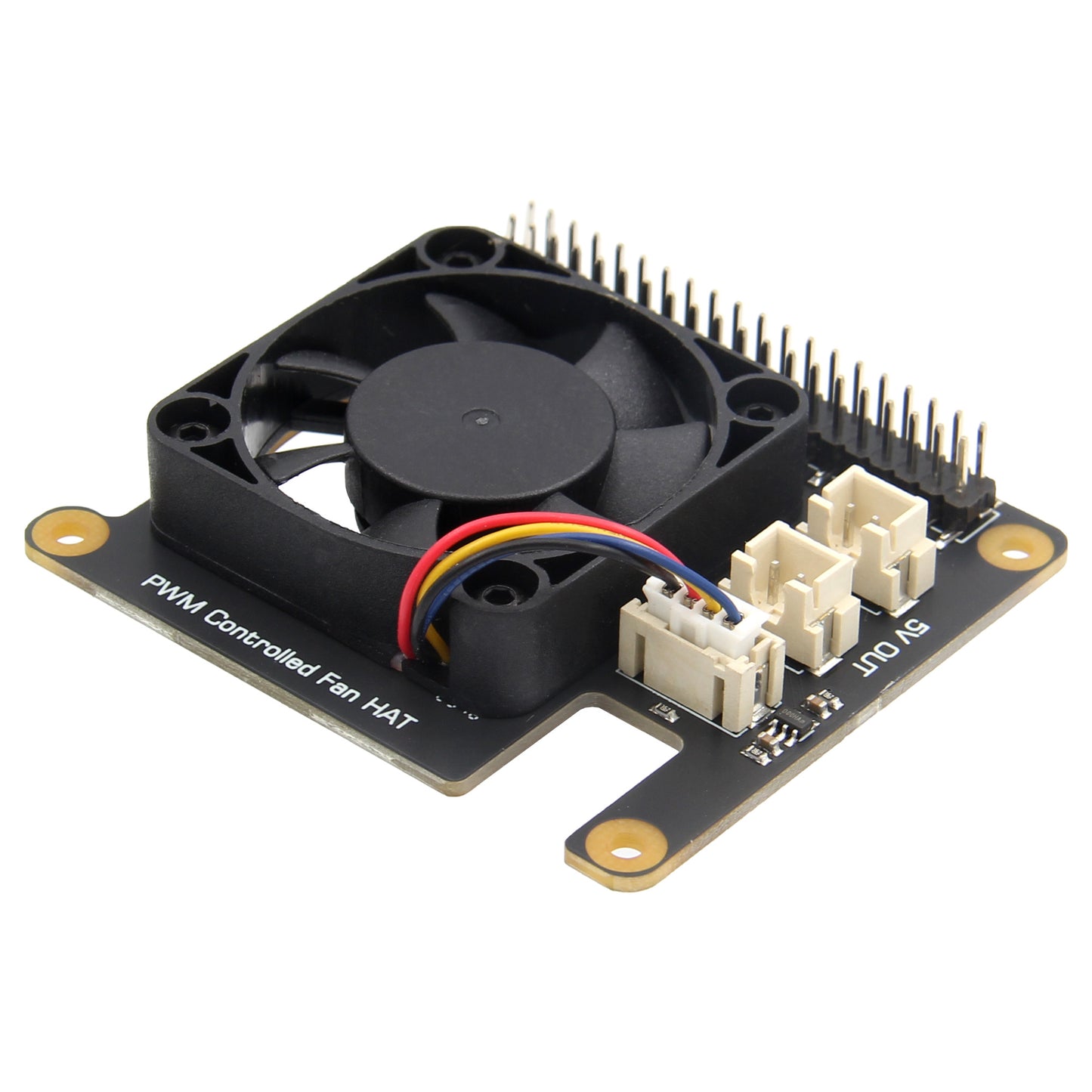

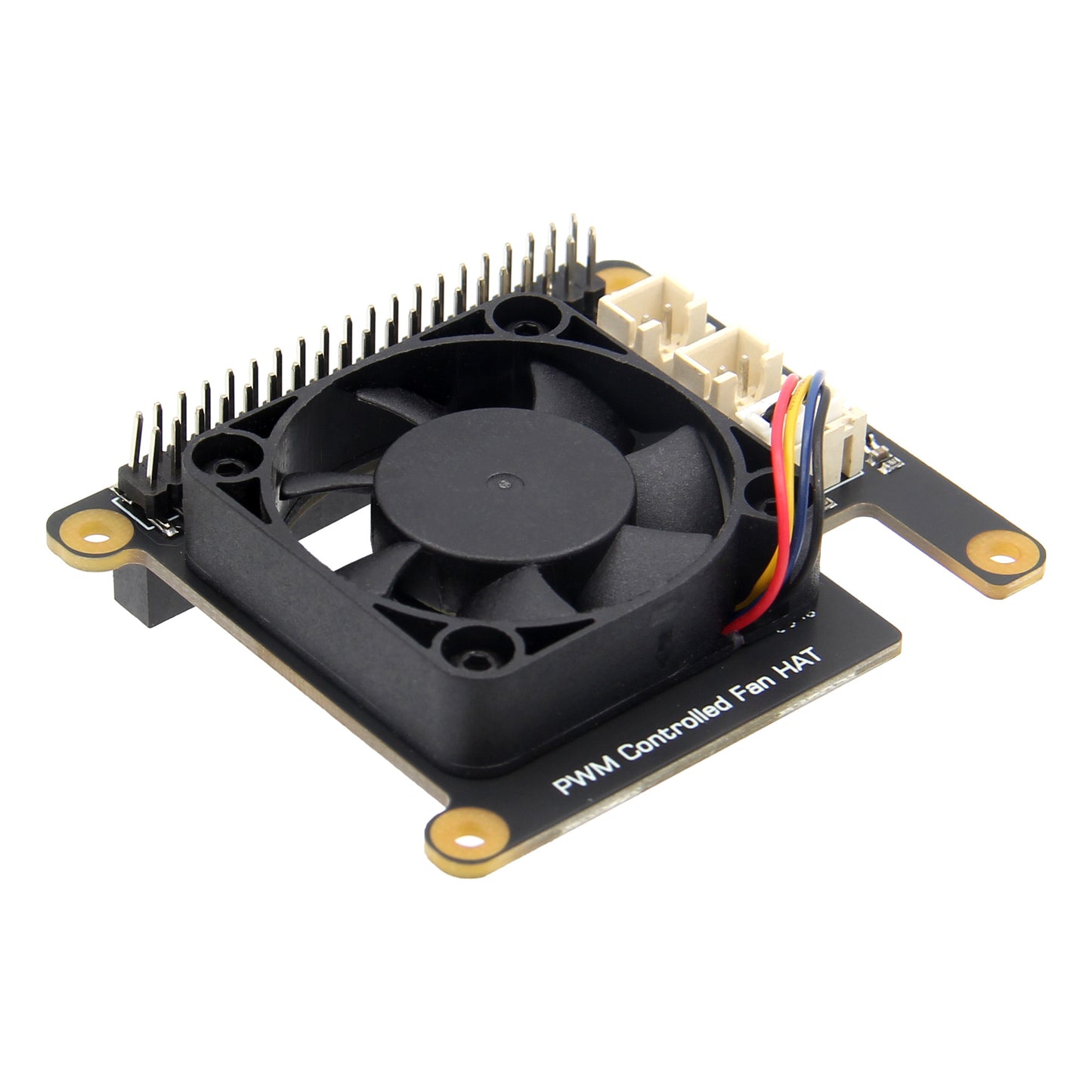

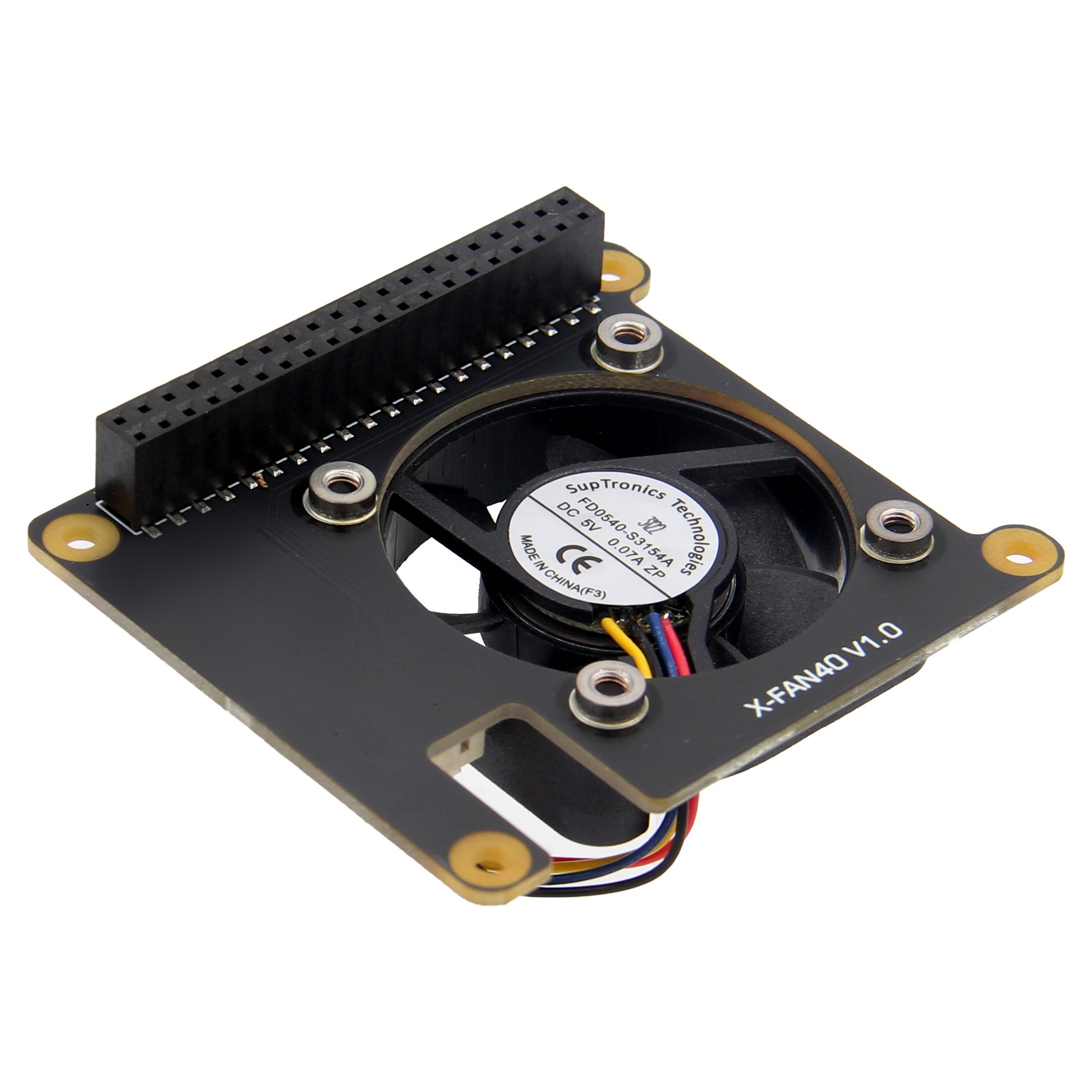

The X-FAN40 is a PWM fan HAT designed for active cooling of M.2 devices or dual cooling on the Raspberry Pi 5. It integrates seamlessly with the X1001-Max, X1004, and similar NVMe expansion boards while remaining compatible with standard Pi cooling solutions.

Its 40mm PWM fan delivers up to 6.01 CFM - over five times the airflow of the official Pi active cooler - providing reliable thermal management for sustained high-load operations. It is the ideal cooling solution for power-intensive devices like AI accelerator cards and high-performance SSDs.

Features

Dual-Cooling Versatility: Dedicated cooling for M.2 HAT devices or supplemental cooling for Raspberry Pi 5
Seamless Compatibility: Designed to fit perfectly with Raspberry Pi 5/X1001-Max/X1004 M.2 NVMe HAT
High-Performance Airflow: 40mm PWM fan delivers 6.01 CFM – over 5x the airflow of the official Pi active cooler.
Sustained Performance: Maintains stable temperatures under continuous high load.
Built for Demanding Workloads: Ideal cooling solution for power-intensive applications, including AI accelerator cards and high-performance SSDs.
Stackable Top-Mount Form: Mounts on top of the M.2 HAT or Pi 5, allowing seamless stacking with other HATs.
XH2.54 Power Output - Equipped with 5V power output connectors for expanded functionality.

Specifications
Operating voltage	5V DC (4.5 – 5.5V) supplied via 4-pin fan header on a carrier board
Start voltage	≥ 3.5V
Power consumption	0.35W
Rated current	0.07A ± 0.02A
Fan speed control	Pulse width modulation control with tachometer
Maximum fan speed	5000 RPM ± 10%
Rated current	0.07A ± 0.02A
Fan speed control	6.01 CFM
Noise	24.3 dBA
PCB dimensions	65×57mm

Packing List

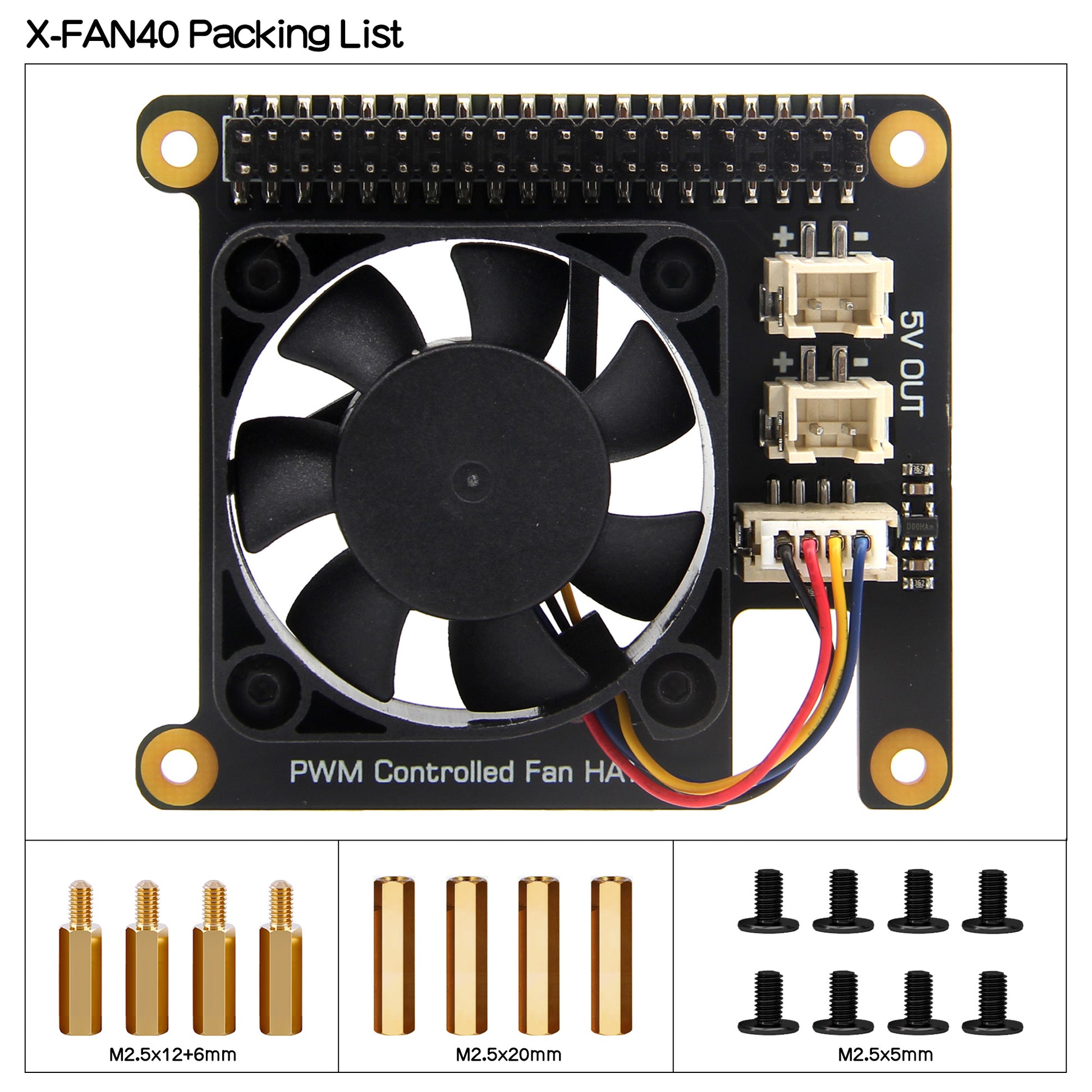

1 x X-FAN40 V1.0 PWM Controlled Fan HAT
4 x M2.5x12+6mm M/F Spacers
4 x M2.5x20mm F/F Spacers
8 x M2.5x5mm Screws

Refer to: https://wiki.geekworm.com/X-FAN40

Please email to us at info@geekworm.com if you have other questions.

Raspberry Pi 5 Cooling Solutions: Choosing the Right Match
The Raspberry Pi 5 delivers a significant leap in performance, but with that power comes increased heat. To prevent thermal throttling and ensure your board maintains peak clock speeds during intensive tasks, a reliable cooling solution is no longer optional—it's essential.

The market offers a diverse range of options tailored to different use cases, from the Official Active Cooler to premium third-party designs. When choosing, it is important to consider:

Material: Lightweight Aluminum Alloy for standard use or high-density Brass for superior heat soaking.

Cooling Type: Active (with PWM blower fans) for high-load stability or Passive (finned heatsinks) for silent operation.

Form Factor: Varying heights and weights to fit within specific enclosures or HAT configurations.

The following table compares the physical specifications, materials, and fan configurations of the most popular cooling solutions to help you find the perfect fit for your project.

Geekworm Cooler

Picture	Model	Compatible With	Material	Thickness(mm)	Net Weight(gram)	Support Fan	Application Limitations
	H500	Raspberry Pi 5	Aluminum Alloy	9.2mm(Max 10mm)	24g	with 4-pin 3007 blower fan
	H505	Raspberry Pi 5	Aluminum Alloy	11.6mm	39g	with 4-pin 3007 blower fan	not support X1207/X1208/X1209
	H510	Raspberry Pi 5	Brass	9.5mm(Max 11mm)	55g	with 4-pin 3007 blower fan
	H509	Raspberry Pi 5	Aluminum Alloy	15mm	44g	passsive cooling, not support fan	not support X1207/X1208/X1209
	Argon THRML 30-AC	Raspberry Pi 5	Aluminum Alloy	9.6mm	29g	with 4-pin 3007 blower fan
	H501	Raspberry Pi 5	Aluminum Alloy	9.5mm	21g	with 4-pin 3007 blower fan
	H502	Raspberry Pi 5	Brass	4mm (Max 7mm)	63g	support 30x30mm fan installation
