Geekworm X1209 5.1V 6A UPS HAT for Raspberry Pi 5/4B/3B/3B+

$43.00
$43.00
Only 10 items in stock! Out of stock!
  • Description
  • Manual
  • RPi5 UPS Hats
  • Shipping Policy
  • Reviews

Note:

  1. The Raspberry Pi 5, battery, and power adapter are not included in the packing list.
  2. DON'T apply power to your Raspberry Pi 5 via the Type-C USB socket.
  3. The H505, H509 cooler does not support X1207/X1208/X1209 due to the height limitation.

Overview

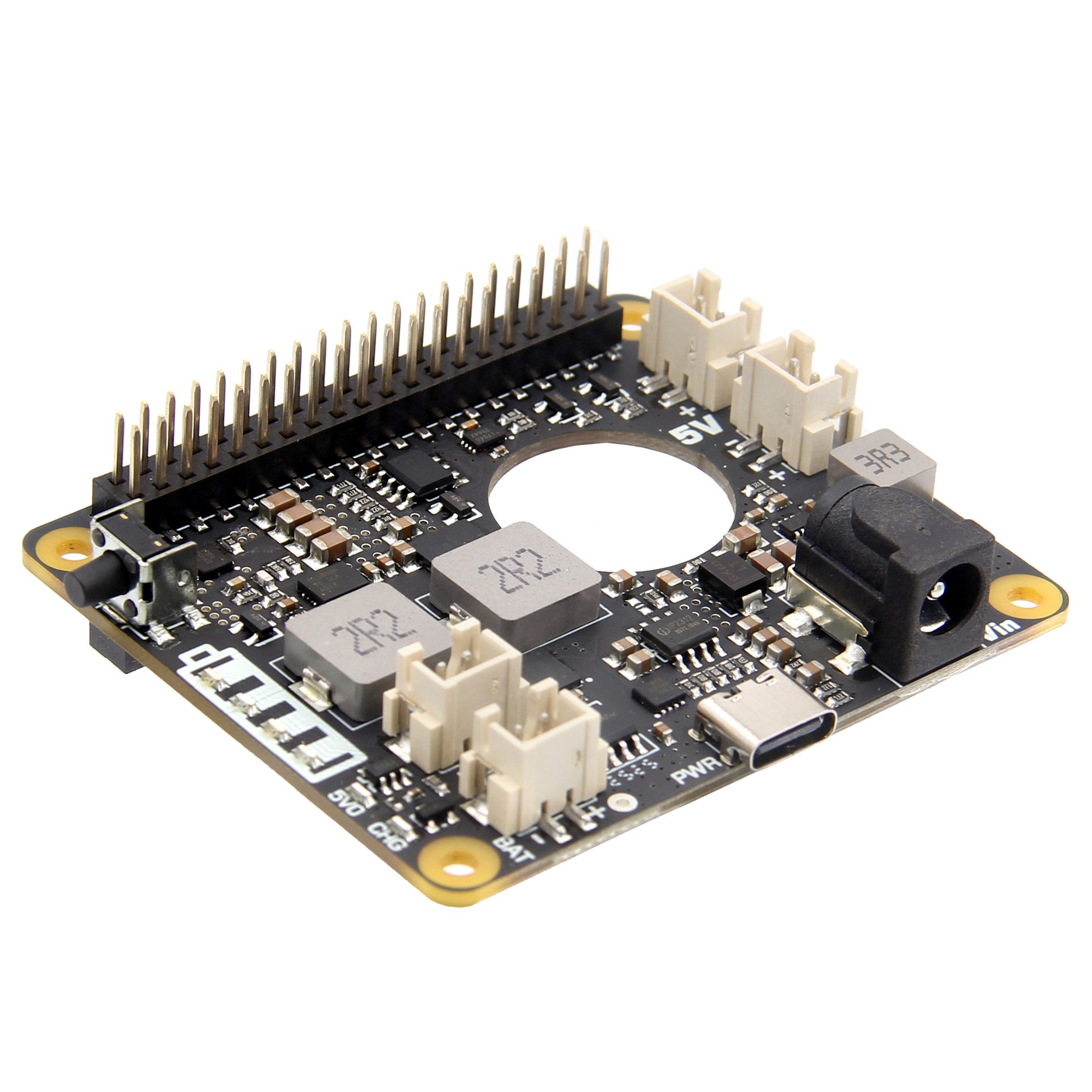

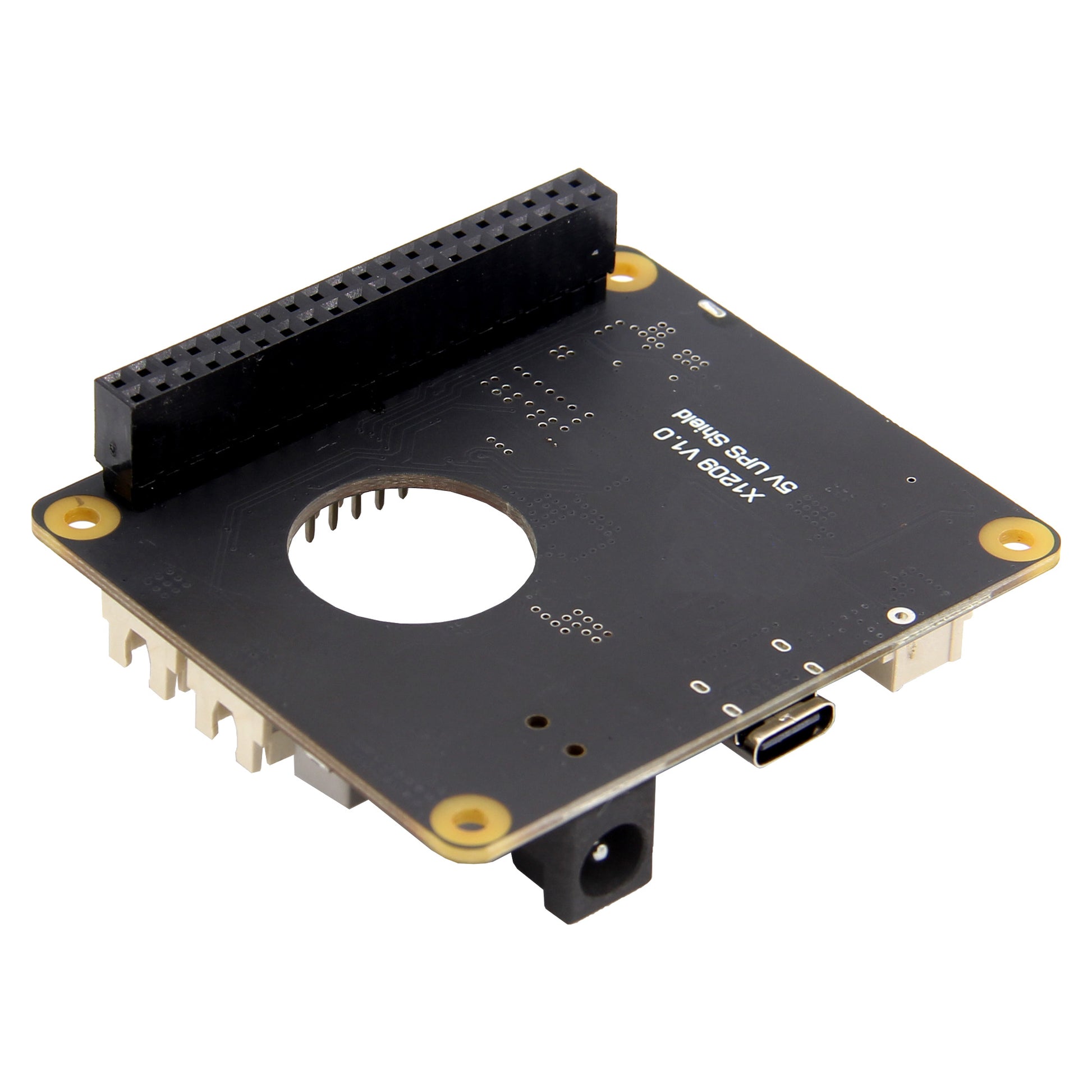

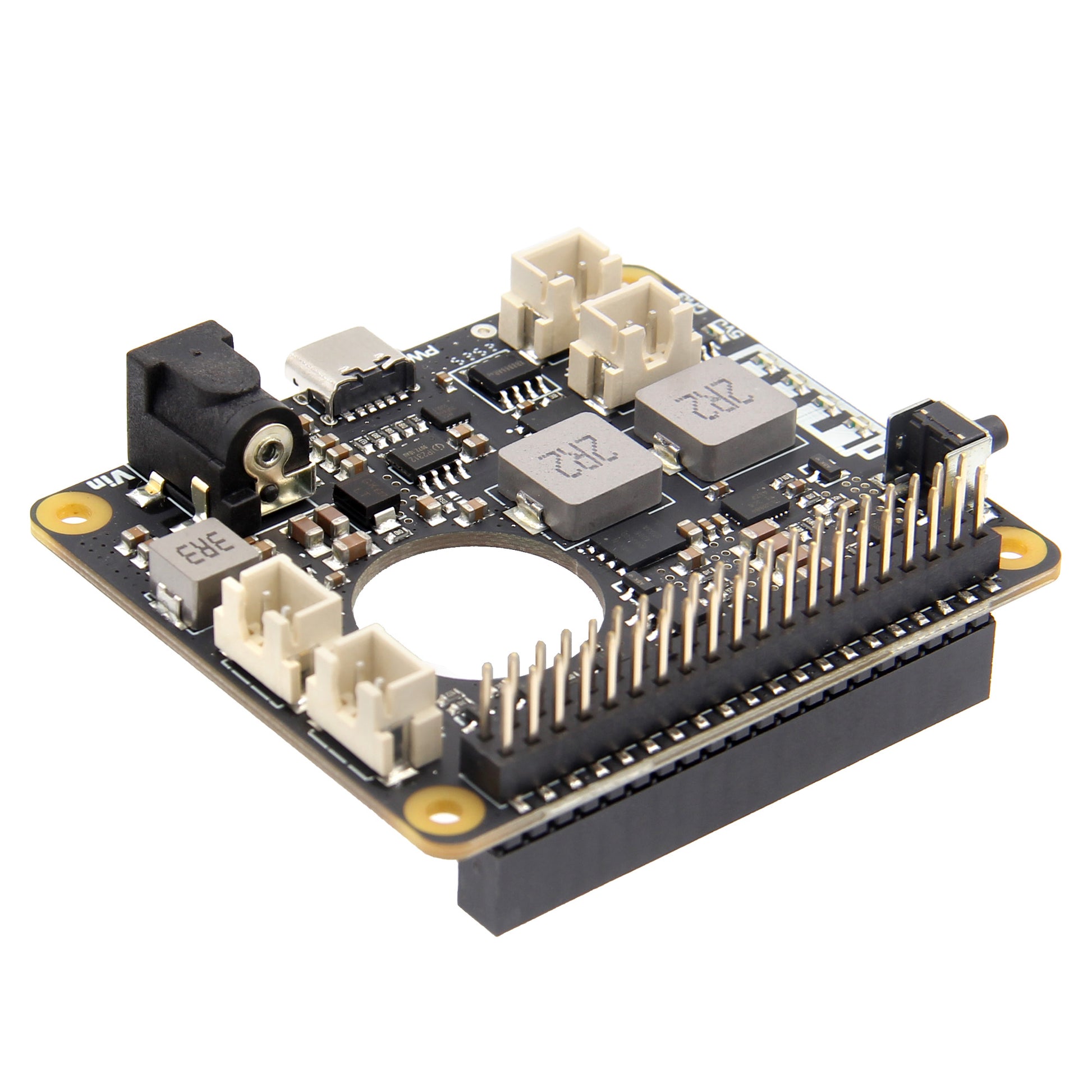

The Geekworm X1209 UPS HAT provides the Raspberry Pi 5/41/3B+/3B with a stable 5.1V/6A backup power supply to keep your system running without interruption. Designed for high-performance projects, it supports intensive workloads and multiple peripherals.

Its smart power management system enables seamless power switching, auto power-on, and AC power loss detection, while automatically cutting power after shutdown to extend battery life. The X1209 also supports fast charging up to 2100mA, ensuring quick battery recovery and reliable operation.

With its robust design and intelligent control, the X1209 ensures continuous power, data protection, and enhanced system reliability for Raspberry Pi users.

Function of the Pogo Pin(only for Raspberry Pi 5)
The pogo pin must be installed to enable the same power button function as on the Raspberry Pi 5. Without the pogo pin, the X1209 power button can still be used to power on the system and force a shutdown by pressing it three times.

Features

For use with

Raspberry Pi 5 / Raspberry Pi 4 Model B / Raspberry Pi 3B/3B+
Key Features

UPS Output

  • Designed for continuous long-duration operation (duration depends on battery type and applications)
  • Supports a maximum current output of 5.1V 6000mA, suitable for most Raspberry Pi applications
  • Integrated Advanced Power MOSFET with an equivalent of 7mΩ RDS(ON) to minimize power loss

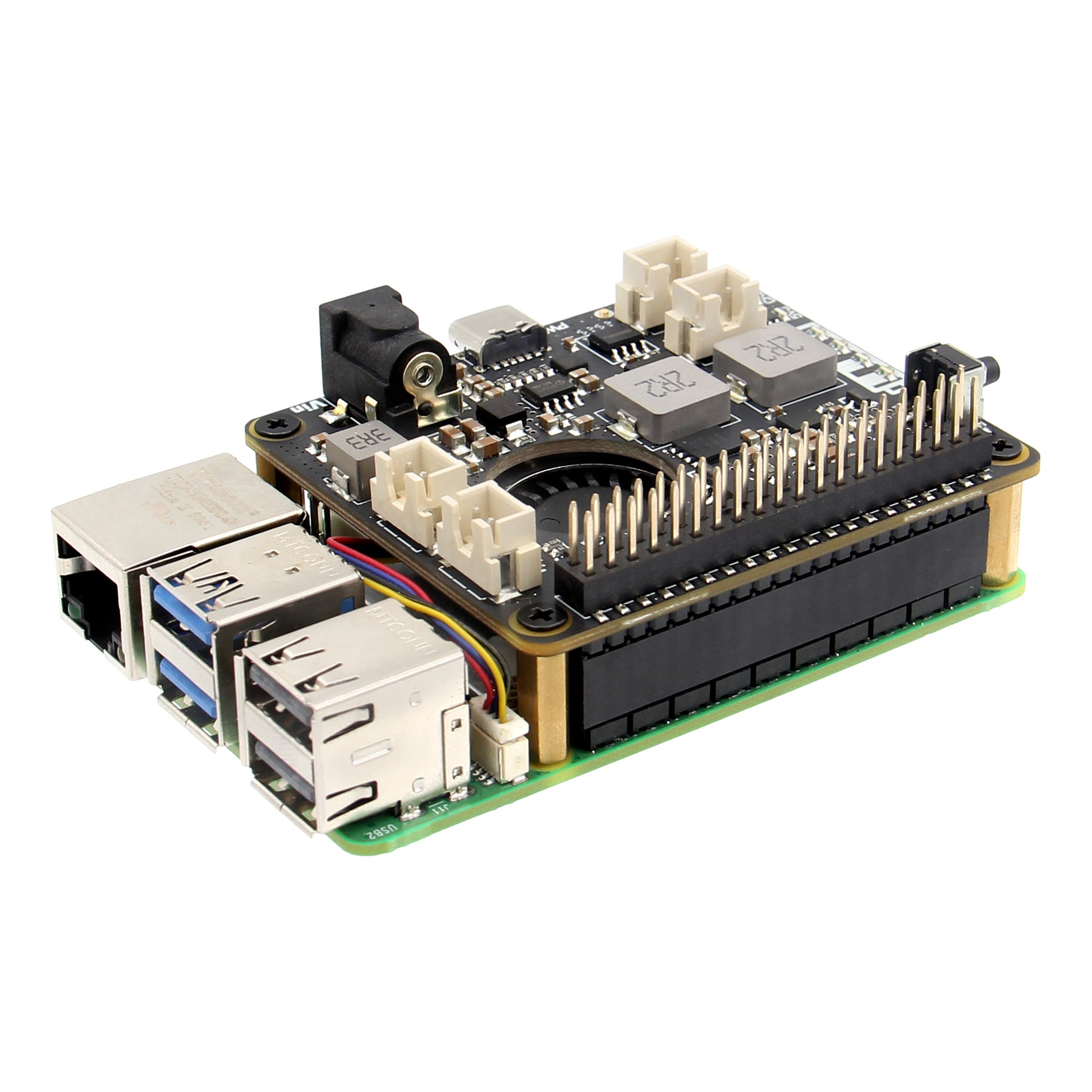

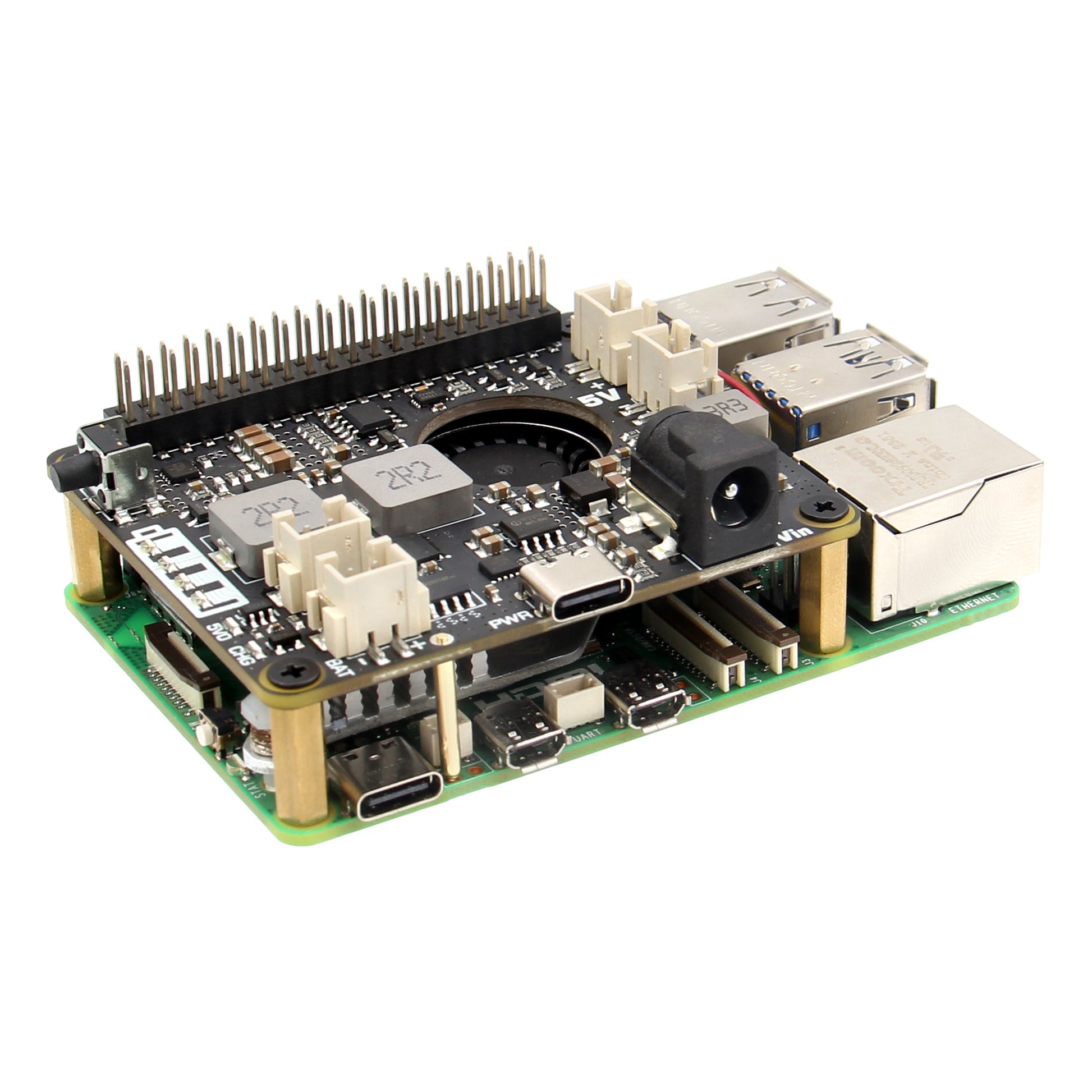

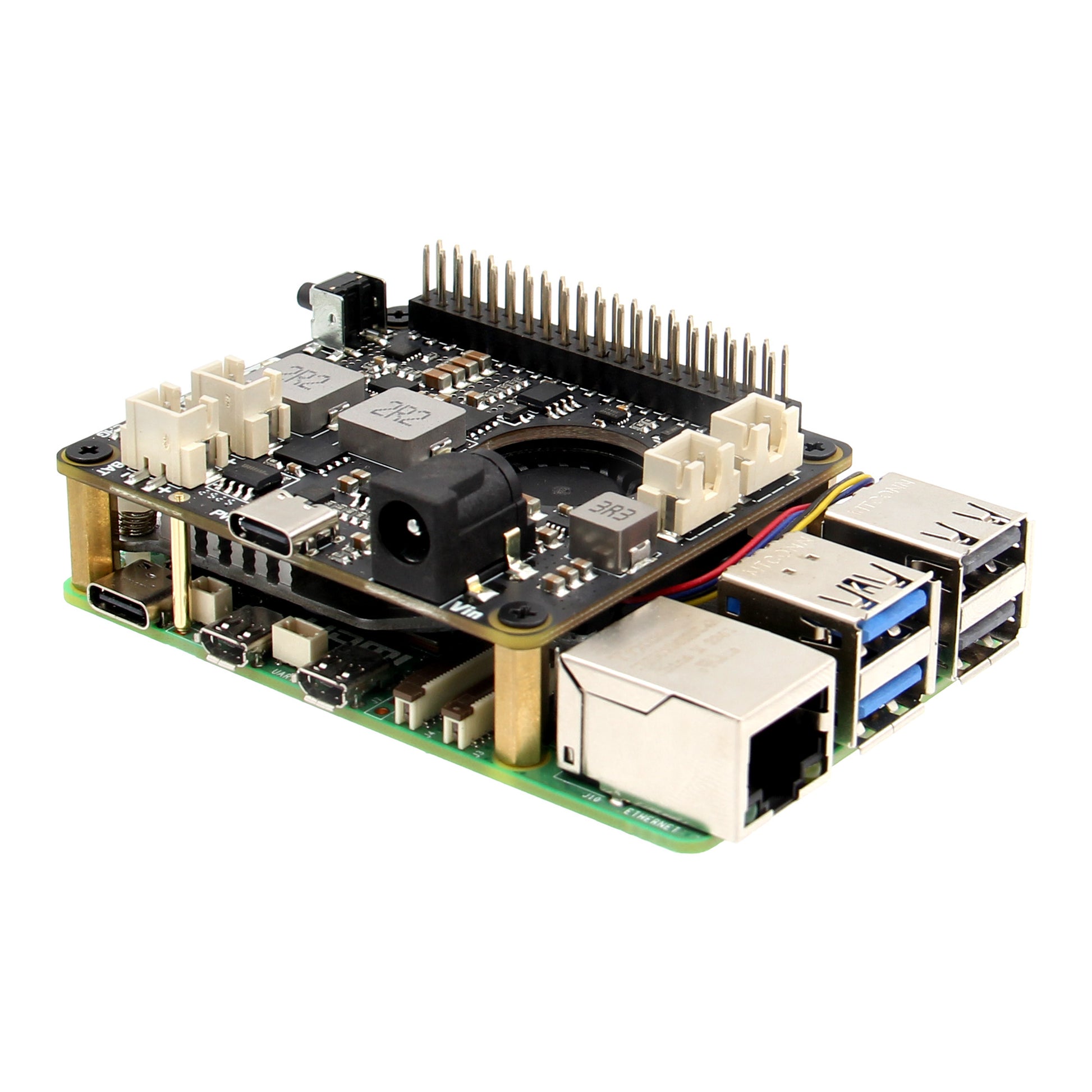

  • Power the Pi directly through the 40-pin header, eliminating the need for cables and soldering
  • Equipped with XH2.54 connectors for 5V power output

Battery Charging

  • Supports fast battery charging with a capacity of 2100mA
  • Battery charging control can be managed via GPIO
  • Provides protection against battery overcurrent and overvoltage
  • Built-in protection against reverse connection of battery cells
  • Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c
  • On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%
  • Features two XH2.54 battery connectors

Power Input

  • Integrated high-efficiency step-down DC-DC converter
  • Wide operating input range of 6V to 18V
  • Provides up to 6A output current, enabling 2.1A fast charging while powering the system
  • Allows power input from various sources such as a car, solder panel, and more
  • Common power input jack size of 5.5x2.1mm
  • Compatible with Raspberry Pi USB-C Power Supply

Enhanced Power Management

  • Seamless power switching between backup power and power adapter
  • On-board push button performs the same actions as the Pi5's power button (for Raspberry Pi 5 only)
  • Automatically cuts off power when the Pi is shut down
  • On-board LED indicates power status and Pi detection
  • AC power loss and power adapter failure detection via GPIO
  • Auto power-on when power is applied or restored
  • Automatic safe shutdown when battery voltage is low (programmable)
  • Ultra-low standby power consumption to maximize battery life
  • Advanced system power-path management to minimize frequent charging and discharging of batteries

Compatible Accessories

  • X1002 single NVMe shield for Pi5
  • X1005 dual NVMe shield for Pi5
  • X1006 PCIe to SATA 2.5 HDD+M.2 SSD shield for Pi 5
  • X1007 PCIe to dual SATA 2.5 HDD/SSD shield for Pi 5
  • X1100 USB3 to SATA 2.5 HDD/SSD shield for Pi 5
  • Other add-on boards are attached to the bottom of the Raspberry Pi
Technical Specification

Power input:

  • 6-18Vdc via DC jack (12Vdc ≥3A power adapter recommended)
  • 5Vdc 5A via USB-C


UPS output:5.1V ±5% Max 6A


Battery charging current: 2.1A (IMPORTANT !!-- Please confirm before connecting your battery.)


Terminal Battery Voltage: 4.23V (IMPORTANT !!-- Please confirm before connecting your battery.)


Battery Recharge Threshold: 4.1V


Ports & Connectors:

  • DC power jack x1- 5.5x2.1mm
  • USB-C power in connector x1
  • XH2.54 battery connector x2
  • 5V Power output connector x2 - XH2.54 2-pin
  • 40-pin extended GPIO header x1


PCB Size: 65mm x 57mm
Notes
  • Do not apply power to your Raspberry Pi via the Type-C USB socket.


How to Power

  • 6-18Vdc via DC jack of X1209 (12Vdc ≥3A power adapter recommended) or 5Vdc 5A via USB-C port of X1209

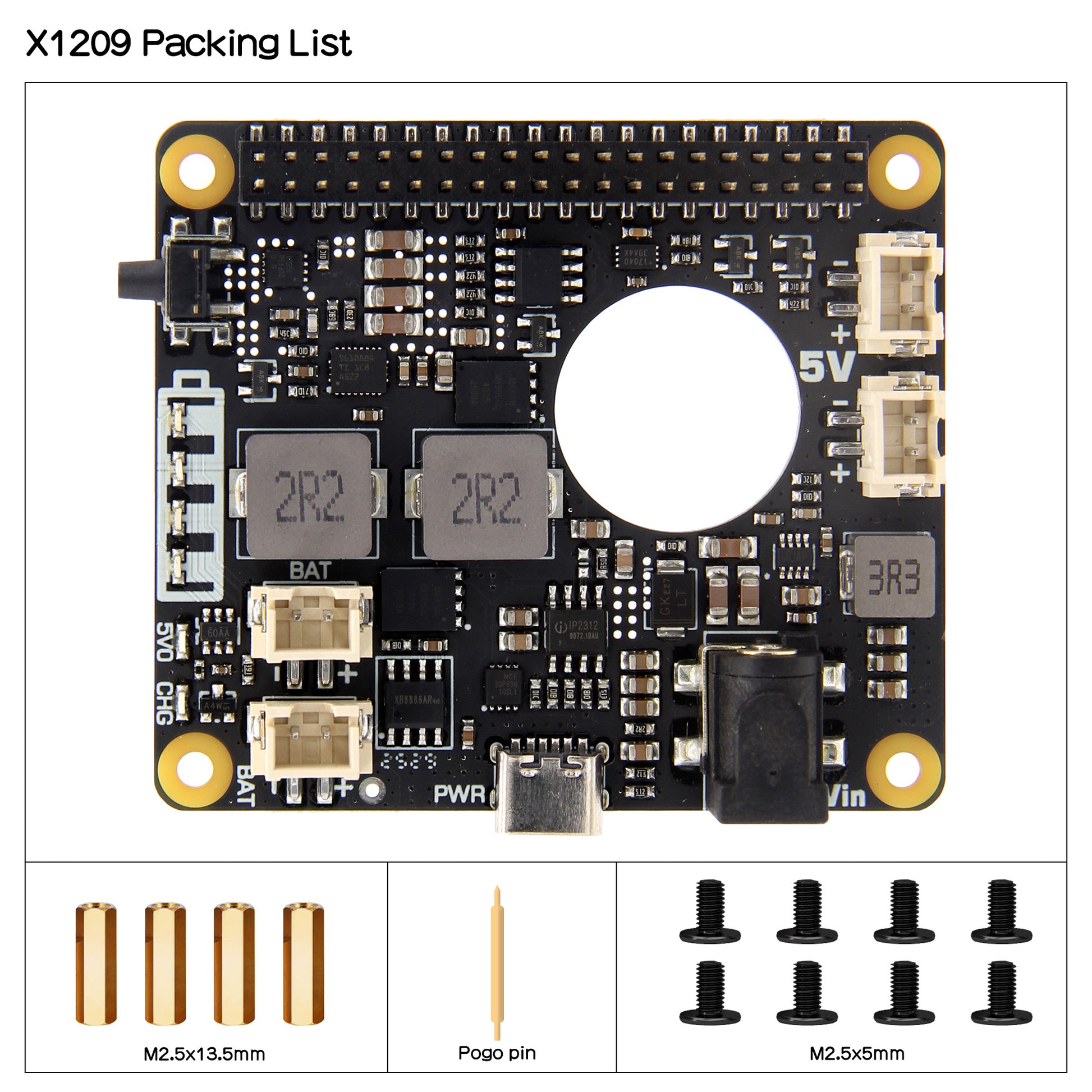

Packing List

  • 1x X1209 V1.0 UPS board
  • 4x M2.5x13.5mm F/F Spacers
  • 8x M2.5x5mm Screws
  • 1x Pogo pin(For connecting to the Pi 5 PSW through hole)

FAQ
Q1: What types of batteries are compatible with the X1209 UPS board?

A: The X1209 is compatible with 3.7V-rated batteries, such as 18650, 21700, 4680, and similar types, as long as they have a full charge voltage of 4.2V.

The default charging current is set to 2.1A and the charge cut-off voltage is 4.23V. Before connecting your battery to the UPS board, please carefully confirm the maximum charging current and voltage; exceeding the upper limit of the charging specification that the battery can withstand will not only cause adverse reactions, but may also cause irreversible damage.

Refer to: https://wiki.geekworm.com/x1209

Please email to us at info@geekworm.com if you have other questions.

This series of UPS (uninterruptible power supply) expansion boards provided by Geekworm for Raspberry Pi 5 demonstrates high flexibility and customization, which is very suitable for various project needs, especially those application scenarios that require stable power supply and battery backup. Here is a detailed analysis of each expansion board and its advantages:

X1200

  • Features: Onboard 2 18650 battery holders, compact design, suitable for projects with limited space.
  • Advantages: It can provide stable 5V@5A current output to meet the power supply needs of most Raspberry Pi and its peripherals.
  • Application scenarios: Suitable for small projects that require a certain battery backup but have limited space, such as portable monitoring equipment, small robots, etc.

X1201

  • Features: It also has 2 18650 battery boxes on board, but it is designed to be placed side by side with the motherboard to achieve the thinnest effect.
  • Advantages: While maintaining strong power supply capacity, it optimizes space occupancy, especially suitable for scenarios with strict thickness requirements.
  • Application scenarios: The ultra-thin design makes it suitable for scenarios with strict volume requirements such as wall-mounted devices and embedded systems.

X1202

  • Features: Onboard 4 18650 battery holders, providing higher battery capacity.
  • Advantages: Longer battery life, suitable for applications that require long-term operation and cannot frequently replace batteries.
  • Application scenarios: Suitable for field monitoring stations, remote data loggers and other equipment that require long-term unattended operation.

X1203

  • Features: No battery holder, but reserved XH2.54 battery interface, highly flexible.
  • Advantages: Users can choose the appropriate battery type and capacity according to actual needs, greatly improving the flexibility of DIY.
  • Application scenarios: Suitable for advanced DIY projects that have specific requirements for batteries or want to use non-standard battery configurations.

X1205

  • Features: Onboard 2 21700 battery holders, compact design, suitable for projects with limited space.
  • Advantages: It can provide stable 5V@6A current output to meet the power supply needs of most Raspberry Pi and its peripherals.
  • Application scenarios: Suitable for small projects that require a certain battery backup but have limited space, such as portable monitoring equipment, small robots, etc.
  • Added AUTO POWER ON jumper settings for more flexible use.

X1206

  • Features: Onboard 4 21700 battery holders, providing higher battery capacity.
  • Advantages: Longer battery life, can provide stable 5V@6A current output , suitable for applications that require long-term operation and cannot frequently replace batteries.
  • Application scenarios: Suitable for field monitoring stations, remote data loggers and other equipment that require long-term unattended operation.
  • Added AUTO POWER ON and ALWAYS POWER ON jumper settings for more flexible use.

Common advantages

  • Intelligent monitoring: All expansion boards can intelligently monitor the power status of the Raspberry Pi 5 and automatically cut off the power when shutting down, which helps to extend the battery life.
  • Sufficient power supply capacity: They can provide stable and reliable Vdc 5V@5A power supply capacity.
  • Programming interface: Supports software programming, reads UPS status (such as battery capacity, voltage), and realizes advanced functions such as low voltage automatic shutdown and external power supply shedding alarm.
  • Easy installation: The pogo pins are used to connect to the motherboard, which simplifies the installation process. It also comes with an onboard switch and a reserved external switch PIN for easy user control.

Summary

This series of UPS expansion boards from Geekworm provides a wealth of choices for Raspberry Pi 5 users, whether they are pursuing space efficiency, battery life or DIY flexibility, they can find a solution that suits them. Through intelligent monitoring and programming interfaces, these expansion boards also give projects a higher level of intelligence and automation.

Model Battery Holders Battery Capacity Matching Case How to Charge Key Advantages Application Scenarios
X1200
  • 2 cells 18650 Battery
 Moderate X1200-C1
  • 5Vdc 5A via USB Type-C of UPS
  • Compact design
  • Stable power supply
  • Small-scale projects
  • Portable devices
X1201
  • 2 cells 18650 Battery
 Moderate X1201-C1
  • 5Vdc 5A via USB Type-C of UPS
  • 5Vdc ≥3A via XH2.54 connecotr of X1201
  • Ultra-thin design
  • Space-saving
  • Wall-mounted devices
  • Embedded systems
X1202
  • 4 cells 18650 Battery
 High X1202-C1
  • 5Vdc 5A via USB Type-C of UPS;
  • 6-18Vdc, ≥3A via DC 5521 power jack of UPS
  • 6-18Vdc, ≥3A via XH2.54 connecotr of UPS
  • Longer runtime
  • High battery capacity
  • Remote monitoring
  • long-term data loggers
X1203
  • Without battery holder
  • With two XH2.54 battery connectors
 User-defined N/A
  • 5Vdc 5A via USB Type-C of UPS;
  • 6-18Vdc, ≥3A via DC 5521 power jack of UPS
  • Flexible battery configuration
  • DIY versatility
  • Advanced DIY projects with specific battery requirements
X1205
  • 2 cells 21700 Battery
 Moderate X1205-C1
  • 5Vdc 5A via USB Type-C of UPS;
  • 9-18Vdc, ≥3A via DC 5521 power jack of UPS
  • 9-18Vdc, ≥3A via XH2.54 connecotr of UPS
  • Compact design
  • Stable power supply
  • Small-scale projects
  • Portable devices
X1206
  • 4 cells 21700 Battery
 High X1206-C1
  • 5Vdc 5A via USB Type-C of UPS;
  • 5-6Vdc, ≥3A via DC 5521 power jack of UPS
  • 5-6Vdc, ≥3A via XH2.54 connecotr of UPS
  • Longer runtime
  • High battery capacity
  • Remote monitoring
  • long-term data loggers

Note:

  • Note that you can use only one battery and it will work.
  • The exact battery capacity depends on the 18650 lithium battery you use and the quantity.We recommend that you use lithium batteries from big brands such as Samsung or Panasonic.
