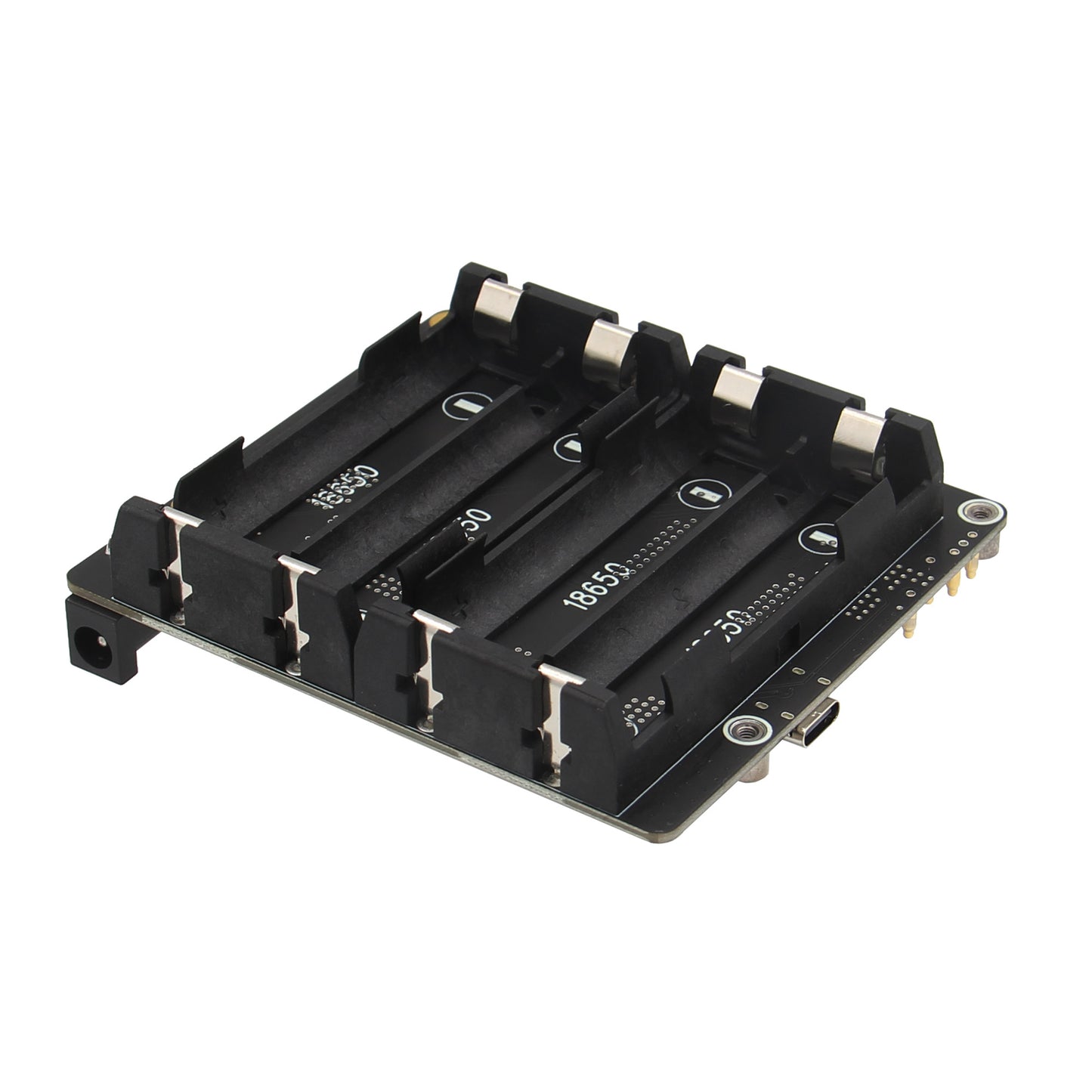

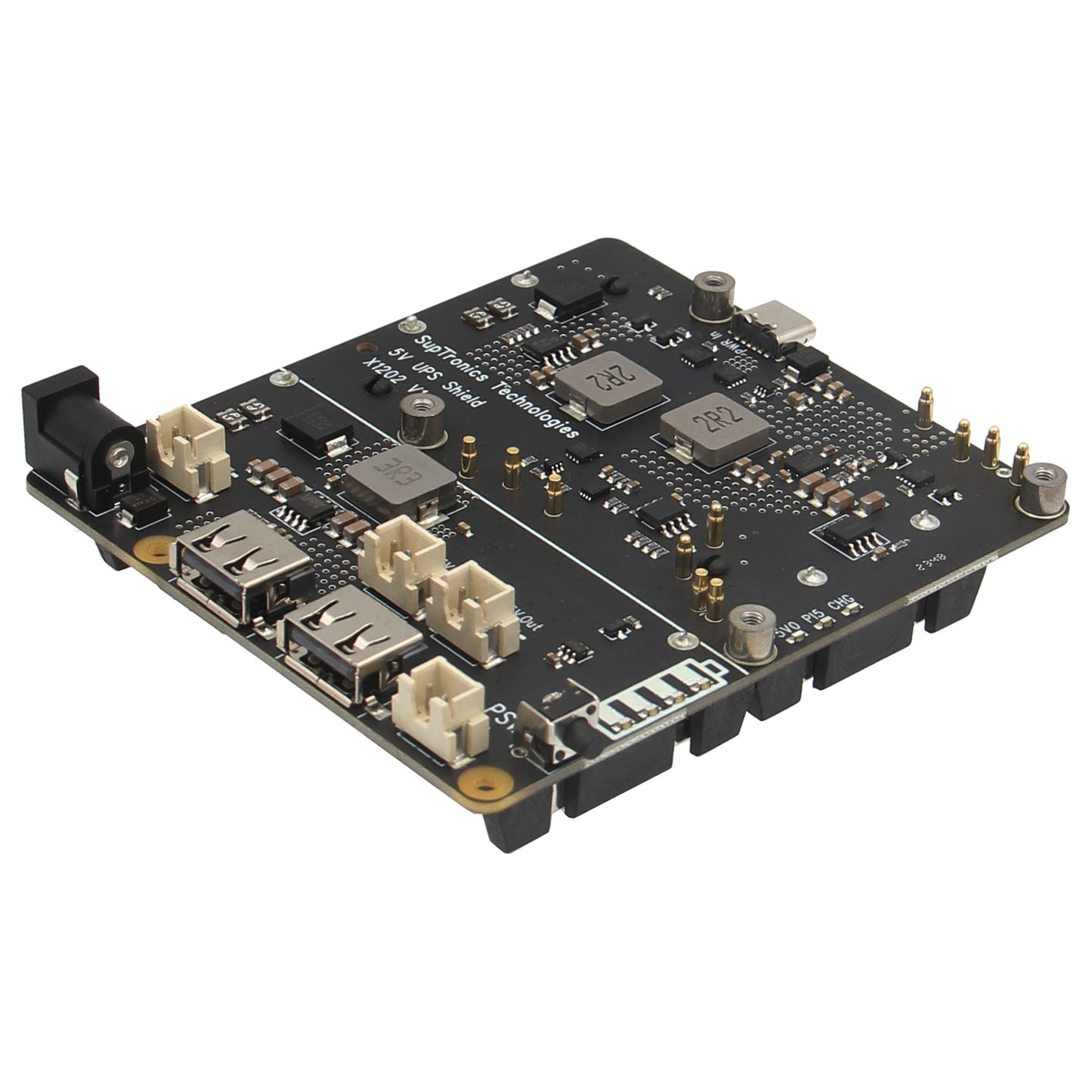

Geekworm X1202 4-Cell 18650 5.1V 5A UPS HAT for Raspberry Pi 5 Series
- Regular price
- $48.00
- Regular price
-
- Sale price
- $48.00
- Unit price
- per
Couldn't load pickup availability
Have a question?
Notified by email when this product becomes available
- Description
- Manual
- UPS
- Shipping Policy
- Reviews
Note:
- The Raspberry Pi 5, 18650 batteries, active cooler or power adapter is not included in the packing list.
- NOT compatible with X1002 PCIe to M.2 2280 to NVMe SSD Bottom.
- Compatible with X1001/X1000/X1003 PCIe to M.2 NVMe SSD Top.
Overview
This X1202 is an ultra-compact advanced uninterruptible power supply expansion board designed specifically for the Raspberry Pi 5.With its advanced features and robust power backup capabilities, the X1202 is perfect for even the most demanding Raspberry Pi setups.
User Manual: https://wiki.geekworm.com/X1202
Reliable Power Backup: The X1202 provides a stable 5.1V 5000mA power backup, ensuring uninterrupted operation of your Raspberry Pi. Whether you are running resource-intensive applications or powering multiple peripherals, the X1202 delivers reliable and consistent power supply.
Enhanced Power Management: One of the standout features of the X1202 is its enhanced power management system. It intelligently monitors the power status of the Raspberry Pi and automatically cuts off power when the Pi is shut down. This helps optimize battery life by entering an ultra-low standby power consumption mode. It ensures efficient operation and maximizes the lifespan of the UPS battery.
Seamless Power Switching: Equipped with AC power loss and power adapter failure detection, the X1202 seamlessly switches to backup power in the event of a power outage or power adapter failure. This feature guarantees that your Raspberry Pi remains operational and protected from unexpected power disruptions.
Convenient Features: The X1202 offers convenient features such as auto power-on, enabling your Raspberry Pi to automatically boot up when power is restored. It also supports full power-off from software, allowing you to safely shut down your Raspberry Pi without manual intervention.
Fast Charging: With fast charging capabilities of up to 3000mA, the X1202 ensures quick recharging of the UPS, making it ready to provide backup power whenever needed.

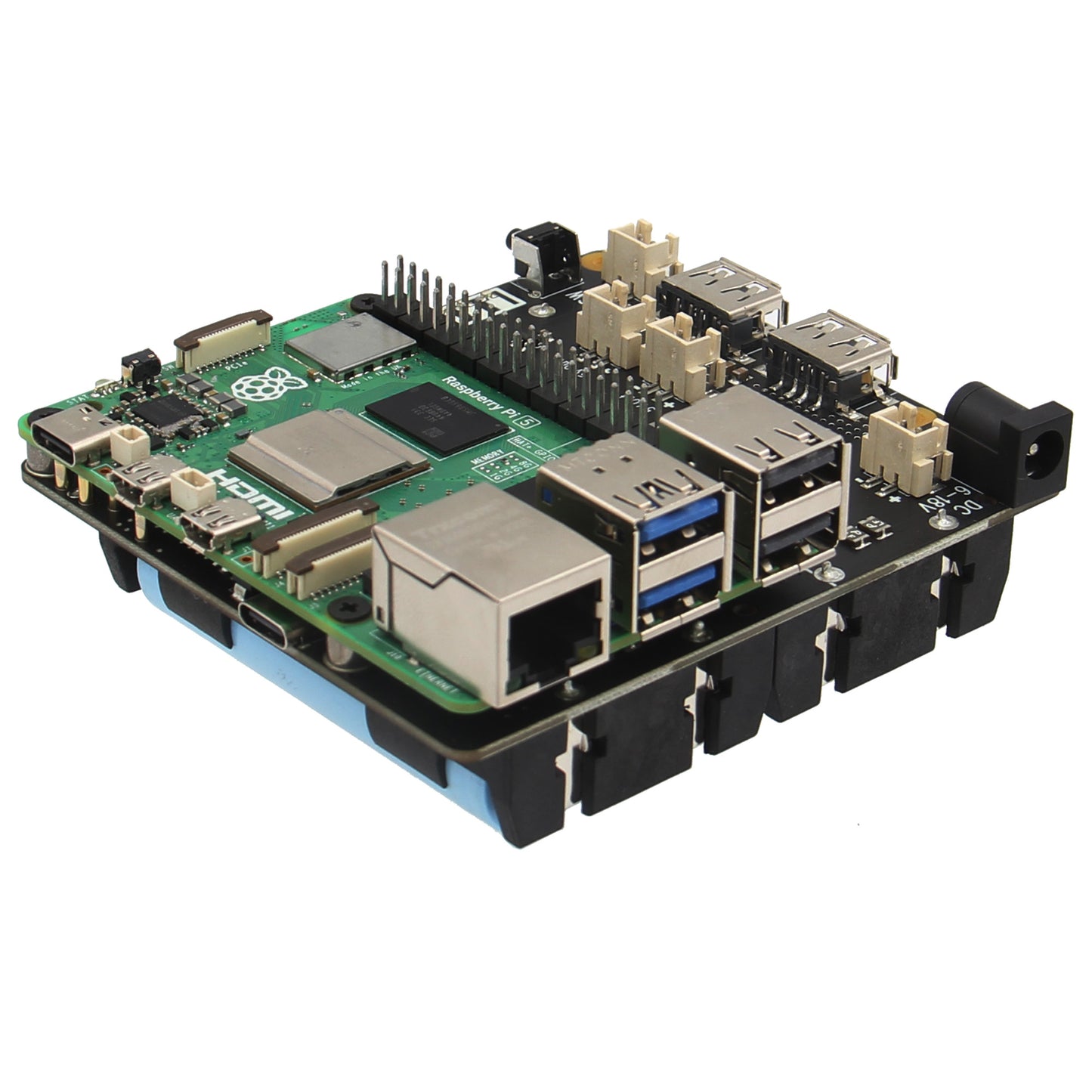

Versatile Design: The X1202 is designed to be attached on bottom and don't use the 40-pin header, enabling easy stacking with other Raspberry Pi accessory boards. This versatility allows you to expand the functionality of your Raspberry Pi and create enhanced applications tailored to your specific needs.
Seamless Data Backup: The X1202 is compatible with our range of storage products, providing seamless integration for safe and reliable data backup. Your valuable data remains protected, even in the event of a power failure.
Enhance the reliability and performance of your Raspberry Pi 5B with the X1202 UPS expansion board. Experience peace of mind with its advanced features and robust power backup capabilities. Trust the X1202 to ensure uninterrupted operation and safeguard your valuable data.
Specifications
- Power input: 6-18Vdc via DC5521 Jack or 5Vdc 5A via USB Type-C
- UPS output: 5.1V ±5% Max 5A
- Battery charging current: Max 2.3-3.2A
- Terminal Battery Voltage: 4.23V
- Battery Recharge Threshold: 4.1V
- PCB Size: 97.4mm x 85mm

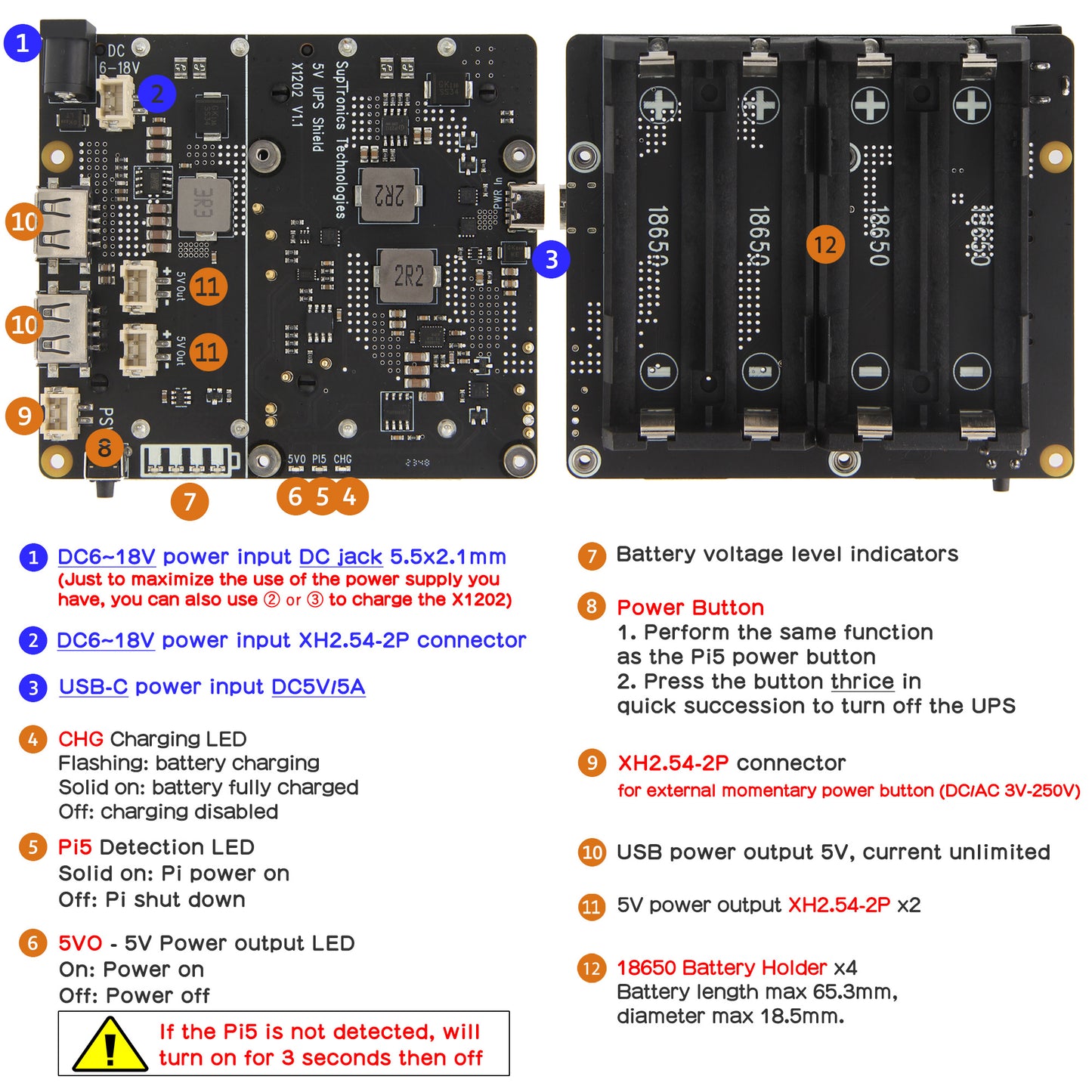

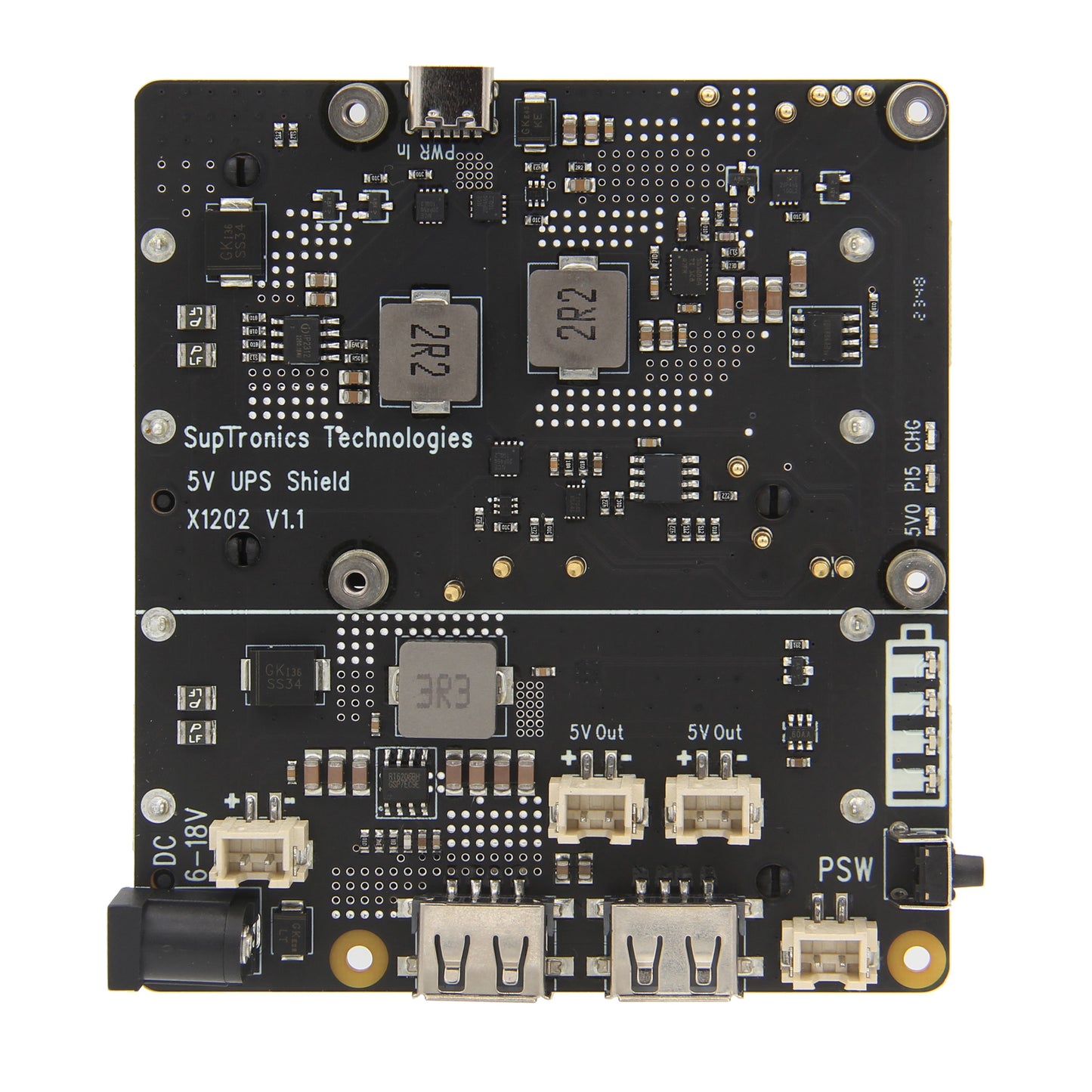

Ports & Connectors:
- DC power jack - 5.5x2.1mm
- 18650 battery socket x4
- 5V Power output connector x2 - XH2.54 2-pin
- USB2.0 type-A power output socket x2
- External power button connector x1 - XH2.54-2P

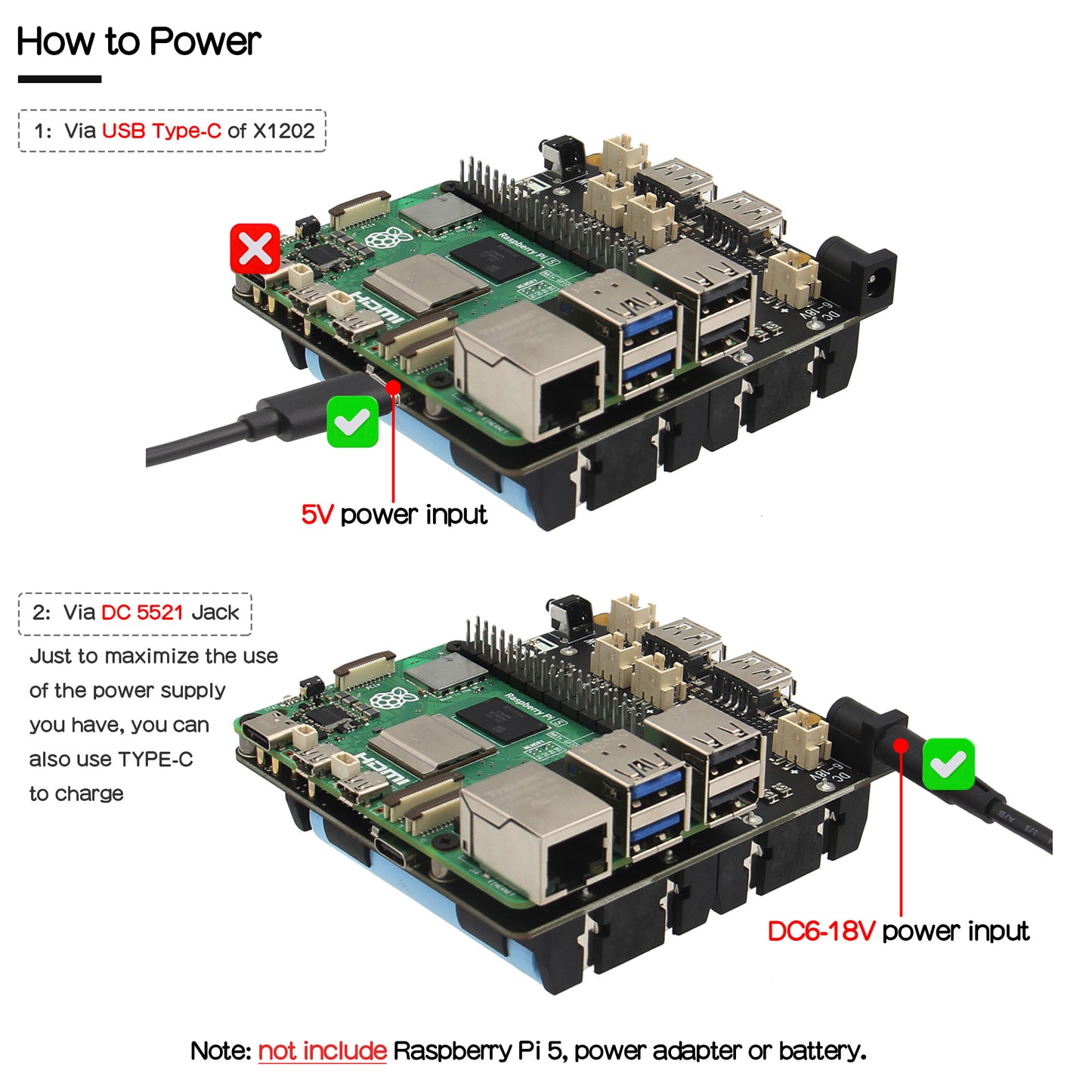

Please note that the DC 6V-18V wide voltage connector is just for the convenience of using the power supply you have on hand. If you have a Raspberry Pi 5 power supply, you don’t need to buy an additional power supply. Just use it to charge the X1202.
Packing List

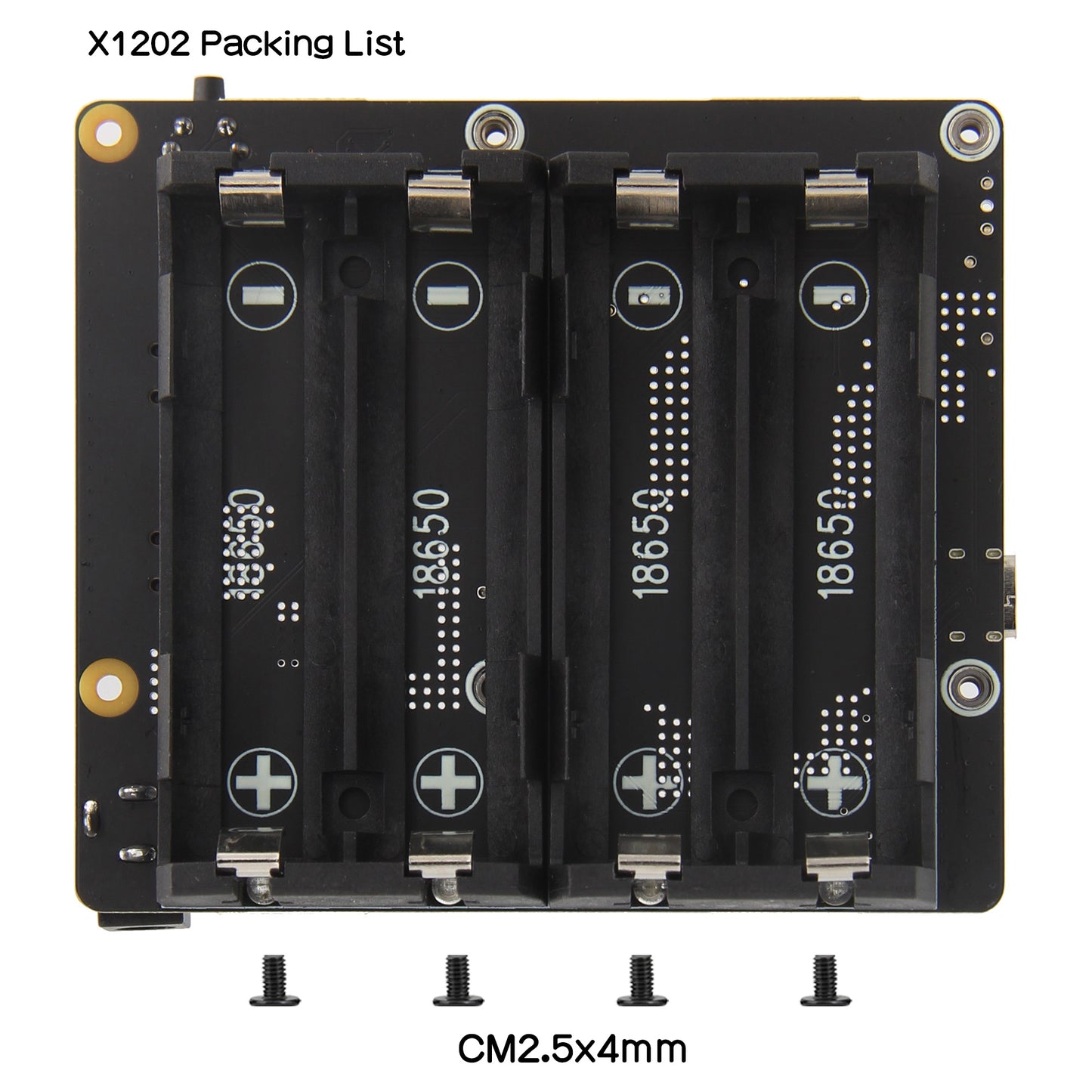

- 1 x X1202 UPS Shield
- 4 x CM2.5 x 4mm screws
Refer to: https://wiki.geekworm.com/x1202
Please email to us at info@geekworm.com if you have other questions.
This series of UPS (uninterruptible power supply) expansion boards provided by Geekworm for Raspberry Pi 5 demonstrates high flexibility and customization, which is very suitable for various project needs, especially those application scenarios that require stable power supply and battery backup. Here is a detailed analysis of each expansion board and its advantages:
X1200
- Features: Onboard 2 18650 battery holders, compact design, suitable for projects with limited space.
- Advantages: It can provide stable 5V@5A current output to meet the power supply needs of most Raspberry Pi and its peripherals.
- Application scenarios: Suitable for small projects that require a certain battery backup but have limited space, such as portable monitoring equipment, small robots, etc.
- Features: It also has 2 18650 battery boxes on board, but it is designed to be placed side by side with the motherboard to achieve the thinnest effect.
- Advantages: While maintaining strong power supply capacity, it optimizes space occupancy, especially suitable for scenarios with strict thickness requirements.
- Application scenarios: The ultra-thin design makes it suitable for scenarios with strict volume requirements such as wall-mounted devices and embedded systems.
- Features: Onboard 4 18650 battery holders, providing higher battery capacity.
- Advantages: Longer battery life, suitable for applications that require long-term operation and cannot frequently replace batteries.
- Application scenarios: Suitable for field monitoring stations, remote data loggers and other equipment that require long-term unattended operation.
- Features: No battery holder, but reserved XH2.54 battery interface, highly flexible.
- Advantages: Users can choose the appropriate battery type and capacity according to actual needs, greatly improving the flexibility of DIY.
- Application scenarios: Suitable for advanced DIY projects that have specific requirements for batteries or want to use non-standard battery configurations.
Common advantages
- Intelligent monitoring: All expansion boards can intelligently monitor the power status of the Raspberry Pi 5 and automatically cut off the power when shutting down, which helps to extend the battery life.
- Sufficient power supply capacity: They can provide stable and reliable Vdc 5V@5A power supply capacity.
- Programming interface: Supports software programming, reads UPS status (such as battery capacity, voltage), and realizes advanced functions such as low voltage automatic shutdown and external power supply shedding alarm.

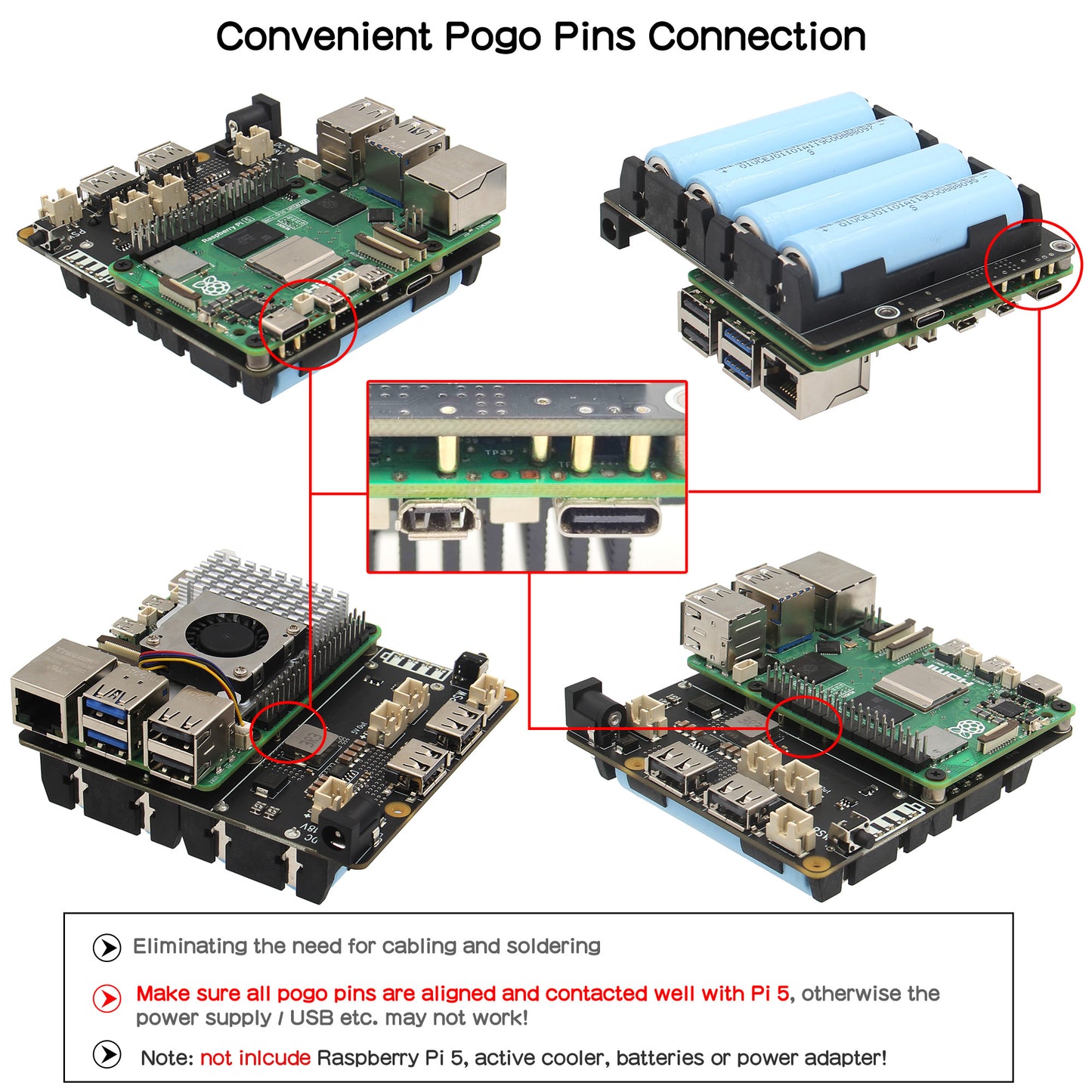

- Easy installation: The pogo pins are used to connect to the motherboard, which simplifies the installation process. It also comes with an onboard switch and a reserved external switch PIN for easy user control.
This series of UPS expansion boards from Geekworm provides a wealth of choices for Raspberry Pi 5 users, whether they are pursuing space efficiency, battery life or DIY flexibility, they can find a solution that suits them. Through intelligent monitoring and programming interfaces, these expansion boards also give projects a higher level of intelligence and automation.
| Model | Battery Holders | Battery Capacity | Matching Case | How to Charge | Key Advantages | Application Scenarios |
|---|---|---|---|---|---|---|
| X1200 |
|
Moderate | X1200-C1 |
|
|
|
| X1201 |
|
Moderate | X1201-C1 |
|
|
|
| X1202 |
|
High | X1202-C1 |
|
|
|
| X1203 |
|
User-defined | N/A |
|
|
|
Note:
- Note that you can use only one battery and it will work.

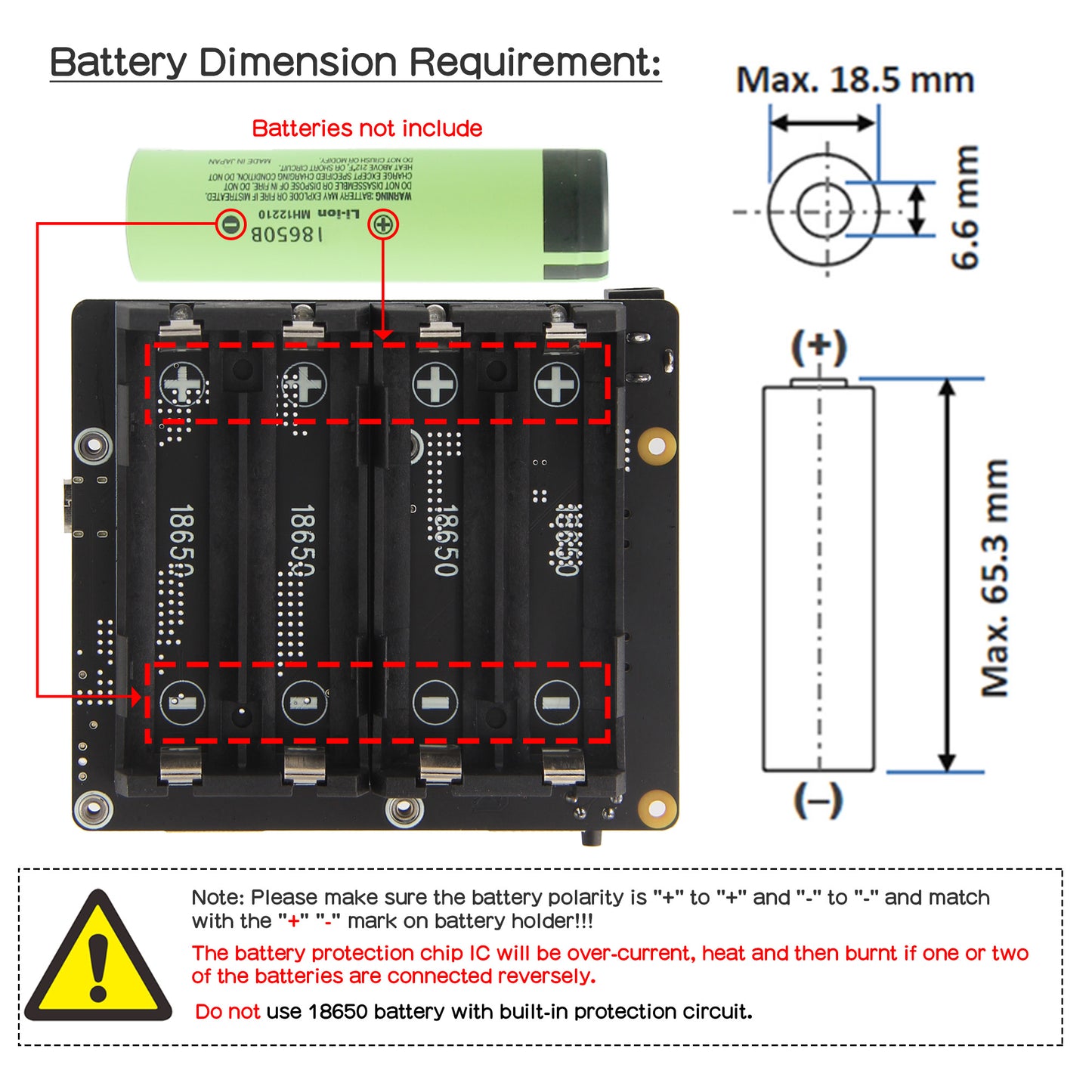

- The exact battery capacity depends on the 18650 lithium battery you use and the quantity.We recommend that you use lithium batteries from big brands such as Samsung or Panasonic.
We send orders to worldwide with tracking number.
For detail refer to Shipping Policy
