Geekworm Hdmi to CSI-2 Module for Raspberry Pi 5/4B/3B/3B+/Pi Zero/Zero 2W/CM5/CM4

Overview
The Raspberry Pi HDMI to CSI-2 Adapter Board is a high-performance video capture module based on the Toshiba TC358743XBG chip. It allows you to convert standard HDMI audio and video signals into Raspberry Pi-compatible CSI-2 camera signals and I2S digital audio.

This module functions exactly like a standard Raspberry Pi CSI camera, making it a perfect solution for PiKVM, live streaming, industrial imaging, and camera systems with HDMI output. It is fully compatible with the entire Raspberry Pi series.

Features

• Model: LCKVM HDMI to CSI

• Broad Compatibility: Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/Zero 2W/CM4/CM3

• Professional Capture Performance: Powered by the dedicated TC358743XBG chip to ensure stable, low-latency audio and video conversion.

• 1080P @ 60Hz High-Definition Support: Capture crystal-clear video with support for resolutions up to 1080P at 60Hz.

• High-Fidelity Audio: Supports I2S digital audio output, enabling high-quality sound capture alongside the video feed.

• Bus-Powered Simplicity: Designed to draw 3.3V power directly from the Raspberry Pi's CSI camera interface, eliminating the need for external power adapters.

• Real-Time Status Monitoring: The onboard Power LED provides immediate visual confirmation by lighting up when the module is correctly powered through the Raspberry Pi.

• Compatible with X630-A3 with Raspberry Pi 4 Model B

Technical Specifications

• Core Chip: Toshiba TC358743XBG

• Input Interface: Standard HDMI (Audio & Video)

• Output Interface: CSI-2 (Video) & I2S (Audio)

• Power Input: 3.3V via Raspberry Pi CSI Interface

• Video Output Connection: FPC 1.0mm Bottom Contact

• Auxiliary Interfaces:
  MX1.25-10P Socket: I2S Audio + GPIO Interface
  GH1.25-5P Snap-on Socket: I2S Audio Interface
  2.54mm-2*3P Pin Header: GPIO Interface

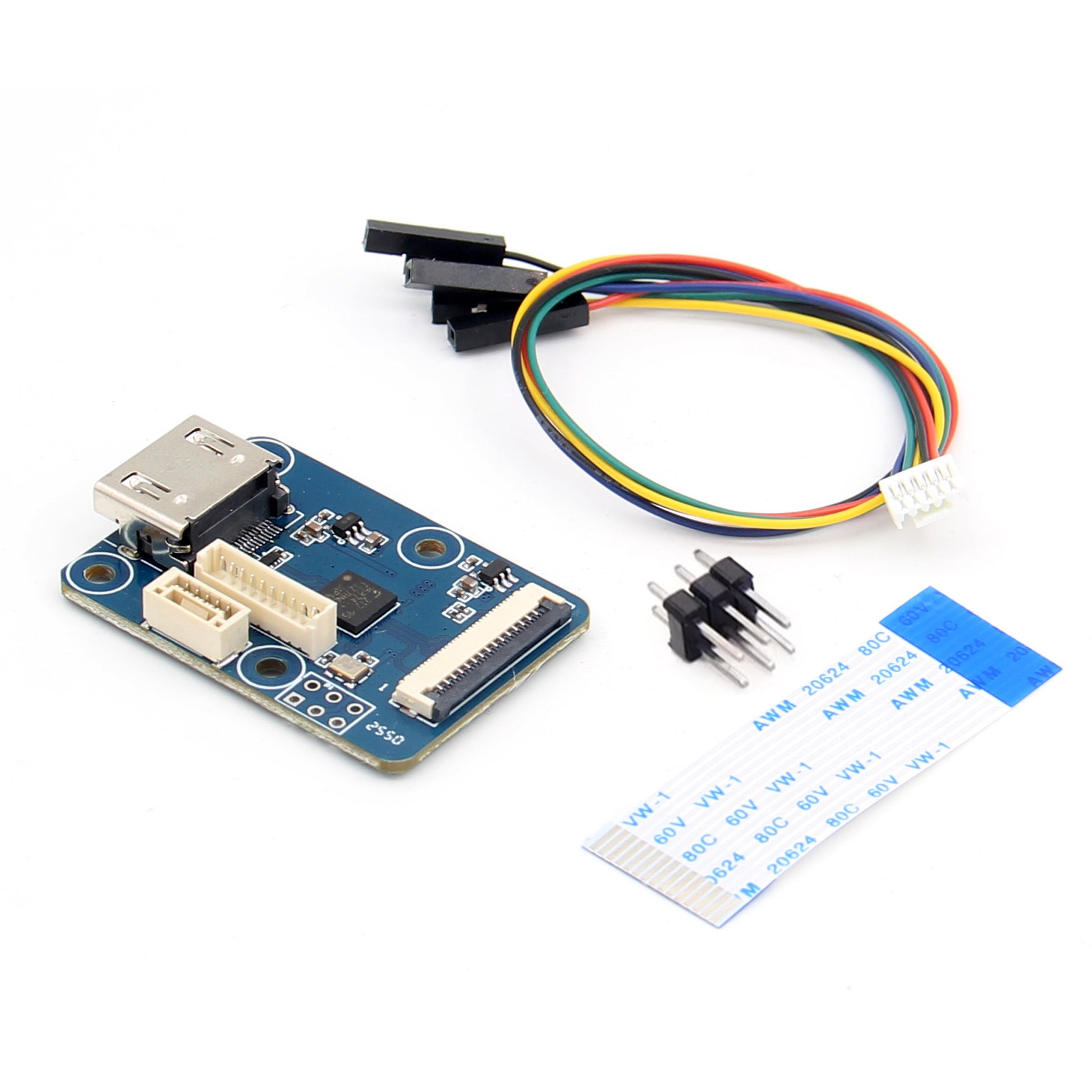

Packing List

• 1x Hdmi to CSI module
• 1x 5cm 15Pin Reverse 1.0mm Pitch FPC Cable (for Pi 4B/3B/3B+/3A)
• 1x 3P Double-Row Pin Header
• 1x 20cm GH1.25 to 2.54-4Pin DuPont Wire
