Geekworm X1009 PCIe to 5-Port SATA Shield for Raspberry Pi 5 (NOT Support Boot from HDD/SSD)

Regular price
$60.00
Regular price
$61.00
Sale price
$60.00
-2%
Only 30 items in stock! Out of stock!
  • Description
  • Manual
  • PCIe to Sata Shields
  • Shipping Policy
  • Reviews

Notes

  • The X1009 is designed for data storage purposes and does not support booting from HDD/SSD with the existing firmware currently.
  • Don't power the X1009 via DC powe jack and the Raspberry Pi5 via USB-C at the same time.  Just power the X1009, and then the X1009 will power the Pi 5 via the GPIO.
  • Older SATA drives with less efficient flash media may not perform as well as newer drives
  • New SATA HDDs/SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.
  • The Raspberry Pi 5 board, SSD/HDD, active cooler, SATA cable or power adapter is not included in the packing list.

Overview
The X1009 PCIe to 5-port SATA expansion board is designed to offer a high-capacity and high-speed storage solution for your Raspberry Pi 5. This board supports the simultaneous connection of 5pcs large-capacity SATA storage devices, with the SATA 3.0 interface reaching speeds of up to 5Gbps.

The X1009 features a 12V input via a standard DC jack and is equipped with high-efficiency DC/DC step-down converters to power both your Raspberry Pi 5 and PCIe devices concurrently, simplifying the power supply to a single source.

Ideal for creating a home media center or setting up a network-attached storage (NAS) system, the X1009 allows you to store and stream your videos, music, and digital photos within your home or even remotely around the world.

User Manual: https://wiki.geekworm.com/X1009

Features

  • Compatible with Raspberry Pi 5
  • Supports the connection of five SATA 3.0 devices to your Raspberry Pi 5 simultaneously
  • PCB Size: 85mm x 57.2mm
  • Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
  • Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
  • Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
  • Compatible with SATA 6G, 3G, and 1.5G hard drives
  • Features plug-and-play installation for ease of setup
  • Blue LED indicators display power and drive status
  • Equipped with a high-efficiency DC/DC step-down converter to power both your Raspberry Pi 5 and SATA devices simultaneously
  • Efficient power delivery to the Raspberry Pi 5 via a pin header, consolidating power sources
  • Compatible with the official active cooler without compromising cooling performance
  • Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down
  • Includes a power SATA splitter cable for connecting up to 5 Serial ATA devices

How to Power:

  • 12Vdc +/-5% ≥3A for one 3.5" HDD or one 2.5" HDD,
  • 12Vdc +/-5% ≥5A for two 3.5" HDDs, ≥7A for three 3.5" HDDs, ≥9A for four 3.5" HDDs, ≥11A for five 3.5" HDDs
  • 12Vdc +/-5% ≥4A for two 2.5" HDDs, ≥5A for three 2.5" HDDs, ≥6A for four 2.5" HDDs, ≥7A for five 2.5" HDDs
  • Your SATA drives can also be powered from a separate PSU.

PS: PS: According to our actual test, the Geekworm 12V/5A power supply can load 3-5 2.5" sata SSDs, and final power requirements depend on the requirements of the SSD/HDD you are using.

Ports & Connectors:

  • DC power jack x1 - 5.5x2.1mm
  • PCIe connector x1 - 16-pin pitch0.5mm
  • SATA connectors x5 - 7P

Packing List

  • 1x X1009 V1.1 PCIe to SATA shield
  • 1x SATA power spillter cable
  • 1x PCIe FFC Cable 30mm
  • 1x Screws pack

Refer to: https://wiki.geekworm.com/X1009

Please email to us at info@geekworm.com if you have other questions.

PCIe to SATA HDD/SSD Shield:

Product Model Features Supported HDDs / SSDS Mounting Position Support booting from HDD/SSD Matching Case
X1006
  • PCIe to SATA HDD/SSD shield
  • Supports M.2 2280 +2.5" SSD/HDD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 4TB HDD
  • SATA 6Gb/s Bridge controller
  • 1 piece of 2.5" SATA SSD/HDD
  • 1 piece of M.2 SATA Key-B 2280 SSD
Bottom NO None
X1007
  • PCIe to SATA HDD/SSD shield
  • Supports dual SATA HDD/SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 5TB HDDs
  • SATA 6Gb/s Bridge controller
  • Dual SATA 2.5" HDD / SSD
Bottom NO None
X1008
  • PCIe to SATA HDD/SSD shield
  • Supports 2.5"+3.5" HDD/SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 16TB HDD
  • SATA 6Gb/s Bridge controller
  • 1 piece of 2.5" SATA HDD / SSD
  • 1 piece of 3.5" SATA HDD Shield
Bottom NO None
X1009
  • PCIe to 5-port SATA3.0 shield
  • Supports up to 5 SATA devices
  • Supports PCIe 2.0 up to 5Gbps
  • Complies with SATA Rev3.2
  • Powers SATA devices & RPi5
  • User defined
  • Up to 5 piece of  2.5/3.5 sata HDDs / SSDs
Top NO None



USB3.0 to SATA HDD/SSD Shield:

Product Model Features Supported HDDS / SSDS Mounting Position Support booting from HDD/SSD Matching Case
X1100
  • USB3.0 to SATA HDD/SSD shield
  • Supports up to 5TB HDD/SSD
  • Transfer speeds up to 5Gbps
  • Read/Write over 300MB/s
  • Supports USB booting
  • 1 piece of 2.5" SATA SSD / HDD
Bottom Yes X1100-C1

We send orders to worldwide with tracking number.

For detail refer to Shipping Policy

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Evgeny Khorokhorin
excellent experience

Everything is good, got it as described, everything works well out of the box

C
Cyprien Laplace

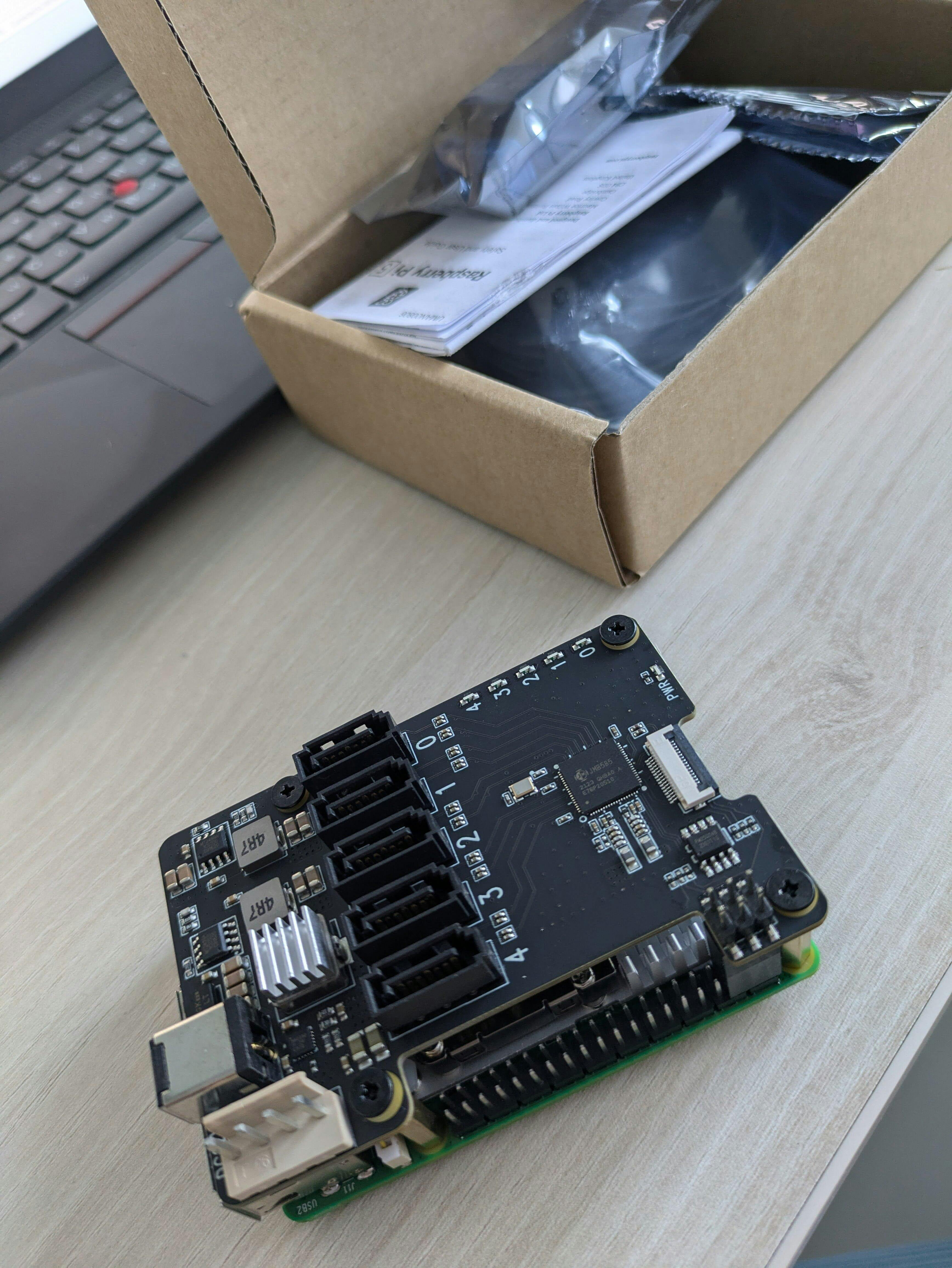

Works as expected, out of the box! I love being able to power the Pi5 and the disks with a single power cable.

I haven't done any performance testing yet, but there's a limit to a single PCIe lane.
