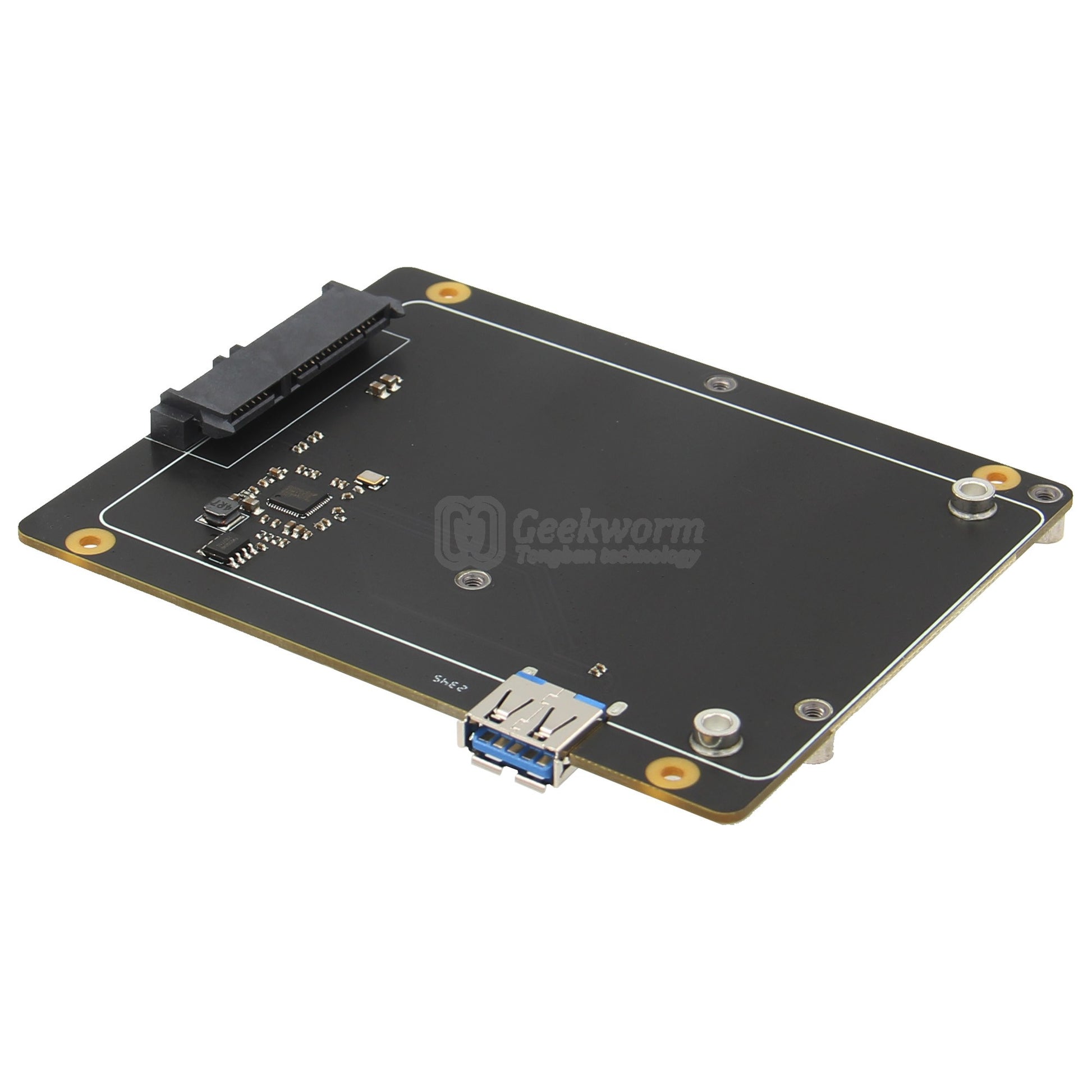

Geekworm X1100 2.5" SATA HDD/SSD Shield for Raspberry Pi 5

Note: The Raspberry Pi 5 board, SSD/HDD, power adapter is not included in the packing list.

Overview
The X1100 is a 2.5 inch SATA HDD/SSD expansion board designed for the latest Raspberry Pi 5 1GB/2GB/4GB/8GB. Its allows single 2.5" HDD/SSD to be attached to Raspberry Pi 5. The SuperSpeed USB 3.0 port delivers a blistering data transfer rate of up to 5Gbps, letting you transfer a large amount of data in seconds. The built-in LED light indicates the reading or writing status – no more guesswork again.

The X1100 provides storage solution for your home media center and building Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world. The X1100 also supports operating system booting from your HDD/SSD for faster app opens, web serving and file copying.

User Manual: wiki.geekworm.com/X1100

Matching Case

• Refer to  X110-C1

Features

• Only compatible with Raspberry Pi 5

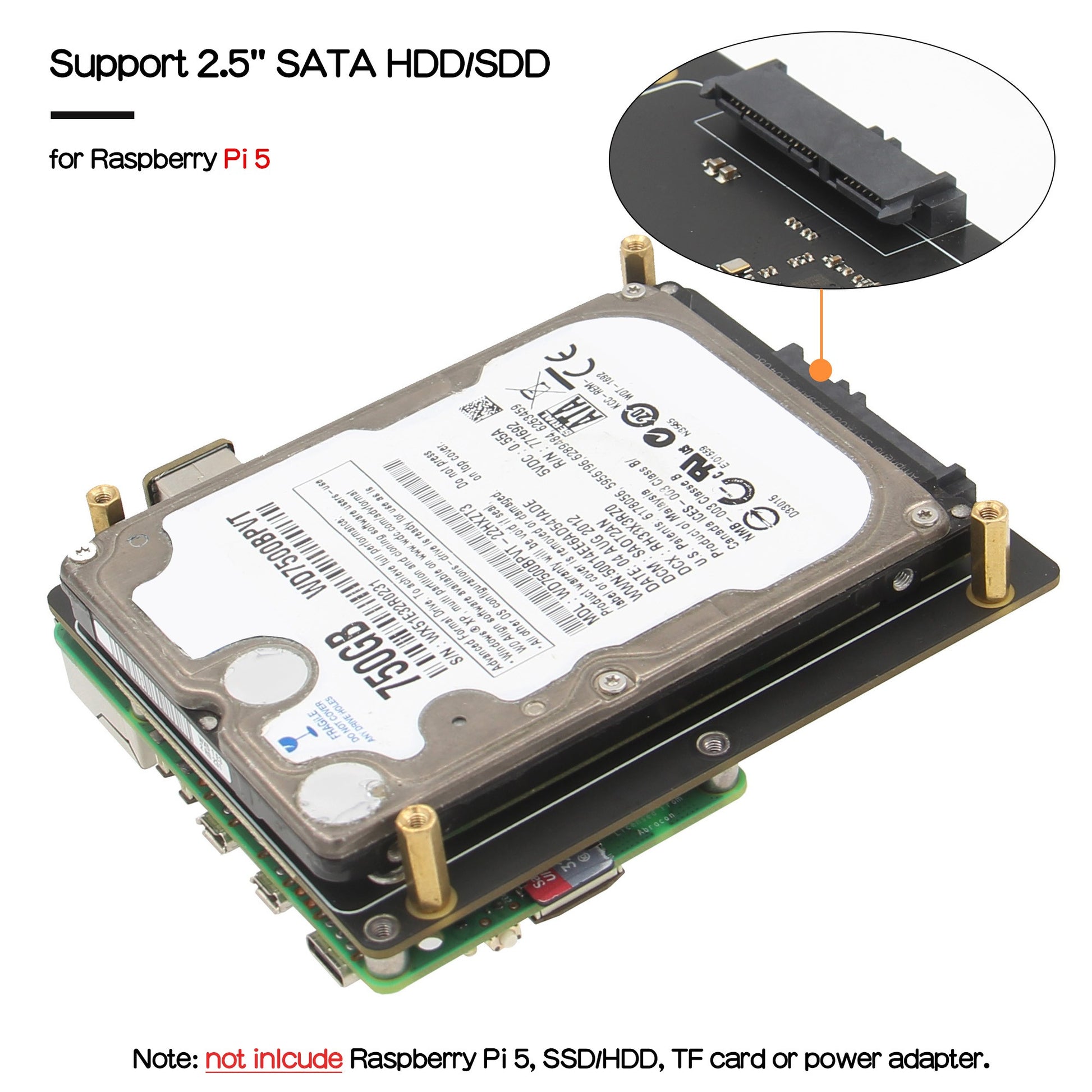

• A storage solution for Raspberry Pi 5 - 2.5" SATA HDD/SSD Shield
• Supports up to 5TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi
• Supporting booting OS from your HDD/SSD for faster app opens, web serving and file copying
• Compatible with USB 2.0
• USB bus-powered - only one PSU required
• LED blue indicator indicates drive status

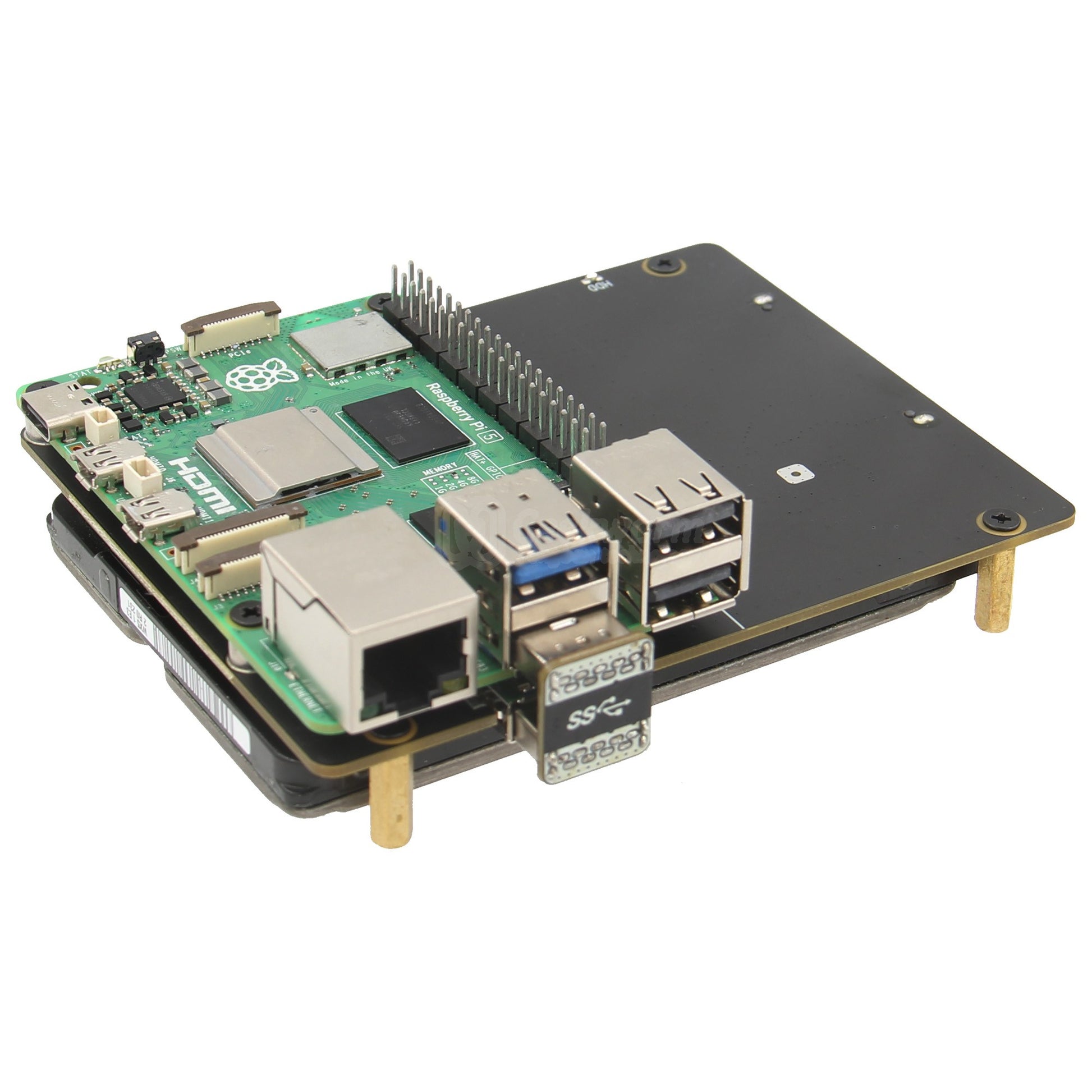

• Specially-made USB3.1 jumper to connect with Raspberry Pi - no additional cables needed
• Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X1100 assembly

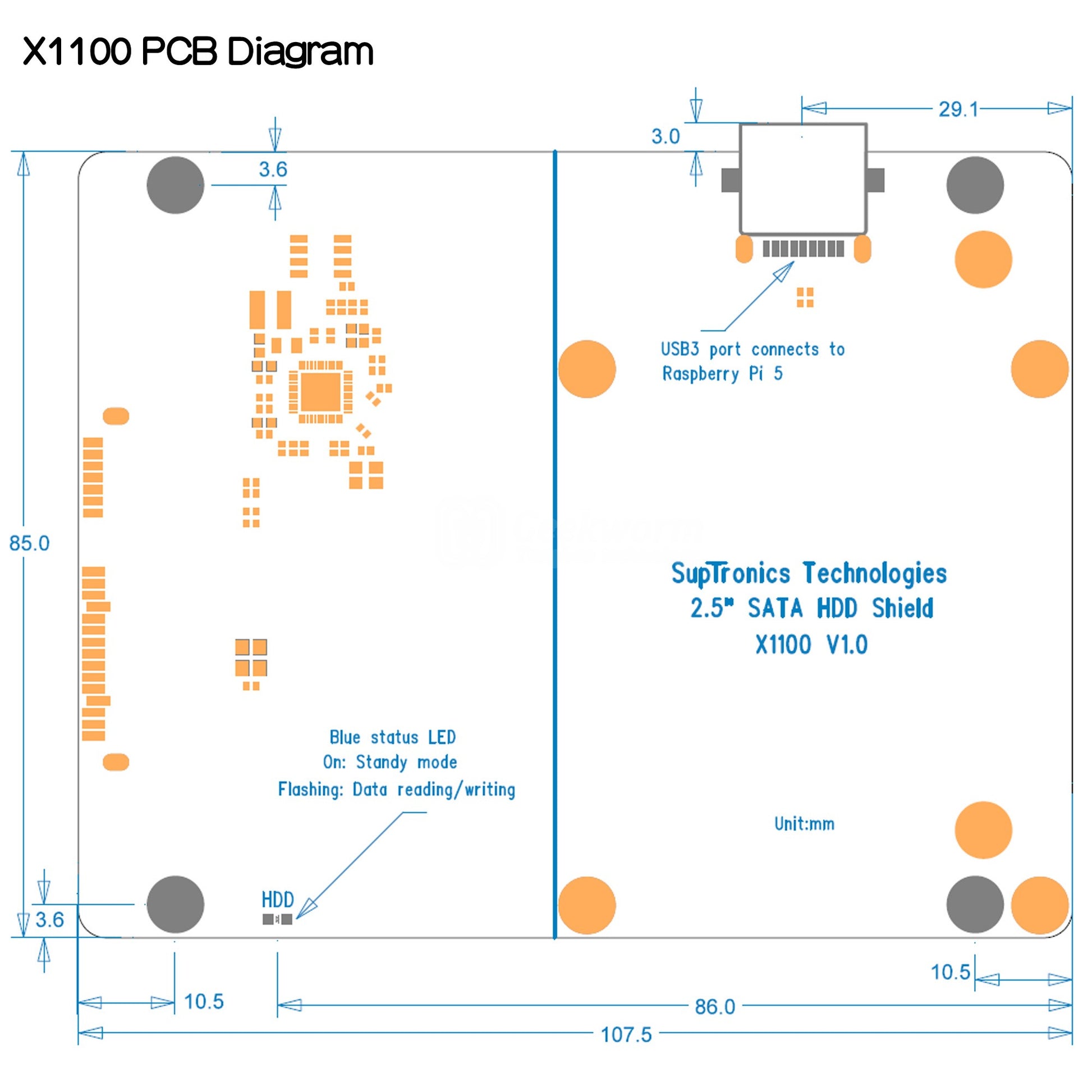

• PCB Size: 107.5mm x 85mm

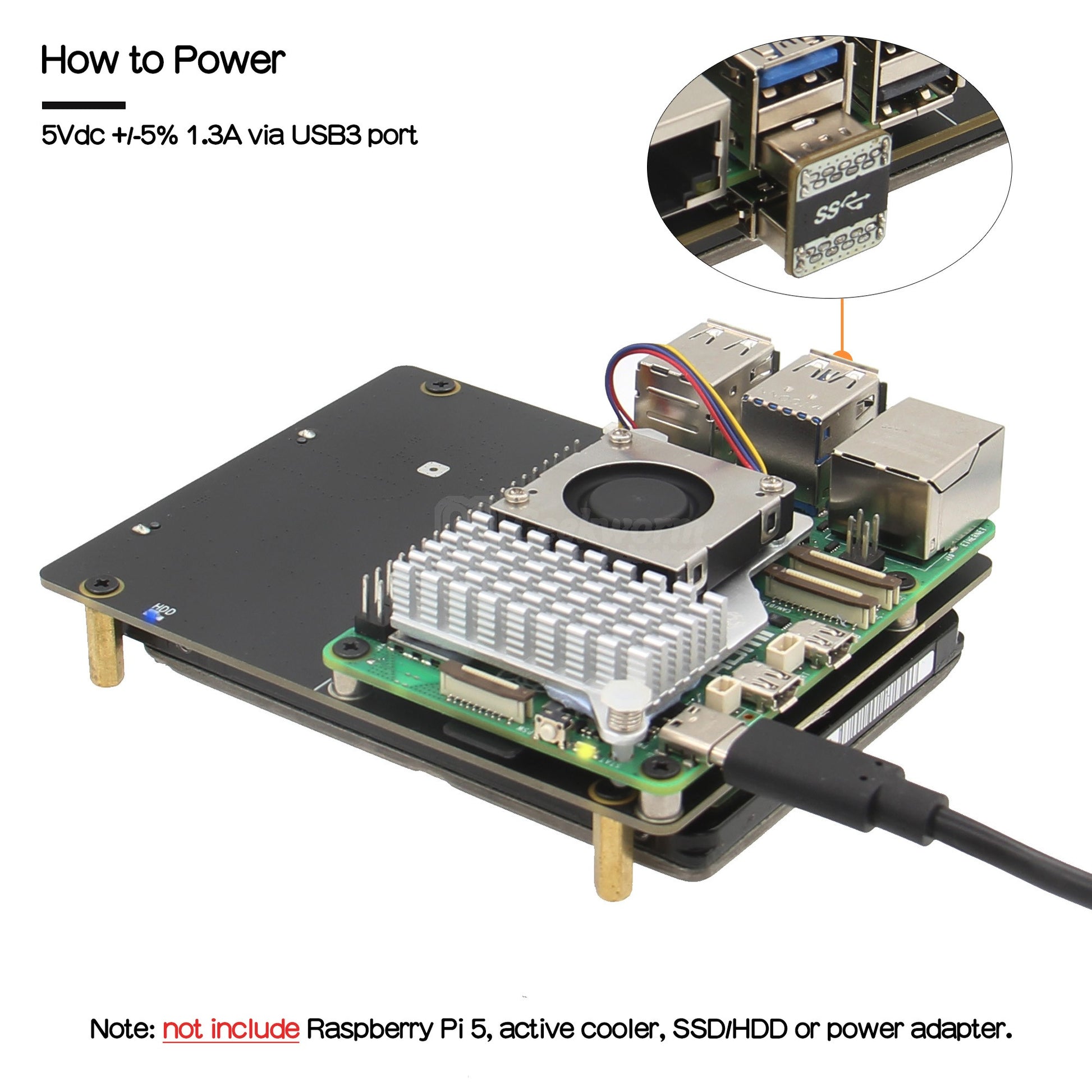

How to Power

• Power supply: 5Vdc +/-5% 1.3A via USB3 port  (Don't need extra power adapter. Use the power adapter for Raspberry Pi 5.)

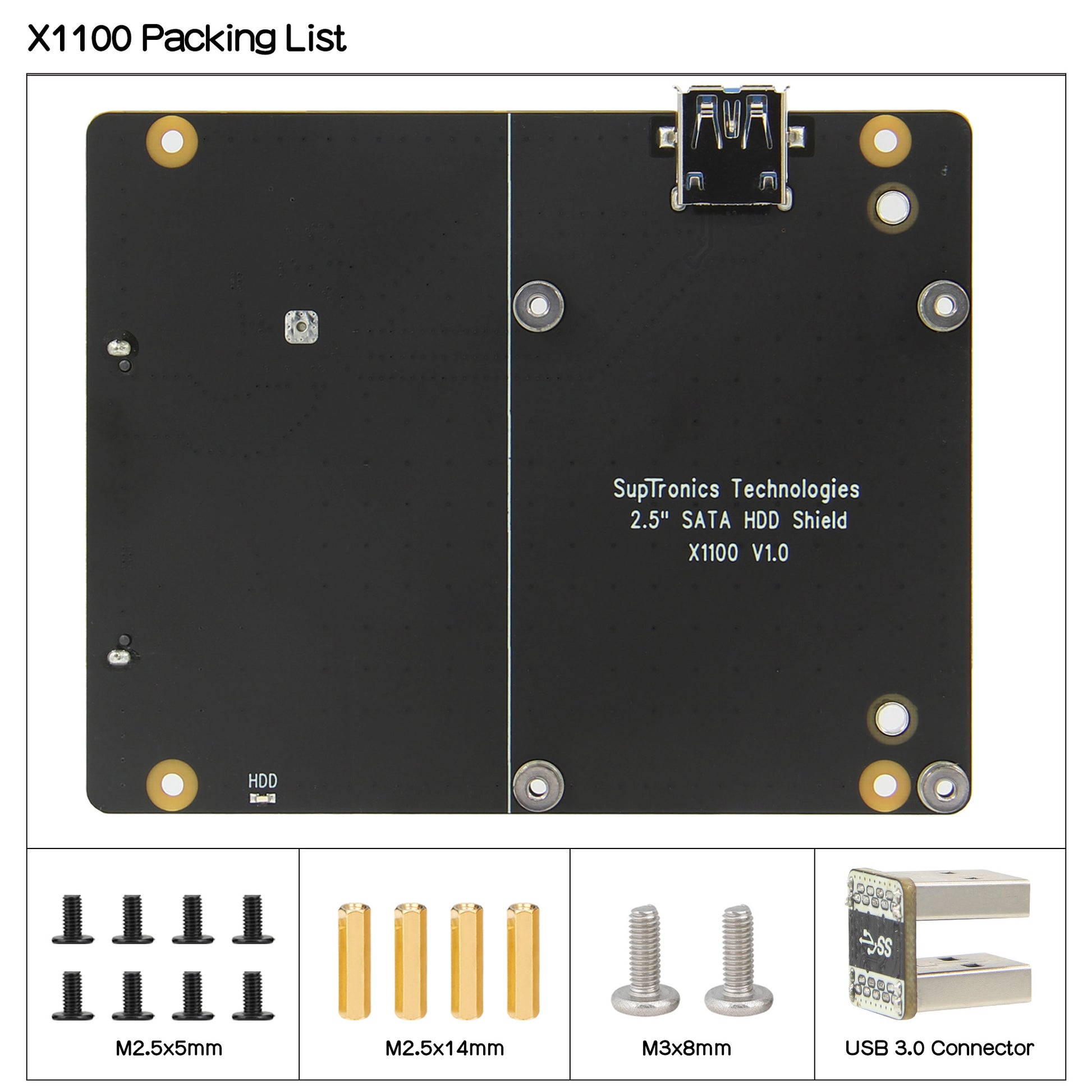

Packing List

• 1 x X1100 V1.0 2.5" SATA HDD/SSD Shield
• 1 x Screw pack
