Geekworm X1006 PCIe to 2.5" SATA HDD+M.2 SATA 2280 SSD Shield for Raspberry Pi 5 (NOT Support Boot from SSD)

Regular price
$42.00
Regular price
Sale price
$42.00
Only 28 items in stock! Out of stock!
  • Description
  • Manual
  • PCIe to Sata Shields
  • Shipping Policy
  • Reviews

Note:

  • The X1006 is designed for data storage purposes and does not support booting from HDD/SSD with the existing firmware currently.
  • Not compatible with M.2 NVMe SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-SATA devices
  • Older SATA drives with less efficient flash media may not perform as well as newer drives
  • New SATA HDDs/SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.
  • The Raspberry Pi 5 board, SSD/HDD, active cooler or power adapter is not included in the packing list.

Overview

X1006 PCIe to 2 ports SATA HDD/SSD expansion board is designed to provide a mass-capacity storage and high-speed storage solution for Raspberry Pi 5. This board facilitates the simultaneous connection of a SATA 2.5-inch HDD and a SATA M.2 KEY-B 2280 SSD, unleashing the full potential of your storage capabilities, with SATA 3.0 interface speeds reaching up to 5Gbps.

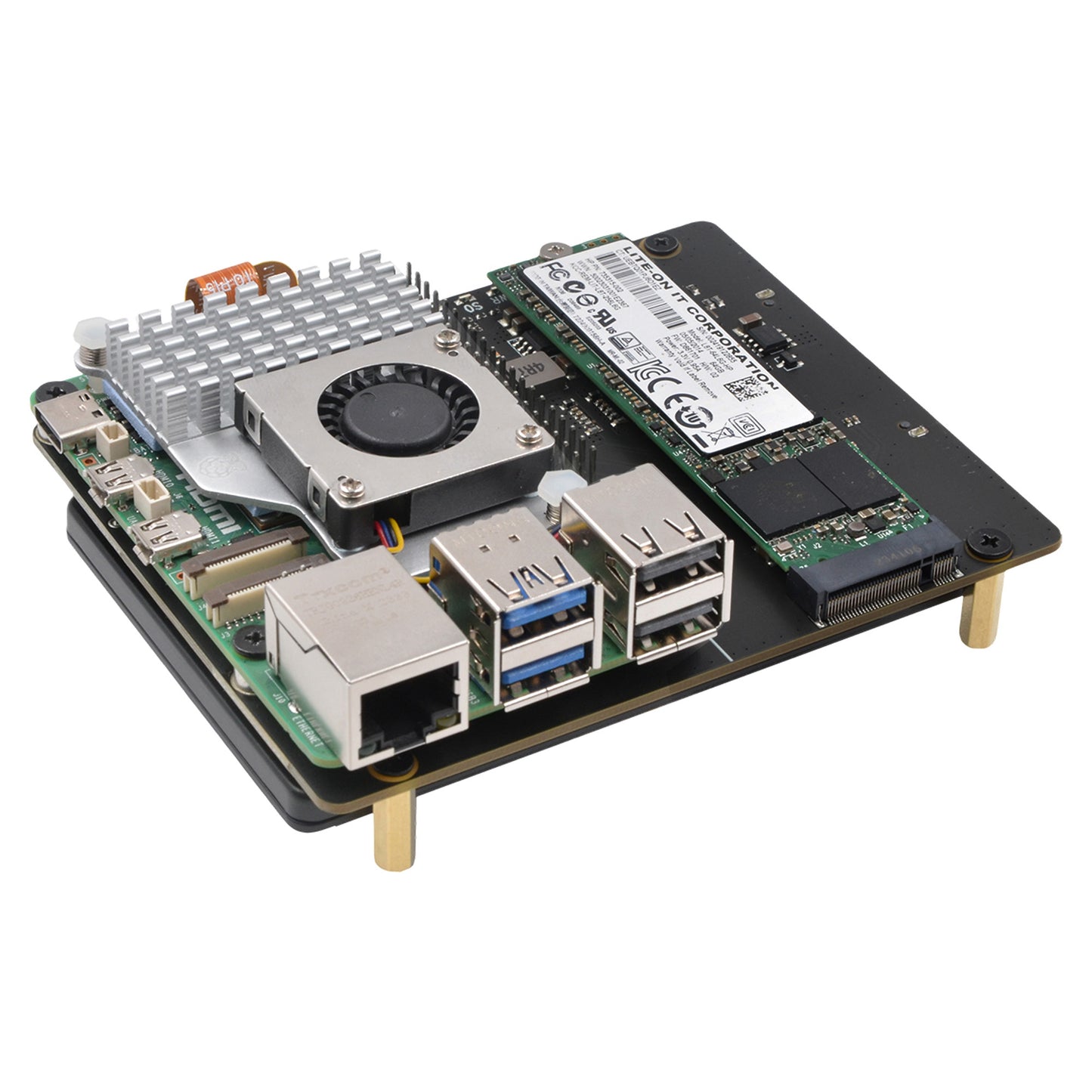

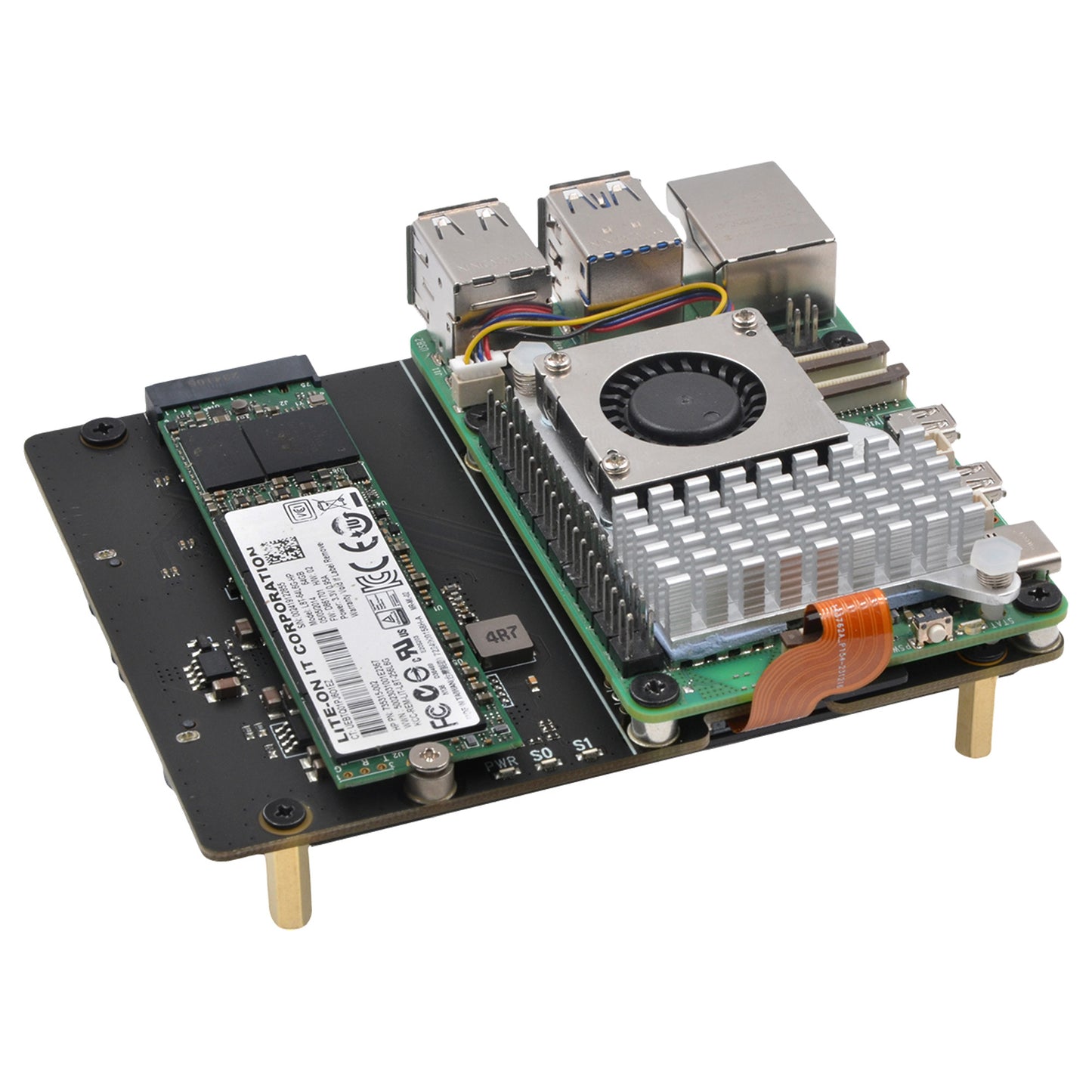

The X1006 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favorite HATs while also utilizing this expansion board. Additionally, the X1006 and your HDDs can be powered from Raspberry Pi5 via pogo pins, streamlining the power supply to a single source.

The X1006 serves as the perfect storage solution for establishing a home media center or constructing a network-attached storage (NAS) system. It empowers you to store and stream your personal collection of videos, music, and digital photos within the confines of your home or remotely from anywhere around the globe.

User Manual: https://wiki.geekworm.com/X1006

Features

  • Compatible with Raspberry Pi 5 only

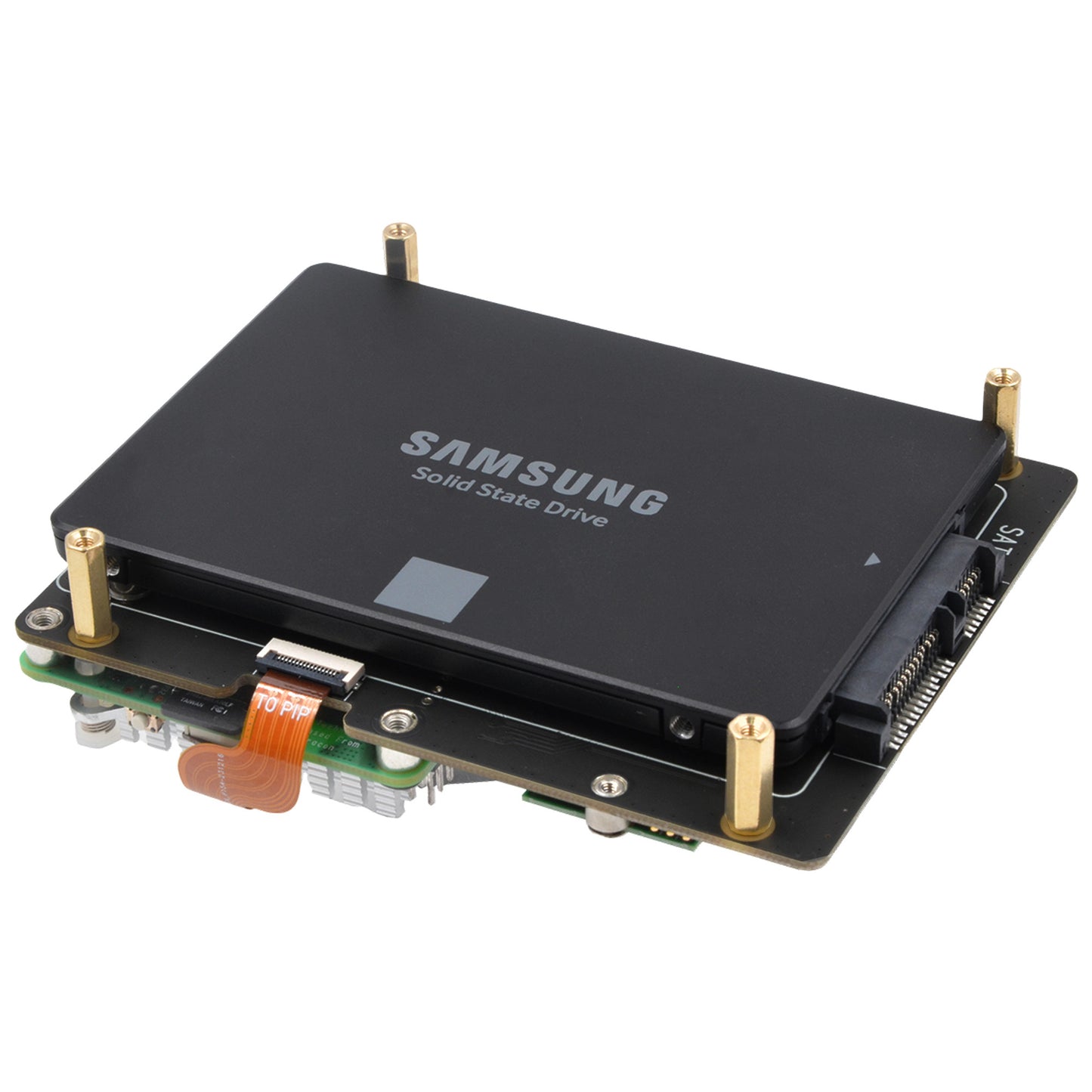

  • Supports the connection of a 2.5-inch SATA HDD and a M.2 2280 SATA SSD to your Raspberry Pi 5 simultaneously
  • Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
  • Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
  • Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
  • Compatible with SATA 6G, 3G, and 1.5G hard drives
  • Features plug-and-play installation for ease of setup

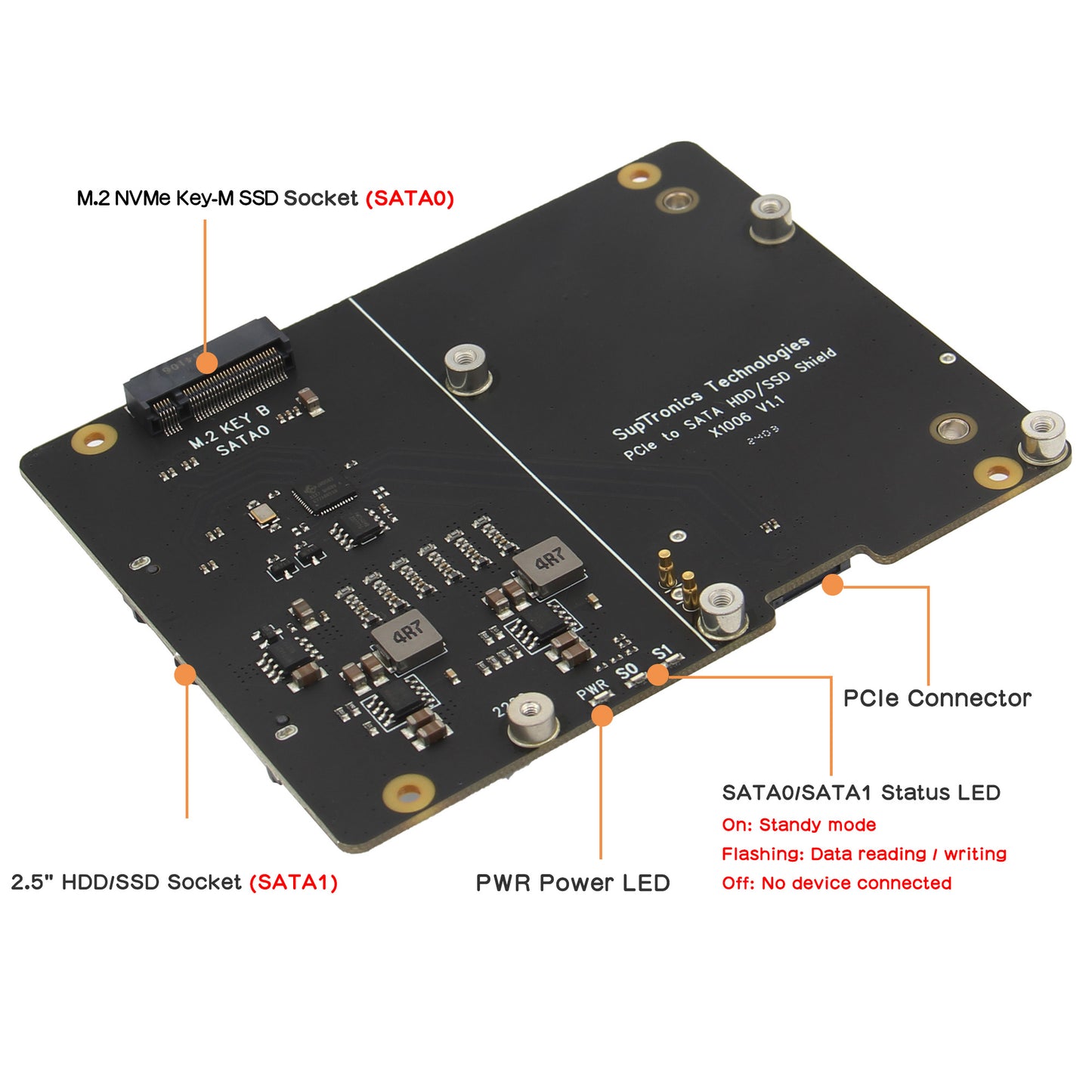

  • LED indicators display power and drive status
  • Powered from Raspberry Pi5 via pogo pin, streamlining the power supply to a single source
  • Compatible with the official Raspberry Pi 5 active cooler or Argon THRML 30mm Active Cooler or third party cooler without affecting cooling performance
  • Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

Technical Specification

  • Power supply: 5dc +/-5% ≥3A via FFC & pogo pins
  • PCIe FFC cable length: 37mm
  • PCB Size: 107.5mm x 87mm
  • Ports & Connectors:
  • PCIe connector x1 - 16-pin pitch0.5mm

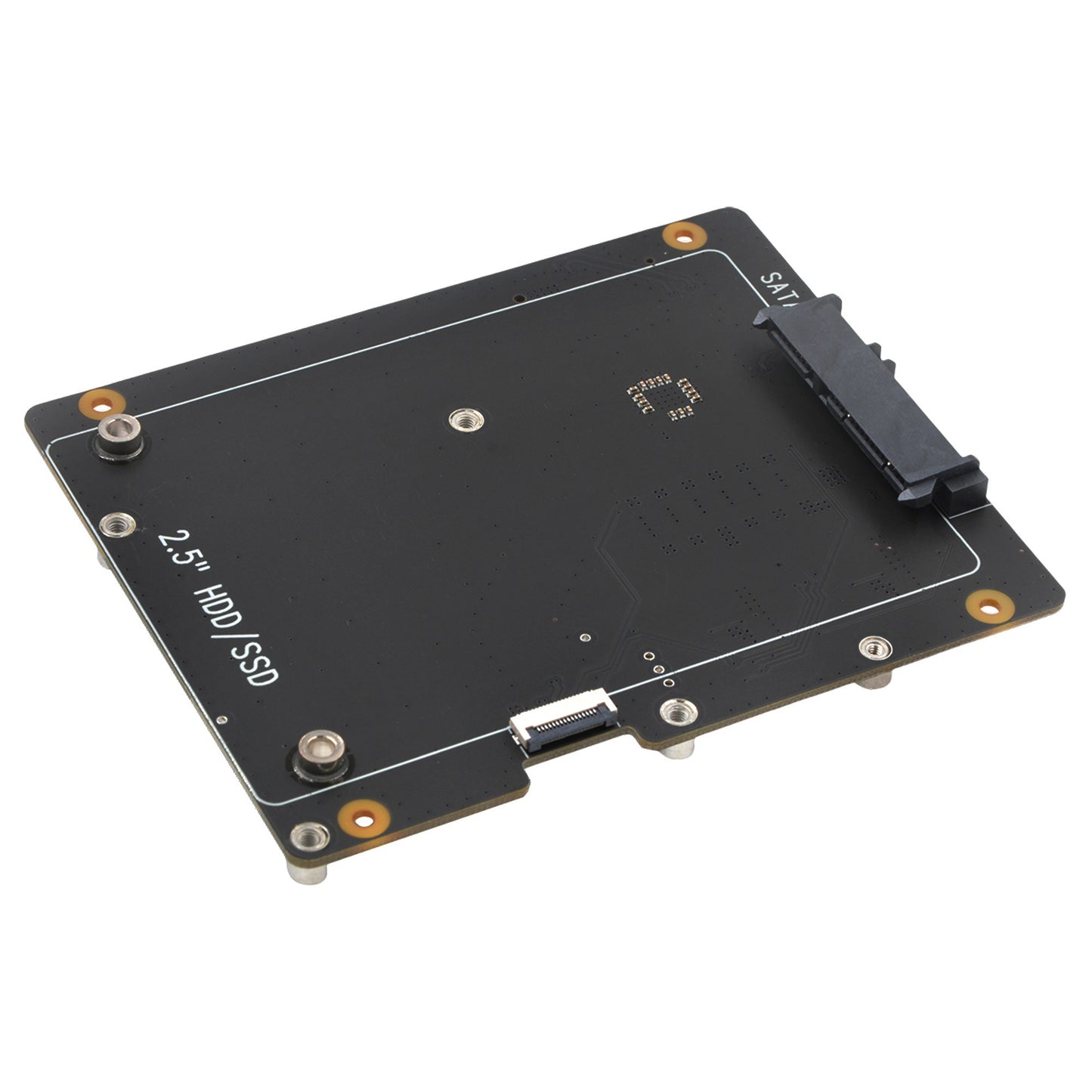

  • SATA 2.5" HDD/SSD connector x1 - 7+15P

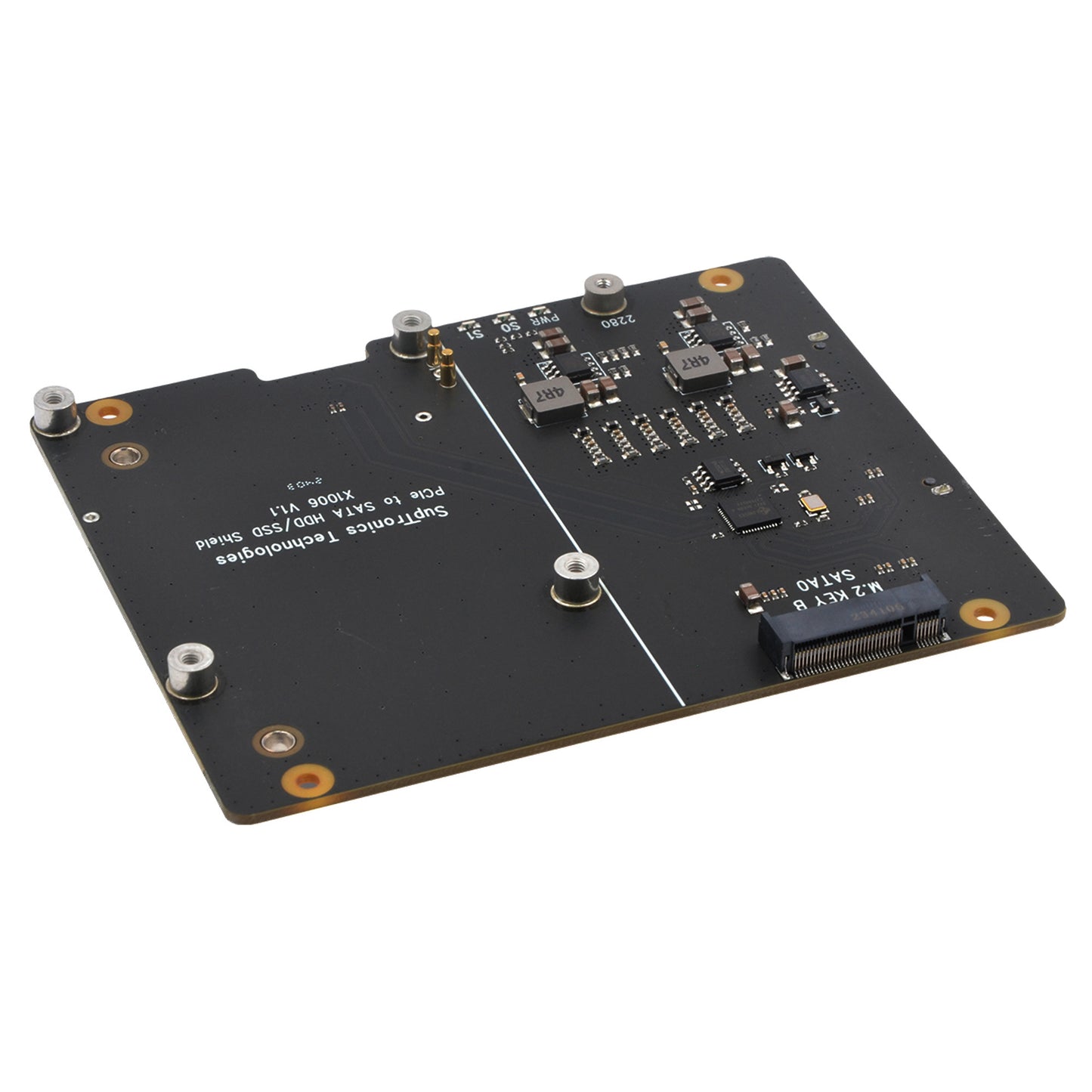

  • SATA M.2 2280 SSD connector x1 - 64P KEY-B

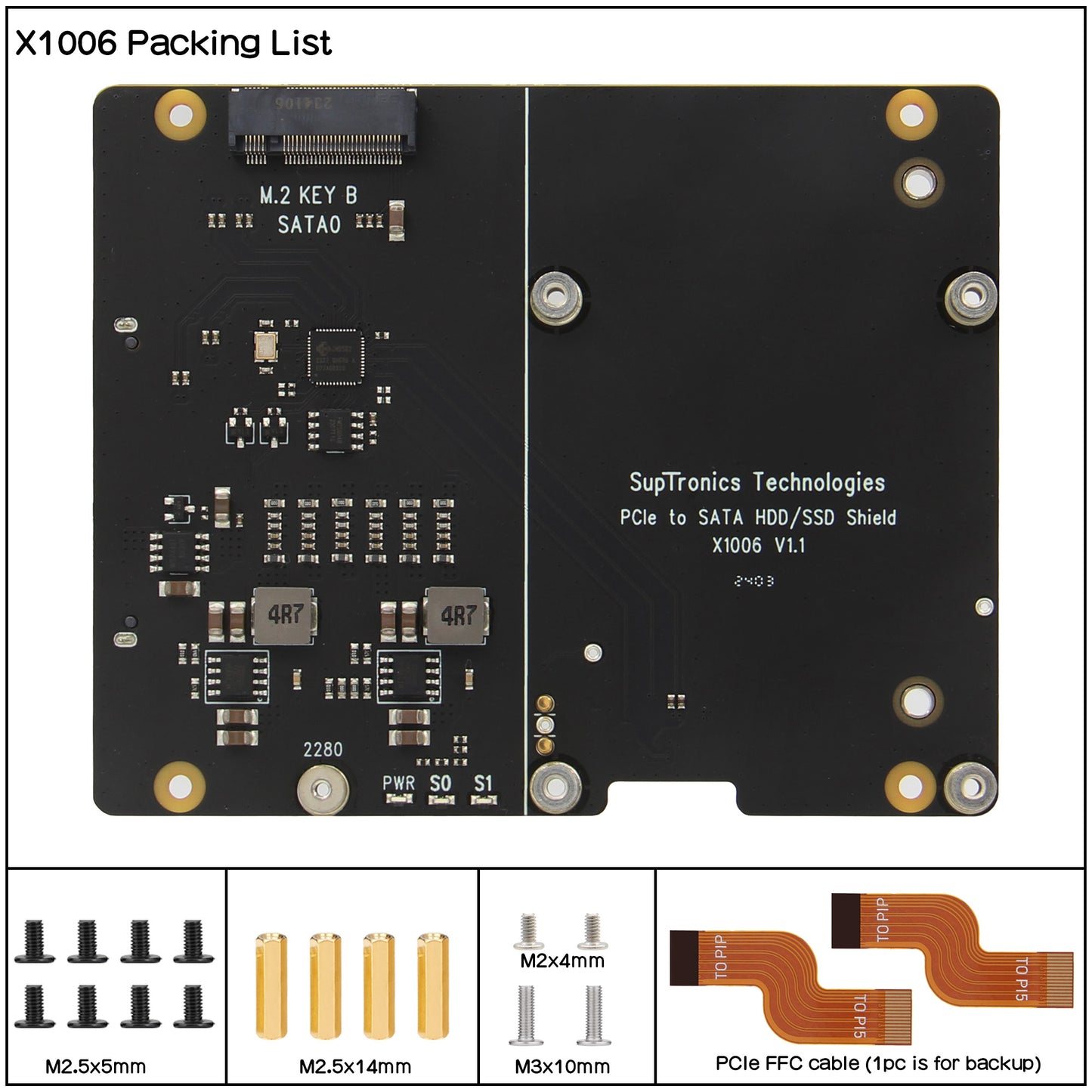

Packing List

  • 1x X1006 Expansion Board
  • 1x PCIe FFC Cable 37mm
  • 1x Screws pack

Refer to: https://wiki.geekworm.com/X1006

Please email to us at info@geekworm.com if you have other questions.

PCIe to SATA HDD/SSD Shield:

Product Model Features Supported HDDs / SSDS Mounting Position Support booting from HDD/SSD Matching Case
X1006
  • PCIe to SATA HDD/SSD shield
  • Supports M.2 2280 +2.5" SSD/HDD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 4TB HDD
  • SATA 6Gb/s Bridge controller
  • 1 piece of 2.5" SATA SSD/HDD
  • 1 piece of M.2 SATA Key-B 2280 SSD
Bottom NO None
X1007
  • PCIe to SATA HDD/SSD shield
  • Supports dual SATA HDD/SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 5TB HDDs
  • SATA 6Gb/s Bridge controller
  • Dual SATA 2.5" HDD / SSD
Bottom NO None
X1008
  • PCIe to SATA HDD/SSD shield
  • Supports 2.5"+3.5" HDD/SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 16TB HDD
  • SATA 6Gb/s Bridge controller
  • 1 piece of 2.5" SATA HDD / SSD
  • 1 piece of 3.5" SATA HDD Shield
Bottom NO None
X1009
  • PCIe to 5-port SATA3.0 shield
  • Supports up to 5 SATA devices
  • Supports PCIe 2.0 up to 5Gbps
  • Complies with SATA Rev3.2
  • Powers SATA devices & RPi5
  • User defined
  • Up to 5 piece of  2.5/3.5 sata HDDs / SSDs
Top NO None



USB3.0 to SATA HDD/SSD Shield:

Product Model Features Supported HDDS / SSDS Mounting Position Support booting from HDD/SSD Matching Case
X1100
  • USB3.0 to SATA HDD/SSD shield
  • Supports up to 5TB HDD/SSD
  • Transfer speeds up to 5Gbps
  • Read/Write over 300MB/s
  • Supports USB booting
  • 1 piece of 2.5" SATA SSD / HDD
Bottom Yes X1100-C1
