Geekworm X1509 PCIe 3.0 to 8-Port SATA NAS Carrier Board for Raspberry Pi Compute Module 5 (CM5)

$89.90
$89.90
Only 10 items in stock! Out of stock!
  • Description
  • Manual
  • CM5 IO Carrier Boards
  • Shipping Policy
  • Reviews

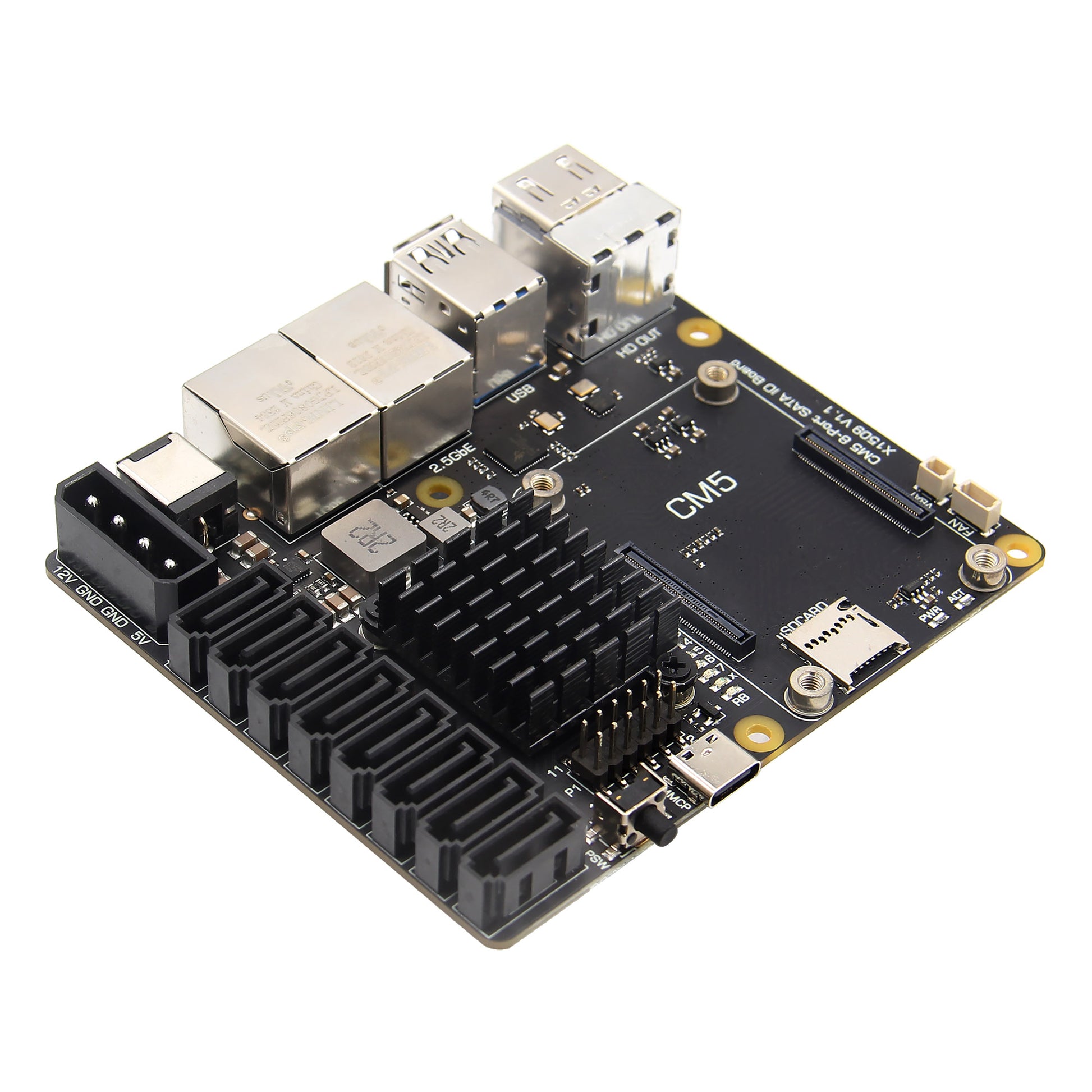

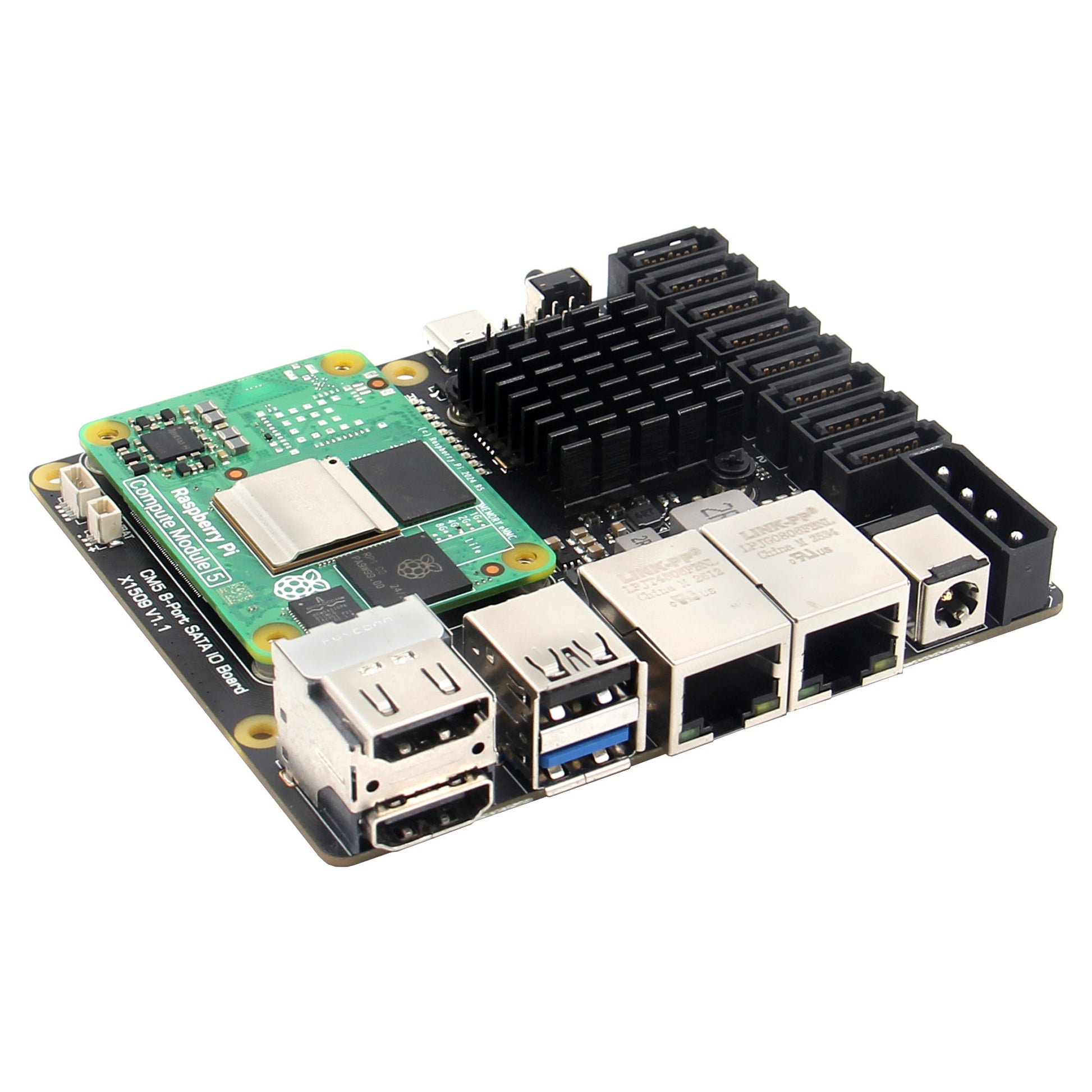

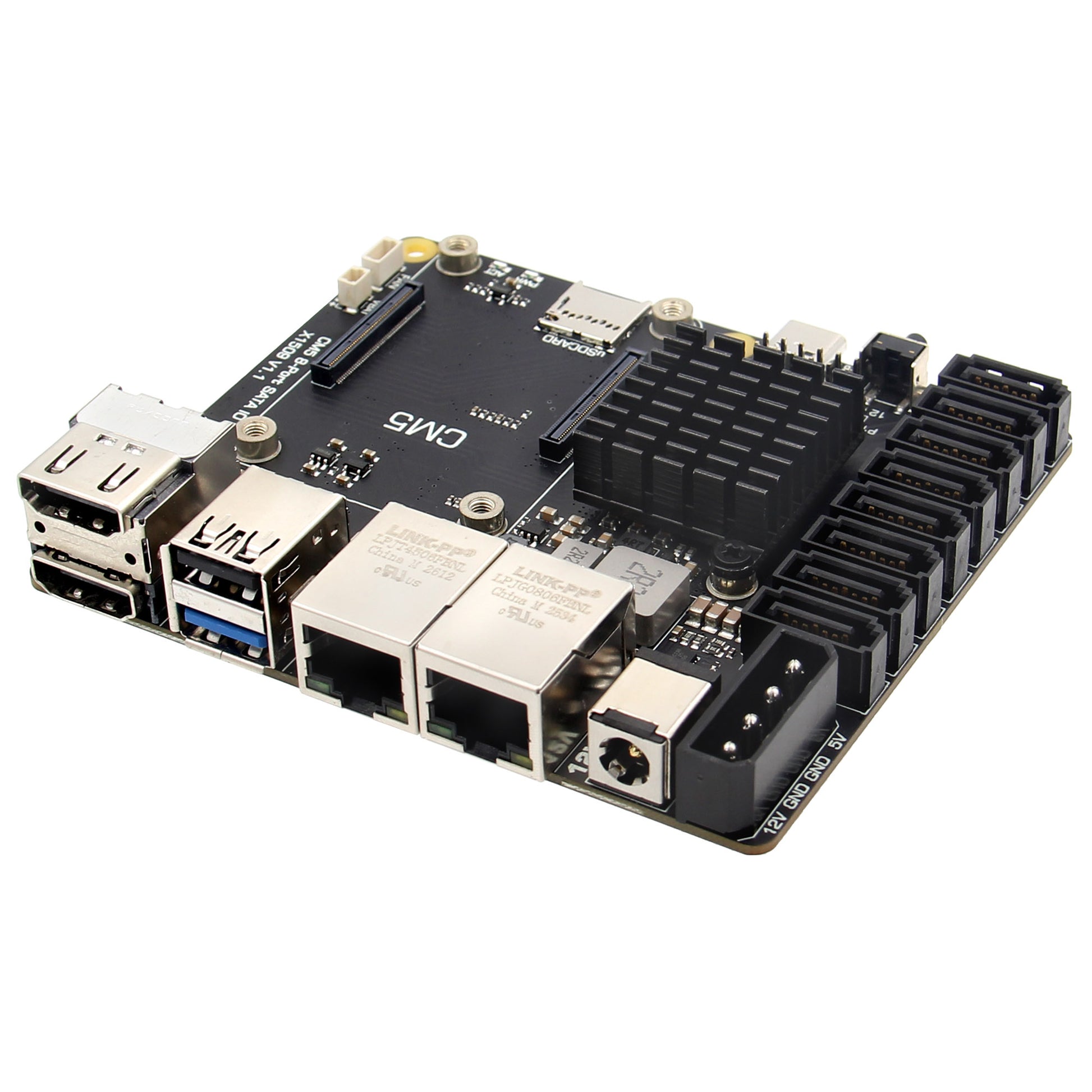

Overview

The X1509 is a purpose-built, high-performance carrier board designed exclusively for the Raspberry Pi Compute Module 5 (CM5). By combining dual Ethernet ports (1GbE + 2.5GbE), 8 SATA 3.0 ports, and versatile multimedia peripherals into a compact form factor, it delivers a premium, high-capacity, high-speed storage upgrade for your CM5.

Power management is seamless. The board features dual 12V power input options: a standard DC jack or a 4-pin ATX power connector. Built-in intelligent load switches automatically power off connected SATA devices when the system shuts down, while high-efficiency step-down converters offer a stable 5V/12A output. A single power supply is all you need to effortlessly run your RPi CM5 and all 8 connected SATA drives.

Whether you are building a home media center, a personal NAS, or a high-capacity CCTV video storage server, the X1509 is the ultimate choice for securing, managing, and streaming your data locally or remotely.

The X1509 is designed for data storage purposes and does not currently support booting from HDD/SSD with the existing firmware.

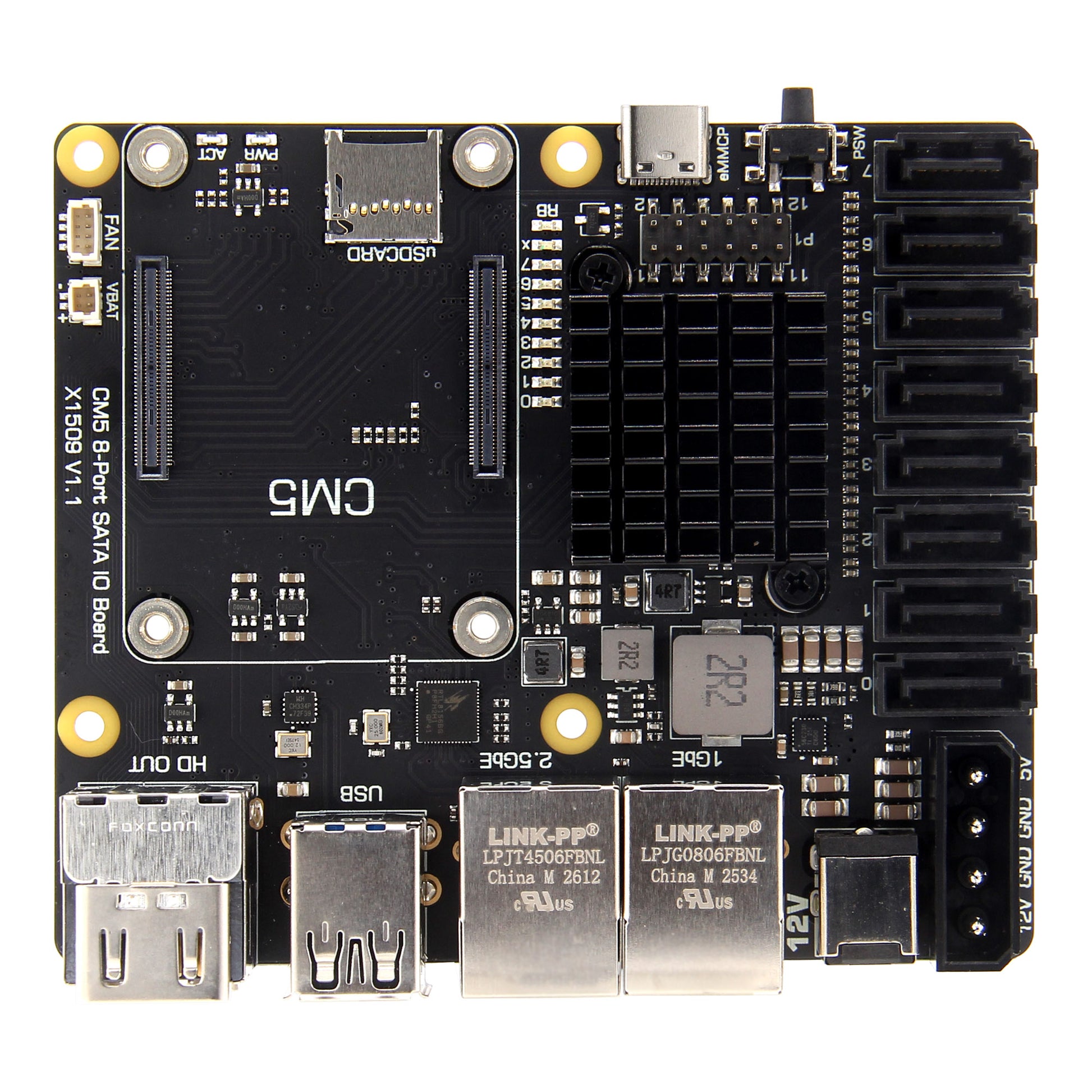

Key Features

🚀 High-Speed Storage & Mass Capacity

  • 8 x SATA 3.0 Ports: Connect up to eight SATA devices simultaneously to your Raspberry Pi CM5.
  • Massive Storage Capacity: Supports up to 176TB of total storage (up to 22TB per drive).
  • Wide Compatibility: Fully compatible with SATA 6G, 3G, and 1.5G hard drives (HDD) and solid-state drives (SSD).
  • Multi-Speed Support: Supports communication speeds of 5.0, 3.0, and 1.5 Gbit/s.
  • Plug & Play Setup: Easy installation with onboard LED indicators for real-time drive status monitoring.

🌐 Advanced Networking & Peripherals

  • Dual Ethernet Ports: Equipped with 1x 1GbE and 1x 2.5GbE port (up to 2500Mbps) for ultra-fast network performance and seamless NAS streaming.
  • Dual HDMI 2.0: Enables dual 4K display output, making it perfect for multimedia centers or digital signage.
  • Dual MIPI DSI/CSI-2 Connectors: Features 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI camera and DSI display modules.
  • MicroSD Card Slot: Onboard slot to support Raspberry Pi CM 5 Lite variants (without onboard eMMC).

⚡ Smart Power & Cable Management

  • Flexible Power Input: Accepts 12V power via a standard DC jack or a 4-pin ATX power connector.
  • Unified Power Delivery: Integrated high-efficiency DC/DC converter delivers up to 12A, powering both the CM5 and all SATA drives from a single power source.
  • Automatic Drive Power Cut-off: Smart load switches cut power to SATA devices when the CM5 shuts down (Note: Supported via DC Jack only; not supported via ATX 4-pin).
  • Streamlined Layout: USB, HDMI, Ethernet, and power ports are neatly grouped along one edge for clean cable management and easy enclosure integration.
  • SATA Power Splitter Included: Comes bundled with a dedicated power SATA splitter cable to easily connect up to 8 drives.

🛠️ DIY & System Friendly

  • Functional Header: Includes I/O ports, external power button header, and a 12V PWM fan header—ideal for DIY cases and custom cooling setups.
  • OS Compatibility: Thoroughly tested and fully supported on Raspberry Pi OS (64-bit) and OpenMediaVault (OMV).

Power Requirements & Safety Guide

⚠️ IMPORTANT POWER SAFETY WARNINGS:

  • Single Source Only: Only ONE power source should be connected at any given time (do not use the DC Jack and 4-pin ATX connector simultaneously).
  • Voltage Limit: Strict 12Vdc ± 5% input. Over-voltage Will permanently damage your connected HDDs/SSDs!
  • Automatic Drive Power Cut-off: Supported with DC jack power input only. Not available when using ATX 4-pin connector.
Parameter Requirement
Power Input Voltage 12Vdc ± 5%
Input Ripple & Noise 200mVp-p Max

⚡ Recommended Power Supply Configurations:

Via Onboard DC Jack:
  • Up to 8 x 2.5" SATA HDD/SSD: Requires a 12V 10A power adapter
  • Up to 4 x 3.5" SATA HDD: Requires a 12V 10A power adapter
Via 4-pin ATX Power Connector:
  • Full 8-Drive Configuration: Requires a 12V 20A power source

Technical Specifications

Feature Specification
Compatibility All Raspberry Pi Compute Module 5 (CM5) variants
Storage Interface 8x SATA 3.0 Ports (up to 176TB total, 22TB/drive)
Networking 1x 2.5GbE RJ45 Port + 1x 1GbE RJ45 Port
Video Output 2x HDMI 2.0 (Up to 4K display)
Camera/Display 2x 22-pin MIPI CSI/DSI interfaces (0.5mm pitch)
Power Input 12V DC Jack or 4-pin ATX Connector
Power Output 5V DC up to 12A (Unified step-down converter)
Supported OS Raspberry Pi OS (64-bit), OpenMediaVault (OMV)

Packing List

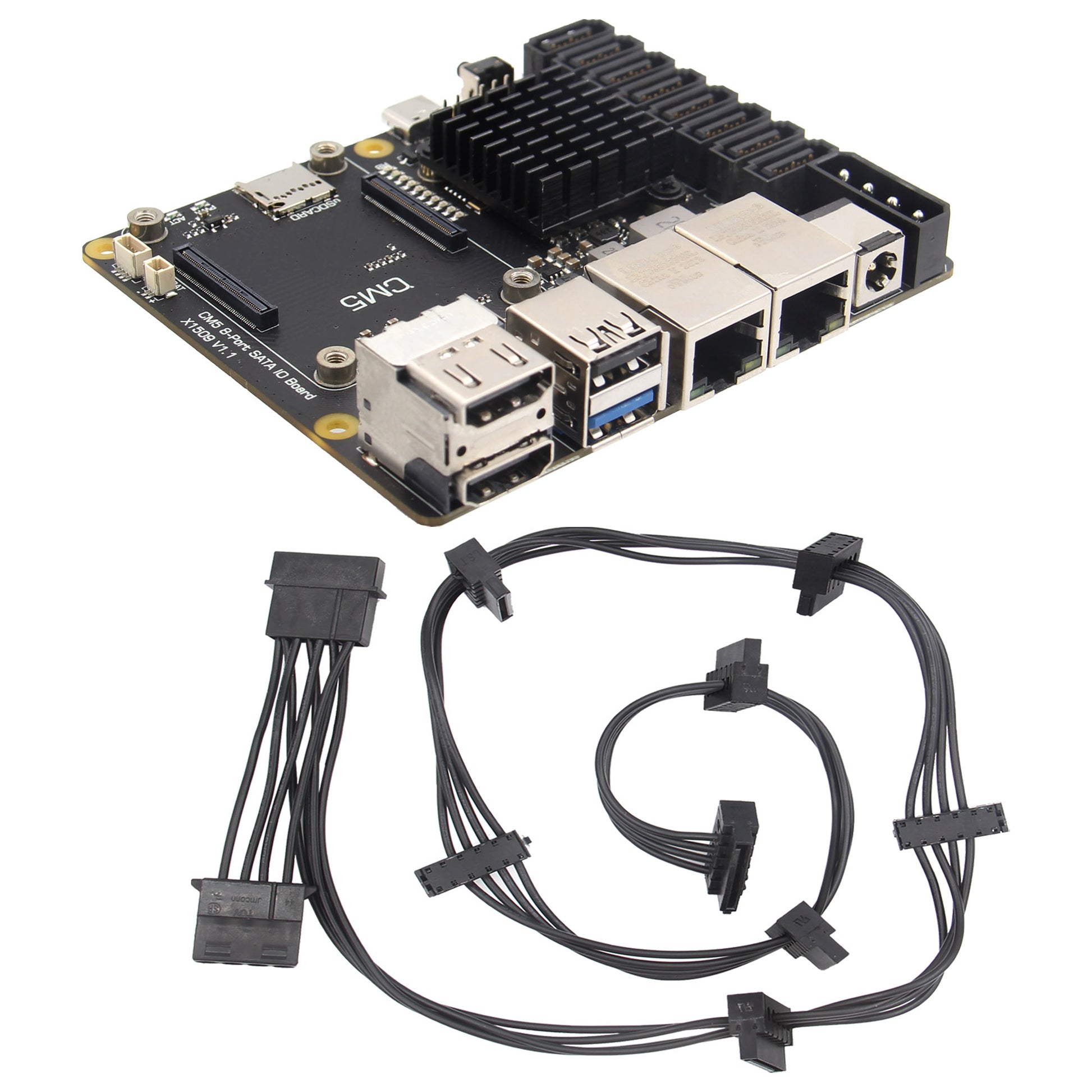

  • 1 x X1509 V1.1 CM5 8-Port SATA IO Board
  • 1 x SATA Power Splitter Cable
  • Note: The Raspberry Pi CM5, SATA hard drives, fan, and power adapters are not included.

Refer to: https://wiki.geekworm.com/X1509

Please email to us at info@geekworm.com if you have other questions.

The Geekworm CM5 IO Carrier Board is an innovative solution designed to enhance the functionality of the Raspberry Pi CM5 module. This carrier board provides a robust platform for developers and enthusiasts to build and prototype various applications, leveraging the power of the Raspberry Pi ecosystem.

One of the key features of the CM5 IO Carrier Board is its extensive I/O capabilities. It includes multiple GPIO pins, USB ports, and interfaces for connecting various peripherals. This allows users to easily integrate sensors, displays, and other devices into their projects. The board is designed to support a wide range of applications, from home automation systems to robotics and IoT devices.

In terms of connectivity, the CM5 IO Carrier Board offers options such as Ethernet and Wi-Fi, enabling seamless communication with other devices and networks. This is particularly important for applications that require real-time data transmission or remote monitoring capabilities. The board's design also ensures compatibility with various Raspberry Pi models, making it a versatile choice for developers.

Heat management is another critical aspect of the CM5 IO Carrier Board. Given that the Raspberry Pi can generate significant heat during operation, some model are equipped with provisions for heat dissipation. This is essential for maintaining optimal performance and longevity of the components. Users can utilize high-quality aluminum alloy heatsinks, such as those offered by Geekworm, to further enhance thermal management.

Moreover, the CM5 IO Carrier Board is built with durability in mind. It features a robust construction that can withstand the rigors of prototyping and development. This ensures that users can rely on the board for extended periods without concerns about wear and tear.

For developers looking to customize their projects, the CM5 IO Carrier Board provides ample opportunities for expansion. The board's design allows for easy integration of additional modules and components, enabling users to tailor their setups to meet specific requirements. This flexibility is a significant advantage for those working on innovative solutions in various fields.

In conclusion, the Geekworm CM5 IO Carrier Board is a powerful tool for anyone looking to harness the capabilities of the Raspberry Pi CM5 module. With its extensive I/O options, connectivity features, and robust design, it serves as an excellent foundation for a wide range of projects. Whether you are a hobbyist or a professional developer, this carrier board can significantly enhance your development experience.

Features X1500 X1501 X1502 X1507
Compatible with Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5
Ethernet Port 1GbE Ethernet Port x 1 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1
USB-C Power In Port ✔ ✔ ✔ ✔
USB-A Ports 2 x USB2.0 Type-A,
2 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 2 x USB2.0 Type-A,
2 x USB3.0 Type-A
HDMI 2.0 Ports 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0
M.2 NVMe Key-M Slot Dual
2230/2242/2260/2280		 Dual
2230/2242/2260/2280		 Four
2230/2242/2260/2280		 Dual
2230/2242
Dual MIPI DSI/CSI-2 Connectors ✔ ✔ ✔ ✔
MicroSD Card Slot ✔ ✔ ✔ ✔
Power Button ✔ ✔ ✔ ✔
RTC Battery Socket ✔ Require CR1220 ✔ Require CR1220 ✔ Require CR2032 ✔ with a RTC Battery Connector, Require CR1220 and battery holder
4Pin PWM Fan Port ✔ ✔ ✔ ✔
Support Hailo-8 AI Accelerator ✔ ✔ ❌ ✔
PoE header ✔ ✔ ❌ ✔
40pin GPIO header ✔ ✔ ✔ ✔
12pin Configurable header J2 ✔ ✔ ✔ ✔
Jumper setting for CAM/DISP1 J6 ✔ ✔ ✔ ✔
PoE HAT support Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT
Matching Case X1500-C1 / X15-C1 X1500-C1 / X15-C1 X1502-C1 X1507-C1 coming soon
Matching Cooler C519 C519 C519 Equipped with a passive cooler
