X15-F1 8010 PWM-controlled Cooling Fan for X1500/X1501/X1502

Note:

1. The 40-pin GPIO header of the X15xx board is no longer accessible after the X15-F1 fan is installed.

2. The X15-F1 fan is not compatible with the current X1500-C1 case and cannot be installed inside it.


Overview

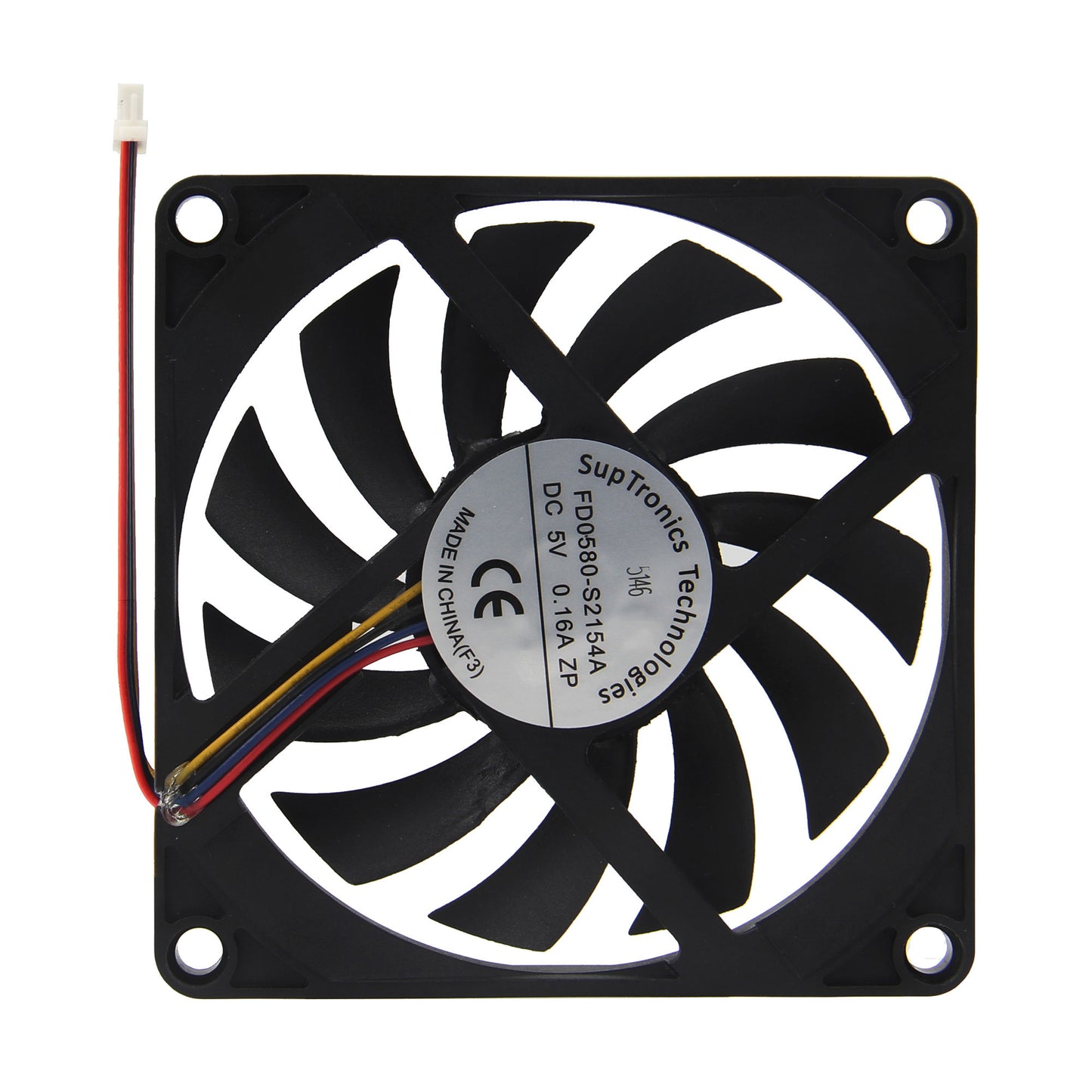

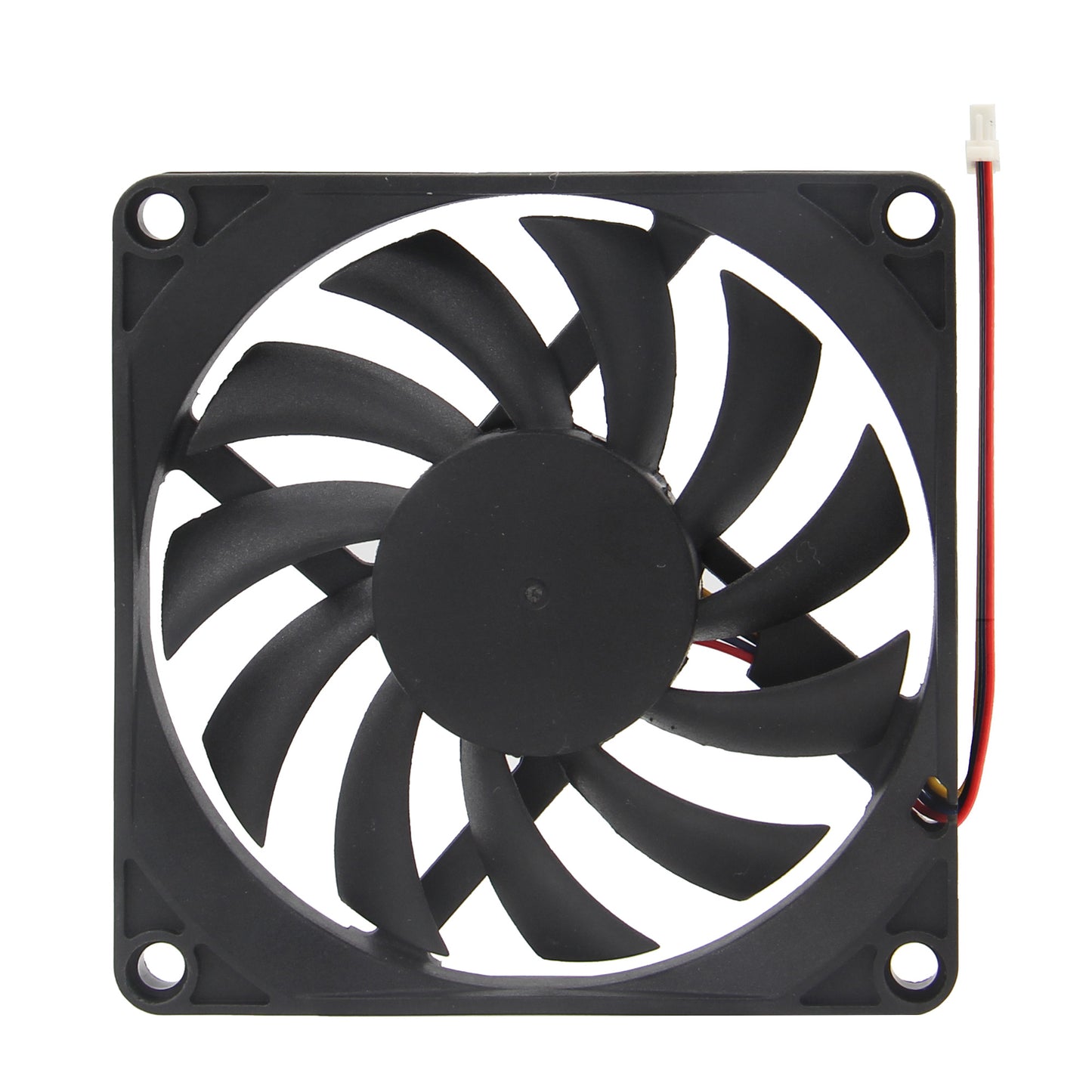

The X15-F1 is an advanced active cooling module specifically designed for X15xx-series CM5 I/O boards while maintaining full compatibility with existing Raspberry Pi cooling solutions. It integrates an 80×80mm PWM-programmable fan delivering adjustable airflow up to 19.68 CFM (0.56 m³/min), ensuring optimal thermal performance for Compute Module 5 systems under sustained high-load conditions – ideal for overclockers, industrial users, and performance enthusiasts, it maintains optimal operating temperatures for Compute Module 5 systems even under maximum load conditions.

Features

• Excellent cooling performance: 80×80mm PWM-controlled fan with 19.68 CFM max airflow, 8x greater airflow than the Raspberry Pi IO case fan, Real-time speed adjustment for dynamic thermal management.

• Easy installation: Dedicated fan bracket board that enables seamless installation above the I/O boards, Zero-interference design with Raspberry Pi heatsinks/coolers.

• Industrial-Grade Reliability: Stable operation under continuous full load, Vibration-resistant mounting system.
• Compatible with X1500/X1501/X1502/X1503/X1505

Technical Specifications

• Operating voltage: 5V DC (4.5 – 5.5V) supplied via four-pin fan header on a carrier board

• Start voltage: ≥ 3.5V

• Power consumption: 0.8W

• Rated current: 0.16 ± 0.02A

• Fan speed control: Pulse width modulation control with tachometer

• Maximum fan speed: 2500 RPM ± 10%

• Maximum airflow: 19.68 CFM

• Noise: 26.3 dBA

• Dimensions: 80×80×10mm (L×W×H)

• Cable length: 70 mm
• Pinout:

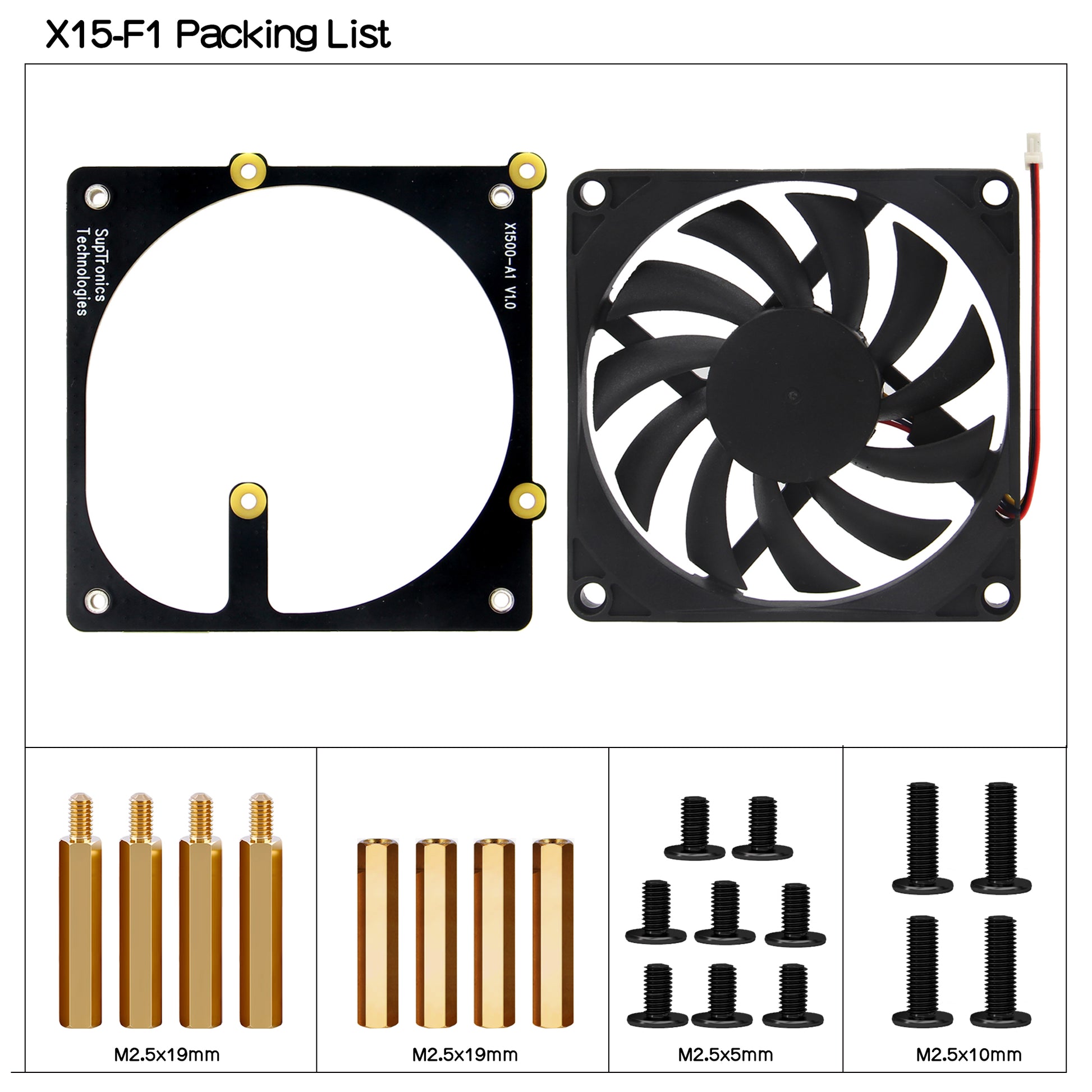

Packing List

• 1x 8010 PWM fan

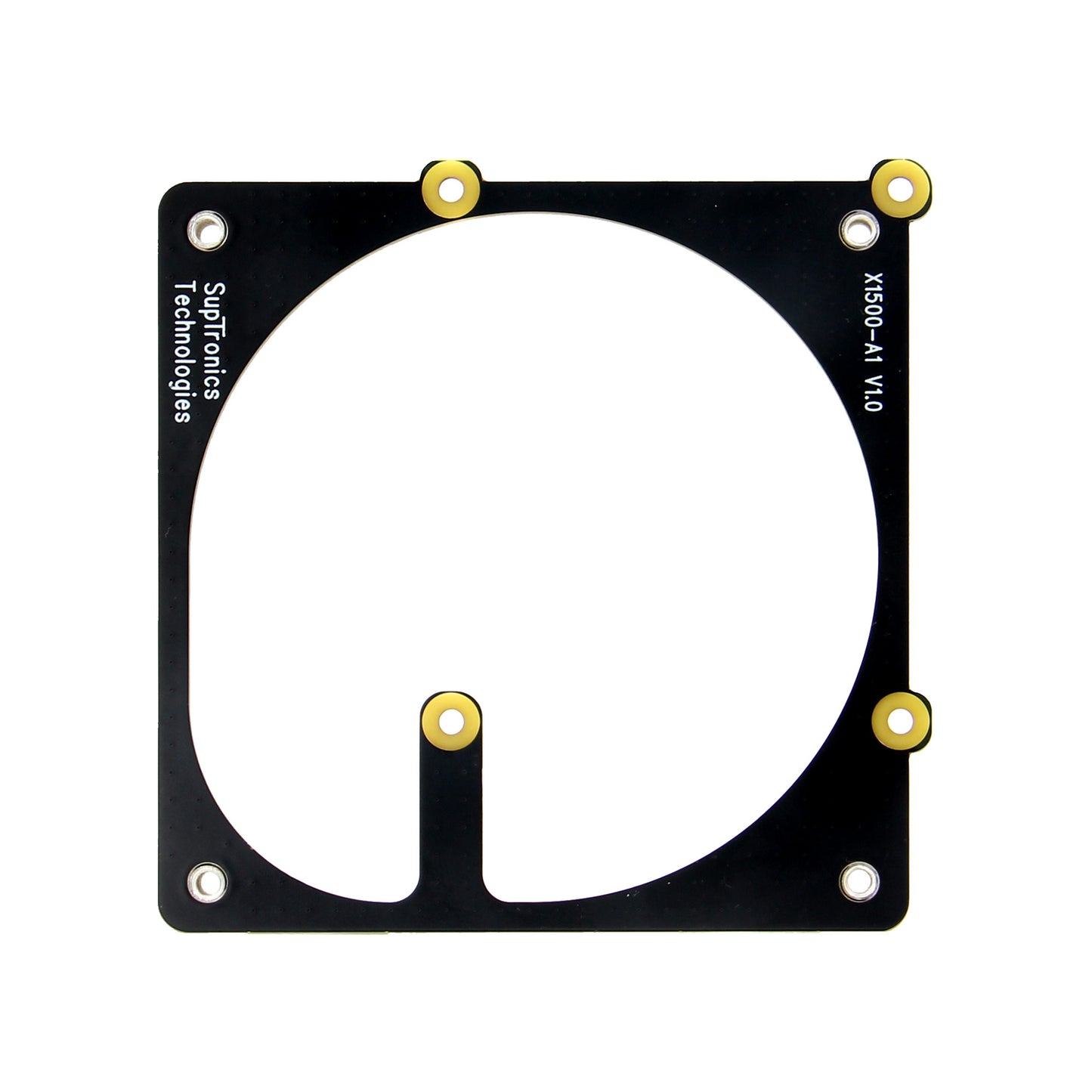

• 1x Fan PCB bracket

• 1x screw pack
