Geekworm Q200 PCIe to Dual 2280 NVMe SSD shield for Raspberry Pi 5(NOT support BOOT from NVME SSD)

Regular price
$32.00
Regular price
Sale price
$32.00
Only 8 items in stock! Out of stock!
  • Description
  • Manual
  • PIPs
  • Shipping Policy
  • Reviews

This is just a dual NVME SSD NAS solution. DOES NOT support NVMe boot with the existing firmware, DON'T buy if you want boot Pi 5 from NVME ssd now.

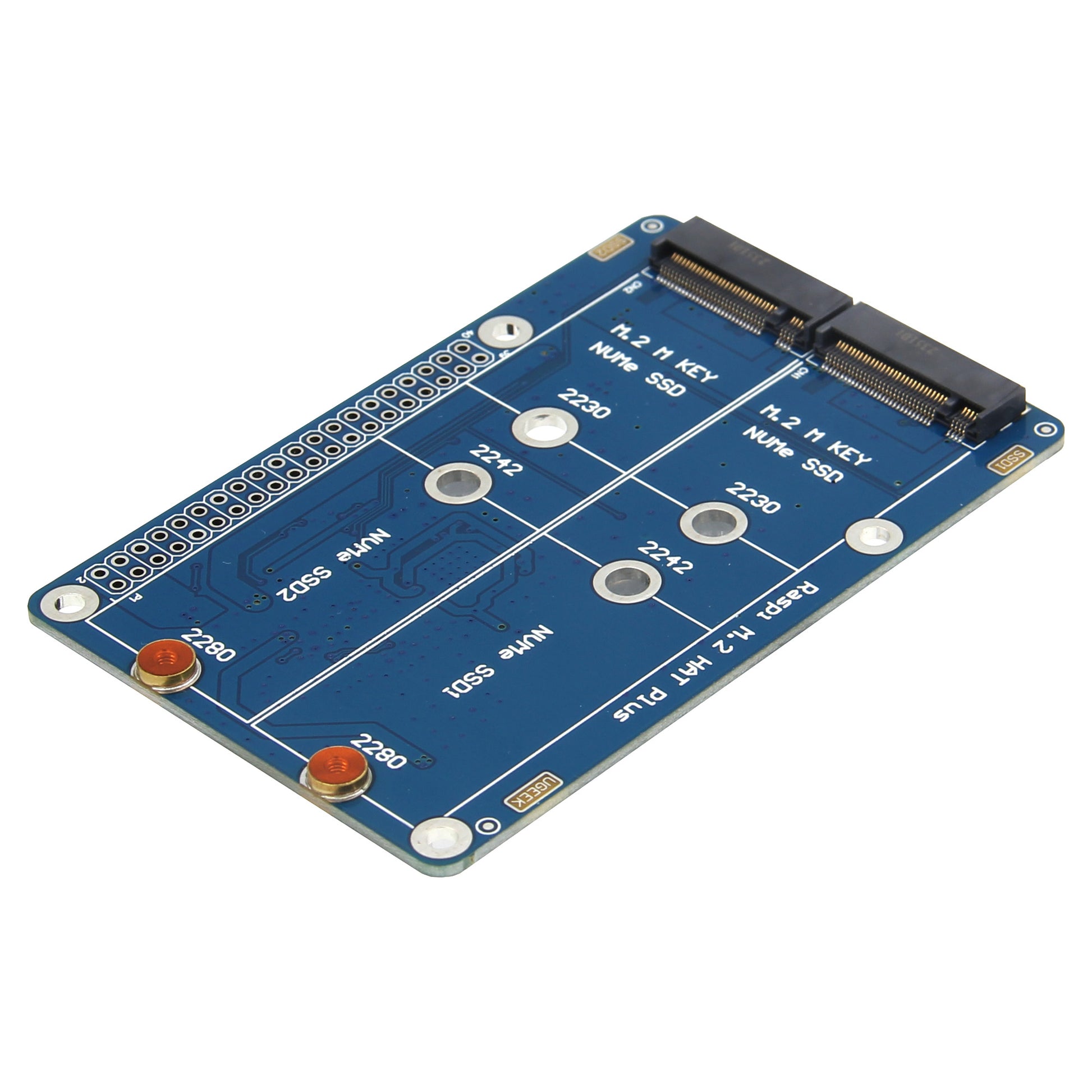

Overview

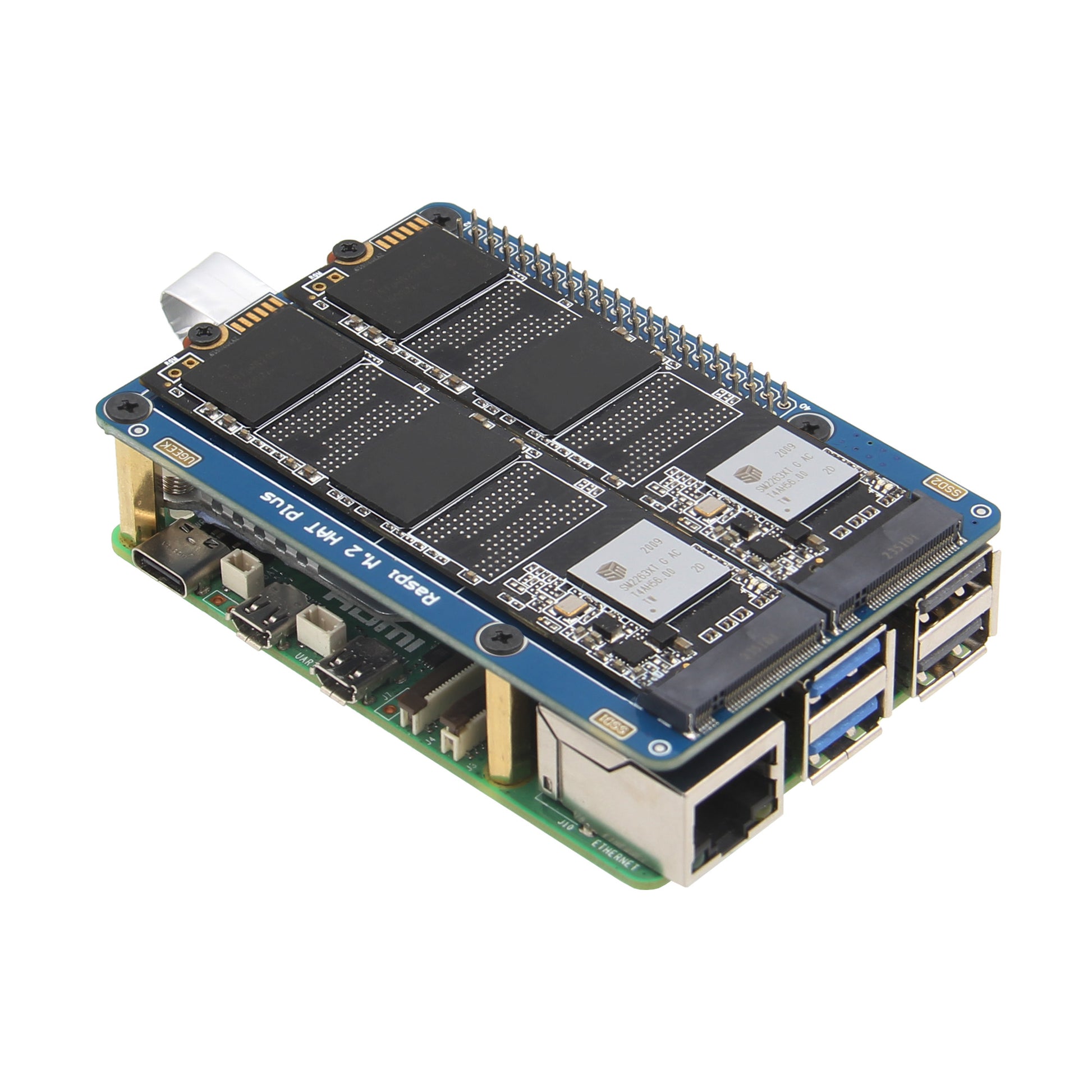

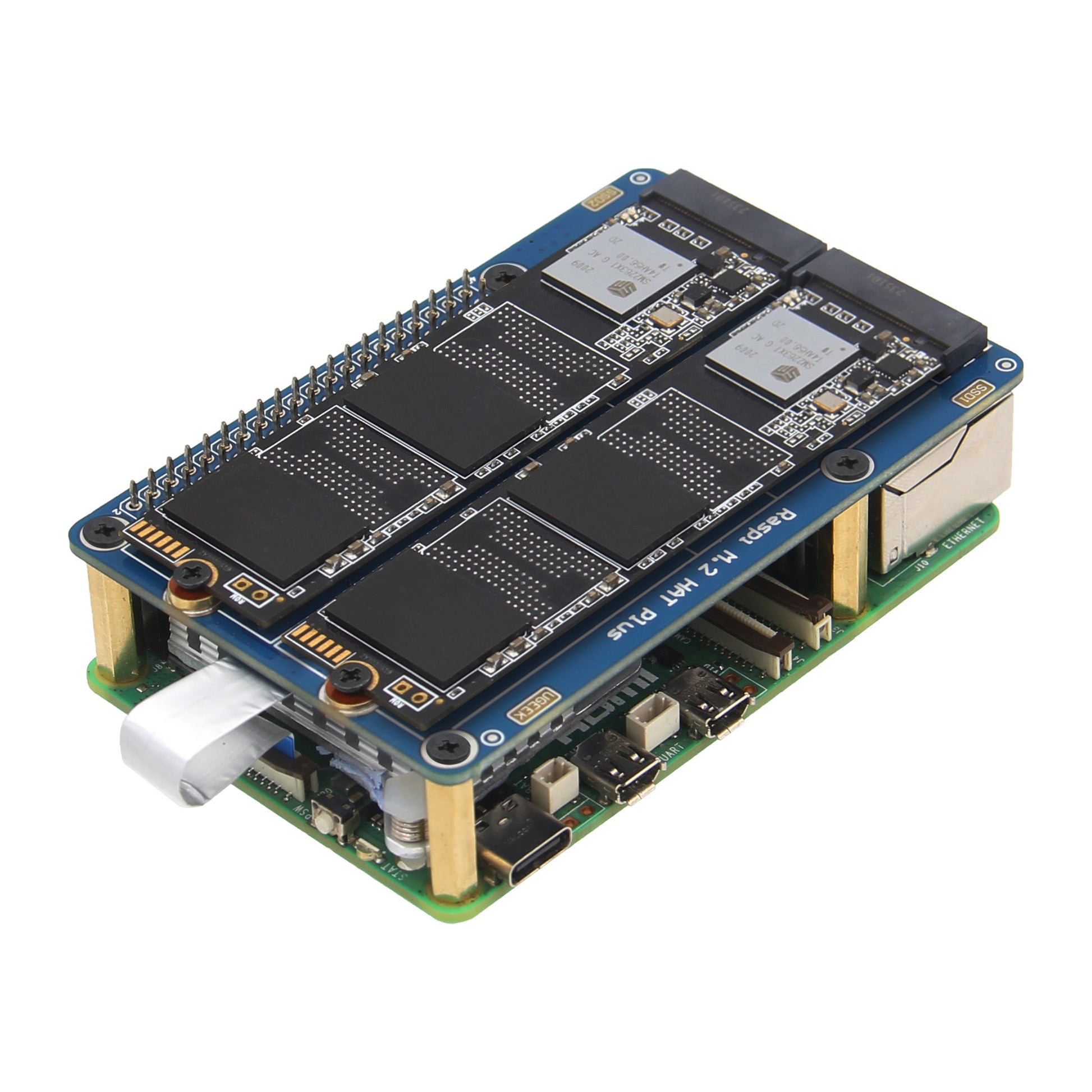

The Q200 is specifically designed to be placed on top of the Raspberry Pi 5, similar to a traditional HAT, and it provides a 40-pin header for easy access to the GPIO. With this NVMe shield, you can still use your favorite HATs alongside it. Additionally, it is fully compatible with the Raspberry Pi's official passive cooler, ensuring efficient heat dissipation.

Important Notes

  • Compatible with M.2 NVMe SSDs only
  • Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
  • Older NVMe drives with less efficient flash media may not perform as well as newer drives
  • New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

User Manual: https://wiki.geekworm.com/Q200

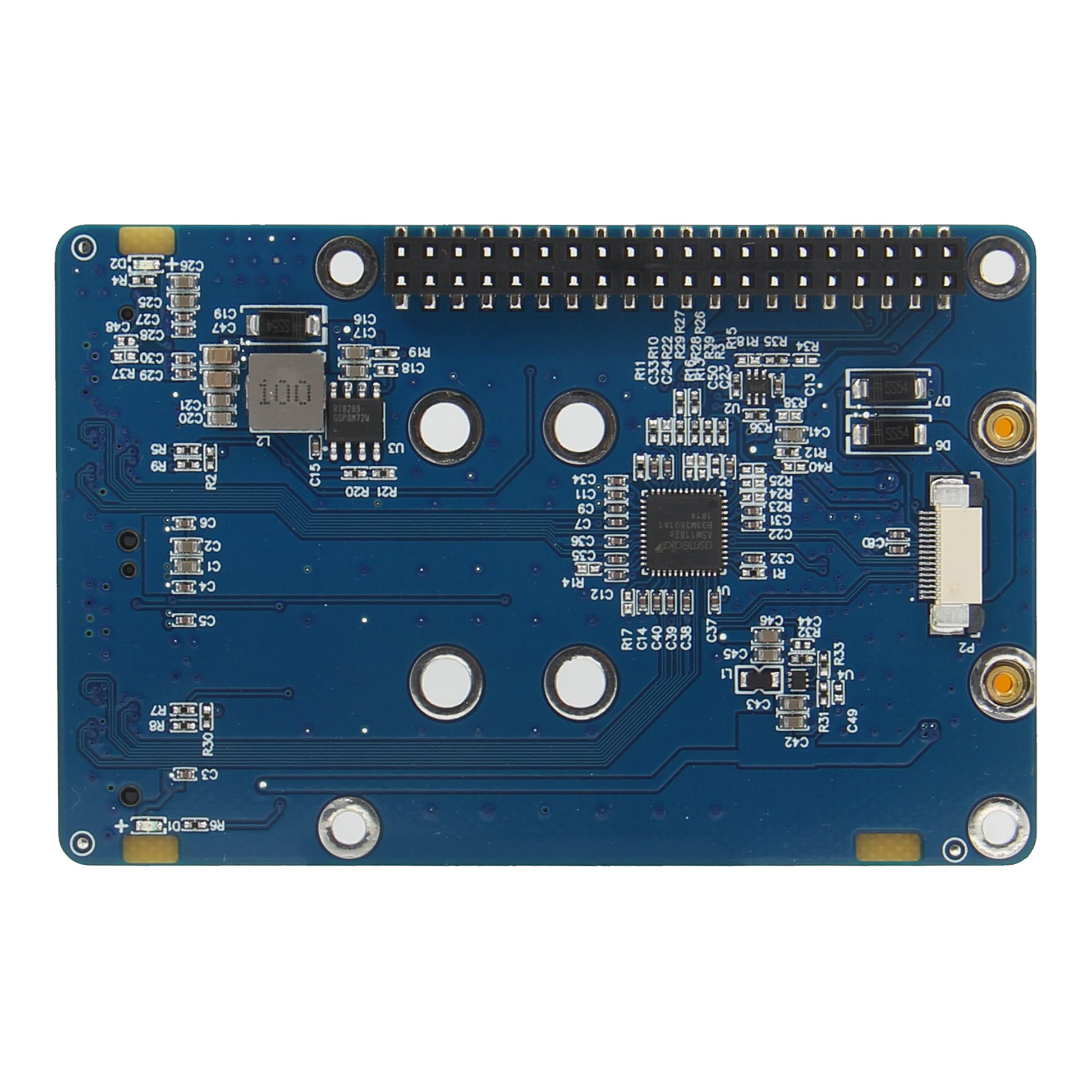

Features

  • Compatible With - Raspberry Pi 5B Only
  • Model: Q200
  • Configured with shielded FFC cables

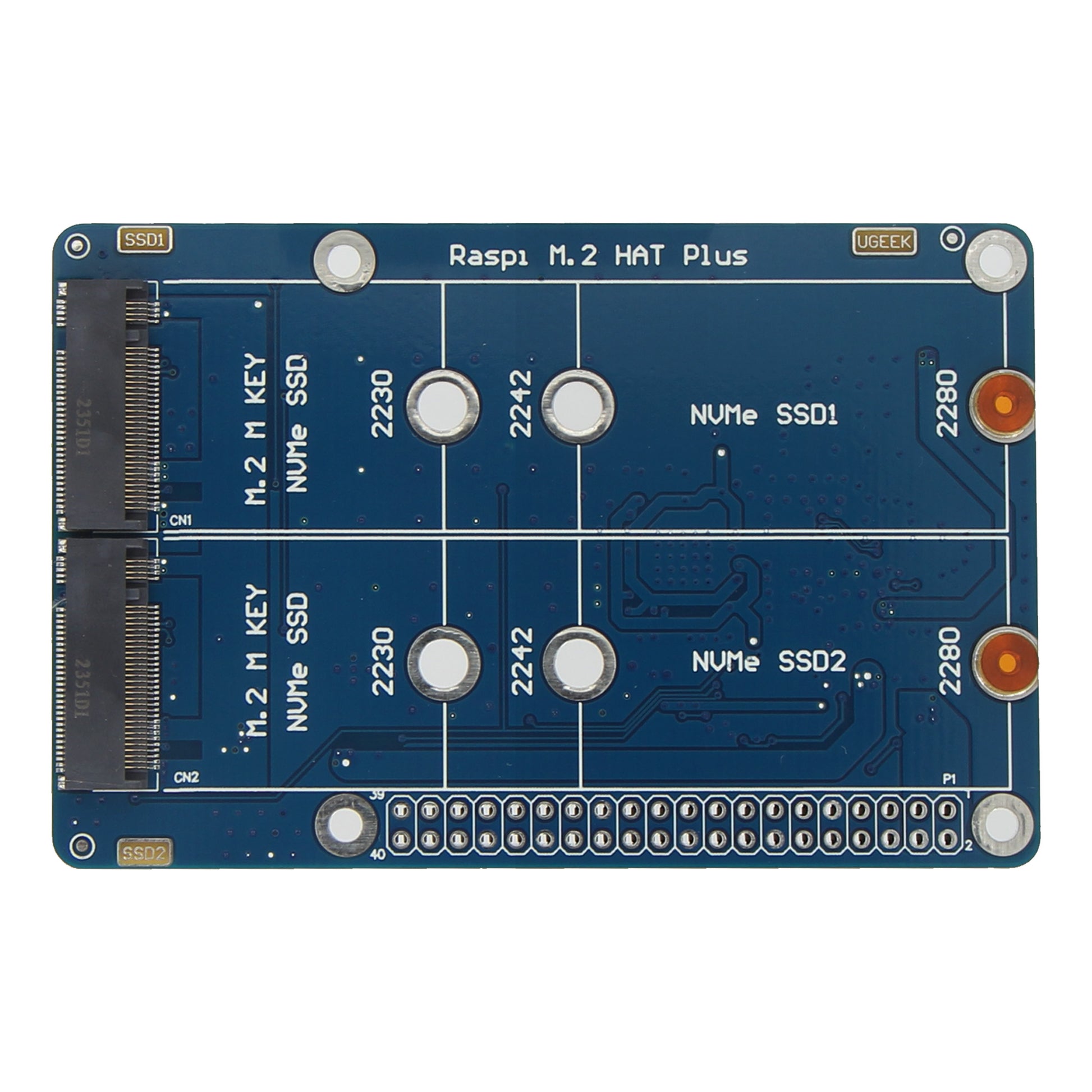

  • Supports dual M.2 NVMe SSD Shield, 2230/2242/2280

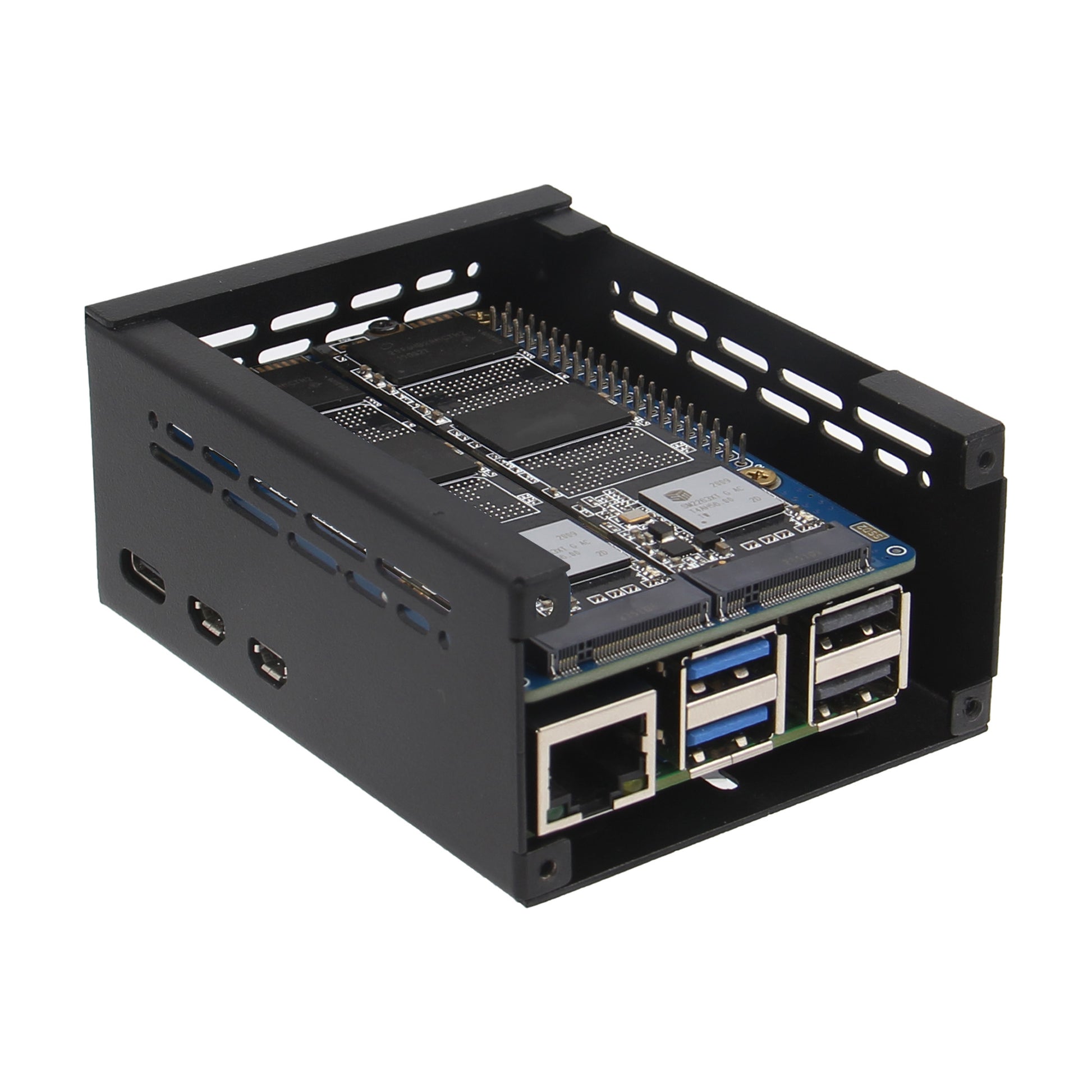

  • Fully compatible with the Raspberry Pi official active cooler
  • Designed to be attached on top, allowing stacking with other HATs
  • Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.

Packing List:

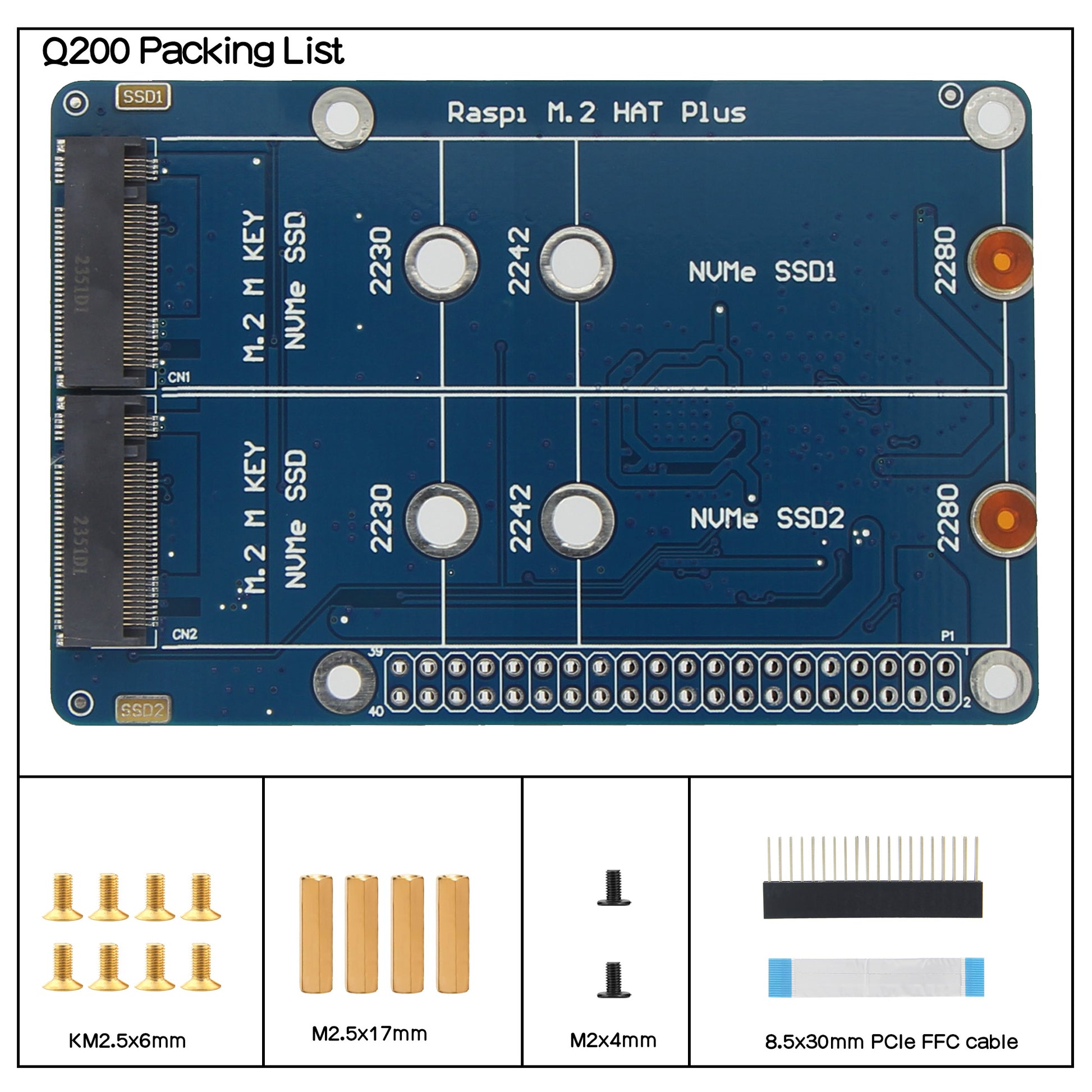

  • 1 x Q200 Shield
  • 1 x Scews Pack

Refer to: https://wiki.geekworm.com/q200

Please email to us at info@geekworm.com if you have other questions.

After the release of the Raspberry Pi AI Kit, we tested four PIPs: X1001, X1004, X1011, and M901. X1001, X1004, X1005 and M901 etc. all support the hailo-8 ai ​​accelerator, but X1011 does not.

It should be noted that X1004 and X1005 uses ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to enable PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch, and speed is still PCIe Gen 2.0 5Gbps speed. when you use an hailo-8 ai accelerator, Raspberry Pi Fundation highly recommends using PCIe 3.0 to achieve best performance with your AI Kit.

Our tentative conclusions are as follows:

  • If you need to use hailo-8 ai accelerator with high performance, it is recommended to use X1015/X1002/X1003/M901/ the official M.2 HAT+ etc. When choosing these PIP boards, you should focus on whether there is a conflict between the camera cable and the PIP board installation, and enable PCIe3.0 to use hailo-8 ai accelerator. At the same time, you need to prepare an SD card as the system disk.
  • If you don't care about the high performance brought by PCIe 3.0, then you can consider using X1004, so that you can use any socket of X1004 to install NVME SSD as the system disk, and another socket to install hailo-8 ai accelerator, so as to have both.
Model Features Mounting Position SSD Size Matching Case Matching Cooler Support Hailo-8 AI Accelerator
