Geekworm KVM-A8 Kit PCIe Version for Raspberry Pi 4 Model B Open-source KVM Over IP

Note:

• The Raspberry Pi 4 is not included in the packing list.
• The X630 shield is required for the KVM-A8 kit, and the KVM-A8 (Without X630) is only available to those customers who have previously purchased the
  X630 shield.
• The X630-A8 of KVM-A8 kit does not support to use with other HDMI to CSI-2 module like C779/C790, only support X630.
• The X630-A1 plate has no use for the KVM-A8 installation, don't need to use X630-A1!!!

Geekworm Raspberry Pi-based KVM-Over-IP Family

Overview
KVM (https://pikvm.org/) is a very powerful and Open Source Software which allows for a remote connection via your Raspberry Pi to turn on/off or restart your computer, configure the UEFI/BIOS, and even reinstall the OS using the Virtual CD-ROM or Flash Drive. You can use your remote keyboard and mouse or KVM can simulate a keyboard, mouse, and a monitor, which are then presented in a web browser as if you were working on a remote system directly. It's true hardware-level access with no dependency on any remote ports, protocols or services!

The KVM refers to Keyboard Video Mouse.

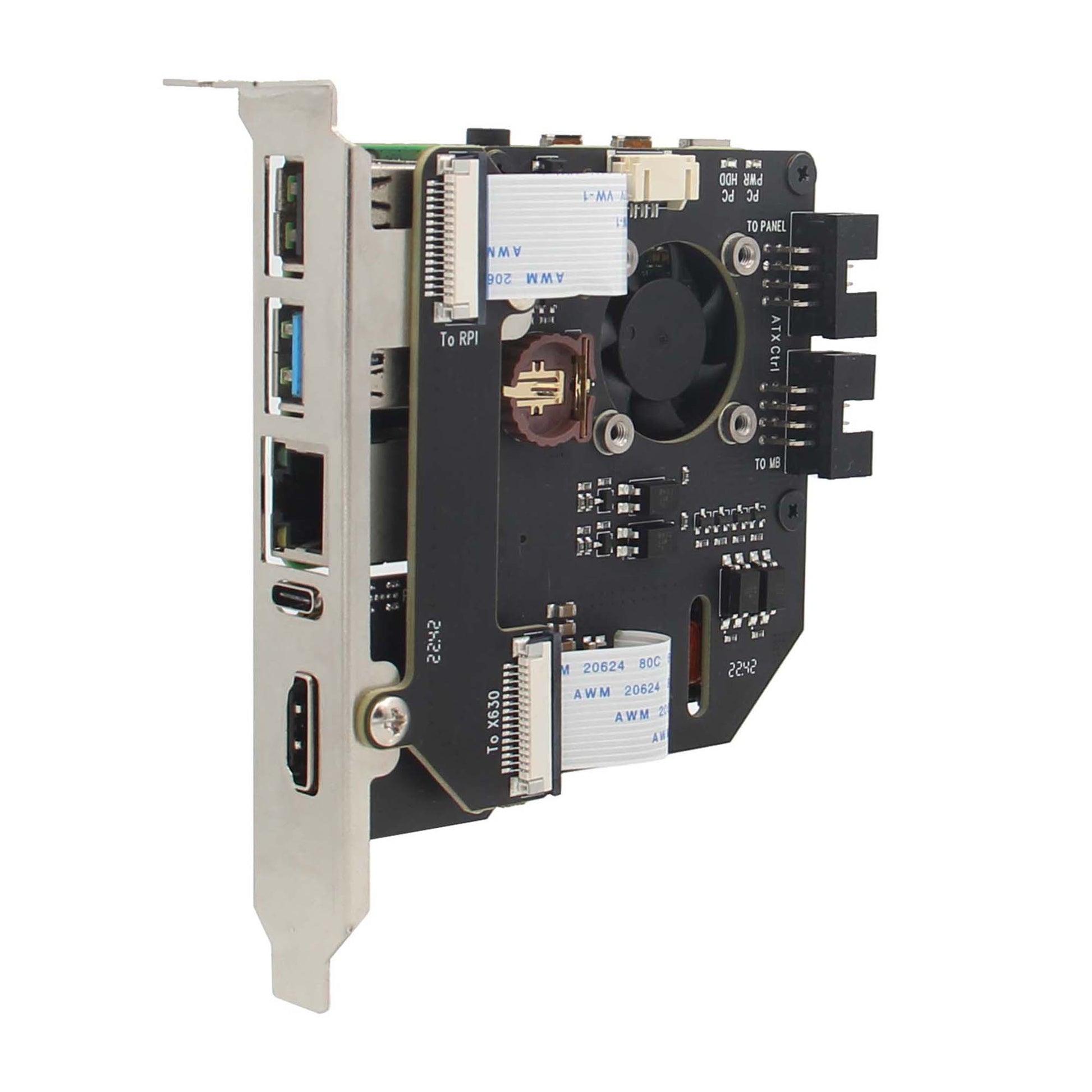

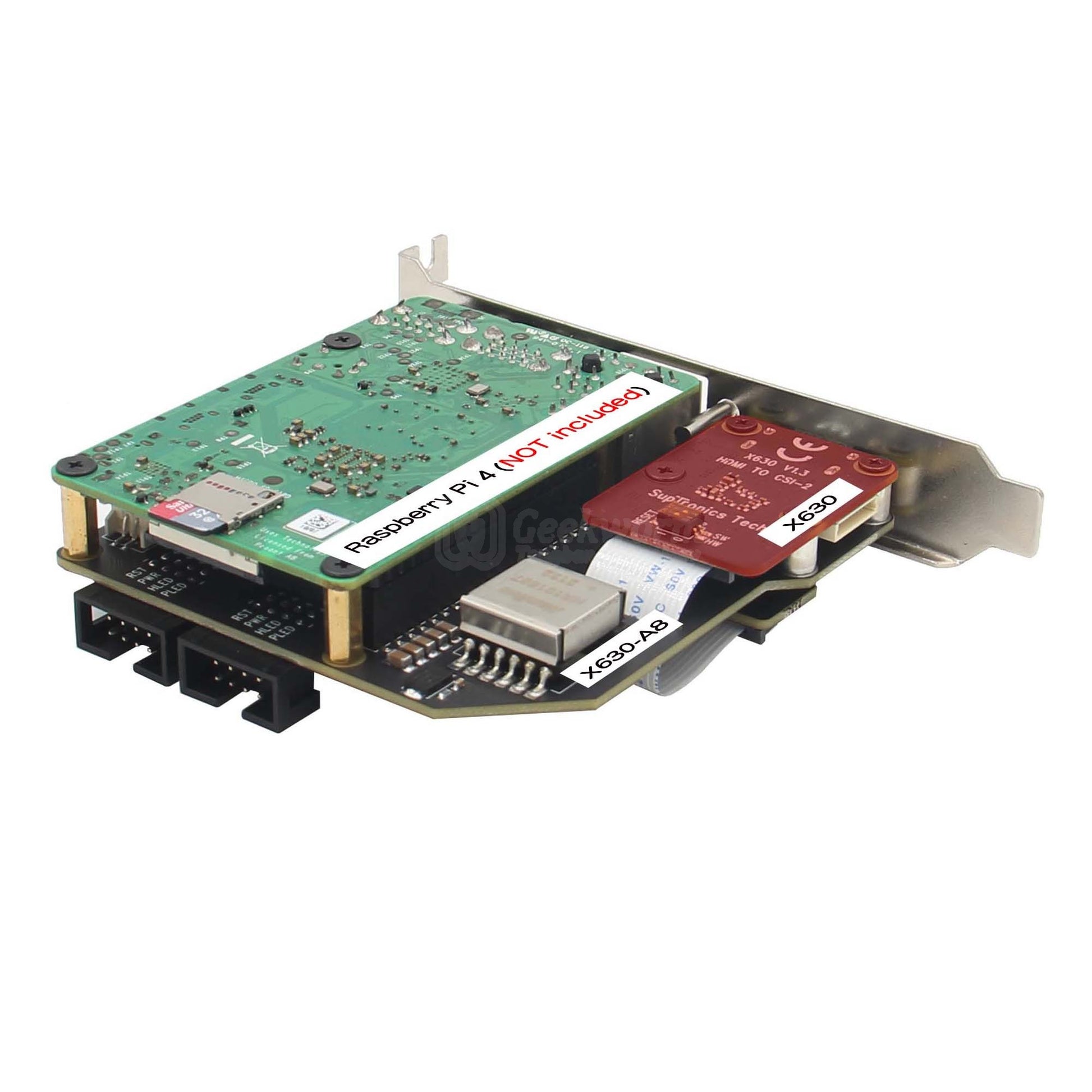

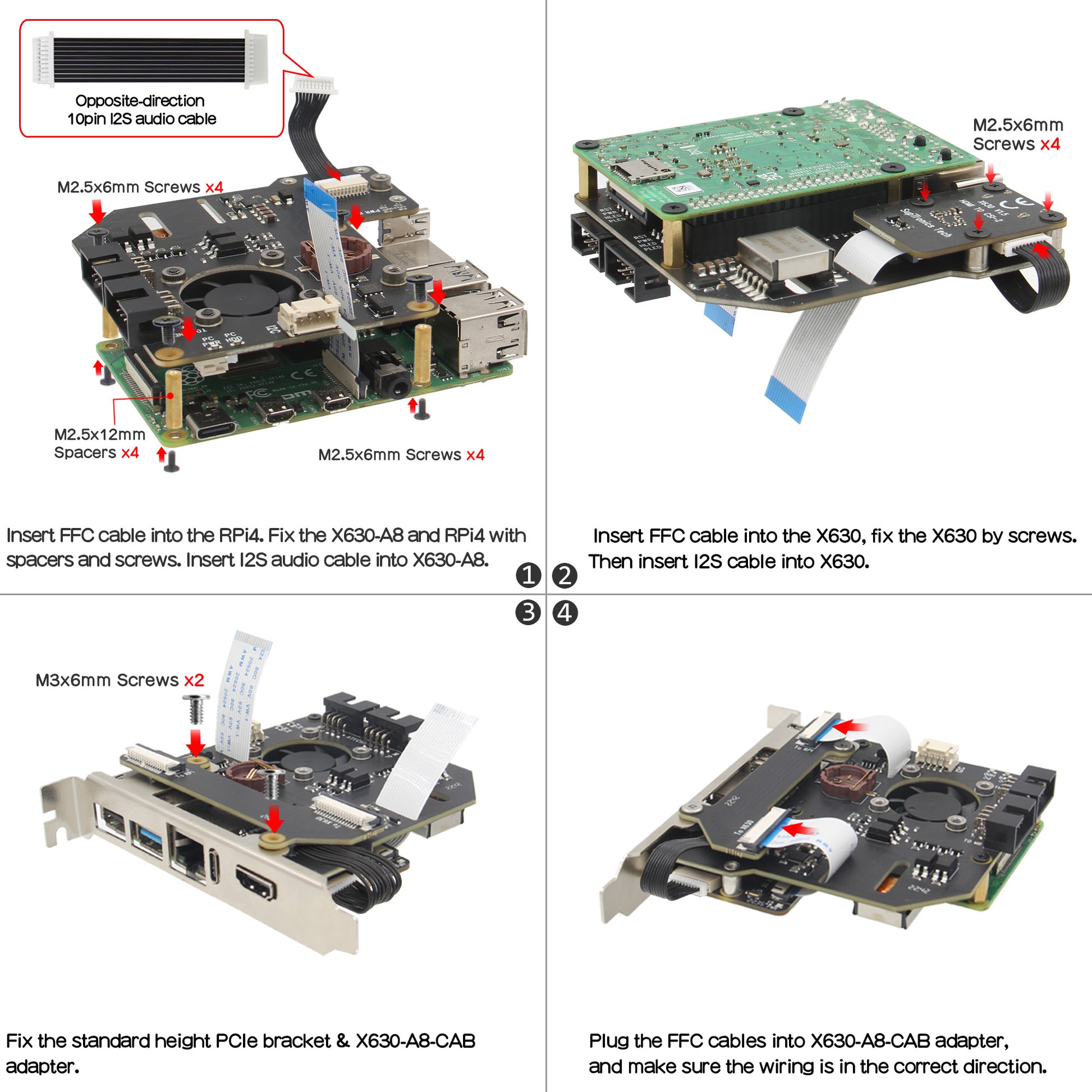

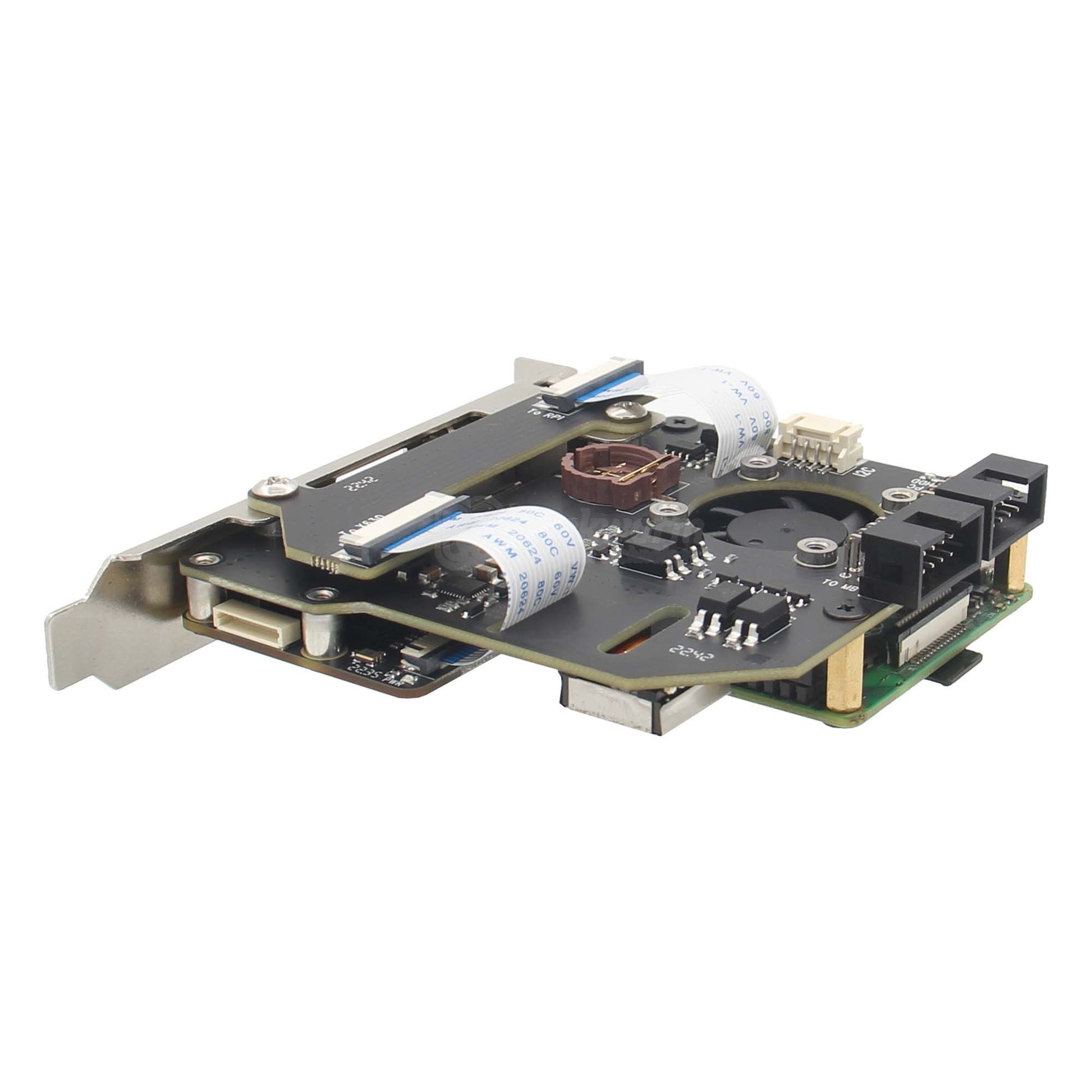

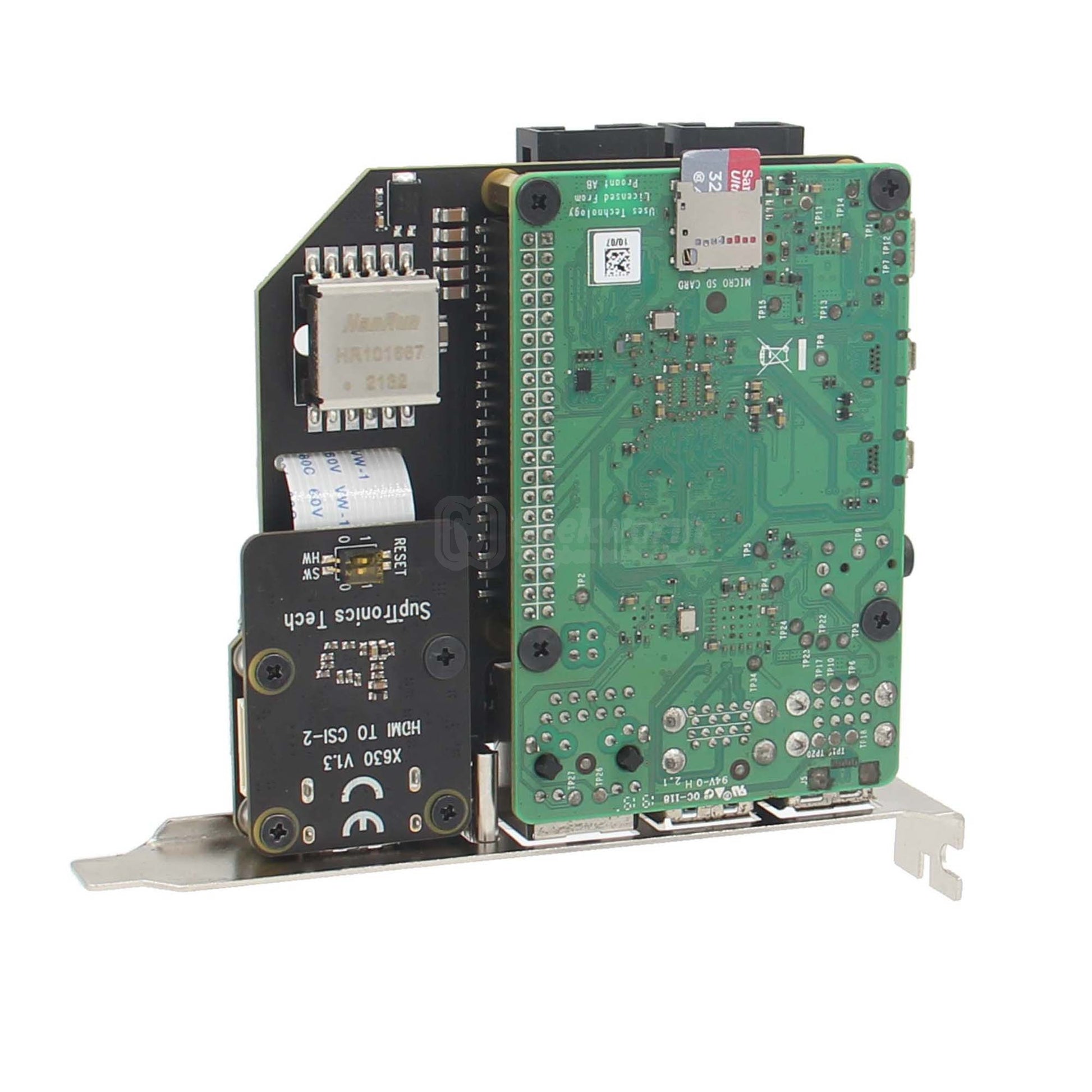

This KVM-A8 PCIe version kit is designed and based on Raspberry Pi 4 Model B. It is directly inserted into the computer case as a PCI card. It does not require additional cables and is more convenient to use.

The whole KVM-A8 PCIe version kit is composed of follow parts:

• X630 HDMI to CSI-2 Module (for video capture)

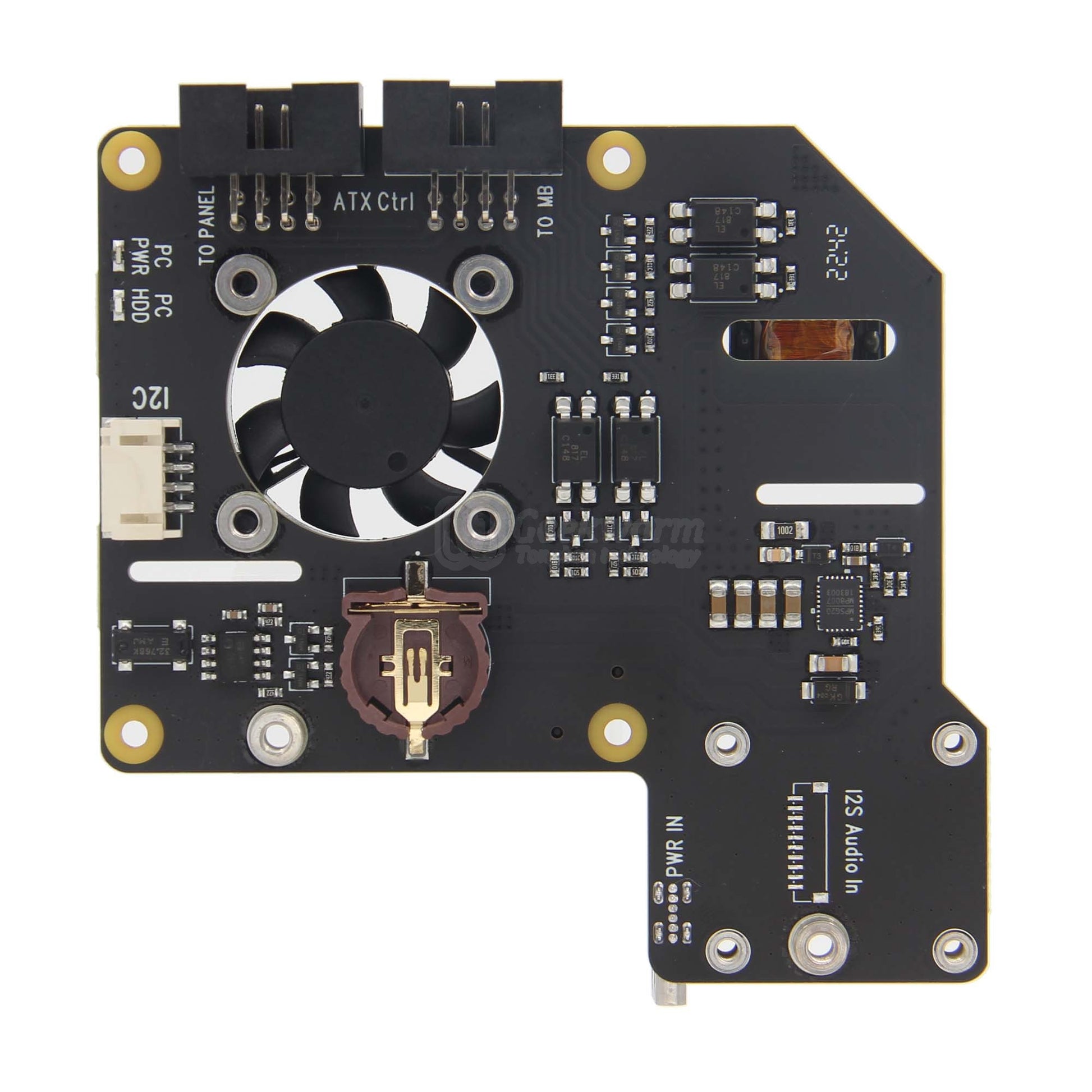

• X630-A8 V1.7 Expansion Board (for PoE, cooling, RTC, ATX power control etc)

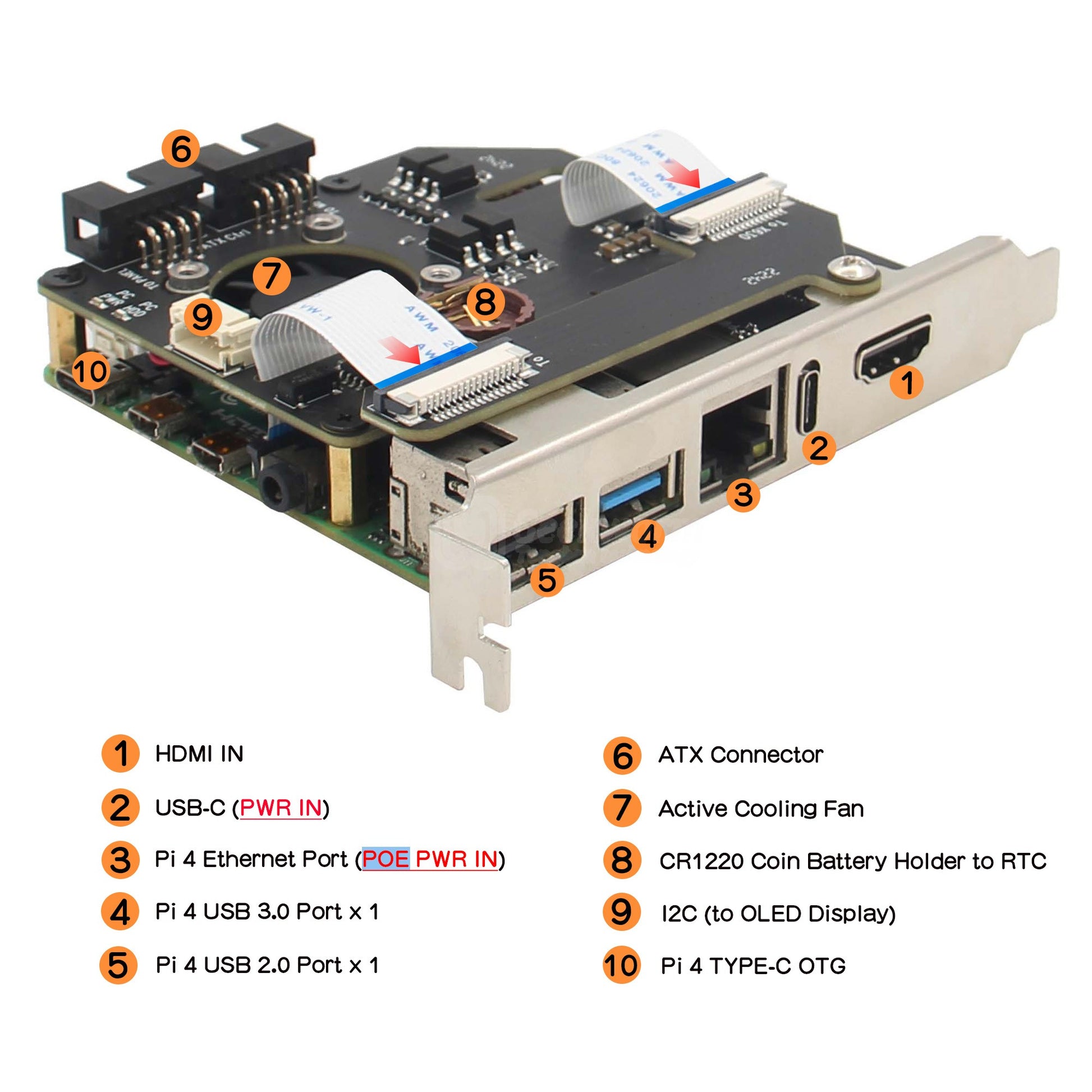

Features

• Designed especially for KVM ( Raspberry Pi 4-based KVM-Over-IP solution)
• Installs justs like any PCI card into a tower / desktop PC
• Compatible with the latest Raspberry Pi 4 Model B(Not support Raspberry Pi 3)
• Fully compatiblie with PiKVM OS(PiKVM V3 platform)
• Reliable remote network access to servers and computers
• HDMI Full HD capture based on the TC358743 chip （from X630)
• OTG Keyboard & mouse; Mass Storage Drive emulation
• Hardware Real Time Clock (RTC) with CR1220 coin battery socket
• Equipped with cooling fan on X630-A8 for heat dissipation of Raspberry Pi 4
• Equipped with photocoupler to protect RPi GPIO pins from computer and ESD spikes
• PoE Supported – Power over Ethernet for simplified installation, also supports for powering via USB-C of X630-A8
• Designed to use a single Ethernet cable for both data and power transmission （POE)

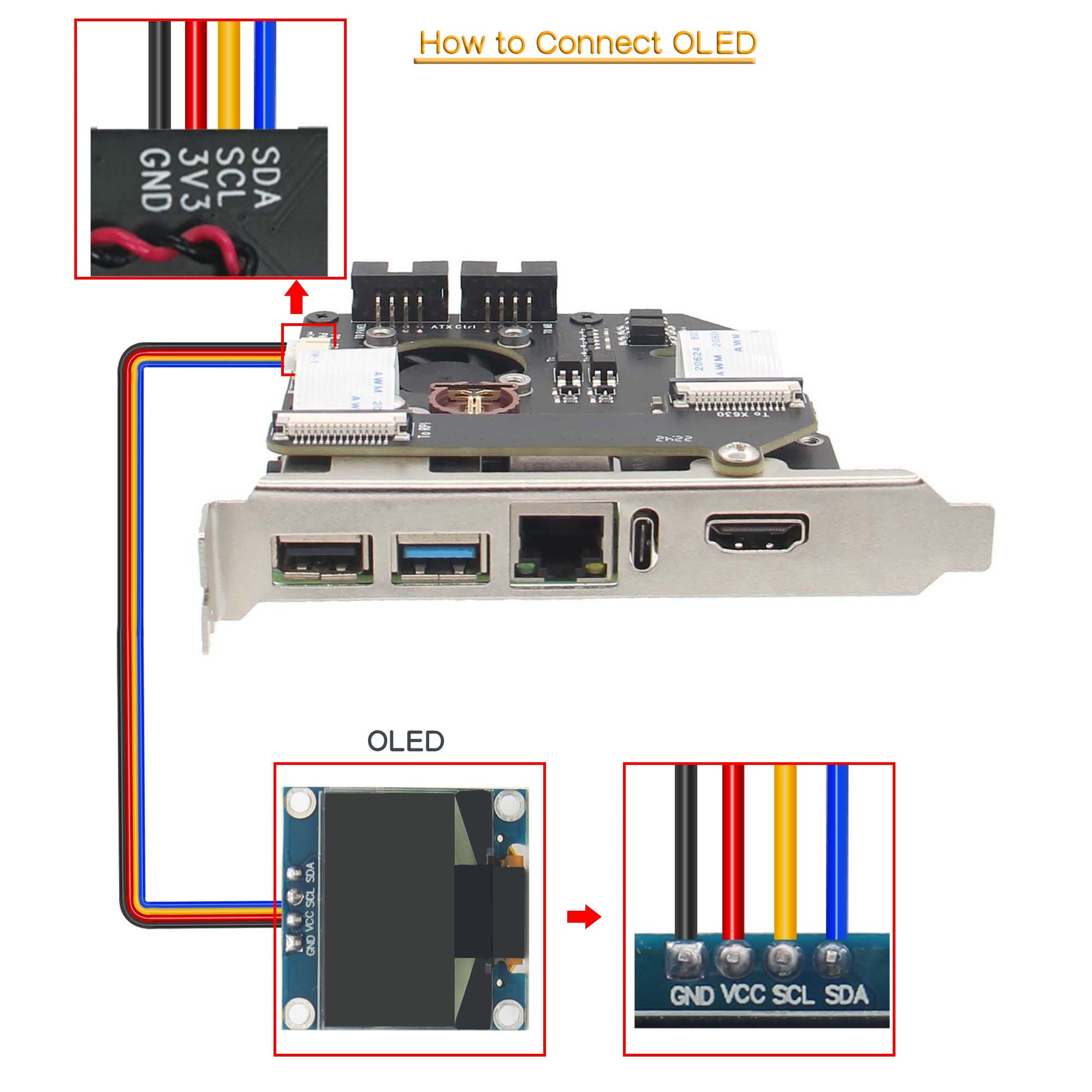

• Reserves the PH2.0-4P connector for I2C OLED display

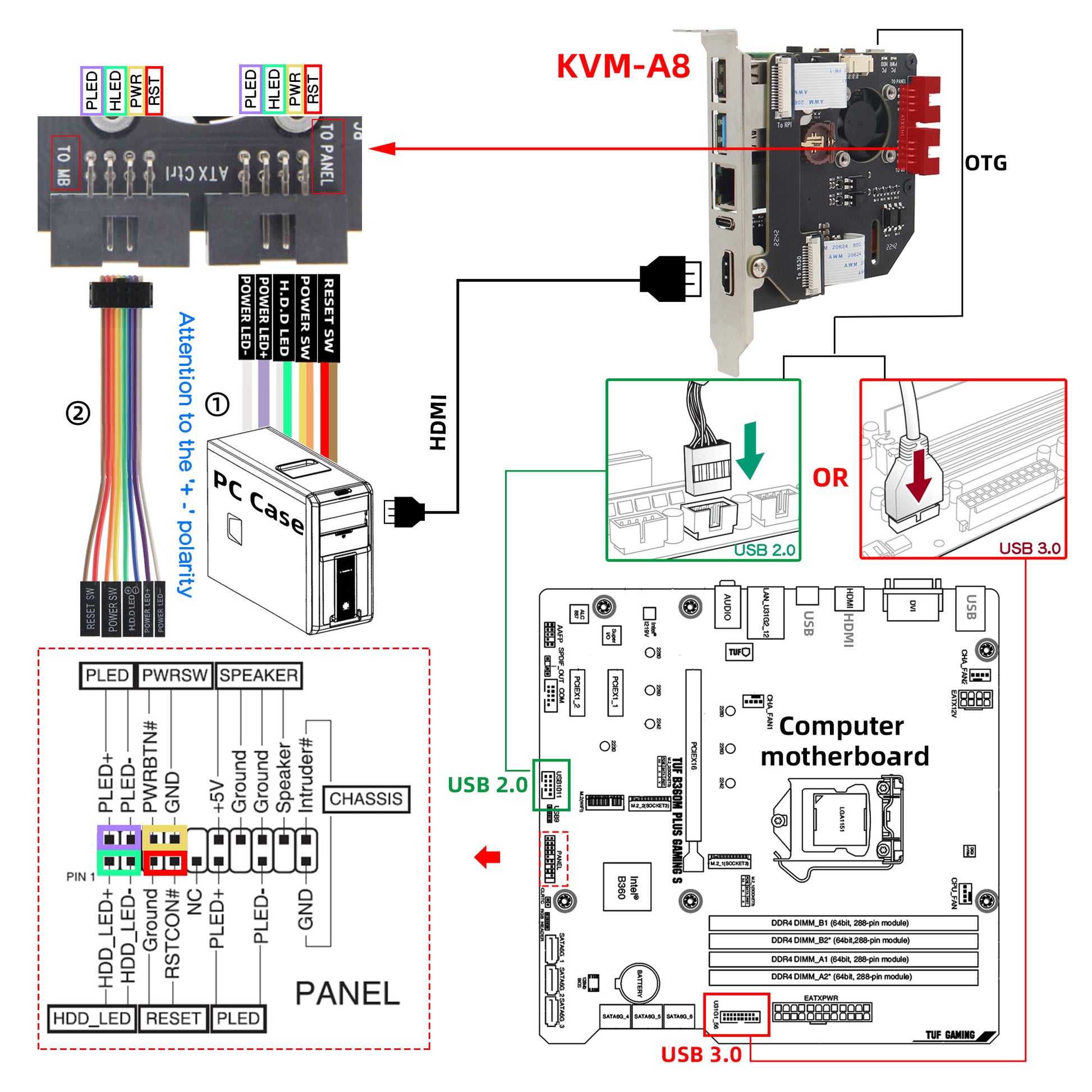

How to Power KVM-A8

• PoE Supported – Power over Ethernet for simplified installation
• Also support to power via USB-C port of X630-A8

User Manual

• Official Document: https://pikvm.org/
• KVM-A8: https://wiki.geekworm.com/PiKVM-A8

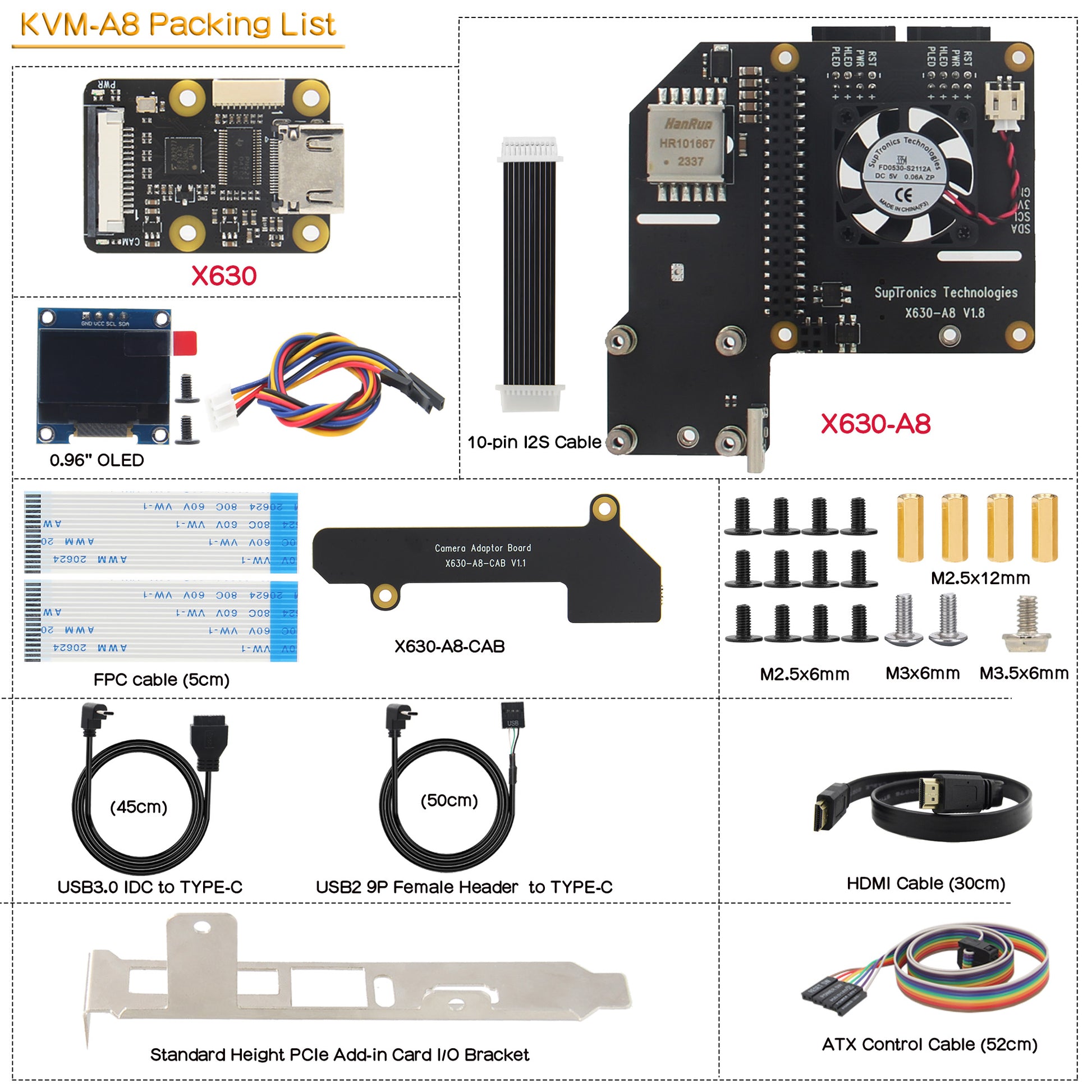

Packing List

• 1 x X630-A8 V1.7 Expansion Board;
• 1x X630-A8-CAB V1.1 Camera Adapter board;
• 1 x FPC Cable (5cm length)
• 1 x ATX Control Cable (Length:52cm);
• 1 x Motherboard Internal USB 2.0 9-pin Female Header to TYPE-C USB OTG Cable (Length: 50cm);
• 1 x USB3.0 IDC to TYPE-C (Length: 45cm);
• 1 X HDMI cable (30cm length);

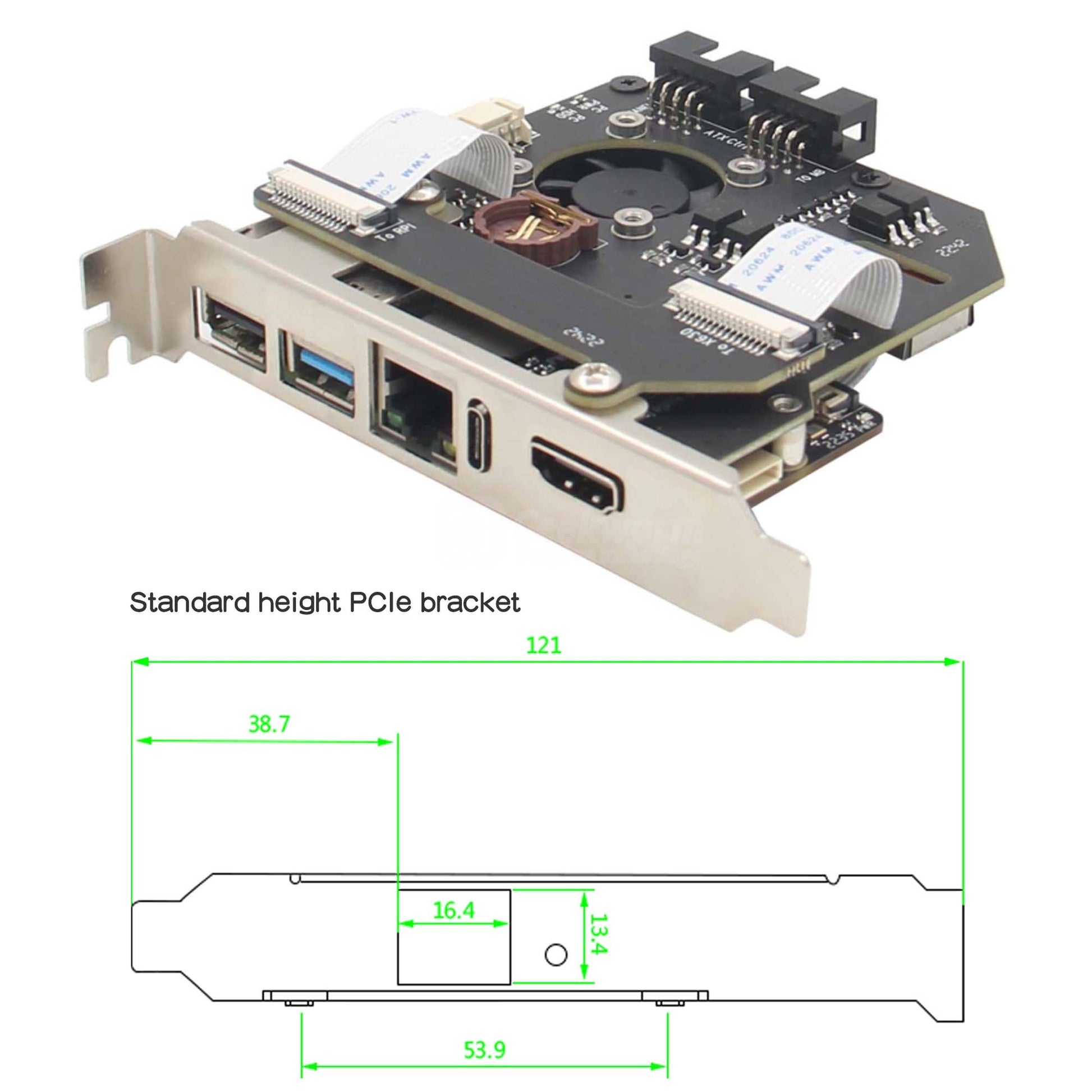

• 1 x Standard height PCIe Add-in Card I/O Bracket;
• 1 x Mounting Screws Pack;
