Important Note: The current T300 case can support both Jetson Nano Development Board A02 & B01 version.

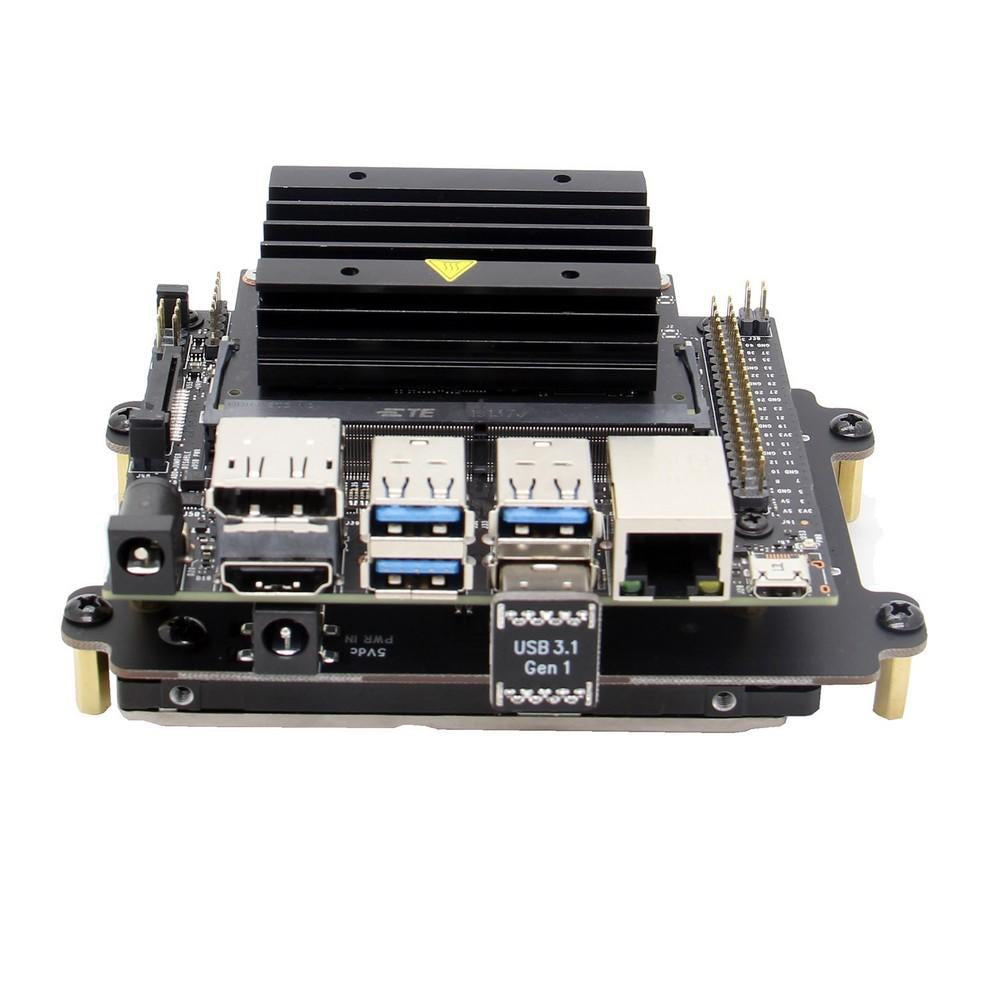

NVIDIA Jetson Nano 2.5 inch SATA SSD/HDD Shield Storage Expansion Board USB 3.1 T300 V1.1 for NVIDIA Jetson Nano Developer Kit.

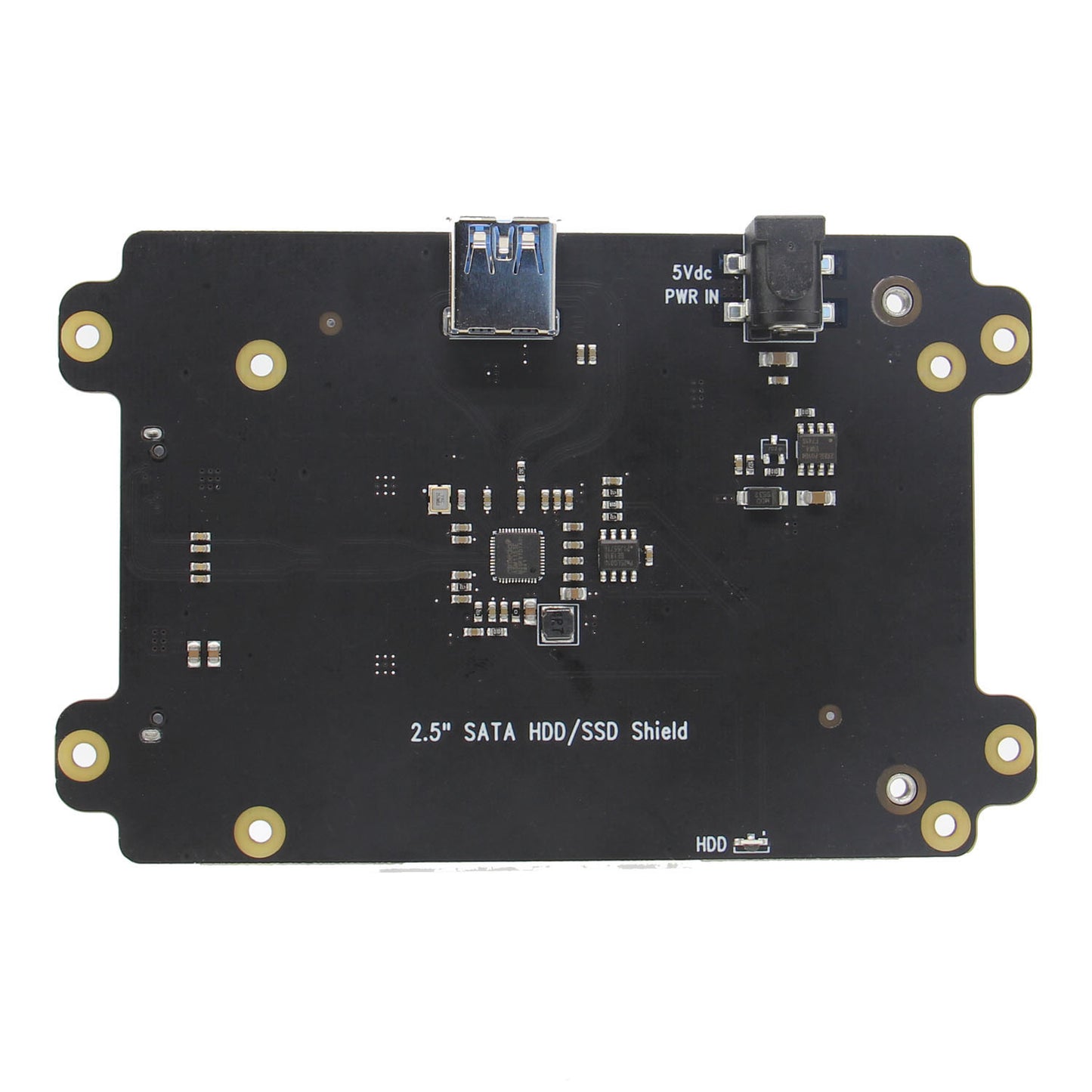

This is an expansion board designed specifically for NVIDIA Jetson nano developer kit which supports up to 4TB 2.5 inch SATA hard disk drives (HDD) or solid-state drive (SSD) by Geekworm and Suptronics, it allowing you to expand your storage with high-speed SSD drives on NVIDIA Jetson nano developer kit.
But the matching case for jetson nano and this 2.5 inch SATA SSD/HDD T300 V1.0 storage expansion board is not release, we will evaluate the need of support both T300 and NVIDIA boxes and then decide whether to develop a matching metal box. Please email us if you have any suggestions.
Our Geekworm NVIDIA Jetson Nano Metal Case with Power & Reset Control Switch is not support to install jetson nano and this 2.5 inch SATA SSD/HDD T300 V1.0 storage expansion board.
User Manual: https://wiki.geekworm.com/T300
How to boot the rootfs from external drive:
- Ideal storage solution for NVIDIA Jetson Nano Developer Kit - 2.5"" SATA HDD/SSD Shield

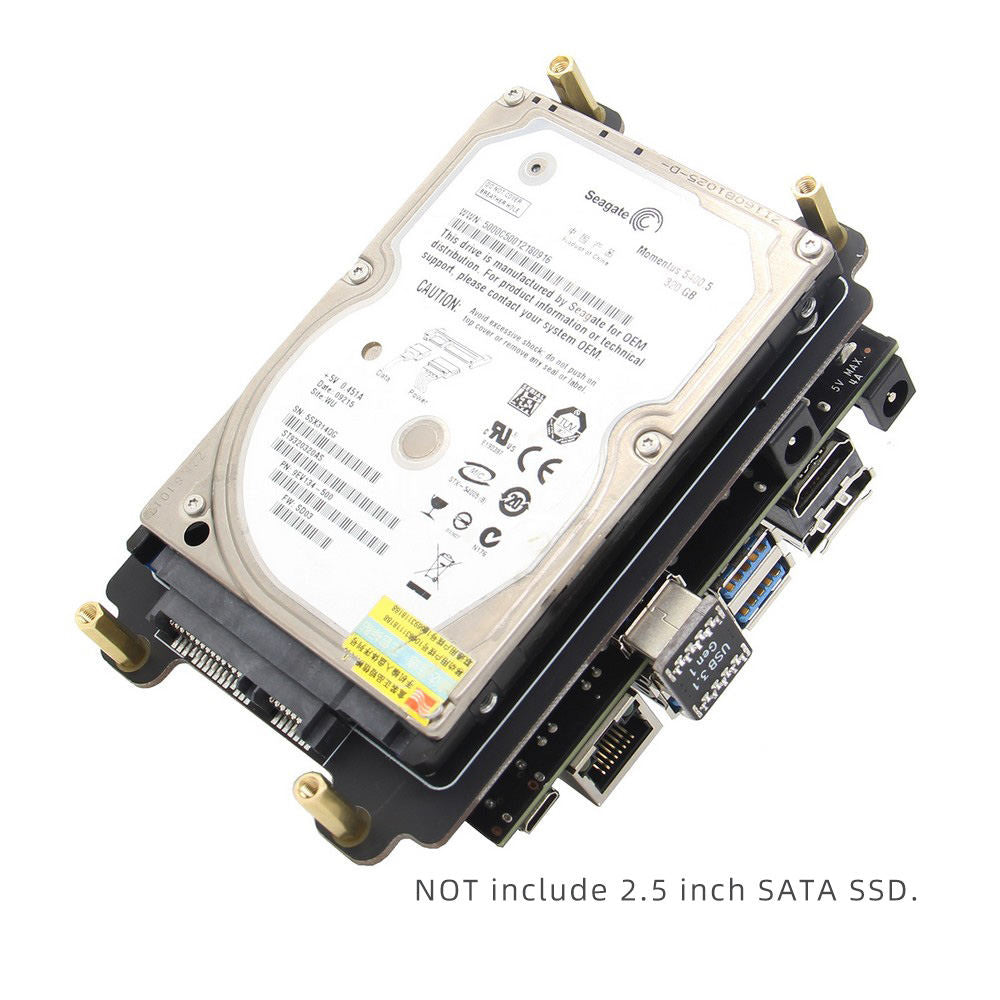

- Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
- USB 3.1 Gen1 to SATA 6Gb/s bridge controller
- USB 3.1 Gen1 connectivity offers plug-and-play functionality on your Jetson Nano
- Quick file transfer with high-speed USB3.1 Gen1 connectivity from a PC or a Mac
- Specially-made USB3.1 bridge to connect with Jetson Nano - no additional cables needed
- On-board DC power jack allows to provide enough power to HDD/SSD
- Intelligent power management - Automatic powering off when system shutdown

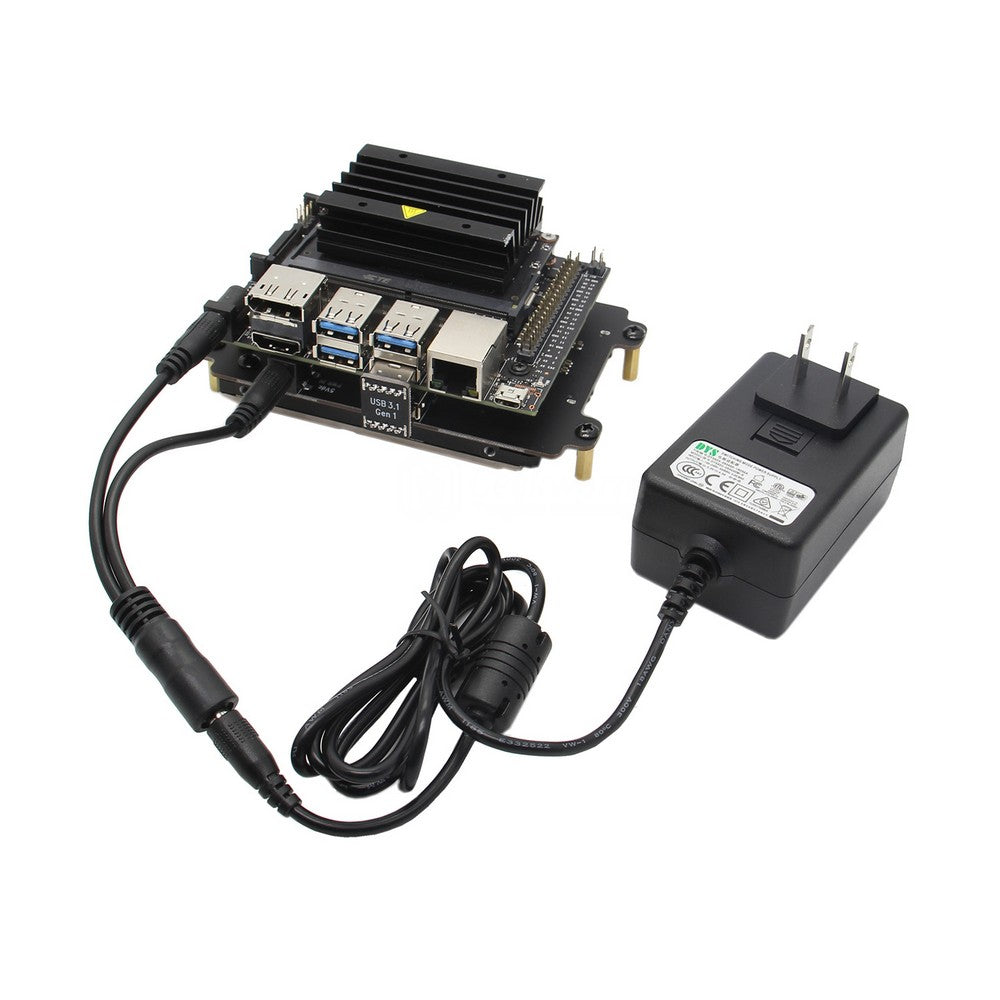

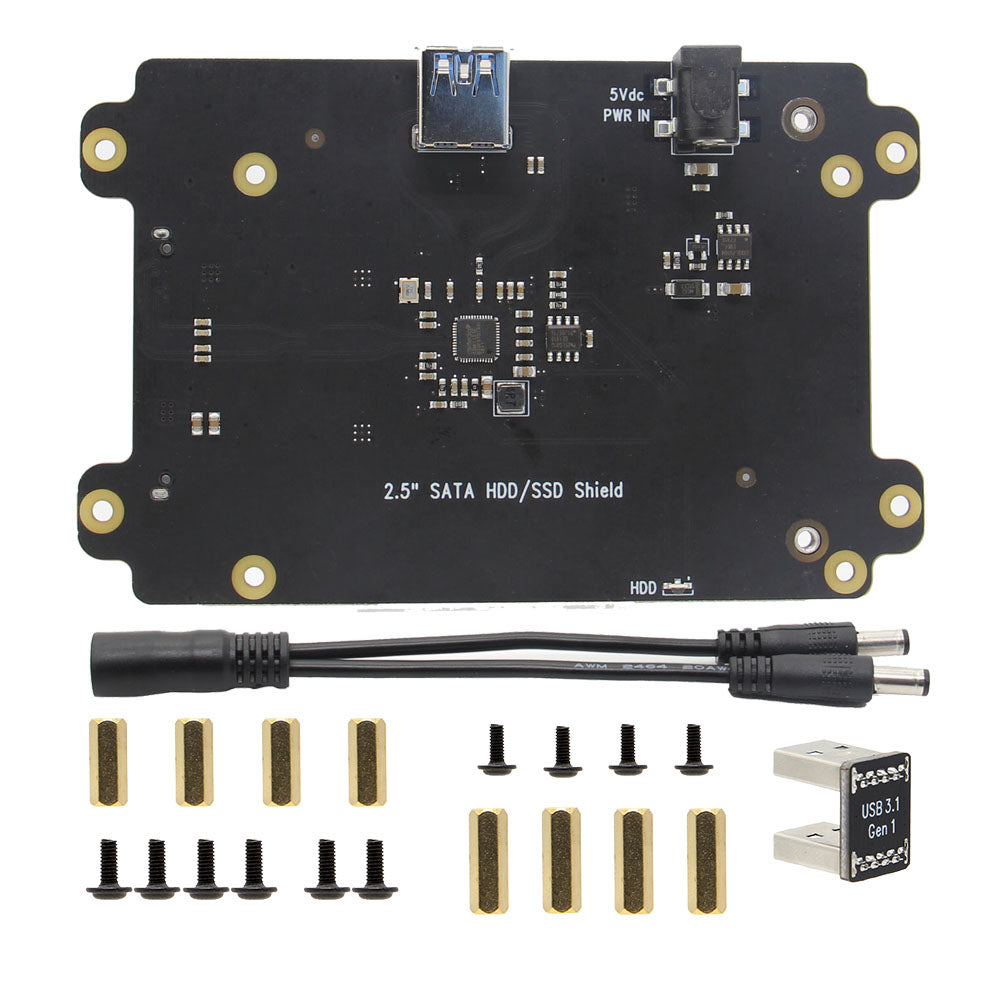

- With 1 Female to 2 Male DC cable supplied to power both T300 2.5 inch SATA SSD/HDD storage expansion board adapter and Jetson Nano
- USB bus-powered or powered by external power adapter
- LED blue indicator indicates drive status
Power Supply Requirement
- Power supply via DC jack : 5VDC ±5% 4A
- A good quality power supply is required, otherwise the hard disk will not be recognized or the system will automatically shut down.THIS IS VERY IMPORTANT!!
- Strongly recommend to use our certificated DC 5.5x2.5mm 5V 4A Power Adapter
