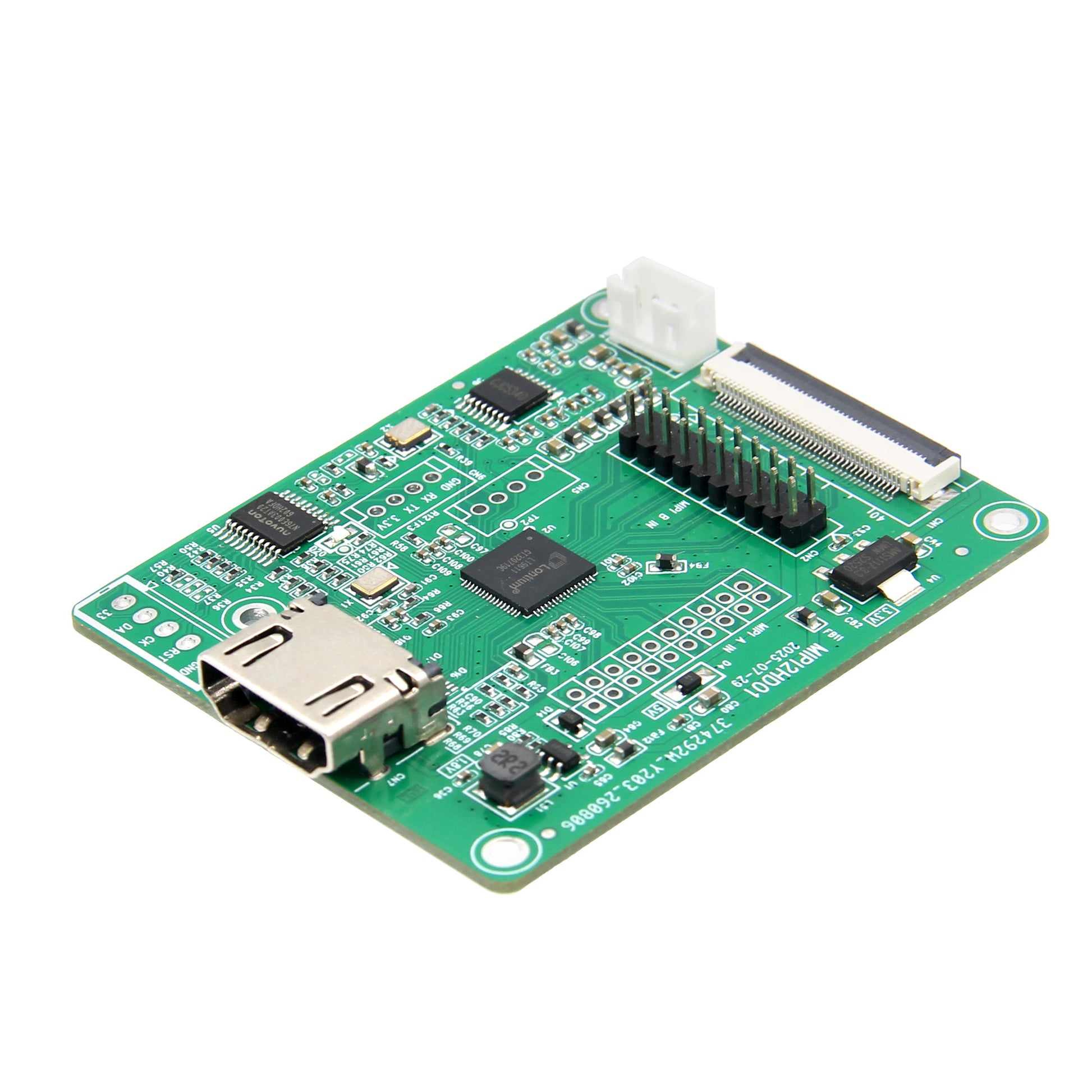

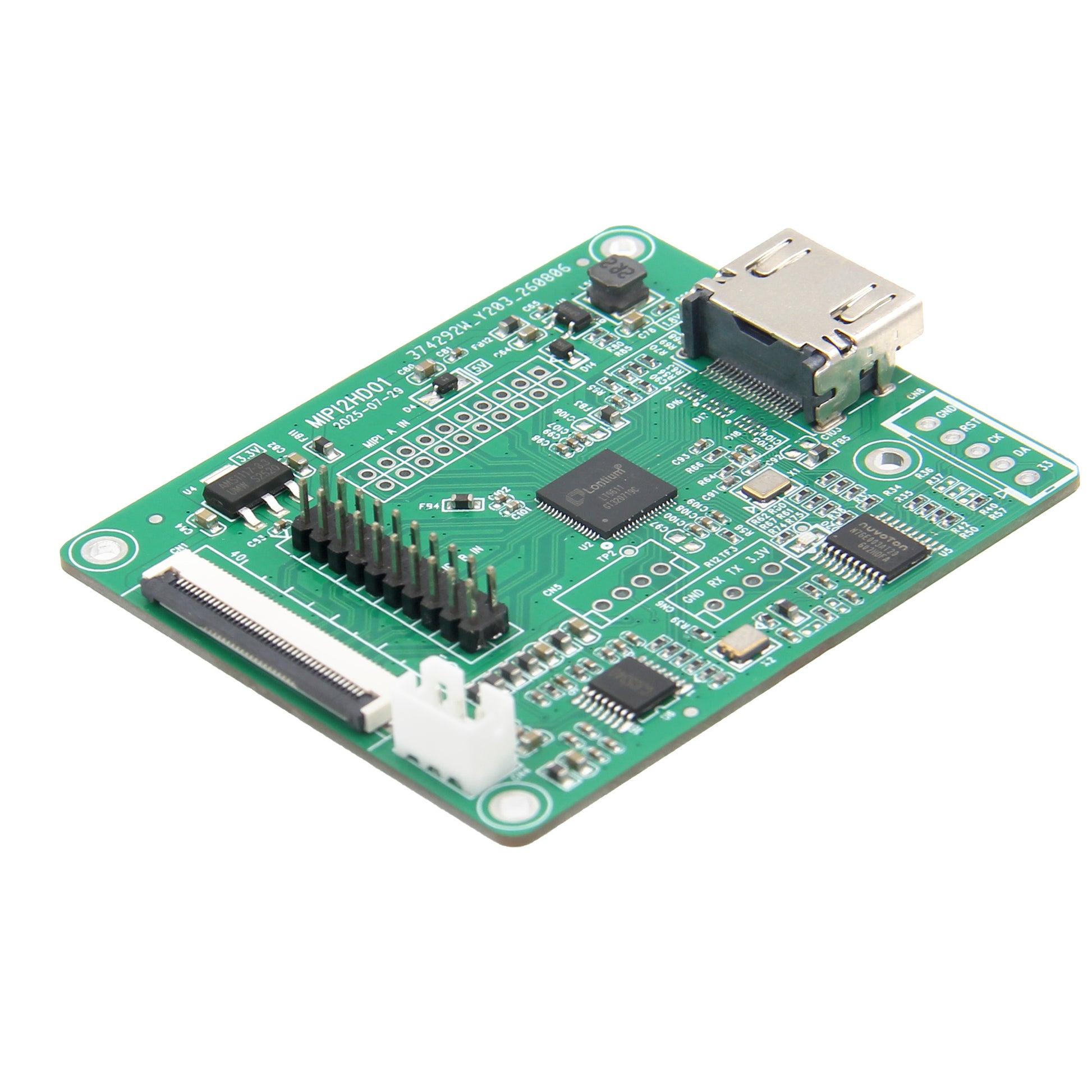

MIPI DSI / CSI Input to HDMI Output Adapter with 40Pin FFC Cable(MIPI2HD01)

Overview

The MIPI2HD01 is a high-performance, compact MIPI DSI/CSI to HDMI adapter board designed to bridge MIPI video and audio signals directly to standard HDMI displays. Featuring an advanced signal conversion chip, it delivers smooth video transmission with an output bandwidth of up to 300MHz and supports various crisp display resolutions including 720P, 1080P, and 4K@30Hz.

Designed for maximum flexibility, the board supports both MIPI DSI and CSI protocols, switchable Single or Dual Port configurations, and dynamic 1/2/4-lane transmission options. Integrated with an onboard 3-pin analog stereo audio input, it combines video and audio into a single HDMI output. With its ultra-compact 60x50mm design, efficient 5V power requirements, and easy UART serial parameter configuration, the MIPI2HD01 is the perfect bridge solution for custom display systems, embedded devices, and DIY electronic projects.

Key Features

📺 Superior Video Output & High Resolution

• Standard HDMI Output: Outfitted with a standard HDMI Type-A connector delivering up to 300MHz output bandwidth.
• Multi-Resolution Support: Compatible with multiple standard MIPI input resolutions including 720P, 1080P, and 4K@30Hz.
• Versatile Color Formats: Supports RGB888 and YUV422 input color spaces (RGB888 for DSI; RGB888/YUV422 for CSI).

🔀 Flexible MIPI Signal Configuration

• DSI & CSI Protocol Support: Configurable via serial command to process either MIPI DSI or MIPI CSI signals.
• Single & Dual Port Options: Flexible input options supporting Single Port (Port B) or Dual Port (Port A + Port B) configurations.
• Multi-Lane Scalability: Dynamic lane allocation supporting 1-Lane, 2-Lane, or 4-Lane MIPI transmission modes.

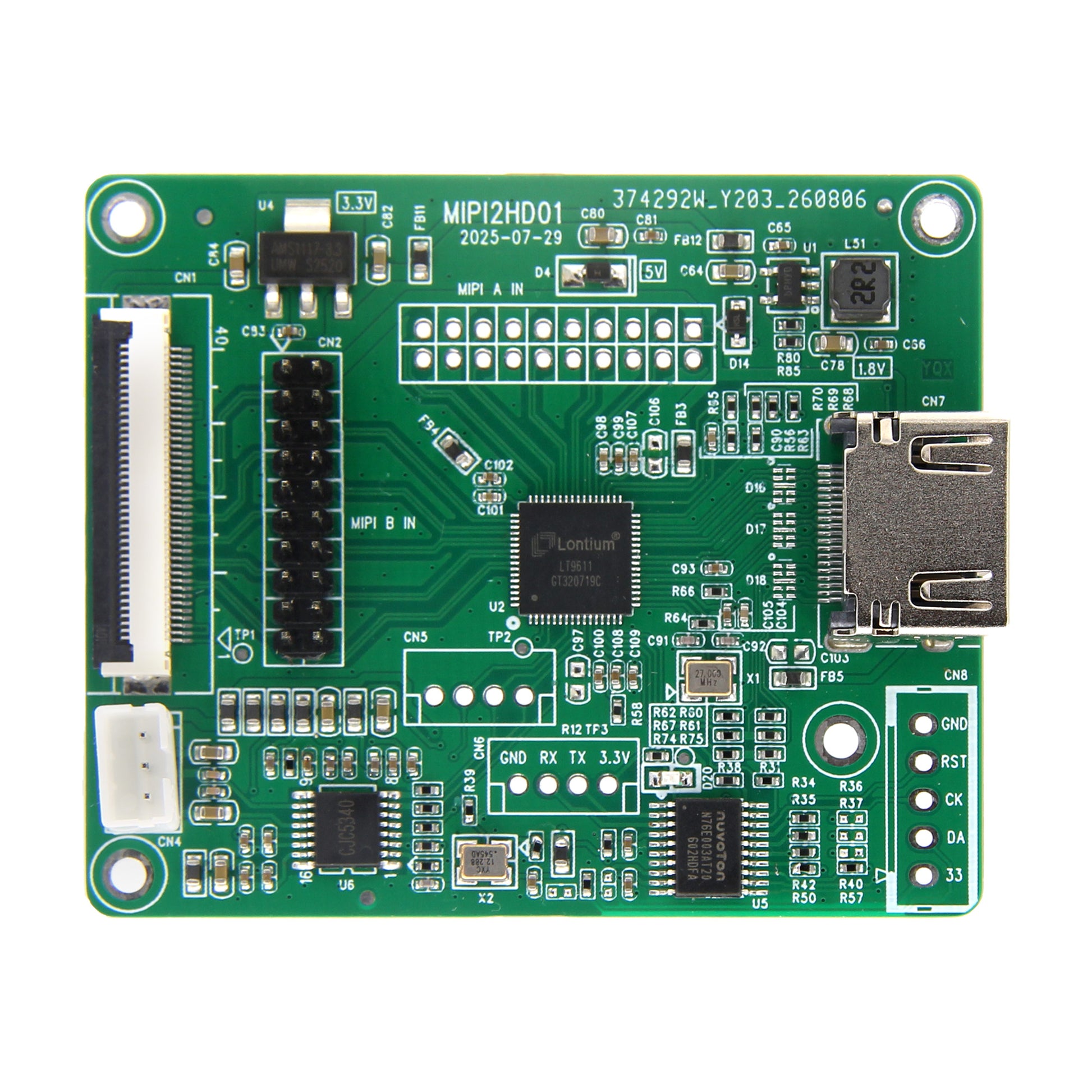

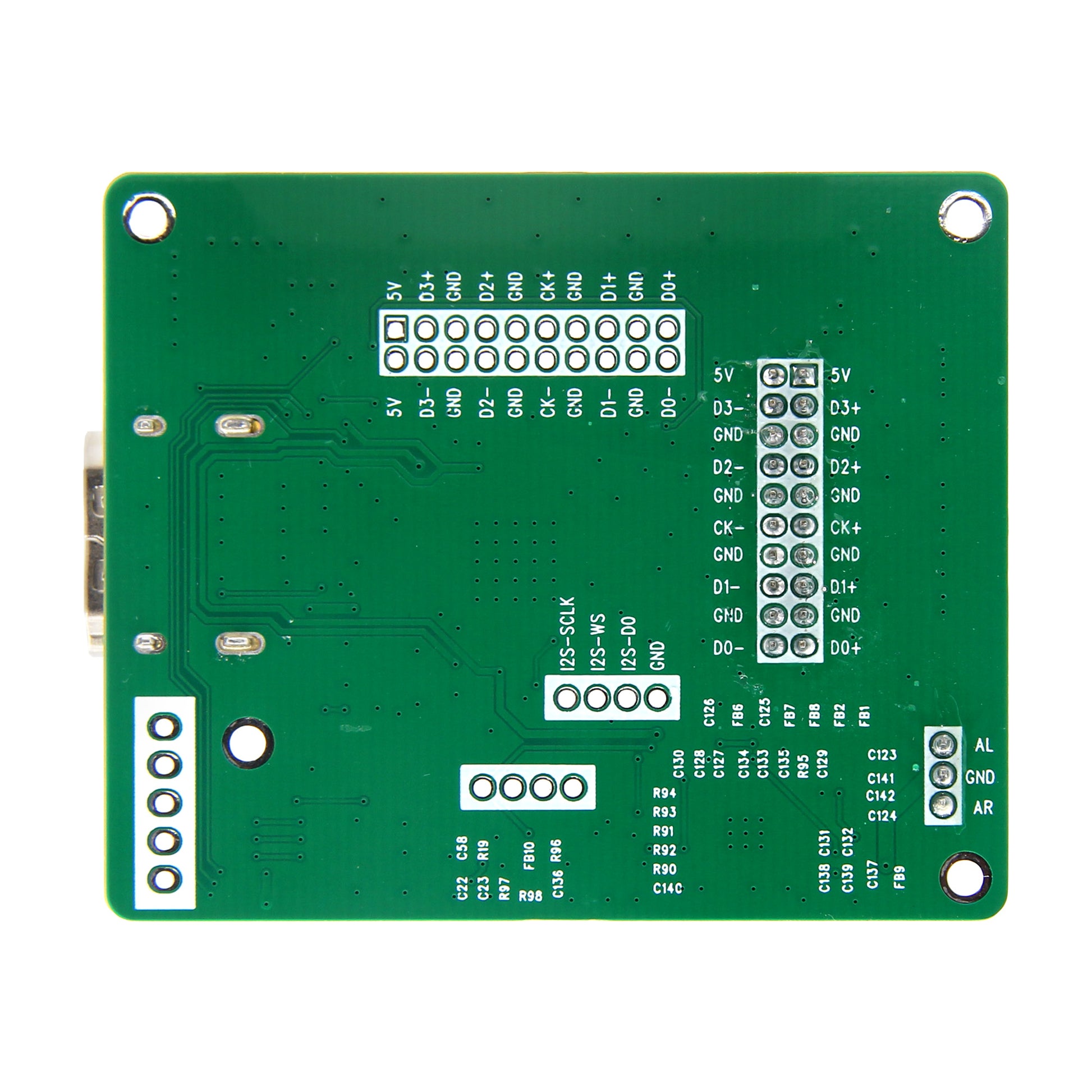

• Dual Connector Layout: Supports connections via a 0.5mm 40-pin FFC socket or 2.0mm dual-row pin headers.

🎵 Integrated Audio & Easy Serial Debugging

• Synchronized Audio Output: Features an onboard analog stereo audio input header (PH2.0-3A) to embed audio directly into the HDMI signal.
• UART Configuration Port: Includes a 4-pin UART serial interface (PH2.0-4A) for adjusting parameters using standard USB-to-UART bridges (e.g., CH340G) at 115200 baud.

⚡ Compact & Low-Power Design

• Low Power Consumption: Operating on standard DC 5V with a low power draw (typical: 5V / 160mA).
• Ultra-Compact Dimensions: Pocket-sized 60mm x 50mm PCB with 4 pre-drilled M2.2 mounting holes for clean enclosure fitting].

Power & Input Operation Guide

Technical Specifications

Packing List

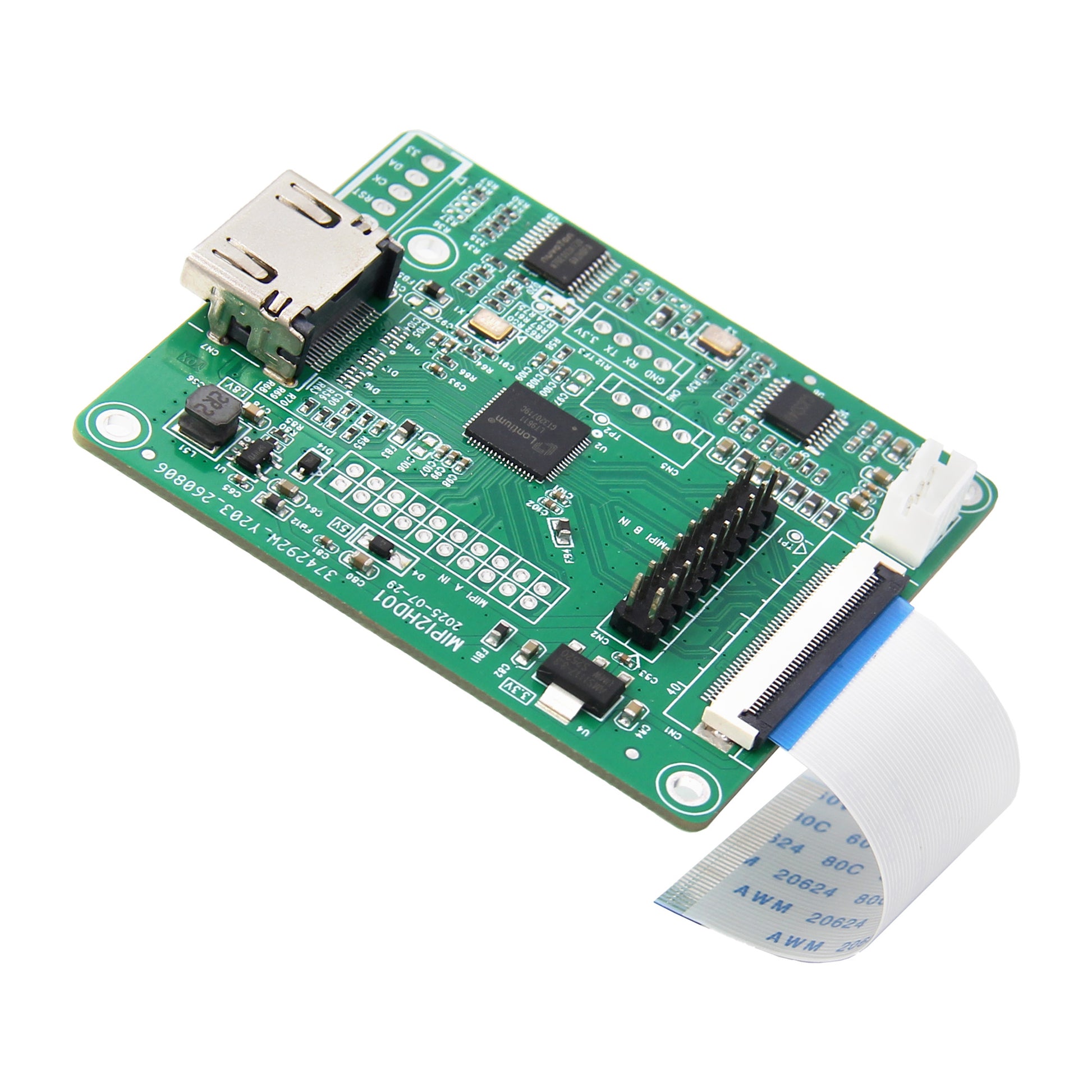

• 1 x MIPI2HD01 MIPI to HDMI Converter Board with 40pin FFC Cable
• Note:  HDMI cables, USB-to-UART adapter, and 5V power supply are not included in the packing list and must be purchased separately.
