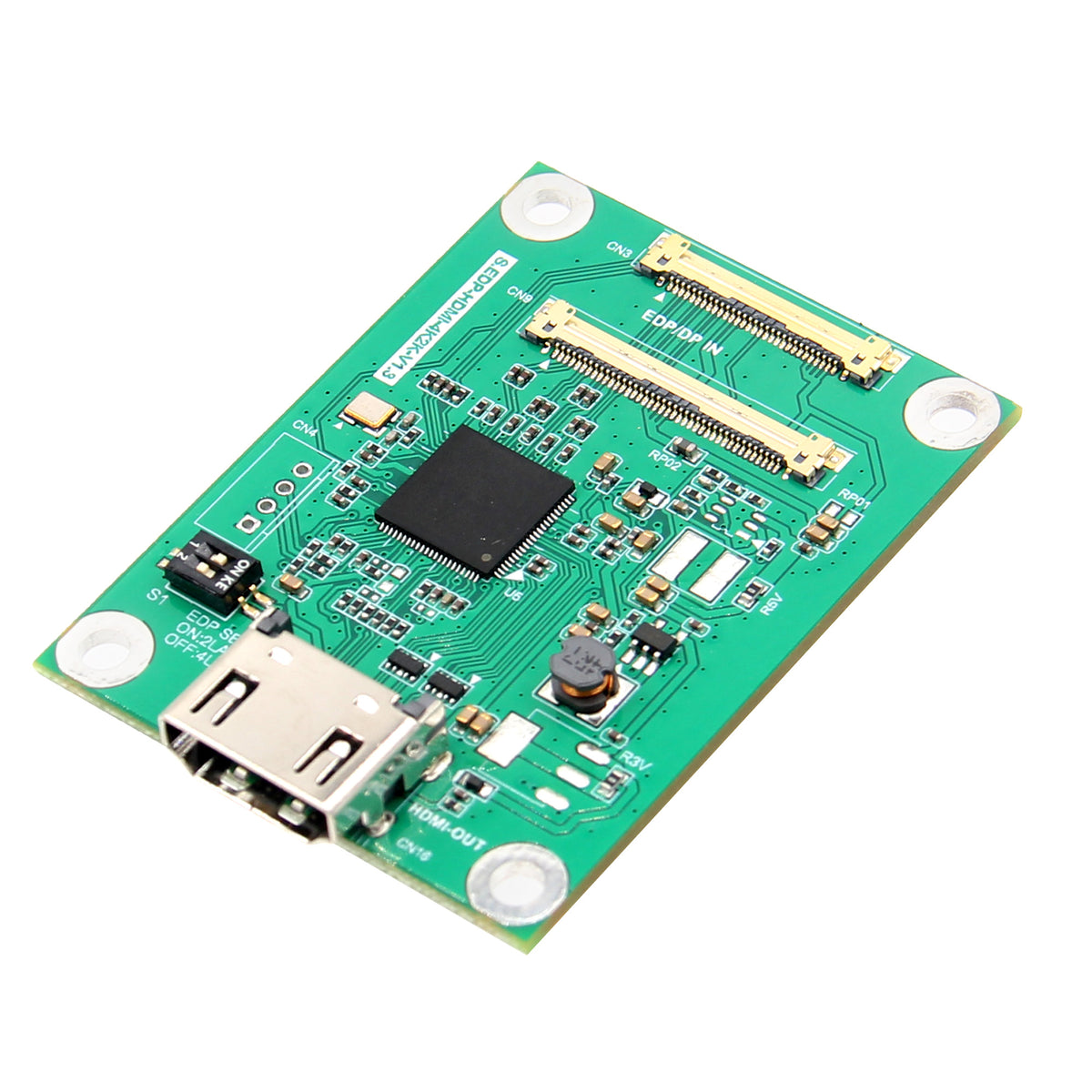

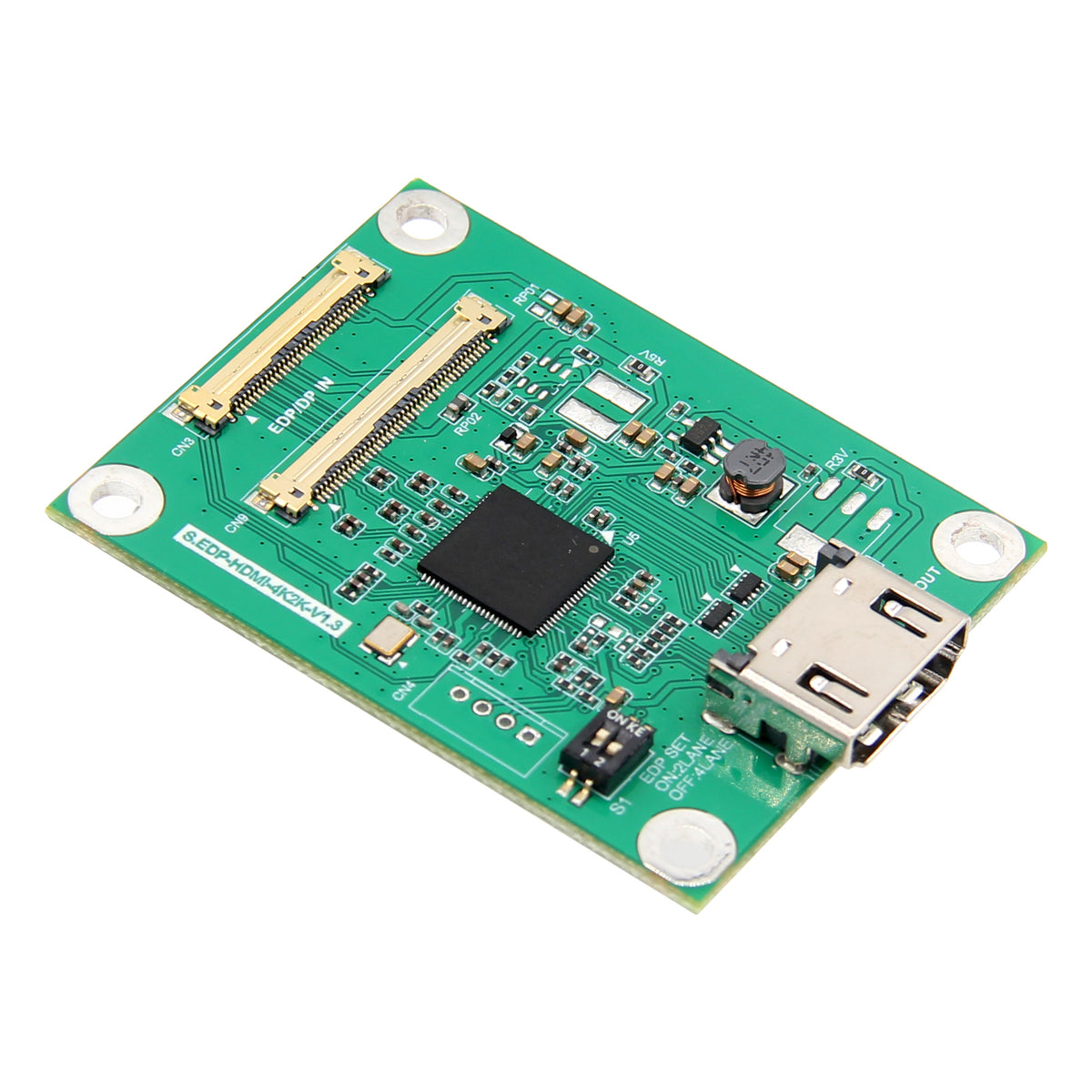

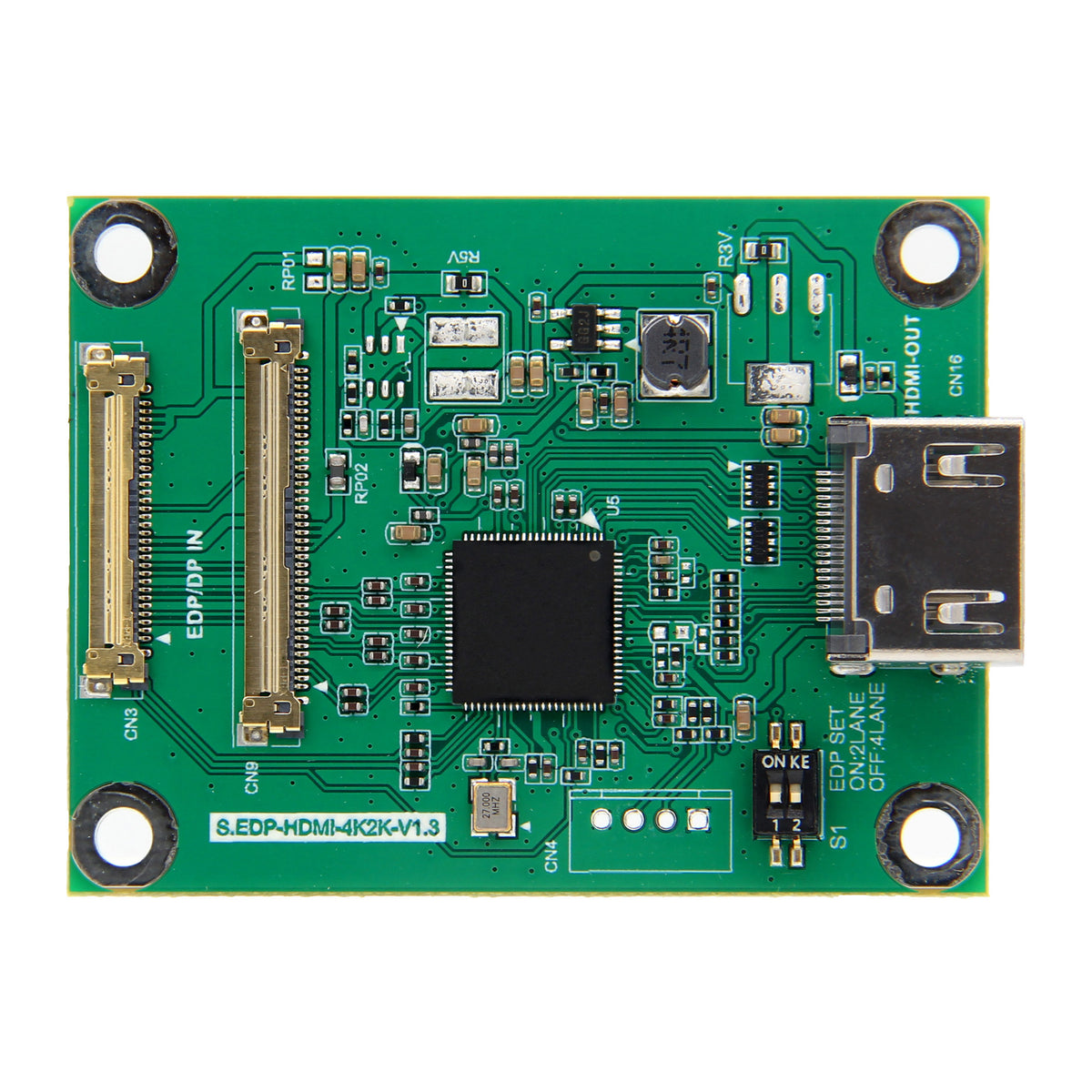

OverviewS.EDP-HDMI-4K2K.V1.2 is a signal adapter board, which is mainly used to convert EDP signal into HDMI signal, the resolution of this adapter supports up to 4K 30HZ resolution. The adapter can be used in set-top boxes, advertising machines, conference systems and other fields. EDP input needs to comply with EDP1.1, EDP1.2 standards;
User Manual: https://wiki.geekworm.com/EDP_to_HDMI_AdapterPower Supply Requirement
- Support power supply voltage 5-12V((The adapter board is powered by the drive screen with EDP interface.)
Features ( EPD/DP RX )：
- Compliant with VESA EDP/DP1.2
- Support 1.62/2.7/5.4Gbps
- Support 1/2/4 lanes （Default with 2 lanes program）
- Support SSC
- 1Mbps AUX channel
- Compliant with HDCP1.3
Features ( HDMI TX)：
- Compliant with HDMI2.0, HDMI1.4 and DVI1.0
- Compliant with HDCP2.2 and HDCP1.4
- IData rate up to 6Gbps
- Support UHD 4k@60Hz(RGB and YCbCr 4:4:4)
- Support TMDS scrambling for EMI/RFI reduction
- Support SCDC(Status and Control Data Channel)
Configuration & General Precautions
- Relative humidity: ≤ 80%.
- Storage temperature: -20~60°C.
- Operation temperature: -20~60°C.
- Protect the board from static electricity in case of damage to the IC.
- Keep the board away from conductor when it is working.
- Don't wire in the board to power supply before panel is correctly connected.
- Operating:Less than 2000m
Packing List:
- 1 x EDP to HDMI adapter board(2lanes/4lanes program)
