Geekworm 50Pin RGB888 to HDMI Adapter Board

This product is a technical DIY product. We regret that we are unable to provide specific technical support.

Overview

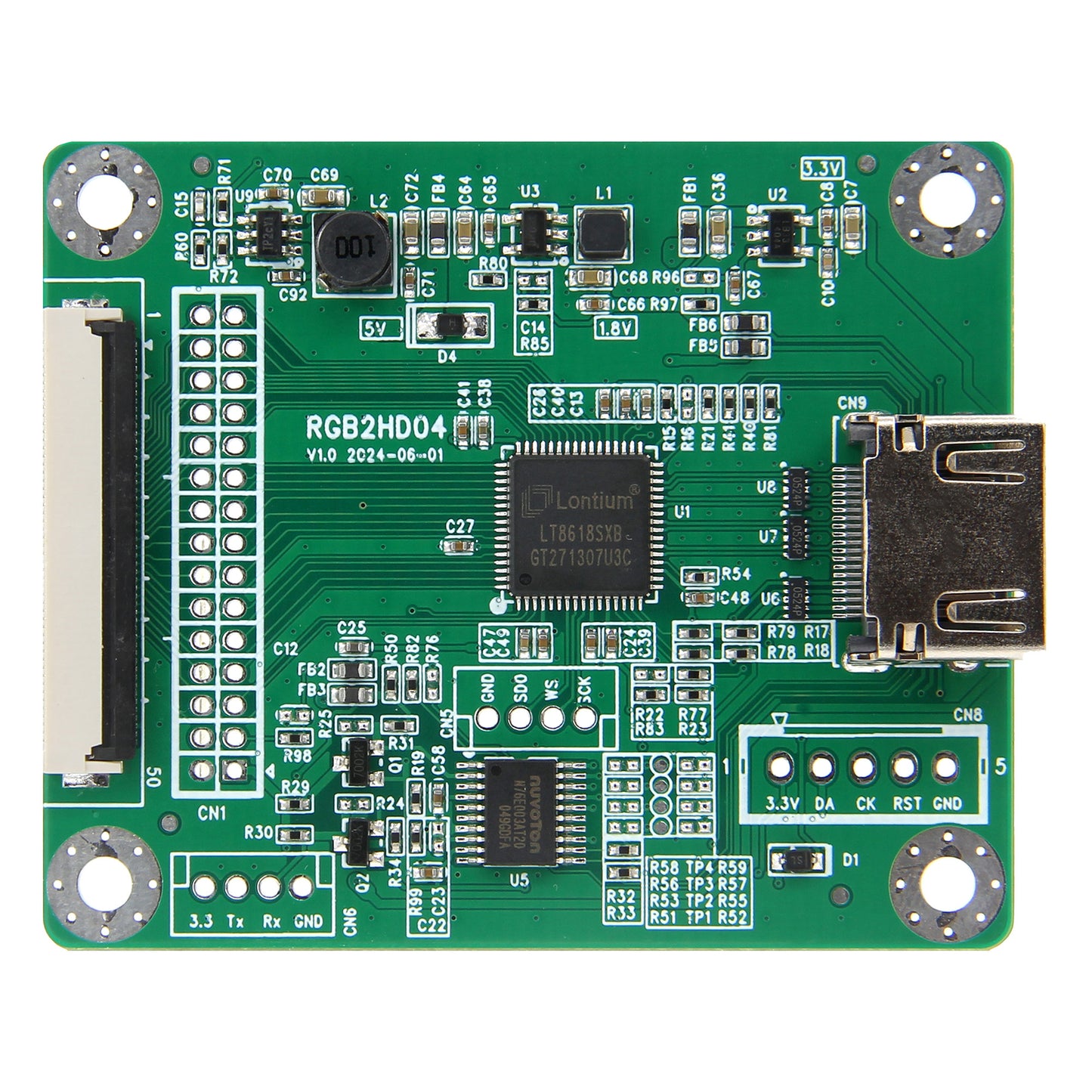

This product is RGB888 to HDMI adapter board, using 50pin RGB FFC input, can convert the RGB signal of 7/9/10 inch industrial control screen to standard HDMI output. It can be applied to industrial equipment maintenance, control panel modification, DIY display expansion related use scenarios.

Note:

• This board does not have a scaling function, and the output HDMI resolution is the same as the input RGB signal resolution, so for non-standard HDMI resolutions, the monitor connected to the back end may not support it!
• If it is 6-bit input, connect R[7:2], G[7:2], B[7:2]; and R/G/B 0,1 to ground

Features

• Precise signal conversion: Stable conversion of RGB888 digital signals to standard HDMI output.

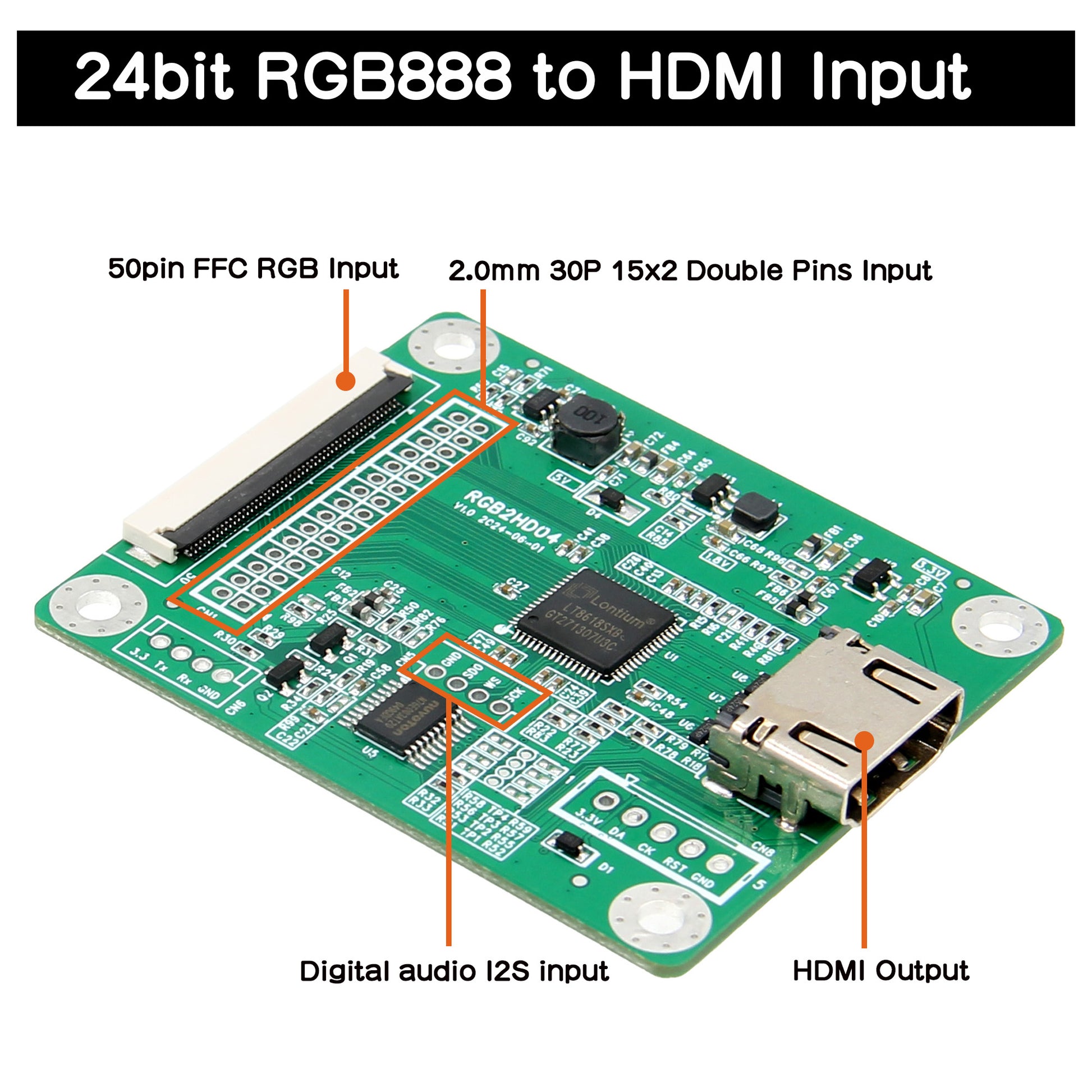

• Dual Mode Input Connector:

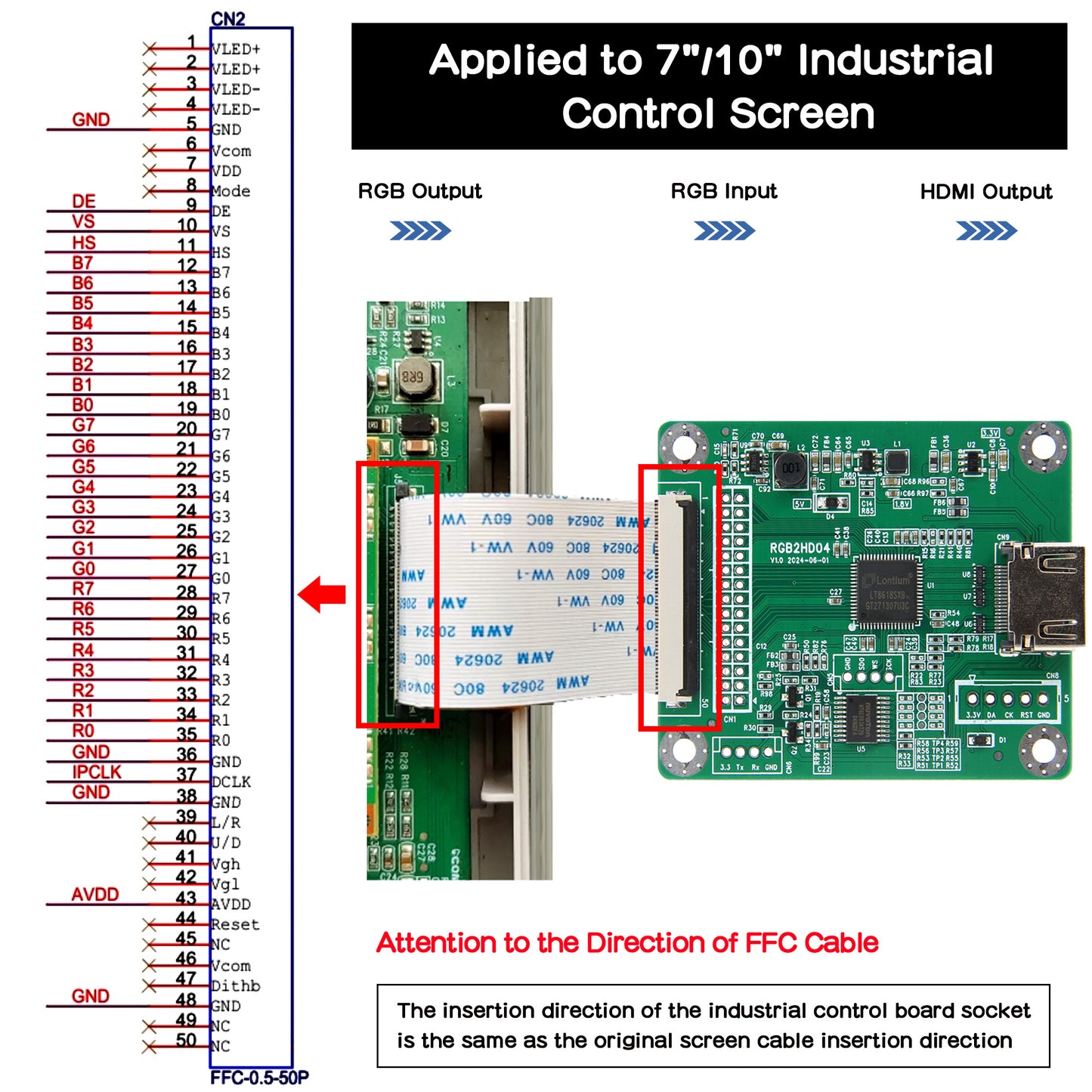

1. 50PIN FFC Input Connector: Supports RGB888 (24bit).

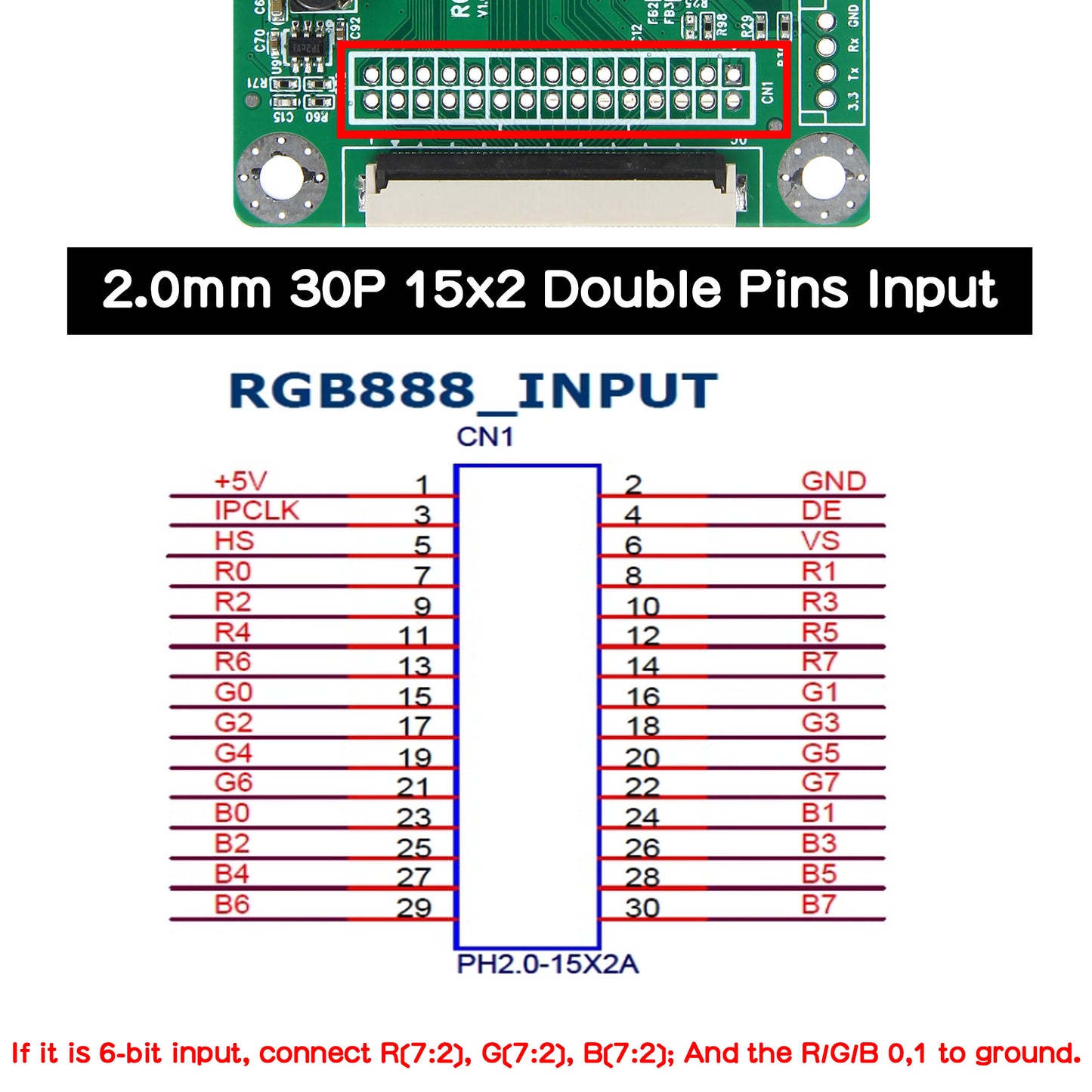

2. 30P Pin connector(15x2 2.0mm connectors to be prepared and soldered by yourself): Supports RGB888 (24bit) and 6bit input.

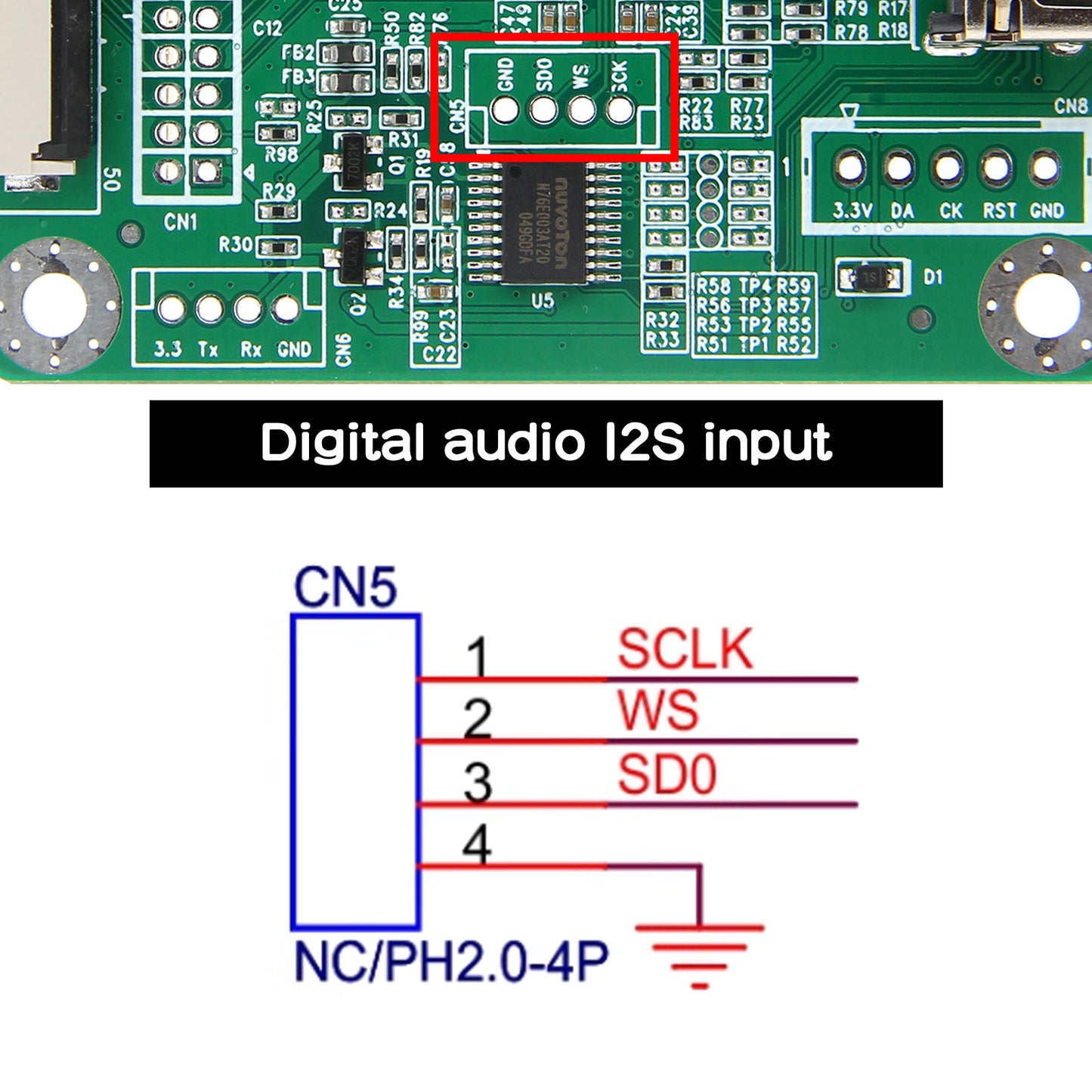

• Audio Integration: Provides digital audio I2S inputs to support simultaneous transmission of audio signals to HDMI outputs.

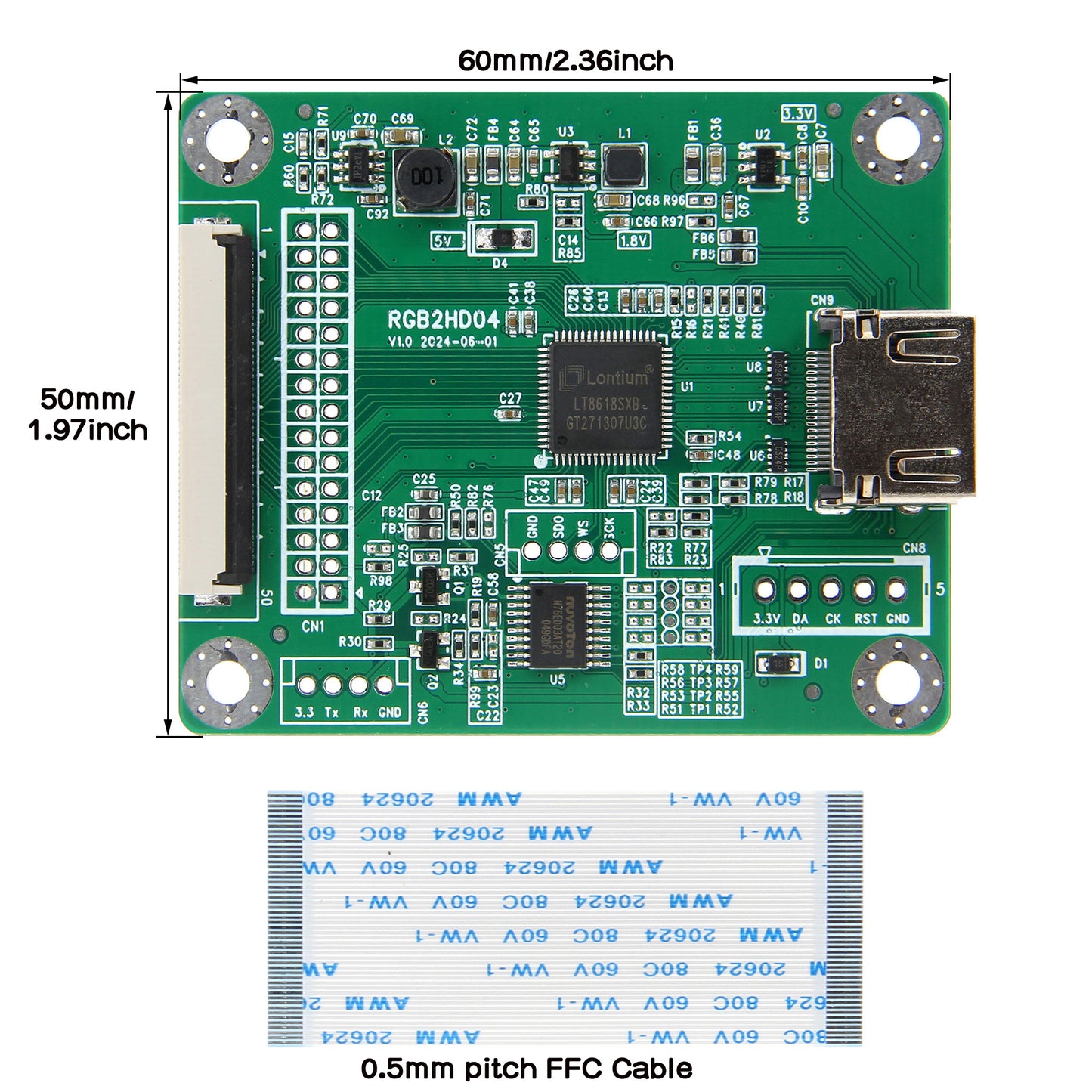

• Dimensional clarity: Provides accurate mechanical mounting dimensions for easy integration into your equipment enclosure.

Packing List

• 1 x RGB888 to HDMI adapter Board
• 1 x 50PIN FFC cable (length 5 cm)
