Note:
Only supports cutting into 2 horizontal left and right picture splicing, does not support up and down splicing.
Overview

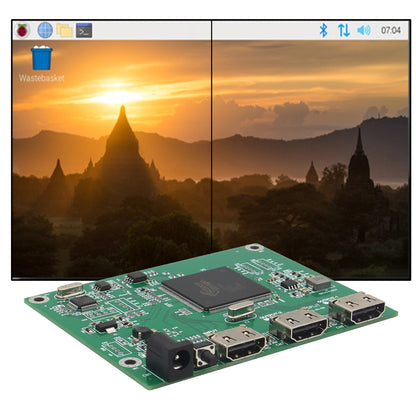

This is a 4K HDMI screen splitter for amplifying and splitting HDMI signal to two displays at the same time without video quality distortion, by using this adapter board, user can easily cut 3840x1080/60Hz input into two 1080P outputs, or two exactly same content.
User Manual: wiki.geekworm.com/4K_Splicer
Features
- 1*HDMI2.0 (600MHz broadband) input, support HDCP1.4 and HDCP2.2
- 2*HDMI1.4 (300MHz broadband) output
- Output Split Screen Mode: Cut the input signal into left and right parts and output from two HDMI ports respectively
- Output Copy Mode: the output content of the two HDMI ports is exactly the same as the input content
- Simple Switching: easily toggle split screen mode / copy mode by on-board switch
- Sound and picture are transmitted synchronously
- Power requirements: DC12V In
Packing List
Only board
- 1 x 4K HDMI Screen Splitter
Board+Case
- 1 x 4K HDMI Screen Splitter with metal case
FAQ:
Q1: Is there a black screen after splitting the screen?
Answer:
The built-in program works like this: detect the width and height of the signal source resolution, output the height as it is, and divide the width in half from the middle without any stretching. That's all
In other words, whether there is a black screen depends entirely on whether your display device supports the resolution after splitting.
Refer to: https://wiki.geekworm.com/4K_Splicer
Please email to us at info@geekworm.com if you have other questions.
