Geekworm X15-C1 Metal Case for Raspberry Pi CM5 and X1500/X1501 Compatibe with X15-F1

Regular price
$20.00
Regular price
Sale price
$20.00
Only 19 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Note: The Raspberry Pi CM5, SSD, X1500, X1501, X15-F1 and antenna are not included in the packing list.

Overview
The X15-C1 features a rugged two-piece metal construction designed for Compute Module 5 and X1500/X1501 IO boards. Its precision structural design, combined with an efficient heat dissipation system, ensures stable and reliable operation. Ideal for industrial, embedded, and high-performance computing applications, the X15-C1 delivers a perfect balance of protection, cooling, and accessibility.

The X15-C1 case provides flexible expansion options, including: an 80×10mm PWM-controlled cooling fan (X15-F1) that delivers 19.68 CFM for active thermal management in high-power applications; an X15-POE+ HAT supporting 802.3at Power-over-Ethernet for simplified cabling; and compatibility with additional low-profile HATs.

Features

  • Model: X15-C1
  • Compatible with X1500/X1501
  • Support the installation of X15-F1 8010 PWM-controlled fan
  • Supports flexible configurations with the X15-POE+ HAT and other low-profile expansion HATs
  • Precision cut-outs and clear labeling: Ensures easy access to ports and components with intuitive identification.

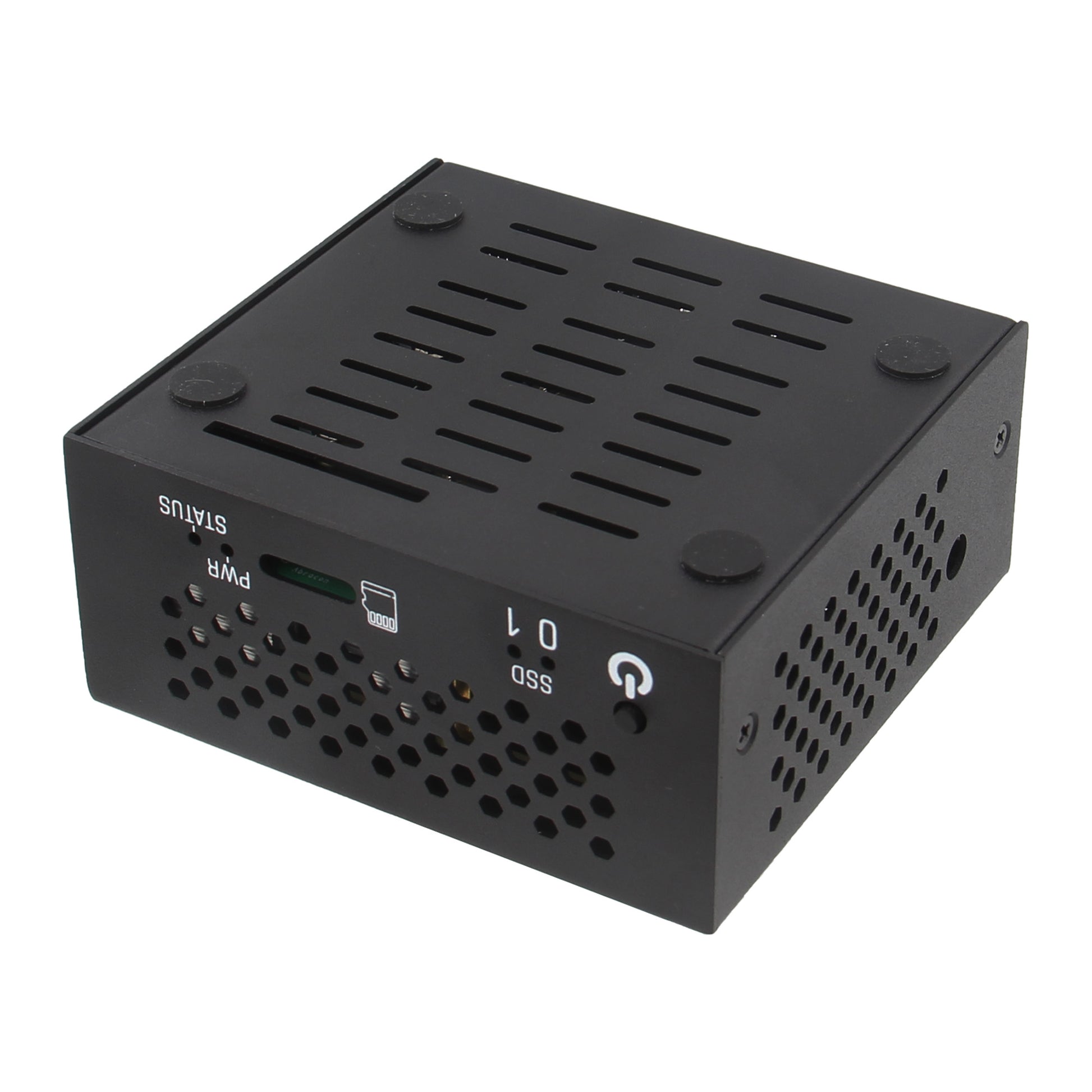

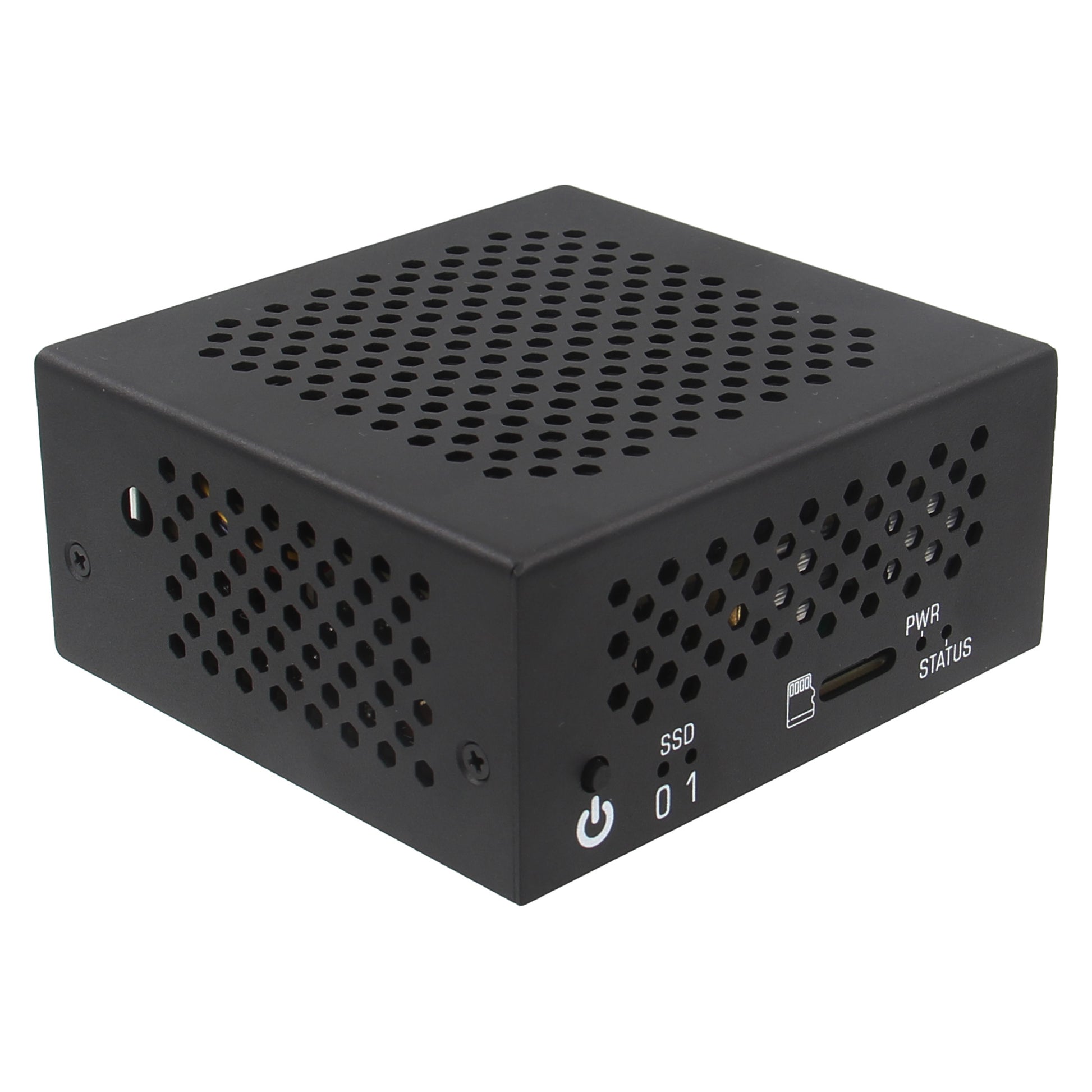

  • Optimized thermal performance: Extensive ventilation holes on every side enhance heat dissipation.

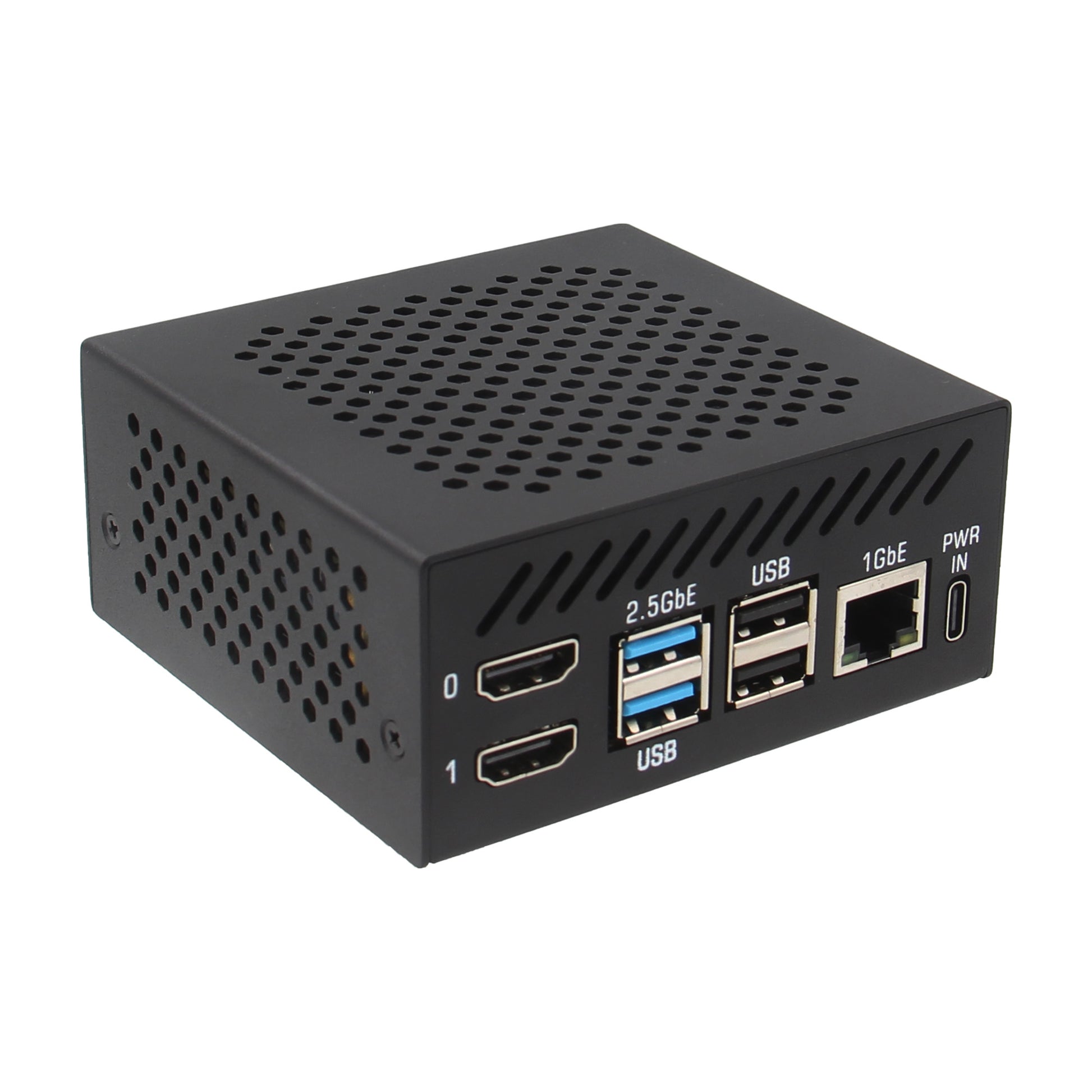

  • Comprehensive port access: Side cut-outs provide unobstructed access to HDMI, Ethernet, USB-A, USB-C (power input), and the SD card slot.
  • Expandable connectivity: Features a bottom slot for seamless integration of CSI-2 cameras or DSI displays.
  • Wireless antenna support: Includes a dedicated mounting hole for an external antenna.
  • SSD Note: Does not support SSD heatsink installation

Technical Specification

  • Case Dimensions: 96mm x 90mm x 44mm
  • Weight: 230g
  • Product material: Sheet metal

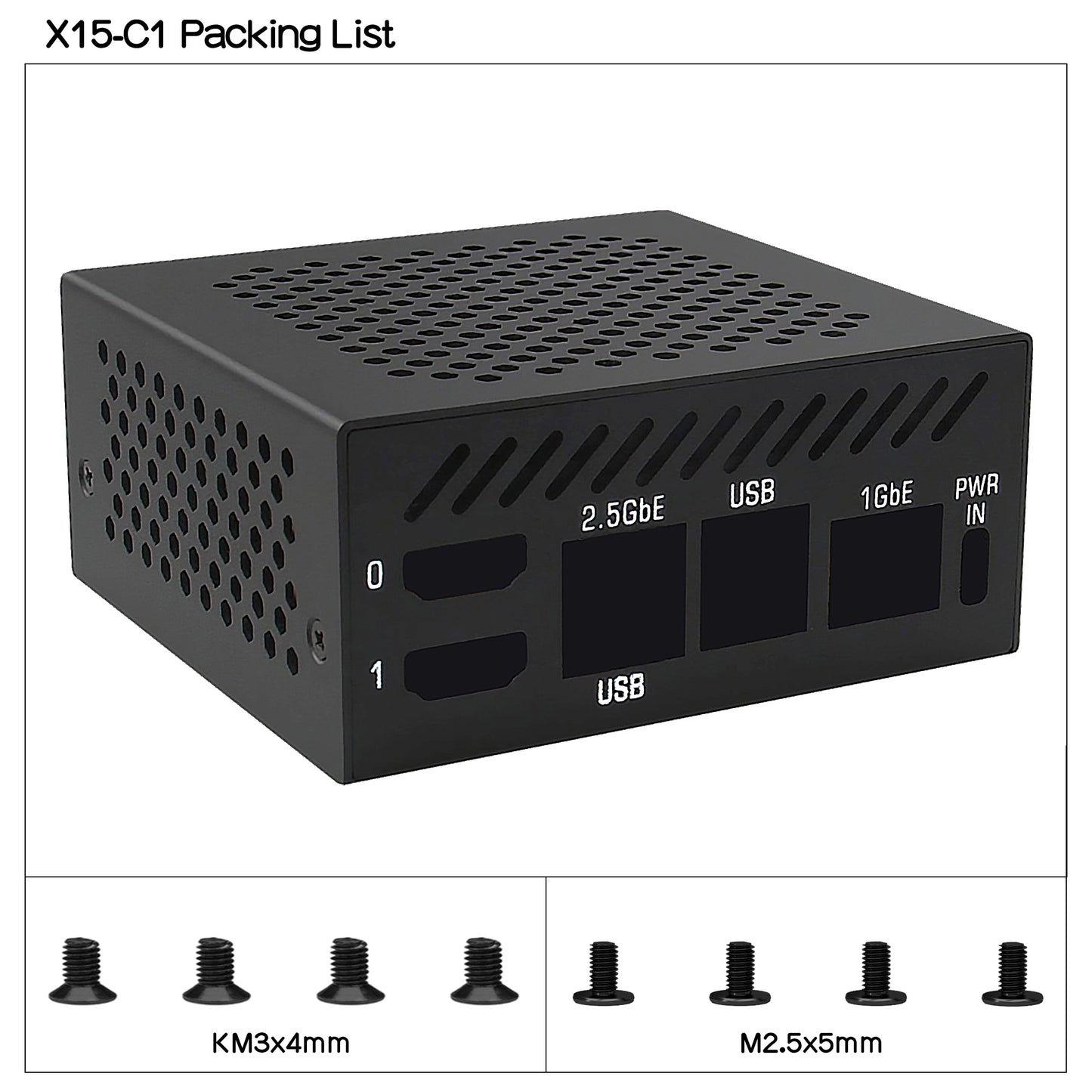

Packing List

  • 1x X15-C1 Metal Case
  • 4 x M3x4mm Screws
  • 4 x M2.5x5mm screws

Refer to: https://wiki.geekworm.com/X15-C1

Please email to us at info@geekworm.com if you have other questions.
