Geekworm N516 Metal Case with Cooling Fan and Heatsink for OrangePi RV2

Note: The OrangePi RV2 board, antenna or power supply are not included in the packing list.

Overview

Protect and cool your OrangePi RV2 with this high-quality metal enclosure N516 designed by Geekworm. The N516 case preserves every port and slot of the OrangePi RV2 board and includes active and passive cooling to keep your project running reliably.

Key Features

• Perfect Fit – Custom-made for Orange Pi RV2 (not compatible with other boards).
• Durable Build – Premium galvanized metal with a sleek finish for long-lasting protection.
• Efficient Cooling – Includes a 5 V 3010 cooling fan (connect to 5 V & GND GPIO pins) and three aluminum heatsinks for both active and passive heat dissipation.
• Expandable Design – Space reserved underneath for NVMe SSD installation.
• Easy Access – All ports and slots align perfectly; dedicated openings for GPIO cable lead-out and TF card access.
• Antenna Ready – Oval side openings allow simple external antenna installation.

Specifications

• Model: N516

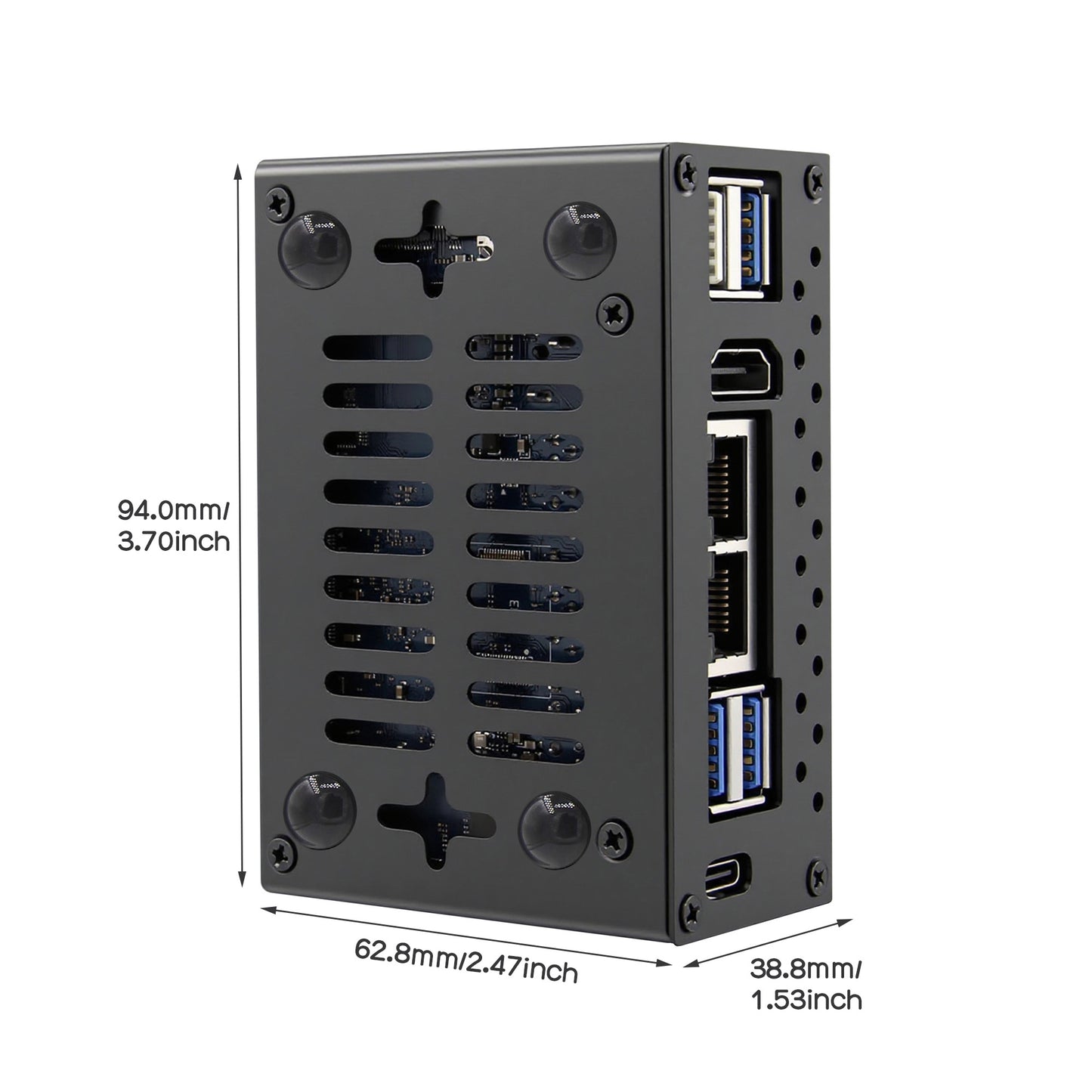

• Dimensions: 9.4 × 6.28 × 3.88 cm
• Material: sheet metal

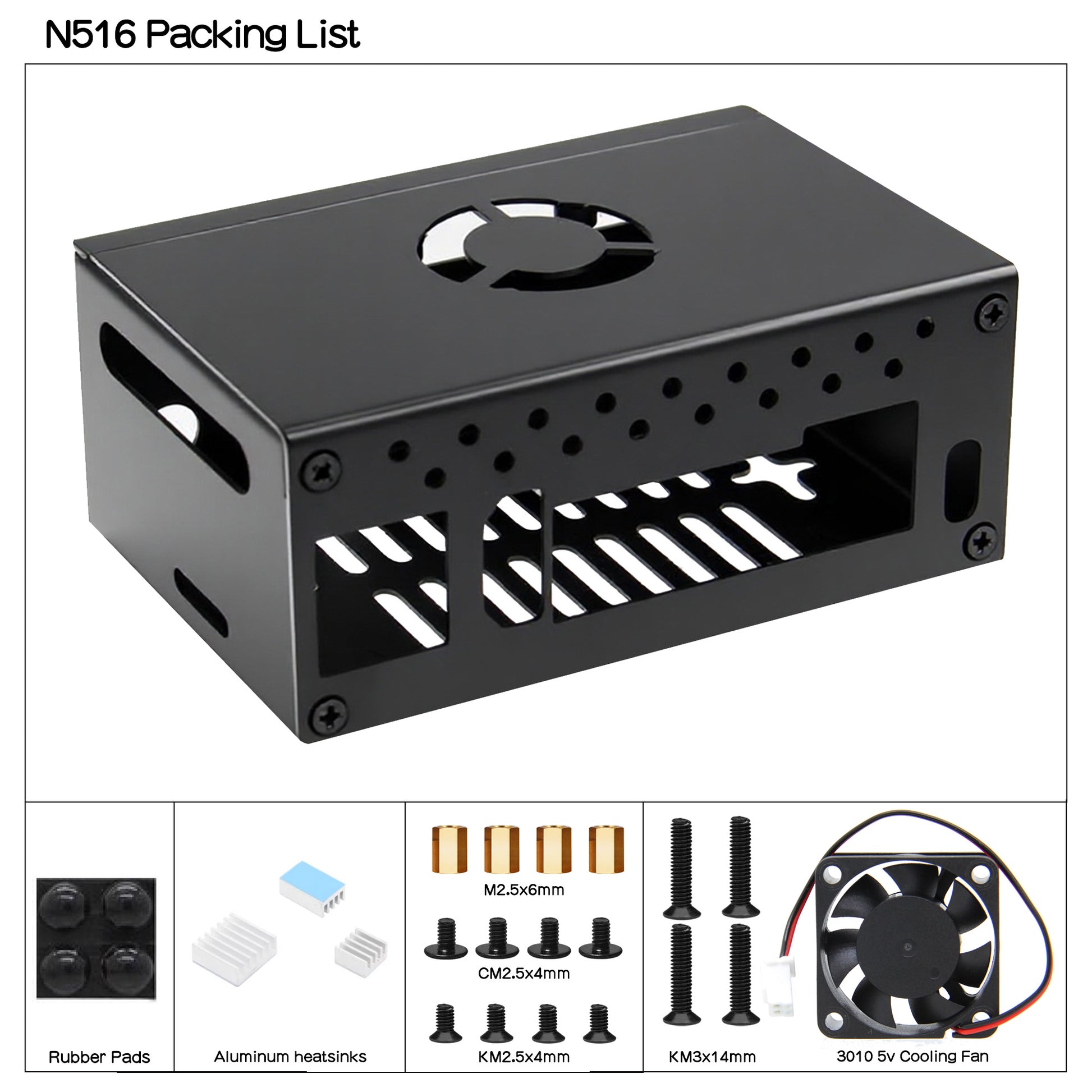

Packing List

• 1 × N516 metal case for Orange Pi RV2
• 1 × 3010 5V cooling fan
• 1 × 3pcs aluminum heatsinks
• 1 × screws pack
