Geekworm Metal Case for Orange Pi 5 Pro and Orange Pi 5 Max (N515)

Note:

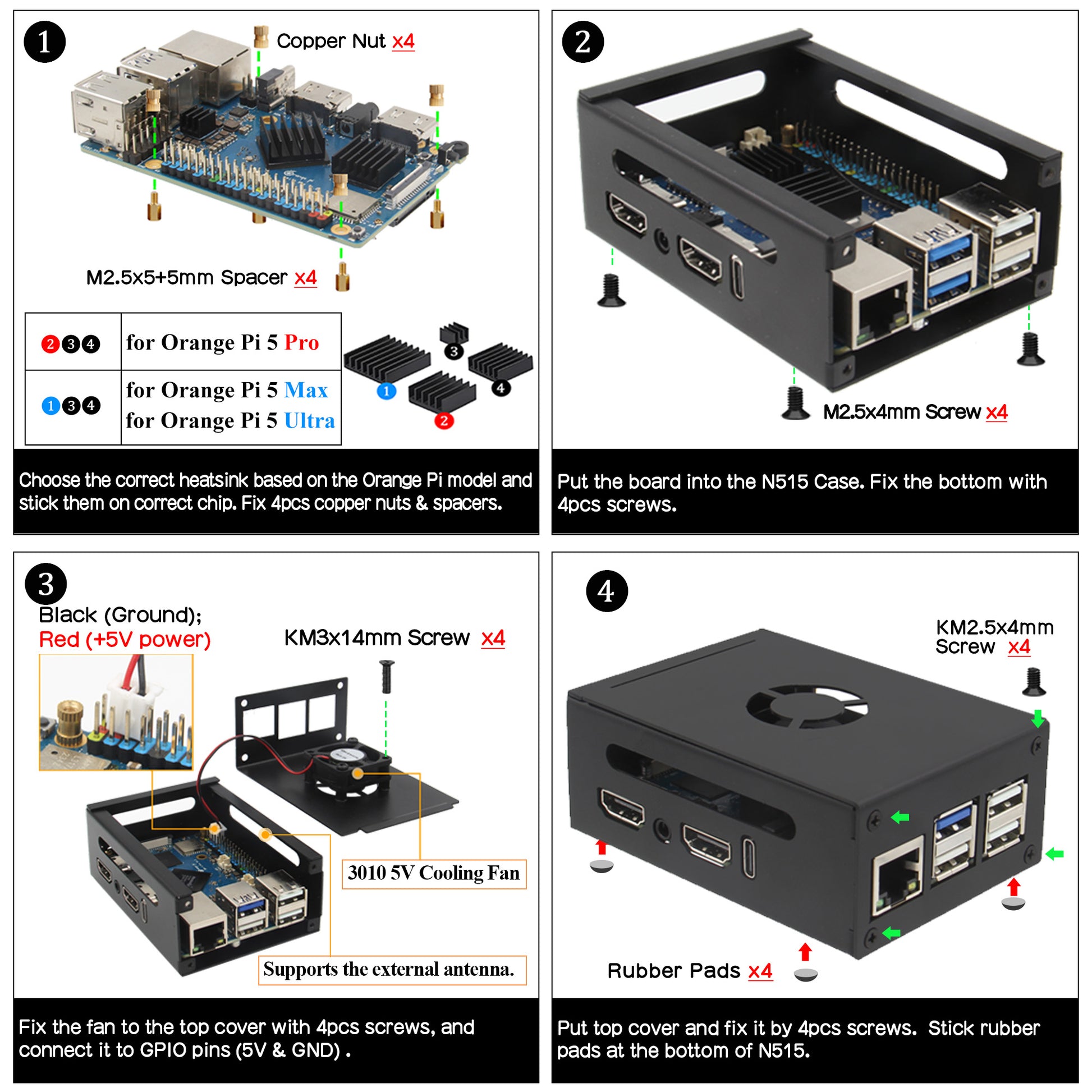

1. The 3010 5V cooling fan should be connected to the 5V & GND GPIO pin of Orange Pi 5 Pro,
2. The Orange Pi 5 Pro or Orange Pi 5 Max board and antenna are not included in the packing list.
3. After our testing, this case is also fully compatible with Orange Pi 5 Max.
4. Since N515 was released before Orange Pi 5 Max, the CPU cooler in N515 is slightly smaller when used in Orange Pi 5 Max.

Overview

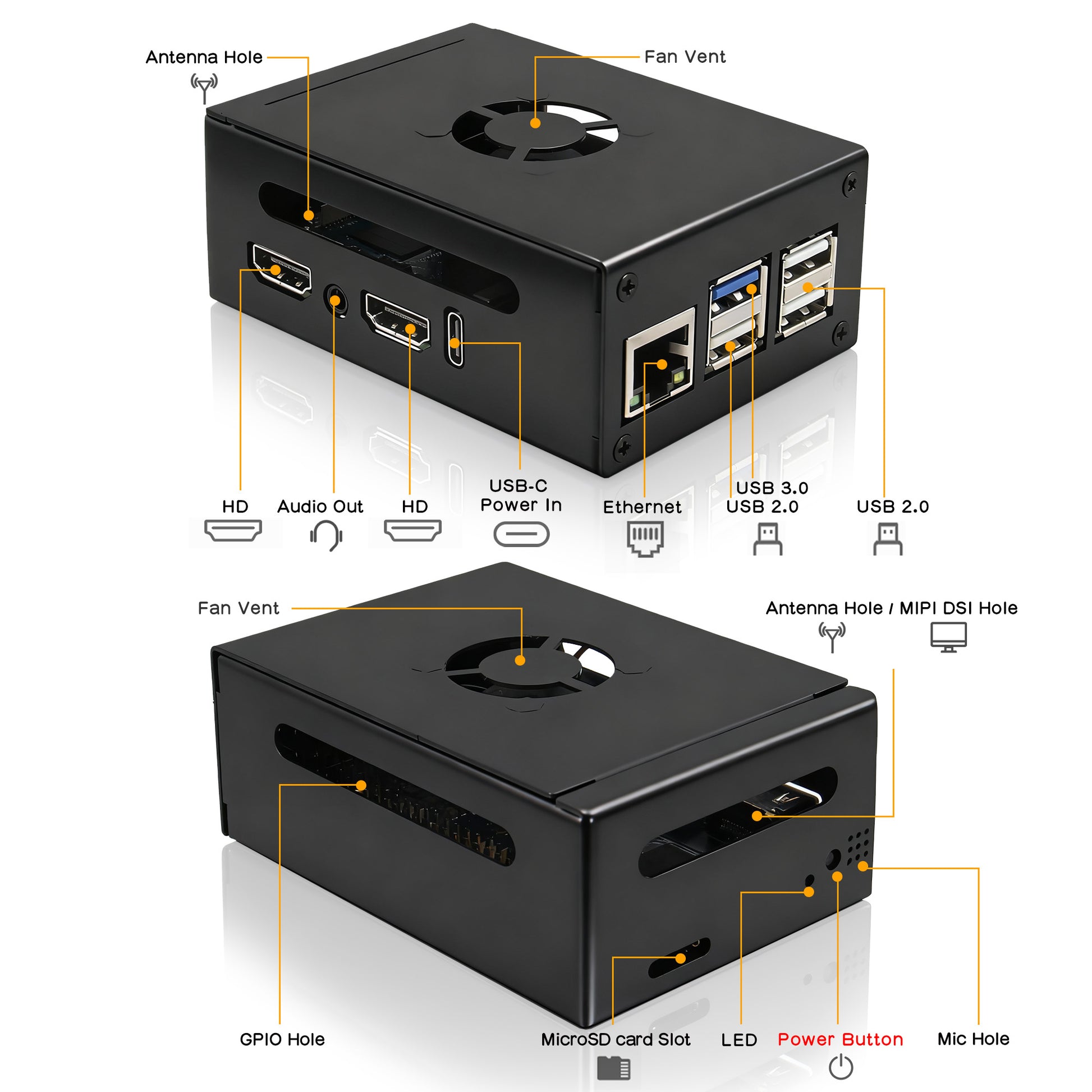

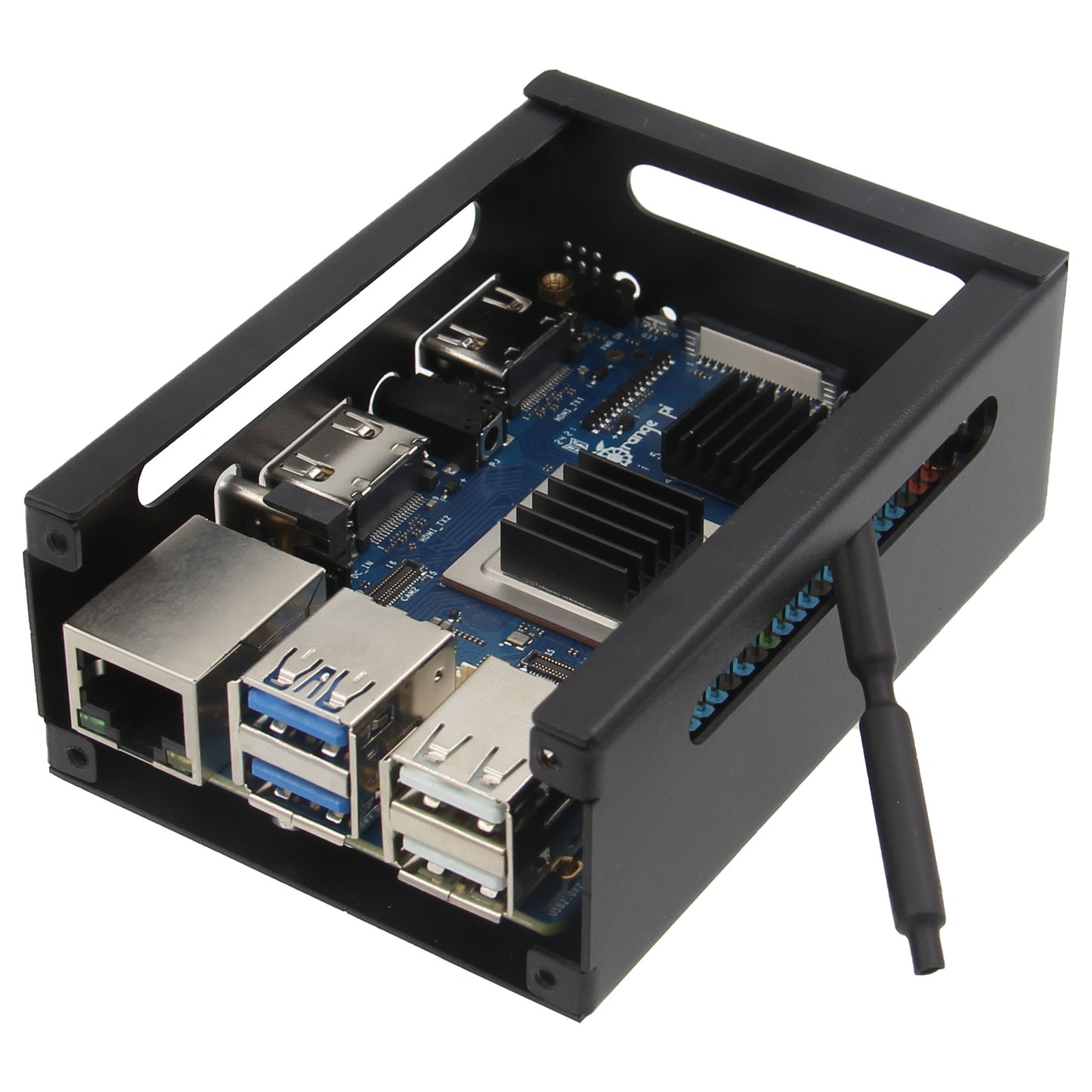

This is a metal case specially designed for Orange Pi 5 Pro by Geekworm, the model is N515. It reserves all the interfaces of the Orange Pi 5 Pro motherboard, supports the 3010 5v cooling fan installation, supports the extraction of the GPIO cable, and also reserves holes for you to facilitate the installation of external antenna.

User Manual: https://wiki.geekworm.com/N515

Features

• Compatible with Orange Pi 5 Pro / Orange Pi 5 Max Only, Do not try this on other boards.
• Model: N515
• Case Dimensions: 92.8*65*35.8 mm
• High quality metal material with surface galvanized process;
• All ports and slots of the case can match with Orange Pi 5 Pro perfectly
• Equipped with 5V 3010 cooling fan for active cooling
• With 3pcs aluminum heatsink for passive cooling
• Space reserved on the bottom for NVME SSD installation
• GPIO cable slot and TF card slot reserved
• Oval-shaped openings on both sides of the case for the installation of antenna and GPIO cable lead-out

Packing List

• 1x metal case for Orange Pi 5 Pro board
• 1x 3010 5V cooling fan
• 1x 3pcs aluminum heatsinks
• 1x Screws Pack
