Geekworm X303 Gigabit Ethernet Expansion Board & USB HUB Compatible with Raspberry Pi Zero 2 W / Zero W

Note:

• The Raspberry Pi board & C296 Heatsink is not included in the packing list.
• Raspberry Pi Zero(Zero 2W/ W/WH)’s micro OTG port cannot be used as it is occupied by USB HUB when use with X303.
• For matching case please refer to to: https://wiki.geekworm.com/File:X303-c1-asm.stp, We have only designed this case, not produced it. You can 3D print a case

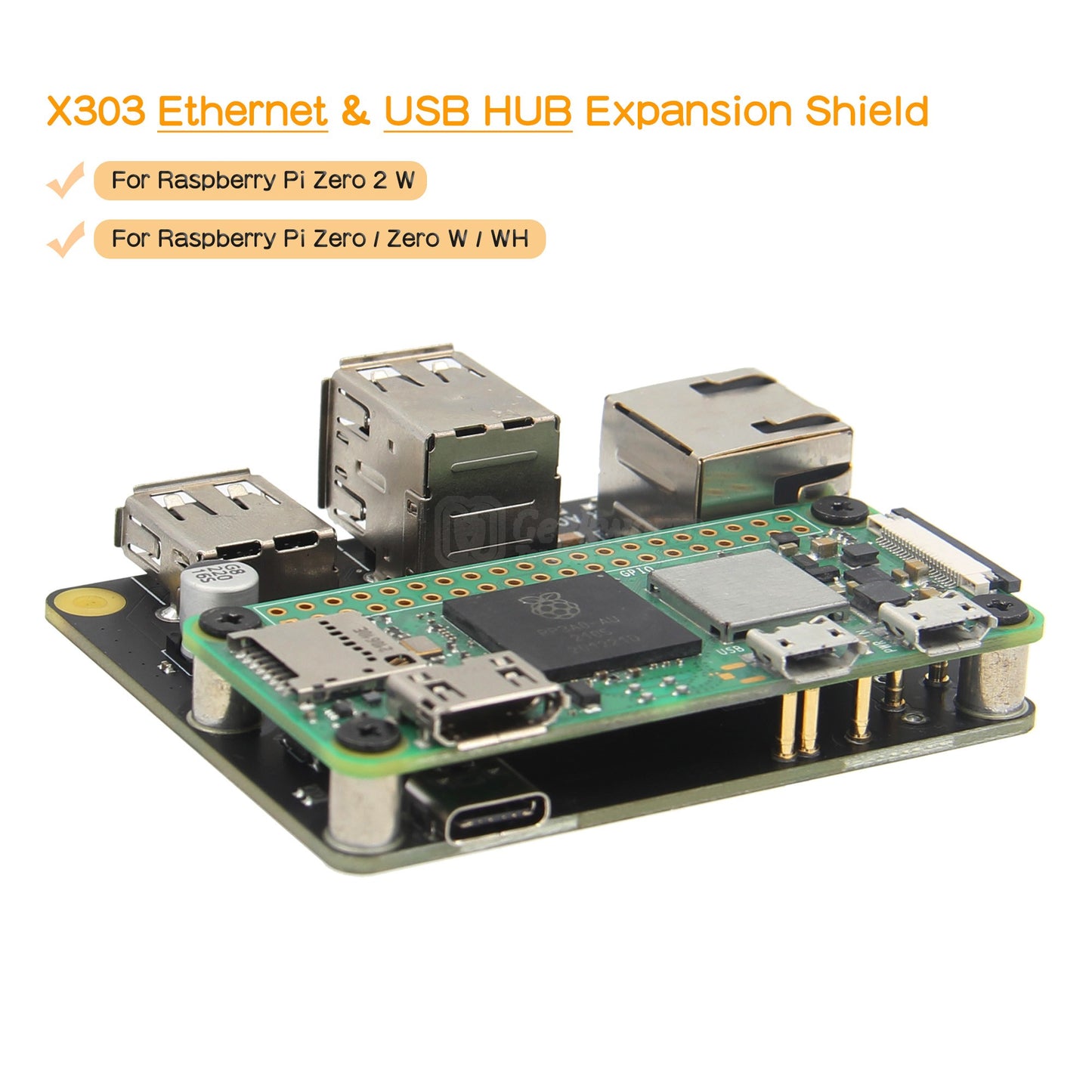

Overview:

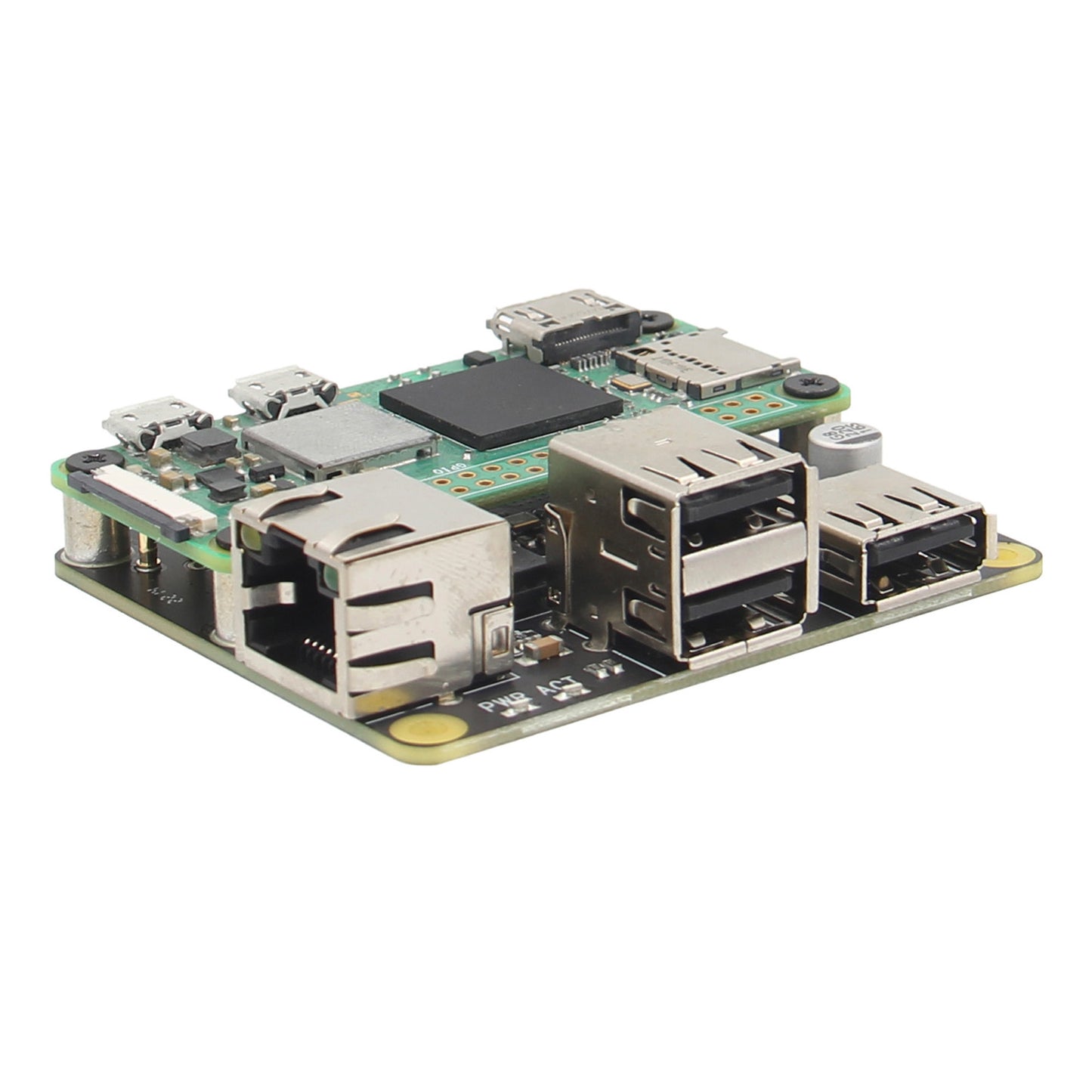

The X303 is a Gigabit Ethernet Expansion Shield designed for Raspberry Pi Zero 2 W / Zero W.  It equipped with 3 standard USB-A 2.0 port to support external USB device, 5 on board test pins to support power X303 and Raspberry Pi without wire.
User can easily use X330 and no driver required.

User Manual: wiki.geekworm.com/X303

Click to Order from Amazon

Features

• On-board USB2.0 to 10/100/1000M Gigabit Ethernet
• Upgrade to fast, wired Ethernet speeds via USB
• Improve speed and reliability over faster networks
• Practical speeds of 200-300Mbps on a Gigabit network. Supports auto MDIX
• Powered by the Realtek RTL8153 chipset that provides better performance, and stability, than most WiFi networks
• On-board three USB 2.0 Ports - No more external USB hub
• Gain 3 USB2.0, downstream ports which offer High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)

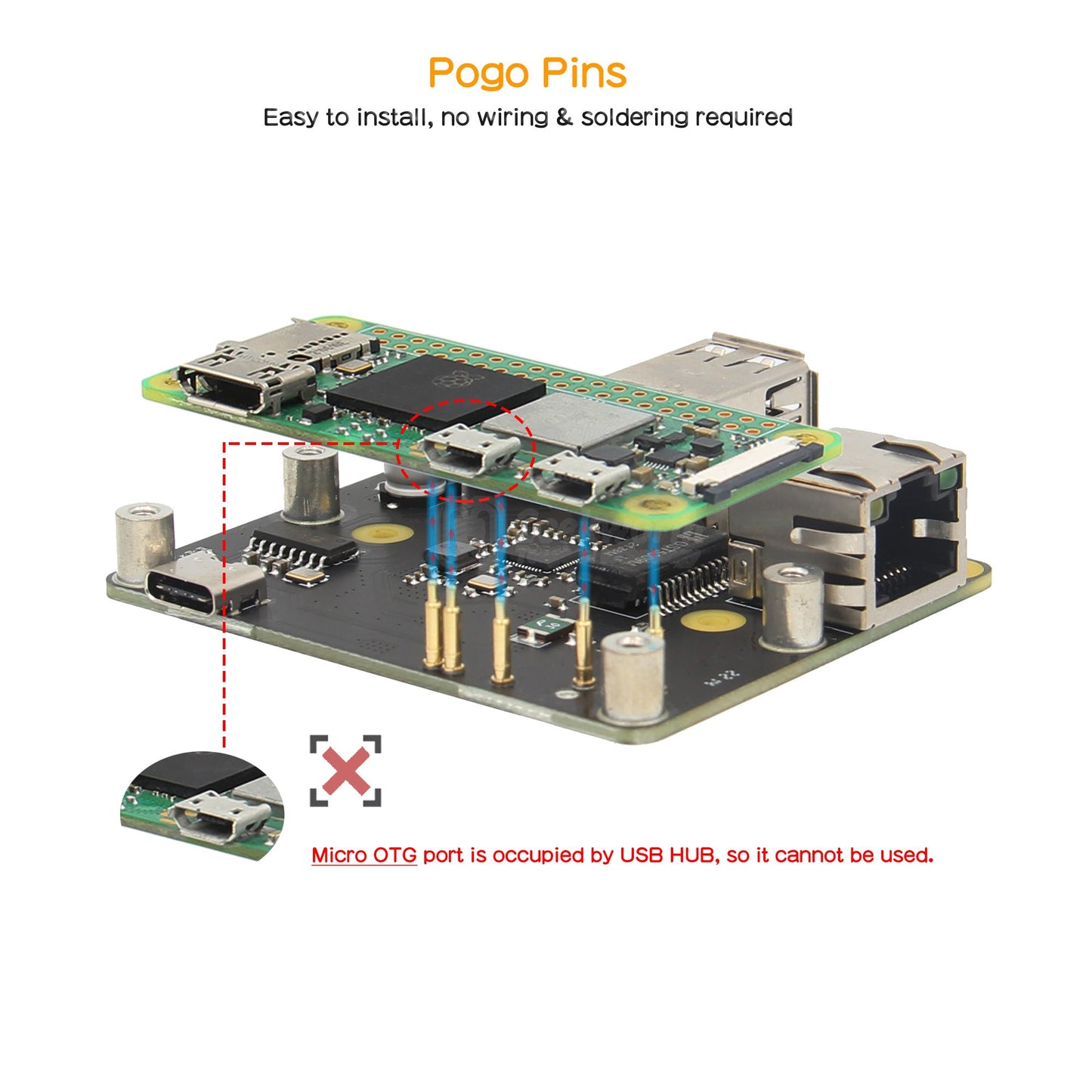

• Powers the Raspberry Pi via Pogo Pins - no wiring & soldering required
• On-board USB Type-C power connector
• Mounting holes and standoffs provide mechanical stability of board combination

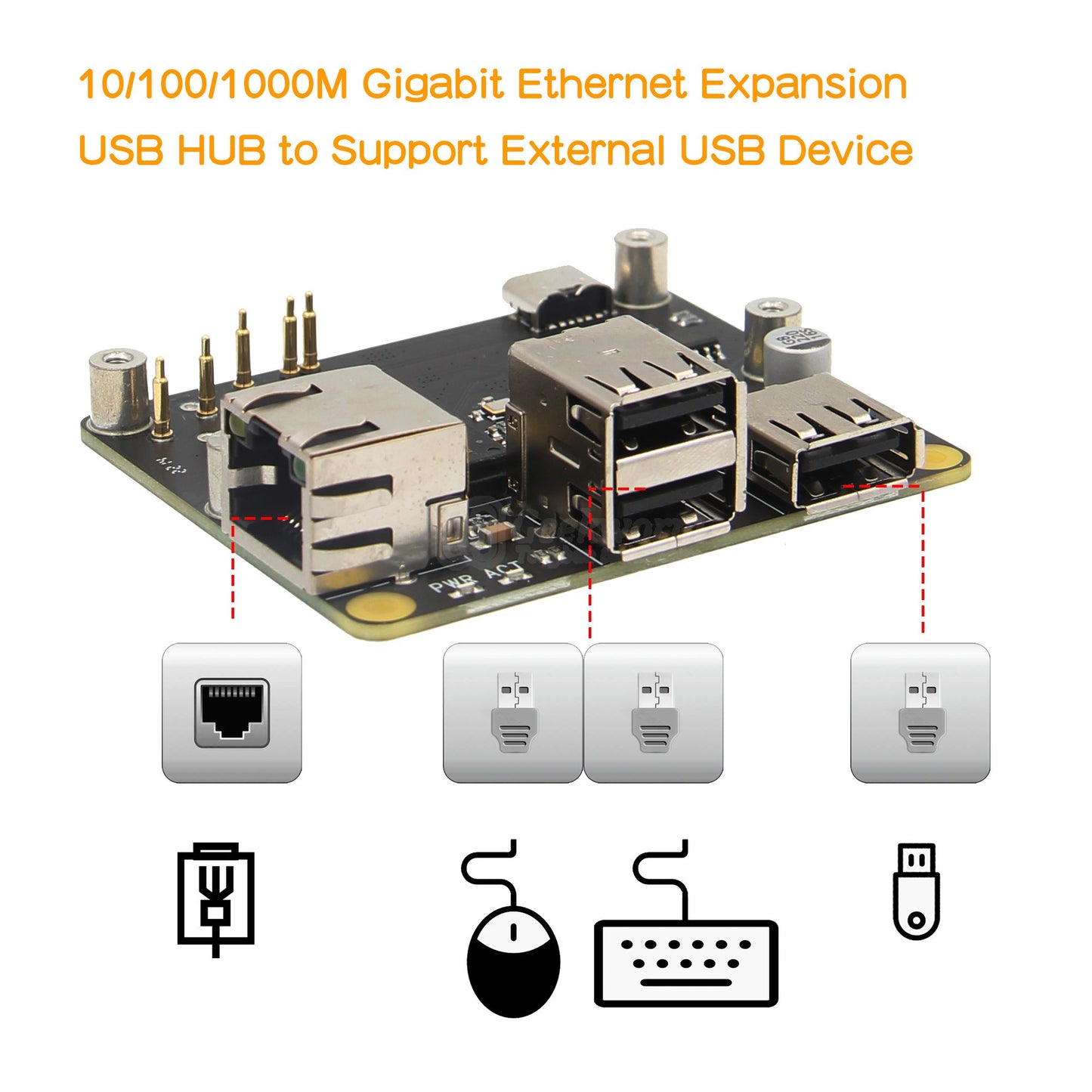

Port & Connectors:

• 1 x Gigabit Ethernet to provides high-speed transmission
• 3 x USB-A 2.0 Port to support external USB device
• 1 x USB Type-C Port to power in

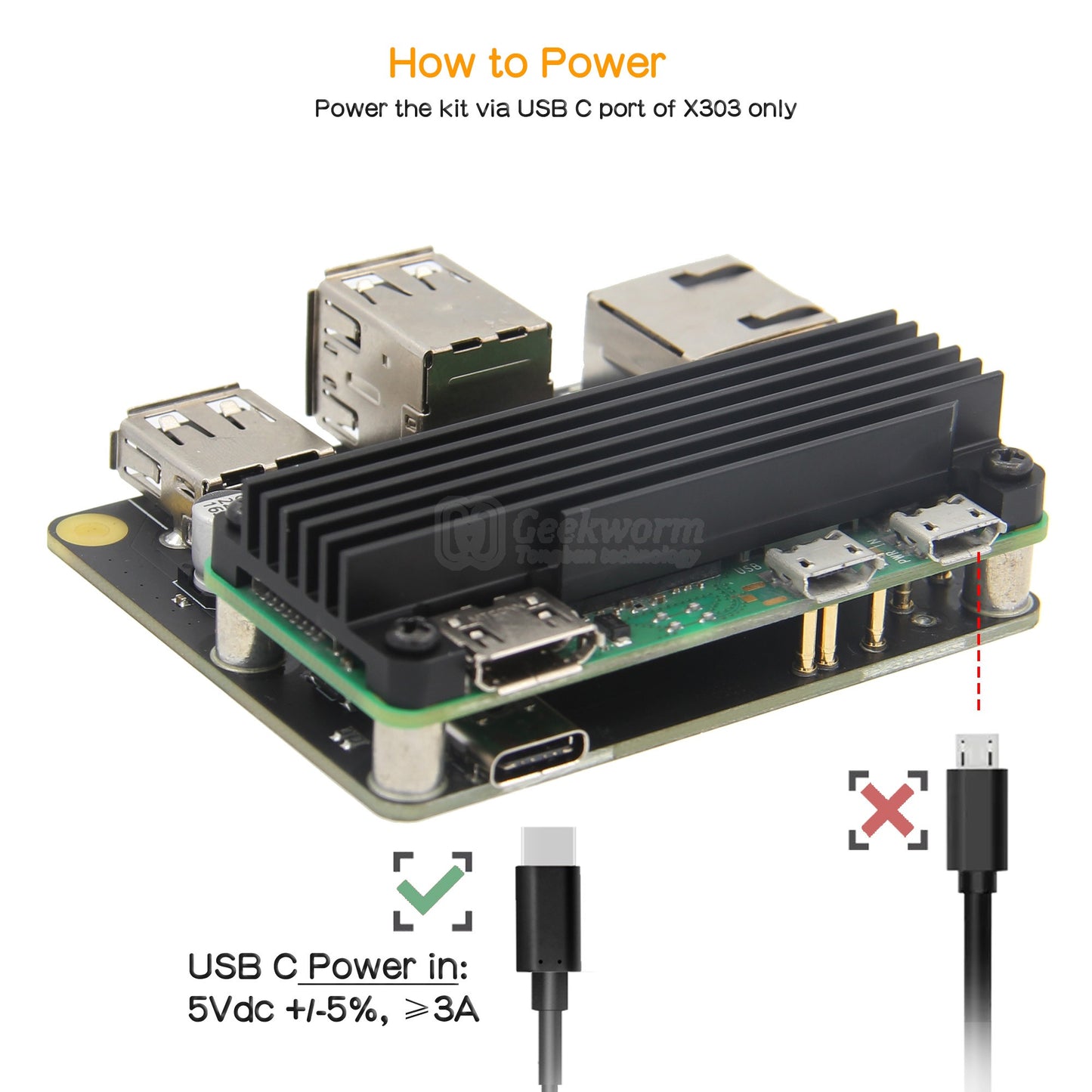

How to Power:

• Power via USB Type-C 5V In port of X303
• Power supply requirement: 5Vdc +/-5% , ≥3A

Recommend to use Geekworm 20W 5V 4A USB Type-C Power Adapter: https://geekworm.com/products/20w-5v-4a-type-c-psu

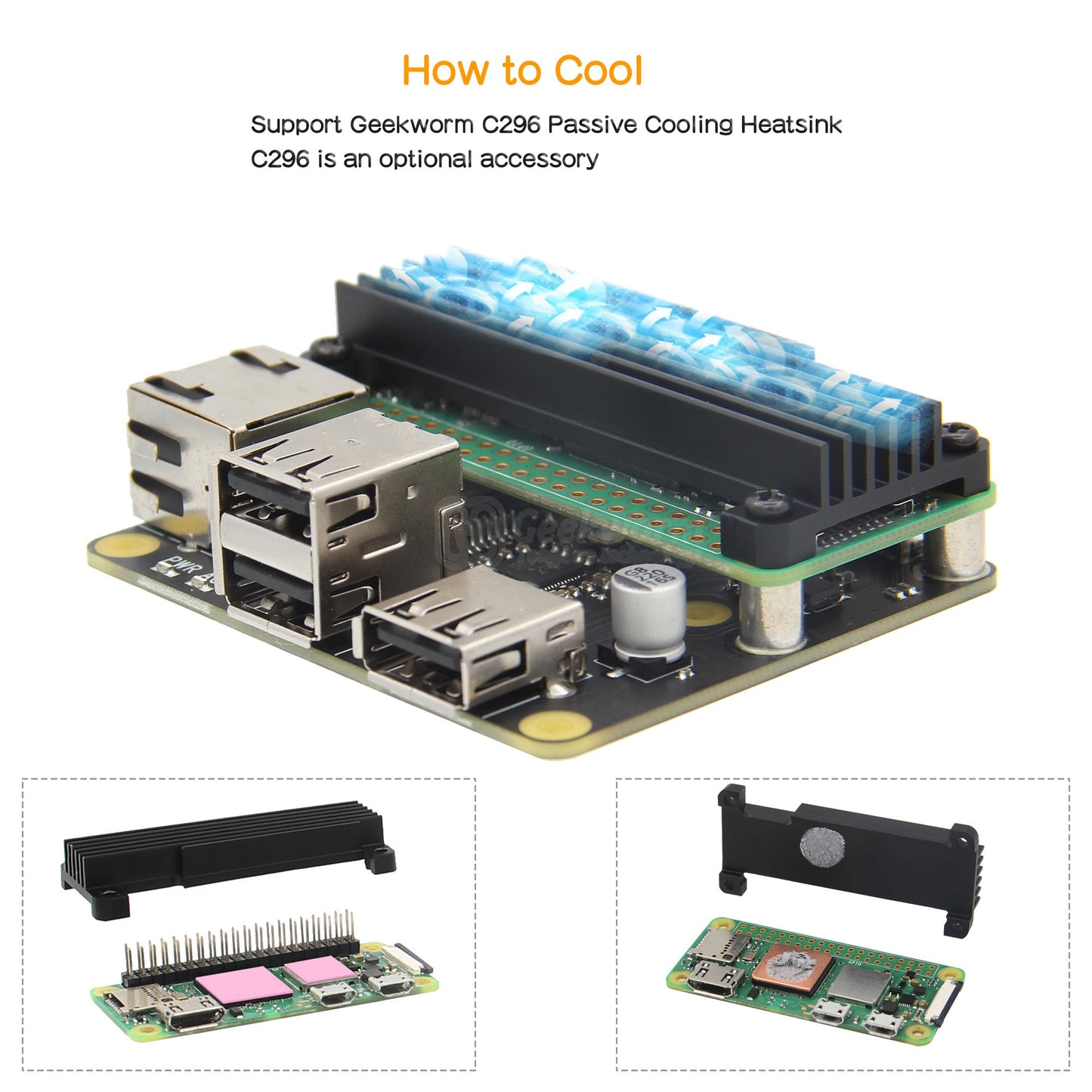

How to Cool:

Support to use with Geekworm C296 aluminum heatsink for Raspberry Pi Zero 2 W heat dissaption. (C296 also compatible with raspberry pi zero/raspberry pi zero w by using thermal pads of different thicknesses, thermal pads for raspberry pi zero / zero w is not included.)

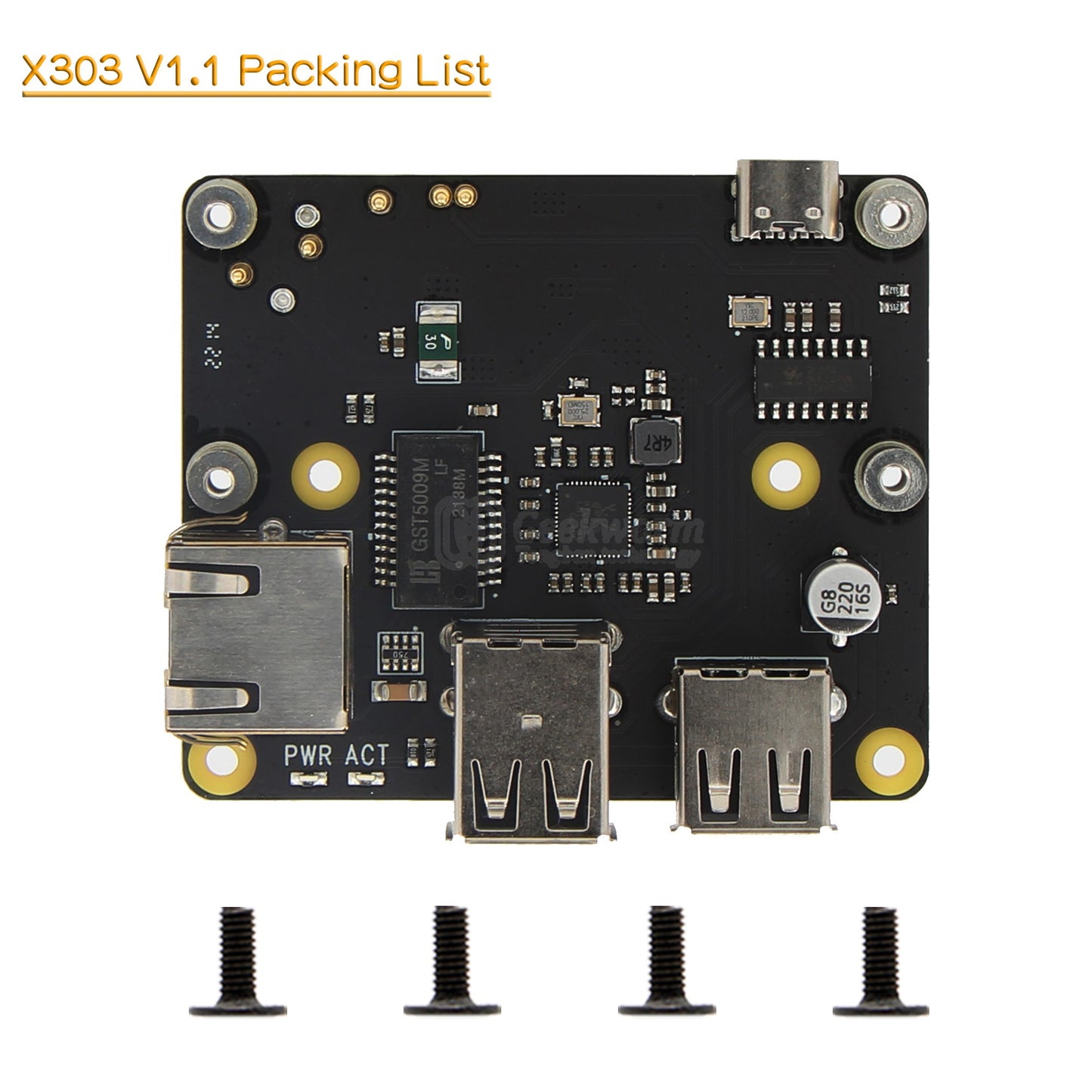

Packing List:

• 1 x X303 V1.1 Expansion Board
• 4 x M2.5*5mm Screws
