Geekworm X1500-C1 X1500-C2 Metal Case for Raspberry Pi CM5 and X1500/X1501

Note:

1. The metal case was upgraded from X1500-C2 to X1500-C3 on May 27th, 2026, with the mounting ears on both sides removed.

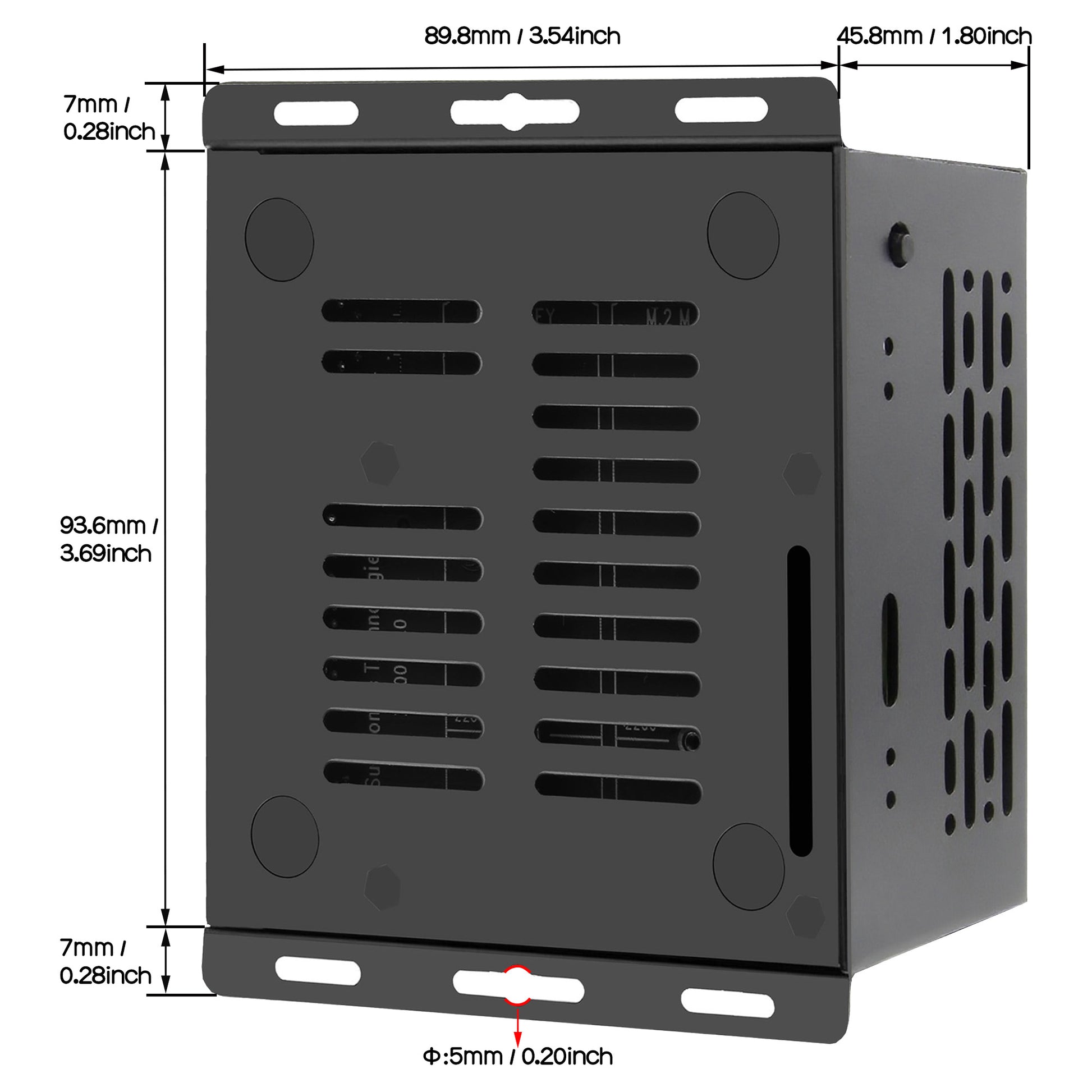

2. The metal case was upgraded from X1500-C1 to X1500-C2 on October 14th, 2025, with the case height increased from 32.8 mm to 45.8 mm.
3. The Raspberry Pi CM5, SSD, X1500, X1501, antenna is not included in the packing list.

Overview

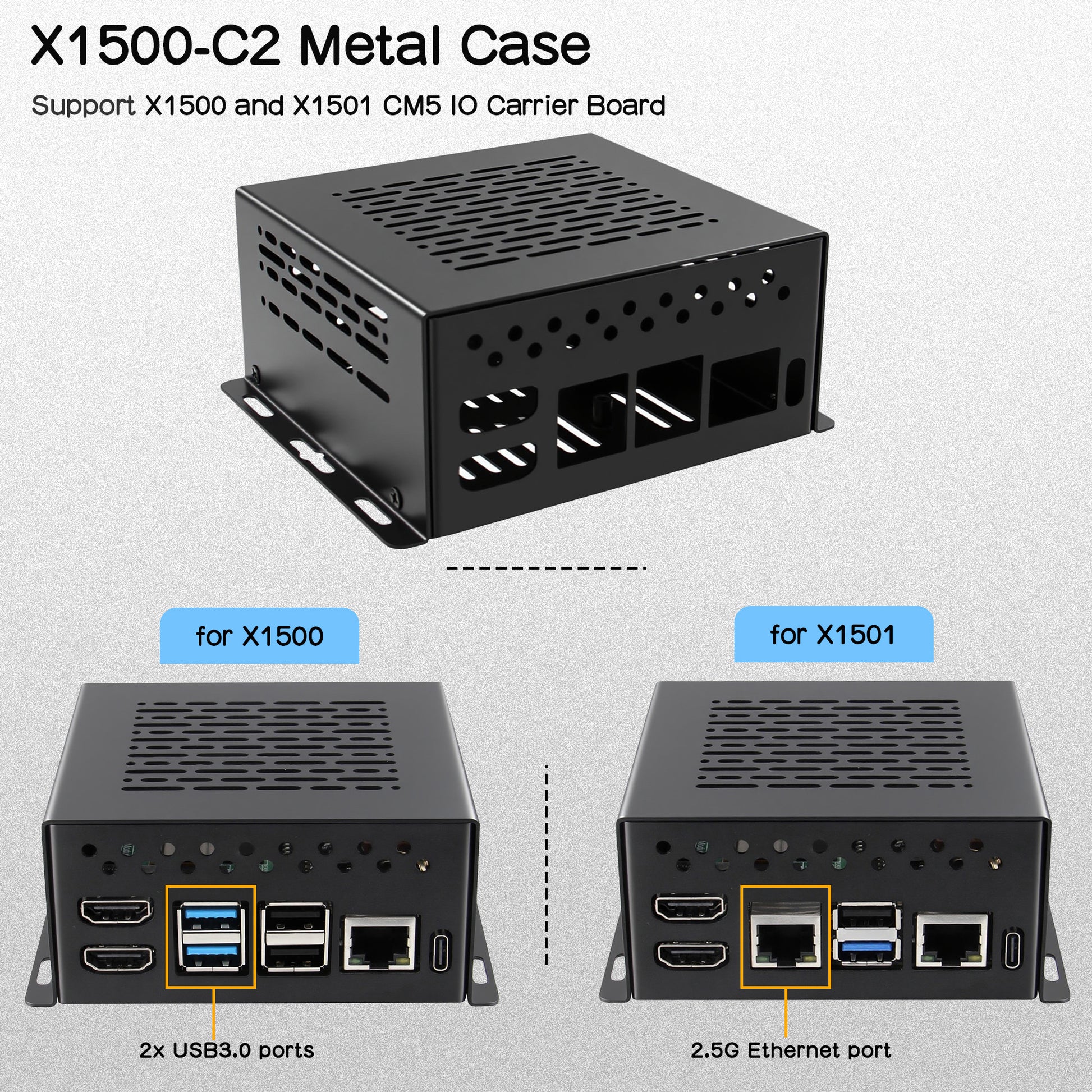

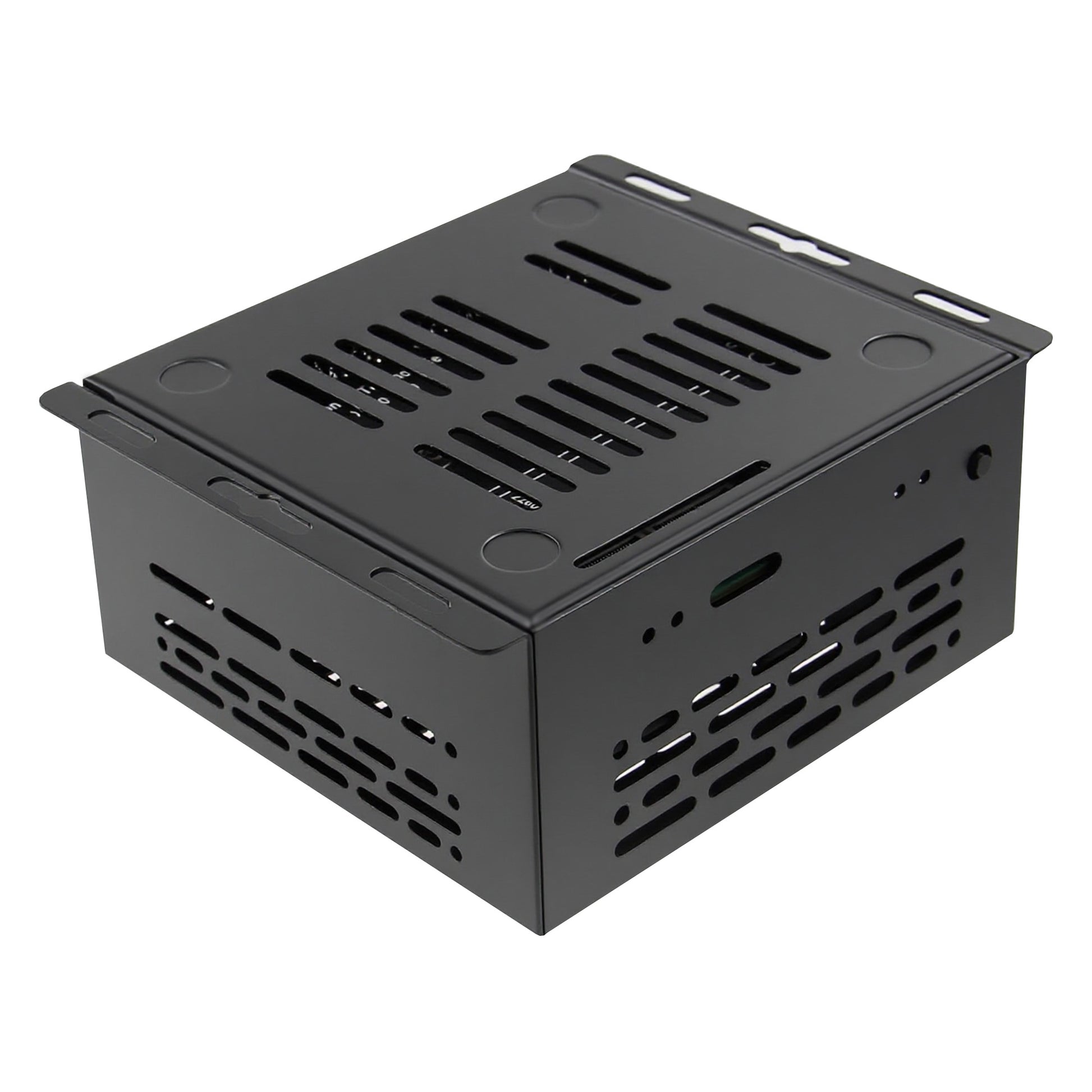

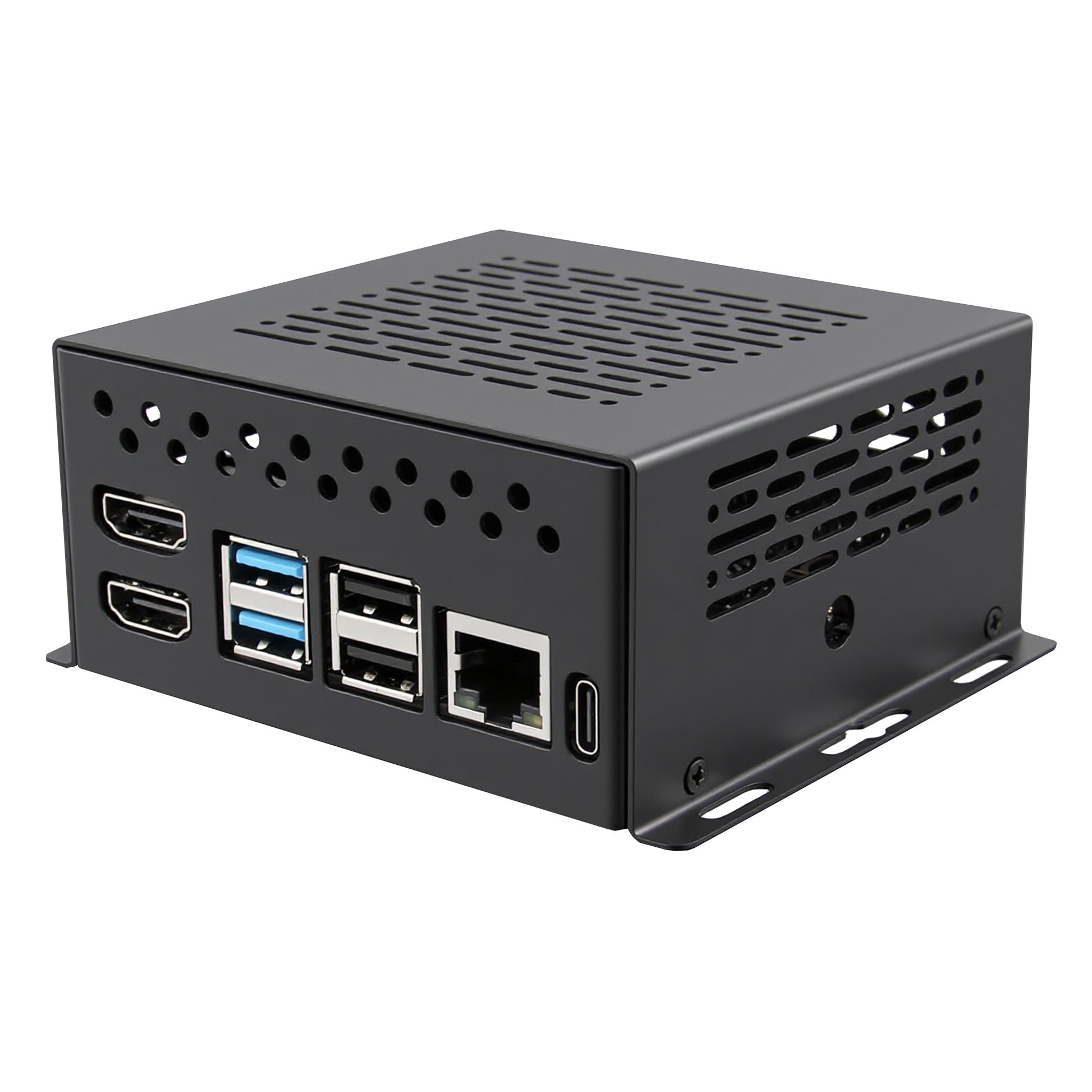

The X1500-C1, a sleek and robust sheet metal enclosure designed specifically for the Geekworm X1500 and X1501 CM5 IO Carrier Board. Engineered for durability and flexibility, this compact chassis combines industrial-grade strength with smart design to meet diverse installation needs.

Key Features

• Model: X1500-C1
• Compact & Space-Saving Design: Optimized dimensions ensure a small footprint, ideal for space-constrained environments while maintaining full compatibility with the X1500/X1501 boards.

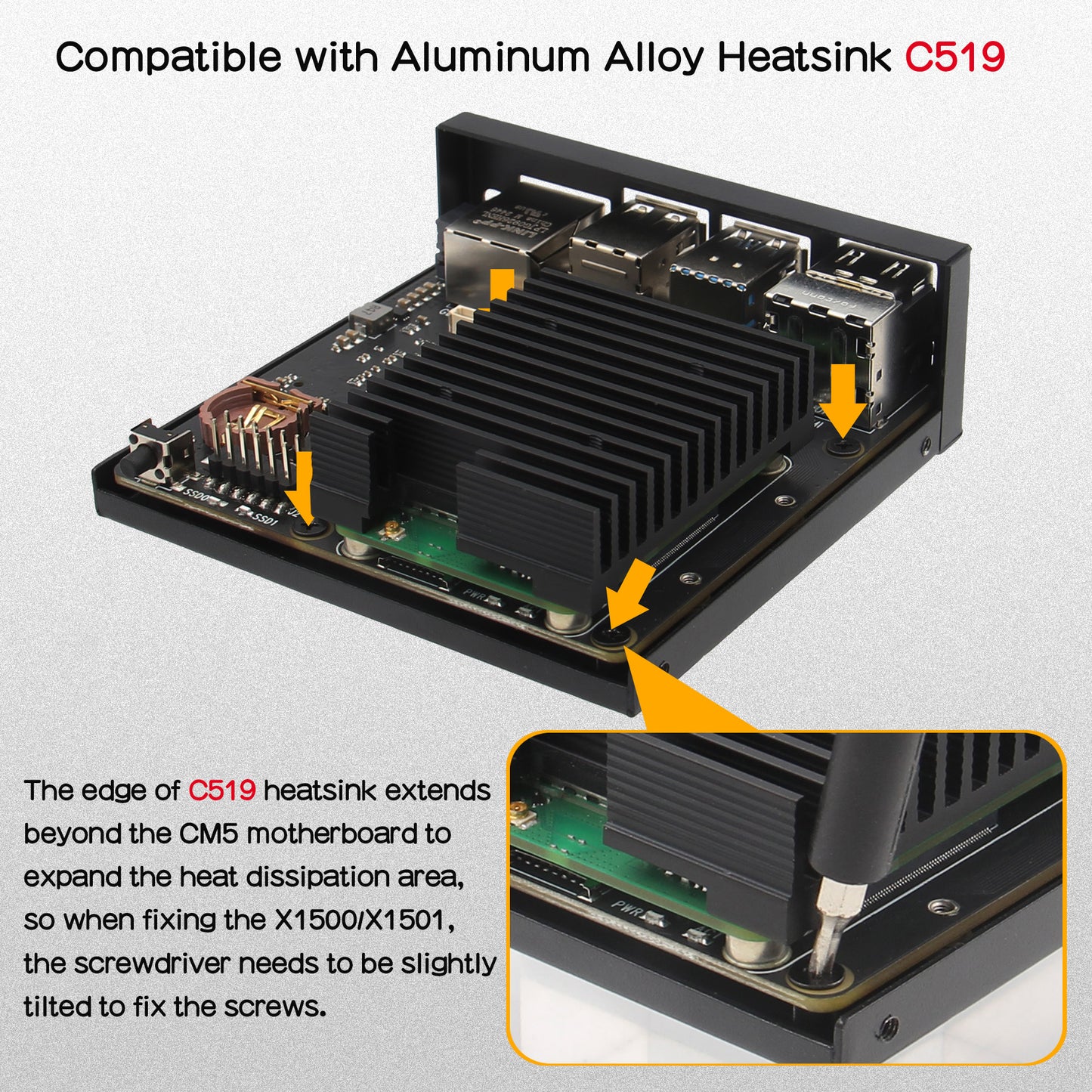

• Enhanced Thermal Management: Supports seamless integration of the C519 heatsink, ensuring efficient heat dissipation for sustained high-performance operation.

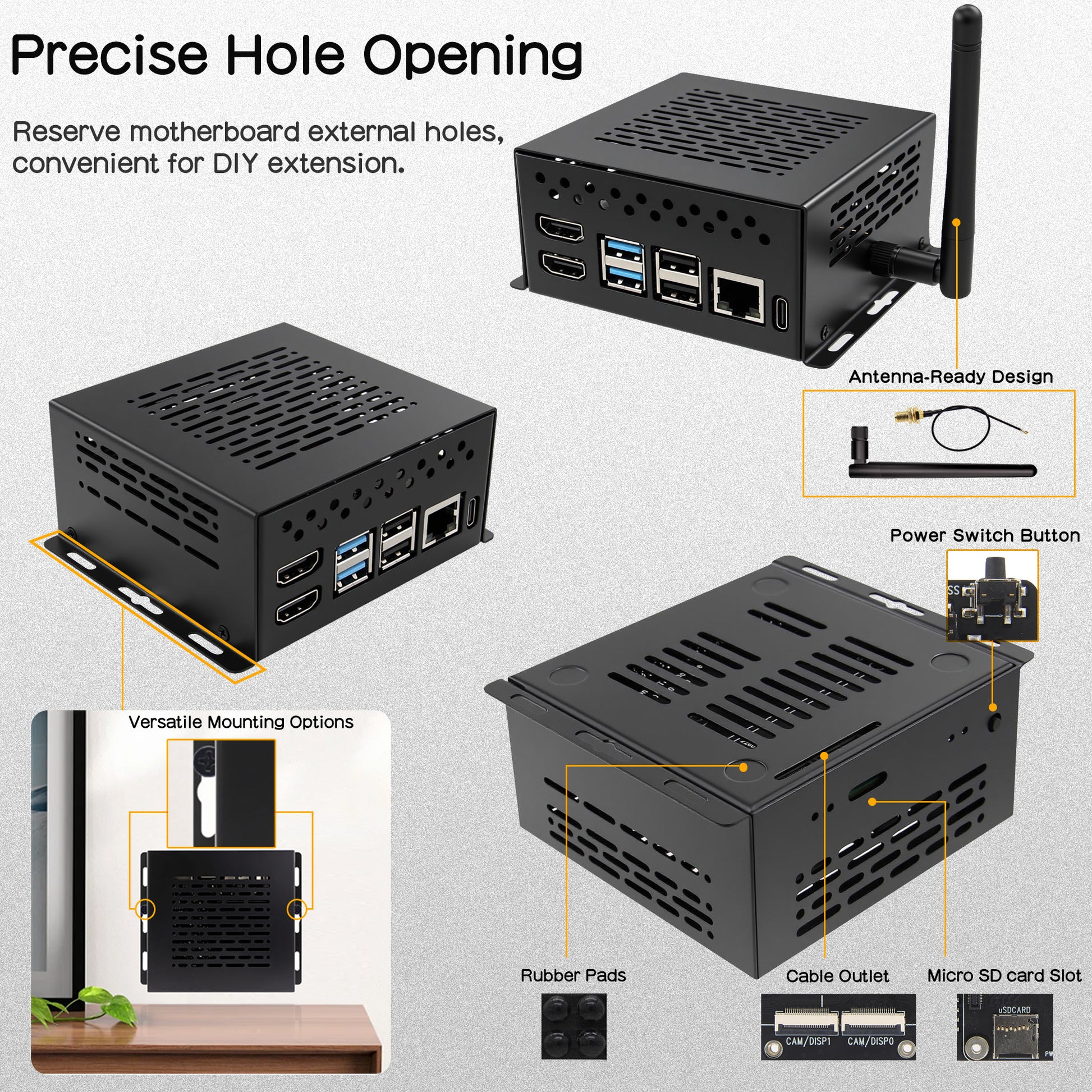

• Versatile Mounting Options: Features side-protruding reinforced mounting brackets for easy wall-mounting or vertical/horizontal installation in racks, cabinets, or DIY projects.
• Antenna-Ready Design: Pre-drilled antenna mounting holes allow hassle-free installation of external antennas, perfect for Wi-Fi, Bluetooth, or other wireless connectivity modules.
• Rugged Metal Construction: Crafted from high-quality steel or aluminum (subject to final specs), offering superior protection against physical damage, EMI interference, and dust.

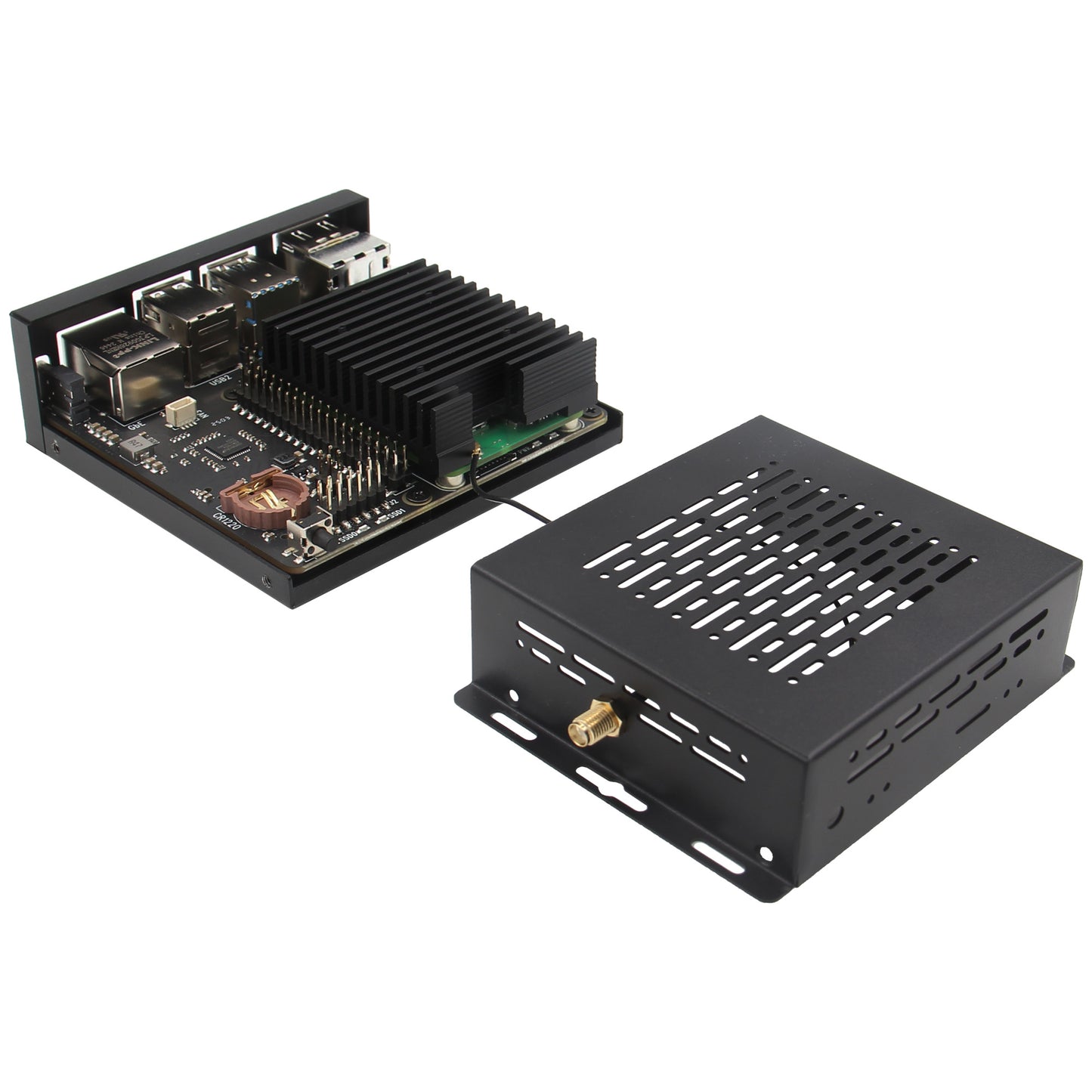

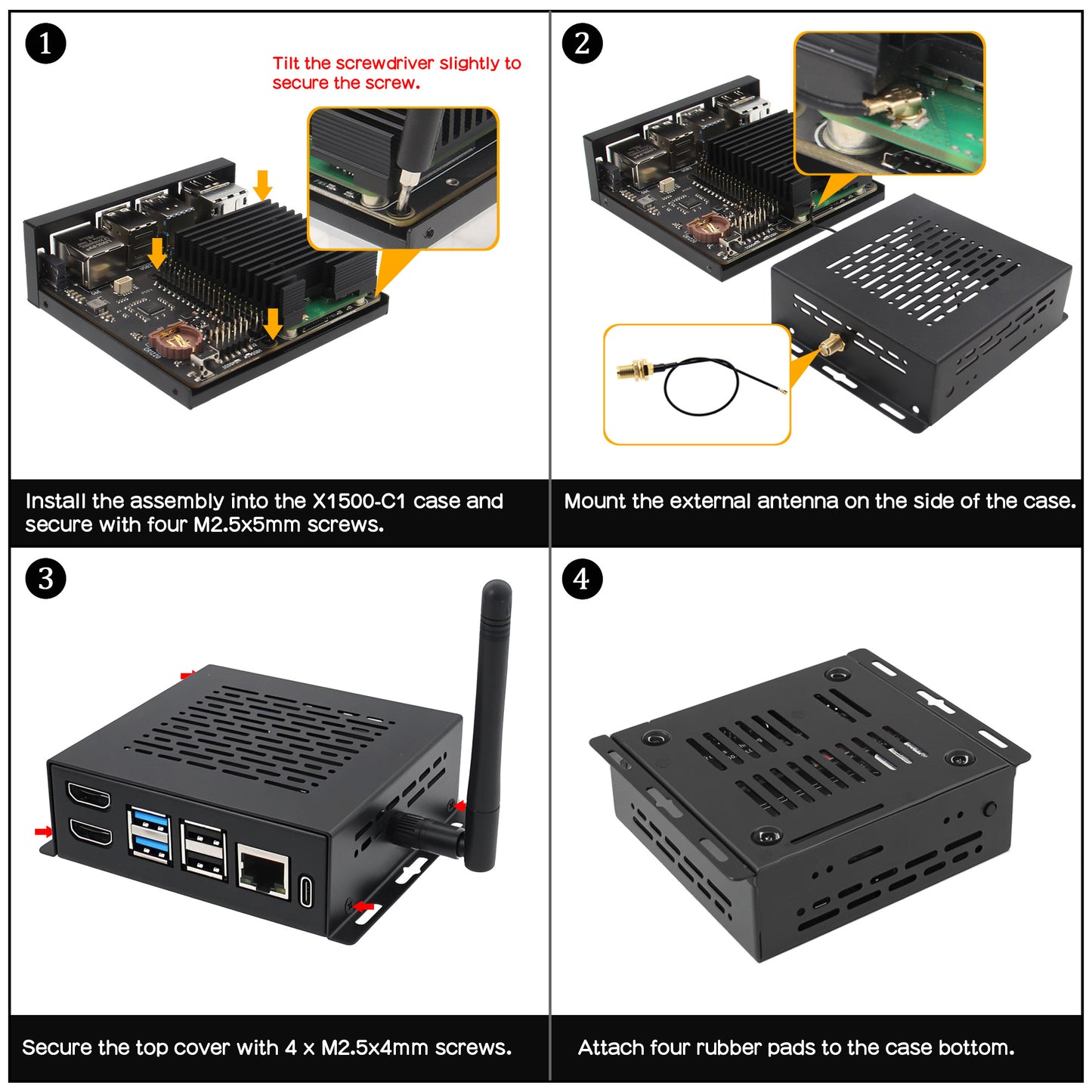

• Tool-Free Assembly: Streamlined structure enables quick and tool-free installation of the X1500/X1501 board, minimizing setup time.
• Does not support SSD heatsink installation (only about 2–3 mm clearance between the SSD and the case bottom)

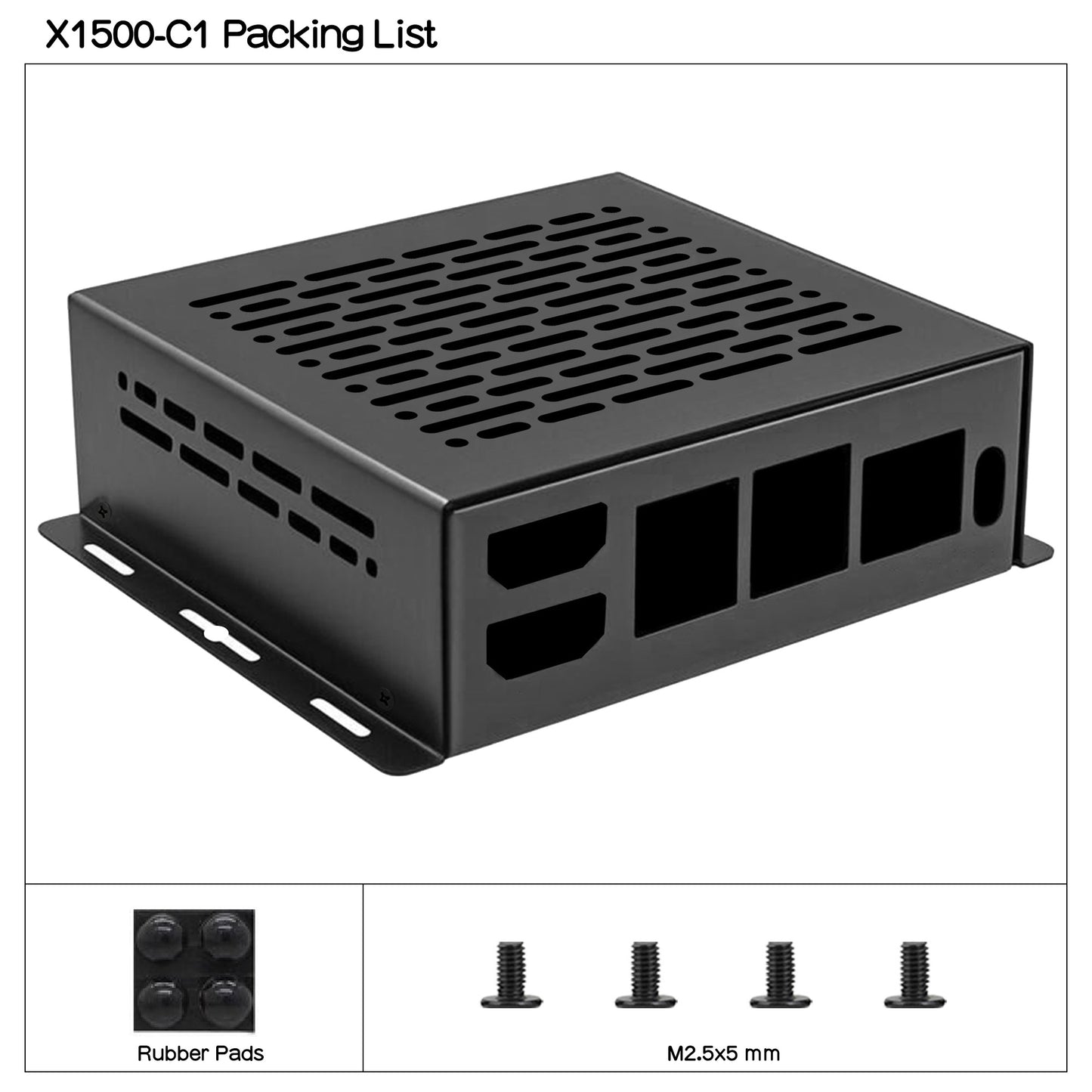

Packing List

• 1x X1500-C1 Metal Case

• 4x M2.5x5mm screws
