Geekworm X15-POE1 Dual-Output PoE HAT for Raspberry Pi CM5 X1500/X1501 CM5 IO board

Note: the Raspberry Pi CM5, X1500/X1501 is not included in the packing list.

Overview

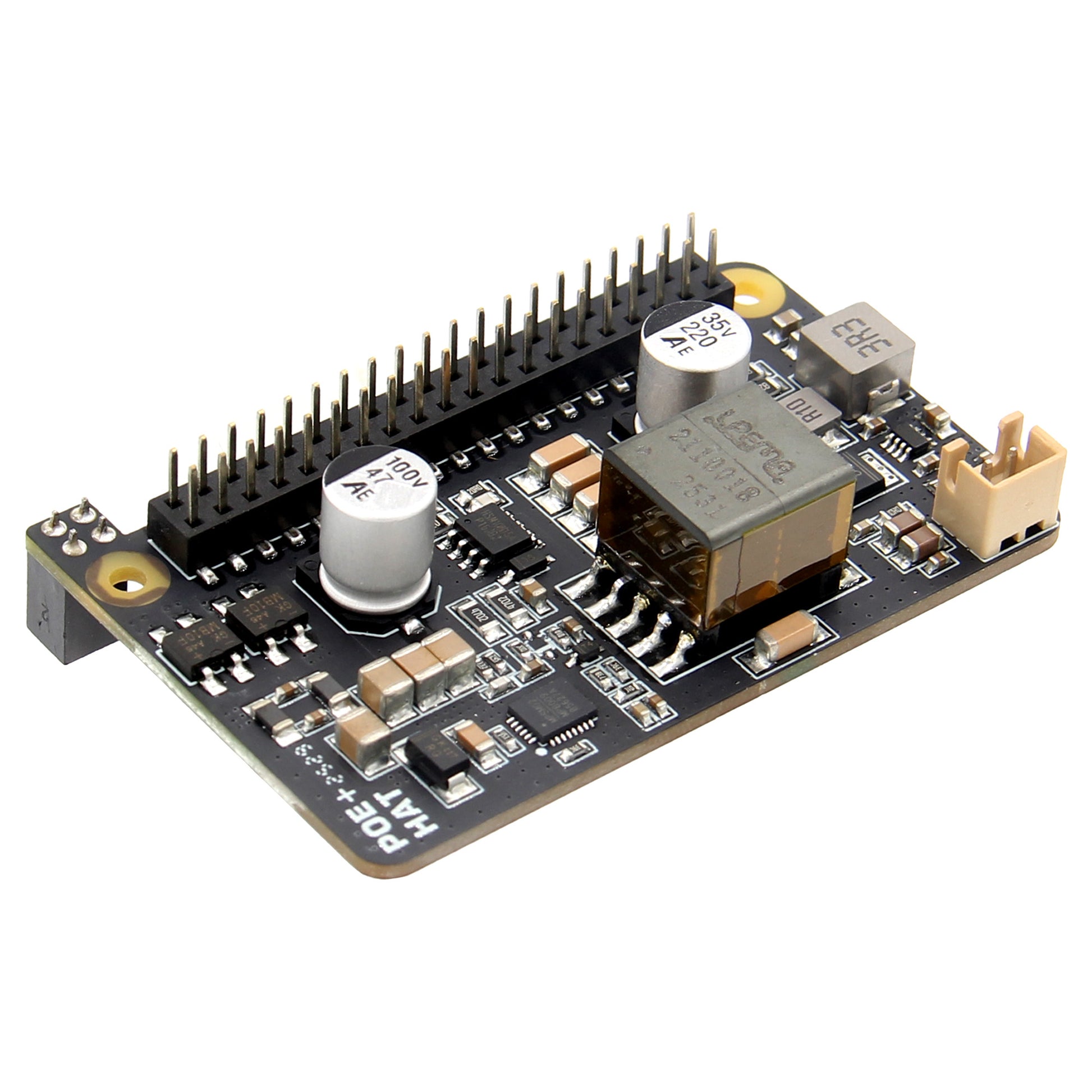

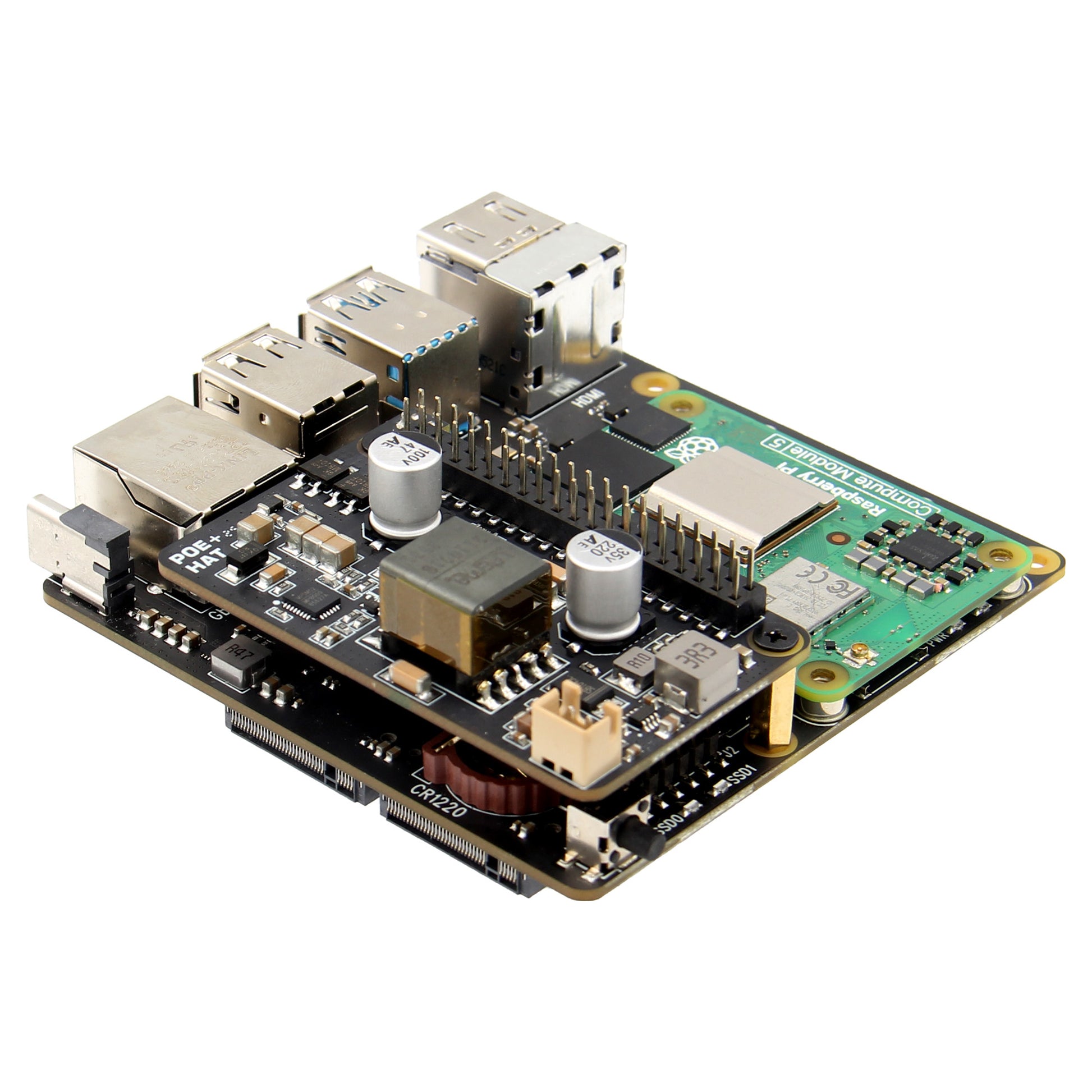

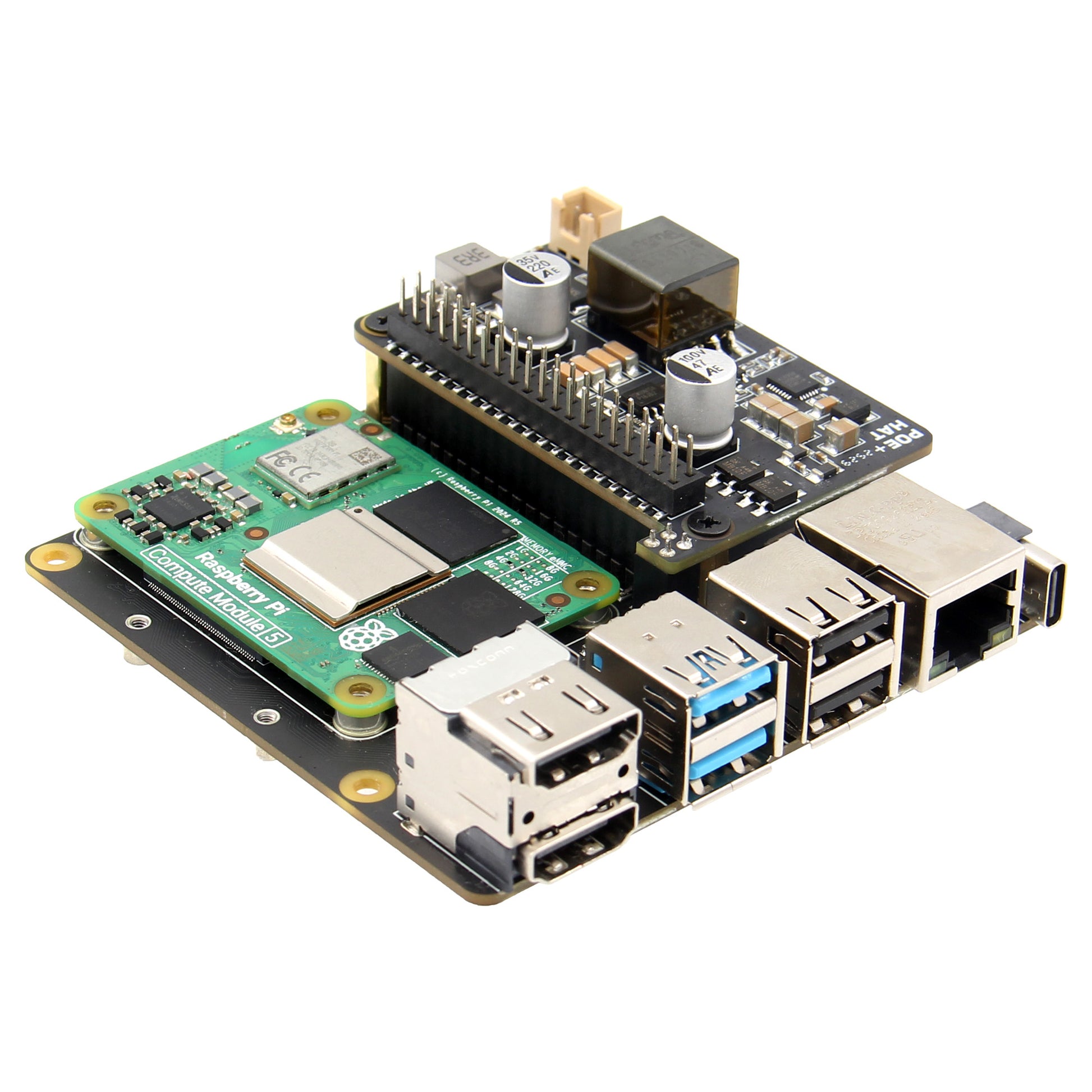

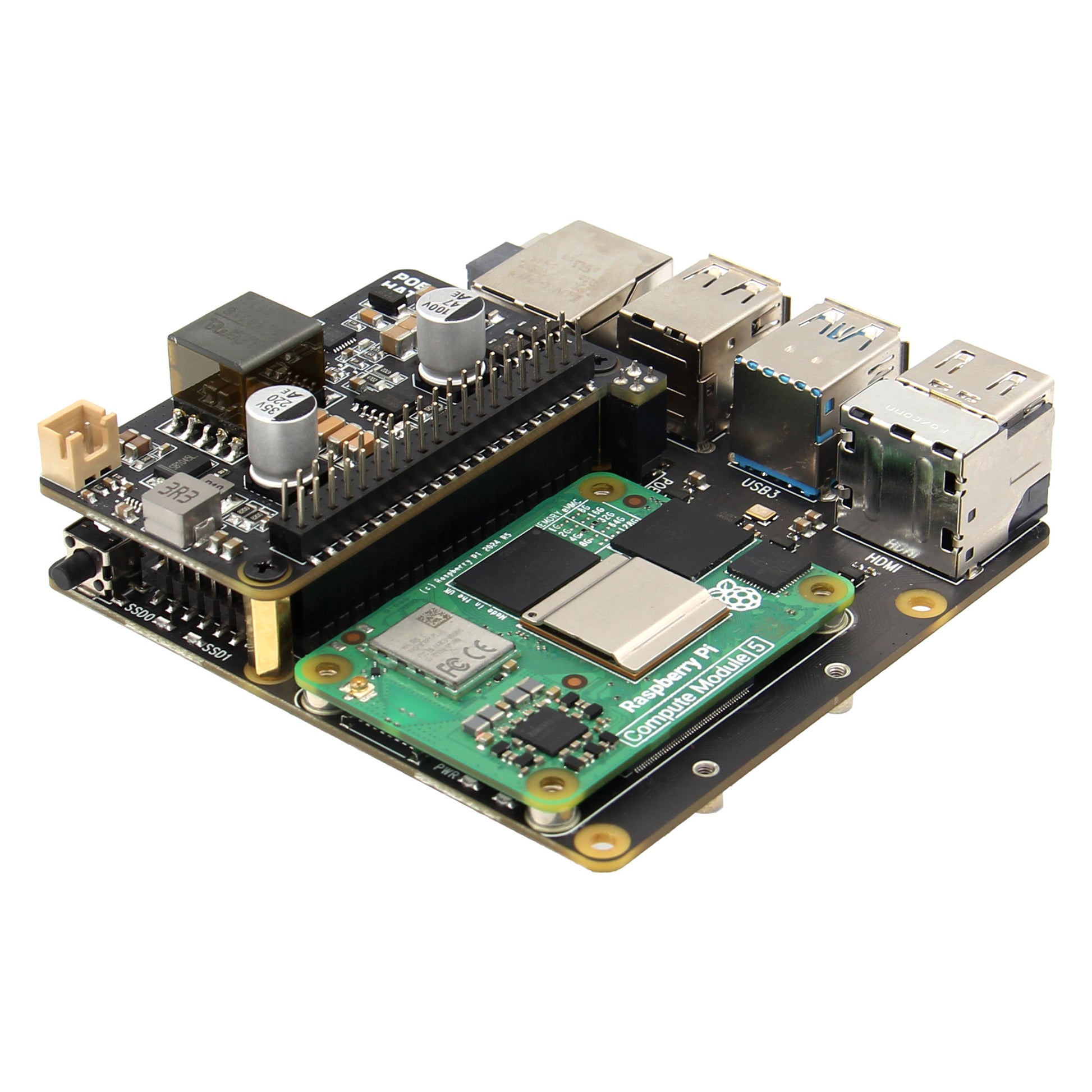

The X15-POE1 is a Power over Ethernet (PoE) Head-At-Board (HAT) specifically designed for the Raspberry Pi Compute Module 5 (CM5) , requiring use with either the X1500 or X1501 IO boards. Compliant with the IEEE 802.3af/at (PoE+) standard, this board can draw up to 25.5W of power from a compatible PoE switch via a single Cat5e/Cat6 Ethernet cable, simultaneously providing stable operational power and network connectivity for the CM5.

Featuring an advanced dual-output design, the board supplies 5V power to the CM5 while providing an independent 12V output. This output can drive peripherals such as fans, displays, or motors. This eliminates the need for an additional external power supply, simplifying system integration and reducing clutter.

Features

• Standard Compliance : IEEE 802.3af & 802.3at (PoE+)

• Input Voltage Range : 37–57V DC

• Device Classification : Class 4

• Dual Output Power Rails :

1. 5V Output: Maximum current 5A (provided via 40-pin GPIO connector)
2. 12V Output: Maximum current 2.1A (provided via dedicated 2-pin XH2.54 connector)
3. Note:Total Output Power: Maximum 25W (5V and 12V outputs cannot simultaneously achieve maximum current)

• Fully Isolated Power Supply: Utilises isolated Switching Mode Power Supply (SMPS) topology for safety and reliability

• Simplified Cabling: Single cable simultaneously addresses power delivery and network connectivity, providing robust power for peripherals

Technical Specification

Power supply : 35-57VDC powering over Ethernet
Power output:

• 5.1V 2.5A / 12V 1.1A @ IEEE 802.3af

• 5.1V 5.0A / 12V 2.1A @ IEEE 802.3at

Ports & Connectors:

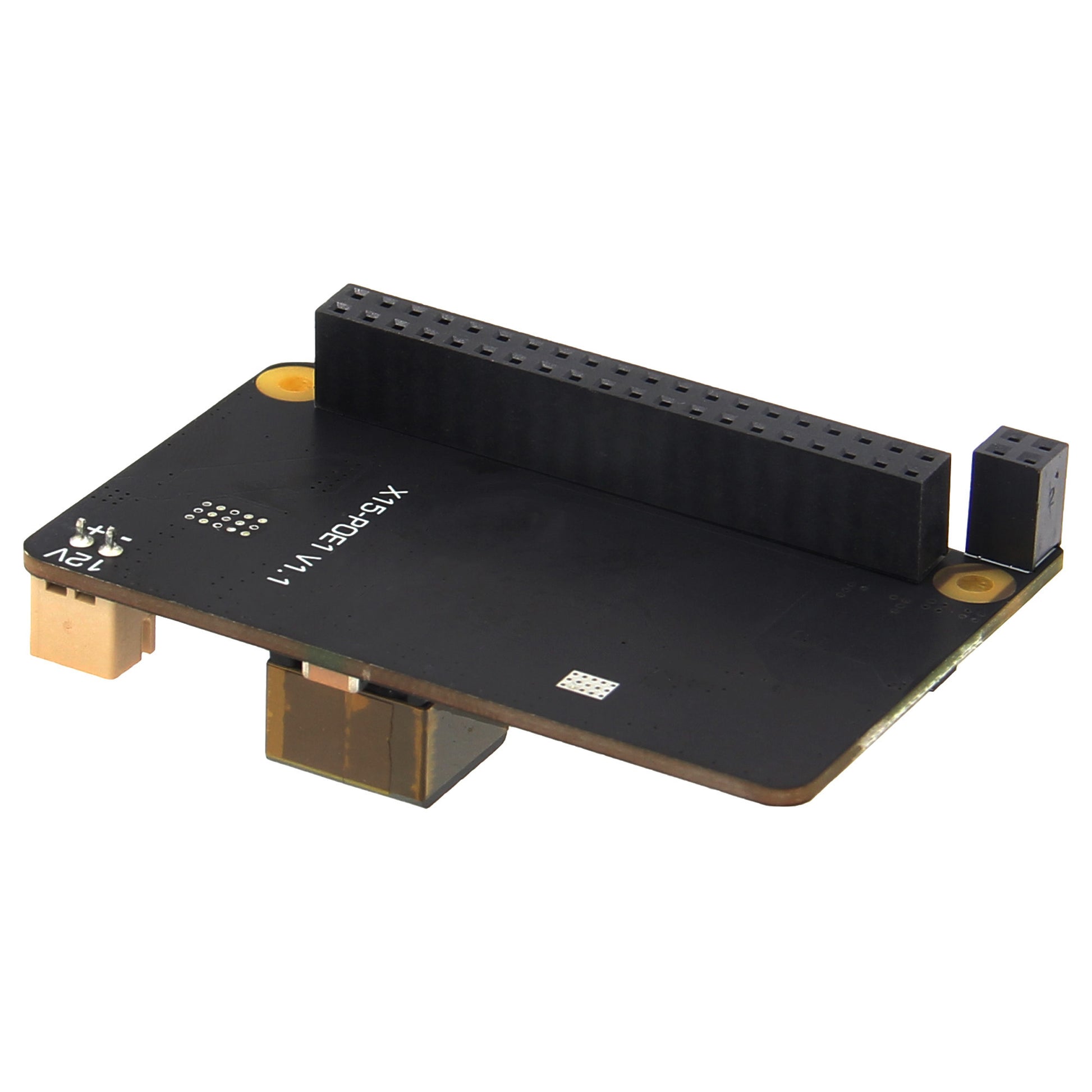

• 2x2pin POE female header x1

• 2x20pin GPIO extended female header x1

• 2-pin XH2.54 12V output connector x1

Dimensions:  65×43.2×22.1mm (L×W×H)

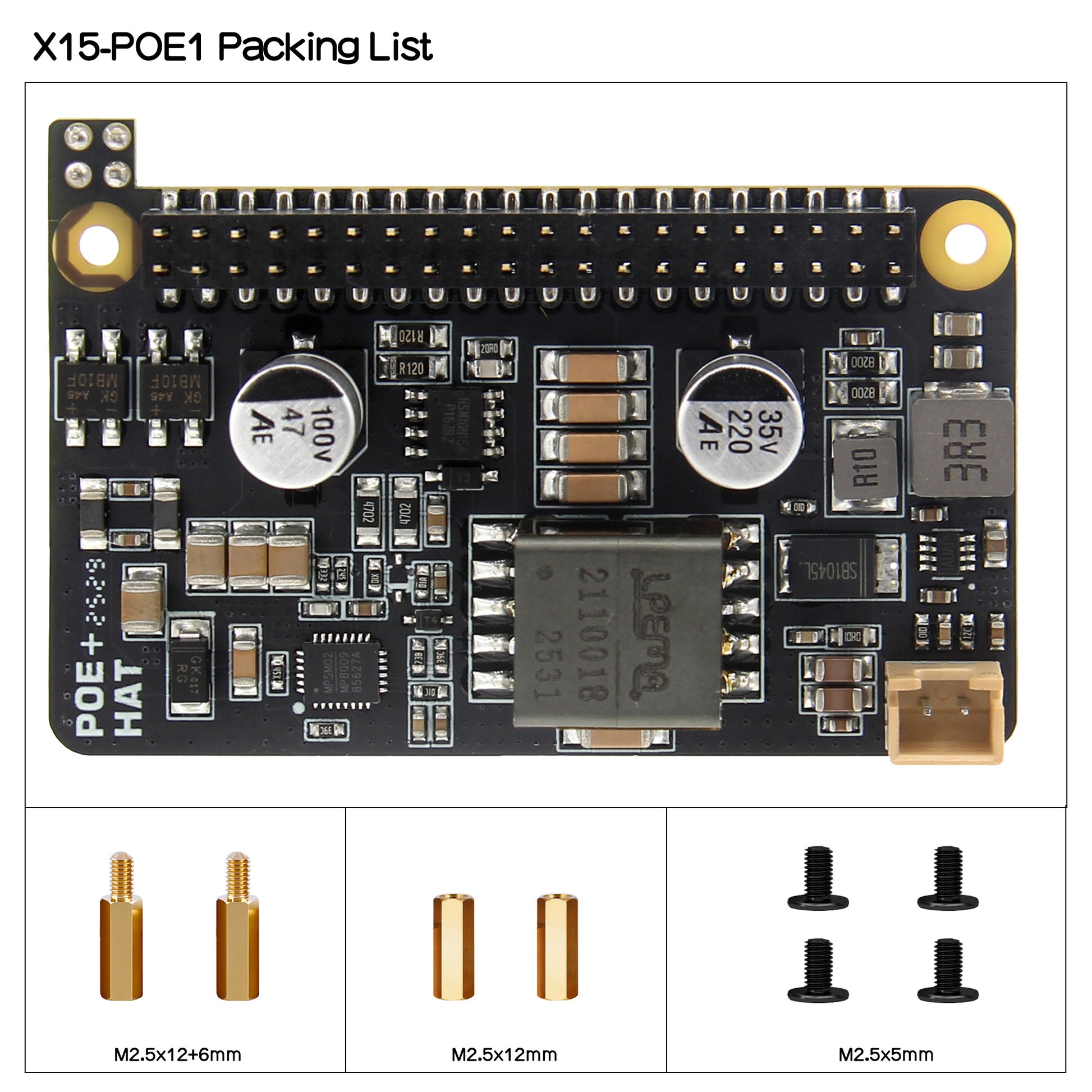

Packing List

• 1 x  X15-POE1 board

• 2 x M2.5x12+6mm spacers

• 2 x M2.5x12 spacers

• 2 x M2.5x5mm screws
