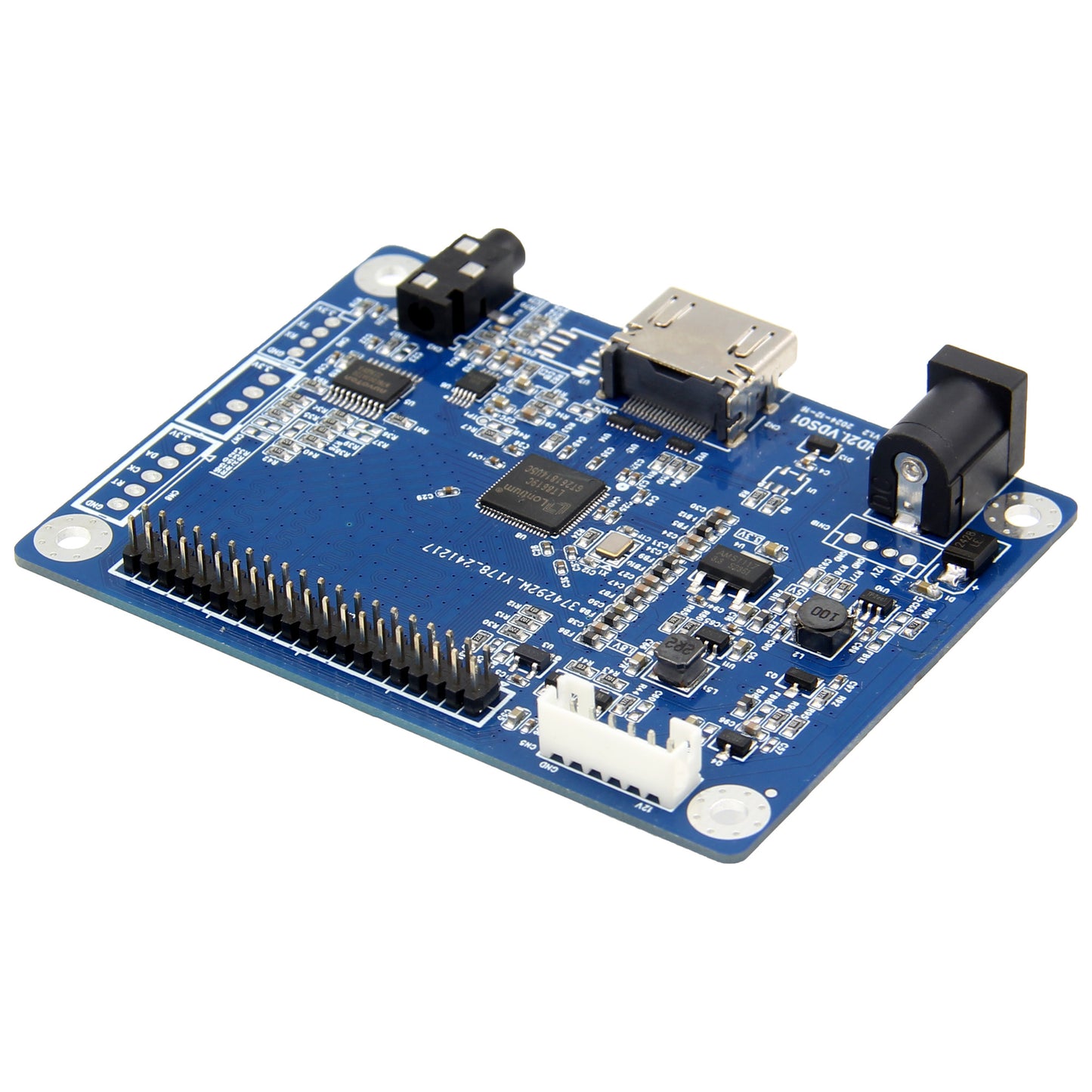

Geekworm HDMI To LVDS Adapter Board with Cable|HDMI Input to TTL RGB or LVDS Output

Overview

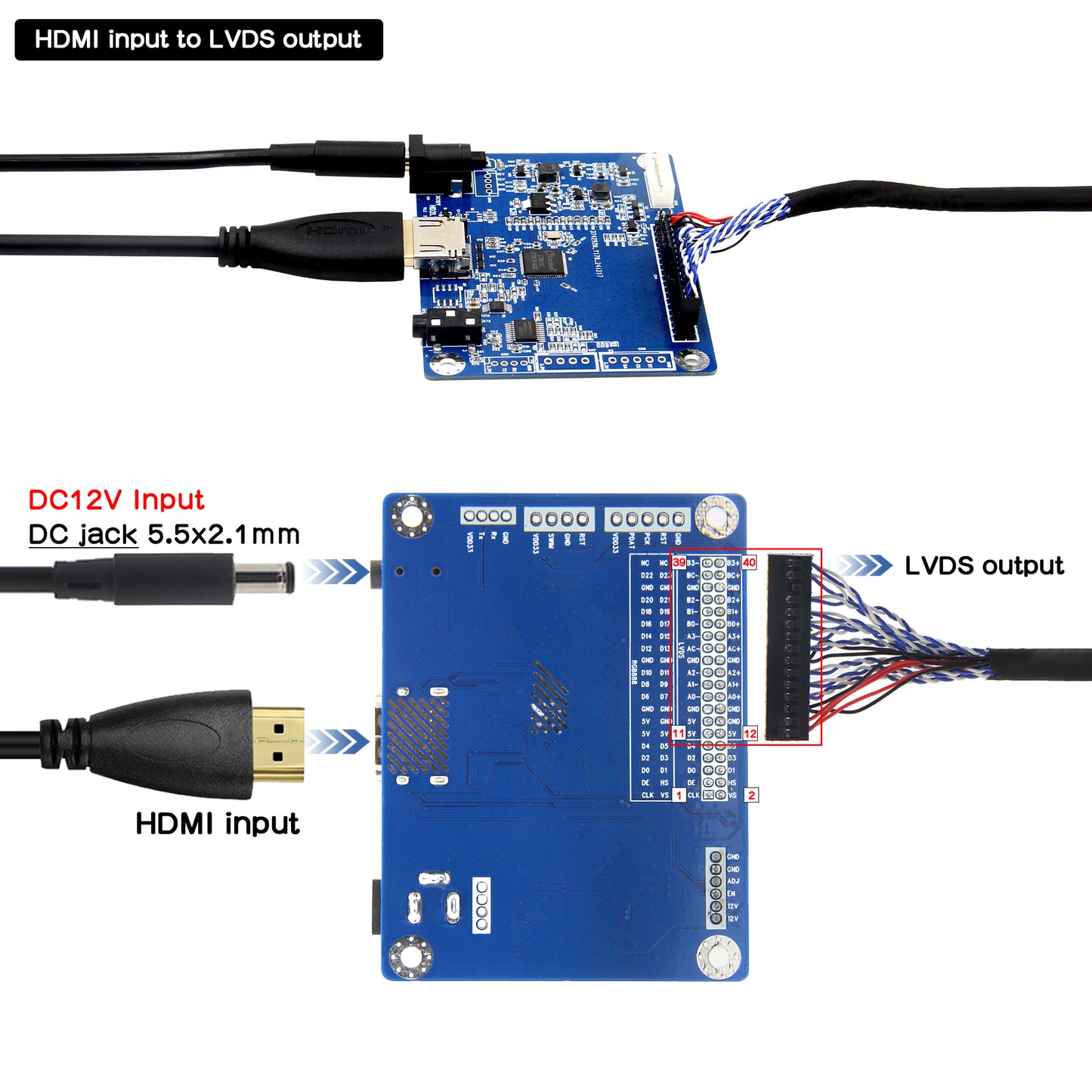

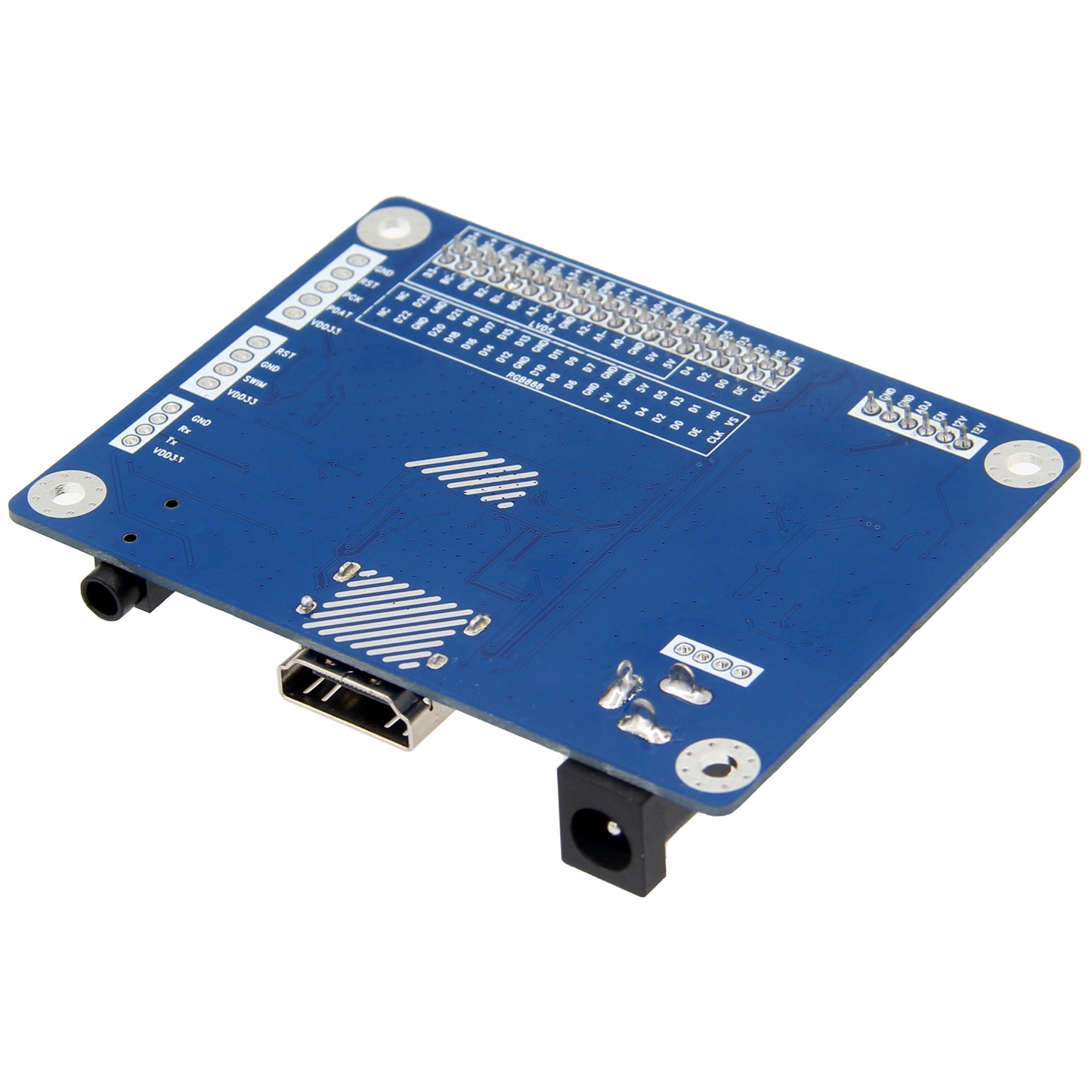

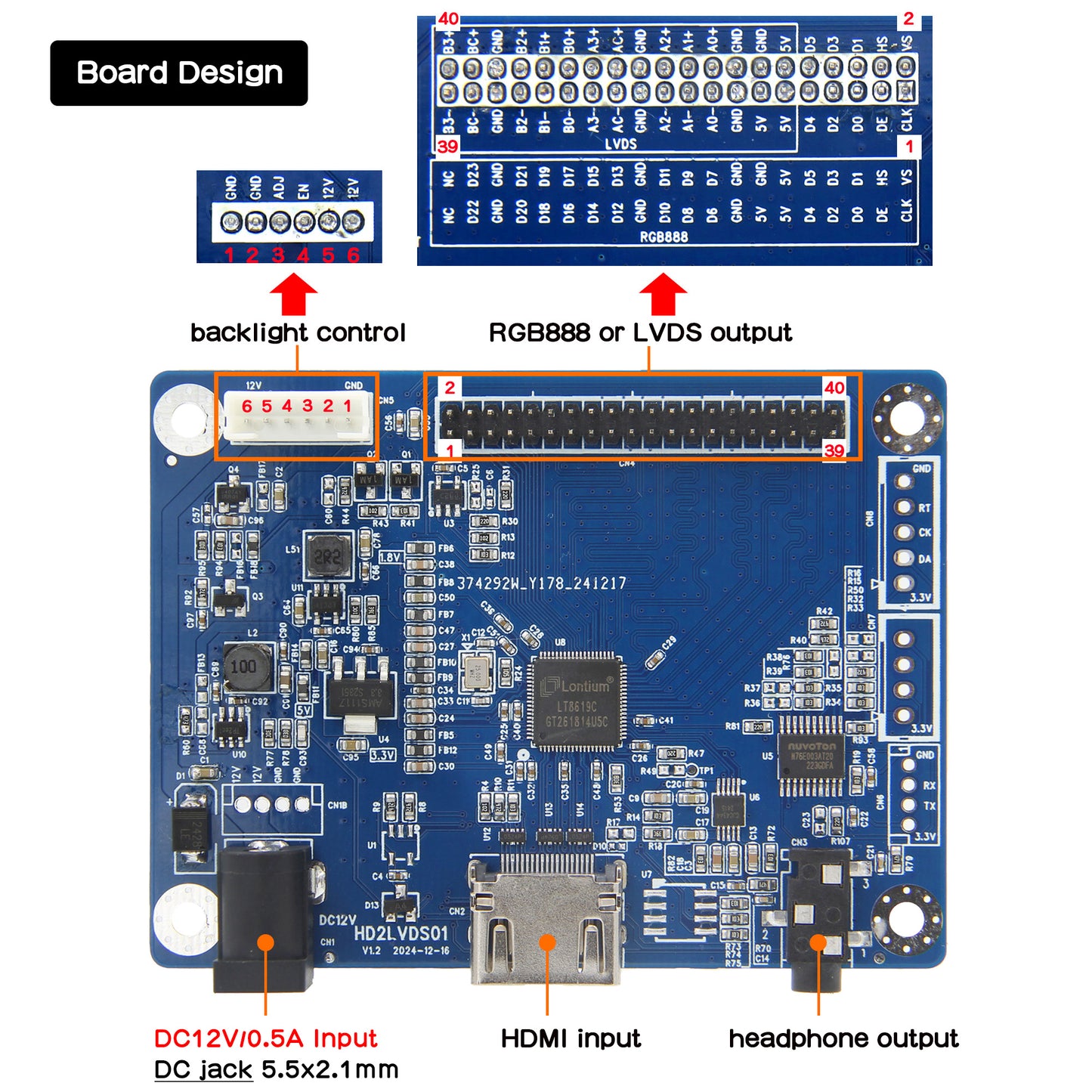

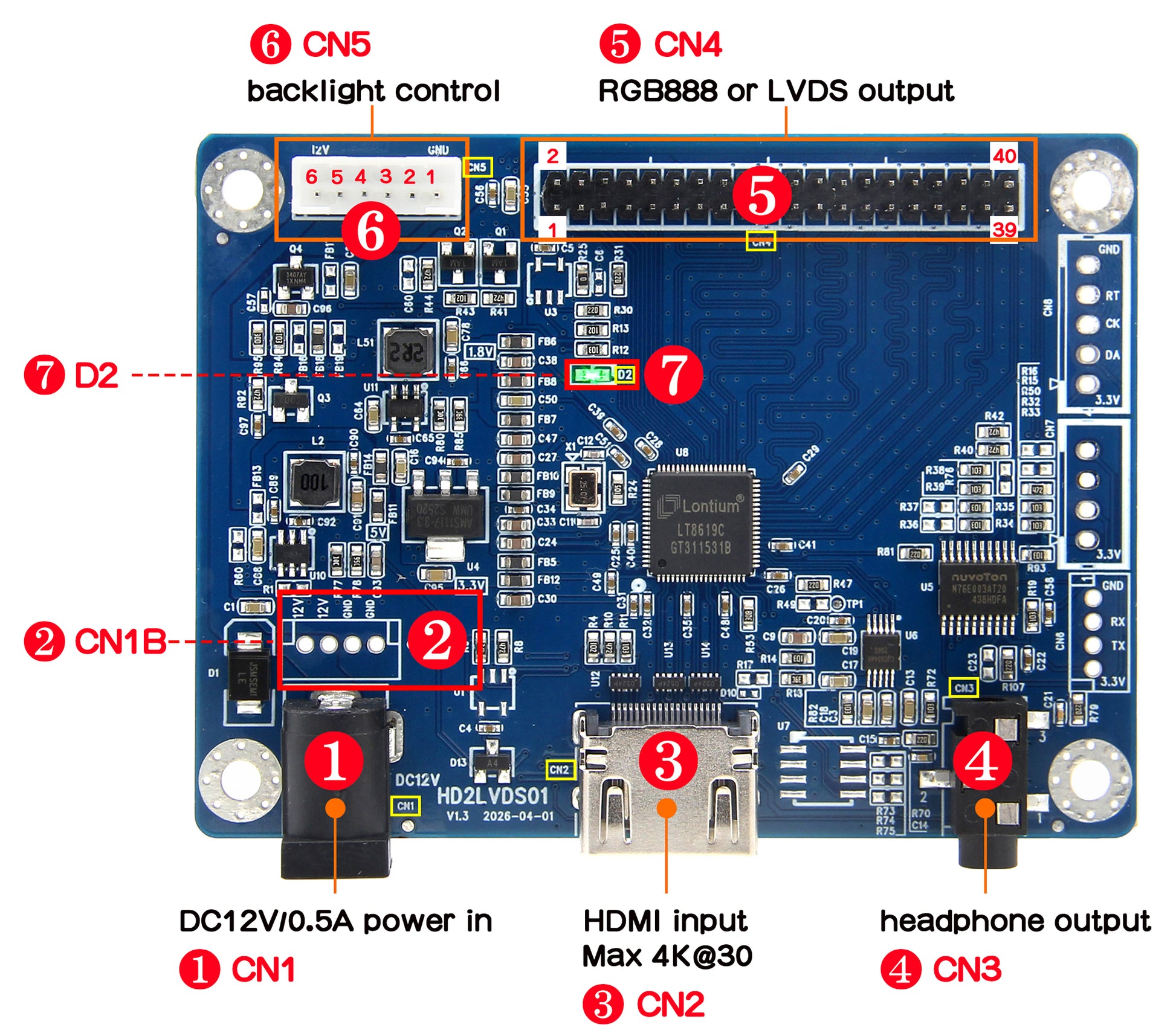

HDMI input to TTL RGB or LVDS output. The definition of the socket pin signal can be found in the characters on the back of the board.

Note: This board does not have a scaling function, so if you want to use LVDS output to display the screen, the HDMI signal resolution must be consistent with the screen parameters; if you want to use RGB output to display the screen directly, you cannot display the screen directly. Usually, you need to provide VGH, VGL, AVDD, and VCOM to display the RGB screen.

Features

• Suitable for converting HDMI input signals to TTL RGB or LVDS outputs, with a maximum bandwidth of 340MHz;
• HDMI input supports multiple resolutions such as 720P, 1080P, 4K@30, etc.;

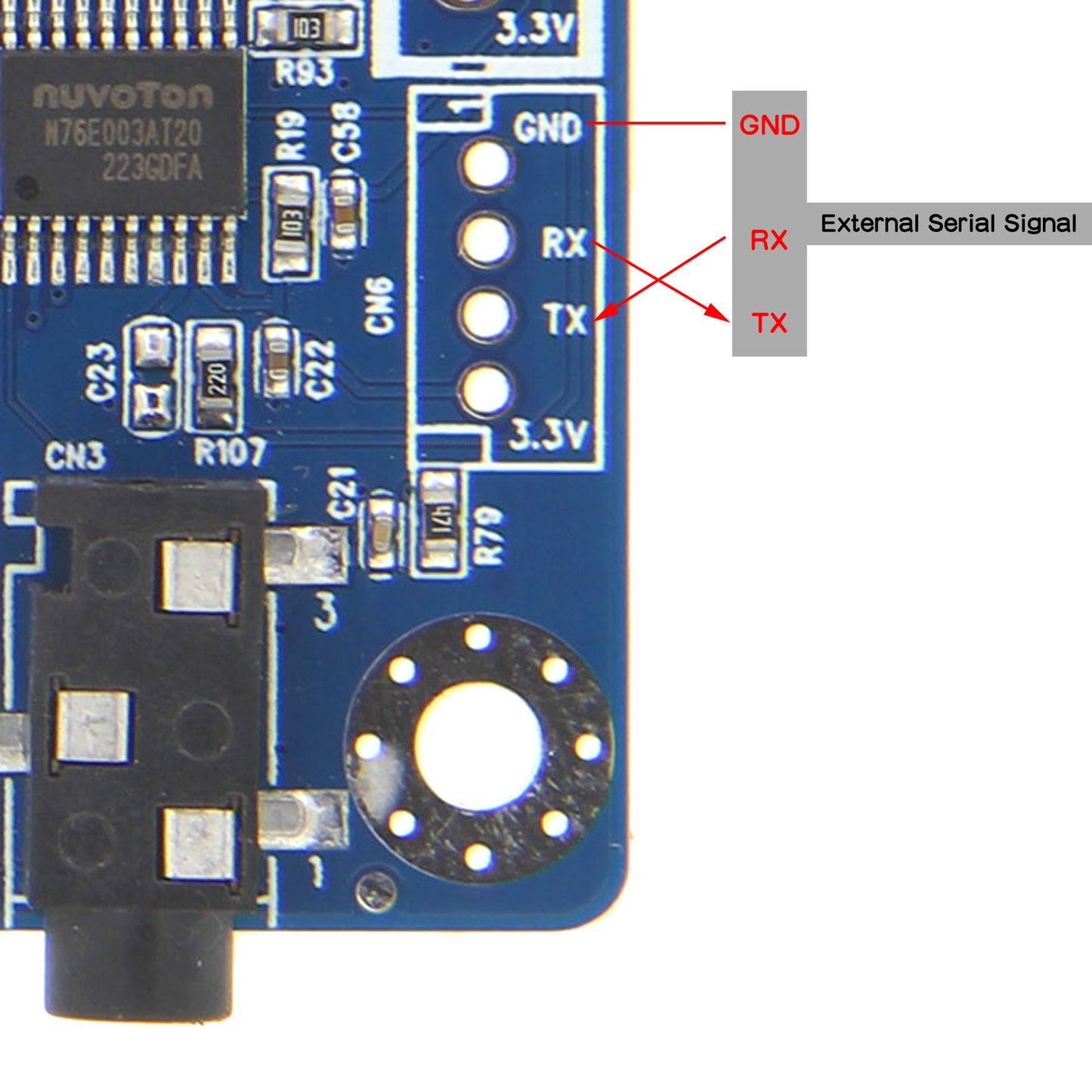

• Built-in EDID data, the preferred resolution can be set through the serial port;
• The output can be selected as RGB or LVDS through the serial port or on-board resistors;
• With backlight control, when the output is LVDS signal, the screen can be directly clicked;
• With 3.5mm headphone output, analog stereo output can be output;
• DC12V power supply, the board power consumption is less than 1.5W;
• HDCP is not supported.

Packing List

• 1 x HDMI to RGB/LVDS adapter
