Note:
- The Raspberry Pi CM5 board, SSD, SD card, CR1220 battery, antenna, and power supply are not included in the packing list.
- The X1502 does not support Hailo AI acceleration module with the current CM5 firmware.

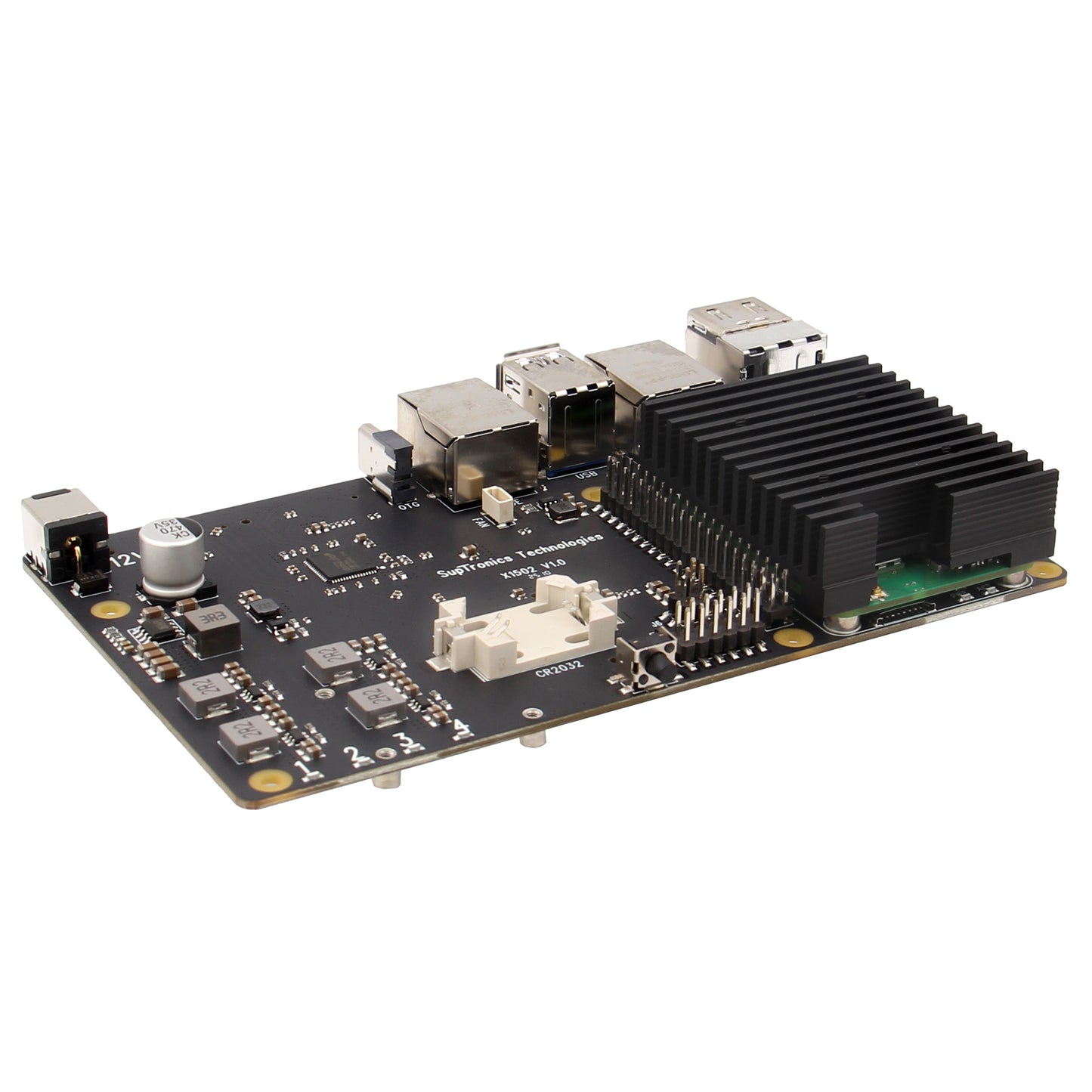

Overview

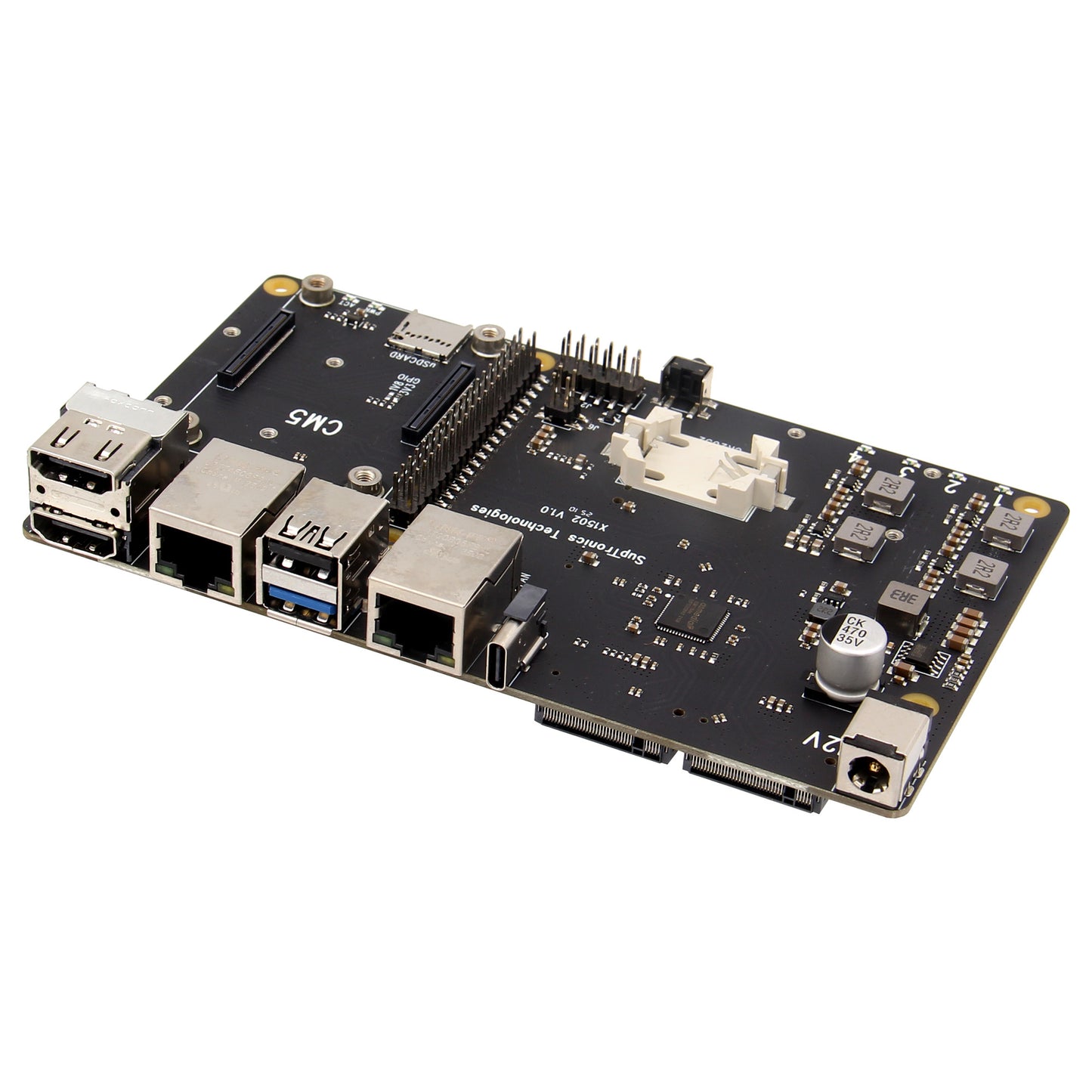

The X1502 is a purpose-built carrier board designed for the Raspberry Pi Compute Module 5 (CM5), combining dual Ethernet (1GbE + 2.5GbE), four M.2 NVMe slots, and versatile peripherals in a compact form factor. it provides high-speed connectivity and ample storage capacity in a space-efficient design. The PCIe 2.0 interface ensures fast data transfer speeds of up to 5Gbps, making it an excellent choice for NAS setups, media servers, and data-driven applications.
Engineered for seamless integration, the X1502 features an optimized layout with key connectors positioned for easy access, simplifying enclosure design and deployment. Whether you're prototyping a custom embedded system or building a production-ready solution, this carrier board delivers the flexibility and reliability needed for demanding environments.

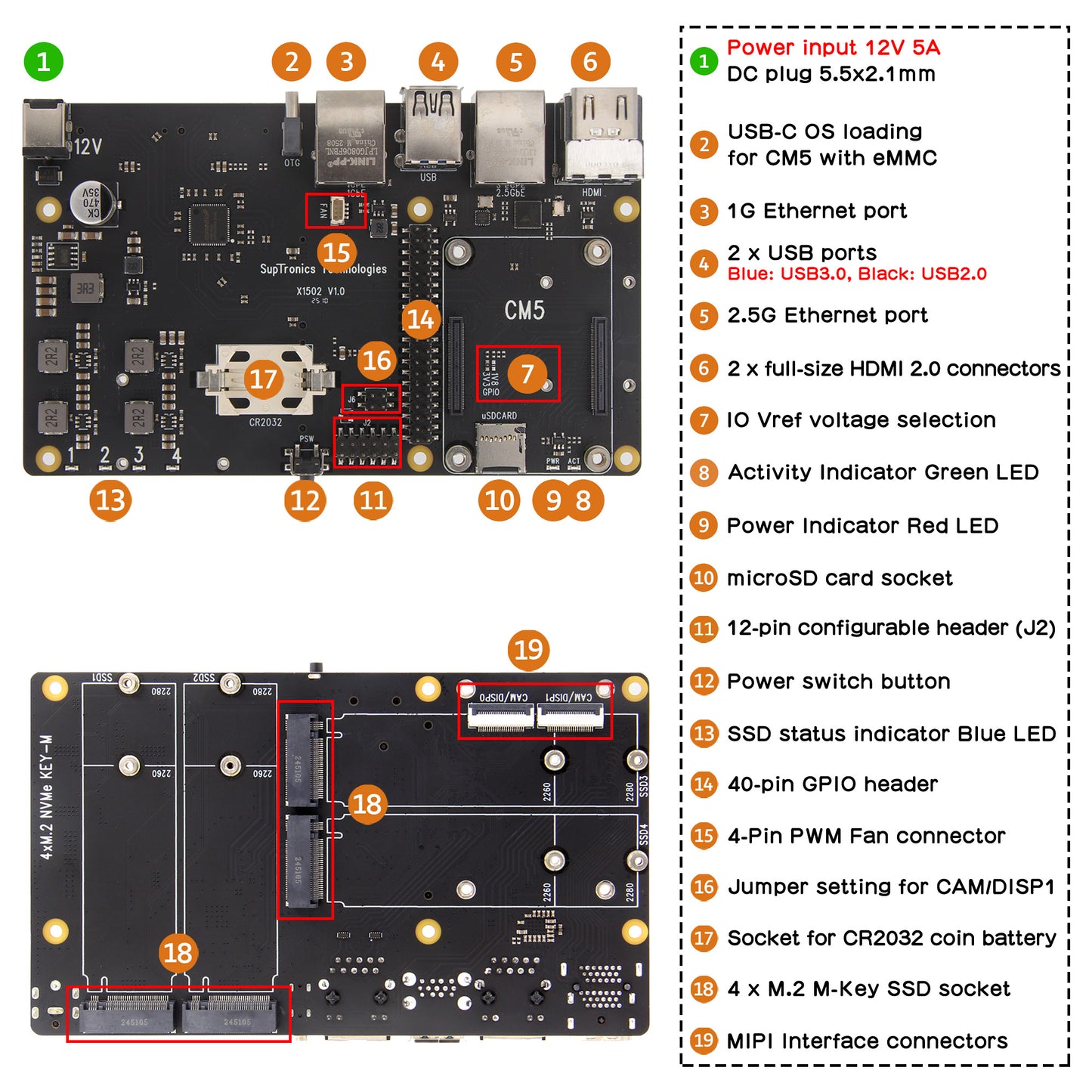

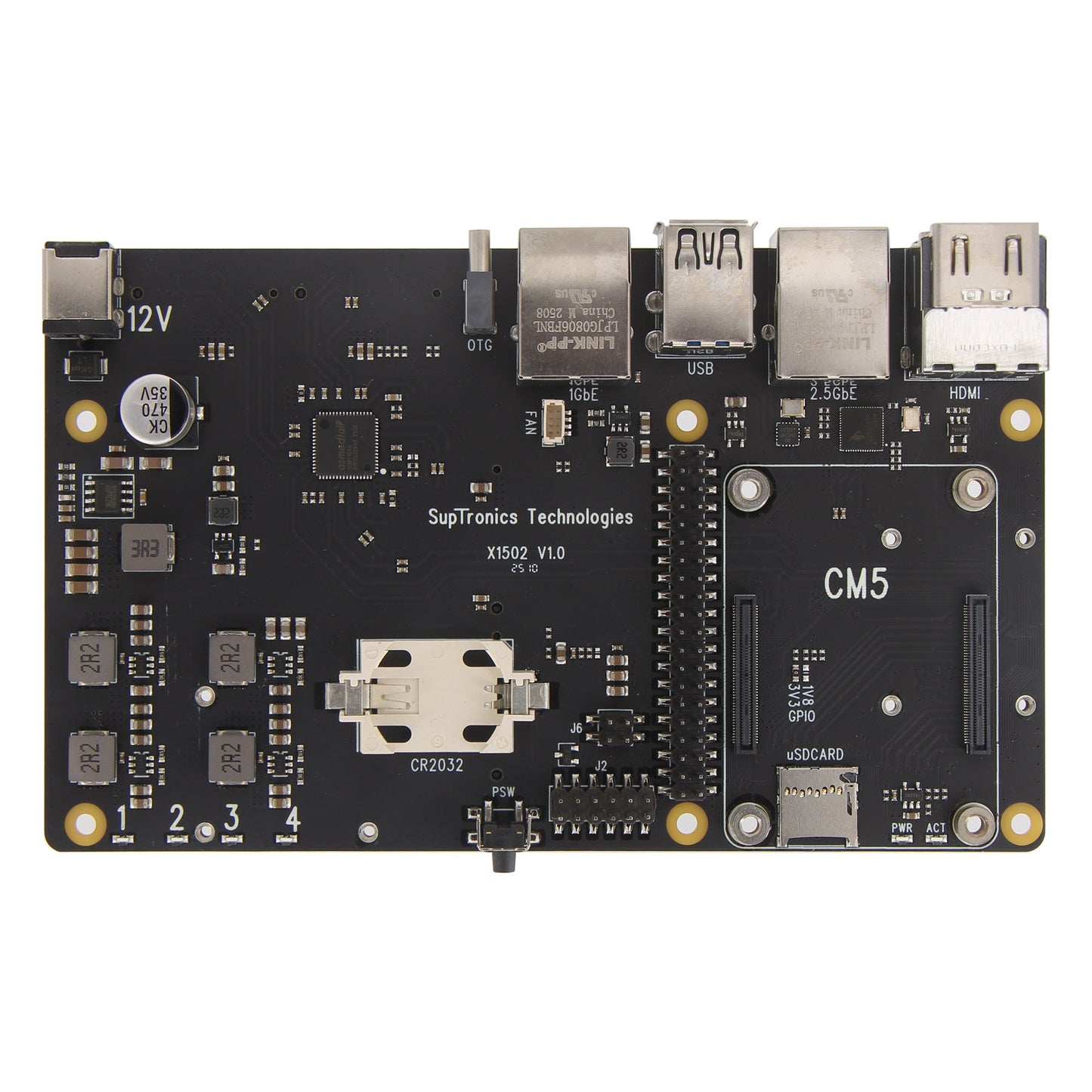

Features
- Model: X1502
- Compatible with Raspberry Pi Compute Module 5 (CM5) and All CM5 Variants
- Compact Design (147x89x25mm): Combines a small footprint with a rich array of I/O peripherals for versatile applications.
-

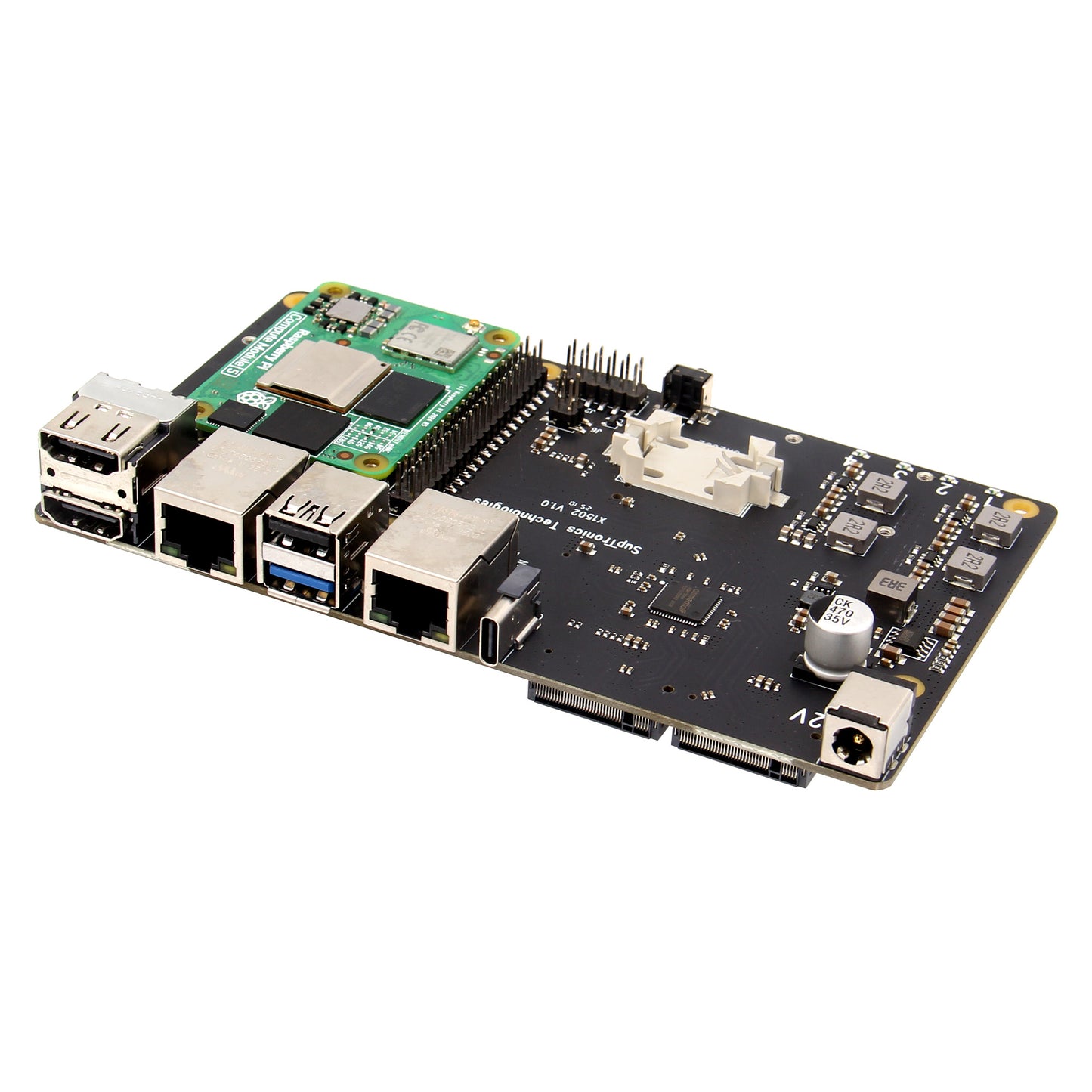

Dual Ethernet Ports: Features both 1GbE and a 2.5GbE port capable of speeds up to 2500Mbps (2.5Gbps) for high-performance networking.
-

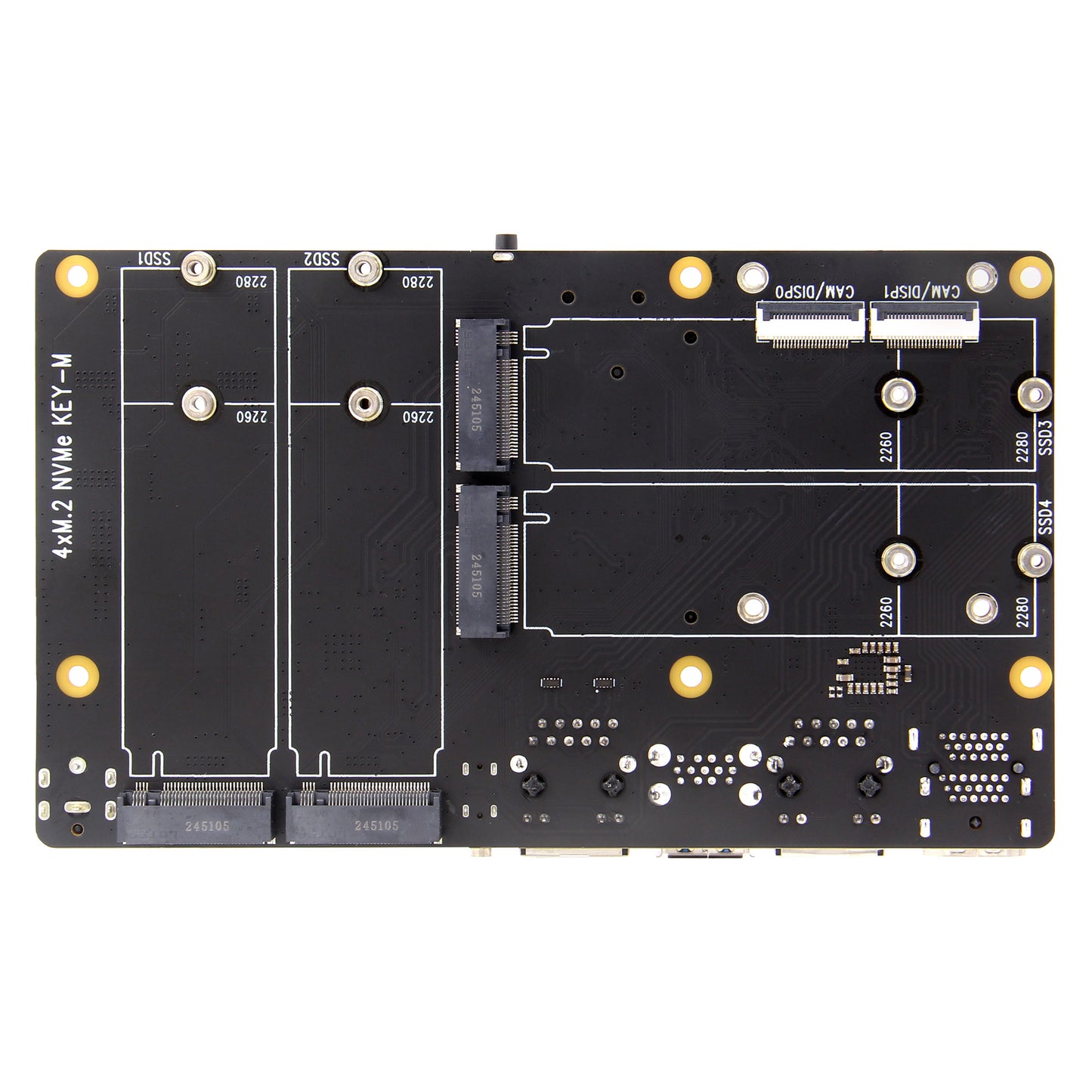

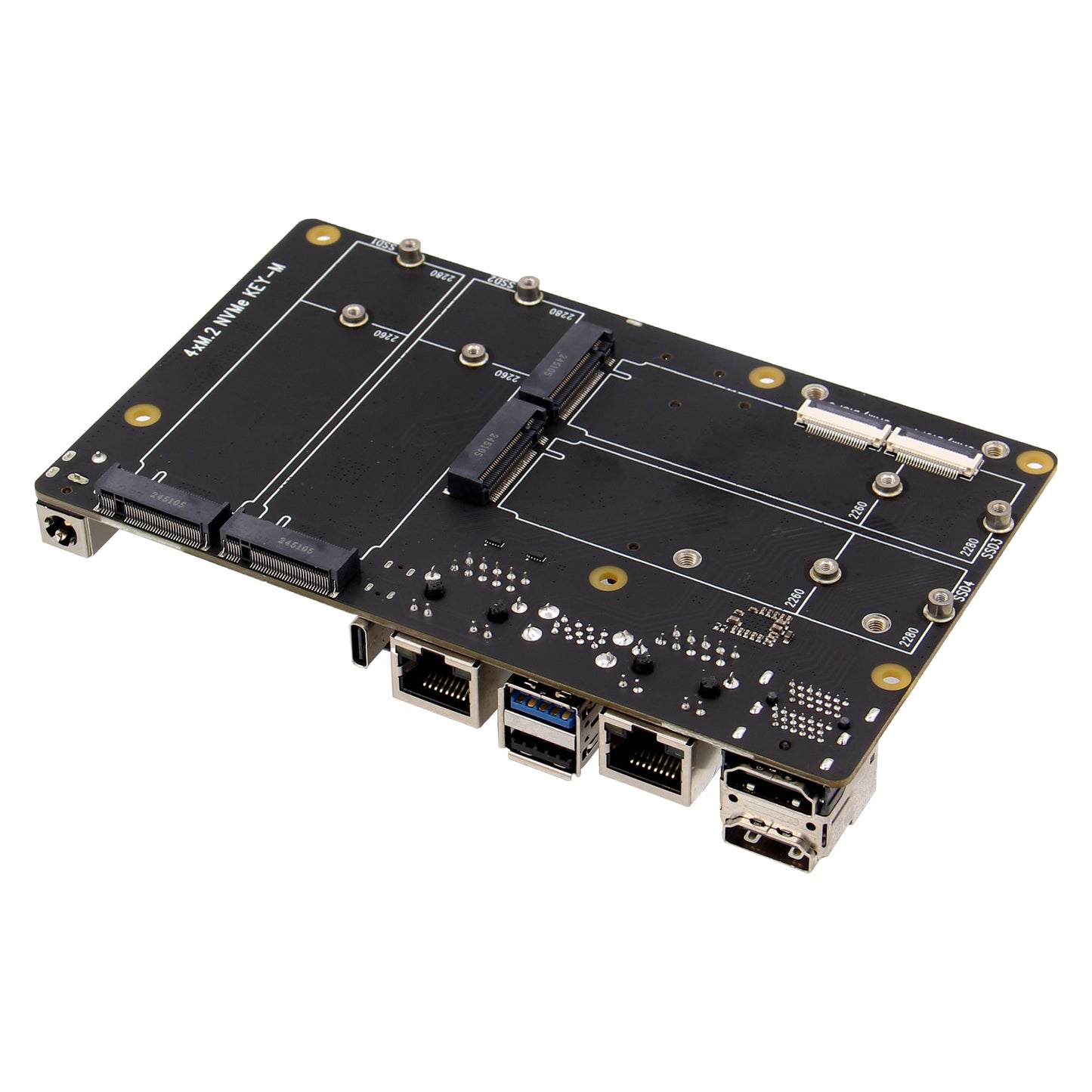

Quad M.2 2280 NVMe SSD Slots: Supports up to 16TB (4TB x4) via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2280, 2242, and 2230 form factors.
-
Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.
-
Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.
-
MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC).
-
Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.
-
Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.
-
RTC Battery Socket (CR2032): Ensures accurate timekeeping during power interruptions.
-
PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.
-
USB-C Port: Handles OS image loading directly into the CM5’s eMMC.
Power supply: Supports 9-17V wide input, providing 5.5A for the CM5 and 3.3V/4A for each SSD
-
Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.
- Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.
How to Power
- Power via the DC 12V 5A DC5521 Power Jack of X1502, recommend to use Geekworm DC 12V 5A power supply.
Matching Case
- Please refer to X1502-C1 metal case.

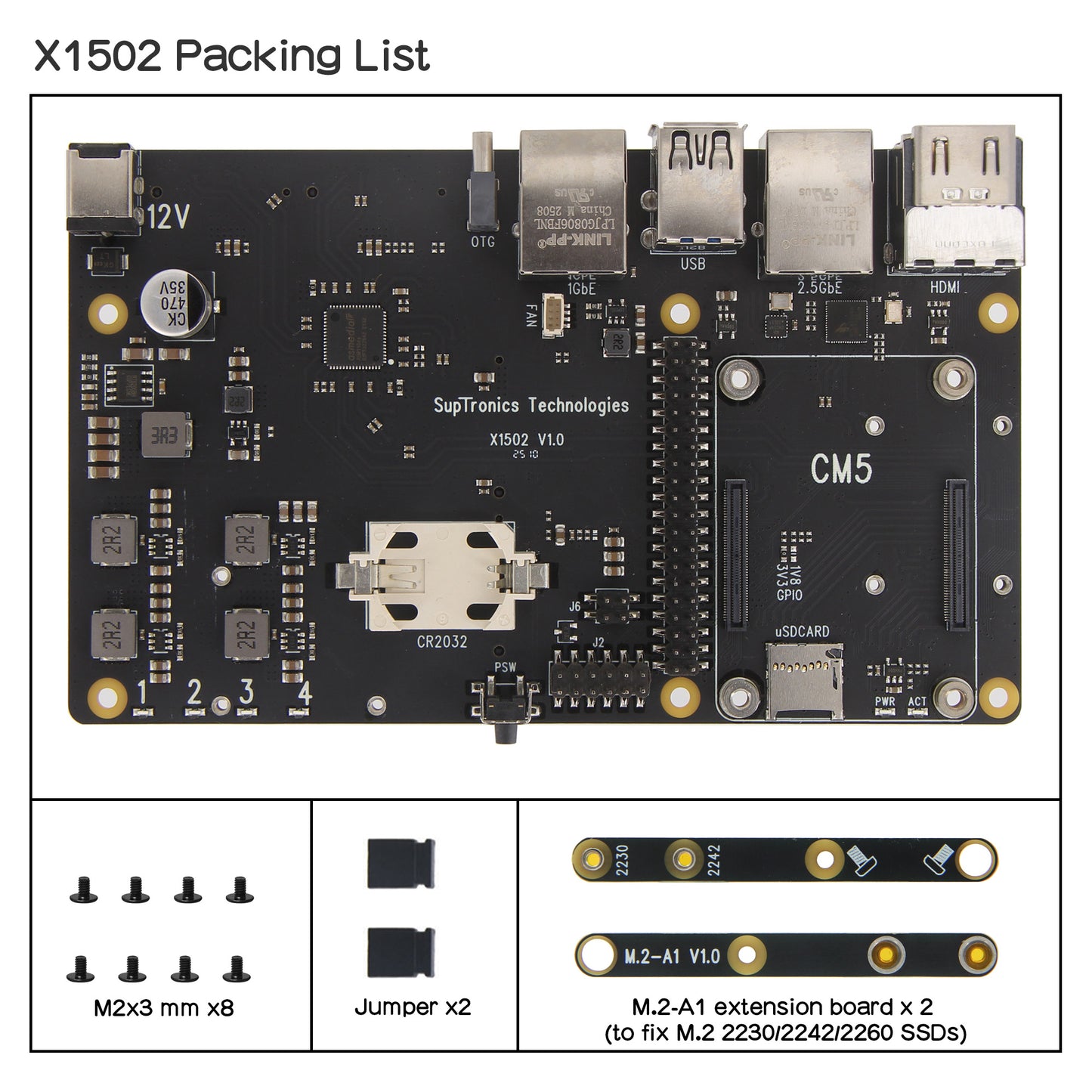

Packing List
- 1x X1502 V1.0 CM5 IO board
- 2x M.2 extension board (Supports 2230 and 2242 M.2 devices)
- 2x 2.54mm jumper cap
- 8x M2x3mm Screws
Refer to: https://wiki.geekworm.com/X1502
Please email to us at info@geekworm.com if you have other questions.
The Geekworm CM5 IO Carrier Board is an innovative solution designed to enhance the functionality of the Raspberry Pi CM5 module. This carrier board provides a robust platform for developers and enthusiasts to build and prototype various applications, leveraging the power of the Raspberry Pi ecosystem.
One of the key features of the CM5 IO Carrier Board is its extensive I/O capabilities. It includes multiple GPIO pins, USB ports, and interfaces for connecting various peripherals. This allows users to easily integrate sensors, displays, and other devices into their projects. The board is designed to support a wide range of applications, from home automation systems to robotics and IoT devices.
In terms of connectivity, the CM5 IO Carrier Board offers options such as Ethernet and Wi-Fi, enabling seamless communication with other devices and networks. This is particularly important for applications that require real-time data transmission or remote monitoring capabilities. The board's design also ensures compatibility with various Raspberry Pi models, making it a versatile choice for developers.
Heat management is another critical aspect of the CM5 IO Carrier Board. Given that the Raspberry Pi can generate significant heat during operation, some model are equipped with provisions for heat dissipation. This is essential for maintaining optimal performance and longevity of the components. Users can utilize high-quality aluminum alloy heatsinks, such as those offered by Geekworm, to further enhance thermal management.
Moreover, the CM5 IO Carrier Board is built with durability in mind. It features a robust construction that can withstand the rigors of prototyping and development. This ensures that users can rely on the board for extended periods without concerns about wear and tear.
For developers looking to customize their projects, the CM5 IO Carrier Board provides ample opportunities for expansion. The board's design allows for easy integration of additional modules and components, enabling users to tailor their setups to meet specific requirements. This flexibility is a significant advantage for those working on innovative solutions in various fields.
In conclusion, the Geekworm CM5 IO Carrier Board is a powerful tool for anyone looking to harness the capabilities of the Raspberry Pi CM5 module. With its extensive I/O options, connectivity features, and robust design, it serves as an excellent foundation for a wide range of projects. Whether you are a hobbyist or a professional developer, this carrier board can significantly enhance your development experience.
Features | X1500 | X1501 | X1502 | X1507 |
---|---|---|---|---|
Compatible with | Raspberry Pi CM5 | Raspberry Pi CM5 | Raspberry Pi CM5 | Raspberry Pi CM5 |
Ethernet Port | 1GbE Ethernet Port x 1 | 1GbE Ethernet Port x 1, 2.5GbE Ethernet Port x 1 |
1GbE Ethernet Port x 1, 2.5GbE Ethernet Port x 1 |
1GbE Ethernet Port x 1 |
USB-C Power In Port | ✔ | ✔ | ✔ | ✔ |
USB-A Ports |
2 x USB2.0 Type-A, 2 x USB3.0 Type-A |
1 x USB2.0 Type-A, 1 x USB3.0 Type-A |
1 x USB2.0 Type-A, 1 x USB3.0 Type-A |
2 x USB2.0 Type-A, 2 x USB3.0 Type-A |
HDMI 2.0 Ports | 2 x HDMI 2.0 | 2 x HDMI 2.0 | 2 x HDMI 2.0 | 2 x HDMI 2.0 |
M.2 NVMe Key-M Slot | Dual 2230/2242/2260/2280 |
Dual 2230/2242/2260/2280 |
Four 2230/2242/2260/2280 |
Dual 2230/2242 |
Dual MIPI DSI/CSI-2 Connectors | ✔ | ✔ | ✔ | ✔ |
MicroSD Card Slot | ✔ | ✔ | ✔ | ✔ |
Power Button | ✔ | ✔ | ✔ | ✔ |
RTC Battery Socket | ✔ Require CR1220 | ✔ Require CR1220 | ✔ Require CR2032 | ✔ with a RTC Battery Connector, Require CR1220 and battery holder |
4Pin PWM Fan Port | ✔ | ✔ | ✔ | ✔ |
Support Hailo-8 AI Accelerator | ✔ | ✔ | ❌ | ✔ |
PoE header | ✔ | ✔ | ❌ | ✔ |
40pin GPIO header | ✔ | ✔ | ✔ | ✔ |
12pin Configurable header J2 | ✔ | ✔ | ✔ | ✔ |
Jumper setting for CAM/DISP1 J6 | ✔ | ✔ | ✔ | ✔ |
PoE HAT support | Currently no compatible PoE HAT | Currently no compatible PoE HAT | Currently no compatible PoE HAT | Currently no compatible PoE HAT |
Matching Case | X1500-C1 / X15-C1 | X1500-C1 / X15-C1 | X1502-C1 | X1507-C1 was released at the end of September |
Matching Cooler | C519 | C519 | C519 | Equipped with a passive cooler |
