Geekworm X1008 PCIe to 2.5" SATA HDD/SSD+3.5" SATA HDD Shield for Raspberry Pi 5 (NOT Support Boot from HDD/SSD)

Regular price
$49.00
Regular price
Sale price
$49.00
Only 47 items in stock! Out of stock!
  • Description
  • Manual
  • PCIe to Sata Shields
  • Shipping Policy
  • Reviews

Note:

  1. The X1008 is designed for data storage purposes and does not support booting from HDD/SSD with the existing firmware currently.
  2. Please use DC 12V power adapter to power both X1008 and Pi 5 via DC5521 Jack, no need to power Pi 5 additionally (please note that 3.5" hard disk requires 12V).
  3. Older SATA drives with less efficient flash media may not perform as well as newer drives
  4. New SATA HDDs/SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.
  5. The Raspberry Pi 5 board, SSD/HDD, active cooler or power adapter is not included in the packing list.

Overview

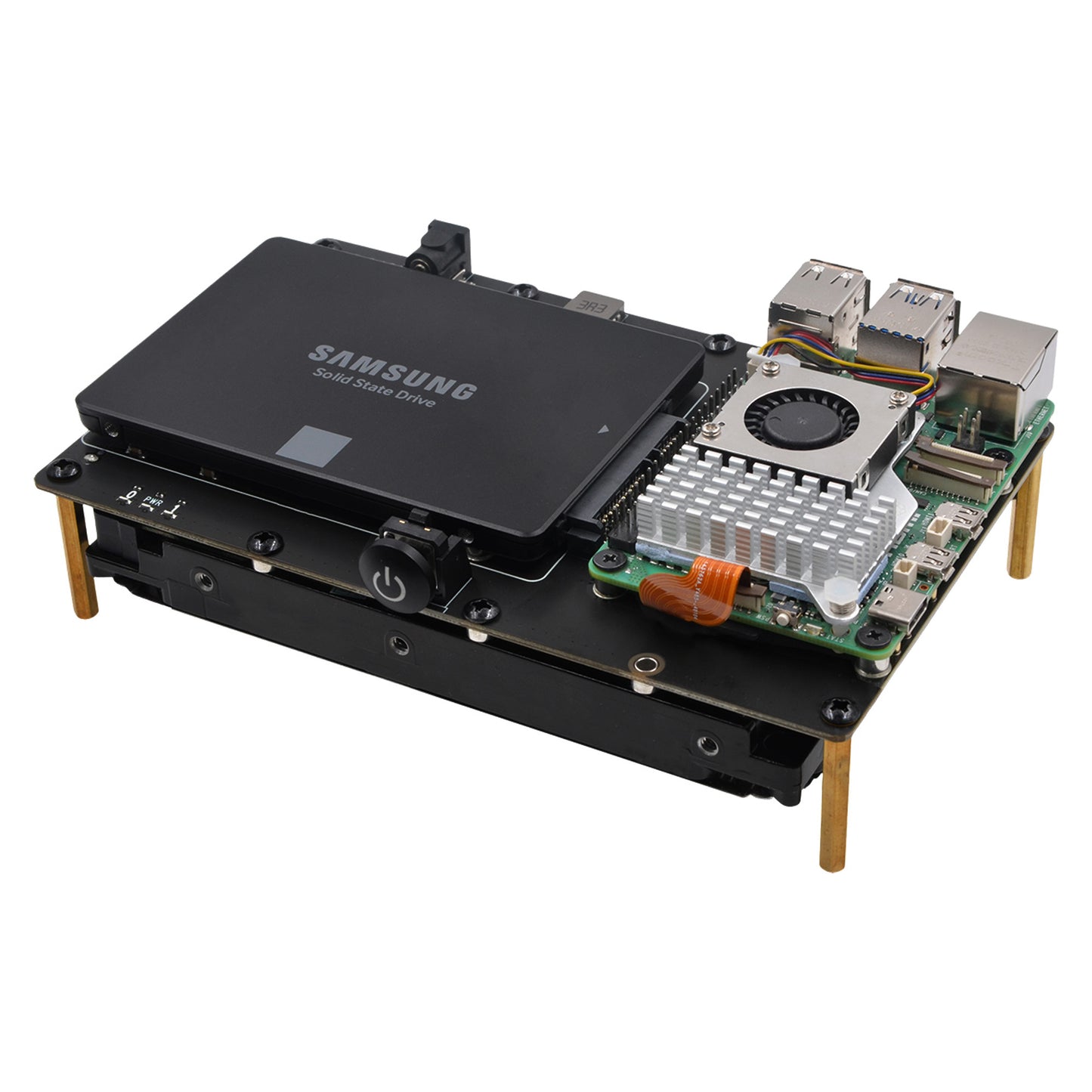

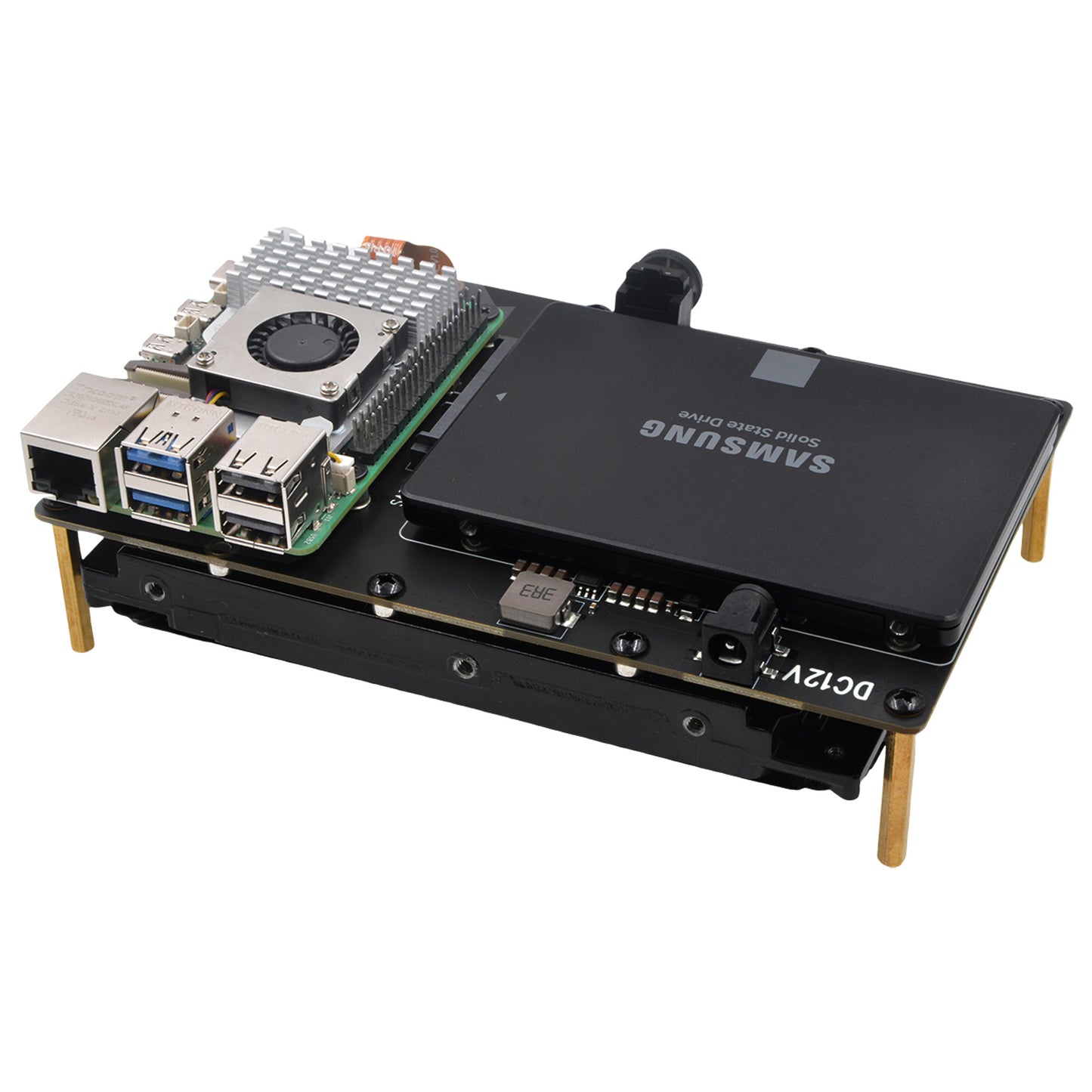

X1008 PCIe to 2 ports SATA HDD expansion board, designed to provide a mass-capacity storage and high-speed storage solution for your Raspberry Pi 5. This board facilitates the simultaneous connection of a 3.5-inch HDD and a 2.5-inch HDD/SSD, unleashing the full potential of your storage capabilities, with SATA 3.0 interface speeds reaching up to 5Gbps.

With support for 12V input via a standard DC jack and equipped with high-efficiency DC/DC step-down converters, the X1008 efficiently powers both your Raspberry Pi5 and HDDs from a single power source, simplifying your setup.

The X1008 serves as the perfect storage solution for establishing a home media center or constructing a network-attached storage (NAS) system. It empowers you to store and stream your personal collection of videos, music, and digital photos within the confines of your home or remotely from anywhere around the globe.

User Manual: https://wiki.geekworm.com/X1008

Features

  • Compatible with Raspberry Pi 5

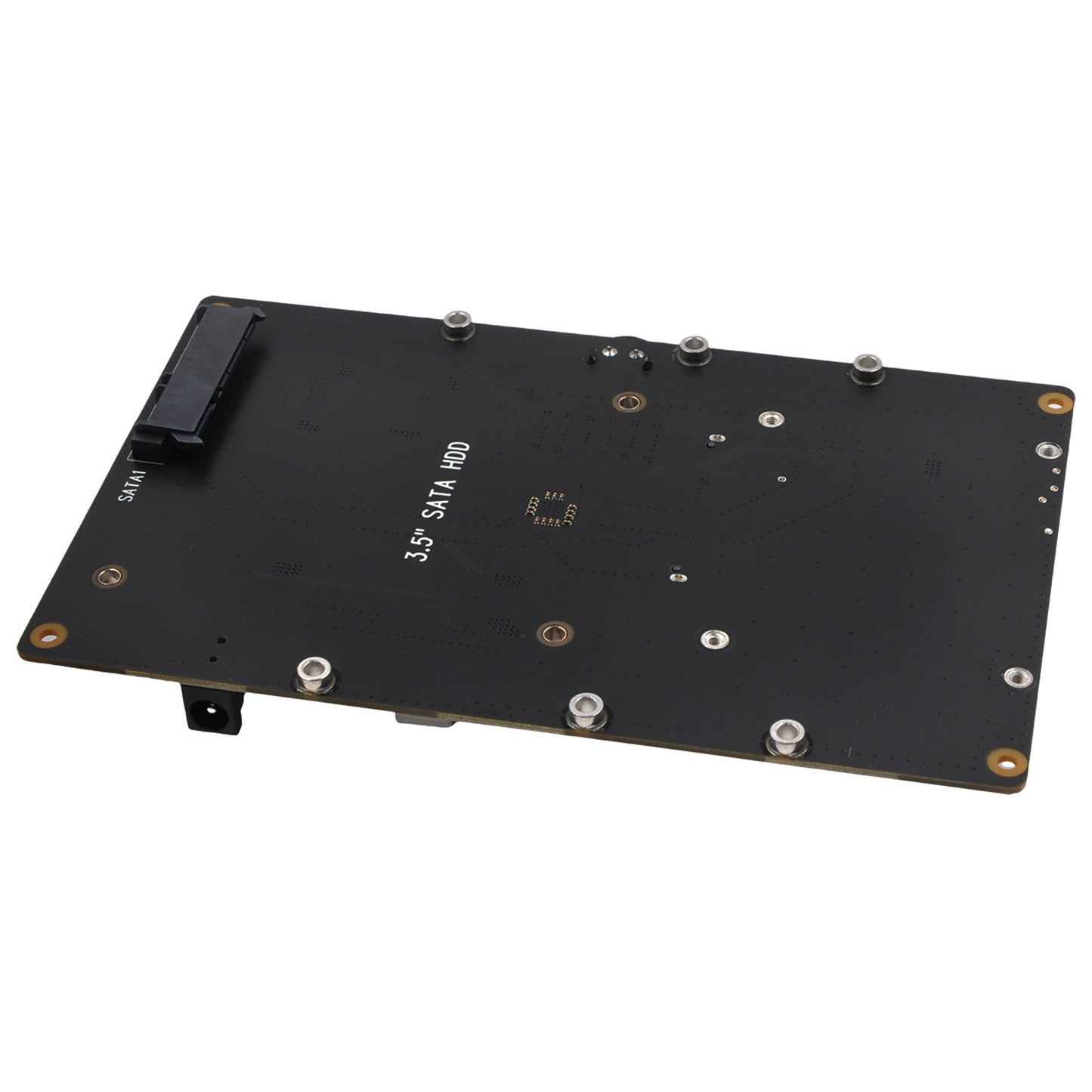

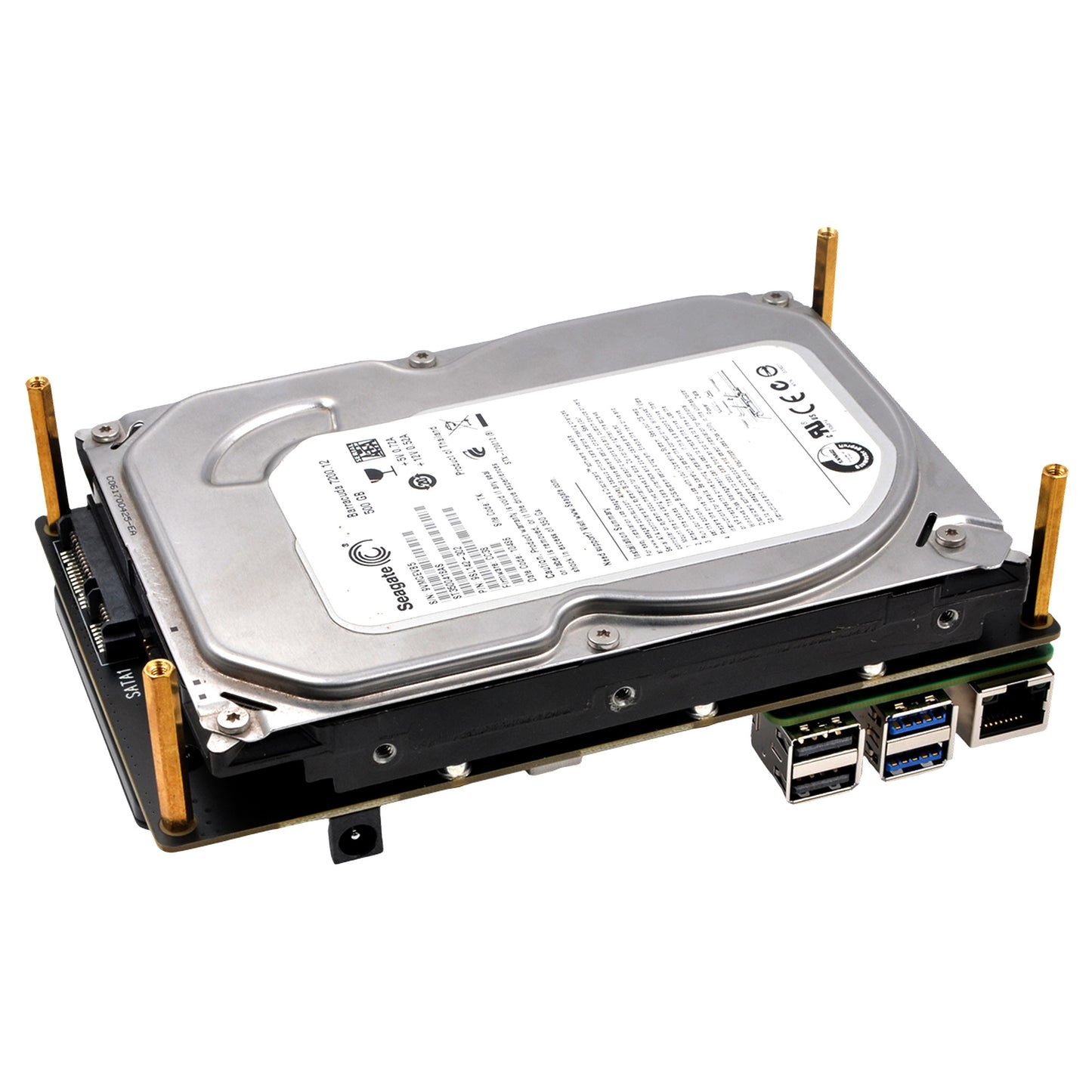

  • Supports the connection of a 3.5-inch SATA HDD and a 2.5-inch HDD/SSD to your Raspberry Pi 5 simultaneously
  • Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
  • Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
  • Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
  • Compatible with SATA 6G, 3G, and 1.5G hard drives
  • Features plug-and-play installation for ease of setup

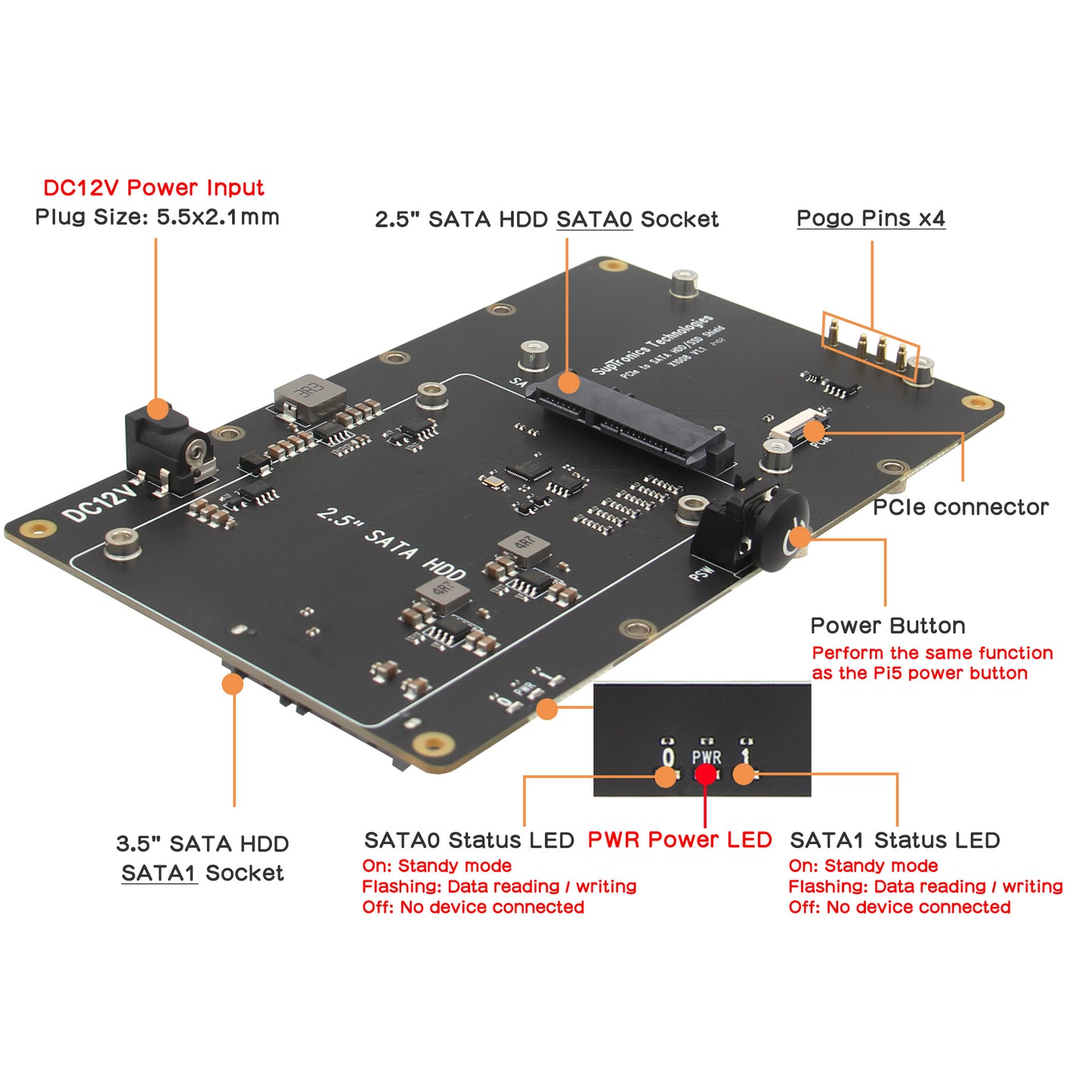

  • LED indicators display power and drive status
  • Equipped with a high-efficiency DC/DC step-down converter to power both your Raspberry Pi 5 and SATA devices simultaneously
  • Efficient power delivery to the Raspberry Pi 5 via pogo pins, consolidating power sources
  • On-board push button performs the same actions as the Pi's power button
  • Compatible with the official Raspberry Pi 5 active cooler or Argon THRML 30mm Active Cooler or third party cooler without compromising cooling performance
  • Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

Technical Specification

  • Power supply: 12Vdc +/-5% ≥3A via DC power jack 5.5x2.1mm
  • PCIe FFC cable length: 37mm

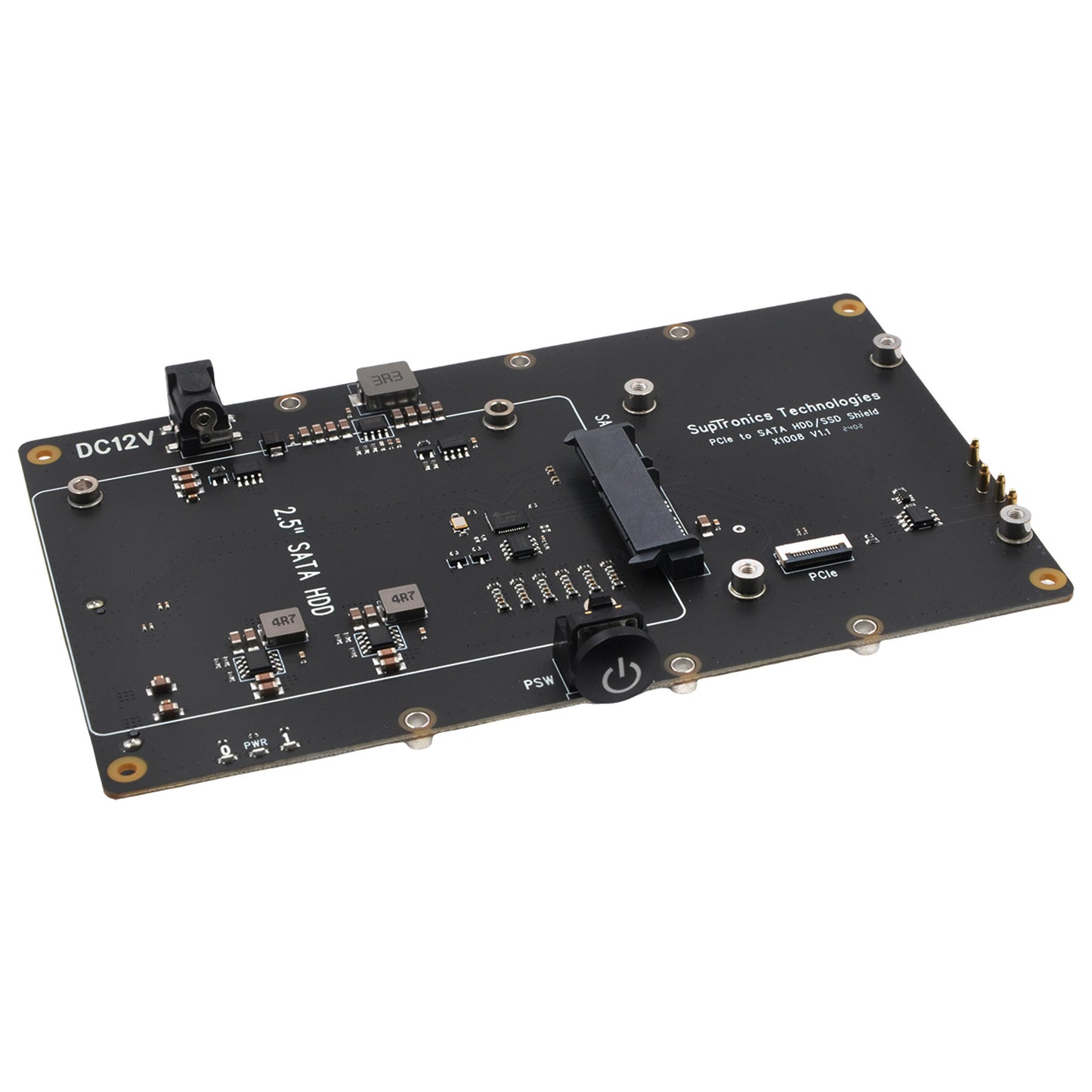

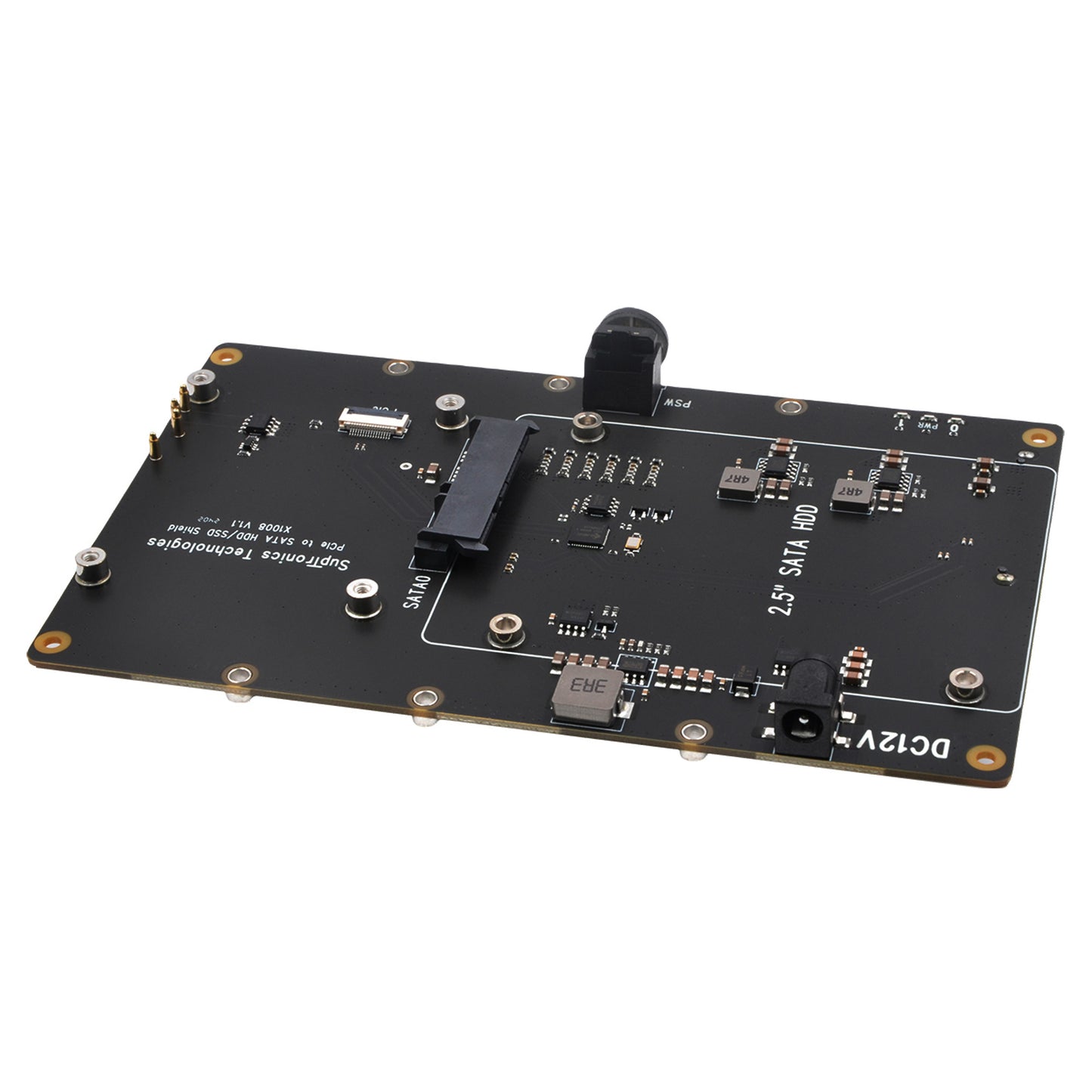

  • PCB Size: 164.5mm x 101.6mm

Ports & Connectors:

  • PCIe connector x1 - 16-pin pitch0.5mm
  • SATA connectors x2 - 7+15P

Packing List

  • 1x X1008 PCIe to SATA shield
  • 1x PCIe FFC Cable 37mm
  • 1x Screws pack

Refer to: https://wiki.geekworm.com/X1008

Please email to us at info@geekworm.com if you have other questions.

PCIe to SATA HDD/SSD Shield:

Product Model Features Supported HDDs / SSDS Mounting Position Support booting from HDD/SSD Matching Case
X1006
  • PCIe to SATA HDD/SSD shield
  • Supports M.2 2280 +2.5" SSD/HDD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 4TB HDD
  • SATA 6Gb/s Bridge controller
  • 1 piece of 2.5" SATA SSD/HDD
  • 1 piece of M.2 SATA Key-B 2280 SSD
Bottom NO None
X1007
  • PCIe to SATA HDD/SSD shield
  • Supports dual SATA HDD/SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 5TB HDDs
  • SATA 6Gb/s Bridge controller
  • Dual SATA 2.5" HDD / SSD
Bottom NO None
X1008
  • PCIe to SATA HDD/SSD shield
  • Supports 2.5"+3.5" HDD/SSD
  • Supports PCIe 2.0 up to 5Gbps
  • Supports up to 16TB HDD
  • SATA 6Gb/s Bridge controller
  • 1 piece of 2.5" SATA HDD / SSD
  • 1 piece of 3.5" SATA HDD Shield
Bottom NO None
X1009
  • PCIe to 5-port SATA3.0 shield
  • Supports up to 5 SATA devices
  • Supports PCIe 2.0 up to 5Gbps
  • Complies with SATA Rev3.2
  • Powers SATA devices & RPi5
  • User defined
  • Up to 5 piece of  2.5/3.5 sata HDDs / SSDs
Top NO None



USB3.0 to SATA HDD/SSD Shield:

Product Model Features Supported HDDS / SSDS Mounting Position Support booting from HDD/SSD Matching Case
X1100
  • USB3.0 to SATA HDD/SSD shield
  • Supports up to 5TB HDD/SSD
  • Transfer speeds up to 5Gbps
  • Read/Write over 300MB/s
  • Supports USB booting
  • 1 piece of 2.5" SATA SSD / HDD
Bottom Yes X1100-C1
