Geekworm X863-C1 Metal Case for Raspberry Pi 4 & X876/X863

Note:
The Raspberry Pi 4, X863,X876,X732,SSD, SD card and power adapter are not included in the packing list!
It is strongly recommended that buyers who have purchased x863 or x876, and x732 board, buy this X863-C1 metal case!!!It is well compatible with those expansion board, and easy to install!!!

Overview

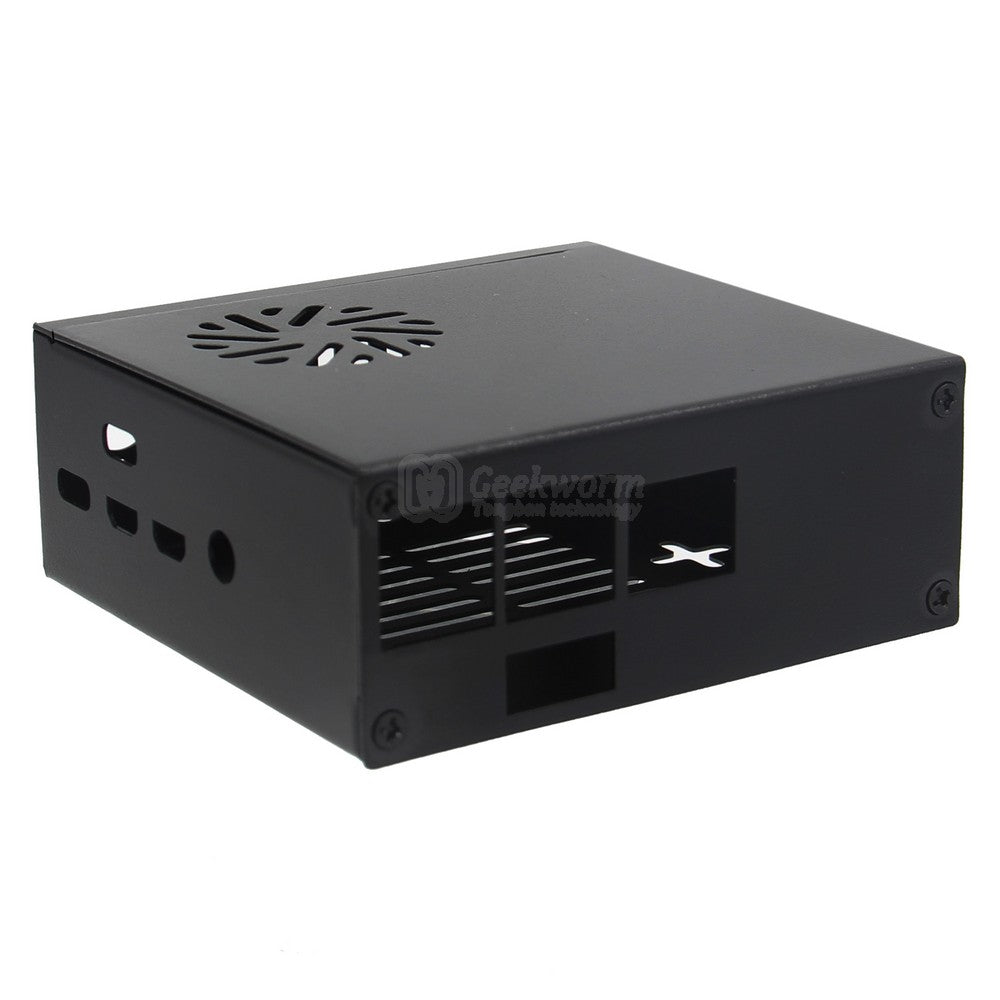

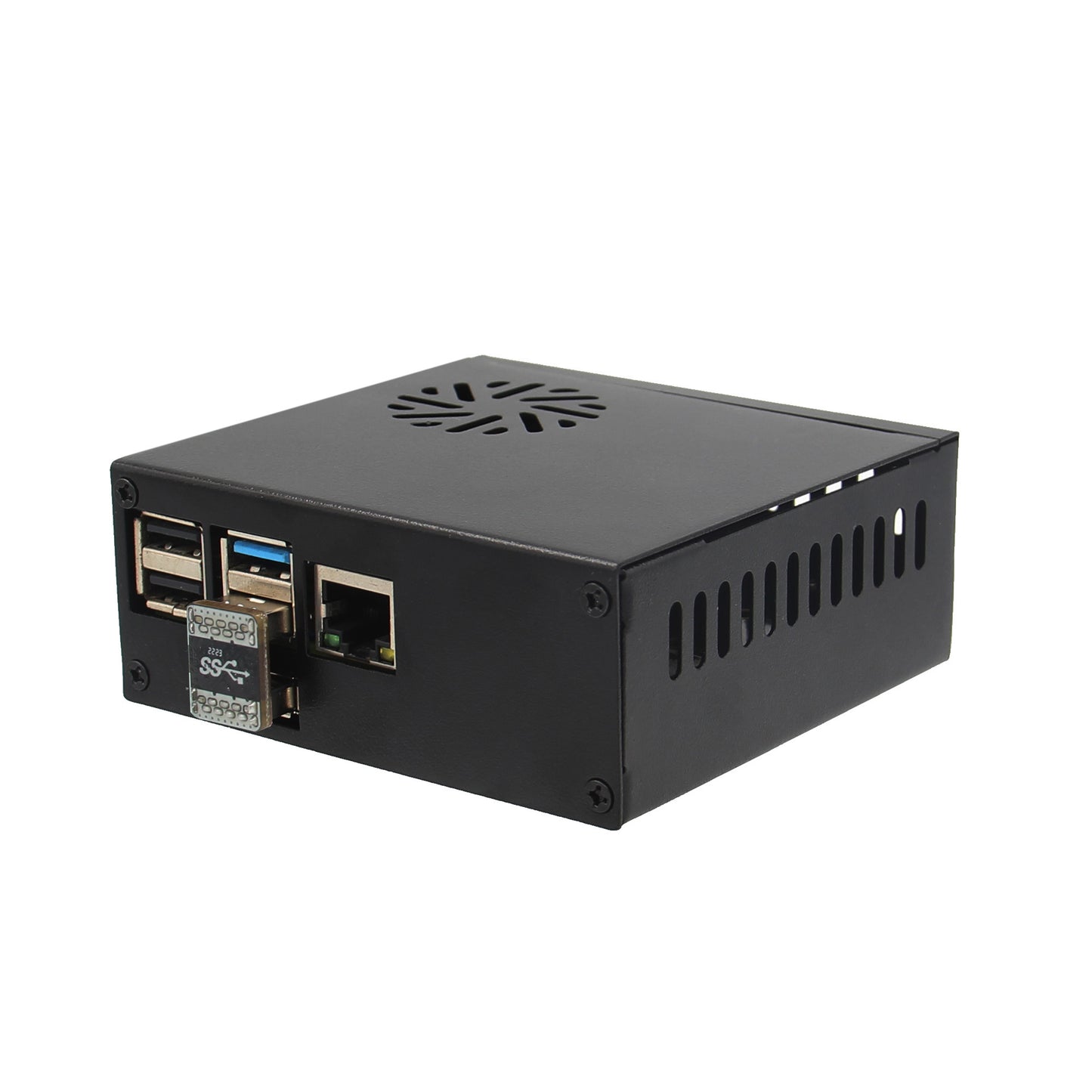

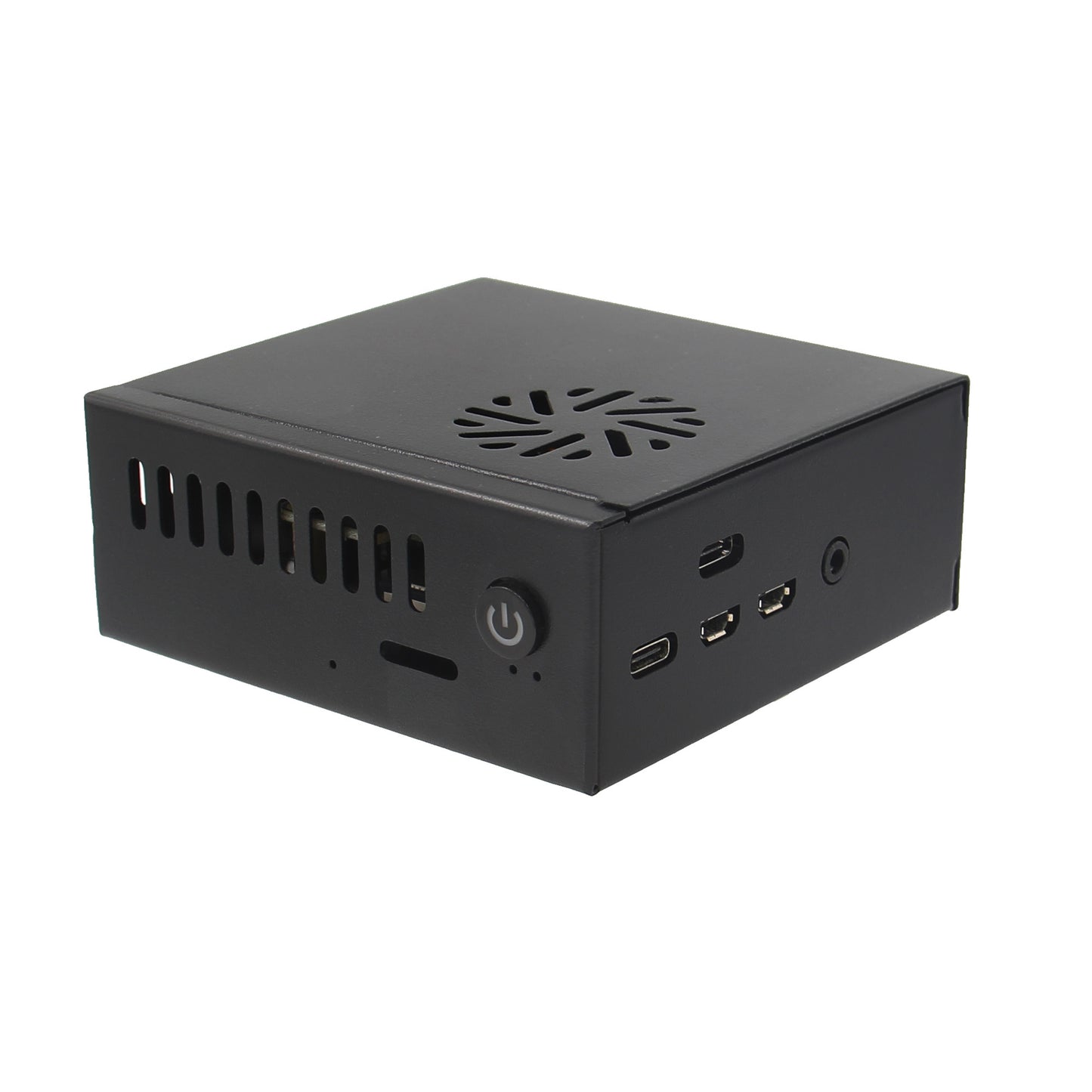

This X863-C1 is a ultra-thin compact new design Raspberry Pi 4 metal case specially designed to install Raspberry Pi 4 Model B & X863 M.2 NGFF storage board & X732 power management and cooling board.
And at the same time It is also compatible with X876 NVMe expansion board.You could also buy this metal case for X876.

User Manual
https://wiki.geekworm.com/X863-C1
https://wiki.geekworm.com/X732
https://wiki.geekworm.com/X863
https://wiki.geekworm.com/X876
Features

• Support Raspberry Pi 4 & X863/X876 & X732 Only
• Ultra-thin compact design
• High quality metal material with surface galvanized process
• Reserved the TF Card slot for easy access
• Reserved Side Slot(Interface) for GPIO/FFC Cable
• Oval opening on the case side and buttom for better heat dissipation purpose

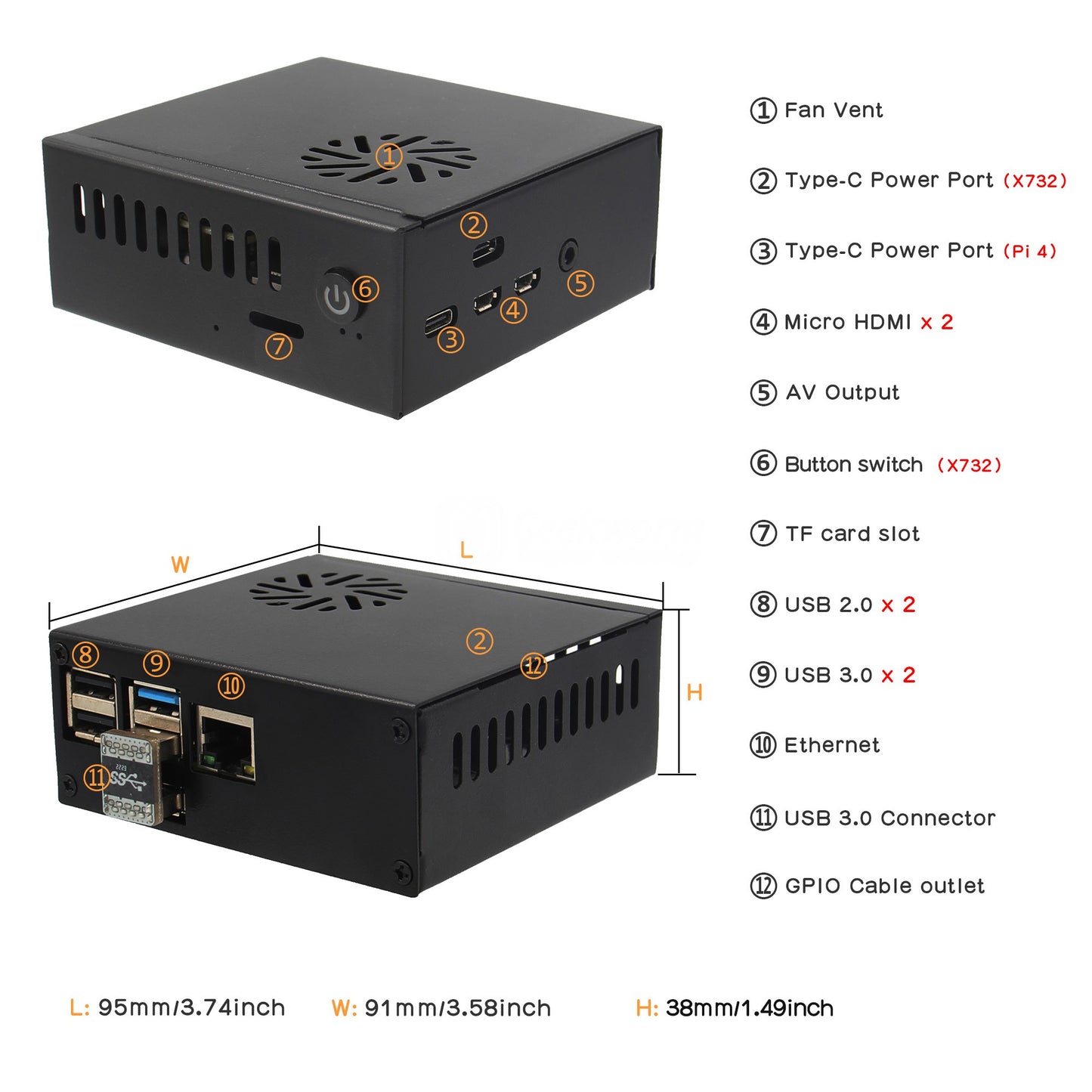

• Case Size(Installation): 95mm x 91mm x 38mm / 3.74inch x 3.58inch x 1.49inch

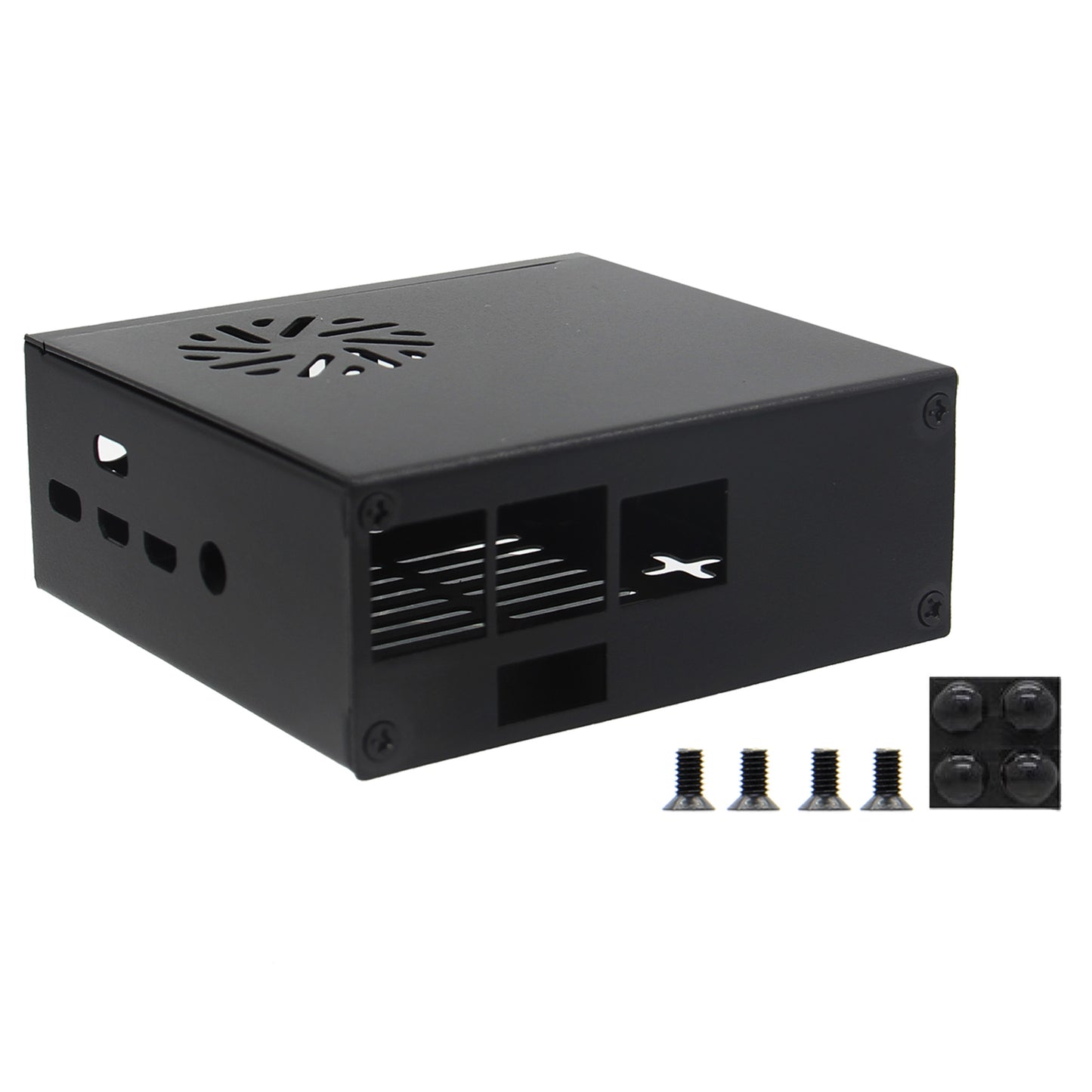

Packing List

• 1x X863-C1 metal case
• 1x screws pack
