Geekworm Raspberry Pi X630 V1.5 Hdmi to CSI-2 Module

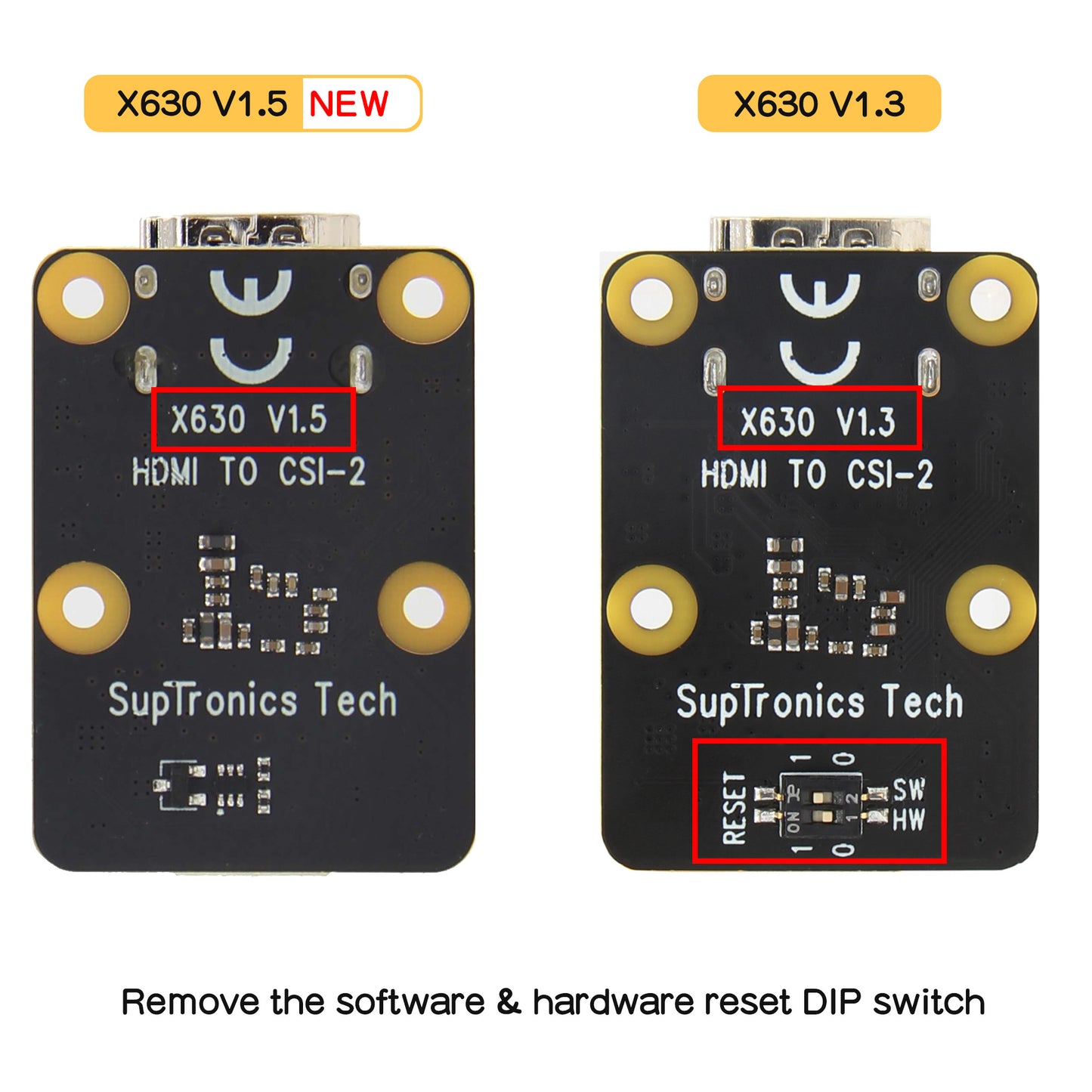

Update: update from X630 V1.3 to X630 V1.5 version in December 2022, just remove the DIP switch on the back of X630.

Overview

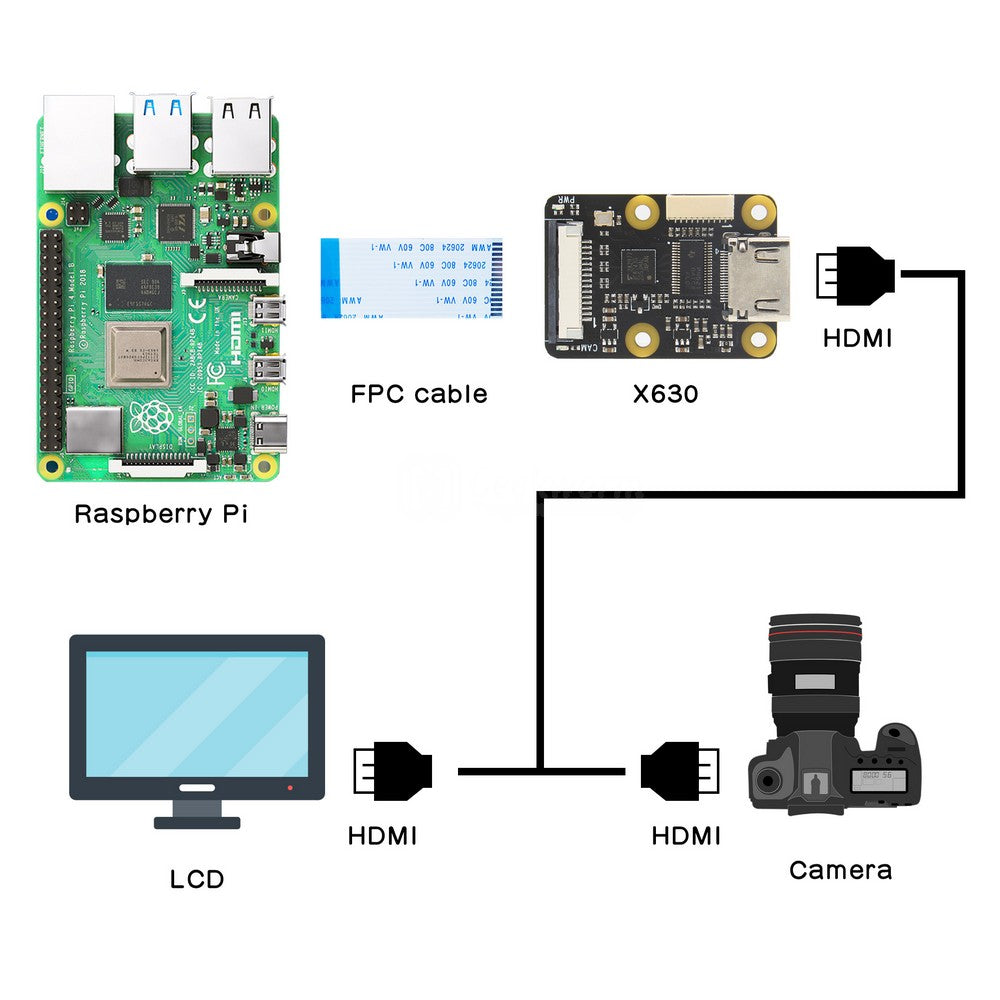

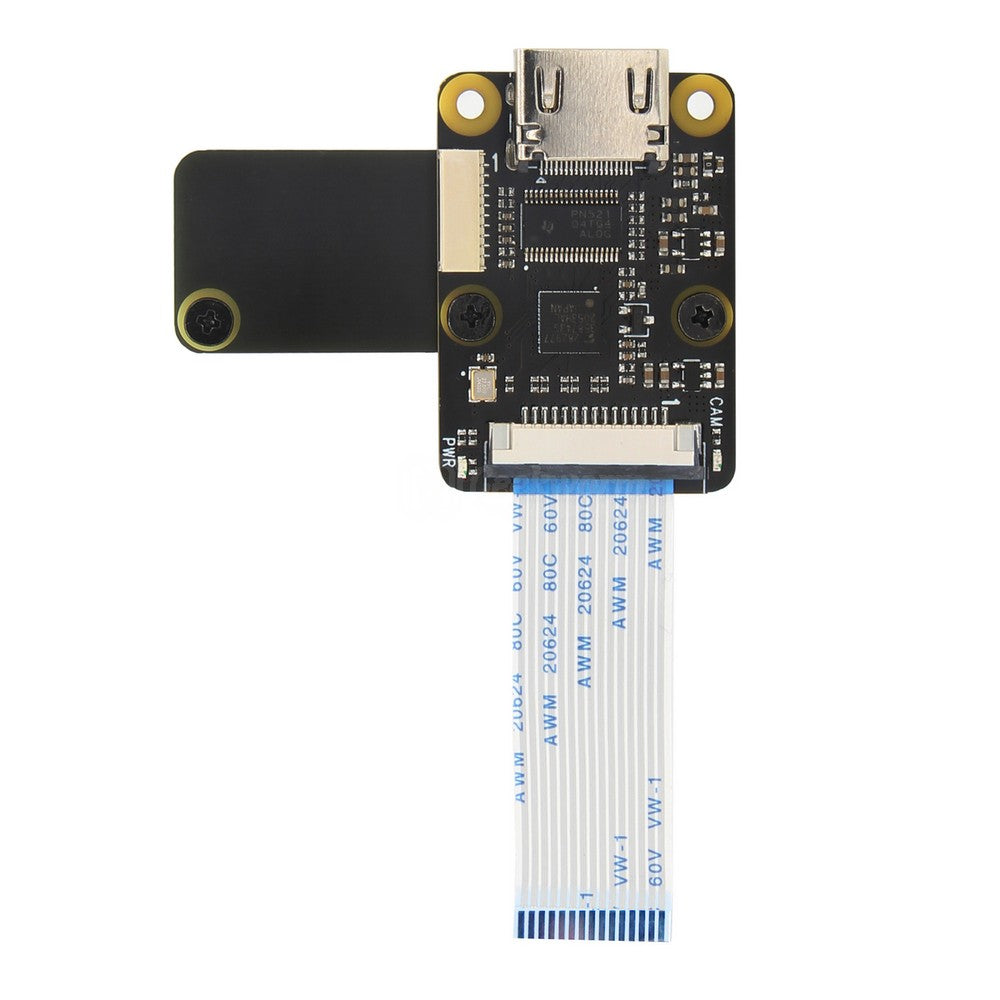

The X630 hdmi to csi module is a bridge module with Toshiba TC358743XBG chip that converts Hdmi stream to MIPI CSI-2, which enables your Raspberry Pi to accept Hdmi video and audio streams and process them as incoming data source. KVM OS supported.

About Geekworm KVM kit, please refer to: geekworm.com/products/pikvm

User Manual:

• wiki.geekworm.com/X630
• wiki.geekworm.com/X630-C1

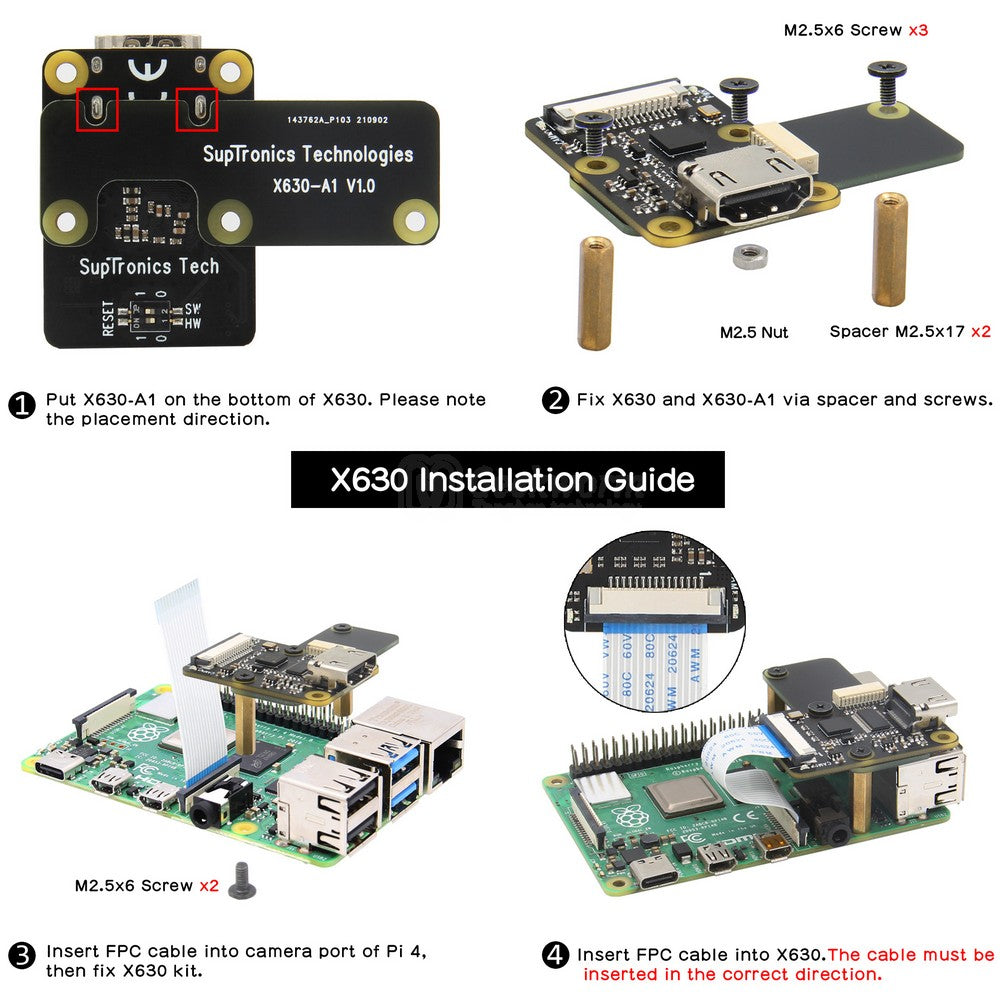

• Installation Video: https://youtu.be/lJL2Ihs1aYg

Click to Order from Amazon

Features

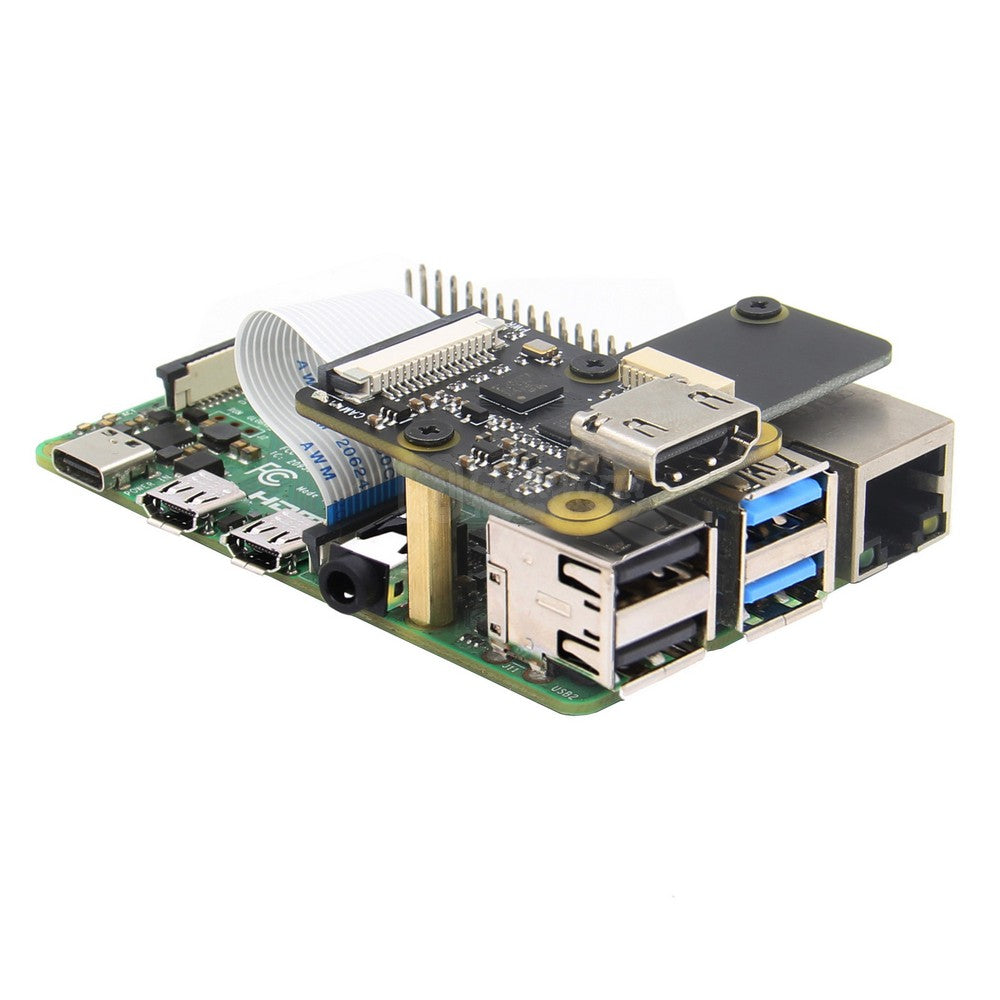

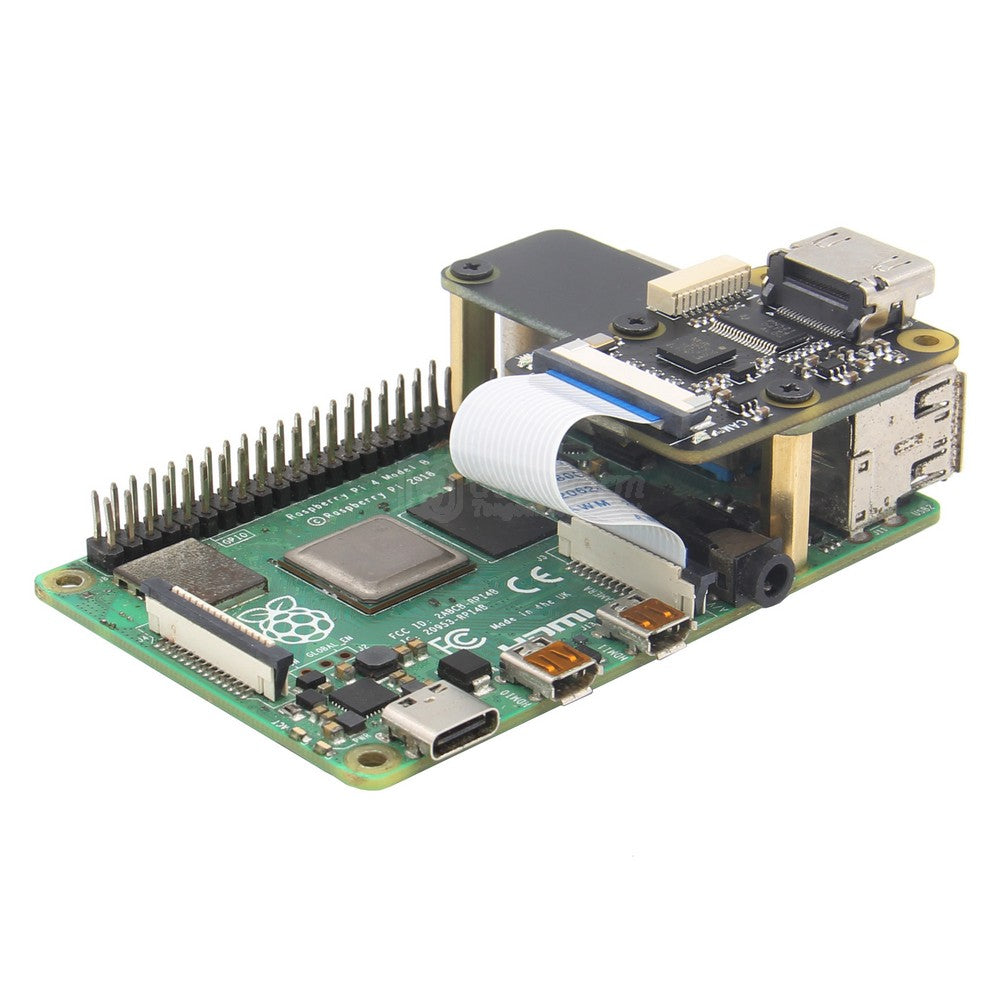

• Specifically designed mounting hole for Raspberry Pi
• Model: X630 V1.5(Update in December 2022)
• Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/3A+/Pi Zero/Zero W/Zero 2W

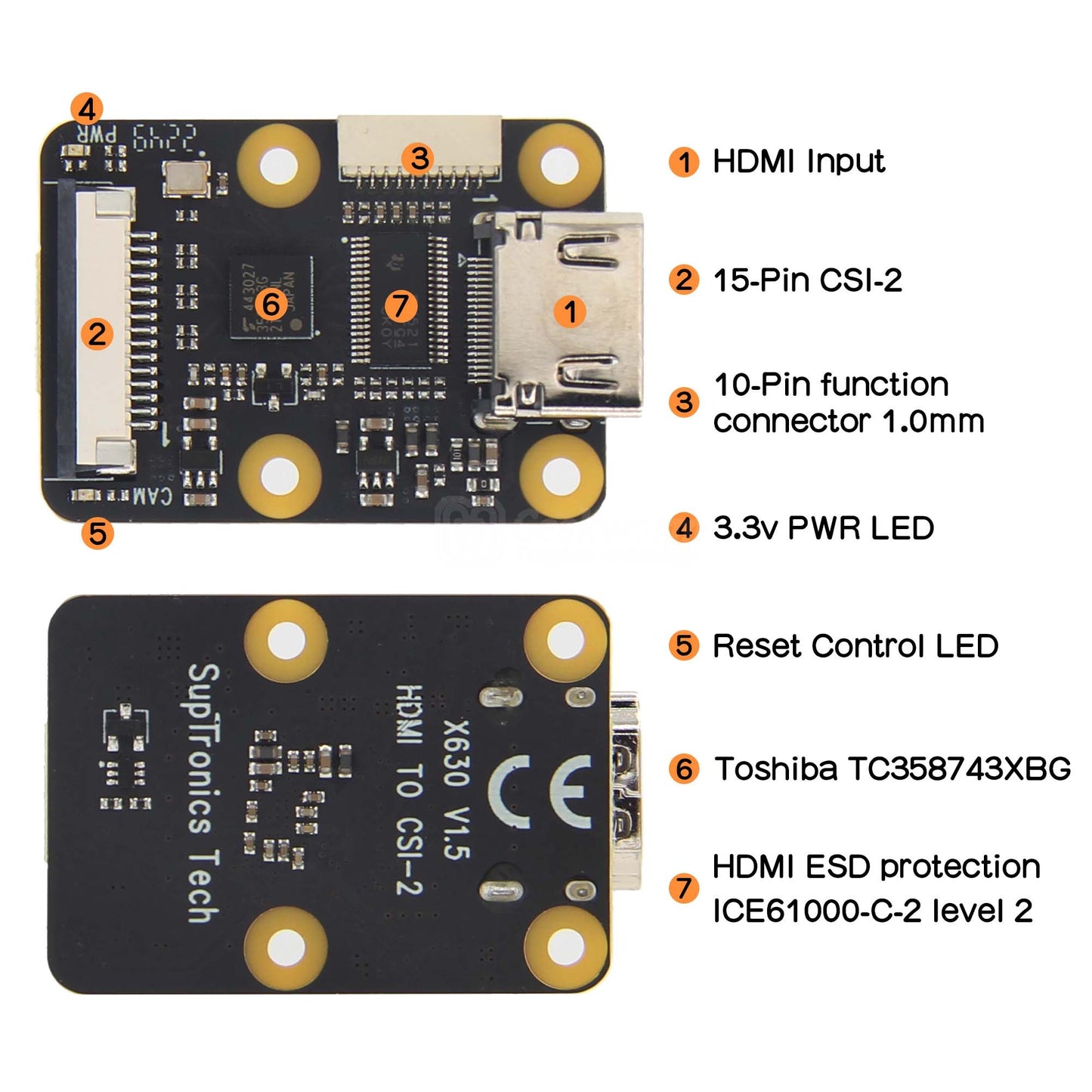

• Hdmi to CSI-2 bridge chip: Toshiba TC358743XBG
• Video Formats Support (Up to 1080P)

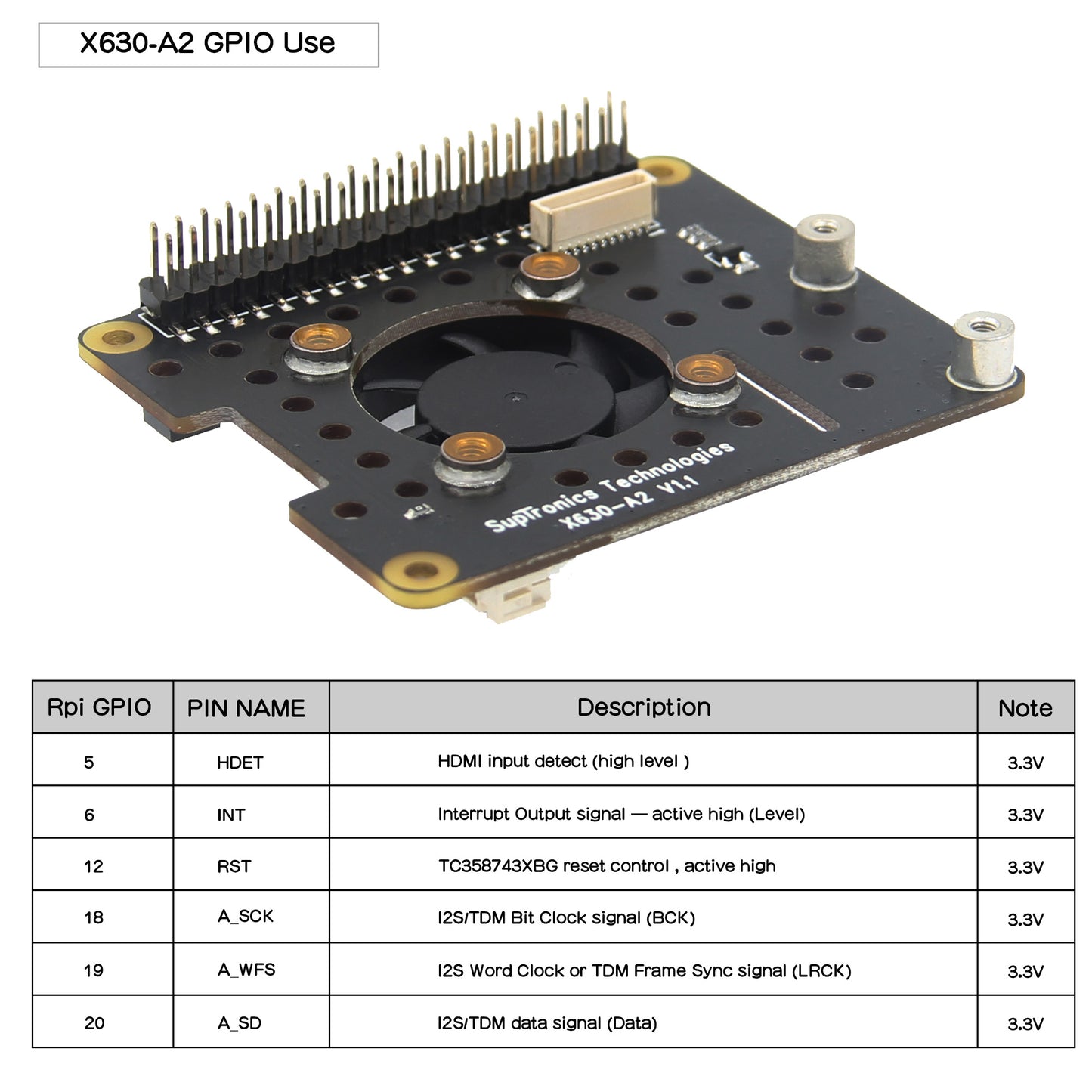

• Audio is supported and can be transmitted over CSI-2 stream or over I2S
• CSI-2 Transmit Interface MIPI CSI-2 compliant (Version 1.01 Revision 0.04 -2 April 2009)
• CSI-2 connector: 15 pin FPC with 1.0 mm pitch
• Able to start RASPISTILL or RASPIVID multiple times and no reboot required
• Easily fixed on Raspberry Pi and DIY your perfect case

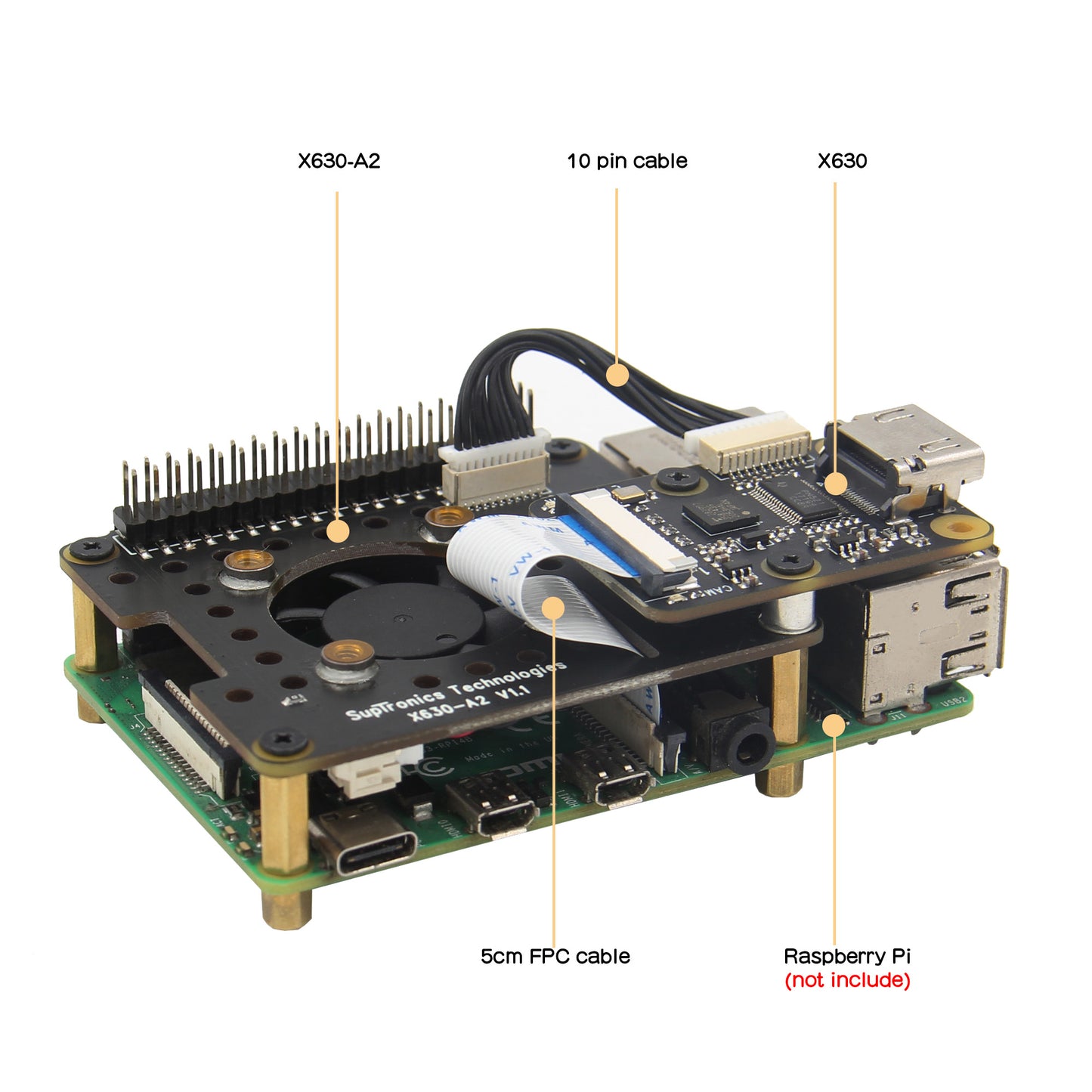

Match Metal Case

Metal case for X630 Hdmi to CSI-2 module, please refer to X630-C1 （Sould OUT）.

• With all ports and slots match with Raspberry Pi 4B perfectly
• TF card slot is reserved to insert and remove the SD card easily
• Only support Raspberry Pi 4 Model B with X630 Hdmi to CSI-2 Module
• Equipped with 4010 2pin 5V cooling fan
• The distance between the vesa mounting holes is 65mm
• Case Dimension: 121x90.5x45mm/4.76x3.56x1.77inch
• With 3 pcs aluminum heatsinks to stick on the Raspberry Pi 4 for better heat dissaption
• With 4pcs rubber feet for non-slip purpose

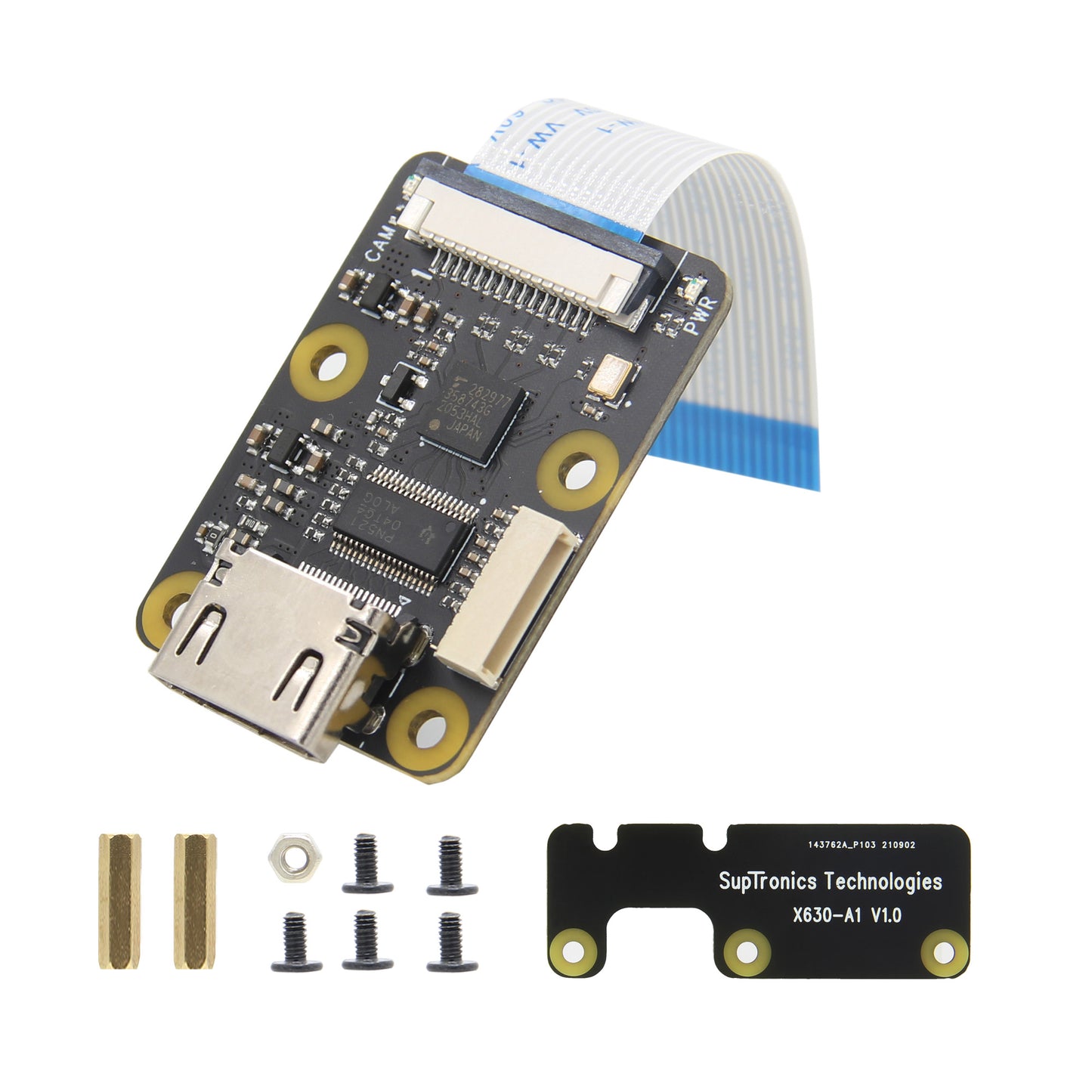

X630 Packing List

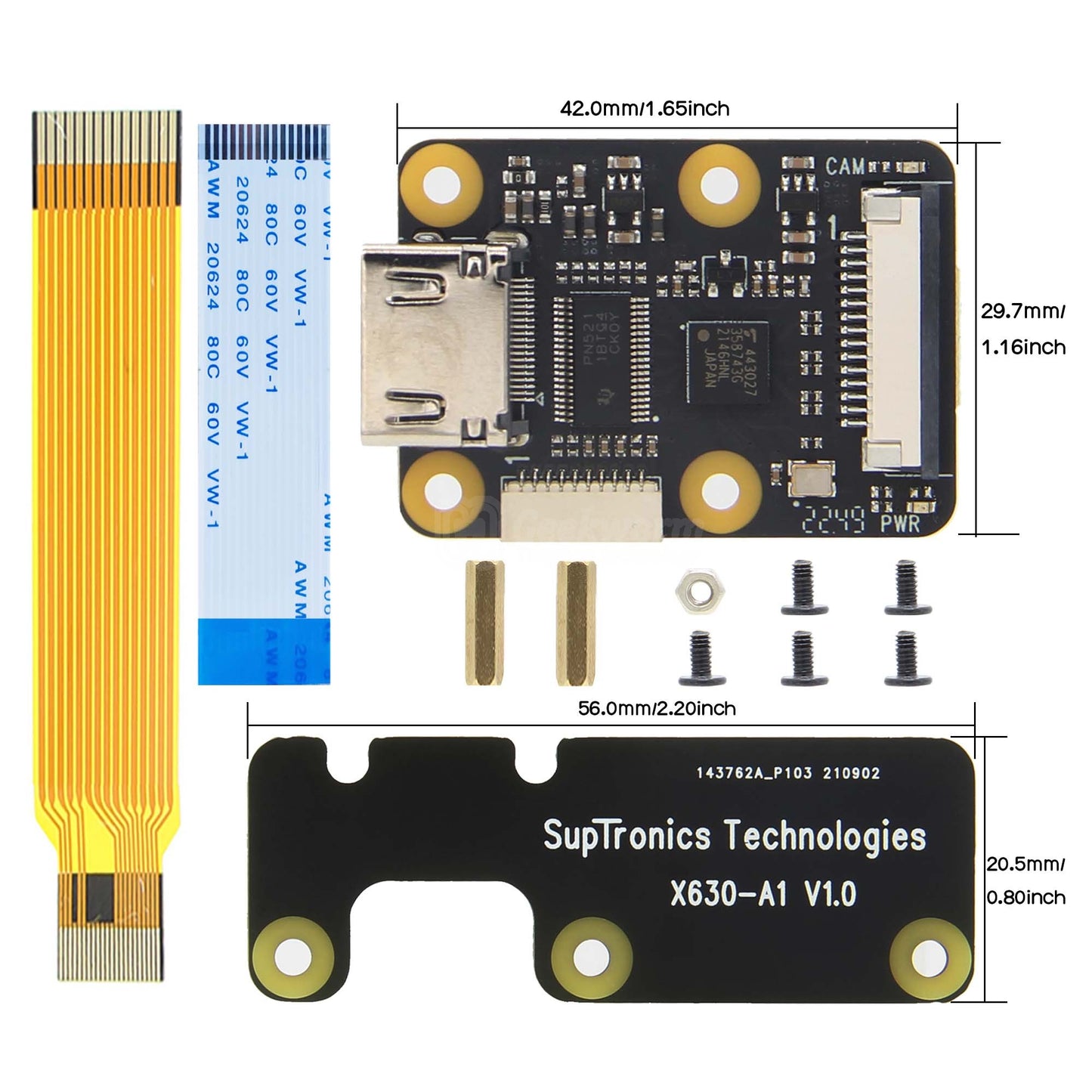

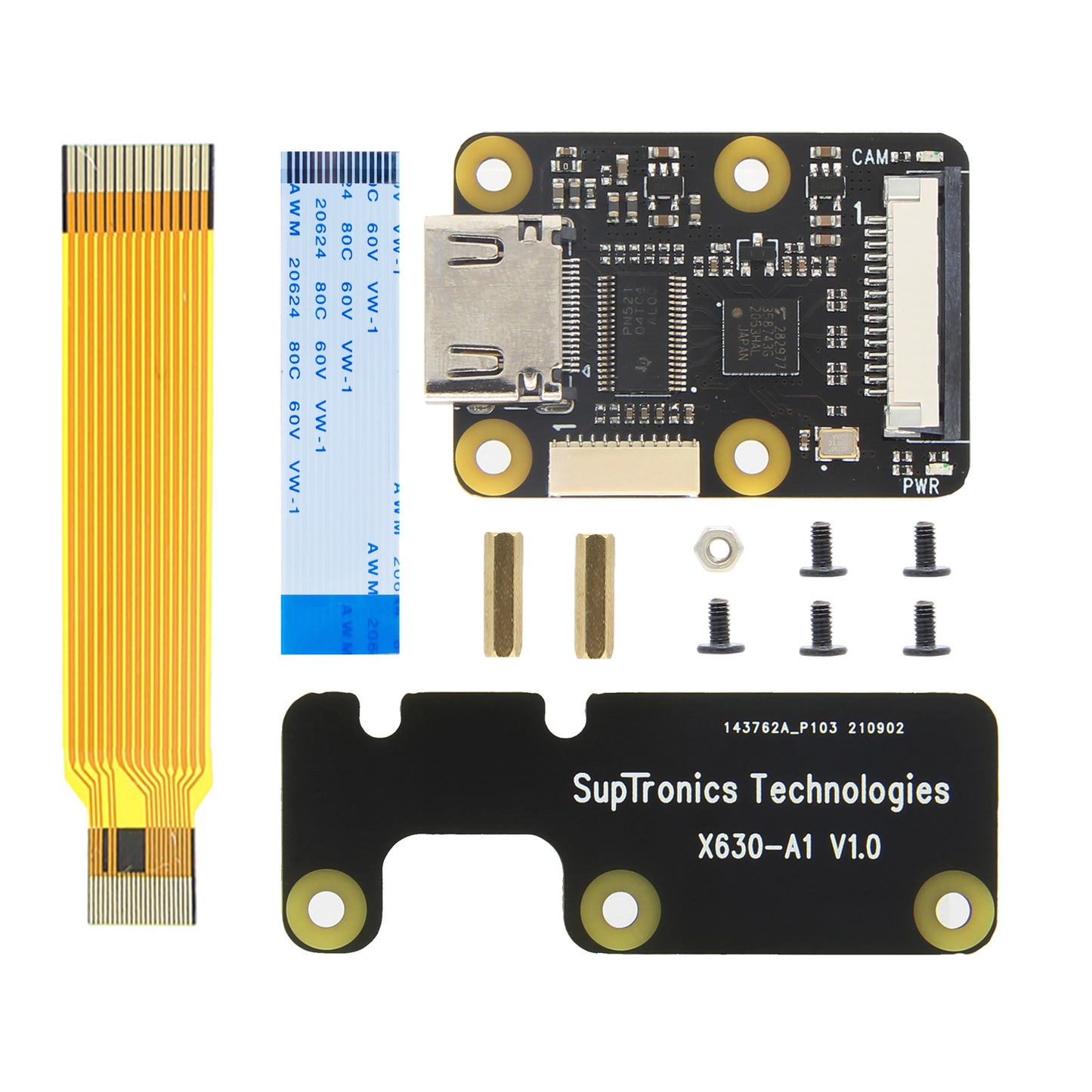

• 1x X630 Hdmi to CSI-2 Module

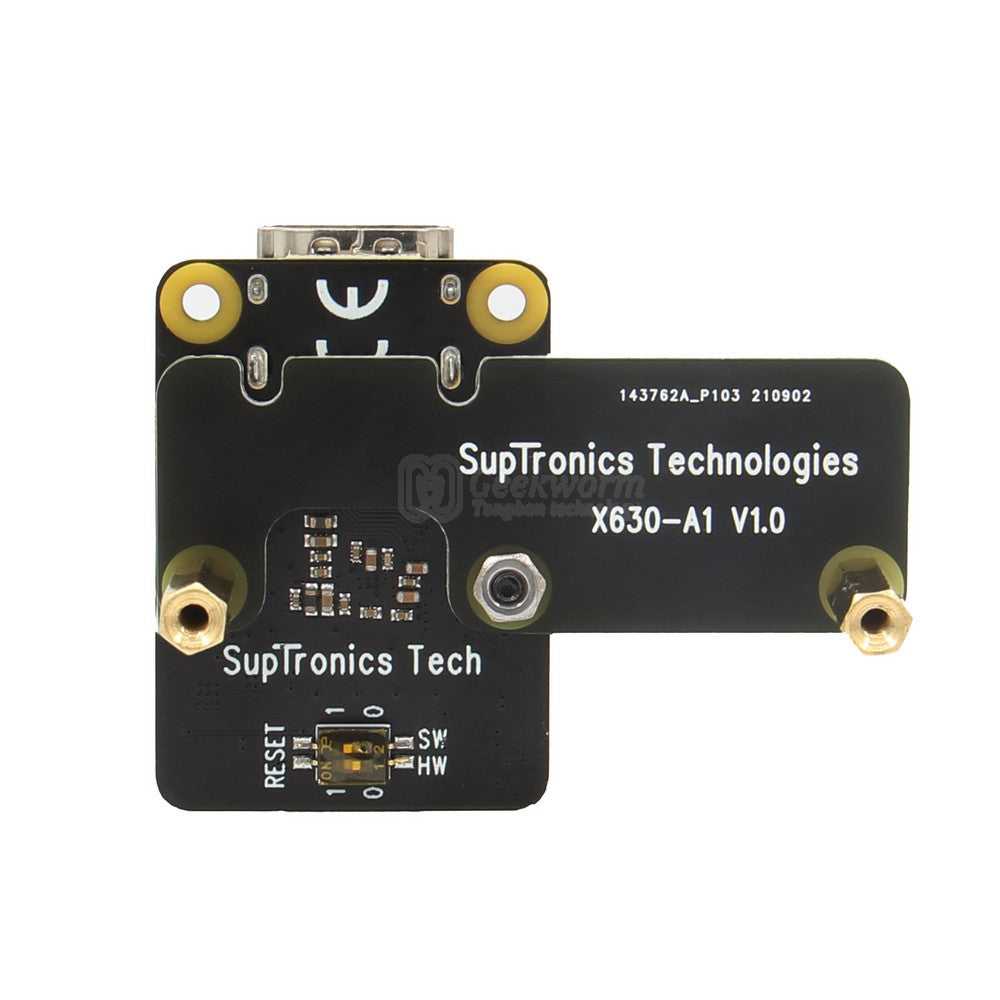

• 1x X630-A1 Board
• 1 x FPC cable（5cm length）
• 1 x FFC cable（7.5cm length）
• 2 x F/F M2.5*17mm Spacers
• 4 x M2.5*6 Screws
• 1 x M2.5 Nut
