Geekworm X630-C1 Metal Case for Raspberry Pi 4&X630

Note:

• The Raspberry Pi 4 Model B is not included in the packing list.

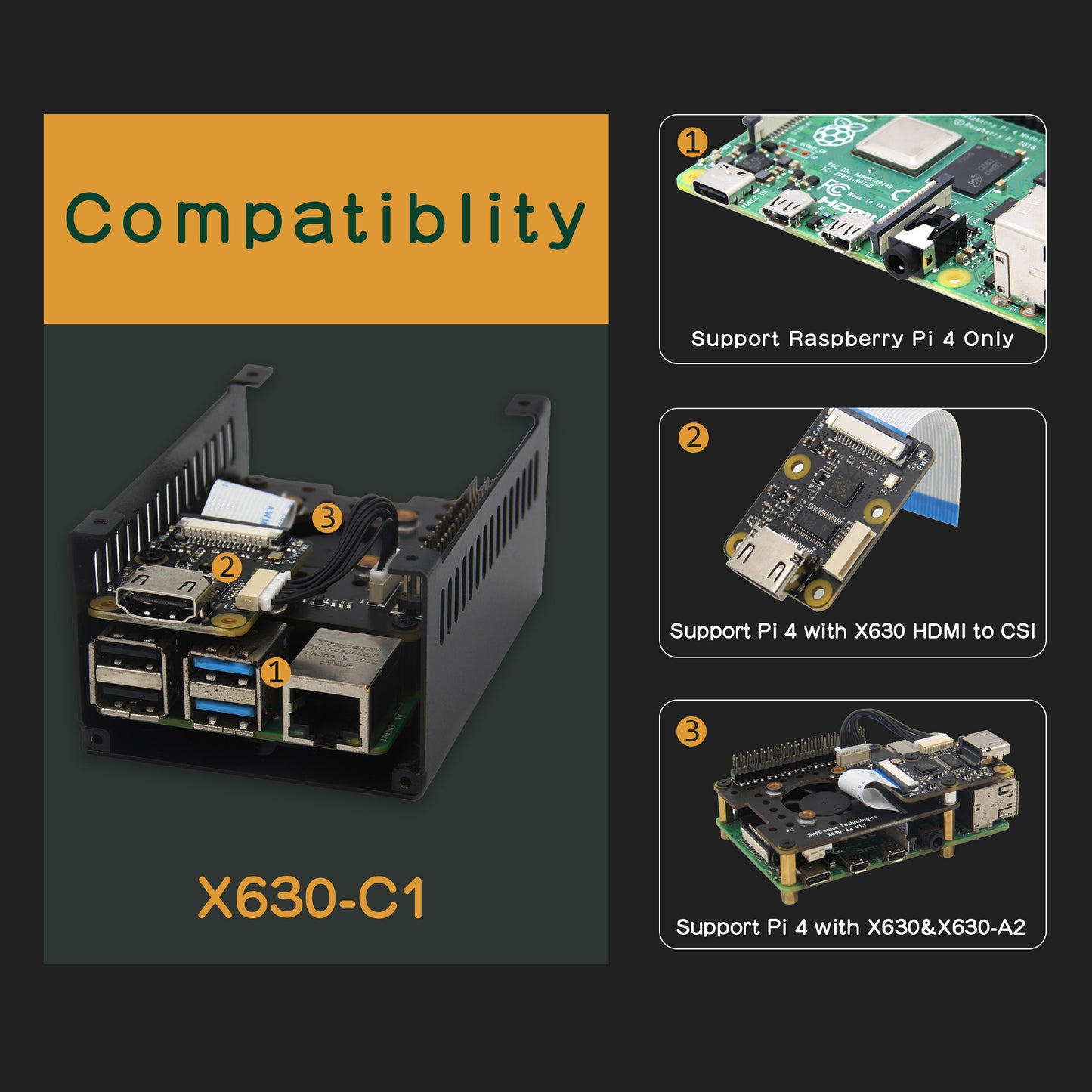

• Only support X630 Hdmi to CSI-2 Module, not support other Hdmi to CSI-2 versions.

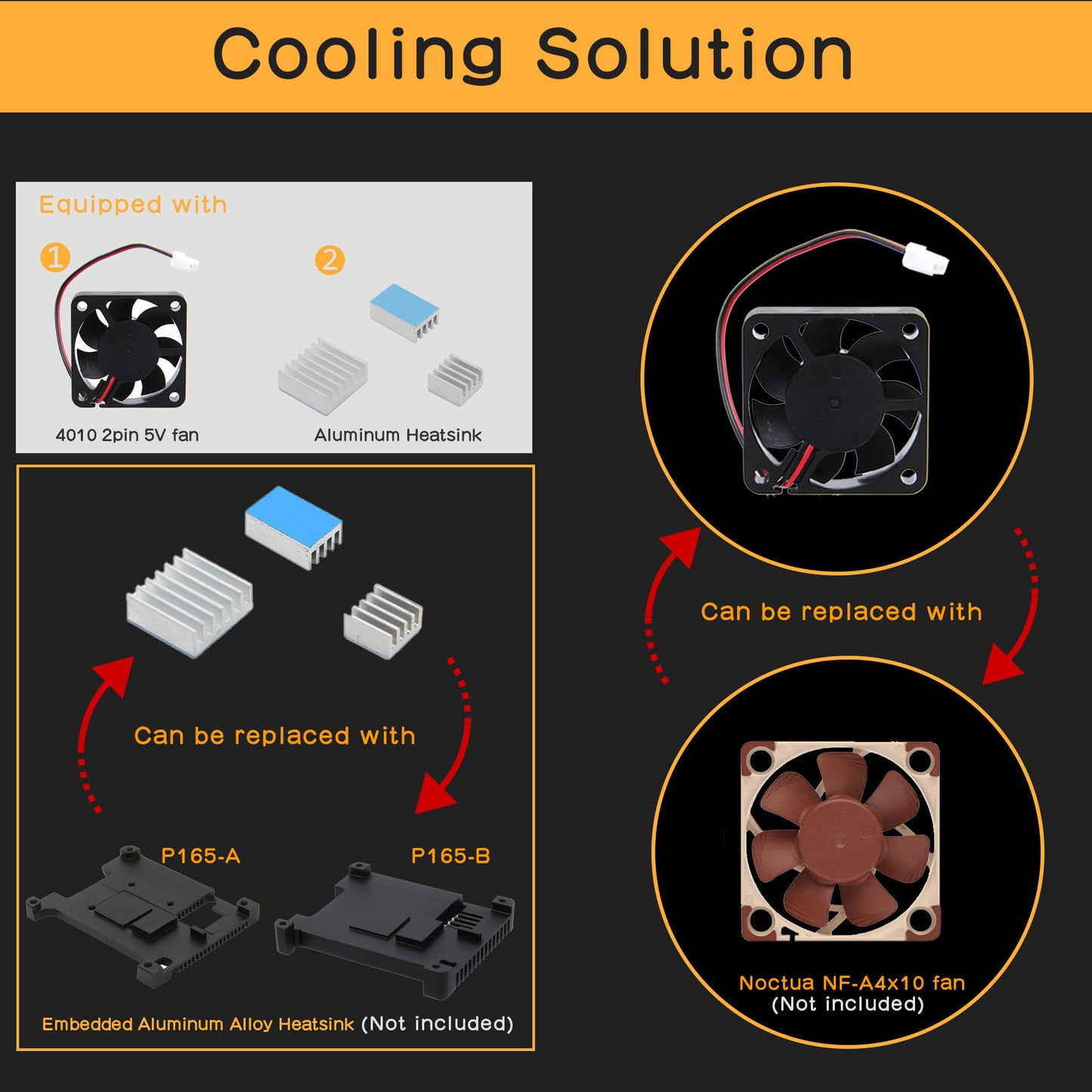

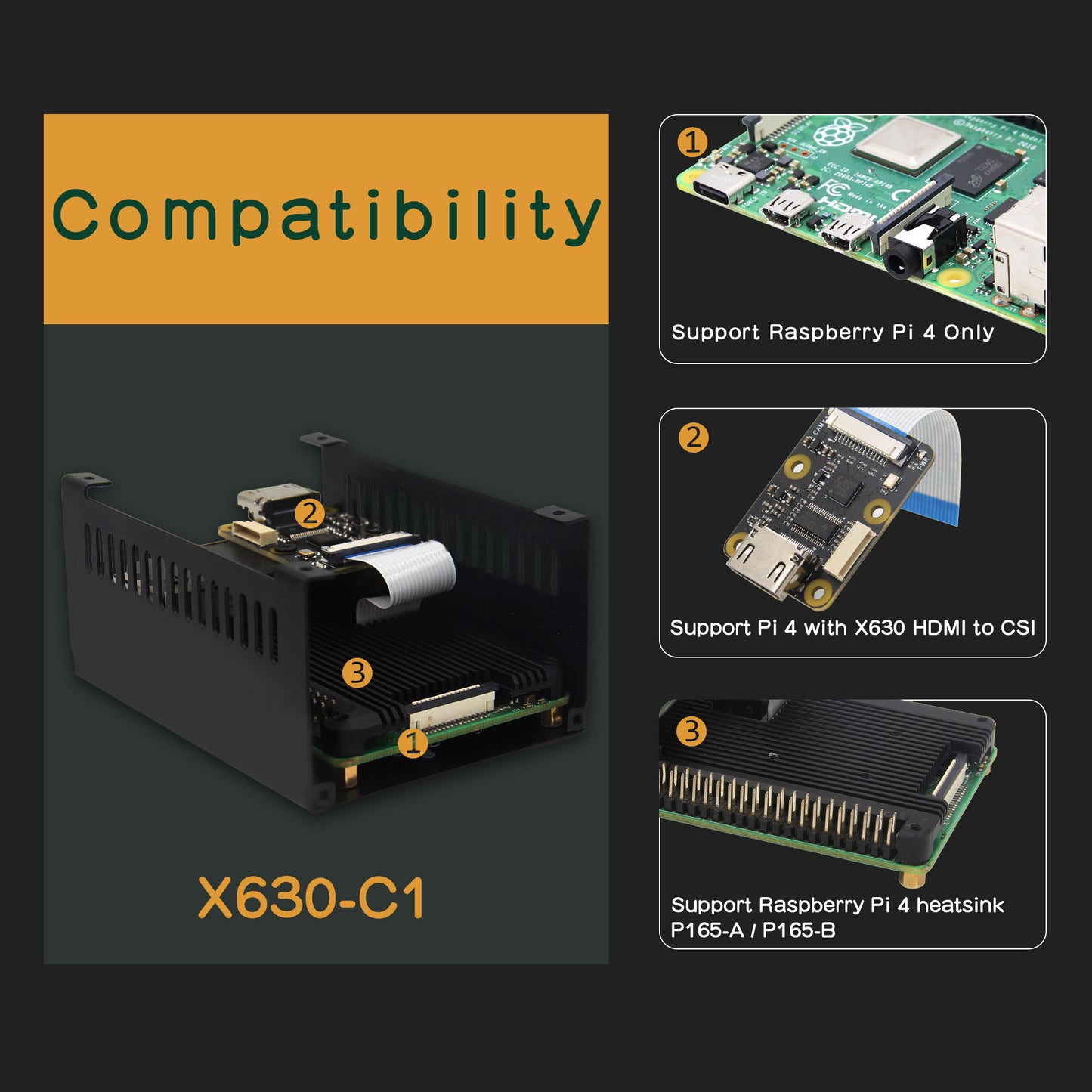

• To use P165-B heatsink with X630&X630-C1 you will need extra 2pcs M2.5*6+5/6mm spacers.
• X630-C1 can support X1300-A2 installation, but the X630 HDMI port maybe slightly high.

Overview:

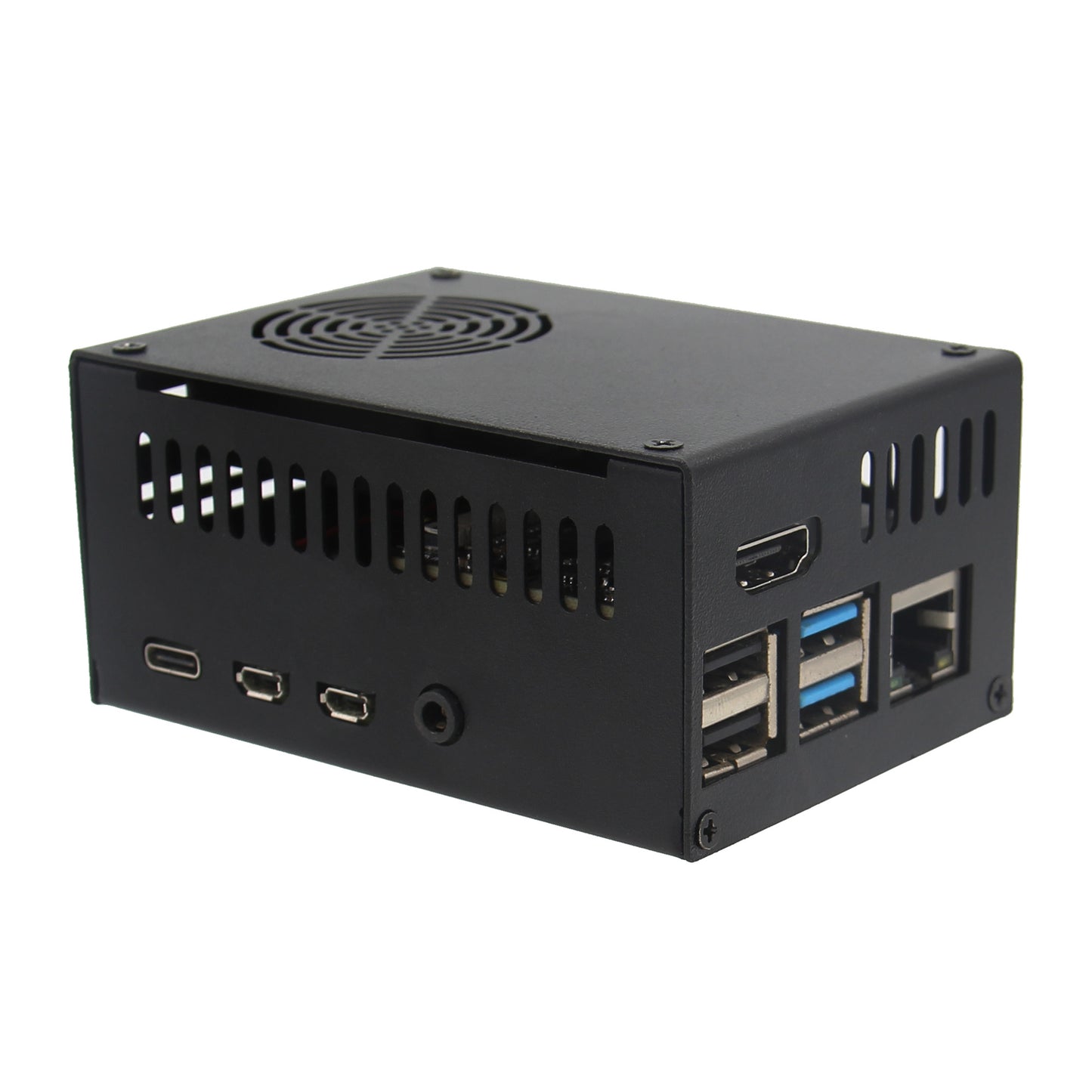

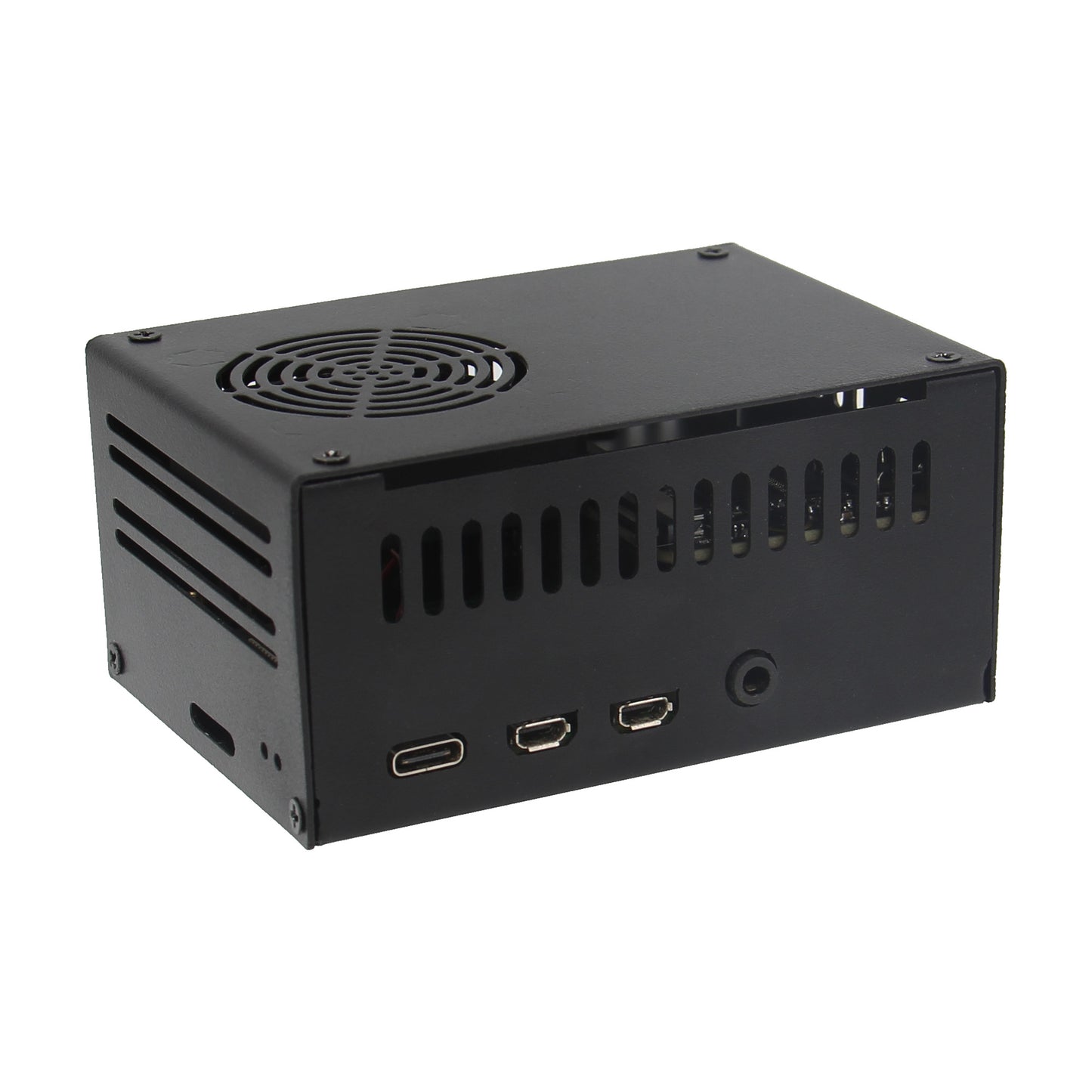

Geekworm X630-C1 metal case is a new Raspberry Pi 4 metal case specially designed for Raspberry Pi  4 Model B computer&X630 Hdmi to CSI-2 Module.  X630-C1 metal case is euipped with a 2pin 4010 cooling fan and 3pcs aluminum heatsinks for heat dissipation solution.

Please note the X630-C1 is only support  X630 Hdmi to CSI-2 Module, NOT SUPPORT other version Hdmi to CSI-2  module.

User Manual: wiki.geekworm.com/X630-C1

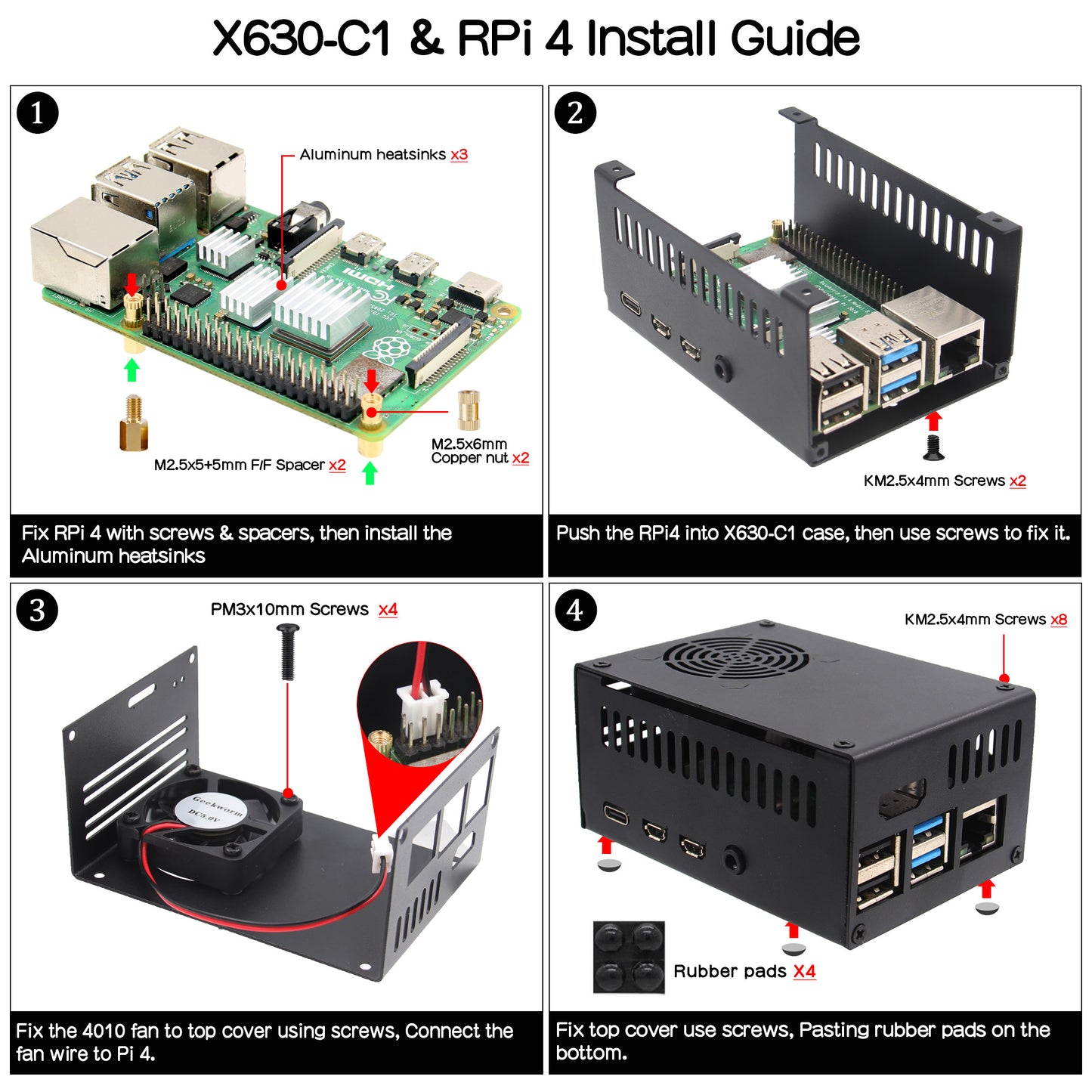

Installation Video: https://youtu.be/lJL2Ihs1aYg

Features:

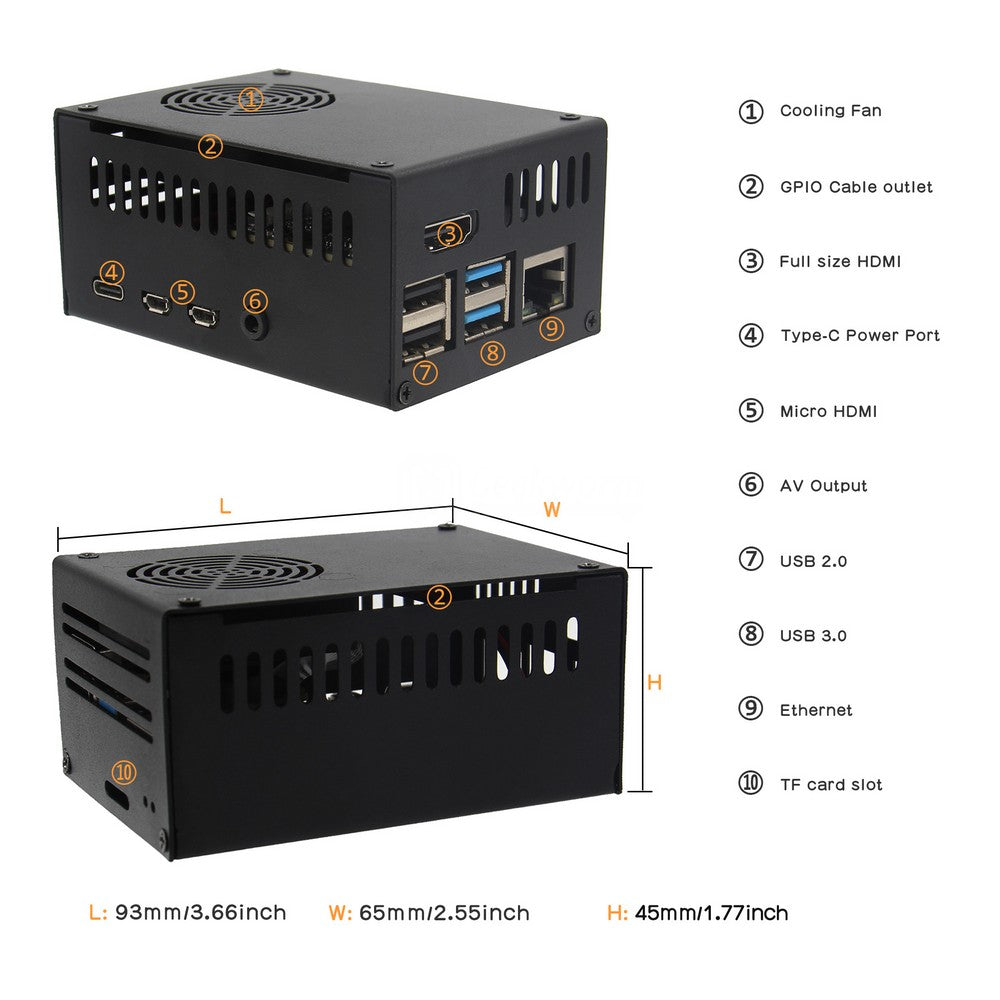

• With all ports and slots match with Raspberry Pi 4B perfectly
• TF card slot is reserved to insert and remove the SD card easily
• Only support Raspberry Pi 4 Model B with X630 Hdmi to CSI-2 Module
• Equipped with 4010 2pin 5V cooling fan

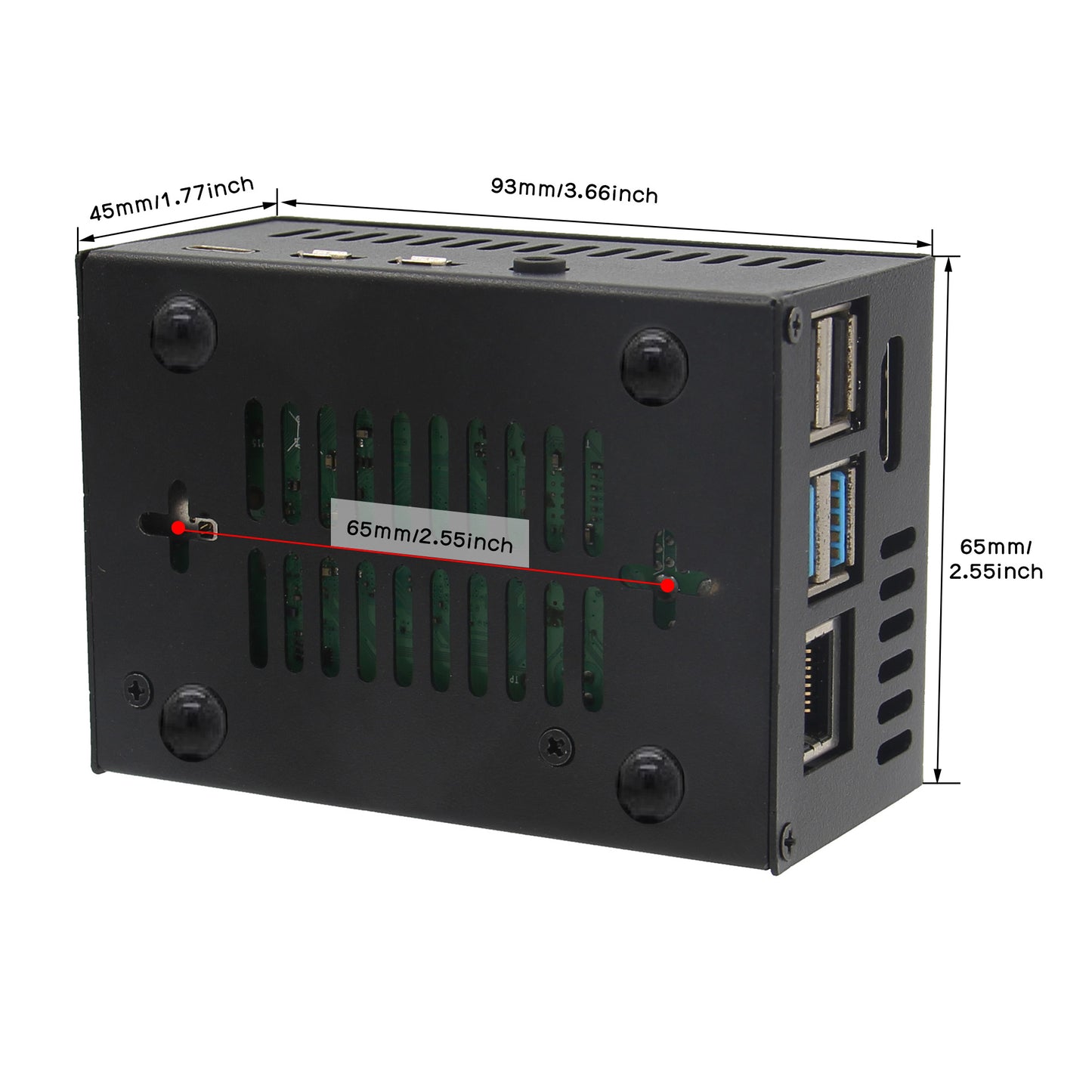

• The distance between the vesa mounting holes is 65mm
• Case Dimension: 121x90.5x45mm/4.76x3.56x1.77inch
• With 3 pcs aluminum heatsinks to stick on the Raspberry Pi 4 for better heat dissaption
• With 4pcs rubber feet for non-slip purpose

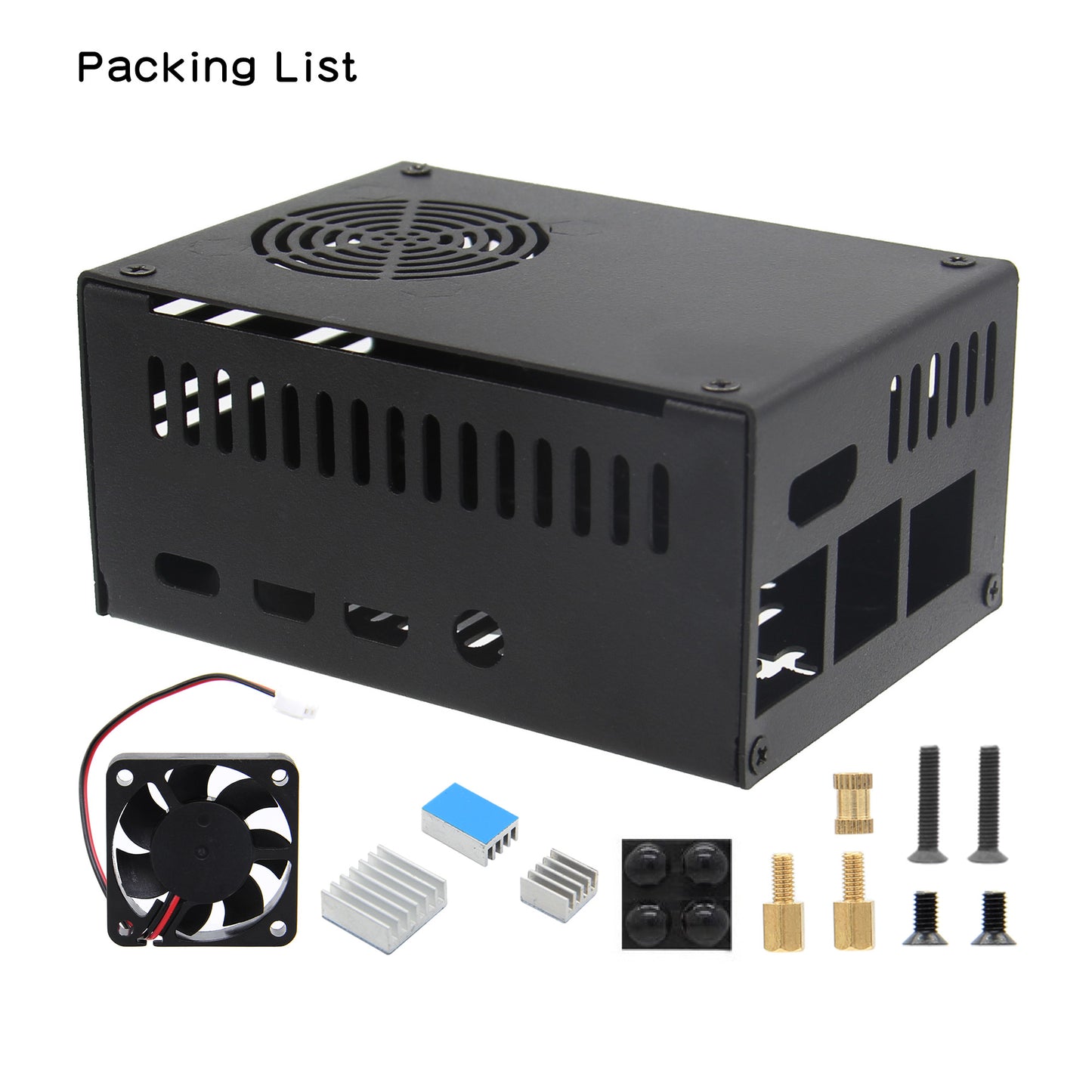

Packing List:

• 1x X630-C1 metal case
• 1x 4010 2pin cooling fan
• 1x3pcs aluminum heatsinks
• 1x screws pack;
