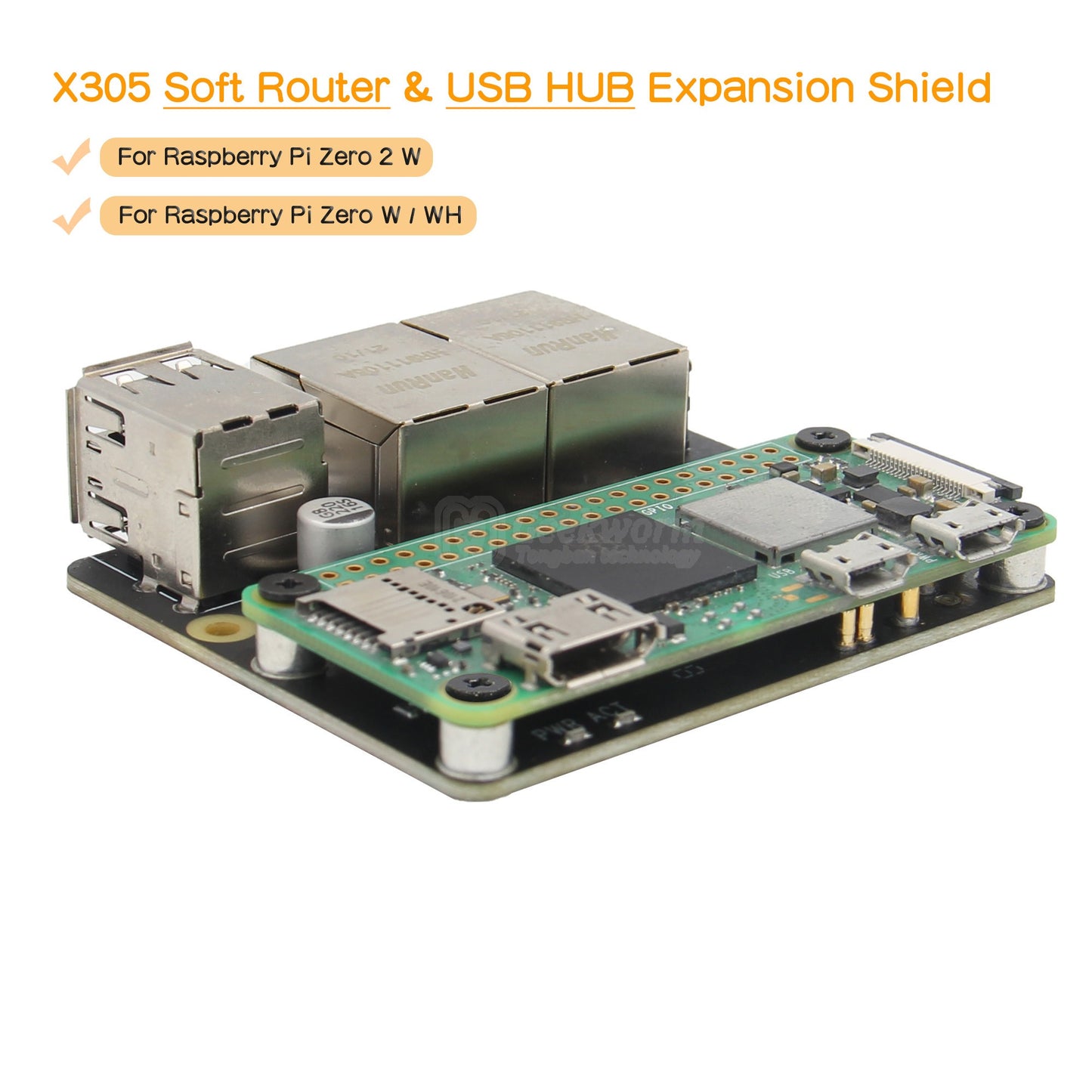

Geekworm X305 Soft Router Expansion Board & USB HUB for Raspberry Pi Zero W

Note:

• The Raspberry Pi and heatsink is not included in the packing list.
• Compatible with Pi Zero W, Power the Pi Zero W via pogo pins;
• DON'T compatiable with Pi Zero because the position of solder joint to power Pi Zero is different with Pi Zero W. BUT Pi Zero is still supported if you power Pi Zero and X305 separately.
• The micro usb OTG port of Raspberry Pi Zero W can not be used because it is occupied as USB OTG.
• The firmware is not support Raspberry Pi Zero 2W.

Overview

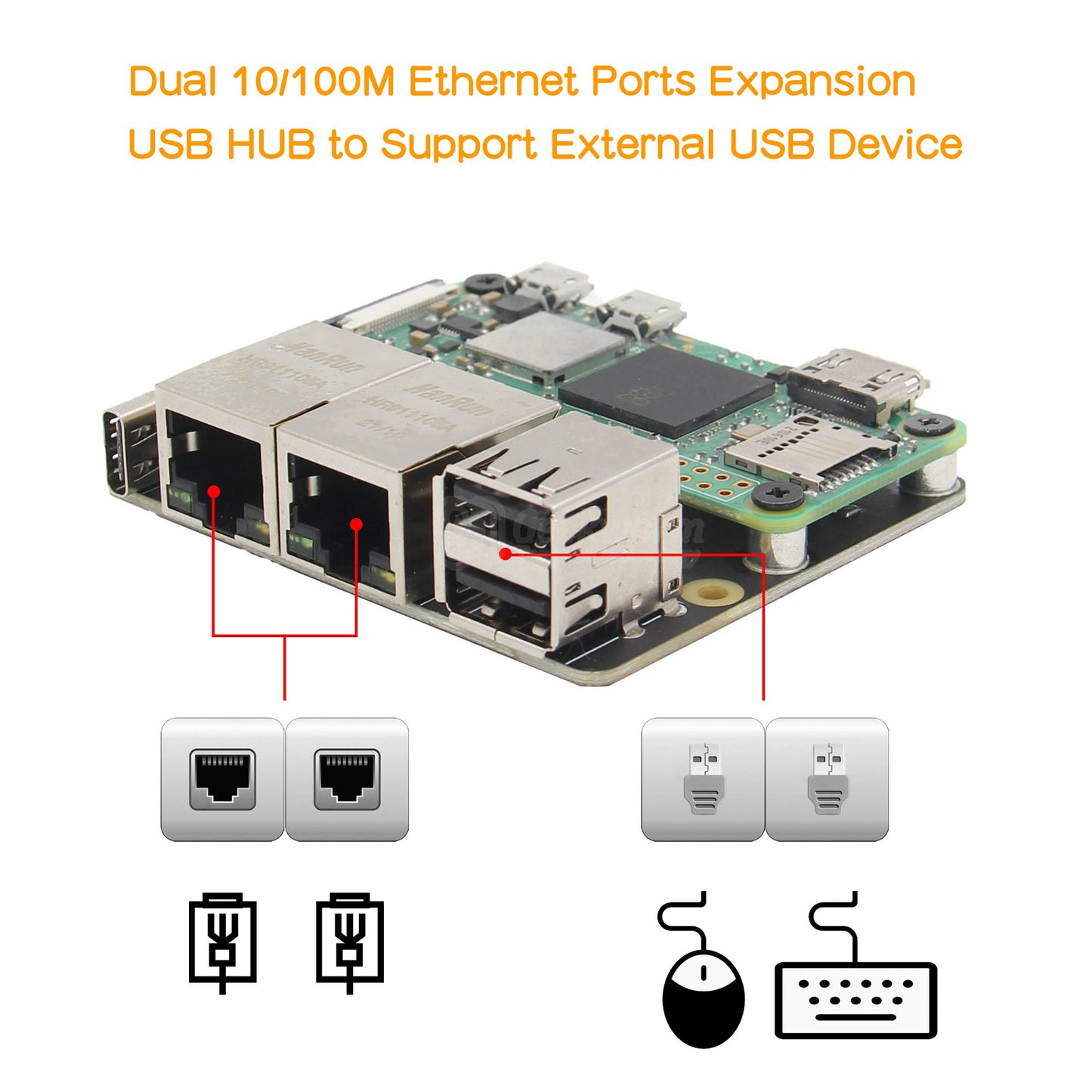

X305 is a soft router expansion board based on Raspberry Pi Zero W, it is fully compatible with Openwrt system, with 2 USB2.0, 2 100M Ethernet ports, powered by Type-C port, which is convenient for you to DIY your own router;

User Manual: https://wiki.geekworm.com/X305

Features

• Carrier Board designed for Raspberry Pi Zero W
• Equipped with dual 10/100M Ethernet ports
• Equipped with dual USB2.0 ports
• Ideal for soft router applications
• Fully compatible with OpenWrt without the need for drivers

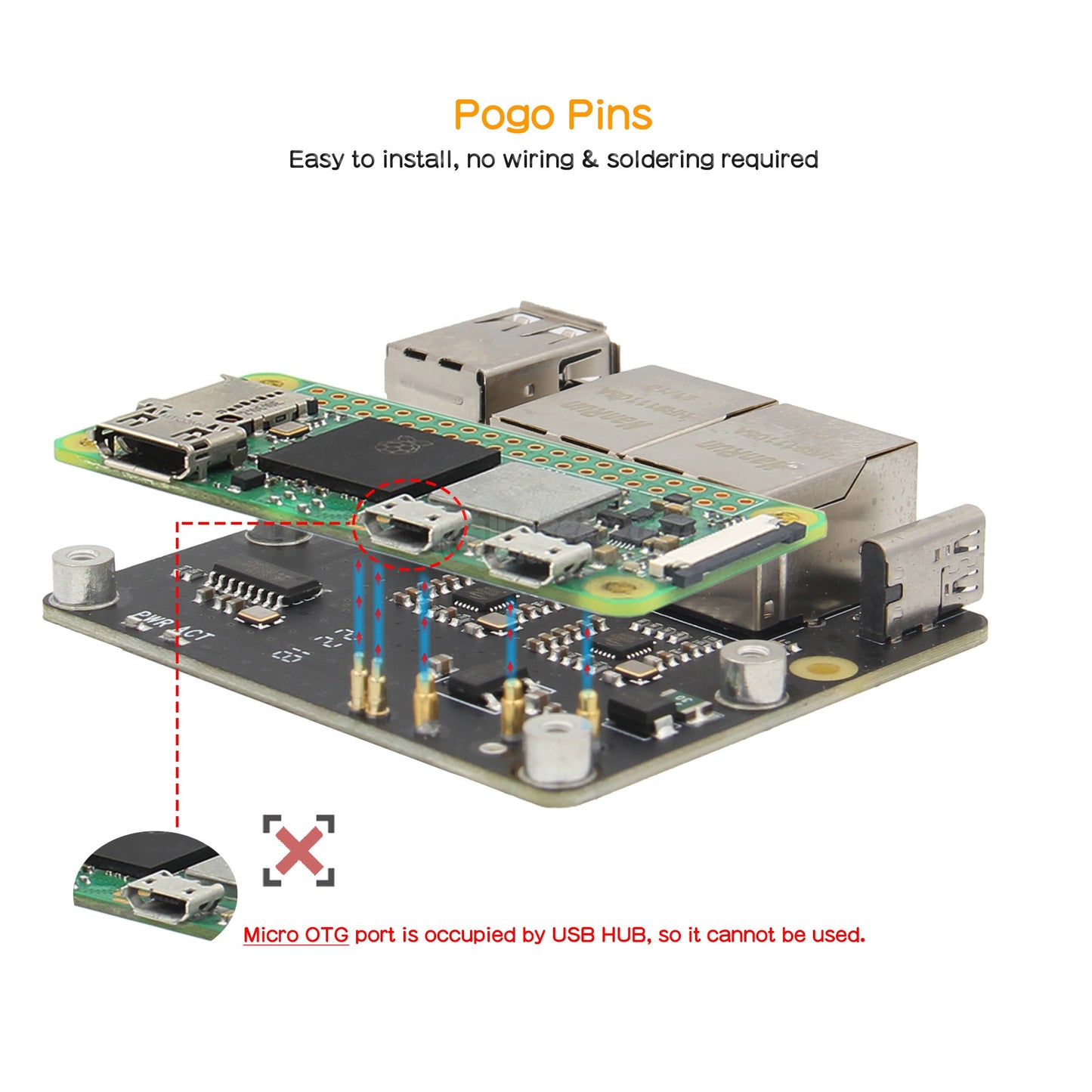

• Connects to the Raspberry Pi via Pogo Pins no wiring & soldering required
• Power using USB Type-C port

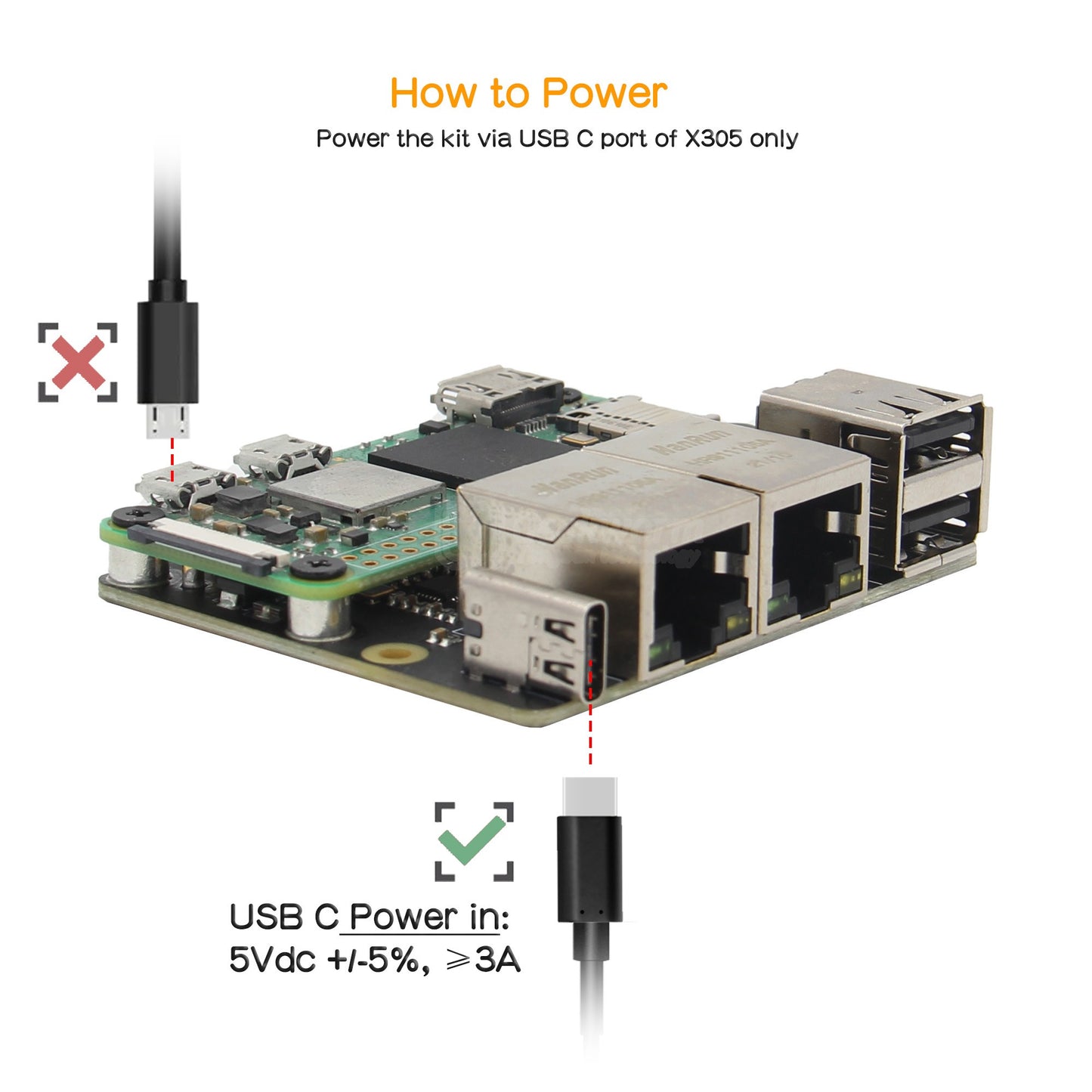

How to Power

• Power Input: 5.1Vdc +/-5% , ≥3A (Power Via USB Type-C port of X305)

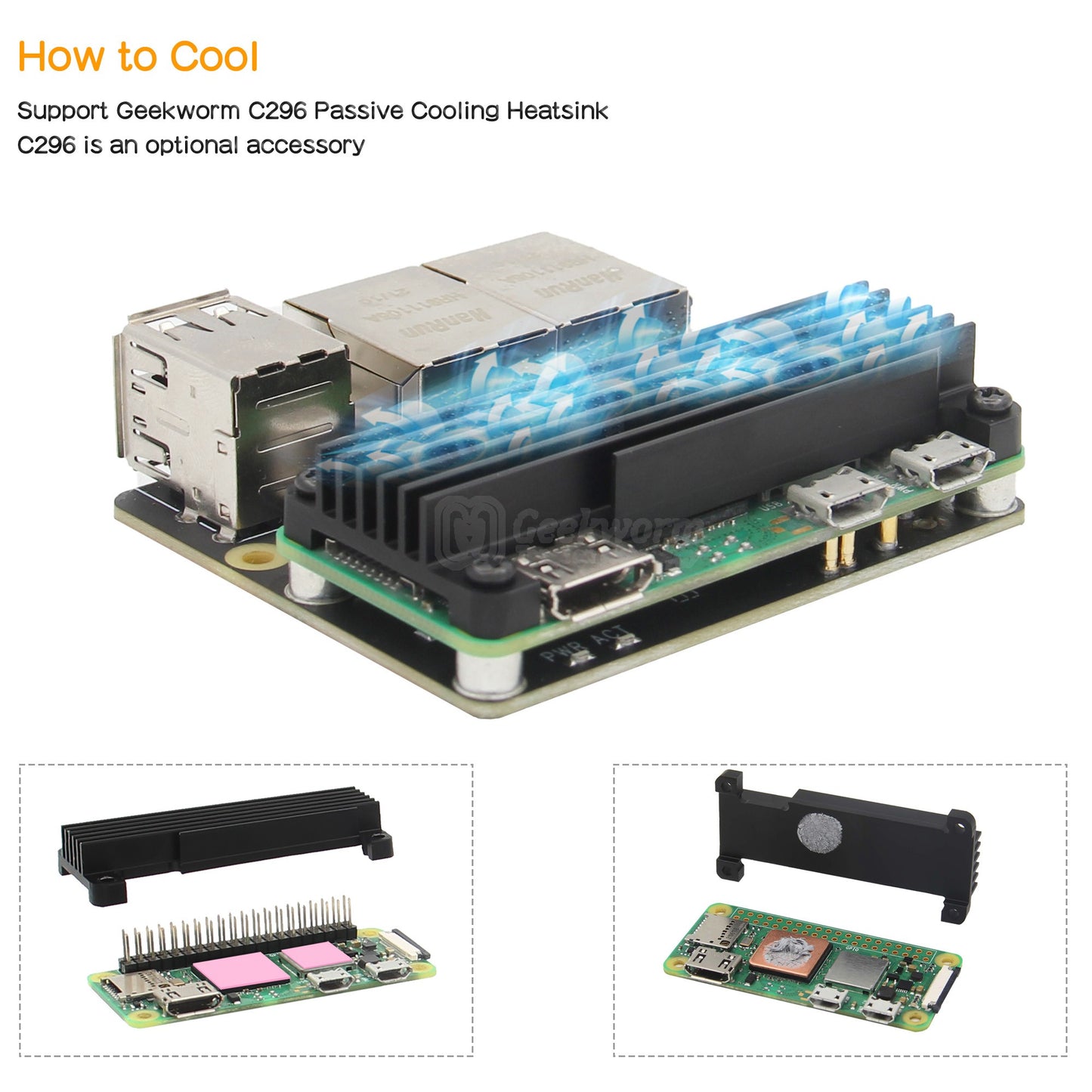

How to Cool

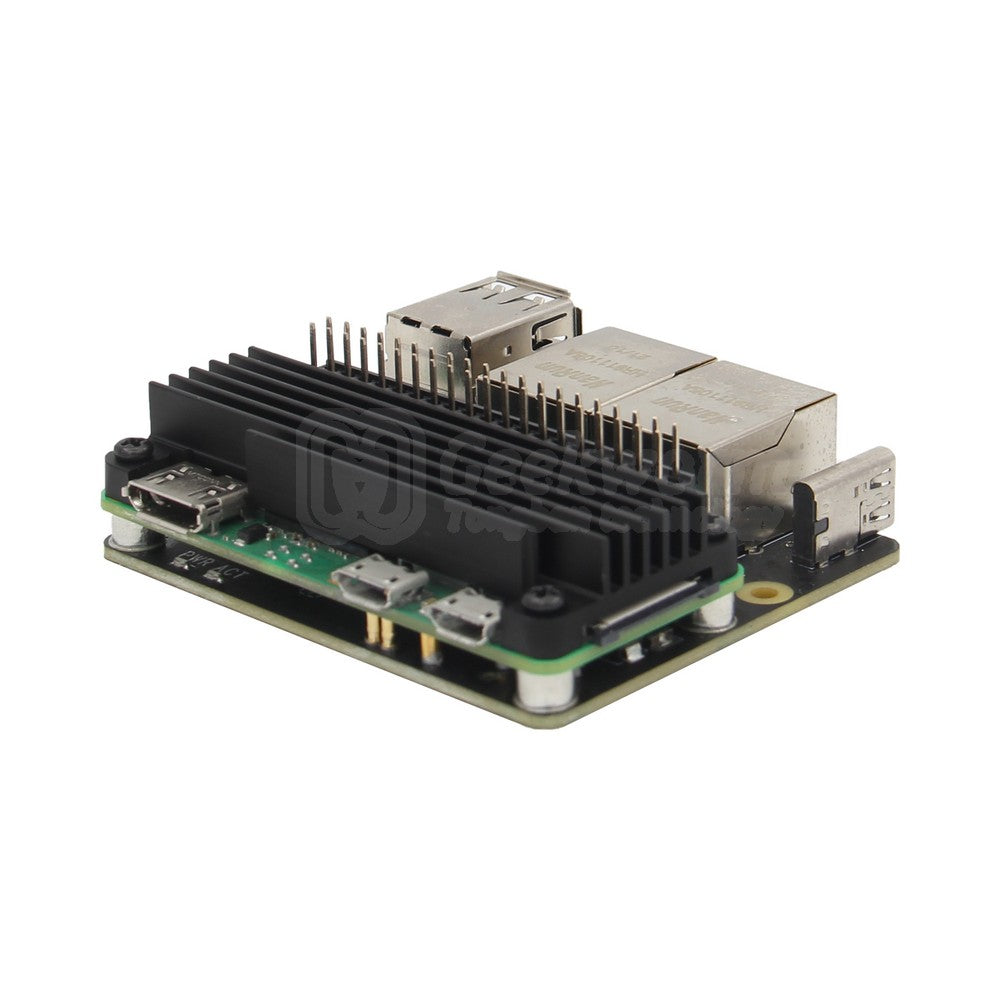

Recommend to use with Geekworm C296 aluminum alloy heatsink for Raspberry Pi Zero W. C296 also compatible with raspberry pi zero w by using thermal pads of different thicknesses, thermal pads for raspberry pi zero w is not included.

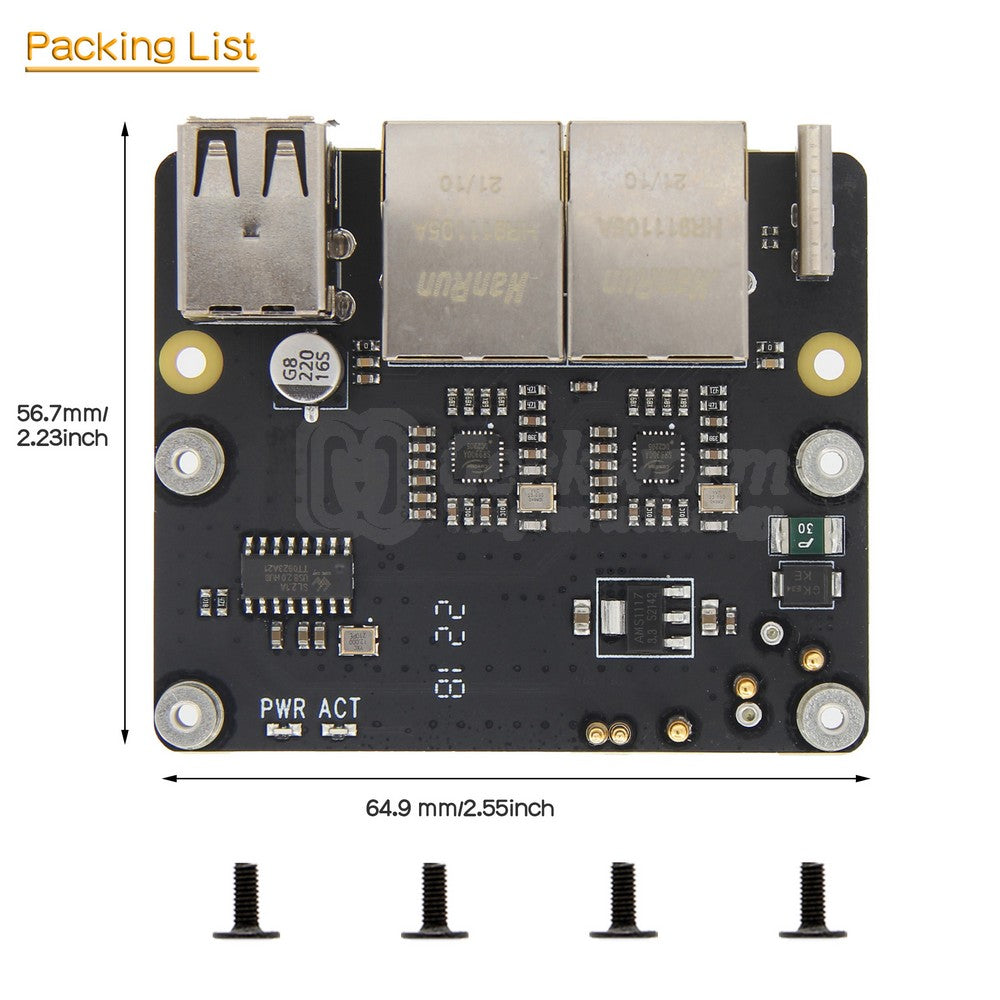

Packing List

• 1 x X305 V1.2 Soft Router Shield
• 4 x KM2.5 x 5mm Screws
