Raspberry Pi 5 /4B/3B+/3B 7 inch 1024x600 OSD Menu HDMI Capacitive Touchscreen Display w/ Case Bracket

Regular price
$60.00
Regular price
$65.00
Sale price
$60.00
-8%
Only 18 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

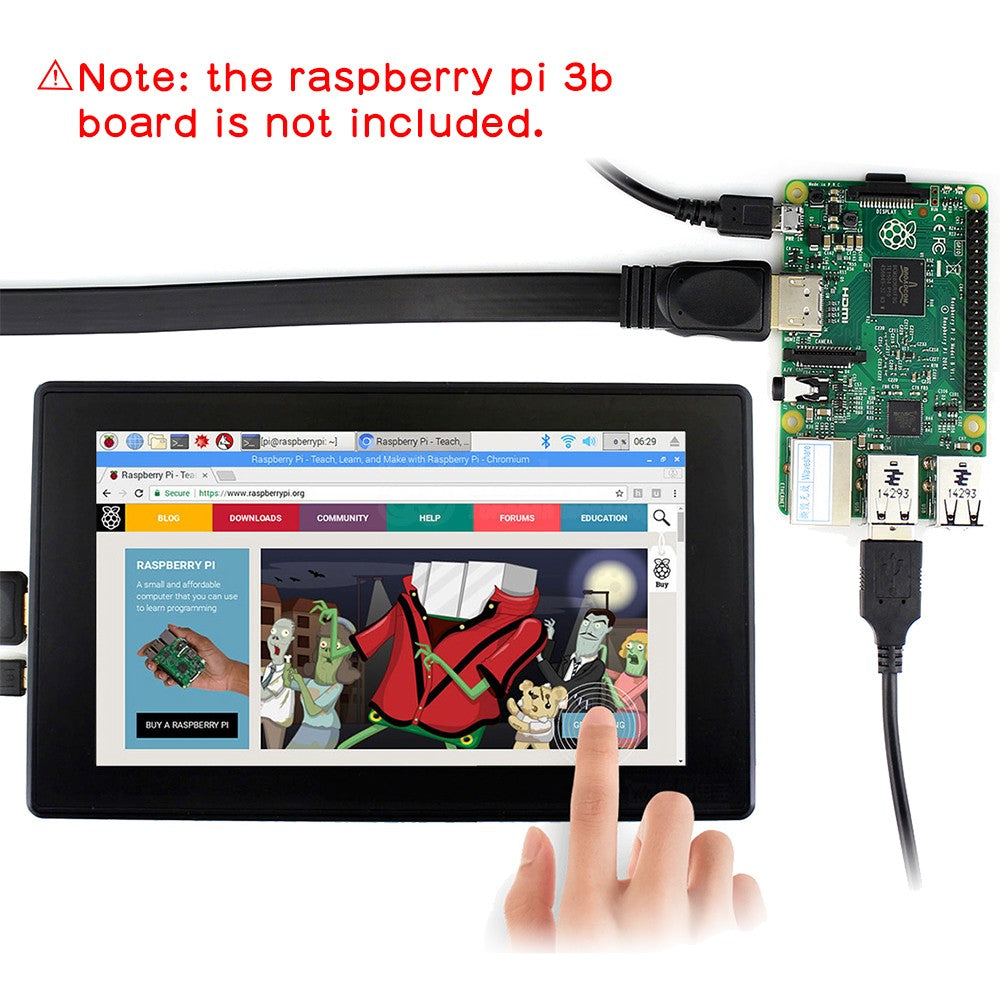

This Raspberry Pi 7 inch HDMI LCD Monitor (with case) and 1024x600 ultra clear resolution has very good relationship with Raspberry Pi 5, 4 Model B, Raspberry Pi 3 Model B+, Raspberry Pi 3 Model B, supports a variety of mini PC, also you can use it as a computer monitor.

Note: Each 7 inch HDMI touchscreen will be tested and 100% no quality problem before the shipment, and we will also pack the screen well to avoid the violent transportation during the internation shipping.

w800-dx

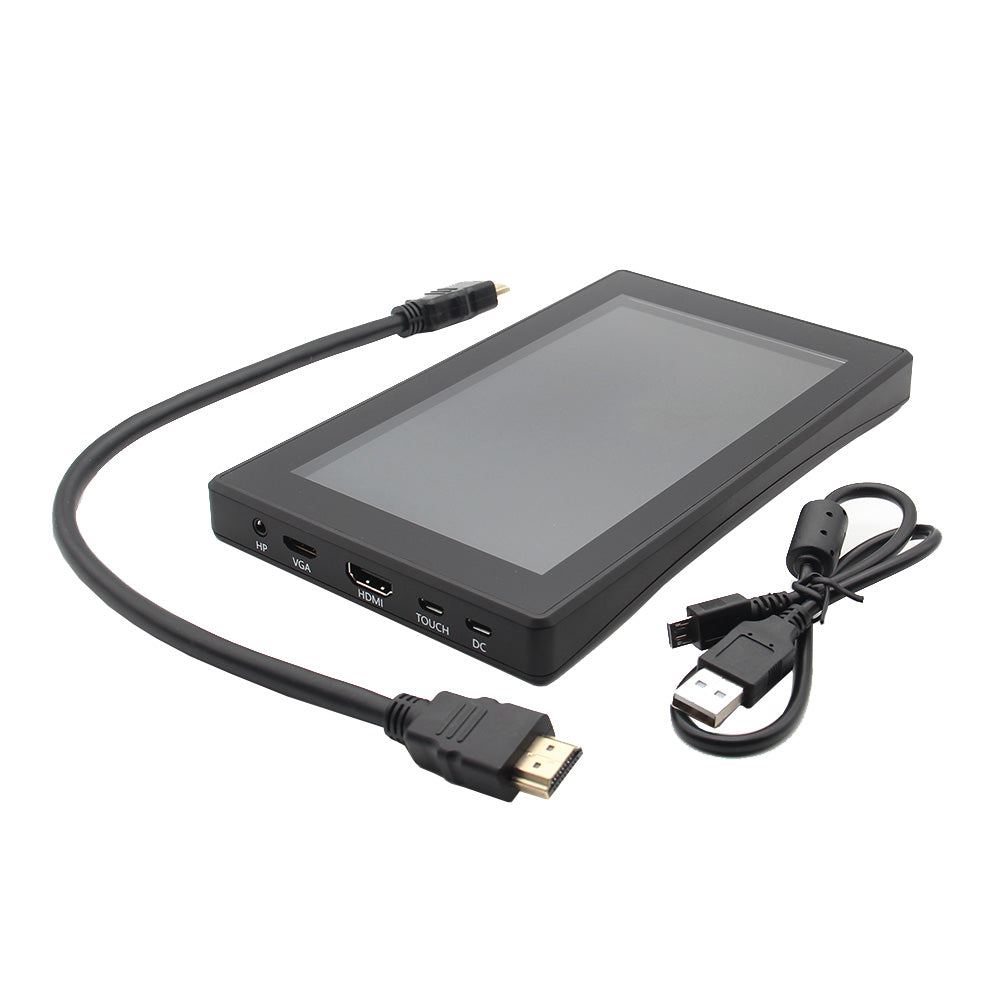

[Packing List]

  • 1 x 7 Inch IPS Screen
  • 1 x ABS Case with Stander
  • 1 x HDMI Cable (30cm length)
  • 1 x USB Cable (38cm length)

Overview

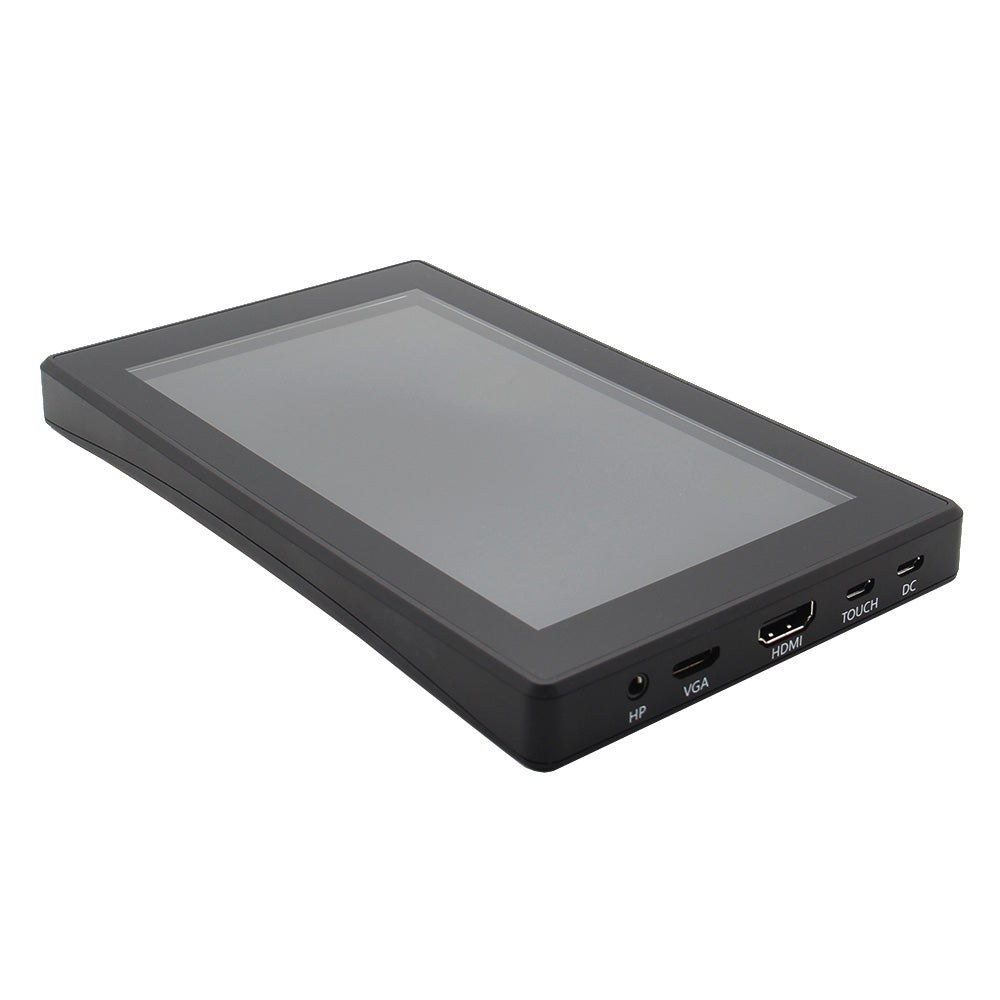

  • This is a universal IPS HDMI Display, 1024 × 600 resolution with tempered glass capacitive screen touch panel.
  • Not only supports Raspberr Pi, but also supports Banana Pi, Beaglebone, other Mini PC ect.

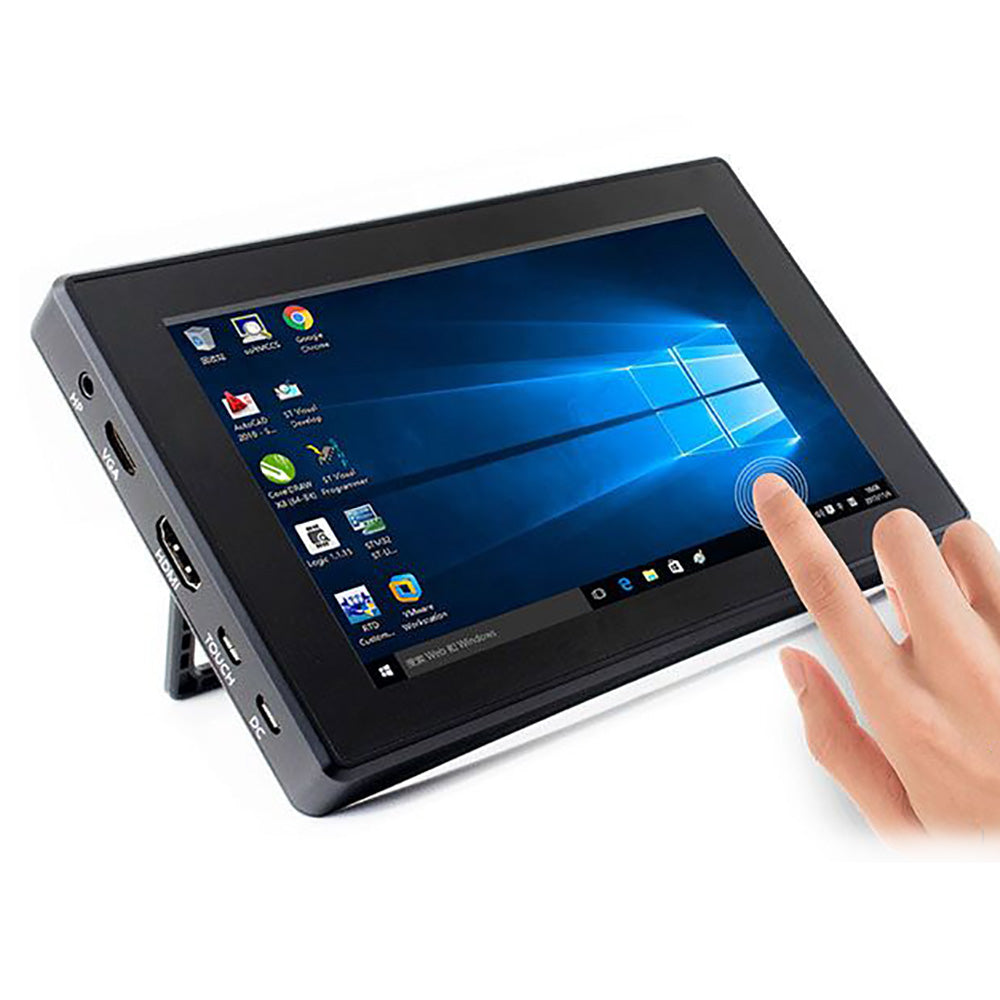

  • This screen can be used as a computer monitor, supports windows10.

[Discripiton]

  • Plug and play!
  • 7inch IPS screen;
  • 1024x600 hardware resolution, onfigurable by software (up to 1920x1080);
  • Toughened glass capacitive touch panel, 6H hardness;
  • Supports popular mini PC such as Raspberry Pi, BB Black, Banana Pi;
  • Supports Raspbian, Ubuntu, WIN 10 IOT, single touch and driver free;

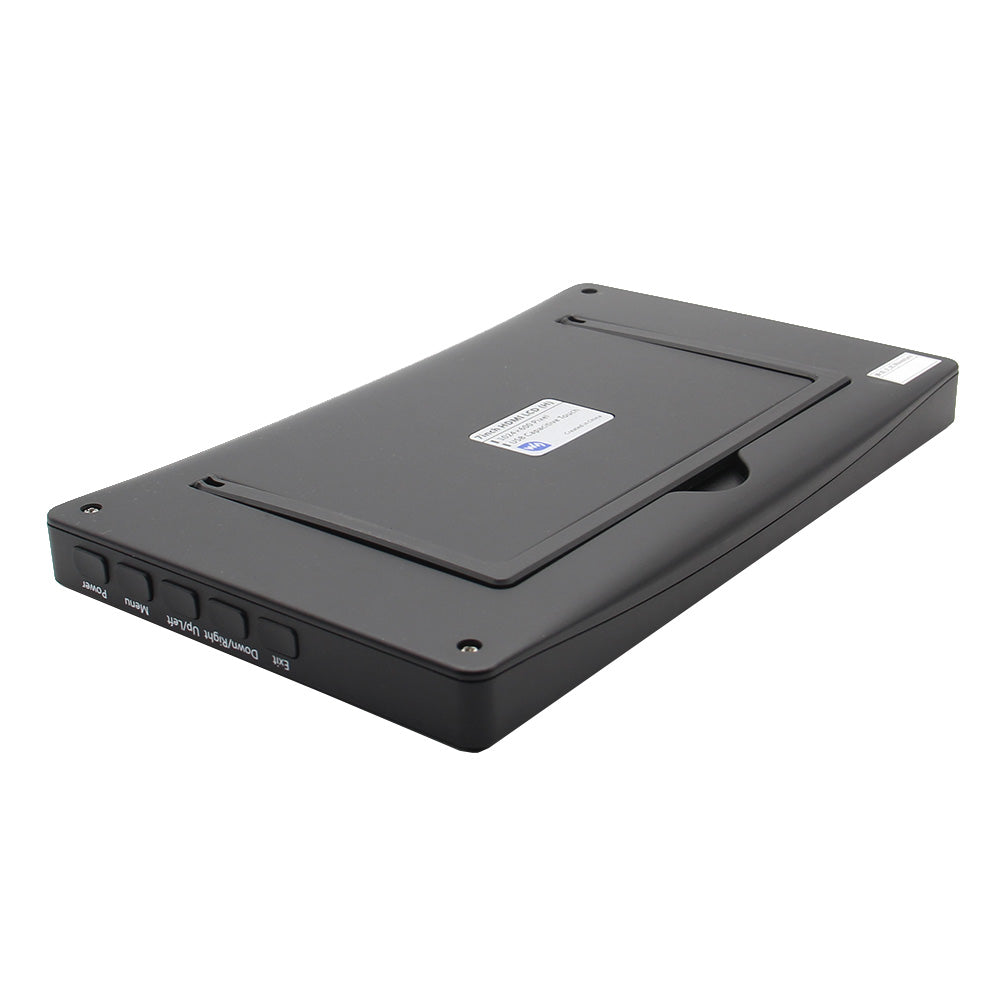

  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc
  • 3.5mm audio jack;
  • Supports HDMI audio output;
  • Supports VGA input;

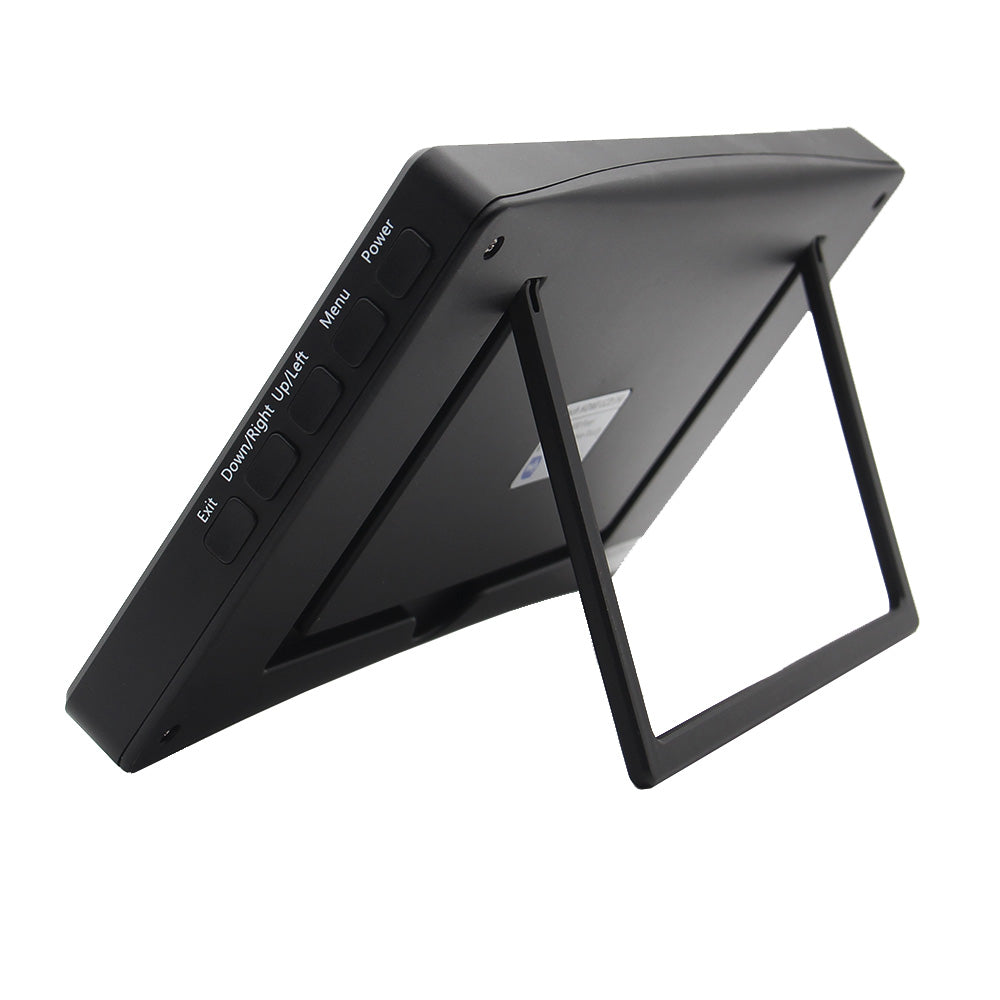

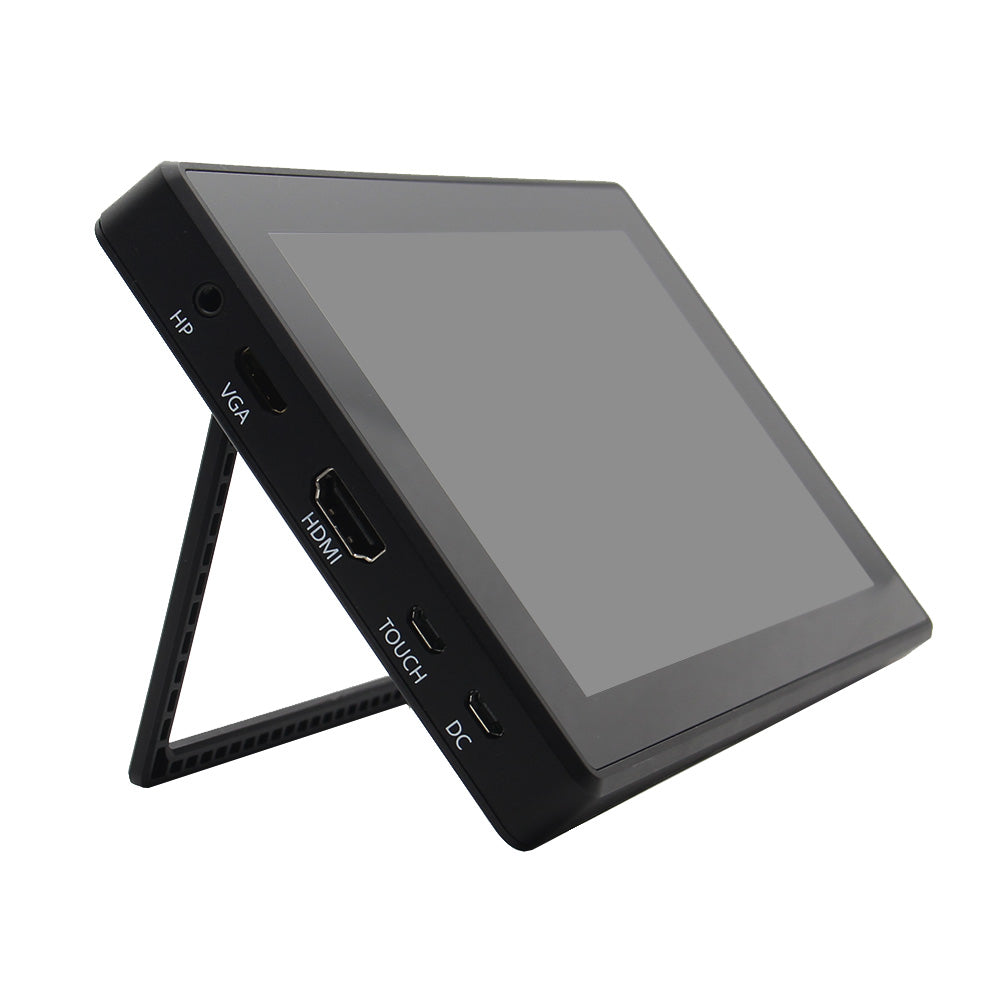

  • With high quality PC case, optional tilt angle: 30°/50°

[Applications]

  • Raspberry Pi 4 Model B
  • Raspberry Pi 3 Model B+
  • Raspberry Pi 3 Model B
  • Raspberry Pi 2B
  • Raspberry Pi B+
  • BB Black
  • Banana Pi
  • Mini PC


How to set Display Rotate and Touch Rotate?

-w800

[Package for shipment]

-w600

[FAQ]

1/ Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

2/ Why the LCD still doesn't work with the waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on,
it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

3/ Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

[User Manual] https://wiki.geekworm.com/7_inch_HDMI_LCD_(H)

Refer to: https://wiki.geekworm.com/7_inch_HDMI_LCD_(H)

Please email to us at info@geekworm.com if you have other questions.
