New Version LVDS to HDMI Adapter Board

by Cindy Ding on November 09, 2020

In october 2020, the LVDS To HDMI Adapter Board Converter has been updated to a new version.

The new version LVDS to HDMI Adapter Board can be change the double 8 and single 8 mode by set the jumper caps.

This board is limited to LVDS output, the resolution can be the VESA or JEIDA standard, and the driver board should be at least V59 grade, or the driver board is not available.

Pin Connection: 2 x 40Pin

Because it is the DIY product, so sometimes there may be the compatibility problem. When it shows no signal or no sound, it may be the compability problem.

It is not recommend to use with 4K TV as it may have some compability problem.



LVDS input:
Double 8, Support 1080P (1920*1080)
Single 8,Support 720P/768P/960P

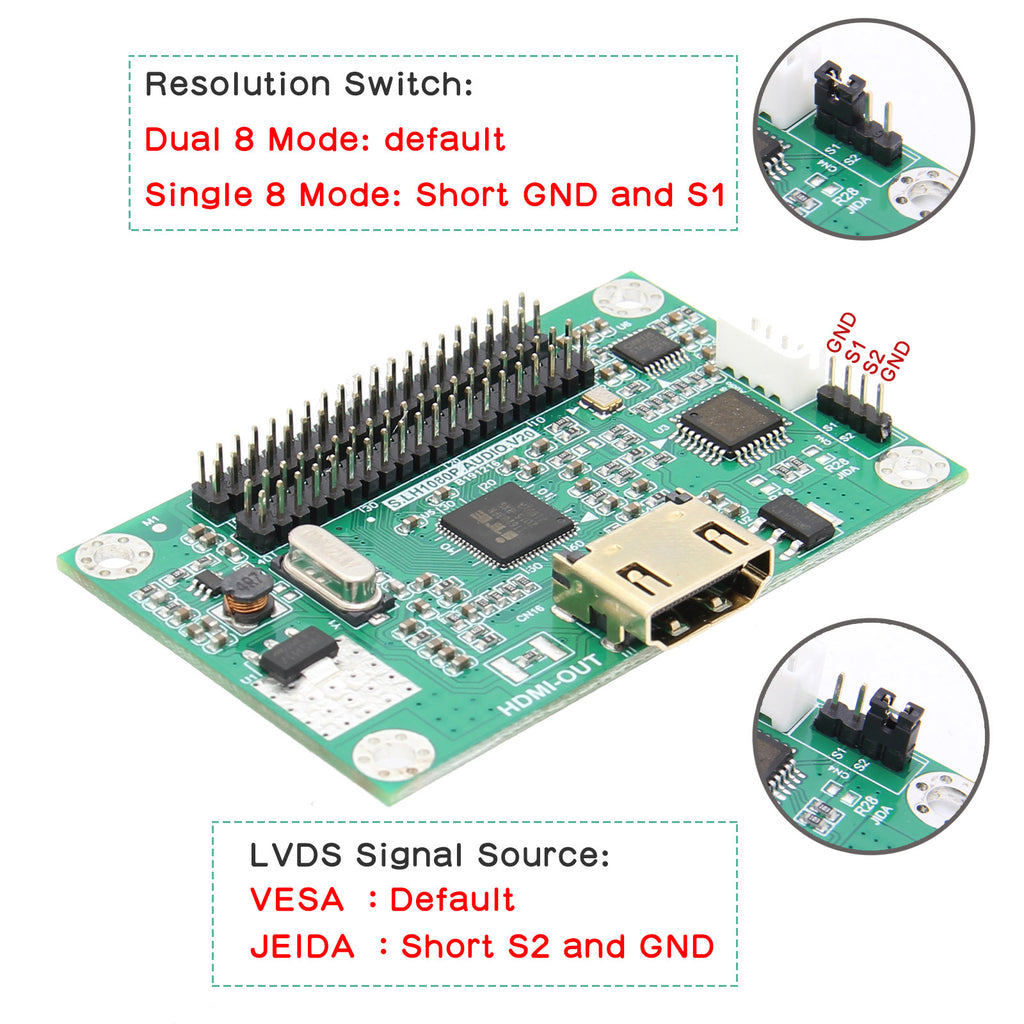

Resolution switch: The default is Dual 8 mode, please short GND and S1 if you need Single 8 mode.
LVDS signal source: The default is VESA, please short S2 and GND if you need JEIDA.

WIKI for reference: https://raspberrypiwiki.com/LVDS_Adapter
